TOYOTA HIGHLANDER HYBRID 2019 Accessories, Audio & Navigation (in English)

8
301
HIGHLANDER_Navi_U
4
5
6
7
9
1
2
3
8
1. ROUTE GUIDANCE SCREEN ..... 333
SCREEN FOR ROUTE GUIDANCE ....................................... 333
ROUTE OVERVIEW............................ 334
DURING FREEWAY DRIVING............ 335
WHEN APPROACHING INTERSECTION ............................... 336
TURN LIST SCREEN .......................... 337
TURN-BY-TURN ARROW SCREEN ........................................... 337
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 338
3. EDITING ROUTE ......................... 339
ADDING DESTINATIONS ................... 340
REORDERING DESTINATIONS ......... 340
DELETING DESTINATIONS ............... 340
SETTING ROUTE PREFERENCES ............................... 341
SELECTING ROUTE TYPE ................ 341
DETOUR SETTING ............................. 342
1. MEMORY POINTS SETTINGS ................................. 344
SETTING UP HOME ........................... 345
SETTING UP PRESET
DESTINATIONS................................ 346 SETTING UP ADDRESS BOOK.......... 348
SETTING UP AREAS TO
AVOID ............................................... 350
DELETING PREVIOUS DESTINATIONS ................................ 352
1. DETAILED NAVIGATION SETTINGS ................................. 353
SCREENS FOR NAVIGATION
SETTINGS ........................................ 353
2. TRAFFIC SETTINGS................... 357
SCREEN FOR TRAFFIC
SETTINGS ........................................ 357
AUTO AVOID TRAFFIC....................... 358
MY TRAFFIC ROUTES ....................... 359
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 363
LIMITATIONS OF THE
NAVIGATION SYSTEM..................... 363
2. MAP DATABASE VERSION AND COVERED AREA ............. 365
MAP INFORMATION ........................... 365
ABOUT THE MAP DATA ..................... 366
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: Entune Premium Audio only

302
HIGHLANDER_Navi_U
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
306
Options buttonSelect to display the “Navigation Options” screen.304
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.363
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance fo r traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
314
Scale indicatorThis figure indicate s the map scale.305

303
1. BASIC OPERATION
HIGHLANDER_Navi_U
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.305
Current position
button/voice
guidance button Select to display the current position address.
 Select to repeat voice guidance.338
Destination but-
tonSelect to display the “Destination” screen.317
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.310
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
333
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
333
No.NameFunctionPage

304
1. BASIC OPERATION
HIGHLANDER_Navi_U

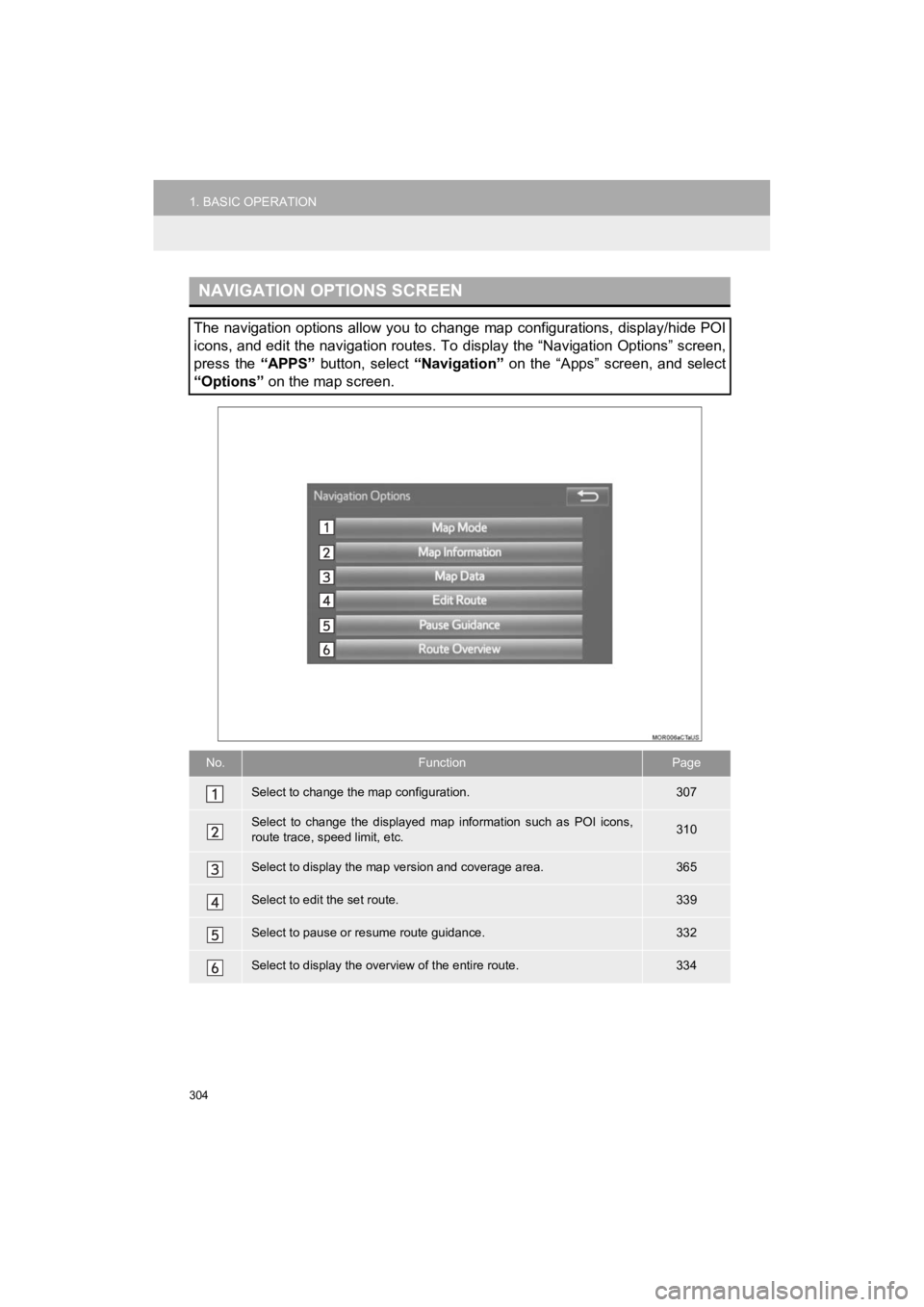

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigati on Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.307
Select to change the displayed map information such as POI icon s,
route trace, speed limit, etc.310
Select to display the map version and coverage area.365
Select to edit the set route.339
Select to pause or resume route guidance.332
Select to display the over view of the entire route.334

305
1. BASIC OPERATION
HIGHLANDER_Navi_U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 3 5 5
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

306
1. BASIC OPERATION
HIGHLANDER_Navi_U
1Select , or .
 North-up screen
 Heading-up screen
 3D screen : North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up. The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.

307
1. BASIC OPERATION
HIGHLANDER_Navi_U
NAVIGATION SYSTEM
8
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 307
Select to display the dual
map screen.307
Select to display the com-
pass mode screen.308
Select to display the turn list
screen.337
Select to display the free-
way exit list screen.335
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
336
Select to display the turn-
by-turn arrow screen.337

308
1. BASIC OPERATION
HIGHLANDER_Navi_U
Editing right map
1Select any point on the right side map.
2Select the desired item.
When set to on, the indicator will illumi-
nate.
■COMPASS
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.306
Select to display POI icons.310
Select to show traffic infor-
mation. 314
Select to change the map
scale.305
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.

309
1. BASIC OPERATION
HIGHLANDER_Navi_U
NAVIGATION SYSTEM
8
To scroll over the map screen, place the
cursor mark in the desired position and
then touch and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.
SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( P.329)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
 P.348
Select to return to the current posi-
tion.
ADJUSTING LOCATION IN
SMALL INCREMENTS
The cursor location can be adjusted in
small increments when “Adjust Loca-
tion” is selected on the setting map
screen.
Also, when changing the location of
memory points on the editing screen
(  P.350) and adjusting the current po-
sition mark manually on the “Calibra-
tion” screen ( P.355), 8 directional
arrows may appear for this purpose.

310
1. BASIC OPERATION
HIGHLANDER_Navi_U
3. MAP SCREEN INFORMATION
1Select “Options” on the map screen.
2Select “Map Information” .
3Select the desired items to be dis-
played.
When set to on, the indicator will illumi-
nate.
1Display the “Map Information” screen.
( P.310)
2Select “Select POI” .
When the POI icons to be displayed on
the map screen have already been set,
“Change POI” is displayed.
3Select the desired POI category and
select “OK”.
DISPLAYING MAP
INFORMATION
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No.FunctionPage
Select to display the select-
ed POI icons.
Select to select or change
POI icons.310
Select to display route
trace.312
Select to display speed limit
icon.
Select to display traffic infor-
mation.314
SELECTING THE POI ICONS
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen
Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories354
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
311
Select to search for the
nearest POIs.311
