TOYOTA HIGHLANDER HYBRID 2019 Owners Manual (in English)

2 0 19
www.toyota.com/owners
CUSTOMER EXPERIENCE CENTER
1- 8 0 0 - 3 31- 4 3 31
Printed in U.S.A. 08/18
18 -MKG -1208 8
QUICK REFERENCE GUIDE
HIGHLANDER HYBRID
49193a_18-MKG-12088_QRG_Cover_Highlander_HYBRID_1_tg.indd 18/13/18 4:49 PM

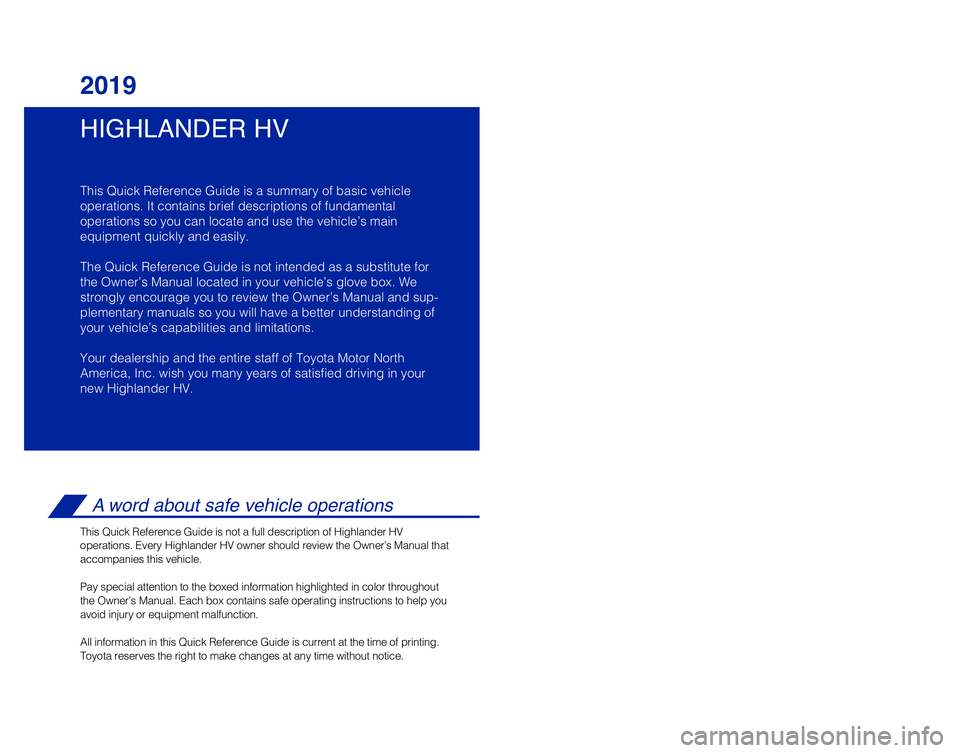

HIGHLANDER HV
2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and sup-
plementary manuals so you will have a better understanding of
your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Highlander HV.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Highlander HV
operations. Every Highlander HV owner should review the Owner’s Manual that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
57
49193a_18-MKG-12088_QRG_Cover_Highlander_HYBRID_1_tg.indd 28/13/18 4:49 PM

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning/heating 24
Audio
22
Auto lock/unlock
1 12
Bird’s Eye View Camera
with Perimeter Scan function 29
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 27
Clock 12
Door locks
1,2 12
Driver Easy Speak 23
ECO drive mode 11
EV drive mode 11
Garage door opener (HomeLink
®)3 23
Hybrid Synergy Drive System 10
Hybrid transmission 11
Intelligent parking assist 28
Lights
1,2 & turn signals1 19
Moonroof1 14
Multi-Information Display (MID)2 20
Panoramic moonroof 14
Parking brake 12
Power Liftgate (back door)
1,2 15
Power outlets-12V DC 21
Power outlets-120V AC 21
Rear seat entertainment system 23
Rear view monitor system 26
Seat adjustments-Front 16
Seat adjustments-Rear 17
Seat heaters/ventilators 25
Seats-Head restraints 17Seats-Stowing &
returning 3rd row seats 17
Steering lock release
21
Steering wheel switches &
telephone controls (Bluetooth
®) 13
Steering wheel-Hearer 25
Tilt & telescopic steering wheel 16
USB charge-ports 21
USB media/AUX port 20
Vehicle Stability Control (VSC)/
TRAC OFF switch 26
Windows-Power
1 18
Windshield wipers & washers1 18
Automatic High Beams (AHB) 40
Dynamic Radar
Cruise Control (DRCC) 36-39
Lane Departure Alert with
Steering Assist (LDA w/SA) 33-36
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 31-33
Quick overview-
Toyota Safety Sense™ P (TSS-P) 30
Sensors 30
BLUETOOTH® DEVICE
PAIRING SECTION 46-55
Floor mat installation
45
Rear door child safety locks 42
Seat belt reminder indicator 41
Seat belts 41
Seat belts-3rd row center 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 43
Star Safety System
TM 44-45
Tire Pressure Monitoring
(warning) System (TPMS) 42
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 18/13/18 4:18 PM

2

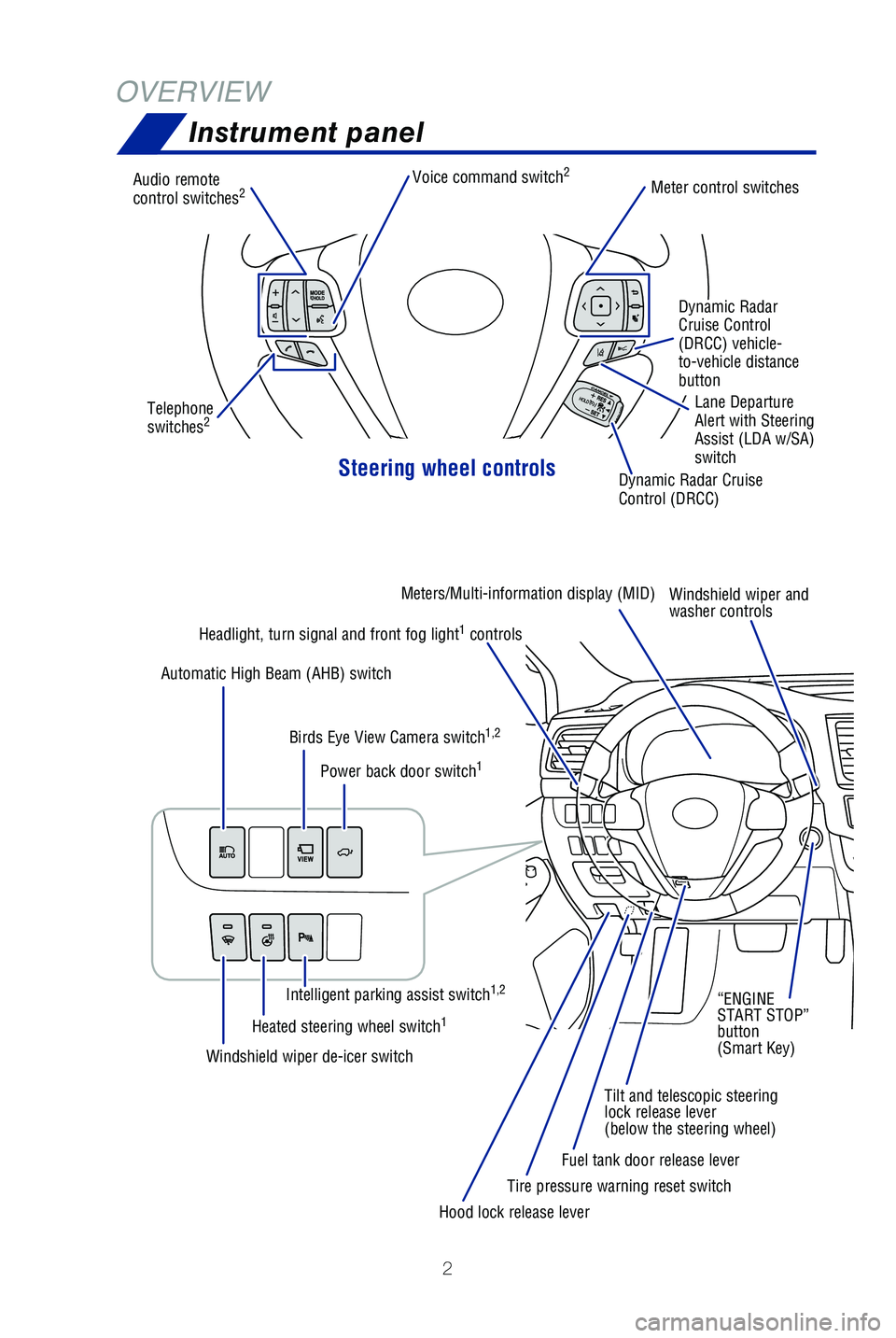

Steering wheel controls
Audio remote
control switches2Meter control switches
Dynamic Radar Cruise
Control
(DRCC)
Dynamic Radar
Cruise Control
(DRCC) vehicle-
to-vehicle distance
button
Lane Departure
Alert with Steering
Assist (LDA w/SA)
switch
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Headlight, turn signal and front fog light
1 controls
Windshield wiper and
washer controls
Meters/Multi-information display (MID)
“ENGINE
START STOP”
button
(Smart Key)
Hood lock release lever Fuel tank door release lever
Tire pressure warning reset switch
Windshield wiper de-icer switch
Heated steering wheel switch
1
Intelligent parking assist switch1,2
Automatic High Beam (AHB) switch
Birds Eye View Camera switch
1,2
Power back door switch1
Voice command switch2
Telephone
switches2
OVERVIEWInstrument panel
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 28/13/18 4:18 PM

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

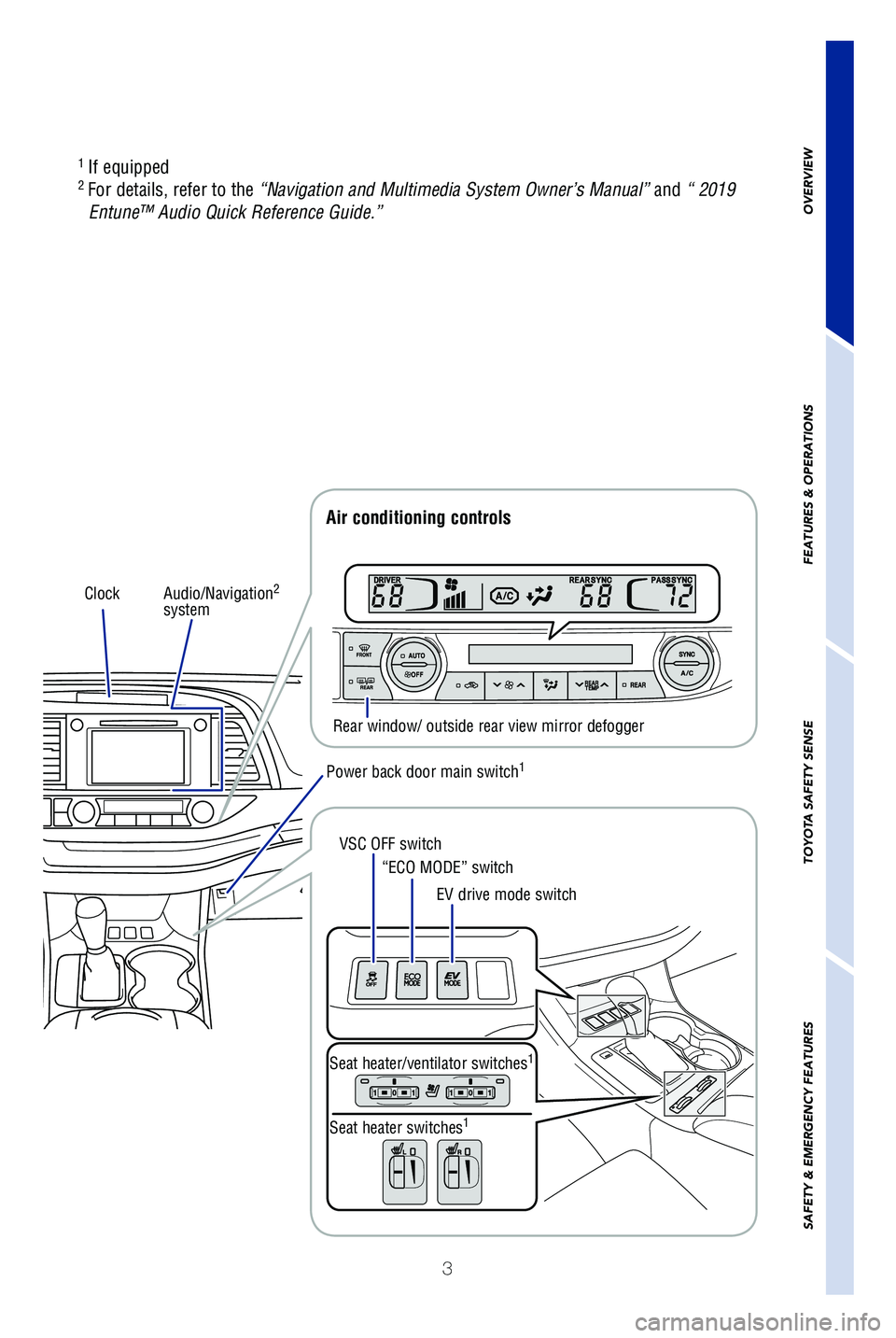

Audio/Navigation2
system
Rear window/ outside rear view mirror defogger
Air conditioning controls
Power back door main switch1
VSC OFF switch“ECO MODE” switch
EV drive mode switch
Seat heater/ventilator switches
1
Seat heater switches1
1

If equipped2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” and “ 2019
Entune™ Audio Quick Reference Guide.”
Clock
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 38/13/18 4:18 PM

4

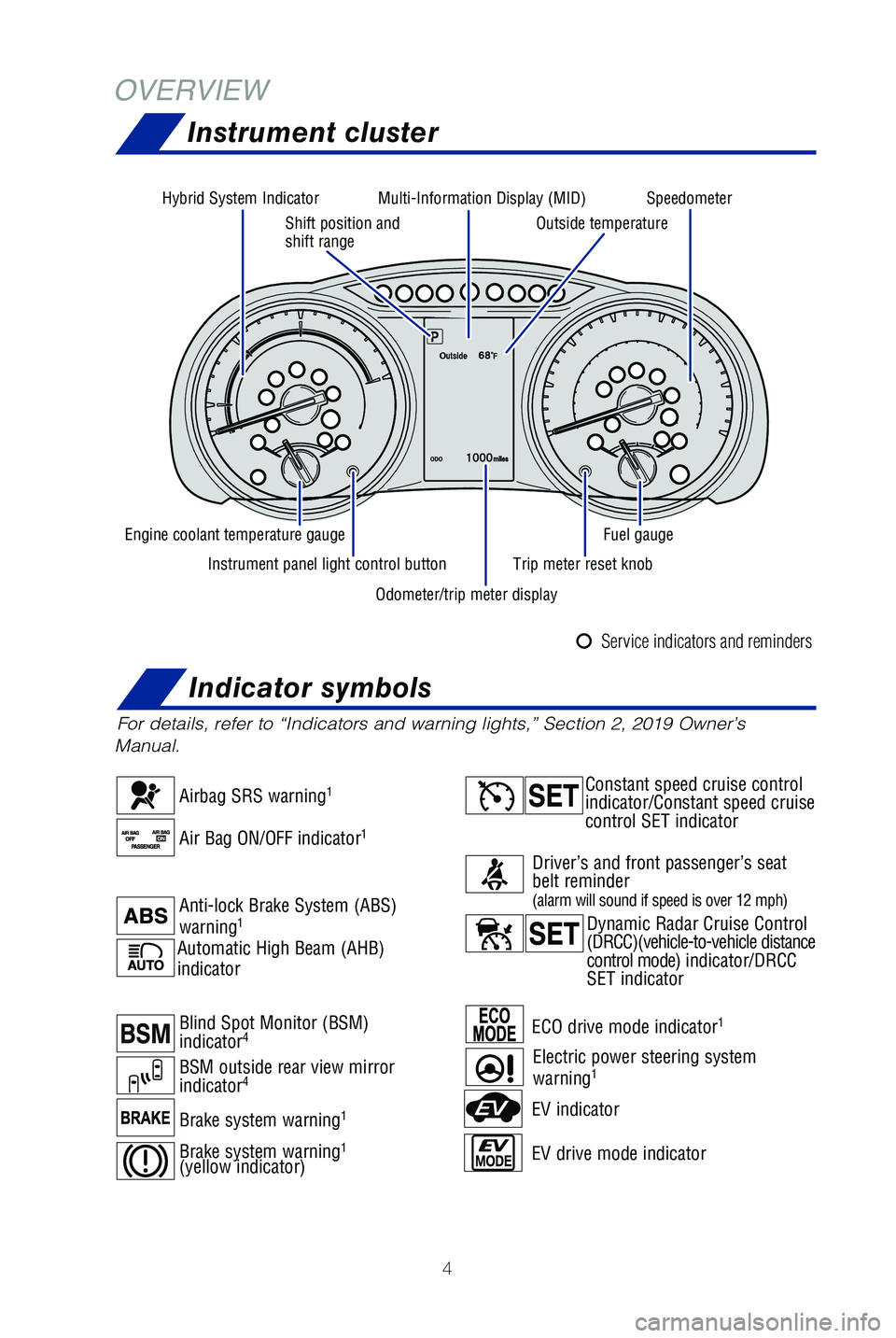

Automatic High Beam (AHB)
indicator
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s
Manual.
Airbag SRS warning1
Air Bag ON/OFF indicator1
Anti-lock Brake System (ABS)
warning1
Brake system warning1
BSM outside rear view mirror
indicator4
Brake system warning1
(yellow indicator)
Blind Spot Monitor (BSM)
indicator4
EV indicator
EV drive mode indicator
ECO drive mode indicator1
Constant speed cruise control
indicator/Constant speed cruise
control SET indicator
Electric power steering system
warning1
Driver’s and front passenger’s seat
belt reminder
(alarm will sound if speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC)(vehicle-to-vehicle distance
control mode) indicator/DRCC
SET indicator
OVERVIEW
Instrument cluster
Indicator symbols
Engine coolant temperature gauge Shift position and
shift range
Hybrid System Indicator Multi-Information Display (MID)
Speedometer
Fuel gauge
Outside temperature
Trip meter reset knob
Odometer/trip meter display

Instrument panel light control button
Service indicators and reminders
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 48/13/18 4:18 PM

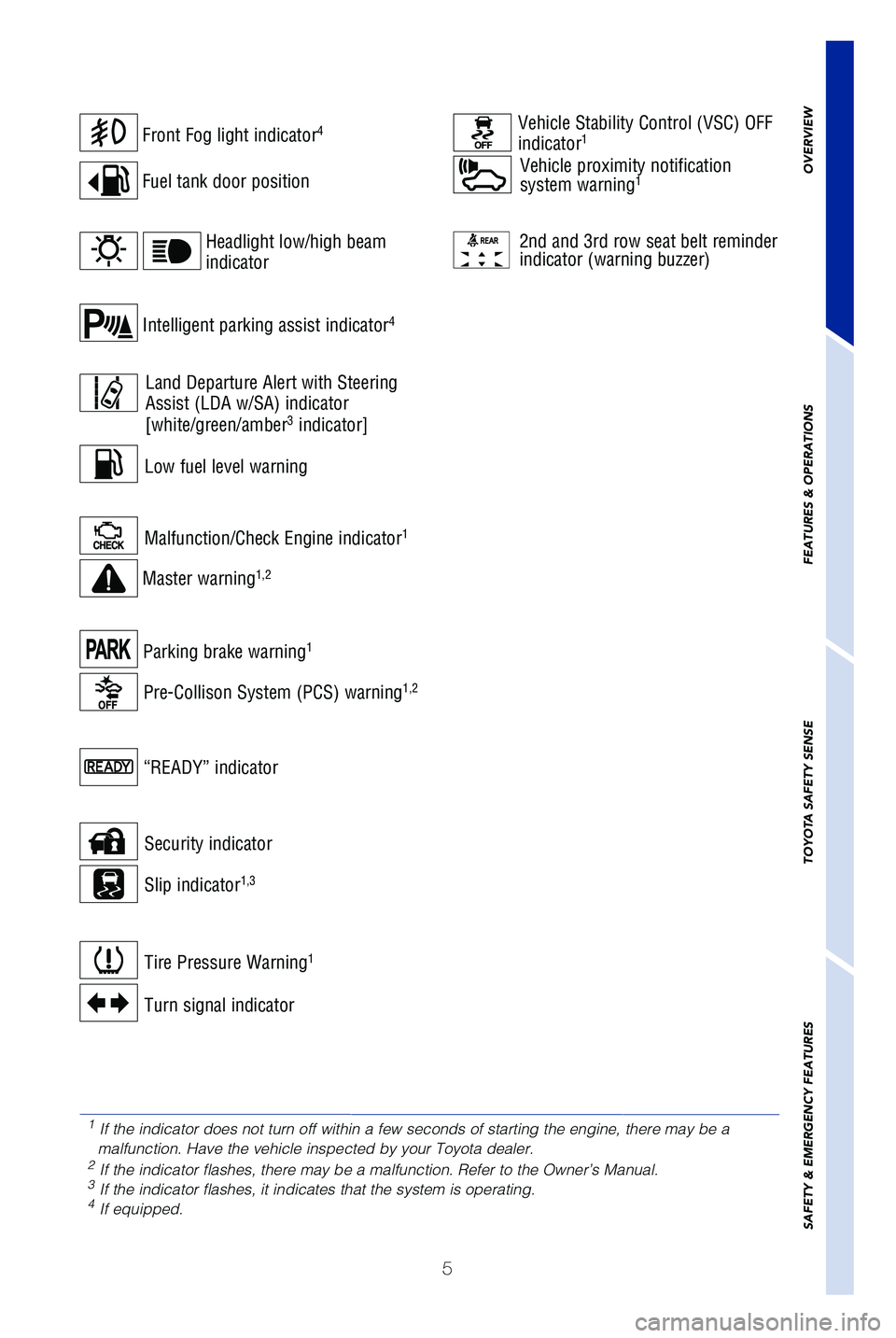

5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Front Fog light indicator4
Fuel tank door position
“READY” indicator
Pre-Collison System (PCS) warning1,2
Malfunction/Check Engine indicator1
Master warning1,2
Intelligent parking assist indicator4
Headlight low/high beam
indicator
Low fuel level warning
Parking brake warning
1
Slip indicator1,3
Security indicator
Tire Pressure Warning1
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
2nd and 3rd row seat belt reminder
indicator (warning buzzer)
Vehicle proximity notification
system warning1
Land Departure Alert with Steering
Assist (LDA w/SA) indicator
[white/green/amber
3 indicator]
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 58/13/18 4:18 PM

6

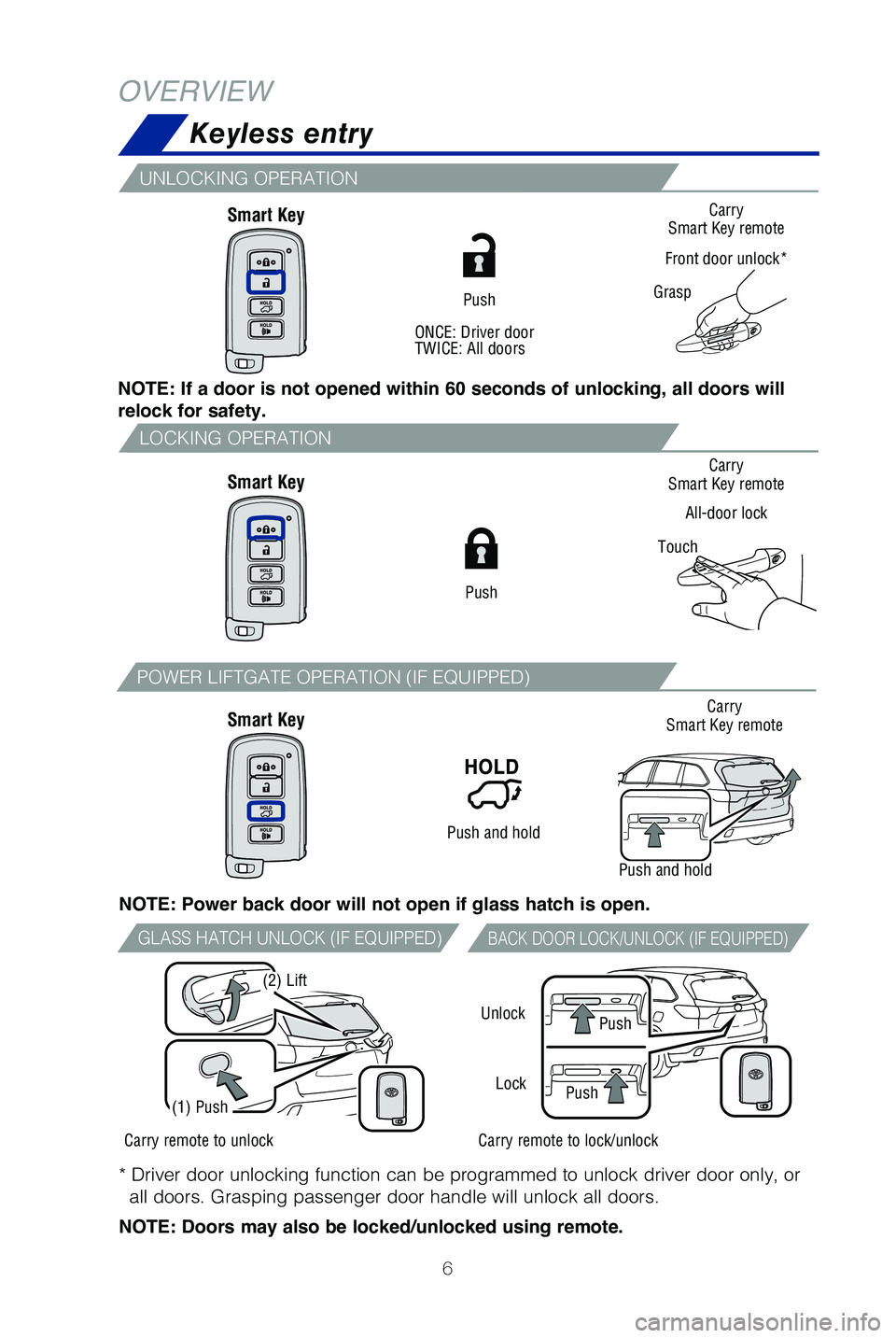

GraspCarry
Smart Key remote
Front door unlock*
Carry
Smart Key remote
All-door lock
Touch
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
NOTE: Power back door will not open if glass hatch is open.
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
(1) Push
Push
Lock
Push
Unlock
Carry remote to unlock Carry remote to lock/unlock
(2) Lift
GLASS HATCH UNLOCK (IF EQUIPPED)BACK DOOR LOCK/UNLOCK (IF EQUIPPED)
Smart Key
Smart Key
Smart Key
Push
Push and holdPush
ONCE: Driver door
TWICE: All doors
Carry
Smart Key remote
Push and hold
LOCKING OPERATION
UNLOCKING OPERATION
POWER LIFTGATE OPERATION (IF EQUIPPED)
Keyless entry
OVERVIEW
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 68/13/18 4:18 PM

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

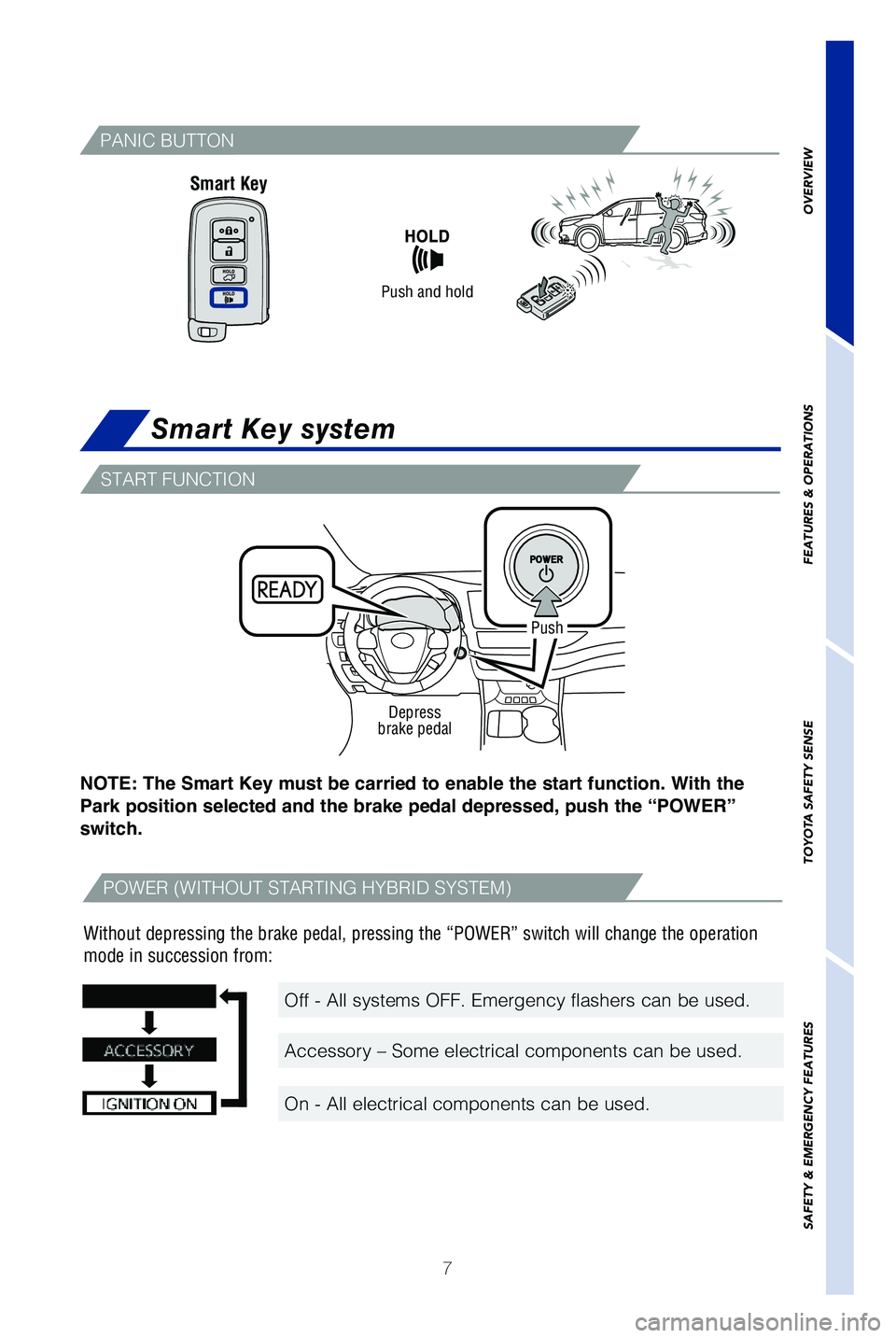

NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the operation
mode in succession from:
Smart Key
Push and hold
Push
Depress
brake pedal
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
PANIC BUTTON
Smart Key system
49193b_MY19_Highlander_HV_QRG_V3_ML_0809.indd 78/13/18 4:18 PM

8

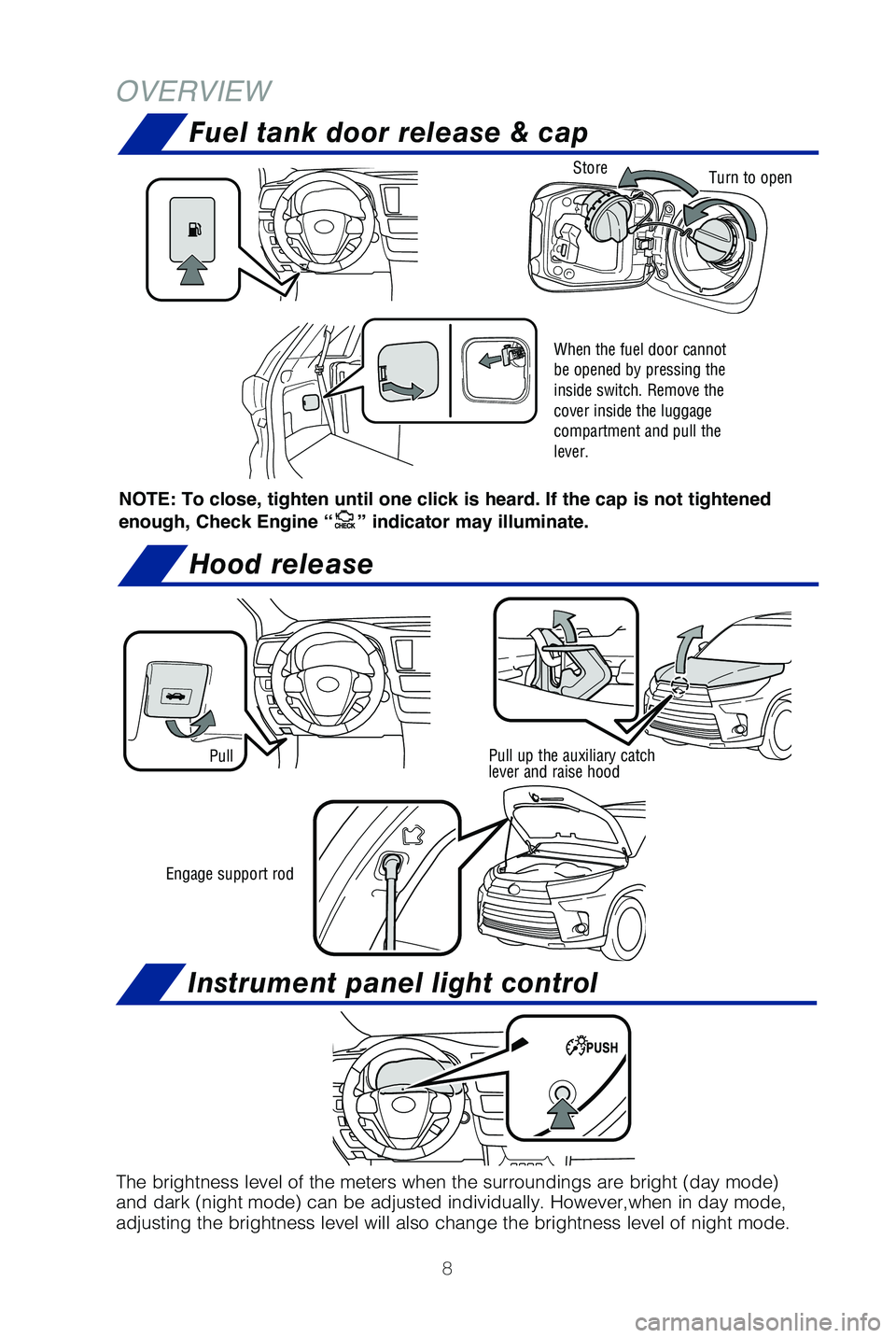

NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Turn to openStore
Engage support rod
Pull When the fuel door cannot
be opened by pressing the
inside switch. Remove the
cover inside the luggage
compartment and pull the
lever.Pull up the auxiliary catch
lever and raise hood
The brightness level of the meters when the surroundings are bright (day mode)
and dark (night mode) can be adjusted individually. However,when in day mode,
adjusting the brightness level will also change the brightness level of \
night mode.
Fuel tank door release & cap
Hood release
Instrument panel light control
OVERVIEW
