TOYOTA HIGHLANDER HYBRID 2019 Warranties & Maintenance Guides (in English)
Manufacturer: TOYOTA, Model Year: 2019, Model line: HIGHLANDER HYBRID, Model: TOYOTA HIGHLANDER HYBRID 2019Pages: 68, PDF Size: 0.54 MB
Page 41 of 68
39
15,000 miles or 18 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque drive shaft bolt
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Drive shaft boots _
Steering gear
_
Engine/Inverter coolant
4 _ Steering linkage and boots
_
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate: Mileage:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated.4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more inf ormation.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 42 of 68
40
20,000 miles or 24 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
25,000 miles or 30 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 43 of 68
41
30,000 miles or 36 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque drive shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
4
_
Drive shaft boots
_
Engine/Inverter coolant
5
_
Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
D
ate:
Mileage:
_
fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
fuel tank cap gasket
_
radiator, condenser and/or intercooler
_
rear differential oil
_
Steering gear
_
Steering linkage and boots
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect
power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on
inspection results.
2
reset the oil replacement reminder light (
Page 44 of 68
42
35,000 miles or 42 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
40,000 miles or 48 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 45 of 68
43
45,000 miles or 54 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque drive shaft bolt
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator, condenser and/or intercooler
_
Drive shaft boots _
Steering gear
_
Engine/Inverter coolant
4 _ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated.
4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more inf ormation.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 46 of 68
44
50,000 miles or 60 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
55,000 miles or 66 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 47 of 68
45
60,000 miles or 72 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque drive shaft bolt
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following:
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
5
_
Drive belts6
_
Drive shaft boots
_
Engine/Inverter coolant
7
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace automatic transmission fluid
Replace rear differential oil
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty 5 Inspect thickness measurement and disc runout.6 Initial inspection at 60,000 miles/ 72 months. Inspect every 15,000 miles/18 months thereafter. 7 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more inf ormation.
8
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Exhaust pipes and mountings
_
Fu el lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator, condenser or intercooler
_
Rear differential oil
_
Steering gear
_
Steering linkage and boots
Dealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 48 of 68
46

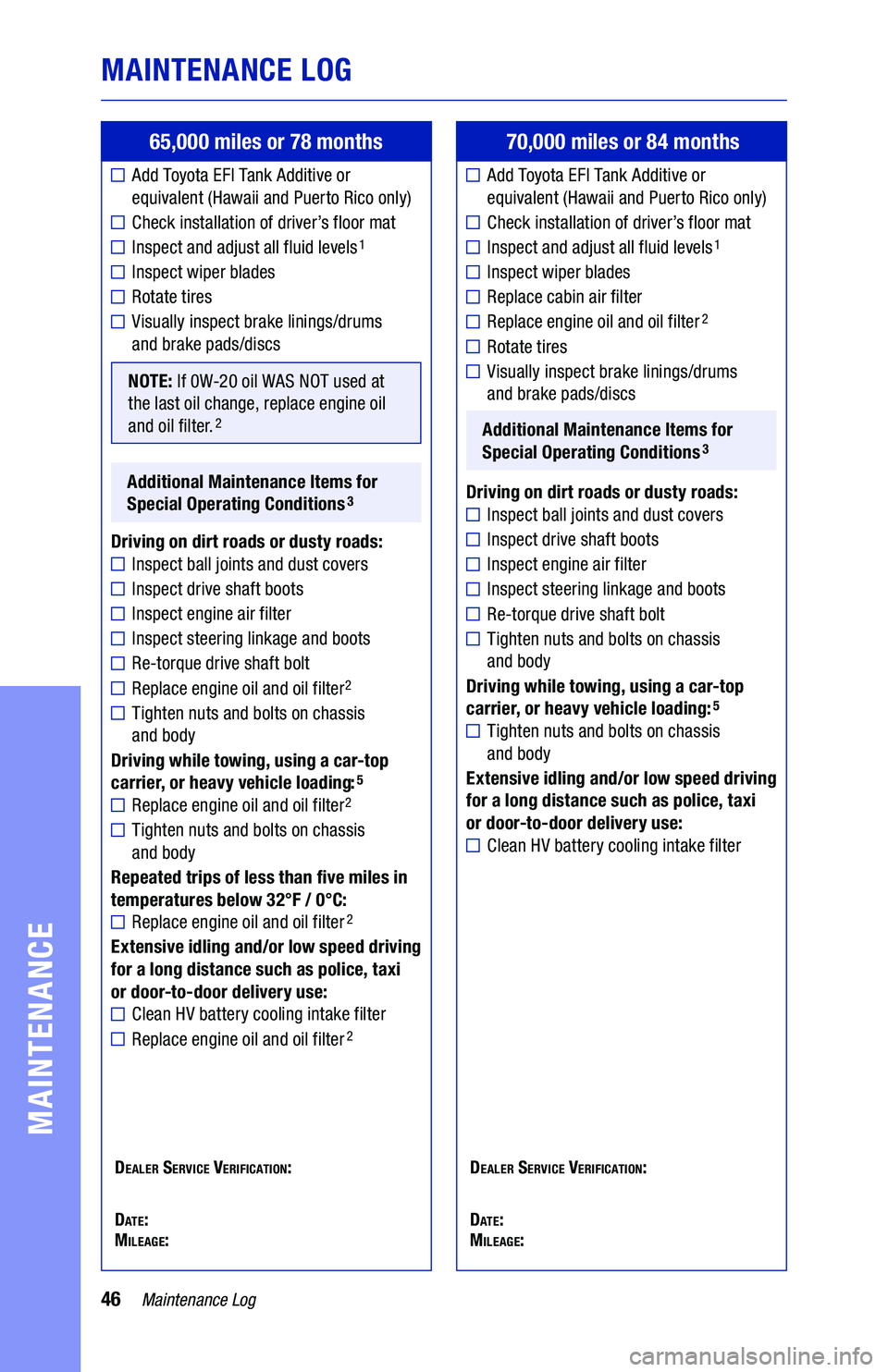

65,000 miles or 78 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
70,000 miles or 84 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 49 of 68
47
75,000 miles or 90 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque drive shaft bolt
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator and condenser and/or intercooler
_
Drive belts _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine/Inverter coolant
4
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated.4
Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more inf ormation.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Dealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
Page 50 of 68
48
80,000 miles or 96 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
85,000 miles or 102 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque drive shaft bolt
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
Dealer Service verification:
D
ate:
Mileage: D
ealer Service verification:
D
ate:
Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE
