7
THE IMMOBILIZER KEY

THE NEW WORLD OF
ANTI-THEFT TECHNOLOGY
This Toyota vehicle may be equipped
with an electronic “immobilizer” anti-theft
system. When the key is inserted into the
ignition switch it transmits an electronic
code to an immobilizer computer. The
engine will only start if the code in the
key matches the code in the immobilizer.
If the code does not match, the immobilizer
disables the ignition and fuel systems.
While an exact physical copy of the key
will open the door and allow retrieval of
items locked in the vehicle, it won’t start
the vehicle unless the key has the same
code as the immobilizer.


SECURITY
For security purposes, access to key
codes and service procedures for
electronically registering replacement

keys is restricted. Only a Toyota dealer
or certain bonded/registered independent
locksmiths can generate replacement keys.
Introduction
INTRODUCTION

19

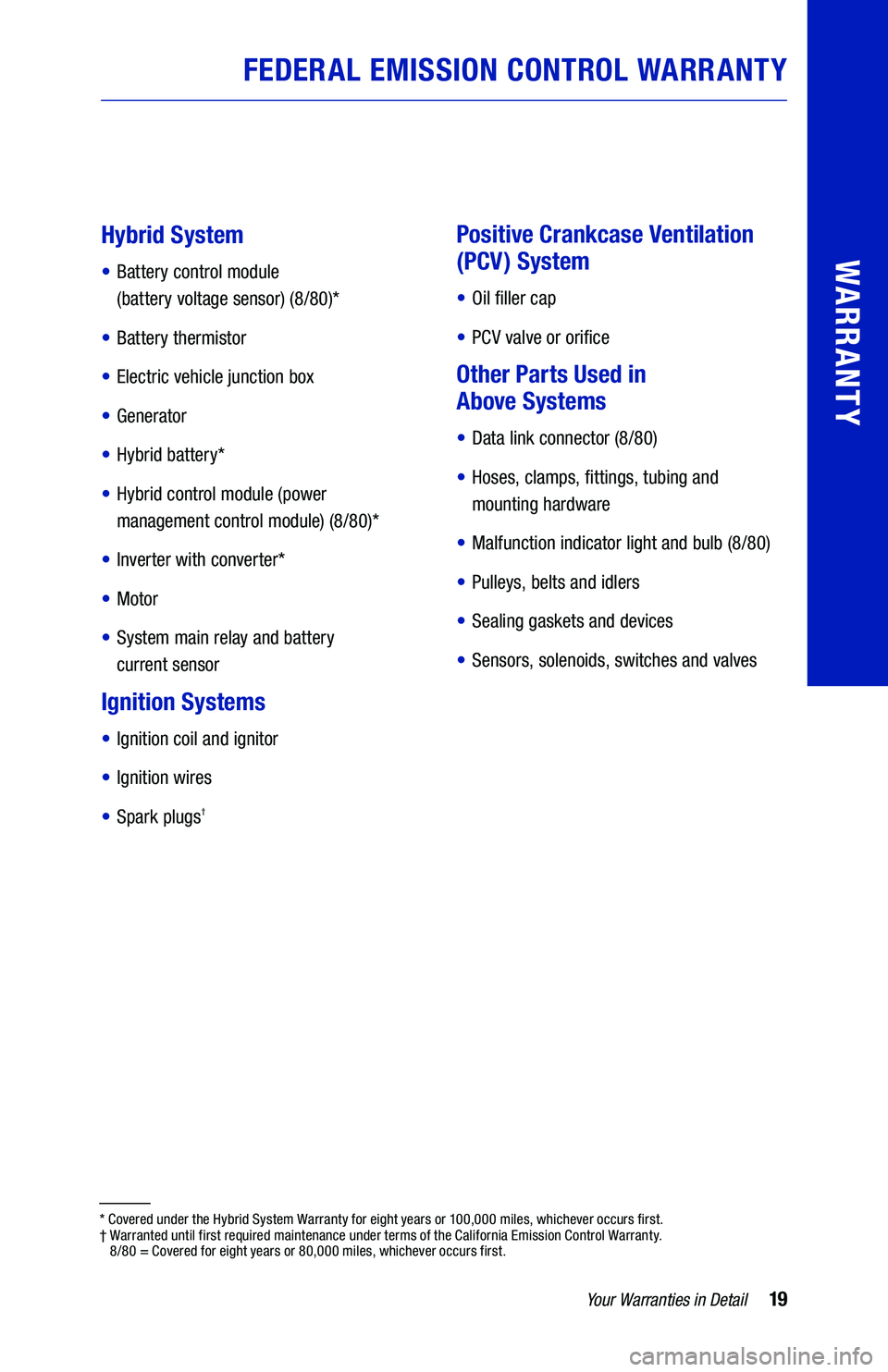

Hybrid System
•
Battery control module
(battery voltage sensor) (8/80)*
• Battery thermistor
• Electric vehicle junction box
• Generator
• Hybrid battery*
•
Hybrid control module (power
management control module) (8/80)*
• Inverter with converter*
• Motor
•
System main relay and battery
current sensor
Ignition Systems
• Ignition coil and ignitor
• Ignition wires
• Spark plugs†



Positive Crankcase Ventilation
(PCV) System
• Oil filler cap
• PCV valve or orifice
Other Parts Used in
Above Systems
• Data link connector (8/80)
•
Hoses, clamps, fittings, tubing and
mounting hardware
•
Malfunction indicator light and bulb (8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and valves
FEDERAL EMISSION CONTROL WARRANTY

* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Your Warranties in Detail
WARRANTY

23

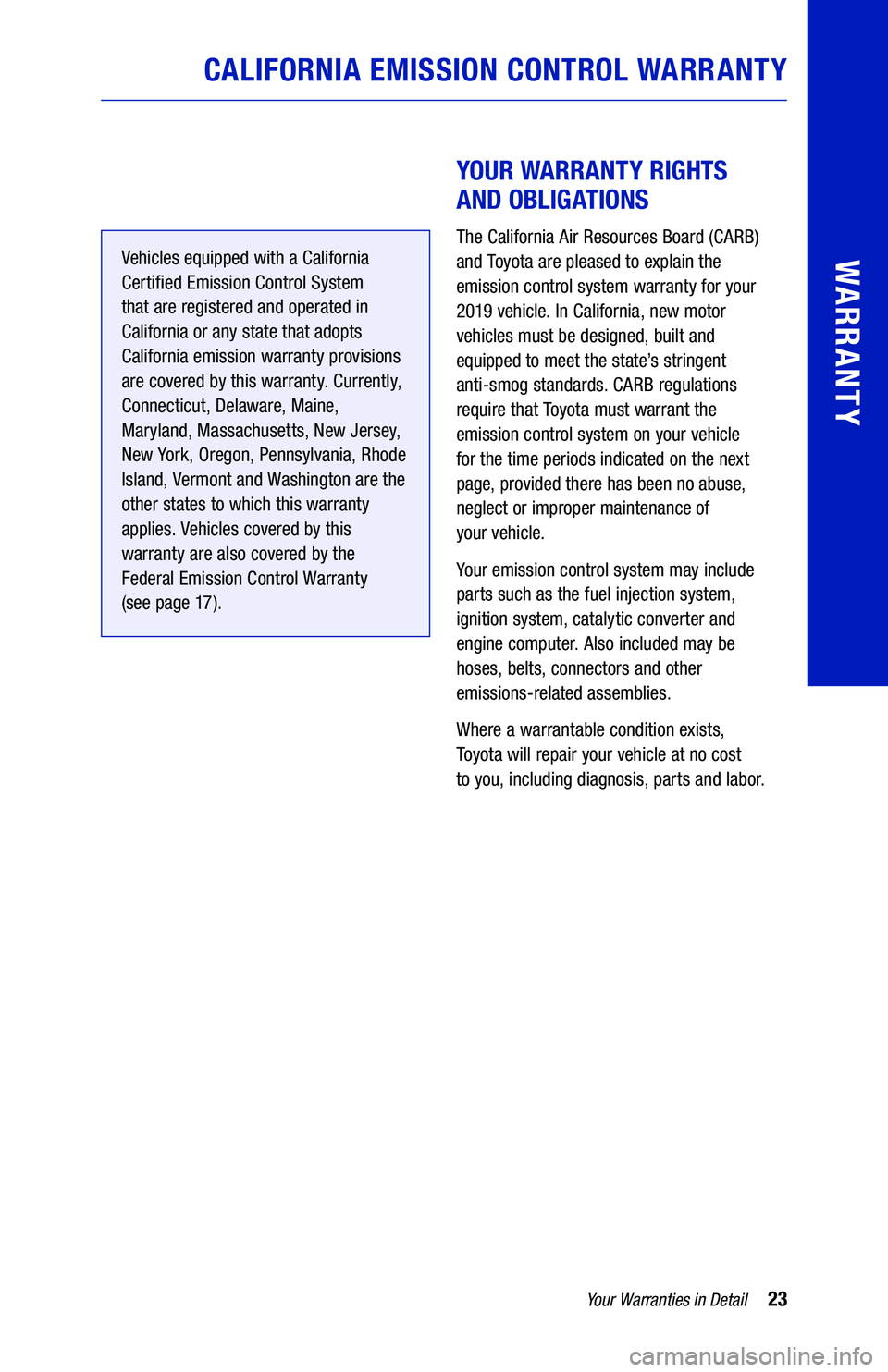

CALIFORNIA EMISSION CONTROL WARRANTY


Vehicles equipped with a California
Certified Emission Control System
that are registered and operated in
California or any state that adopts
California emission warranty provisions
are covered by this warranty. Currently,
Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Jersey,
New York, Oregon, Pennsylvania, Rhode
Island, Vermont and Washington are the
other states to which this warranty
applies. Vehicles covered by this
warranty are also covered by the
Federal Emission Control Warranty
(see page 17).

YOUR WARRANTY RIGHTS
AND OBLIGATIONS
The California Air Resources Board (CARB)
and Toyota are pleased to explain the
emission control system warranty for your
2019 vehicle. In California, new motor
vehicles must be designed, built and
equipped to meet the state’s stringent
anti-smog standards. CARB regulations
require that Toyota must warrant the
emission control system on your vehicle
for the time periods indicated on the next
page, provided there has been no abuse,
neglect or improper maintenance of
your vehicle.
Your emission control system may include
parts such as the fuel injection system,
ignition system, catalytic converter and
engine computer. Also included may be
hoses, belts, connectors and other
emissions-related assemblies.
Where a warrantable condition exists,
Toyota will repair your vehicle at no cost
to you, including diagnosis, parts and labor.
Your Warranties in Detail
WARRANTY

26

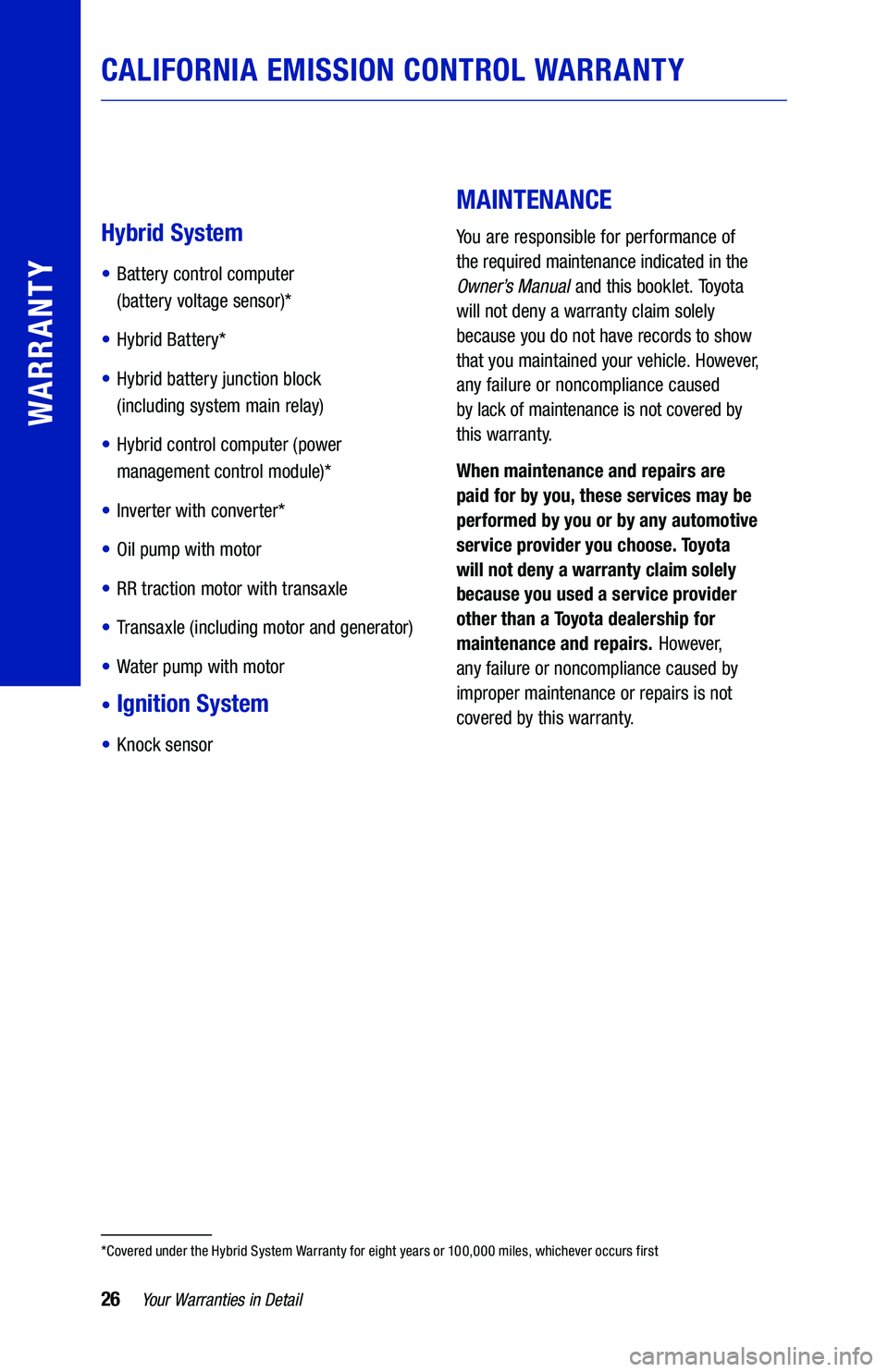

Hybrid System
•
Battery control computer
(battery voltage sensor)*
• Hybrid Battery*
• Hybrid battery junction block
(including system main relay)
•
Hybrid control computer (power
management control module)*
• Inverter with converter*
• Oil pump with motor
• RR traction motor with transaxle
• Transaxle (including motor and generator)
• Water pump with motor
• Ignition System
• Knock sensor


MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner ’s Manual and this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused
by lack of maintenance is not covered by
this warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota
will not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
*Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first
