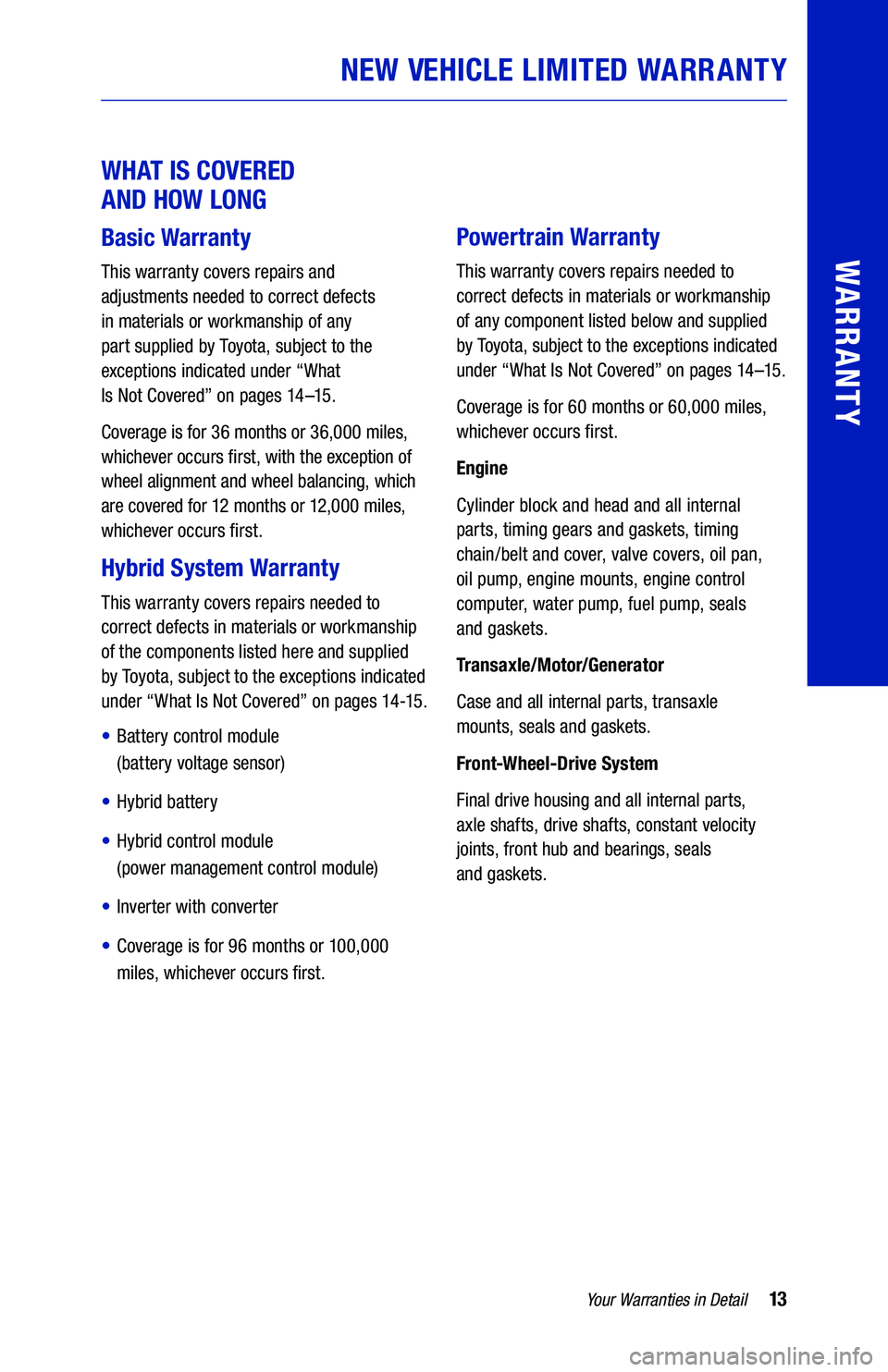

WHAT IS COVERED
AND HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects
in materials or workmanship of any
part supplied by Toyota, subject to the
exceptions indicated under “What
Is Not Covered” on pages 14–15.
Coverage is for 36 months or 36,000 miles,
whichever occurs first, with the exception of
wheel alignment and wheel balancing, which
are covered for 12 months or 12,000 miles,
whichever occurs first.
Hybrid System Warranty
This warranty covers repairs needed to
correct defects in materials or workmanship
of the components listed here and supplied
by Toyota, subject to the exceptions indicated
under “What Is Not Covered” on pages 14-15.
•
Battery control module
(battery voltage sensor)
• Hybrid battery
•
Hybrid control module
(power management control module)
• Inverter with converter
•
Coverage is for 96 months or 100,000
miles, whichever occurs first.




Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or workmanship
of any component listed below and supplied
by Toyota, subject to the exceptions indicated
under “What Is Not Covered” on pages 14–15.
Coverage is for 60 months or 60,000 miles,
whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, valve covers, oil pan,
oil pump, engine mounts, engine control
computer, water pump, fuel pump, seals
and gaskets.
Transaxle/Motor/Generator
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals
and gaskets.
NEW VEHICLE LIMITED WARRANTY
Your Warranties in Detail
WARRANTY

18

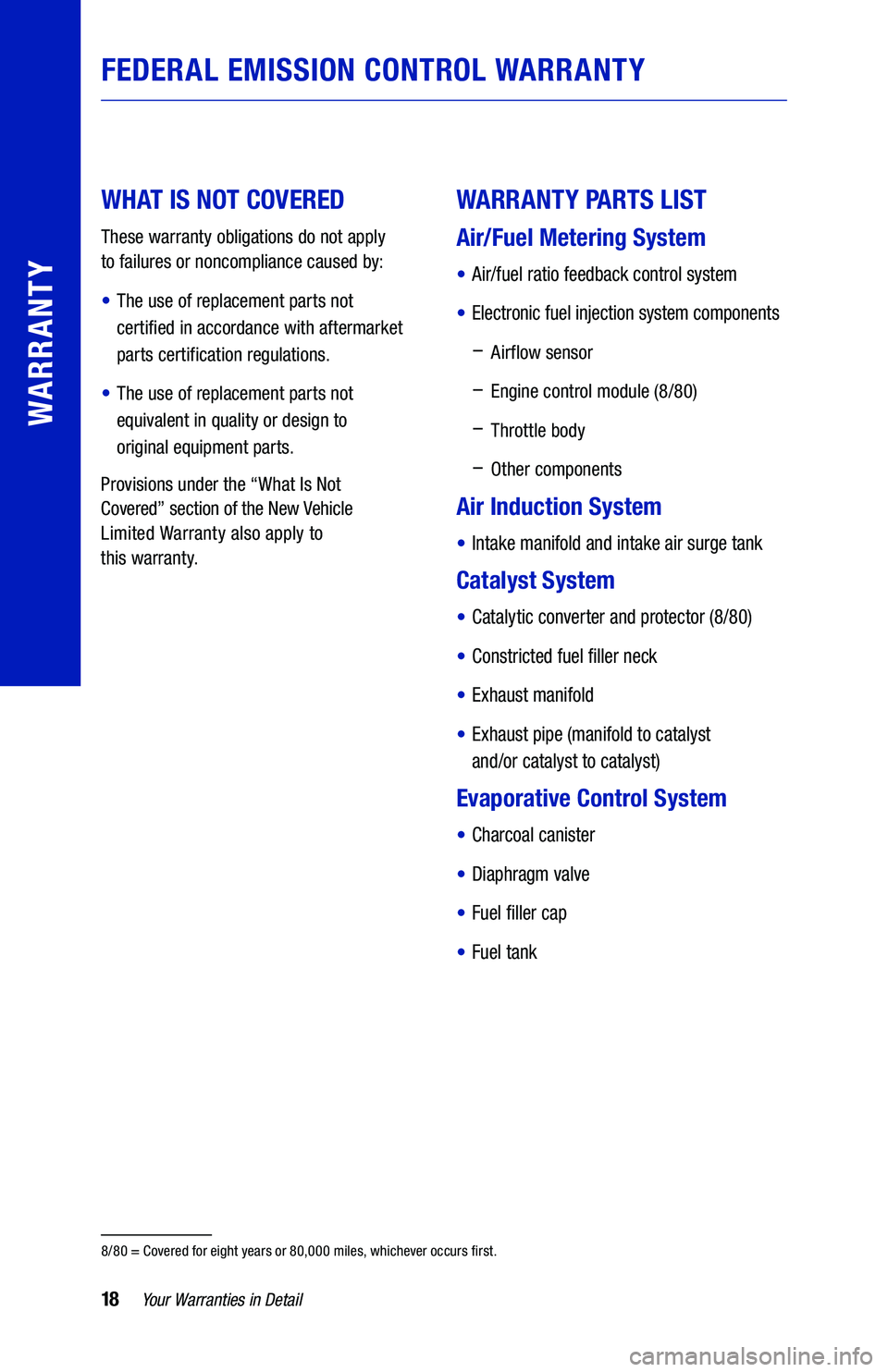

WHAT IS NOT COVERED
These warranty obligations do not apply
to failures or noncompliance caused by:
•
The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•
The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to
this warranty.


WARRANTY PARTS LIST
Air/Fuel Metering System
• Air/fuel ratio feedback control system
•
Electronic fuel injection system components

–
Airflow sensor

–
Engine control module (8/80)

–
Throttle body

–
Other components
Air Induction System
•
Intake manifold and intake air surge tank
Catalyst System
• Catalytic converter and protector (8/80)
• Constricted fuel filler neck
• Exhaust manifold
• Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
• Charcoal canister
• Diaphragm valve
• Fuel filler cap
• Fuel tank
FEDERAL EMISSION CONTROL WARRANTY
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Your Warranties in Detail
WARRANTY

19


Hybrid System
•
Battery control module
(battery voltage sensor) (8/80)*
• Battery thermistor
• Electric vehicle junction box
• Generator
• Hybrid battery*
•
Hybrid control module (power
management control module) (8/80)*
• Inverter with converter*
• Motor
•
System main relay and battery
current sensor
Ignition Systems
• Ignition coil and ignitor
• Ignition wires
• Spark plugs†



Positive Crankcase Ventilation
(PCV) System
• Oil filler cap
• PCV valve or orifice
Other Parts Used in
Above Systems
• Data link connector (8/80)
•
Hoses, clamps, fittings, tubing and
mounting hardware
•
Malfunction indicator light and bulb (8/80)
• Pulleys, belts and idlers
• Sealing gaskets and devices
• Sensors, solenoids, switches and valves
FEDERAL EMISSION CONTROL WARRANTY

* Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
† Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Your Warranties in Detail
WARRANTY

25

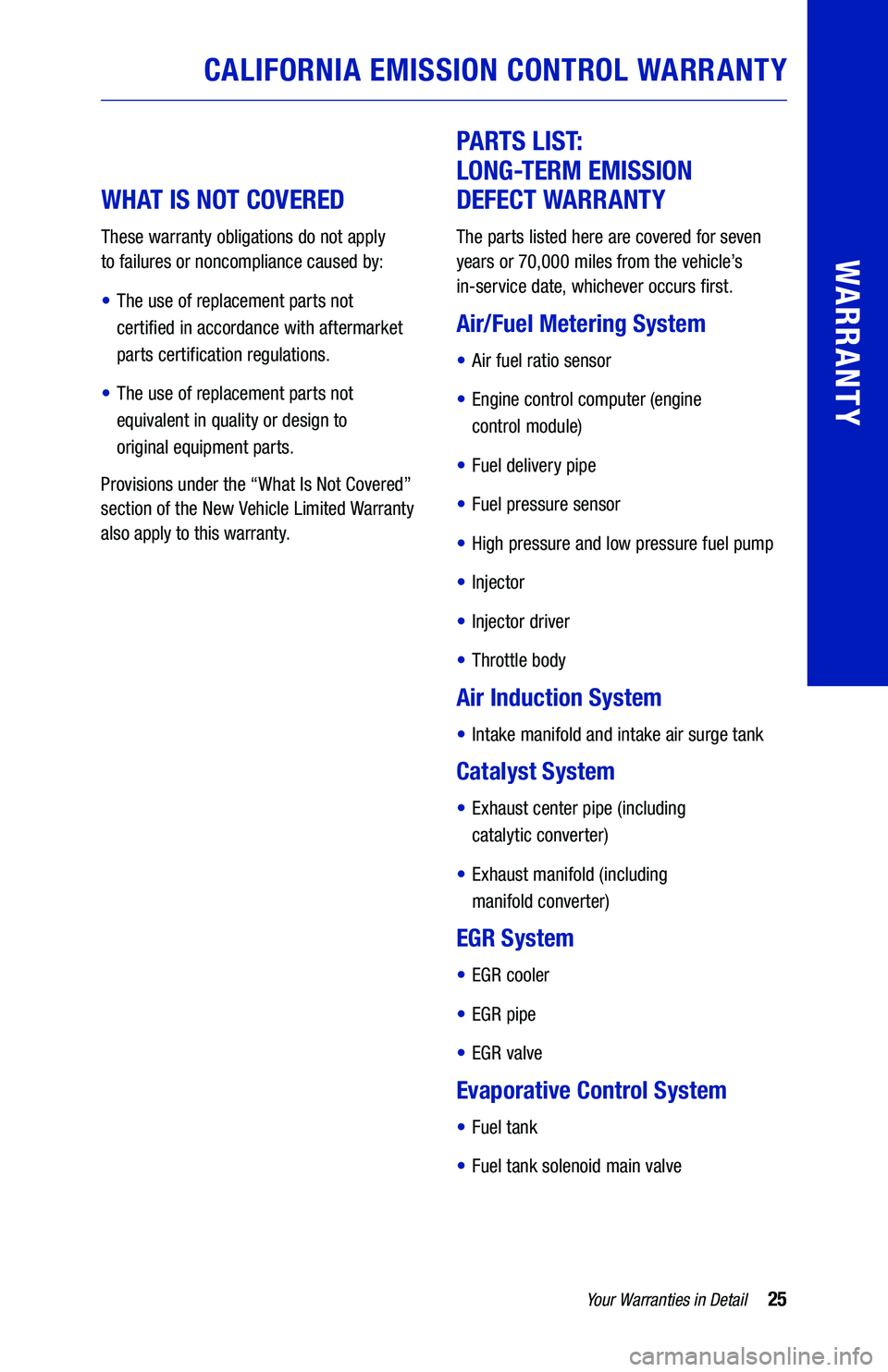

WHAT IS NOT COVERED
These warranty obligations do not apply
to failures or noncompliance caused by:
•
The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•
The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not Covered”
section of the New Vehicle Limited Warranty
also apply to this warranty.
PARTS LIST:
LONG-TERM EMISSION
DEFECT WARRANTY
The parts listed here are covered for seven
years or 70,000 miles from the vehicle’s
in-service date, whichever occurs first.
Air/Fuel Metering System
• Air fuel ratio sensor
•
Engine control computer (engine
control module)
• Fuel delivery pipe
• Fuel pressure sensor
• High pressure and low pressure fuel pump
• Injector
• Injector driver
• Throttle body
Air Induction System
• Intake manifold and intake air surge tank
Catalyst System
•
Exhaust center pipe (including
catalytic converter)
•
Exhaust manifold (including
manifold converter)
EGR System
• EGR cooler
• EGR pipe
• EGR valve
Evaporative Control System
• Fuel tank
• Fuel tank solenoid main valve



CALIFORNIA EMISSION CONTROL WARRANTY
Your Warranties in Detail
WARRANTY

26




Hybrid System
•
Battery control computer
(battery voltage sensor)*
• Hybrid Battery*
• Hybrid battery junction block
(including system main relay)
•
Hybrid control computer (power
management control module)*
• Inverter with converter*
• Oil pump with motor
• RR traction motor with transaxle
• Transaxle (including motor and generator)
• Water pump with motor
• Ignition System
• Knock sensor


MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner ’s Manual and this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused
by lack of maintenance is not covered by
this warranty.
When maintenance and repairs are
paid for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota
will not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs. However,
any failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
CALIFORNIA EMISSION CONTROL WARRANTY
*Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first
Your Warranties in Detail
