HIGHLANDER HV_UTABLE OF CONTENTS
For your information ........................
5
Reading this manual ...................... 10
How to search ................................ 11
Pictorial index ................................ 12
1-1. For safe use Before driving ........................ 24
For safe driving ..................... 25
Seat belts .............................. 27
SRS airbags .......................... 34
Front passenger occupant clas- sification system.................. 43
Exhaust gas precautions....... 48
1-2. Child safety Riding with children ............... 49
Child restraint systems .......... 50
1-3. Emergency assistance Safety Connect ..................... 65
1-4. Hybrid system Hybrid system features ......... 71
Hybrid system precautions .... 75
1-5. Theft deterrent system Immobilizer system ............... 79
Alarm ..................................... 81
2-1. Instrument cluster Warning lights and indicators............................................ 84
Gauges and meters .............. 89
Multi-information display (4.2-inch display)................. 92
Multi-information display (7-inch display)............................. 102
Head-up display ................. 112
Energy monitor/consumption screen .............................. 1173-1. Key information
Keys ................................... 128
3-2. Opening, closing and locking the doors
Side doors .......................... 131
Back door ........................... 135
Smart key system .............. 146
3-3. Adjusting the seats Front seats ......................... 153
Rear seats.......................... 154
Driving position memory .... 159
Head restraints................... 162
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 165
Inside rear view mirror ....... 166
Digital Rearview Mirror....... 167
Outside rear view mirrors ... 177
3-5. Opening, closing the win- dows and moon roof
Power windows .................. 179
Moon roof ........................... 182
Panoramic moon roof......... 185
4-1. Before driving Driving the vehicle.............. 190
Cargo and luggage ............ 197
Vehicle load limits .............. 200
T r

ailer towing...................... 201
Dinghy towing .................... 212
4-2. Driving procedures Power (ignition) switch ....... 213
EV drive mode ................... 218
Hybrid transmission ........... 220
Turn signal lever................. 223
1For safety and security
2Vehicle status information
and indicators
3Before driving
4Driving

6
HIGHLANDER HV_U
Toyota Safety Sense 2.0
 Anti-lock brake system
 SRS airbag system
 Seat belt pretensioner system
Be sure to check with your Toy-
ota dealer for precautionary
measures or special instructions
regarding installation of a mobile
two-way radio system.
High voltage parts and cables
on the hybrid vehicles emit
approximately the same amount
of electromagnetic waves as the
conventional gasoline powered
vehicles or home electronic
appliances despite of their elec-
tromagnetic shielding.
Unwanted noise may occur in
the reception of the mobile
two-way radio.
The vehicle is equipped with
sophisticated computers that will
record certain data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cam-
eras. Contact your Toyota dealer for
the location of re cording cameras.
The recorded data varies according to the vehicle grade
level and options with which it is
equipped.
These computers do not record
conversations or sounds, and
only record images outside of
the vehicle in certain situations.

Data Transmission
Your vehicle may transmit the data
recorded in these computers to
Toyota without notification to you.
Data usage
Toyota may use the data recorded
in this computer to diagnose mal-
functions, conduct research and
development, and improve quality.
Toyota will not disclose the
recorded data to a third party
except:
• With the consen t of the vehicle
owner or with the consent of the
lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehi-
cle or vehicle owner
 Recorded image information
can be erased by your Toyota
dealer.
The image recording function can
be disabled. However, if the func-
tion is disabled, data from when the
system operates will not be avail-
able.
To learn more about the vehi-
cle data collected, used and
Vehicle data recording

12Pictorial index
Pictorial index

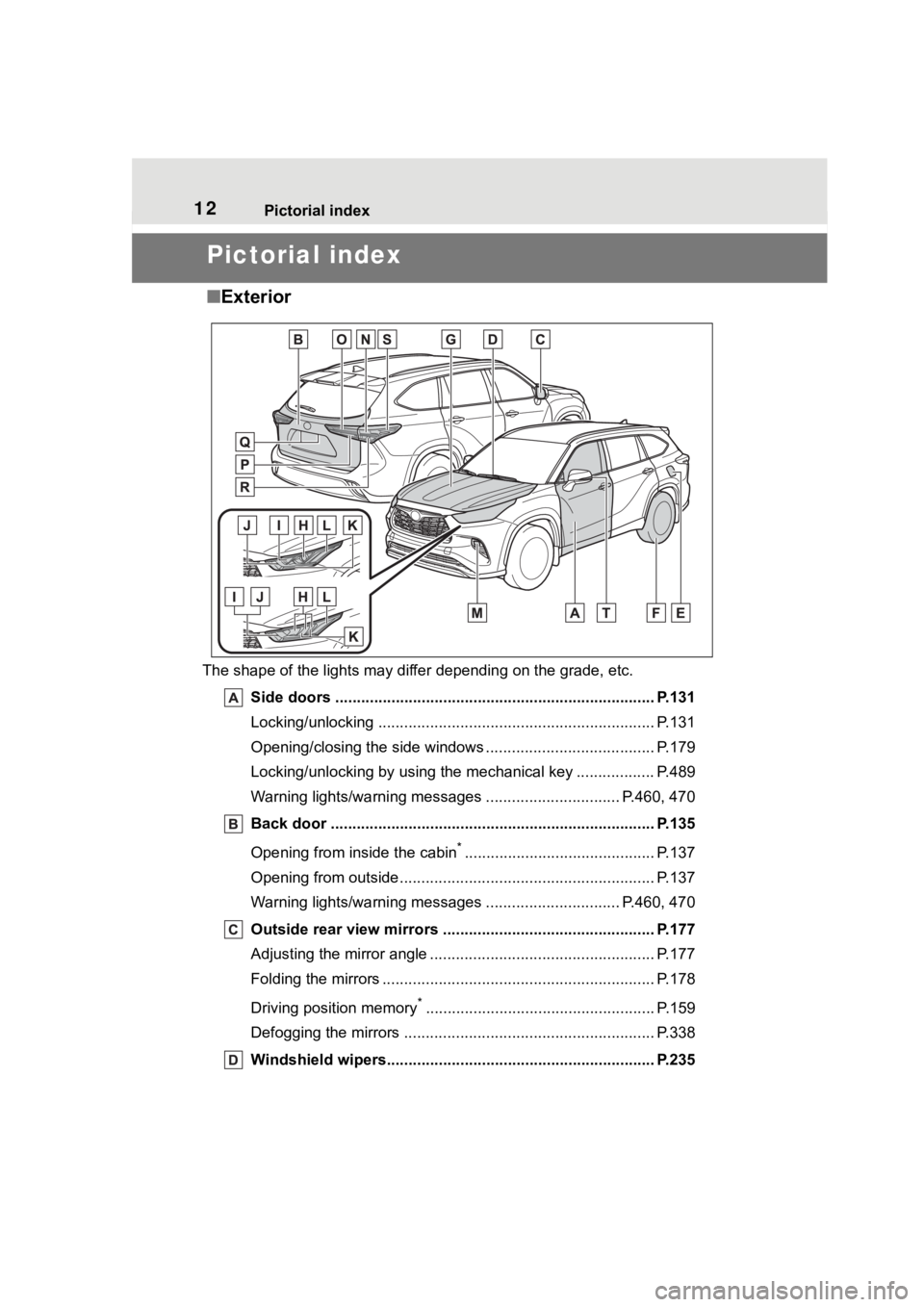

■Exterior
The shape of the lights may diff er depending on the grade, etc.
Side doors ......... ................................. ................................ P.131
Locking/unlocking .............................................. .................. P.131
Opening/closing the side windows ............................... ........ P.179
Locking/unlocking by using the mechanical key .................. P. 4 8 9
Warning lights/warning messages ............................... P .460, 470
Back door ...................................................... ..................... P.135
Opening from inside the cabin
*............................................ P.137
Opening from outside........................................... ................ P.137
Warning lights/warning messages ............................... P .460, 470
Outside rear view mirrors ................................................. P.177
Adjusting the mirror angle ..................................... ............... P.177
Folding the mirrors ............................................ ................... P.178
Driving position memory
*..................................................... P.159
Defogging the mirrors .......................................... ................ P.338
Windshield wipers.............................................. ................ P.235

16Pictorial index
HIGHLANDER HV_U
When the warning messages are displayed ........................ P. 4 7 0
Turn signal lever.............................................. ................... P.223
Headlight switch ............................................... ................. P.229
Headlights/side marker lights/pa rking lights/tail lights/license plate
lights/daytime running lights .................................. ............... P.229
Front fog lights ............................................... ...................... P.235
Windshield wiper and washer sw itch....................... P.235, 238
Usage.......................................................... ................. P.235, 238
Adding washer fluid .............................................................. P.415
Warning messages ............................................... ............... P.470
Emergency flasher switch ....................................... .......... P.452
Hood lock release lever ........................................ ............. P.408
Tilt and telescopic steering lock release lever ................P. 1 6 5
Adjustment ..................................................... ...................... P.165
Air conditioning system ............................. ....................... P.336
Usage................................................................................... P.336
Rear window defogger ........................................... .............. P.338
Windshield wiper de-icer
*1................................................... P.338
Audio system
*2
Fuel filler door opener swi tch ........................................... P.240
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.

17Pictorial index
HIGHLANDER HV_U

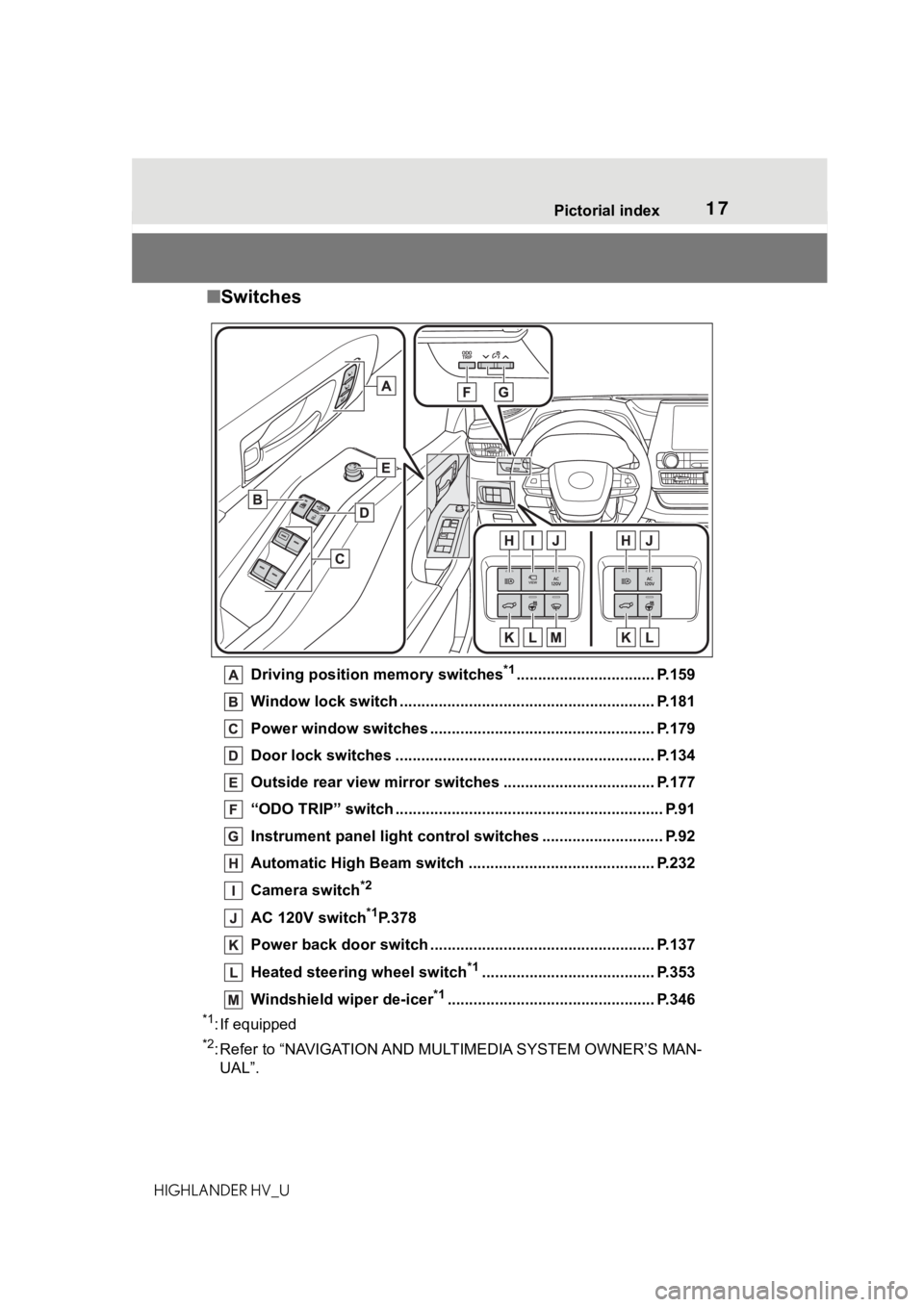

■ Switches
Driving position memory switches*1................................ P.159
Window lock switch ............................................. .............. P.181
Power window switches ....... ............................................. P.179
Door lock switches ............................................................ P.134
Outside rear view mirror swi tches ................................... P.177
“ODO TRIP” switch .............................................. ................ P.91
Instrument panel light control switches ........................ .... P.92
Automatic High Beam switch ..................................... ...... P.232
Camera switch
*2
AC 120V switch*1P. 3 7 8
Power back door switch ... ................................................. P.137
Heated steering wheel switch
*1........................................ P.353
Windshield wiper de-icer
*1................................................ P.346
*1: If equipped
*2: Refer to “NAVIGATI ON AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.

20Pictorial index
HIGHLANDER HV_U

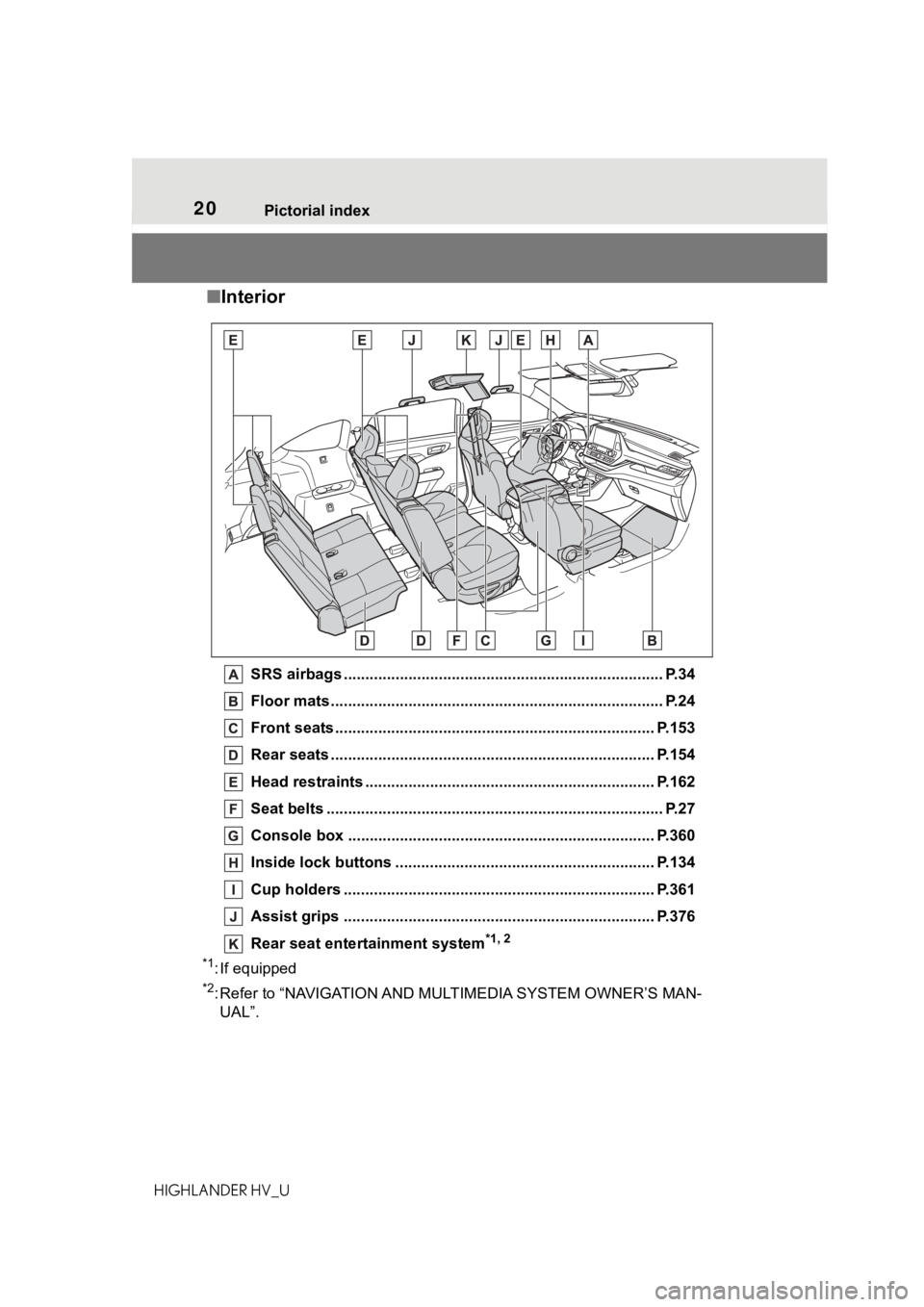

■ Interior
SRS airbags .................................................... ...................... P.34
Floor mats..................................................... ........................ P.24
Front seats .................................................... ...................... P.153
Rear seats ..................................................... ...................... P.154
Head restraints ................................................ ................... P.162
Seat belts ..................................................... ......................... P.27
Console box ....................................................................... P.360
Inside lock buttons ............................................ ................ P.134
Cup holders .................................................... .................... P.361
Assist grips ................................................... ..................... P.376
Rear seat entertainment system
*1, 2
*1
: If equipped
*2: Refer to “NAVIGATI ON AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.

251-1. For safe use
HIGHLANDER HV_U
1
For safety and security
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P.153)
Adjust the seat so that you
can depress the pedals fully
and so that your arms bend
slightly at the elbow when
gripping the steering wheel.
( P.153)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P.162)

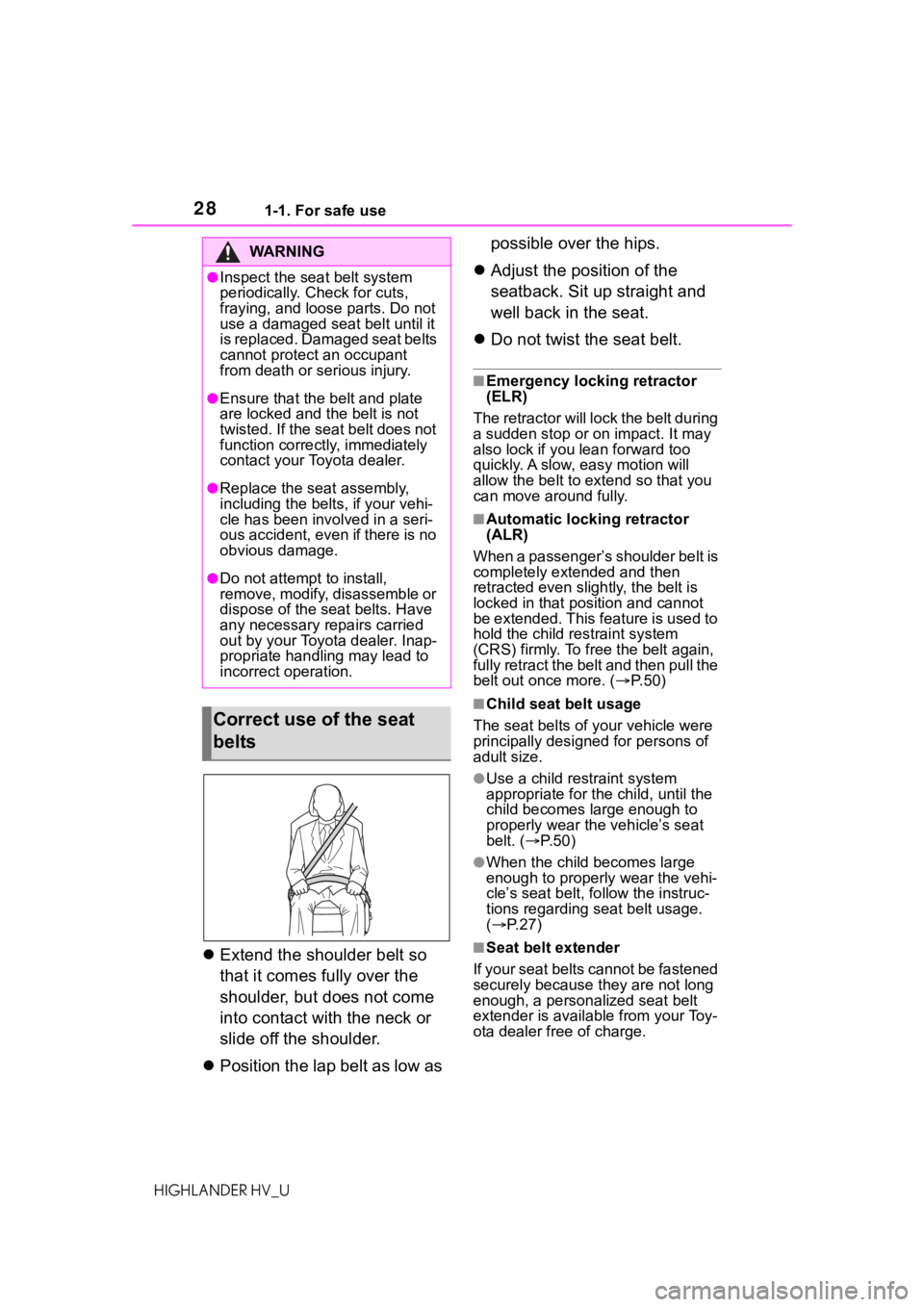

Wear the seat belt correctly.
( P.27)
WA R N I N G
■Before driving
●Check that the floor mat is
securely fixed in the correct
place with all the provided
retaining hooks (clips). Be espe-
cially careful to perform this
check after cleaning the floor.
●With the hybrid system stopped
and the shift lever in P, fully
depress each pedal to the floor
to make sure it does not inter-
fere with the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appro-
priate position before driv-
ing.

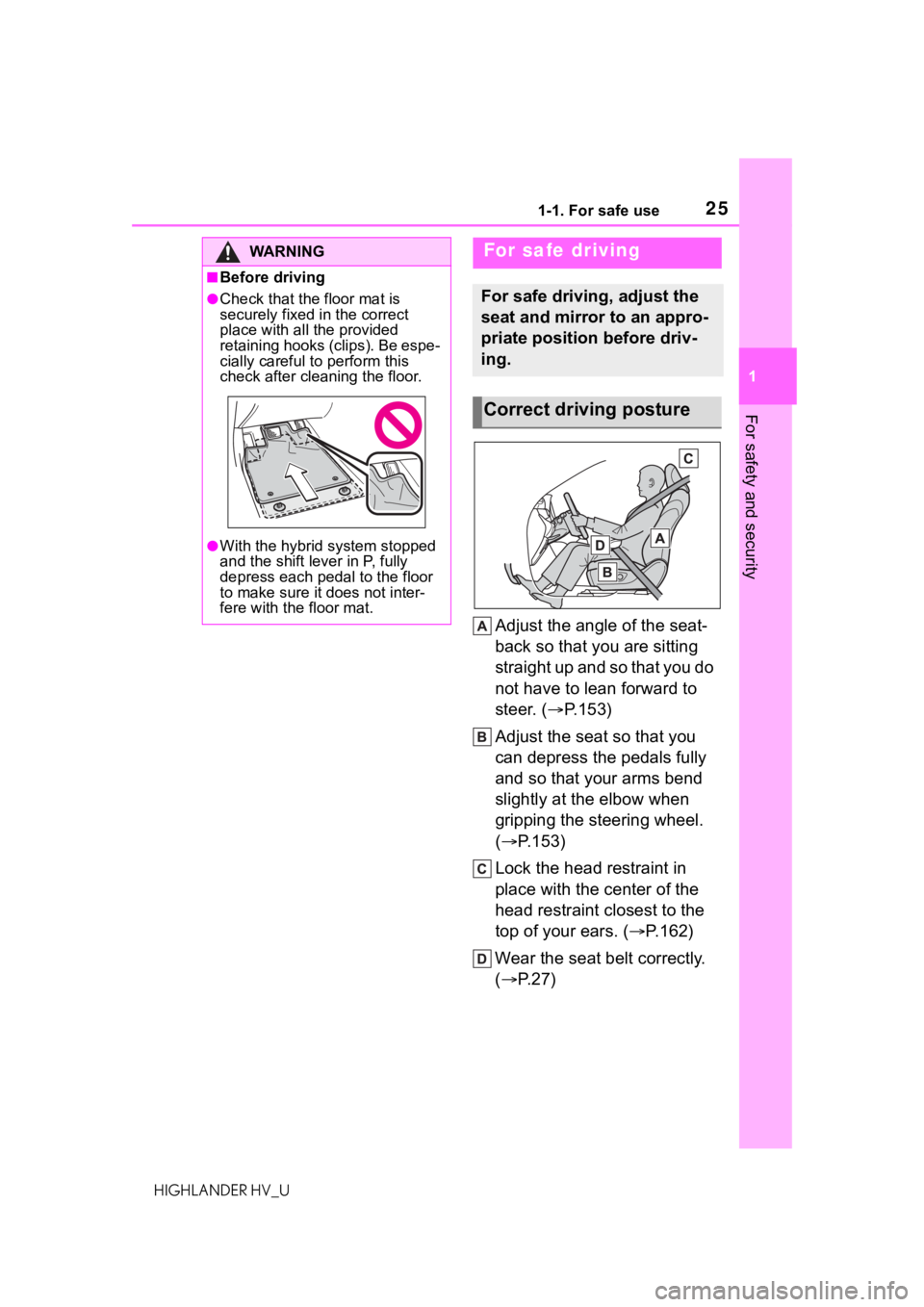

Correct driving posture

261-1. For safe use
HIGHLANDER HV_U
Make sure that all occupants are
wearing their seat belts before
driving the vehicle. (P.27)
Use a child restraint system
appropriate for the child until the
child becomes large enough to properly wear the vehicle’s seat
belt. (
P.50)
Make sure that you can see
backward clearly by adjusting
the inside and outside rear view
mirrors properly. ( P.166, 167,
177)
WA R N I N G
■For safe driving
Observe the following precau-
tions. Failure to do so may result
in death or serious injury.
●Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver
to lose control of the vehicle.
●D o n ot pla ce a cu sh ion b etw ee n
the driver or passenger and the
seatback. A cushion may pre-
vent correct pos ture from being
achieved, and reduce the effec-
tiveness of the seat belt and
head restraint.
●Do not place anything under the
front seats. Objects placed
under the front seats may
become jammed in the seat
tracks and stop the seat from
locking in place . This may lead
to an accident and the adjust-
ment mechanism may also be
damaged.
●Always observe the legal speed
limit when driving on public
roads.
●When driving over long dis-
tances, take regular breaks
before you start to feel tired.
Also, if you feel tired or sleepy
while driving, do not force your-
self to continue driving and take
a break immediately.
Correct use of the seat
belts
Adjusting the mirrors

281-1. For safe use
HIGHLANDER HV_U
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
 Position the lap belt as low as possible over the hips.
 Adjust the position of the
seatback. Sit up straight and
well back in the seat.
 Do not twist the seat belt.
■Emergency locking retractor
(ELR)
The retractor will lock the belt during
a sudden stop or on impact. It may
also lock if you lean forward too
quickly. A slow, easy motion will
allow the belt to extend so that you
can move around fully.
■Automatic locking retractor
(ALR)
When a passenger’s shoulder belt is
completely extended and then
retracted even slightly, the belt is
locked in that position and cannot
be extended. This feature is used to
hold the child restraint system
(CRS) firmly. To free the belt again,
fully retract the belt and then pull the
belt out once more. ( P. 5 0 )
■Child seat belt usage
The seat belts of your vehicle were
principally designed for persons of
adult size.
●Use a child restraint system
appropriate for the child, until the
child becomes large enough to
properly wear the vehicle’s seat
belt. ( P. 5 0 )
●When the child becomes large
enough to properl y wear the vehi-
cle’s seat belt, follow the instruc-
tions regarding seat belt usage.
(  P. 2 7 )
■Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toy-
ota dealer free of charge.
WA R N I N G
●Inspect the seat belt system
periodically. Check for cuts,
fraying, and loose parts. Do not
use a damaged seat belt until it
is replaced. Damaged seat belts
cannot protect an occupant
from death or se rious injury.
●Ensure that the belt and plate
are locked and the belt is not
twisted. If the seat belt does not
function correctly, immediately
contact your Toyota dealer.
●Replace the seat assembly,
including the belts, if your vehi-
cle has been involved in a seri-
ous accident, even if there is no
obvious damage.
●Do not attempt to install,
remove, modify, disassemble or
dispose of the seat belts. Have
any necessary repairs carried
out by your Toyota dealer. Inap-
propriate handling may lead to
incorrect operation.
Correct use of the seat
belts

361-1. For safe use
HIGHLANDER HV_U
Your vehicle is equipped with ADVANCED AIRBAGS designed
based on the US motor vehicle safety standards (FMVSS208). The
airbag sensor assembly (ECU) controls airbag deployment based on
information obtained from the sensors etc. shown in the system
components diagram above. This in formation includes crash sever-
ity and occupant information. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to
help restrain the motion of the occupants.
■If the SRS airbags deploy
(inflate)
●Slight abrasions, burns, bruising
etc., may be sustained from SRS
airbags, due to the extremely high
speed deployment (inflation) by
hot gases.
●A loud noise and white powder will
be emitted.
●Parts of the airbag module (steer-
ing wheel hub, airbag cover and
inflator) as well as the front seats,
parts of the front and rear pillars,
and roof side rails, may be hot for
several minutes. T he airbag itself
may also be hot.
●The windshield may crack.
●The hybrid system will be stopped
and fuel supply to the engine will
be stopped. ( P. 7 8 )
●All of the doors will be unlocked.
( P.132)
●The brakes and st op lights will be
controlled automatically. ( P.320)
●The interior lights will turn on auto-
matically. ( P.358)
●The emergency flashers will turn
on automatically. ( P.452)
●For Safety Connect subscribers, if
any of the following situations
occur, the system is designed to
send an emergency call to the
response center, notifying them of
the vehicle’s location (without
needing to push the “SOS” button)
and an agent will attempt to speak
with the occupants to ascertain
the level of emergency and assis- tance required. If the occupants
are unable to communicate, the
agent automatically treats the call
as an emergency and helps to dis-
patch the necessary emergency
services. (
P. 6 5 )
• An SRS airbag is deployed.
• A seat belt pretensioner is acti-
vated.
• The vehicle is involved in a severe
rear-end collision.
■SRS airbag deployment condi-
tions (SRS front airbags)
●The SRS front airbags will deploy
in the event of an impact that
exceeds the set threshold level
(the level of forc e corresponding
to an approximately 12 - 18 mph
[20 - 30 km/h] frontal collision with
a fixed wall that does not move or
deform).
However, this threshold velocity will
be considerably higher in the follow-
ing situations:
• If the vehicle strikes an object, such as a parked vehicle or sign
pole, which can move or deform
on impact
• If the vehicle is involved in an underride collision, such as a colli-
sion in which the front of the vehi-
cle “underrides”, or goes under,
the bed of a truck
●Depending on the type of collision,
it is possible that only the seat belt
pretensioners will activate.
●The SRS front airbags for the front
passenger will not activate if there
is no passenger sitting in the front
passenger seat. However, the
