2214-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
MP3 (MPEG Audio LAYER3) is
a standard audio compression
format. Files can be com-
pressed to approximately 1/10
of their original size by using
MP3 compression.
WMA (Windows Media Audio) is
a Microsoft audio compression
format. This format compresses
audio data to a size smaller than
that of the MP3 format.
AAC (Advanced Audio Coding)
is a standardized the audio com-
pression type that is designed to
be the successor of the MP3 for-
mat. AAC generally achieves
good sound quality and high-
compression than MP3 at simi-
lar bit rates.
There is a limit to the MP3,
WMA and AAC file standards
and to the media/formats
recorded by them that can be
used. 

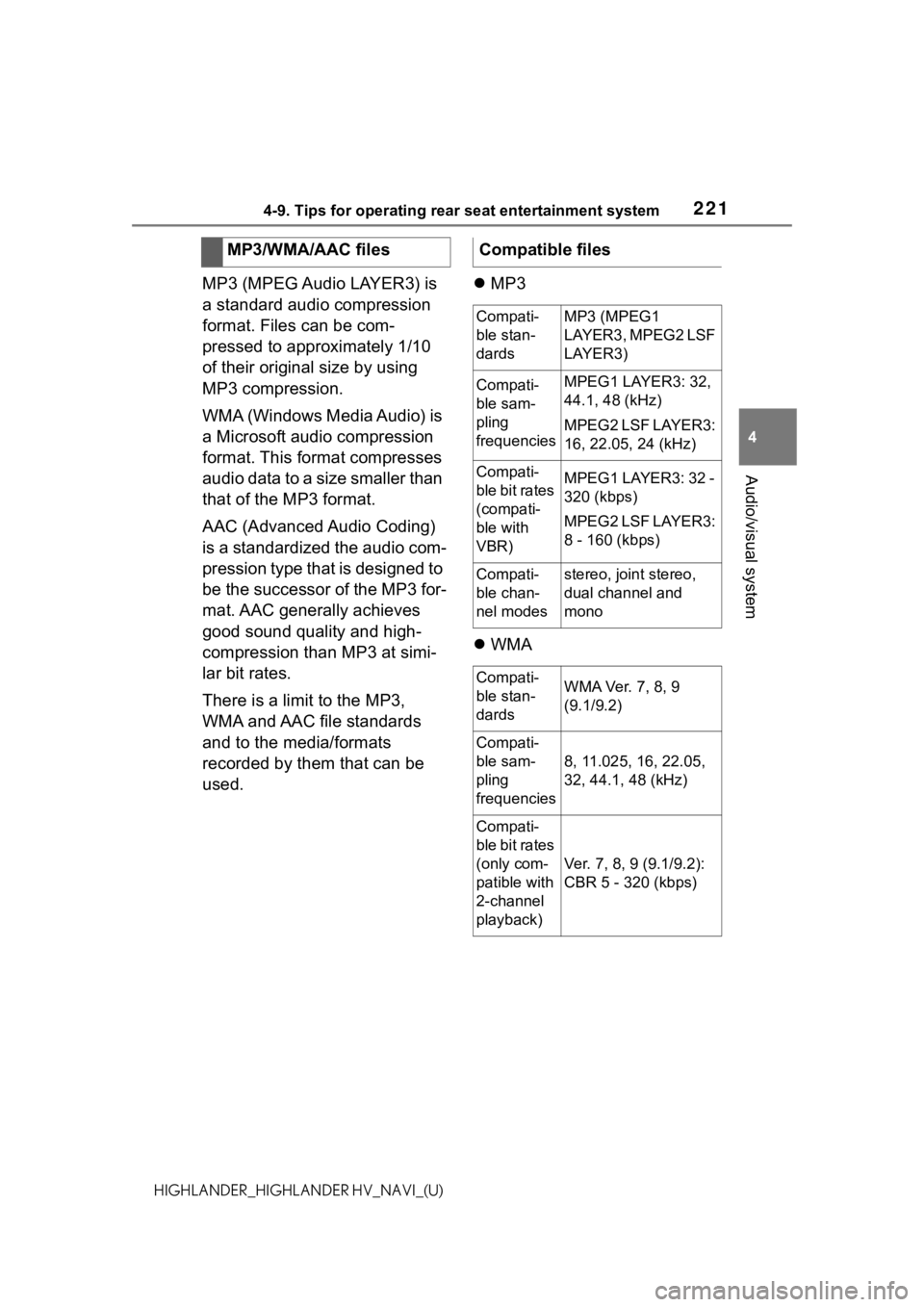

MP3
 WMA
MP3/WMA/AAC files
Compatible files
Compati-
ble stan-
dardsMP3 (MPEG1
LAYER3, MPEG2 LSF
LAYER3)
Compati-
ble sam-
pling
frequenciesMPEG1 LAYER3: 32,
44.1, 48 (kHz)
MPEG2 LSF LAYER3:
16, 22.05, 24 (kHz)
Compati-
ble bit rates
(compati-
ble with
VBR)MPEG1 LAYER3: 32 -
320 (kbps)
MPEG2 LSF LAYER3:
8 - 160 (kbps)
Compati-
ble chan-
nel modesstereo, joint stereo,
dual channel and
mono
Compati-
ble stan-
dardsWMA Ver. 7, 8, 9
(9.1/9.2)
Compati-
ble sam-
pling
frequencies
8, 11.025, 16, 22.05,
32, 44.1, 48 (kHz)
Compati-
ble bit rates
(only com-
patible with
2-channel
playback)
Ver. 7, 8, 9 (9.1/9.2):
CBR 5 - 320 (kbps)

2224-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
AAC
Media that can be used for MP3,
WMA and AAC playback:
 CD-ROM/R/RW
 DVD-ROM/R/RW
Playback in some instances
may not be possible, depending
on the status of the disc. Play-
back may not be possible or the
audio may jump if the disc is
scratched or marked with finger-
prints. The following disc formats can
be used.
MP3, WMA and AAC files writ-
ten in any format other than
those listed above may not play
correctly, and their file names
and folder names may not be
displayed correctly.
Items related to standards and
limitations are as follows.

Maximum directory hierar-
chy: 8 levels
 Maximum length of folder
names/file names: The num-
ber of the maximum indication
letters by design specifica-
tions of the indication
machine side (support propor-
tional font, and there are dis-
tinction of the half size and full
size)
 Maximum number of folders:
255 (including the root)
 Maximum number of files per
disc: 512

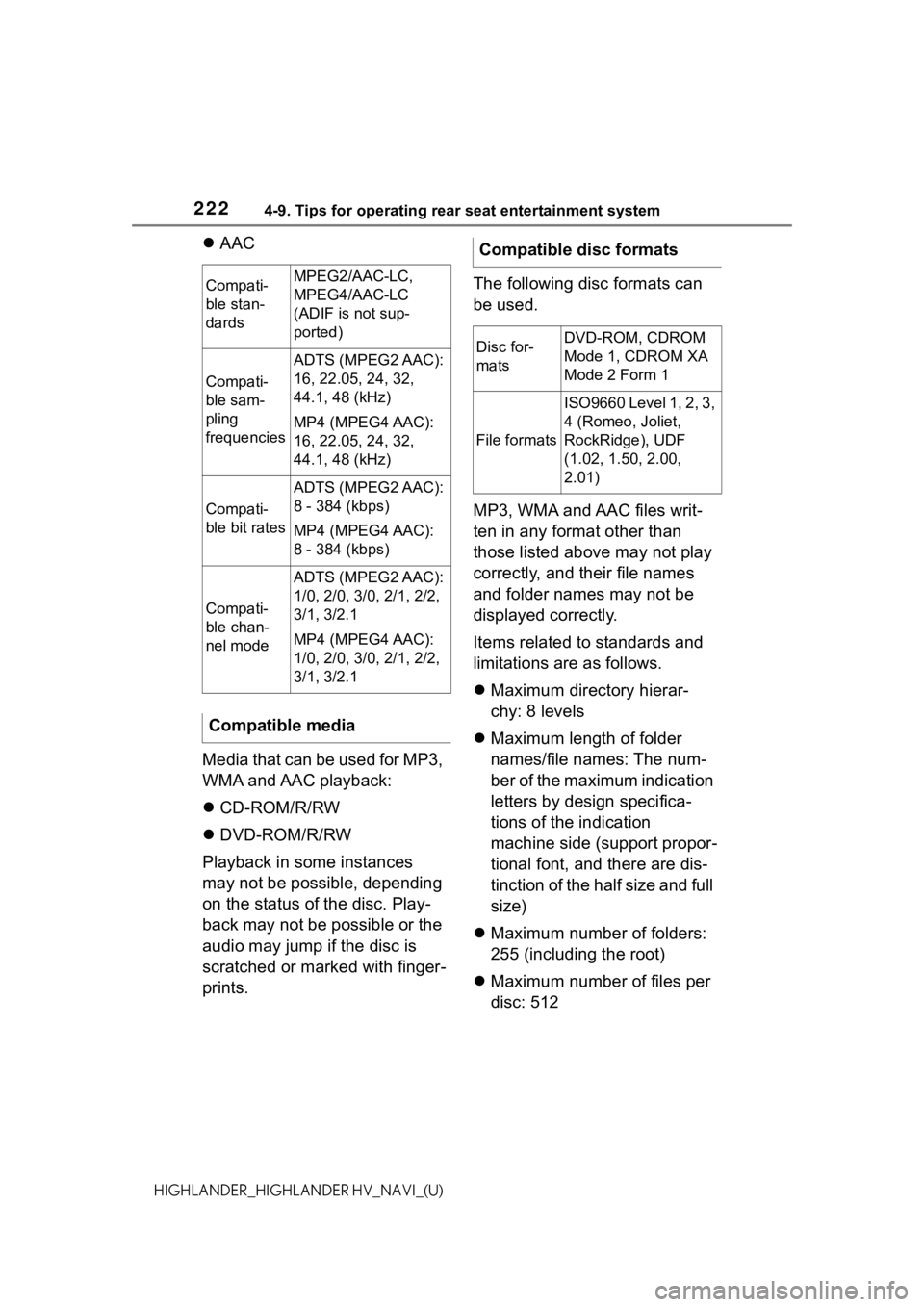

Compati-
ble stan-
dardsMPEG2/AAC-LC,
MPEG4/AAC-LC
(ADIF is not sup-
ported)
Compati-
ble sam-
pling
frequencies
ADTS (MPEG2 AAC):
16, 22.05, 24, 32,
44.1, 48 (kHz)
MP4 (MPEG4 AAC):
16, 22.05, 24, 32,
44.1, 48 (kHz)
Compati-
ble bit rates
ADTS (MPEG2 AAC):
8 - 384 (kbps)
MP4 (MPEG4 AAC):
8 - 384 (kbps)
Compati-
ble chan-
nel mode
ADTS (MPEG2 AAC):
1/0, 2/0, 3/0, 2/1, 2/2,
3/1, 3/2.1
MP4 (MPEG4 AAC):
1/0, 2/0, 3/0, 2/1, 2/2,
3/1, 3/2.1
Compatible media
Compatible disc formats
Disc for-
matsDVD-ROM, CDROM
Mode 1, CDROM XA
Mode 2 Form 1
File formats
ISO9660 Level 1, 2, 3,
4 (Romeo, Joliet,
RockRidge), UDF
(1.02, 1.50, 2.00,
2.01)

2234-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
File names
• The only files that can be recog-
nized as MP3/WMA/AAC and
played are those with the exten-
sion.mp3, .wma or .m4a.
 Multi-sessions
As the audio/visual system is com-
patible with multi-sessions, it is pos-
sible to play discs that contain MP3,
WMA and AAC files.
ID3 tags
ID3 tags can be added to MP3 files,
making it possible to record the
track title, artist name, etc.
The system is compatible with ID3
Ver. 1.0, 1.1, 2.2, 2.3 and Ver. 2.4
ID3 tags. (The number of charac-
ters is based on ID3 Ver. 1.0 and
1.1.)
WMA tags
WMA tags can be added to WMA
files, making it possible to record
the track title and artist name in the
same way as with ID3 tags.
AAC tags
• ADTS(MPEG2 AAC)
ID3 tags can be added to MP3 files,
making it possible to record the
track title, artist name, etc.
• MP4(MPEG4 AAC)
The AAC file can be added informa-
tion (track title, a rtist name, etc.)
that acquired from the Box of the
metadata of the MP4 container.
MP3, WMA and AAC play-
back
When a disc containing MP3, WMA
or AAC files is inser ted, all files on
the disc are first checked. Once the
file check is finished, the first MP3,
WMA or AAC file is played. To
make the file check finish more
quickly, we recommend you do not
write in any files other than MP3,
WMA or AAC files or create any
unnecessary folders.
If the discs contai n a mixture of
music data and MP3, WMA or AAC
format data, only music data can be
played.
 Extensions
If the file extens ions .mp3, .wma
and .m4a are used for files other
than MP3, WMA and AAC files,
they will be mistakenly recognized
and played as MP3, WMA and AAC
files. This may result in large
amounts of interference and dam-
age to the speakers.
 Playback
• To play MP3 files with steady
sound quality, we recommend a
fixed bit rate of 128 kbps and a
sampling frequency of 44.1 kHz.
• Playback may not be possible in some instances, depending on
the characteristics of the disc.
• There is a wide variety of free- ware and other encoding soft-
ware for MP3, WMA or AAC files
on the market, and depending on
the status of the encoding and the
file format, poor sound quality or
noise at the start of playback may
result. In some cases, playback
may not be possible at all.
• When files other than MP3, WMA or AAC files are recorded on a
MP3/WMA/AAC file informa-
tion

2244-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)disc, it may take more time to rec-
ognize the disc and in some
cases, playback may not be pos-
sible at all.

Memory cards are restricted
to the following conditions
based on SD standards.
• SD memory card (from 512MB to
2GB)
• SDHC memory card (from 4GB to 32GB)
• SDXC memory card (from 48GB to 512GB)
 Mini SD cards and Micro SD
cards can be used, but must
be used with an adaptor card.
 MultiMedia Card (MMC) can-
not be used.
The following files can be dis-
played.
 Music file format
•MP3
•WMA
• AAC
For details about the
MP3/WMA/AAC, refer to compati-
ble file format for CD/DVD disc
( P.221) •FLAC
•WAV
•ALAC
SD card
SD card that can be used
SD card information
Compatible files
Compati-
ble stan-
dardsFLAC (Free Lossless
Audio Codec)
Compati-
ble sam-
pling
frequencies8/11.025/12/16/22.05/
24/32/44.1/48/88.2/
96/176.4/192 (kHz)
Quantiza-
tion bit rate16, 24
Compati-
ble stan-
dards
WAV (Lossless)
Compati-
ble sam-
pling
frequencies8/11.025/12/16/22.05/
24/32/44.1/48/88.2/
96/176.4/192 (kHz)
Quantiza-
tion bit rate16, 24
Compati-
ble chan-
nel modes
1/0, 2/0
Compati-
ble stan-
dardsApple Lossless Audio
Codec
Compati-
ble sam-
pling
frequencies8/11.025/12/16/22.05/
24/32/44.1/48/64/
88.2/96 (kHz)
Quantiza-
tion bit rate16, 24
Compati-
ble chan-
nel modes
1/0, 2/0

2254-9. Tips for operating rear seat entertainment system
4
Audio/visual system

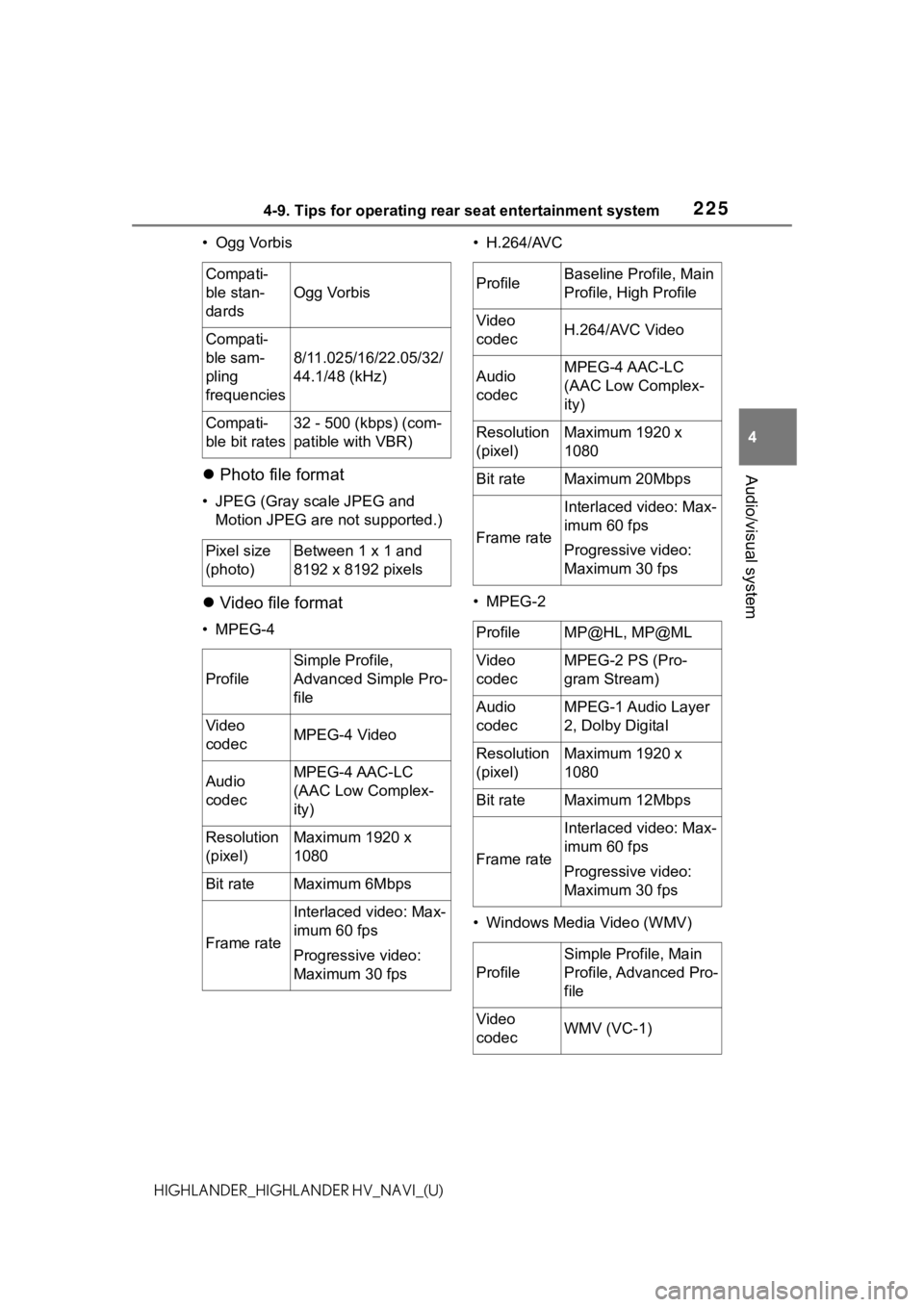

HIGHLANDER_HIGHLANDER HV_NAVI_(U)• Ogg Vorbis

Photo file format
• JPEG (Gray scale JPEG and
Motion JPEG are not supported.)
 Video file format
• MPEG-4 • H.264/AVC
• MPEG-2
• Windows Media Video (WMV)
Compati-
ble stan-
dards
Ogg Vorbis
Compati-
ble sam-
pling
frequencies
8/11.025/16/22.05/32/
44.1/48 (kHz)
Compati-
ble bit rates32 - 500 (kbps) (com-
patible with VBR)
Pixel size
(photo)Between 1 x 1 and
8192 x 8192 pixels
Profile
Simple Profile,
Advanced Simple Pro-
file
Video
codecMPEG-4 Video
Audio
codecMPEG-4 AAC-LC
(AAC Low Complex-
ity)
Resolution
(pixel)Maximum 1920 x
1080
Bit rateMaximum 6Mbps
Frame rate
Interlaced video: Max-
imum 60 fps
Progressive video:
Maximum 30 fps
ProfileBaseline Profile, Main
Profile, High Profile
Video
codecH.264/AVC Video
Audio
codecMPEG-4 AAC-LC
(AAC Low Complex-
ity)
Resolution
(pixel)Maximum 1920 x
1080
Bit rateMaximum 20Mbps
Frame rate
Interlaced video: Max-
imum 60 fps
Progressive video:
Maximum 30 fps
ProfileMP@HL, MP@ML
Video
codecMPEG-2 PS (Pro-
gram Stream)
Audio
codecMPEG-1 Audio Layer
2, Dolby Digital
Resolution
(pixel)Maximum 1920 x
1080
Bit rateMaximum 12Mbps
Frame rate
Interlaced video: Max-
imum 60 fps
Progressive video:
Maximum 30 fps
Profile
Simple Profile, Main
Profile, Advanced Pro-
file
Video
codecWMV (VC-1)

2264-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)• AVI CONTAINER
• SD-VIDEO H.264 Mobile Video
Profile
For the operation of how to make
the video file, see the manual that
comes with each device, encoder
soft, etc.
It may not be played depending on
the type of encoder soft.
 Compatible formats
This system is compatible with SD
memory cards that meet SD card
specifications FAT16 formats,
SDHC memory cards in FAT32 for-
mat, and SDXC memory cards in
exFAT format.
An SD card is not provided
with the rear seat entertain-
ment system and needs to be
purchased separately.
 The Panasonic SD memory
card format software version
5.01 is recommended.
 Data stored in an SD card
may be lost. Before playing
back music, pictures and vid-
Audio
codecWMA (WMA Profes-
sional and Lossless
are not supported.)
Resolution
(pixel)Maximum 1920 x
1080
Bit rate
Simple and Main Pro-
file: Maximum 15Mbps
Advanced Profile:
Maximum 20Mbps
Frame rate
Interlaced video: Max-
imum 60 fps
Progressive video:
Maximum 30 fps
Profile
Refer to supported
profiles for MPEG-4,
H.264/AVC, WMV
To b e
played
back video
and audio
codec
Video: H.264/AVC
Video
Audio: MPEG-4
AAC-LC, MP3
Video: MPEG-4 Video
Audio: MPEG-4
AAC-LC, MP3
Video: WMV (VC-1)
Audio: MP3
Resolution
(pixel)Maximum 1920 x
1080
Bit rate
Refer to supported bit
rate for MPEG-4,
H.264/AVC, WMV
Frame rate
Interlaced video: Max-
imum 60 fps
Progressive video:
Maximum 30 fps
ProfileBaseline Profile
Video
codecH.264/AVC Video
Audio
codecMPEG-4 AAC
Resolution
(pixel)640 x 480 and 640 x
360
Bit rate
Video: Maximum
1.5Mbps
Audio: Maximum
128kbps
Frame rate30 fps

2274-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
eos stored in an SD card,
make certain to back up the
data.
 Before an SD card that con-
tains any kind of data is
played, slide the lock switch
on the SD card to “LOCK” in
order to prevent any data
from being accidentally
deleted or overwritten.
 Local storage
• Some BD videos have a feature
to memorize disc information,
such as a resume point, in a local
storage. The rear seat entertain-
ment system uses an SD card as
a local storage device. To use this
function, insert an SD card into
the SD card slot.
• The SD card memory function may differ depending on the BD
videos played.
• When an SD card that contains any kind of data is inserted, BD
video disc information will not be
stored into the SD card to protect
the existing data in the card. To
use an SD card as a local stor-
age, use another SD card that
does not contain any data.
WA R N I N G
●SD cards
• Keep away from children. These are small and if swal-
lowed by a child they can cause
choking.
NOTICE
●Failure to follow the precautions
below may result in damage to
the SD cards or the SD card
slot.
• Do not insert anything other than an SD card into the SD
card slot.
• Do not stick levels or stickers on SD card. There i s a possibility
that it may become impossible
to eject the SD ca rd from inside
the slot.
• Do not handle an SD card with wet hands. Doing so may cause
electric shock or a malfunction.
• Do not allow hands or metal objects to contact the interface
pins of SD cards.
• Do not place SD cards on the instrument panel, on any place
with direct sunlight or in areas
with a lot of moisture.
• Do not use SD cards in any
place where static electricity or
electric noise adversely affects
SD cards. This may cause data
corruption or data loss.
• Always place the SD card in its storage case when not in use.

2284-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
When Bluetooth® (Blue-
tooth® audio, hands-free
function or connected ser-
vices) is being used in the
front seats, DLNA cannot be
used on the rear seat display.
 The mobile device functions
that can be operated differ
depending on the communi-
cation environment and the
type of connected mobile
device. Depending on the
device that is used, it may not
be possible to connect to the
internet while using the DLNA
function. Refer to the instruc-
tion manual and other docu- mentation included with the
mobile device for details.
 Blu-ray Disc™, Blu-ray™,
BD-Live™, BDXL™, and the
logos are trademarks of the
Blu-ray Disc Association.
 “AVCHD” and the “AVCHD”
logo are trademarks of Pana-
sonic Corporation and Sony
Corporation.
DLNA
Compatible format
Music file
format
MP3/WMA/AAC/
FLAC/WAV/ALAC/
Ogg Vorbis ( P.221,
224)
Video file
format
MPEG-4 Video,
H.264/AVC Video
(.mp4/.m4v/.3gp/
.m2ts ), MPEG-2
Video (.mpg), Win-
dows Media Video
(.wmv), AVI container
(.avi)
Photo file
format
JPEG (Gray scale
JPEG and Motion
JPEG are not sup-
ported.)
Pixel size
(photo)Between 1 × 1 and
8192 × 8192 pixels
Copyrights and trade-
marks

2294-9. Tips for operating rear seat entertainment system
4
Audio/visual system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
“DVD Logo” is a trademark of
DVD Format/Logo Licensing
Corporation.
 SDXC Logo is a trademark of
SD-3C, LLC.
 Manufactured under license
from Dolby Laboratories.
Dolby, Dolby Audio and the
double-D symbol are trade-
marks of Dolby Laboratories.
 For DTS patents, see
http://patents.dts.com
. Manu-
factured under license from
DTS Licensing Limited. DTS, the Symbol, & DTS and the
Symbol together are regis-
tered trademarks, and DTS
2.0 Channel is a trademark of
DTS, Inc. © DTS, Inc. All
Rights Reserved.
 DLNA
®, the DLNA Logo and
DLNA CERTIFIED® are
trademarks, service marks, or
certification marks of the Digi-
tal Living Network Alliance.
 This product is licensed under
the MPEG-4 patent portfolio
license, AVC patent portfolio
license and VC-1 patent port-
folio license for the personal
use of a consumer or other
uses in which it does not
receive remuneration to (i)
encode video in compliance
with the MPEG-4 Visual Stan-
dard, AVC Standard and VC-1
Standard
(“MPEG-4/AVC/VC-1 Video”)
and/or (ii) decode
MPEG-4/AVC/VC-1 Video
that was encoded by a con-
sumer engaged in a personal
activity and/or was obtained
from a video provider licensed
to provide MPEG-4/AVC/VC-1
Video. No license is granted

2304-9. Tips for operating rear seat entertainment system
HIGHLANDER_HIGHLANDER HV_NAVI_(U)
or shall be implied for any
other use. Additional informa-
tion may be obtained from
MPEG LA, L.L.C. See
http://www.mpegla.com
.
 WMA (Windows Media
Audio), Microsoft, Windows,
and Windows Media are the
registered trademarks of Mic-
rosoft Corporation in the U.S.
and other countries. This
product is protected by certain
intellectual property rights of
Microsoft Corporation and
third parties. Use or distribu-
tion of such technology out-
side of this product is
prohibited without a license
from Microsoft or an autho-
rized Microsoft subsidiary and
third parties.
 This item incorporates copy
protection technology that is
protected by U.S. patents and
other intellectual property
rights of Rovi Corporation.
Reverse engineering and dis-
assembly are prohibited.
 Oracle, Java and all
Java-based trademarks and
logos are trademarks or regis- tered trademarks of Oracle
and/or its affiliates. Other
names may be trademarks of
their respective owners.
