TOYOTA HILUX 2013 Owners Manual (in English)

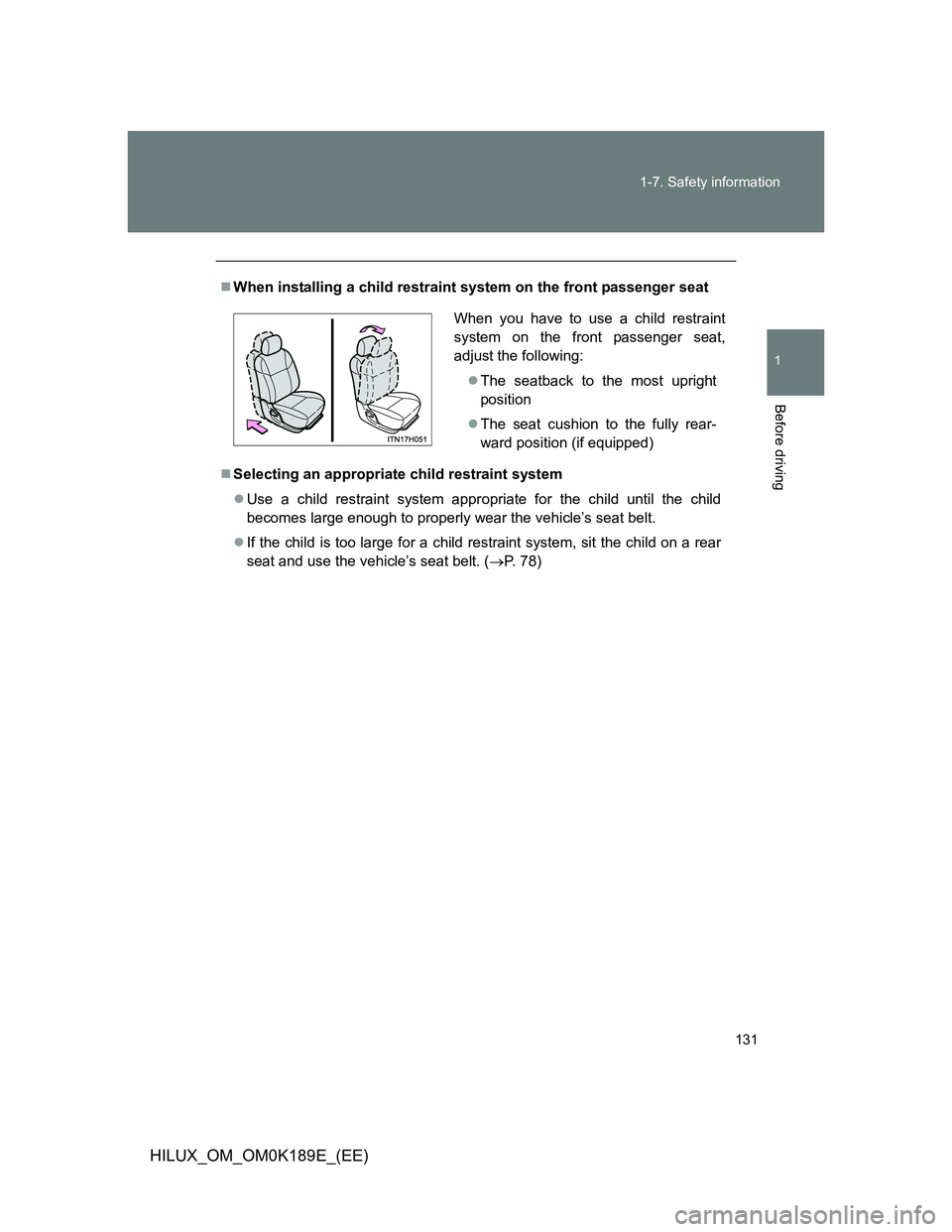

131 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
When installing a child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. (P. 78)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright
position
The seat cushion to the fully rear-
ward position (if equipped)

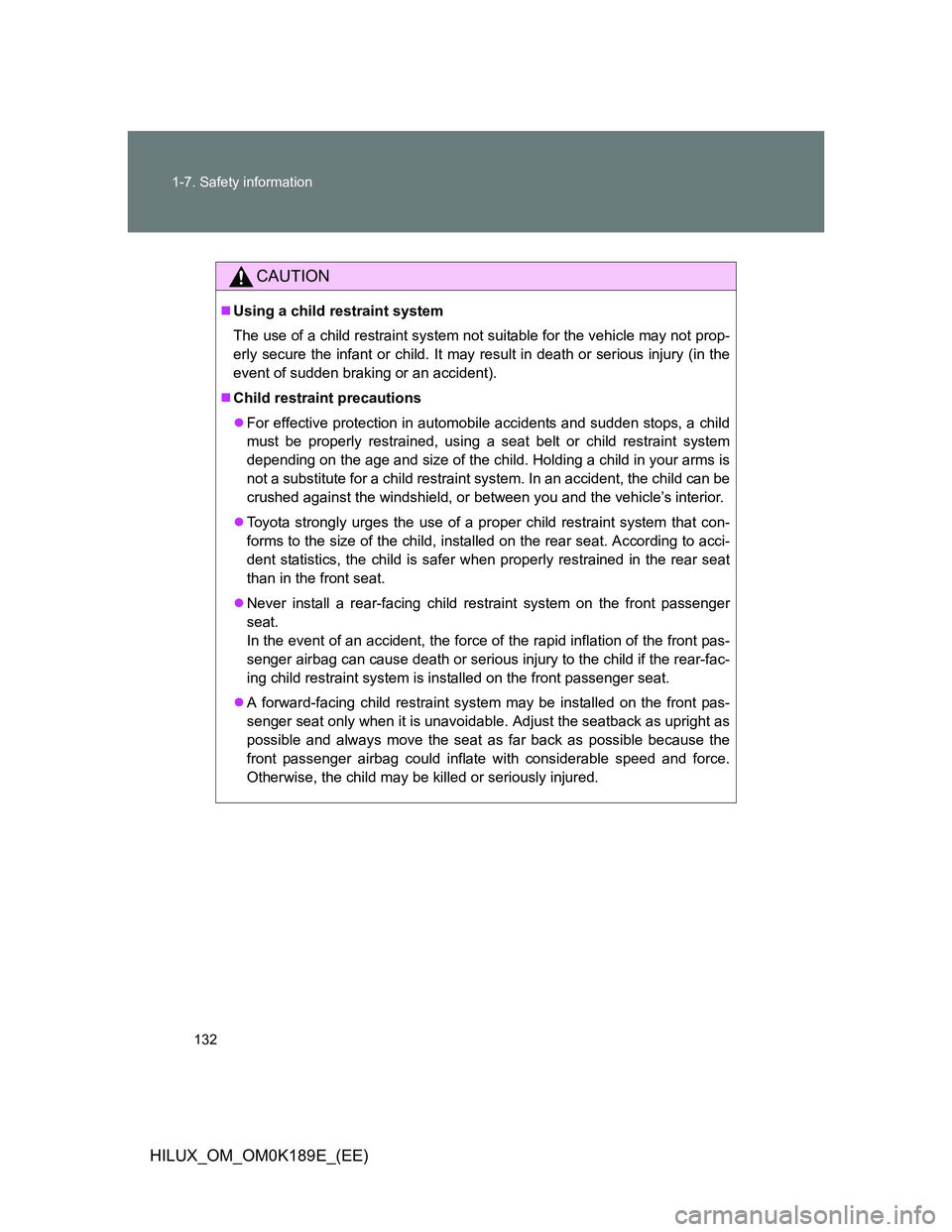

132 1-7. Safety information
HILUX_OM_OM0K189E_(EE)
CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never install a rear-facing child restraint system on the front passenger
seat.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. Adjust the seatback as upright as
possible and always move the seat as far back as possible because the
front passenger airbag could inflate with considerable speed and force.
Otherwise, the child may be killed or seriously injured.

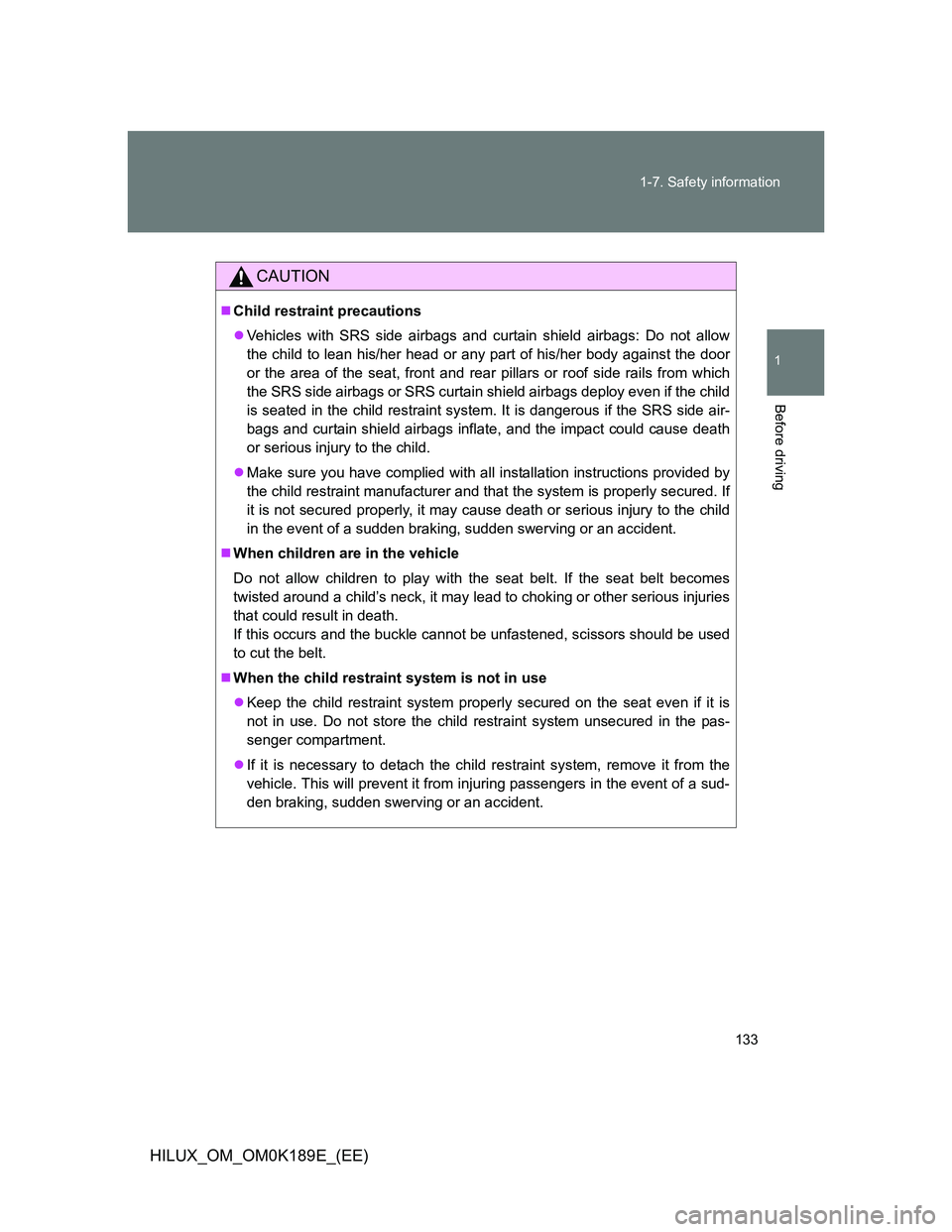

133 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
CAUTION
Child restraint precautions
Vehicles with SRS side airbags and curtain shield airbags: Do not allow
the child to lean his/her head or any part of his/her body against the door
or the area of the seat, front and rear pillars or roof side rails from which
the SRS side airbags or SRS curtain shield airbags deploy even if the child
is seated in the child restraint system. It is dangerous if the SRS side air-
bags and curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden braking, sudden swerving or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle. This will prevent it from injuring passengers in the event of a sud-
den braking, sudden swerving or an accident.

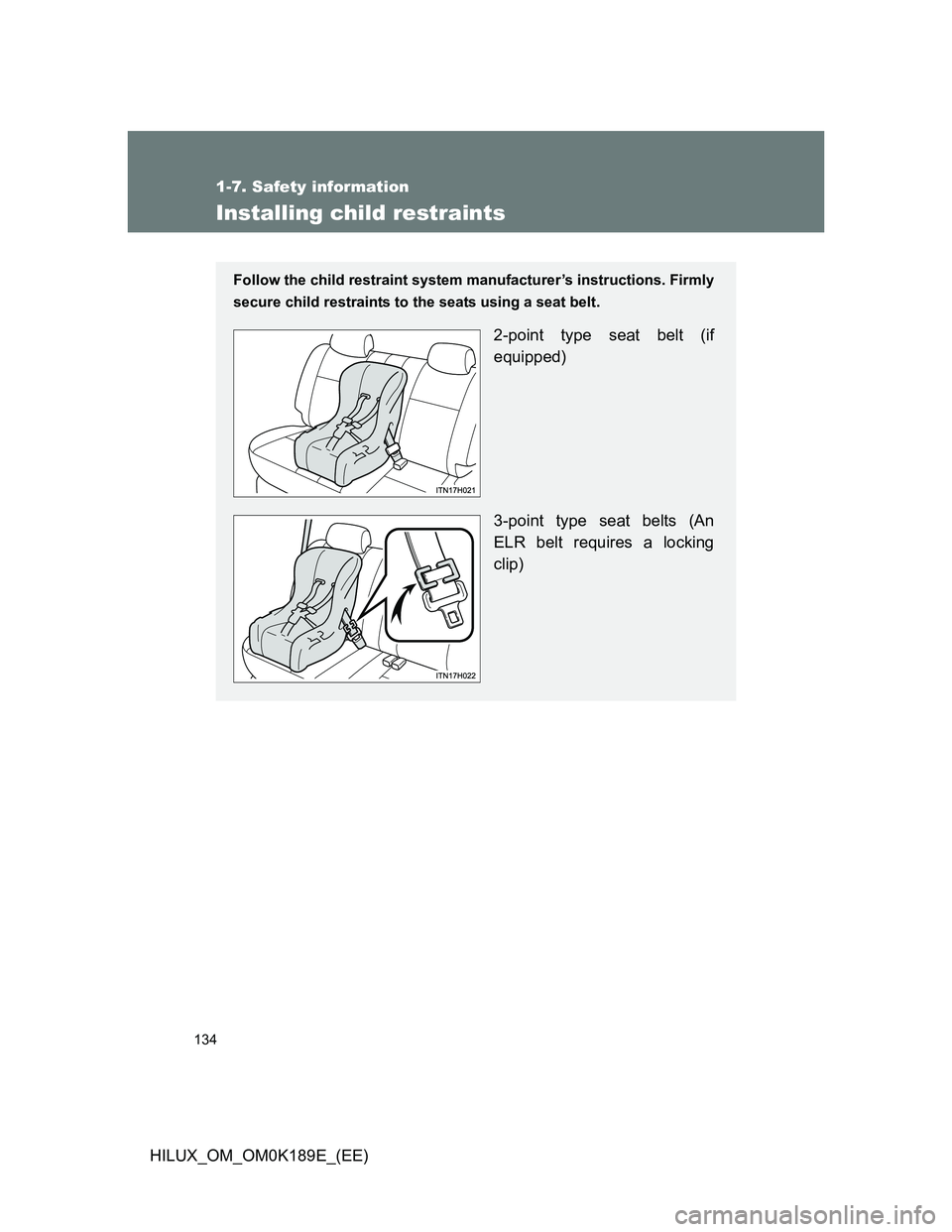

134
1-7. Safety information
HILUX_OM_OM0K189E_(EE)
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt.
2-point type seat belt (if
equipped)
3-point type seat belts (An
ELR belt requires a locking
clip)

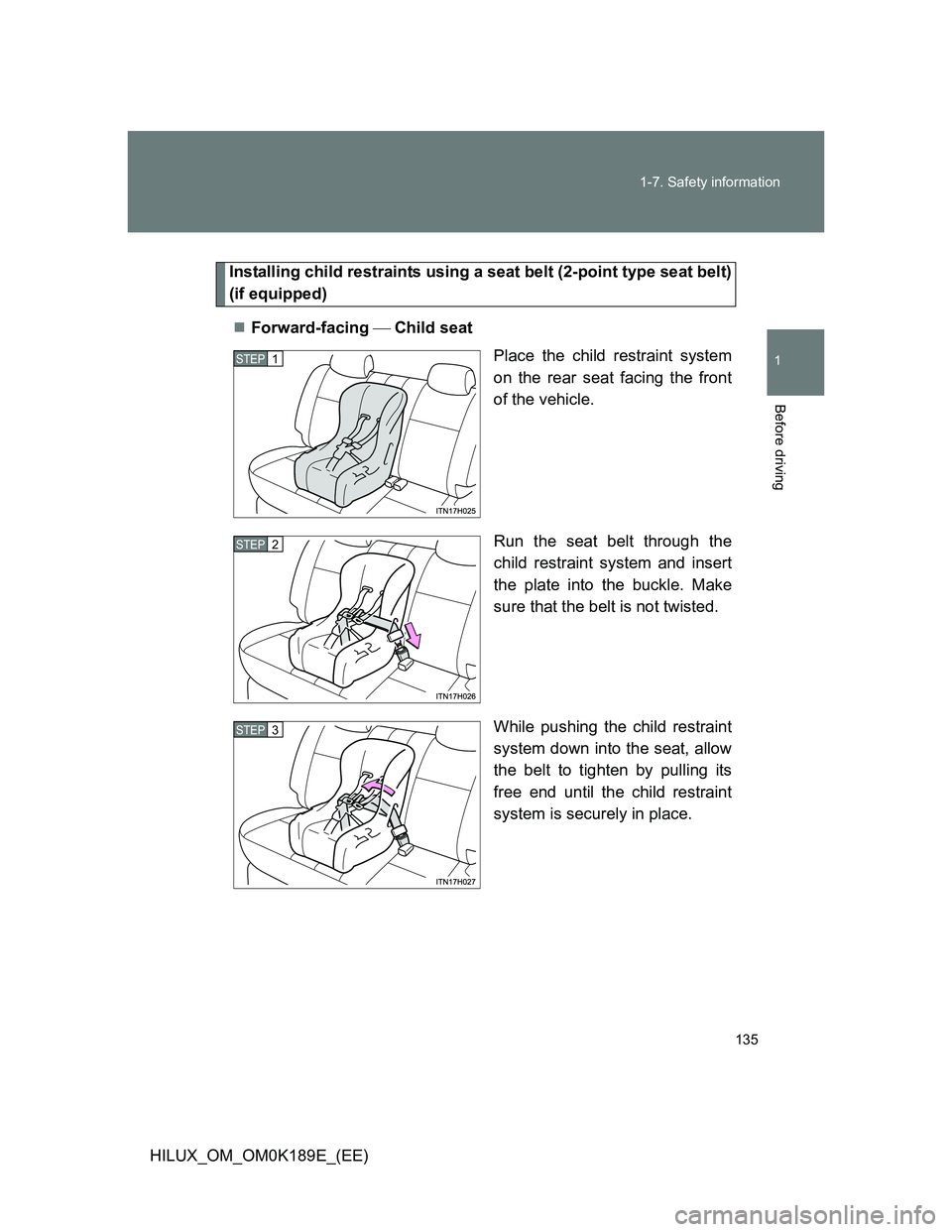

135 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
Installing child restraints using a seat belt (2-point type seat belt)
(if equipped)
Forward-facing  Child seat
Place the child restraint system
on the rear seat facing the front
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
While pushing the child restraint
system down into the seat, allow
the belt to tighten by pulling its
free end until the child restraint
system is securely in place.
STEP1
STEP2
STEP3

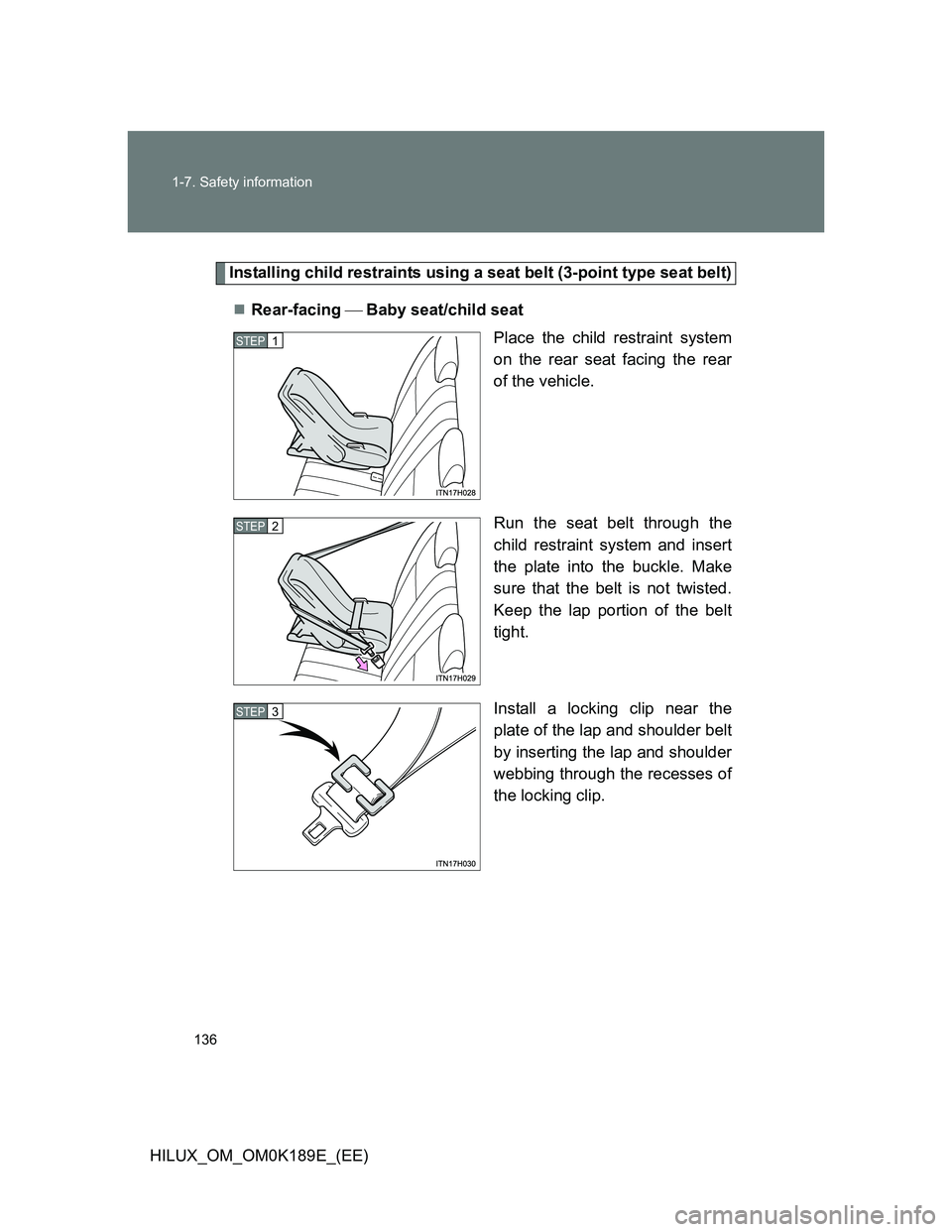

136 1-7. Safety information
HILUX_OM_OM0K189E_(EE)
Installing child restraints using a seat belt (3-point type seat belt)
Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the
plate of the lap and shoulder belt
by inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

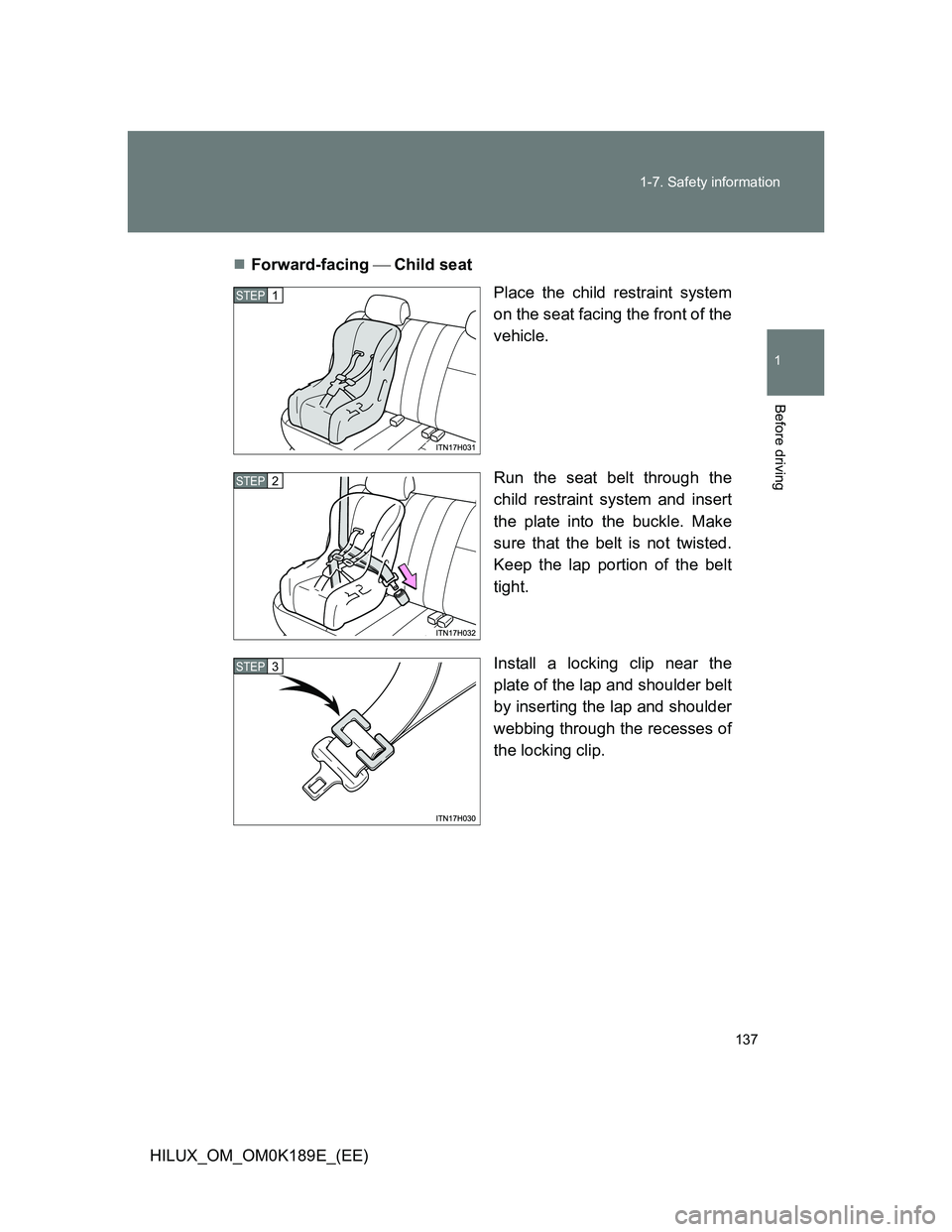

137 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)Forward-facing Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the
plate of the lap and shoulder belt
by inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

138 1-7. Safety information

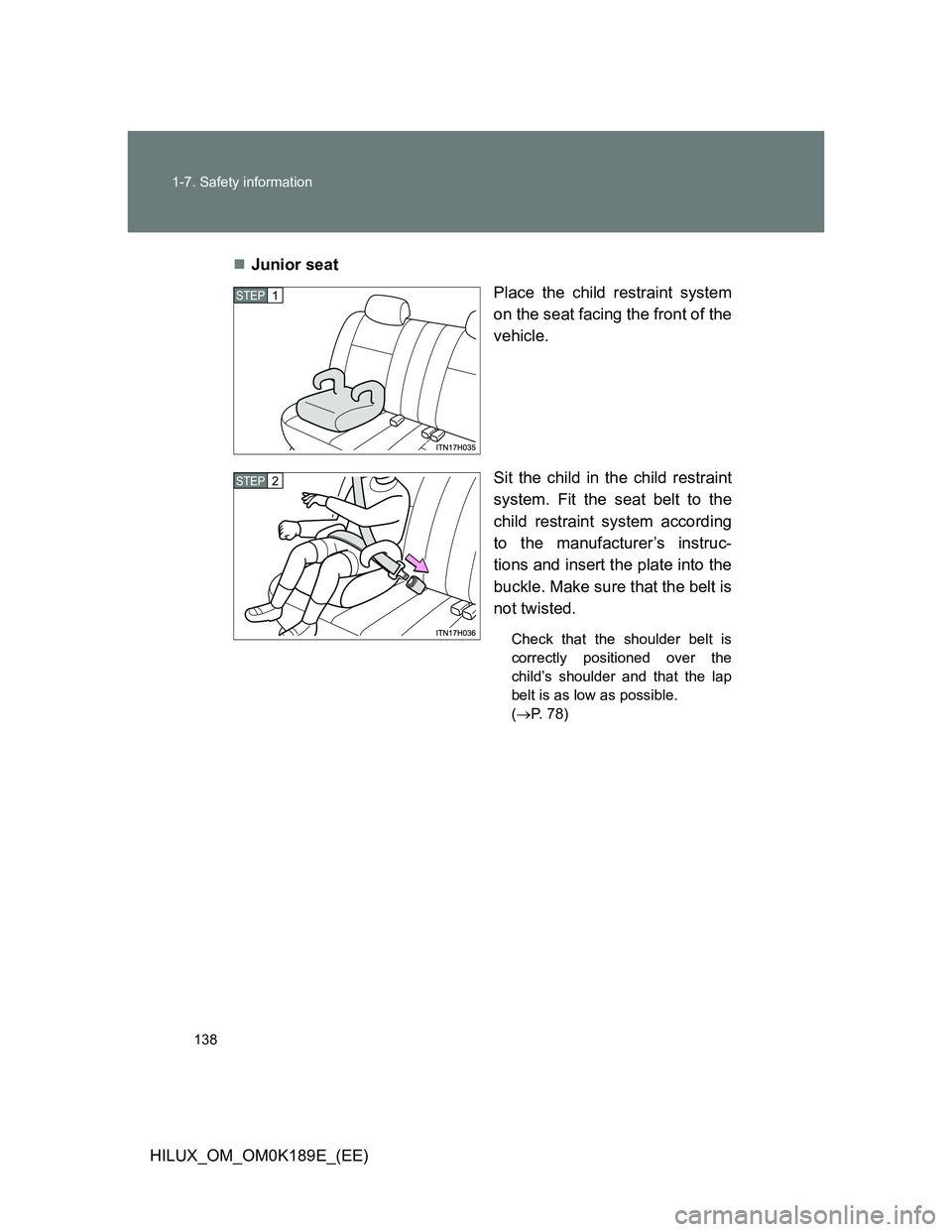

HILUX_OM_OM0K189E_(EE)Junior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 78)
STEP1
STEP2

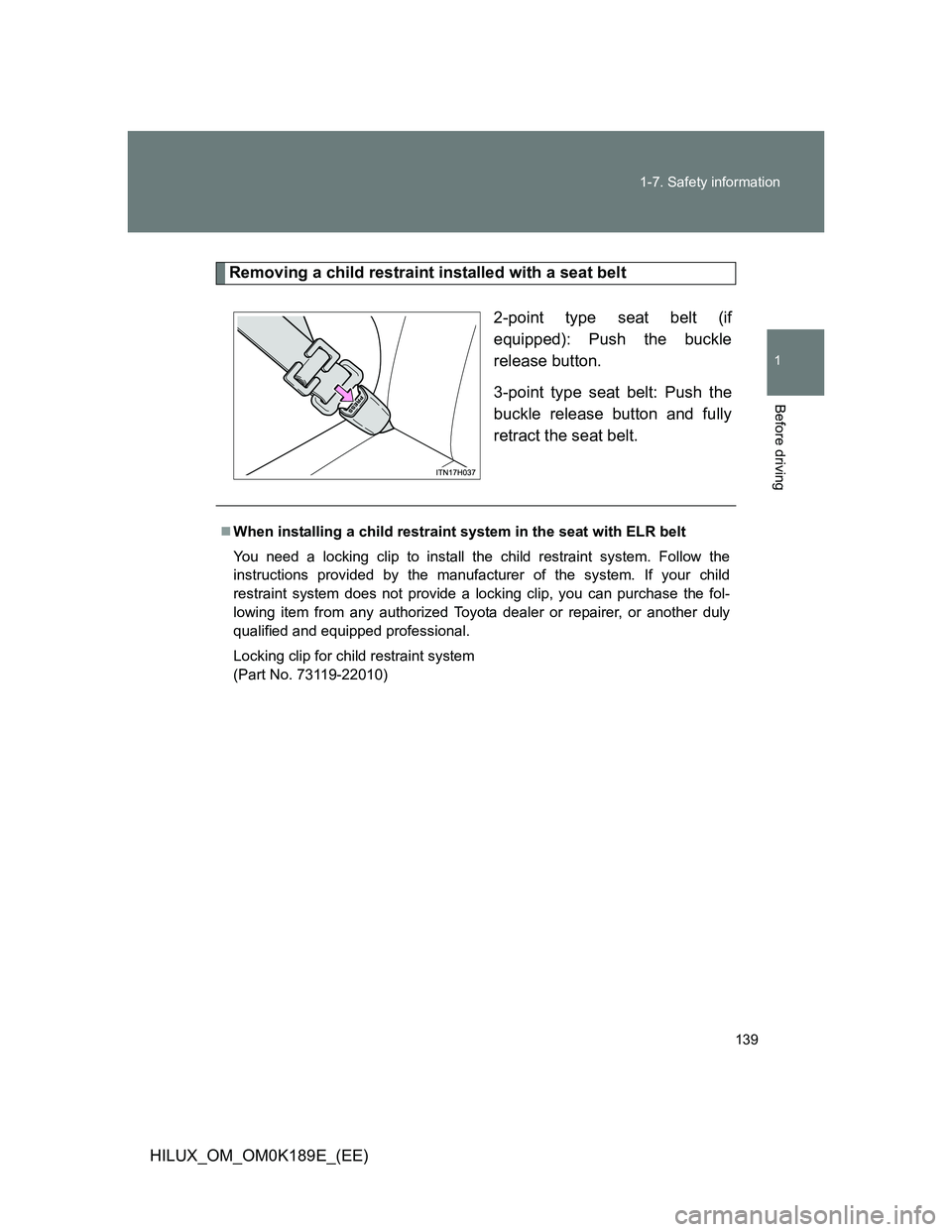

139 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
Removing a child restraint installed with a seat belt
2-point type seat belt (if
equipped): Push the buckle
release button.
3-point type seat belt: Push the
buckle release button and fully
retract the seat belt.
When installing a child restraint system in the seat with ELR belt
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

140 1-7. Safety information
HILUX_OM_OM0K189E_(EE)
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking, sudden swerving or an accident.
Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles).
Double-cab models: Adjust the front
passenger seat so that it does not inter-
fere with the child restraint system.
