TOYOTA HILUX 2013 Owners Manual (in English)

141 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
CAUTION
When installing a child restraint system
Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible (if equipped).
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).
Never use a rear-facing child restraint
system on the front passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

142 1-7. Safety information
HILUX_OM_OM0K189E_(EE)
CAUTION
When installing a child restraint system
Vehicles with front bench seat: Do not
install a child restraint system in the
center position. This seat position is not
designed to hold a child restraint sys-
tem.
If used in the center position, depend-
ing on its type, the child restraint sys-
tem may interfere with the proper
usage of the driver’s and front passen-
ger’s seat belts. It may also hamper
your driving.
Extra-cab models: Do not install a child
restraint system on the rear seat.
These seats are not designed to hold a
child restraint system.
Double-cab models: Do not install a
rear-facing child (convertible) seat in
the rear center position. This seat posi-
tion is not designed to hold a rear-fac-
ing child (convertible) seat. Otherwise,
the child or front seat occupant(s) may
be killed or seriously injured in the
event of sudden braking, sudden
swerving or an accident.

143 1-7. Safety information
1
Before driving
HILUX_OM_OM0K189E_(EE)
CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of a sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system from side to side and forward to be
sure it is secure.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.

144 1-7. Safety information
HILUX_OM_OM0K189E_(EE)

2When driving
145
HILUX_OM_OM0K189E_(EE)
2-1. Driving procedures
Driving the vehicle ............ 146
Engine (ignition) switch..... 162
Automatic transmission .... 166
Manual transmission......... 170
Turn signal lever ............... 173
Parking brake ................... 174
Horn .................................. 175
2-2. Instrument cluster
Gauges and meters .......... 176
Indicators and warning
lights ............................... 180
Multi-information
display ............................ 1852-3. Operating the lights
and wipers
Headlight switch................ 191
Fog light switch ................. 195
Windshield wipers
and washer ..................... 199
Headlight cleaner switch ... 201
2-4. Using other driving systems
Cruise control.................... 202
Rear view monitor
system ............................ 207
Four-wheel drive system... 212
Rear differential lock
system ............................ 217
Driving assist systems ...... 221
DPF (Diesel Particulate
Filter) system .................. 227
2-5. Driving information
Cargo and luggage ........... 232
Winter driving tips ............. 235
Trailer towing .................... 239

146
HILUX_OM_OM0K189E_(EE)

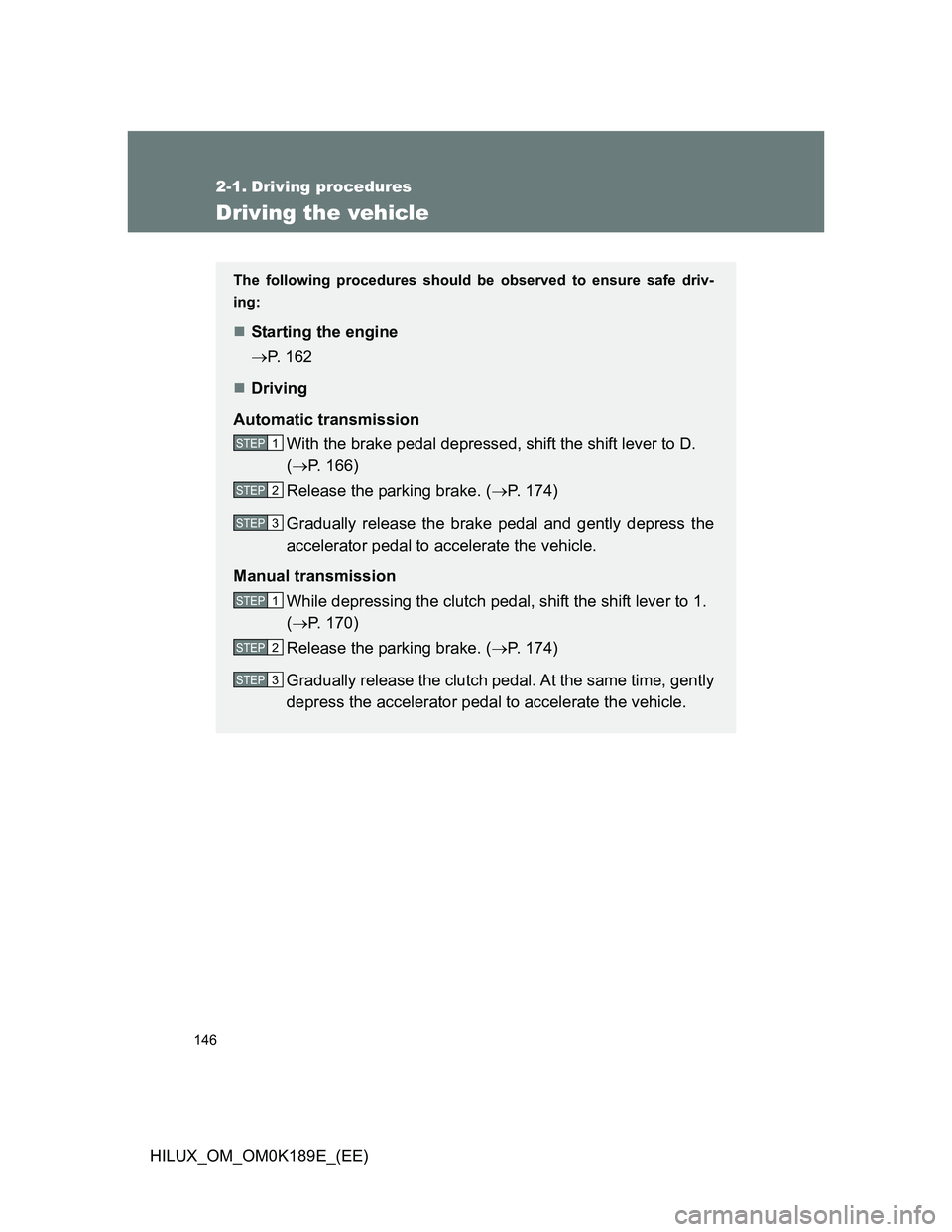

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
Starting the engine
P. 162
Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
(P. 166)
Release the parking brake. (P. 174)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 170)
Release the parking brake. (P. 174)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

147 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K189E_(EE)
Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P or N. (P. 166)
Manual transmission
While depressing the clutch pedal, depress the brake
pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (P. 170)
Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 174)
Shift the shift lever to P. (P. 166)
If parking on a hill, block the wheels as needed.
Turn the engine switch to the “LOCK” position to stop the
engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5

148 2-1. Driving procedures
HILUX_OM_OM0K189E_(EE)
Starting off on a steep uphill
Automatic transmission
Make sure that the parking brake is set and shift the shift lever
to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
Manual transmission
While depressing the clutch pedal, depress the brake
pedal.
Set the parking brake. (P. 174)
Shift the shift lever to N. (P. 170)
If parking on a hill, shift the shift lever to 1 or R and block the
wheels as needed.
Turn the engine switch to the “LOCK” position to stop the
engine.
Lock the door, making sure that you have the key on your
person.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

149 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K189E_(EE)
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is rec-
ommended:
For the first 300 km (200 miles):
Avoid sudden stops.
For the first 800 km (500 miles):
Do not tow a trailer.
For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
• Do not drive slowly with the manual transmission in a high gear.

150 2-1. Driving procedures
HILUX_OM_OM0K189E_(EE)
Idling time before stopping the engine
To prevent damage to the turbocharger, allow the engine to idle immediately
after high-speed driving or driving up a hill.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 609)
Driving conditionIdling time
Normal city driving Not necessary
High-speed
drivingConstant speed of approx.
80 km/h (50 mph)Approximately
20 seconds
Constant speed of approx.
100 km/h (62 mph)Approximately
1 minute
Steep hill driving or continuous driving at 100
km/h (62 mph) or more (race track driving etc.)Approximately
2 minutes
