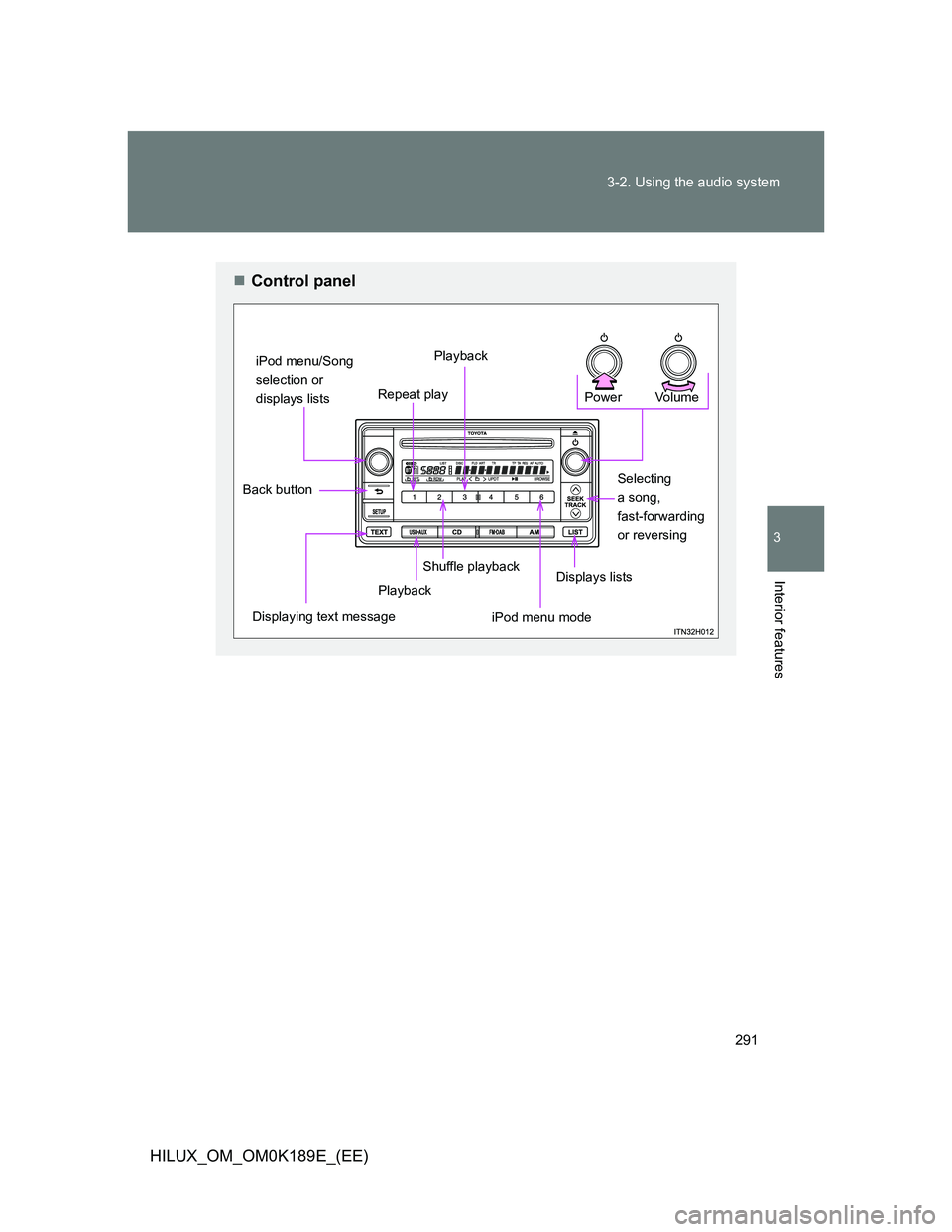

291 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)
Control panel
Vol u m e Power
Selecting
a song,
fast-forwarding
or reversing
iPod menu mode Shuffle playback
PlaybackDisplaying text message
iPod menu/Song
selection or
displays listsRepeat play
Displays lists
Back button
Playback

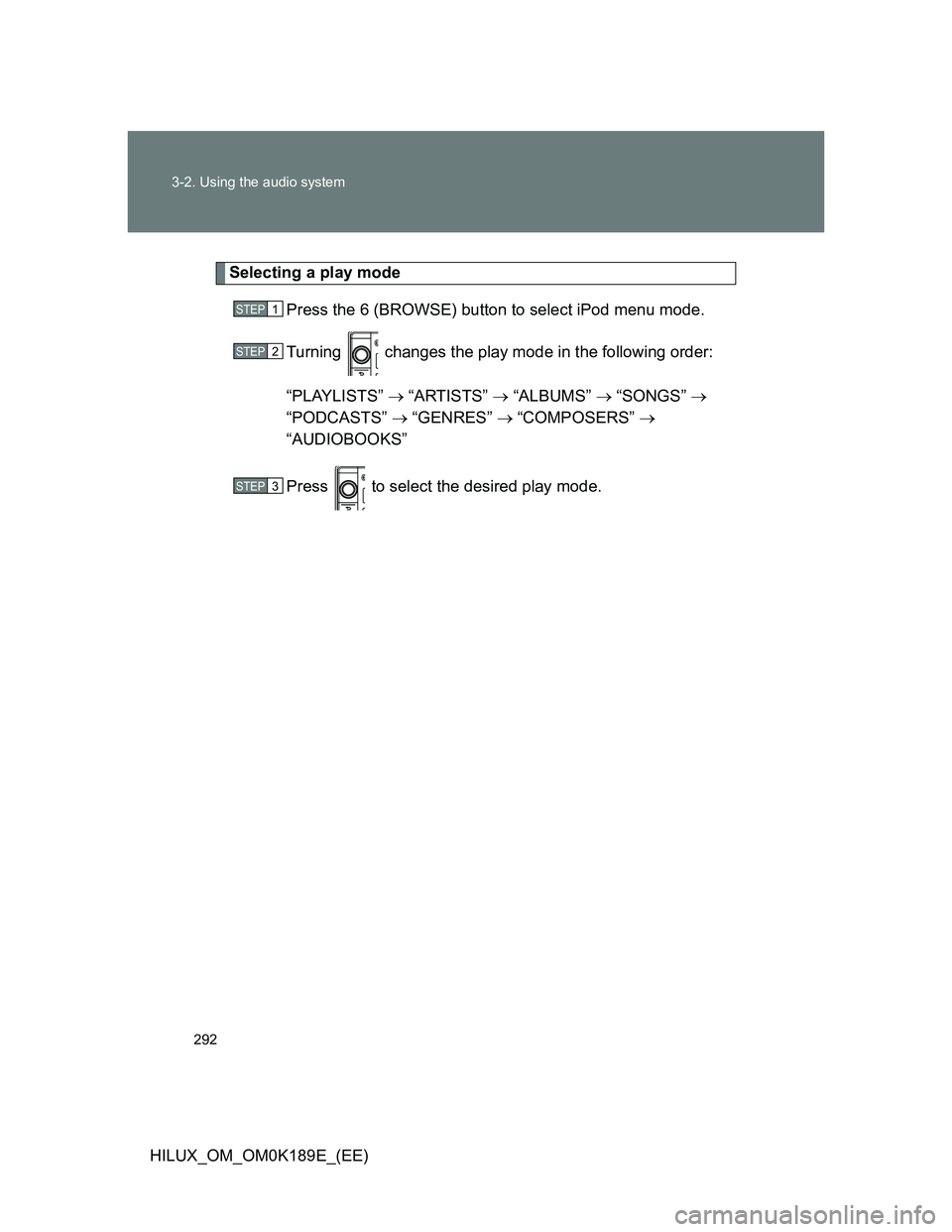

292 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)
Selecting a play mode
Press the 6 (BROWSE) button to select iPod menu mode.
Turning changes the play mode in the following order:
“PLAYLISTS”  “ARTISTS”  “ALBUMS”  “SONGS” 
“PODCASTS”  “GENRES”  “COMPOSERS” 
“AUDIOBOOKS”
Press to select the desired play mode.
STEP1
STEP2
STEP3

293 3-2. Using the audio system
3
Interior features

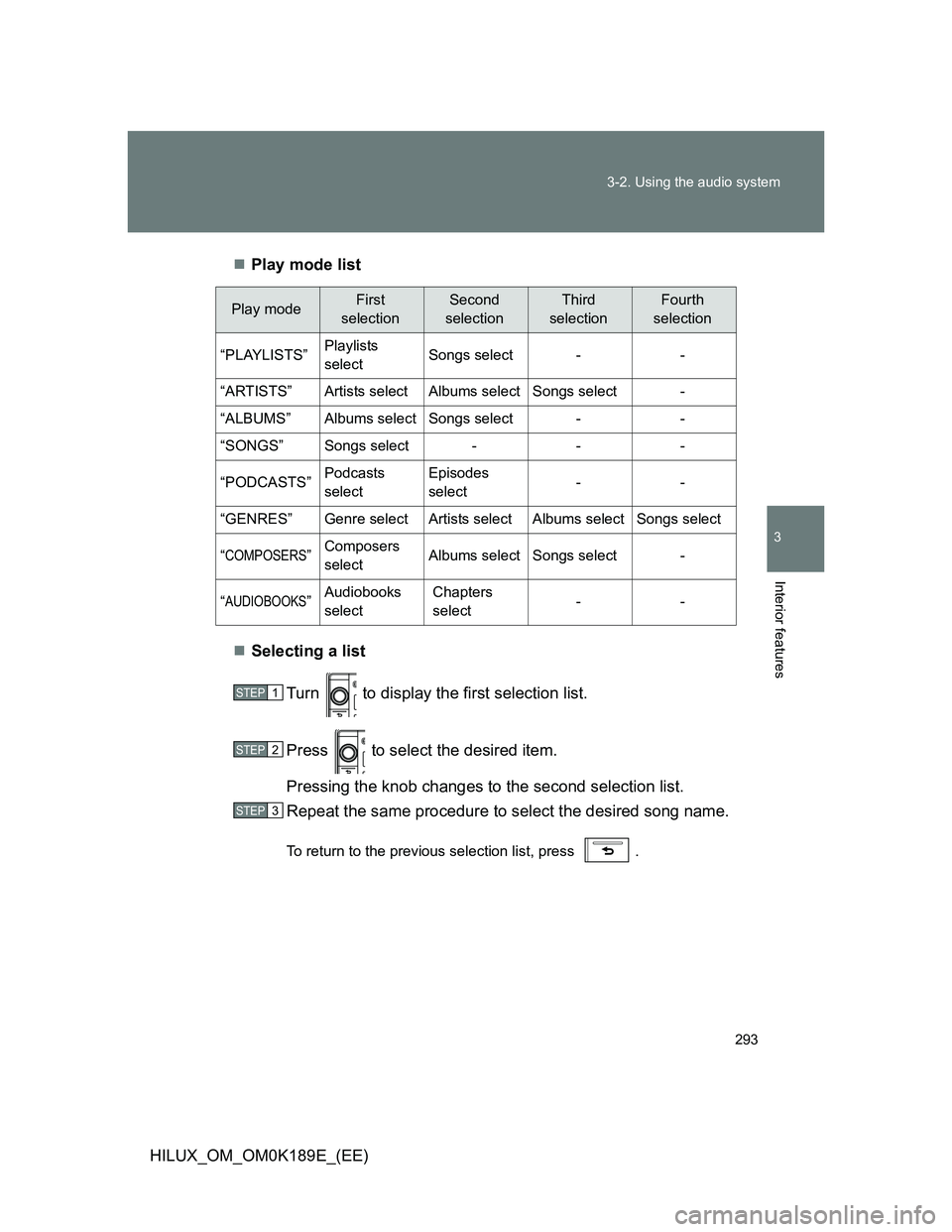

HILUX_OM_OM0K189E_(EE)Play mode list
Selecting a list
Turn to display the first selection list.
Press to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired song name.
To return to the previous selection list, press .
Play modeFirst
selectionSecond
selectionThird
selectionFourth
selection
“PLAYLISTS”Playlists
selectSongs select--
“ARTISTS”Artists selectAlbums selectSongs select-
“ALBUMS”Albums selectSongs select--
“SONGS”Songs select---
“PODCASTS”Podcasts
selectEpisodes
select--
“GENRES”Genre selectArtists selectAlbums selectSongs select
“COMPOSERS”Composers
selectAlbums selectSongs select-
“AUDIOBOOKS”Audiobooks
selectChapters
select--
STEP1
STEP2
STEP3

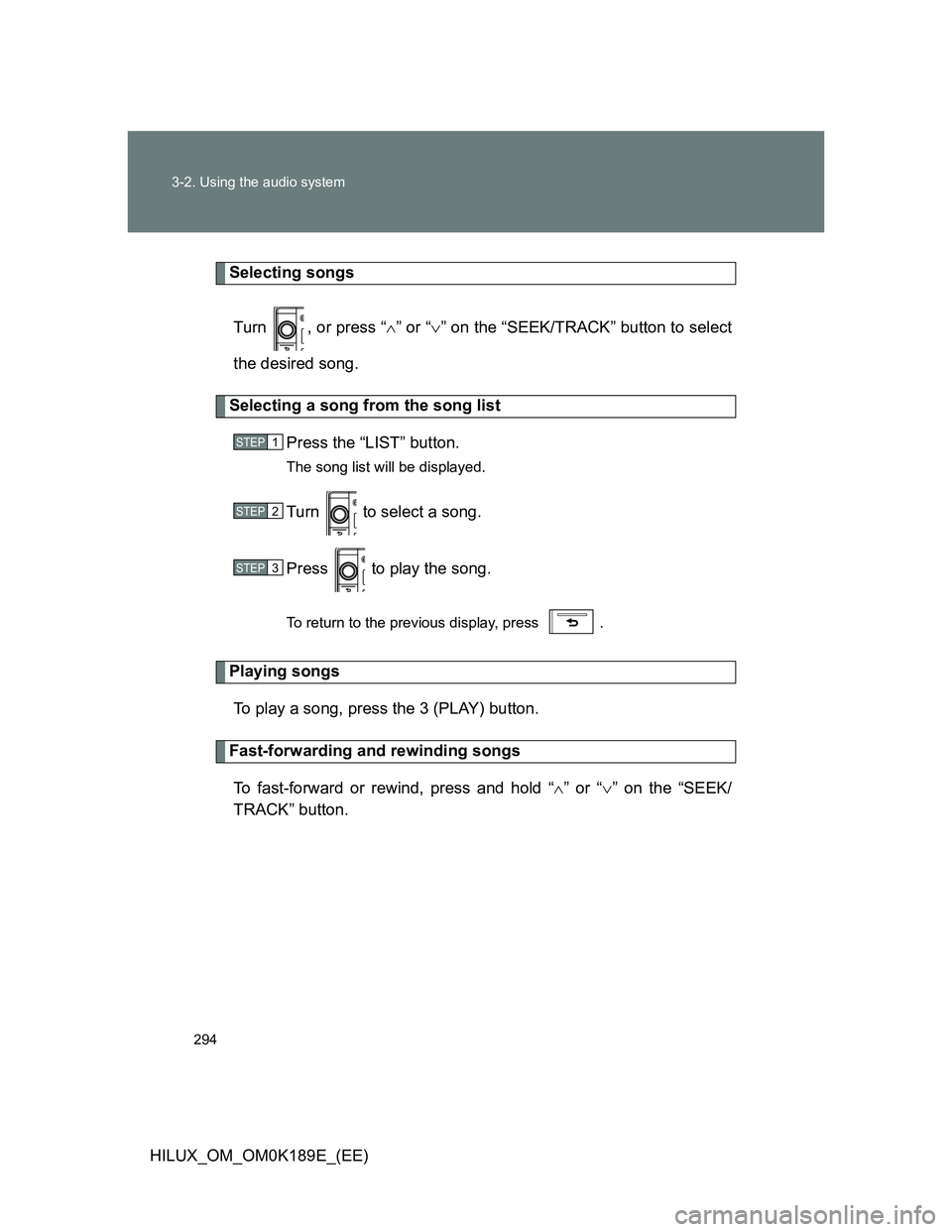

294 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)
Selecting songs
Turn , or press “” or “” on the “SEEK/TRACK” button to select
the desired song.
Selecting a song from the song list
Press the “LIST” button.
The song list will be displayed.
Turn to select a song.
Press to play the song.
To return to the previous display, press .
Playing songs
To play a song, press the 3 (PLAY) button.
Fast-forwarding and rewinding songs
To fast-forward or rewind, press and hold “” or “” on the “SEEK/
TRACK” button.
STEP1
STEP2
STEP3

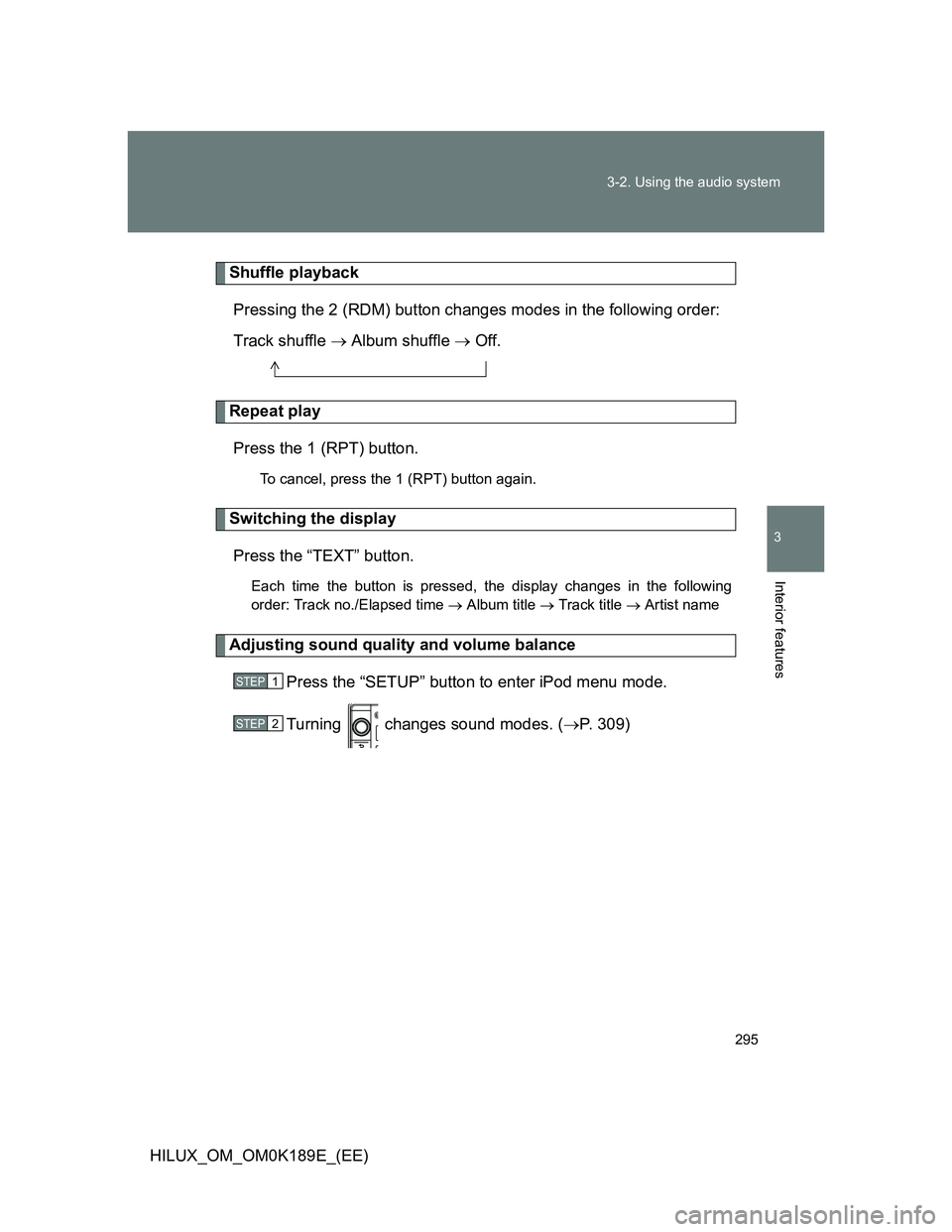

295 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)
Shuffle playback
Pressing the 2 (RDM) button changes modes in the following order:
Track shuffle  Album shuffle  Off.
Repeat play
Press the 1 (RPT) button.
To cancel, press the 1 (RPT) button again.
Switching the display
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following
order: Track no./Elapsed time  Album title  Track title  Artist name
Adjusting sound quality and volume balance
Press the “SETUP” button to enter iPod menu mode.
Turning changes sound modes. (P. 309)
STEP1
STEP2

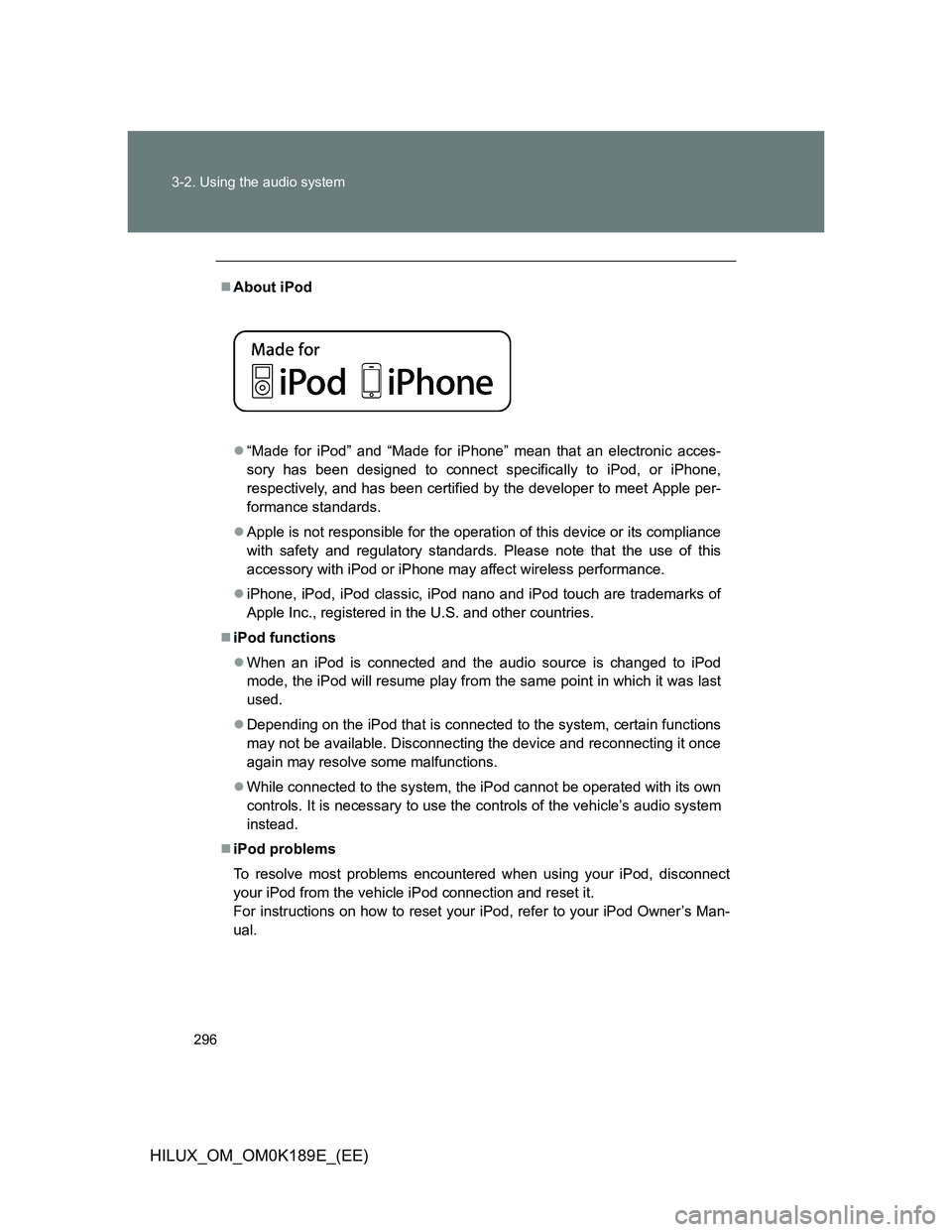

296 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)
About iPod
“Made for iPod” and “Made for iPhone” mean that an electronic acces-
sory has been designed to connect specifically to iPod, or iPhone,
respectively, and has been certified by the developer to meet Apple per-
formance standards.
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
iPod functions
When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.
Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.

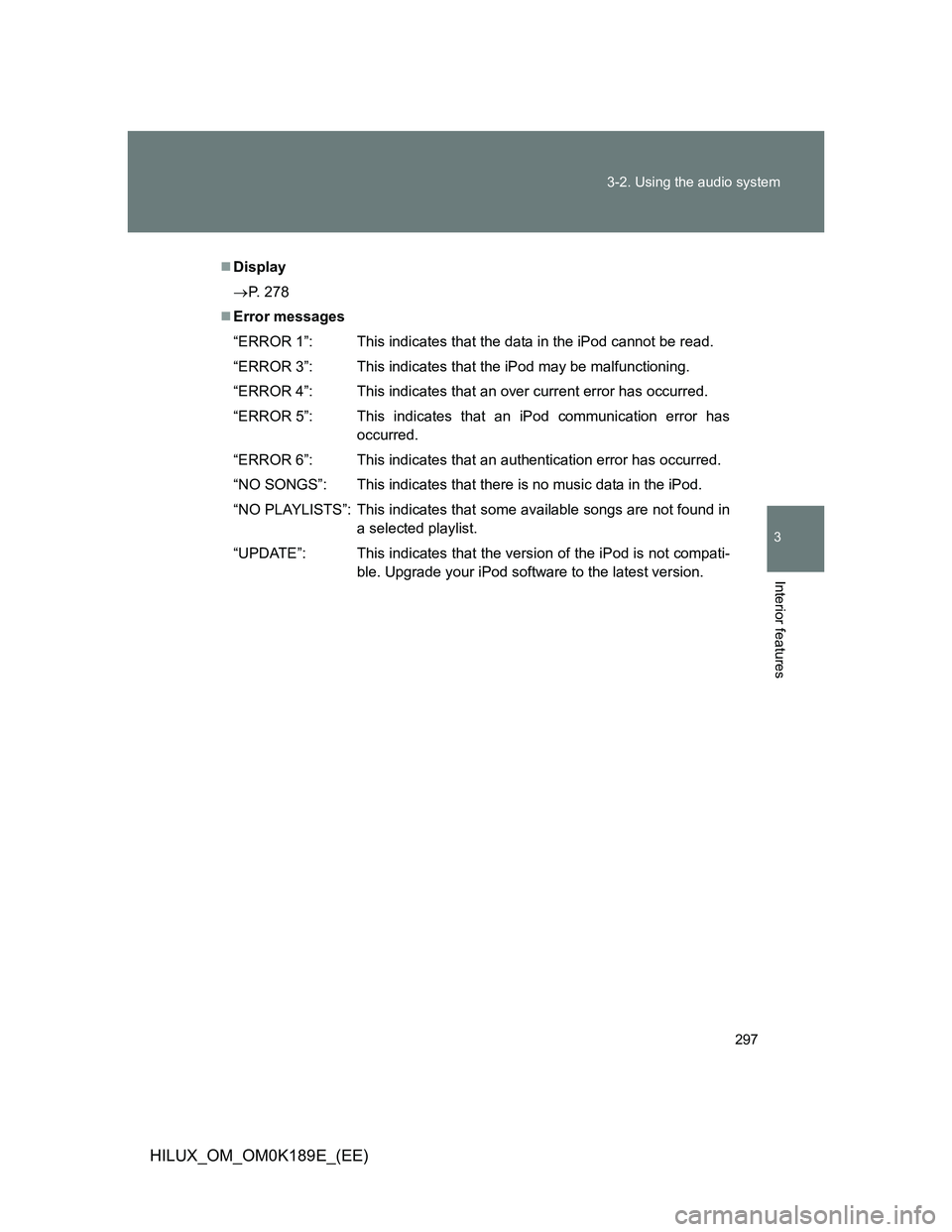

297 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)
Display
P. 278
Error messages
“ERROR 1”: This indicates that the data in the iPod cannot be read.
“ERROR 3”: This indicates that the iPod may be malfunctioning.
“ERROR 4”: This indicates that an over current error has occurred.
“ERROR 5”: This indicates that an iPod communication error has
occurred.
“ERROR 6”: This indicates that an authentication error has occurred.
“NO SONGS”: This indicates that there is no music data in the iPod.
“NO PLAYLISTS”: This indicates that some available songs are not found in
a selected playlist.
“UPDATE”: This indicates that the version of the iPod is not compati-
ble. Upgrade your iPod software to the latest version.

298 3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)

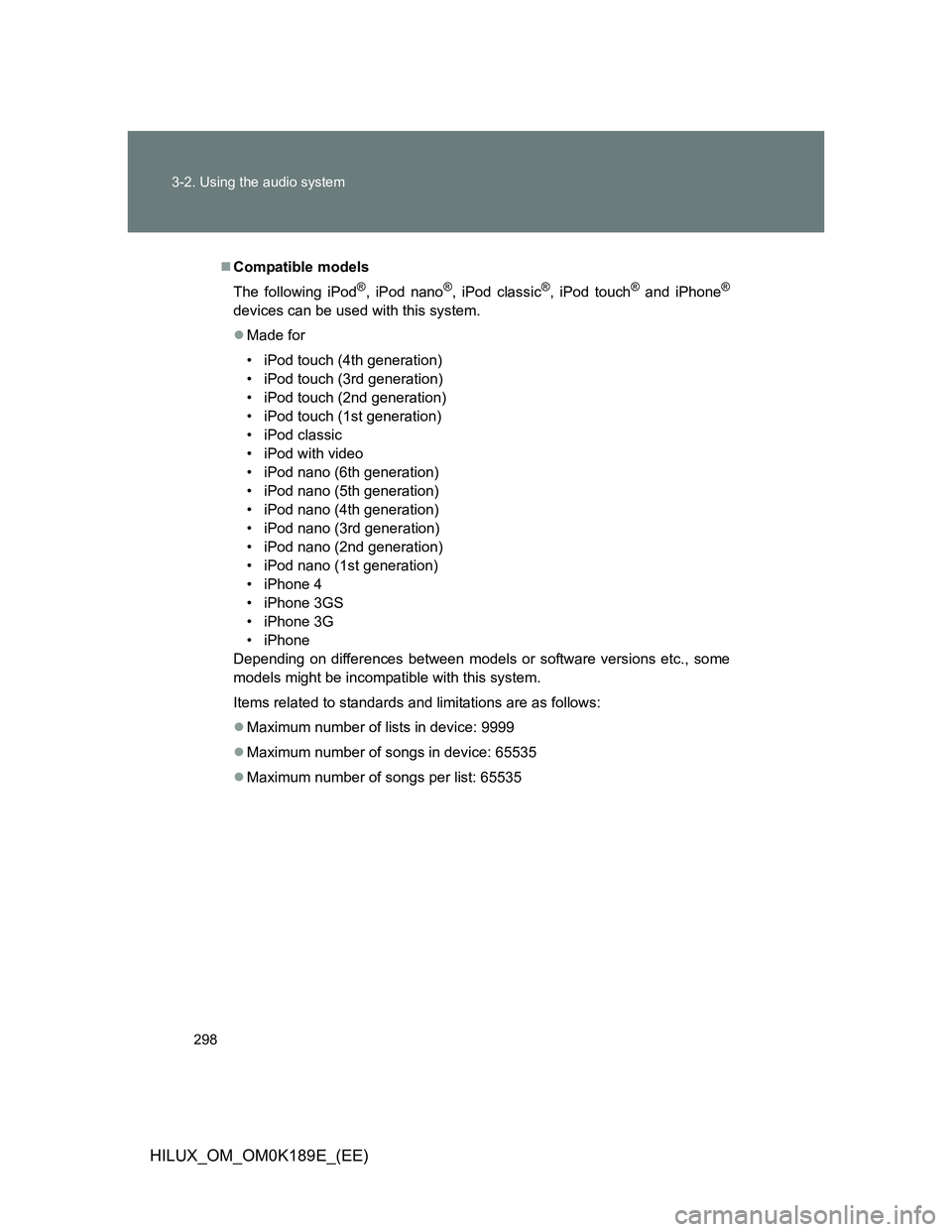

Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
Maximum number of lists in device: 9999
Maximum number of songs in device: 65535
Maximum number of songs per list: 65535

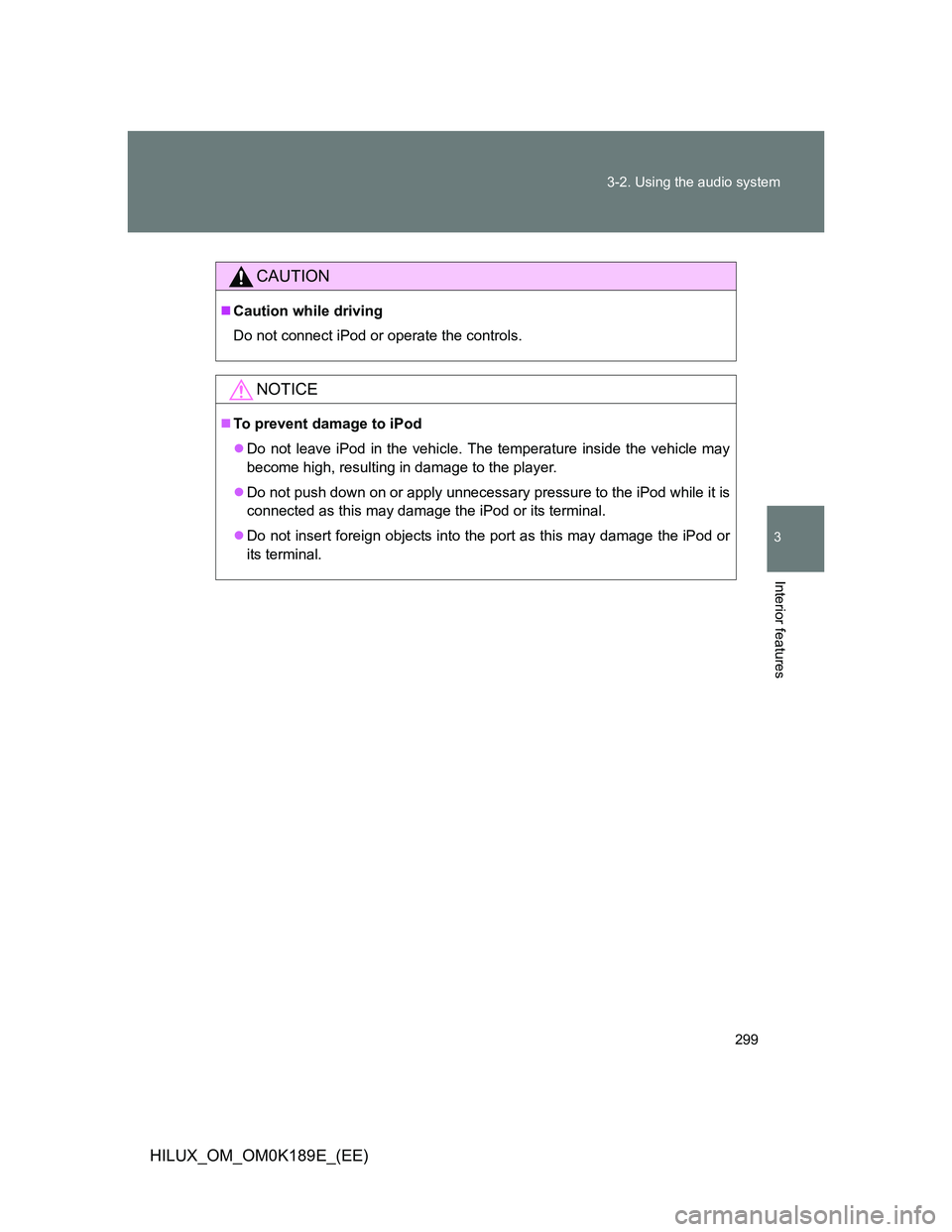

299 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K189E_(EE)
CAUTION
Caution while driving
Do not connect iPod or operate the controls.
NOTICE
To prevent damage to iPod
Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
Do not insert foreign objects into the port as this may damage the iPod or
its terminal.

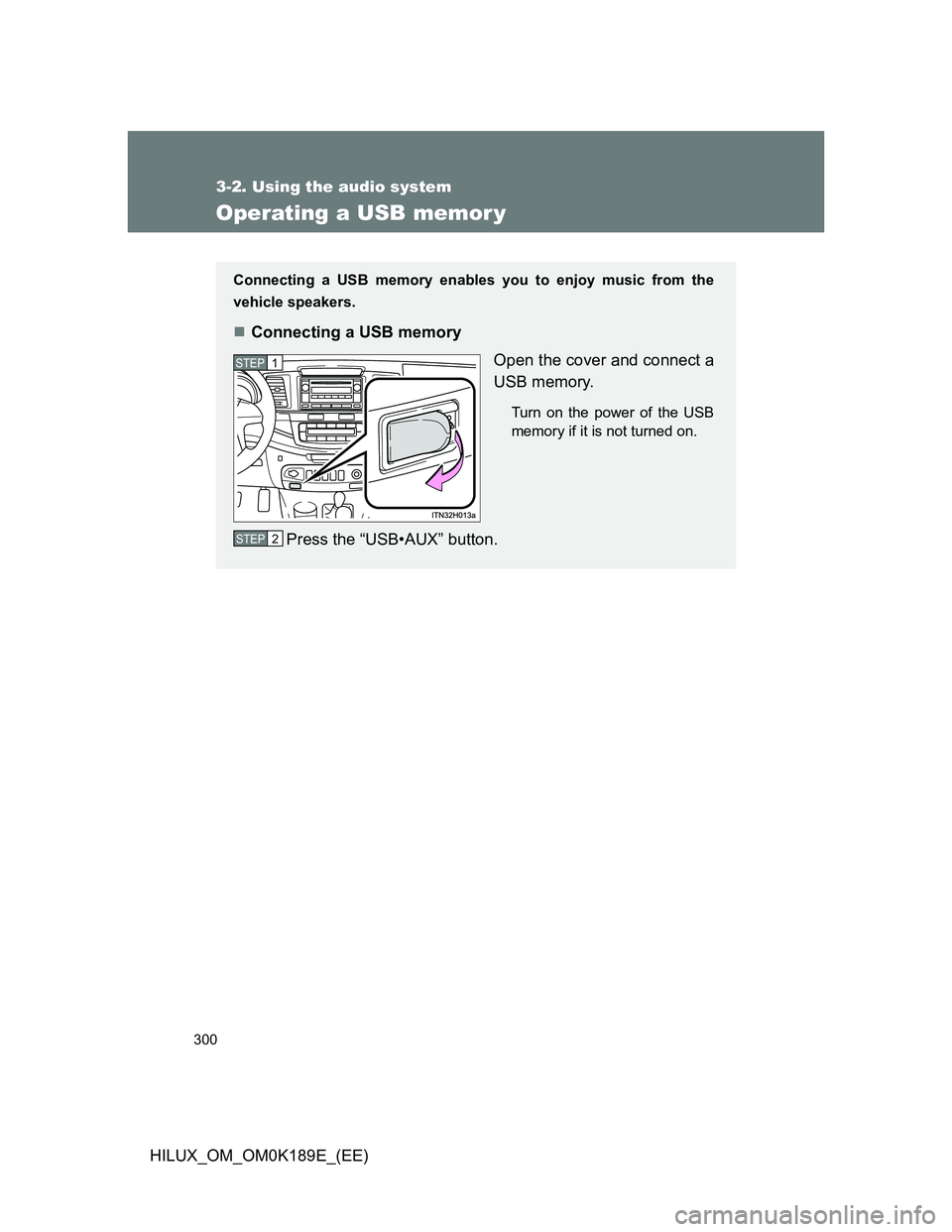

300
3-2. Using the audio system
HILUX_OM_OM0K189E_(EE)
Operating a USB memor y
Connecting a USB memory enables you to enjoy music from the
vehicle speakers.
Connecting a USB memory
Open the cover and connect a
USB memory.
Turn on the power of the USB
memory if it is not turned on.
Press the “USB•AUX” button.
STEP1
STEP2
