fuel consumption TOYOTA HILUX 2017 Owners Manual (in English)

TABLE OF CONTENTS2
HILUX_OM_OM0K322E_(EE)
For your information .......................8
Reading this manual.....................14
How to search ..............................15
Pictorial index ...............................16
1-1. For safe use
Before driving.......................36
For safe driving ....................38
Seat belts .............................40
SRS airbags.........................45
Exhaust gas precautions .....56
1-2. Child safety
Front passenger occupant
classification system ..........57
Airbag manual on-off
system ...............................62
Riding with children..............64
Child restraint systems ........65
1-3. Theft deterrent system
Engine immobilizer
system ...............................95
Alarm .................................119
2. Instrument cluster
Warning lights
and indicators.................. 124
Gauges and meters........... 132
Multi-information display
(Type A) .......................... 137
Multi-information display
(Type B) .......................... 141
Fuel consumption
information ...................... 149
3-1. Key information
Keys .................................. 152
3-2. Opening, closing and
locking the doors
Side doors ......................... 174
Access panels (smart-cab
models only).................... 180
Tailgate ............................. 181
Smart entry & start
system............................. 184
3-3. Adjusting the seats
Front seats ........................ 218
Rear seats ......................... 220
Head restraints .................. 223
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 226
Inside rear view mirror....... 228
Outside rear view
mirrors ............................. 229
1For safety and security
2Instrument cluster
3Operation of
each component

123
2Instrument cluster
HILUX_OM_OM0K322E_(EE)
2. Instrument cluster
Warning lights
and indicators .................. 124
Gauges and meters ........... 132
Multi-information display
(Type A) ........................... 137
Multi-information display
(Type B) ........................... 141
Fuel consumption
information ....................... 149

137
2
2. Instrument cluster
Instrument cluster
HILUX_OM_OM0K322E_(EE)
Multi-information display (Type A)
The multi-information display presents the driver with a variety of driv-
ing-related data.
● Trip information (P. 138)
Displays driving range, fuel con-
sumption and other cruising-
related information.
● Setting (P. 696)
The settings of the following items
can be changed.
• Language
Select to change the language
on the display.
•Units
Select to change the units for measure of the fuel consumption.
• Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
● LDA (Lane Departure Alert) (P. 334)
Displays the lane departure alert function display when the system is
turned on.
● Warning messages (P. 618)
Displays warning messages and measures to be taken if a malfunction is
detected.
: If equipped
Display contents

1382. Instrument cluster
HILUX_OM_OM0K322E_(EE)
“DISP” button
Items displayed can be switched
by pressing the “DISP” button.
■Current fuel consumption
Displays the current rate of fuel consumption.
■Average fuel consumption
Displays the average fuel consumption since the engine switch is
turned to the “ON” position (vehicles without smart entry & start sys-
tem) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).
• The function can be reset by pressing the “DISP” button for longer than
1 second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch to the “LOCK” position (vehicles
without smart entry & start system) or off (vehicles with smart entry &
start system). If the vehicle is refueled without turn the engine switch to
the “LOCK” position or off, the display may not updated.
Switching the display
Trip information

1432. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K322E_(EE)
Items displayed can be switched by pressing “<” or “>” of the meter
control switches to select and pressing “ ” or “”.
● Current fuel economy (bar type/value type)*1, 2
Displays the current rate of fuel consumption.
● Average fuel economy (after reset*3/after start/after refuel)*1, 2
Displays the average fuel consumption since the function was
reset, the engine was started and the vehicle was refueled respec-
tively.
● Average speed (after reset*3/after start)*1
Displays the average vehicle speed since function was reset and
the engine was started respectively.
● Elapsed time (after reset*3/after start)*1
Displays the elapsed time since the function was reset and the
engine was started respectively.
● Distance (range/after start)*1
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and the distance driven after the
engine was started respectively.
• This distance is computed based on your average fuel consump-
tion. As a result, the actual distance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the engine switch off. If the vehicle is refu-
eled without turning the engine switch off, the display may not be
updated.
Drive information

1442. Instrument cluster
HILUX_OM_OM0K322E_(EE)

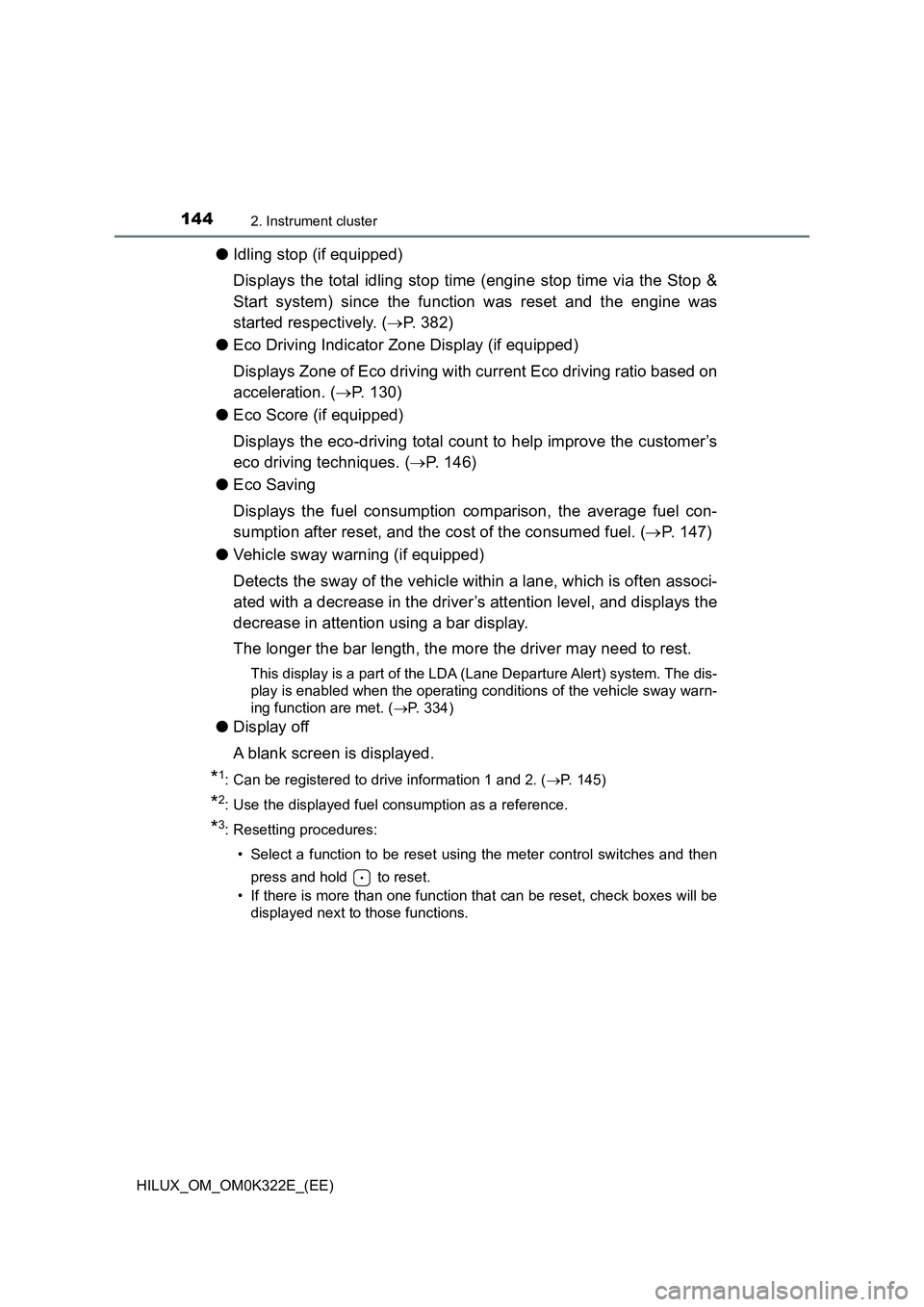

●Idling stop (if equipped)
Displays the total idling stop time (engine stop time via the Stop &
Start system) since the function was reset and the engine was
started respectively. ( P. 382)
● Eco Driving Indicator Zone Display (if equipped)
Displays Zone of Eco driving with current Eco driving ratio based on
acceleration. ( P. 130)
● Eco Score (if equipped)
Displays the eco-driving total count to help improve the customer’s
eco driving techniques. ( P. 146)
● Eco Saving
Displays the fuel consumption comparison, the average fuel con-
sumption after reset, and the cost of the consumed fuel. ( P. 147)
● Vehicle sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The longer the bar length, the more the driver may need to rest.
This display is a part of the LDA ( Lane Departure Alert) system. The dis-
play is enabled when the operating conditions of the vehicle sway warn-
ing function are met. ( P. 334)
●Display off
A blank screen is displayed.
*1: Can be registered to drive information 1 and 2. ( P. 145)
*2: Use the displayed fuel consumption as a reference.
*3: Resetting procedures:
• Select a function to be reset using the meter control switches and then
press and hold to reset.
• If there is more than one function that can be reset, check boxes will be
displayed next to those functions.

1452. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K322E_(EE)
The settings of the following items can be changed, refer to P. 695
● RSA (Road Sign Assist) (if equipped)
Select to set the followings.
• RSA on/off
• Notification method (excess speed/others*)
• Excess speed notification level
● Idling stop (if equipped)
Select to change the idling stop time when the air conditioning sys-
tem is turned on.
● Language
Select to change the language on the display.
● Units
Select to change the unit for measure of the fuel consumption.
● Eco Driving Indicator Light (if equipped)
Select to activate/deactivate the Eco Driving Indicator Light.
(P. 130)
● switch settings
You can register 1 screen as the top screen. To register, press and
hold while the desired screen is displayed.
● Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive infor-
mation screen, up to 2 drive information screens can be set.
● Pop-up display
Select to set the following pop-up displays, which may appear in
some situations, on/off.
• Route guidance display of the navigation system-linked system
(if equipped)
• Incoming call display of the hands-free phone system (if
equipped)
● Accent color (if equipped)
Select to change the accent colors on the screen, such as the cur-
sor color.
Settings display

1462. Instrument cluster
HILUX_OM_OM0K322E_(EE)

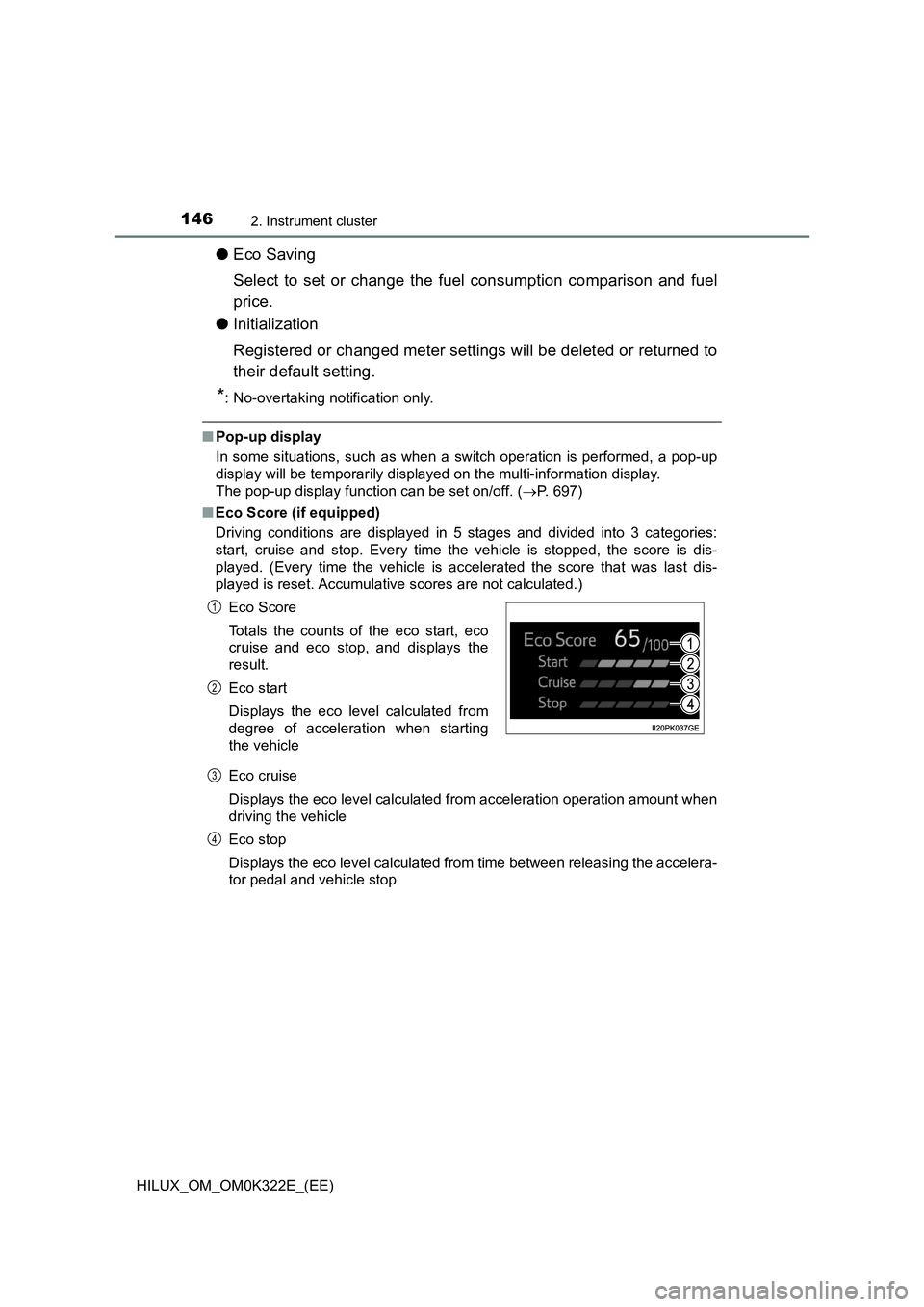

●Eco Saving
Select to set or change the fuel consumption comparison and fuel
price.
● Initialization
Registered or changed meter settings will be deleted or returned to
their default setting.
*: No-overtaking notification only.
■ Pop-up display
In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily display ed on the multi-information display.
The pop-up display function can be set on/off. ( P. 697)
■ Eco Score (if equipped)
Driving conditions are displayed in 5 stages and divided into 3 categories:
start, cruise and stop. Every time the vehicle is stopped, the score is dis-
played. (Every time the vehicle is accelerated the score that was last dis-
played is reset. Accumulative scores are not calculated.)
Eco cruise
Displays the eco level calculated from acceleration operation amount when
driving the vehicle
Eco stop
Displays the eco level calculated from time between releasing the accelera-
tor pedal and vehicle stop
Eco Score
Totals the counts of the eco start, eco
cruise and eco stop, and displays the
result.
Eco start
Displays the eco level calculated from
degree of acceleration when starting
the vehicle
1
2
3
4

1472. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K322E_(EE)

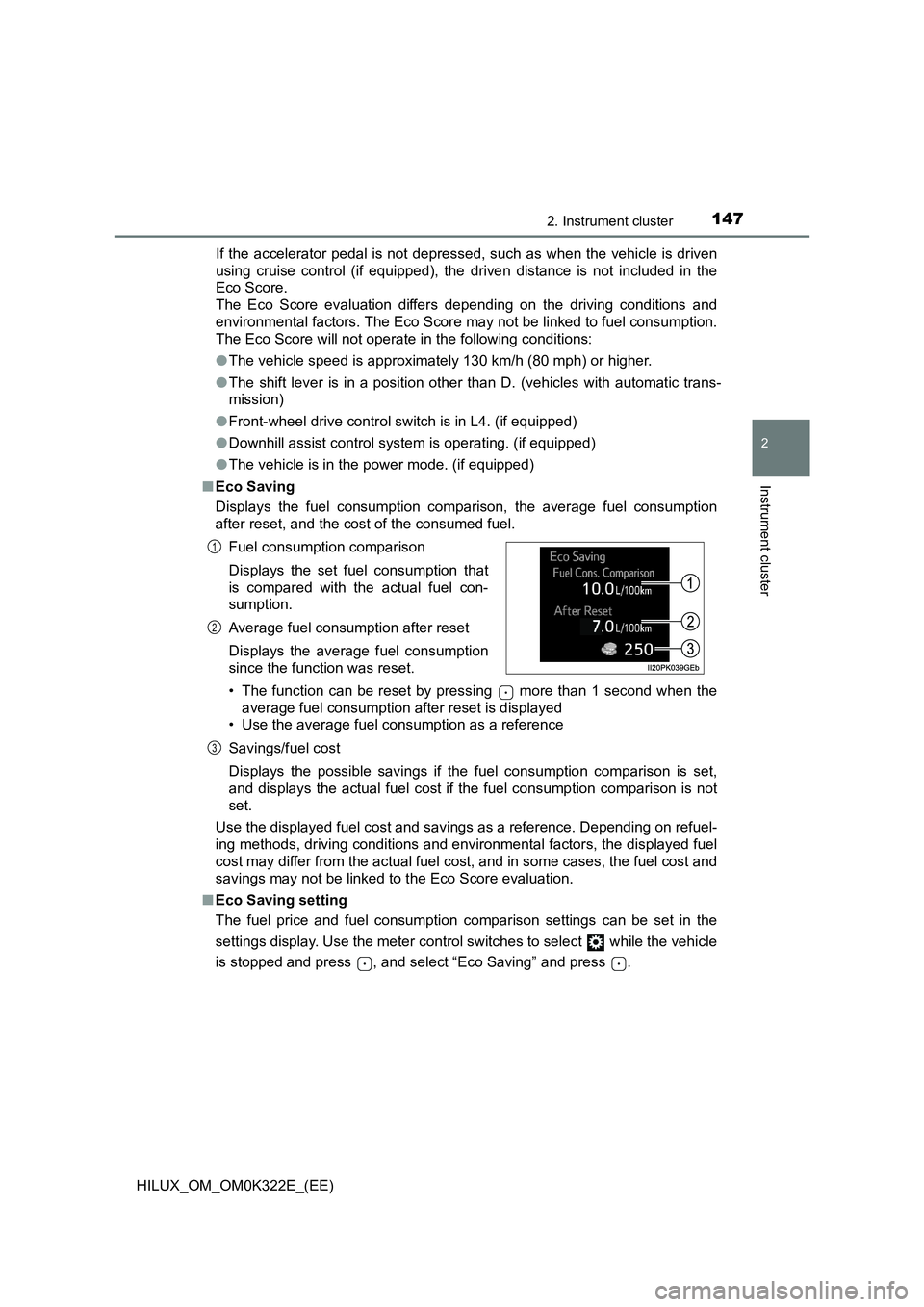

If the accelerator pedal is not depressed, such as when the vehicle is driven
using cruise control (if equipped), the driven distance is not included in the
Eco Score.
The Eco Score evaluation differs depending on the driving conditions and
environmental factors. The Eco Score may not be linked to fuel consumption.
The Eco Score will not operate in the following conditions:
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
● The shift lever is in a position other than D. (vehicles with automatic trans-
mission)
● Front-wheel drive control switch is in L4. (if equipped)
● Downhill assist control system is operating. (if equipped)
● The vehicle is in the power mode. (if equipped)
■ Eco Saving
Displays the fuel consumption comparison, the average fuel consumption
after reset, and the cost of the consumed fuel.
• The function can be reset by pressing more than 1 second when the
average fuel consumption after reset is displayed
• Use the average fuel consumption as a reference
Savings/fuel cost
Displays the possible savings if the fuel consumption comparison is set,
and displays the actual fuel cost if the fuel consumption comparison is not
set.
Use the displayed fuel cost and savings as a reference. Depending on refuel-
ing methods, driving conditions and environmental factors, the displayed fuel
cost may differ from the actual fuel cost, and in some cases, the fuel cost and
savings may not be linked to the Eco Score evaluation.
■ Eco Saving setting
The fuel price and fuel consumption comparison settings can be set in the
settings display. Use the meter control switches to select while the vehicle
is stopped and press , and select “Eco Saving” and press .
Fuel consumption comparison
Displays the set fuel consumption that
is compared with the actual fuel con-
sumption.
Average fuel consumption after reset
Displays the average fuel consumption
since the function was reset.
1
2
3

149
2
2. Instrument cluster
Instrument cluster
HILUX_OM_OM0K322E_(EE)

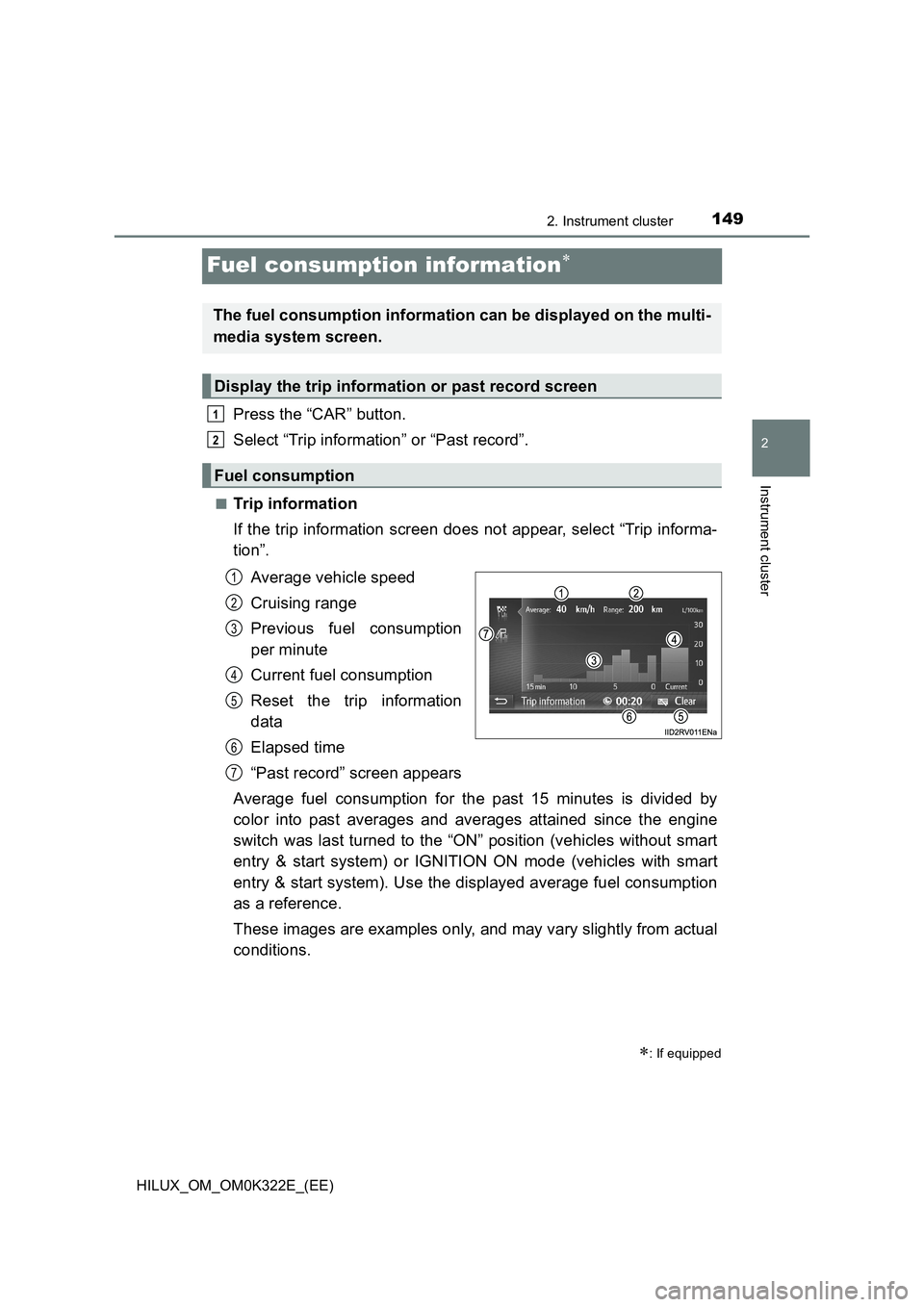

Fuel consumption information
Press the “CAR” button.
Select “Trip information” or “Past record”.
■Trip information
If the trip information screen does not appear, select “Trip informa-
tion”.
Average vehicle speed
Cruising range
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
Elapsed time
“Past record” screen appears
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position (vehicles without smart
entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system). Use the displayed average fuel consumption
as a reference.
These images are examples only, and may vary slightly from actual
conditions.
: If equipped
The fuel consumption information can be displayed on the multi-
media system screen.
Display the trip information or past record screen
Fuel consumption
1
2
1
2
3
4
5
6
7
