TOYOTA HILUX 2018 Owners Manual

5016-1. Using the air conditioning system and defogger
HILUX_OM_OM0K375E_(EE)
6
Interior features

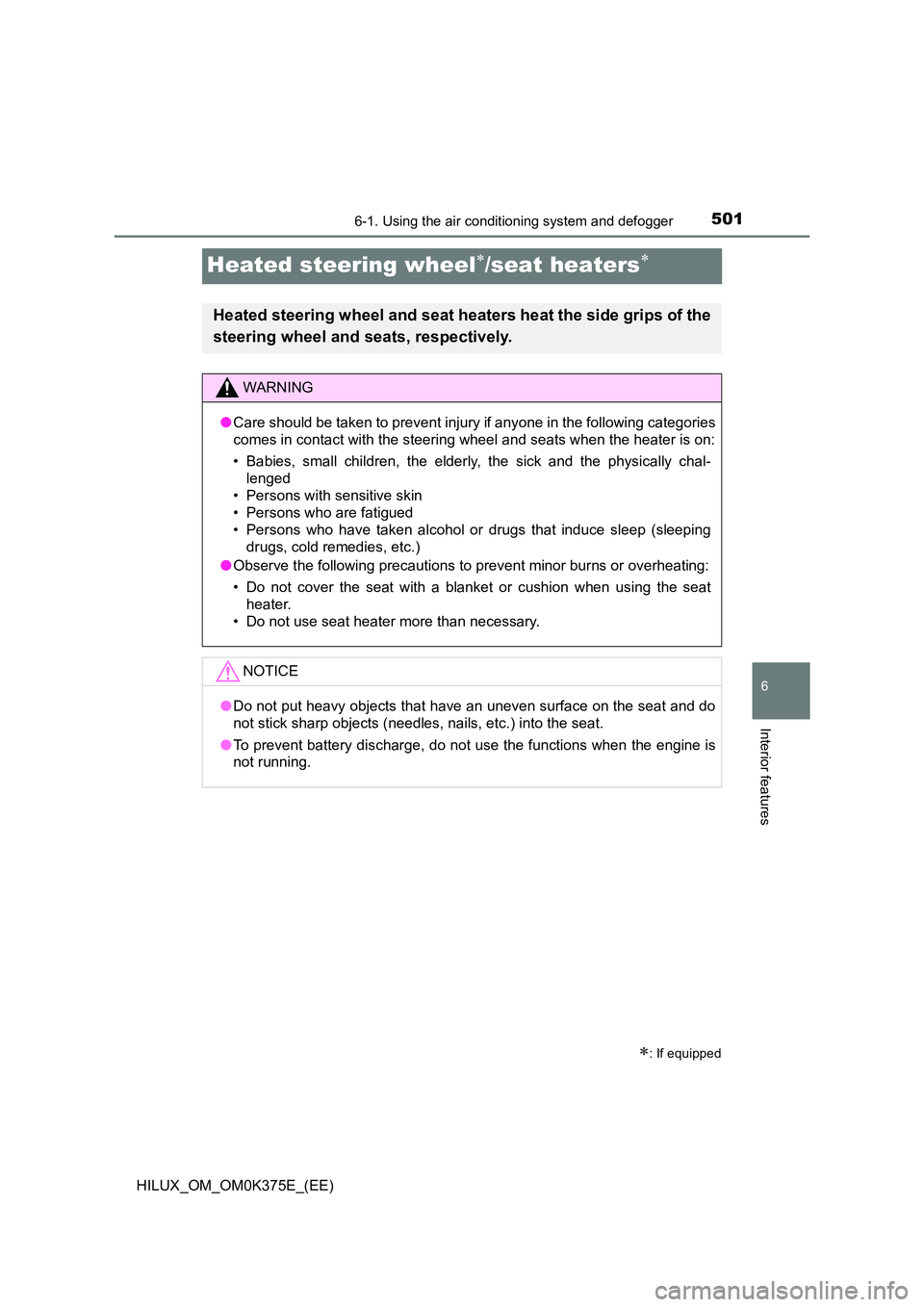

Heated steering wheel/seat heaters
: If equipped
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and seats, respectively.
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.

5026-1. Using the air conditioning system and defogger
HILUX_OM_OM0K375E_(EE)

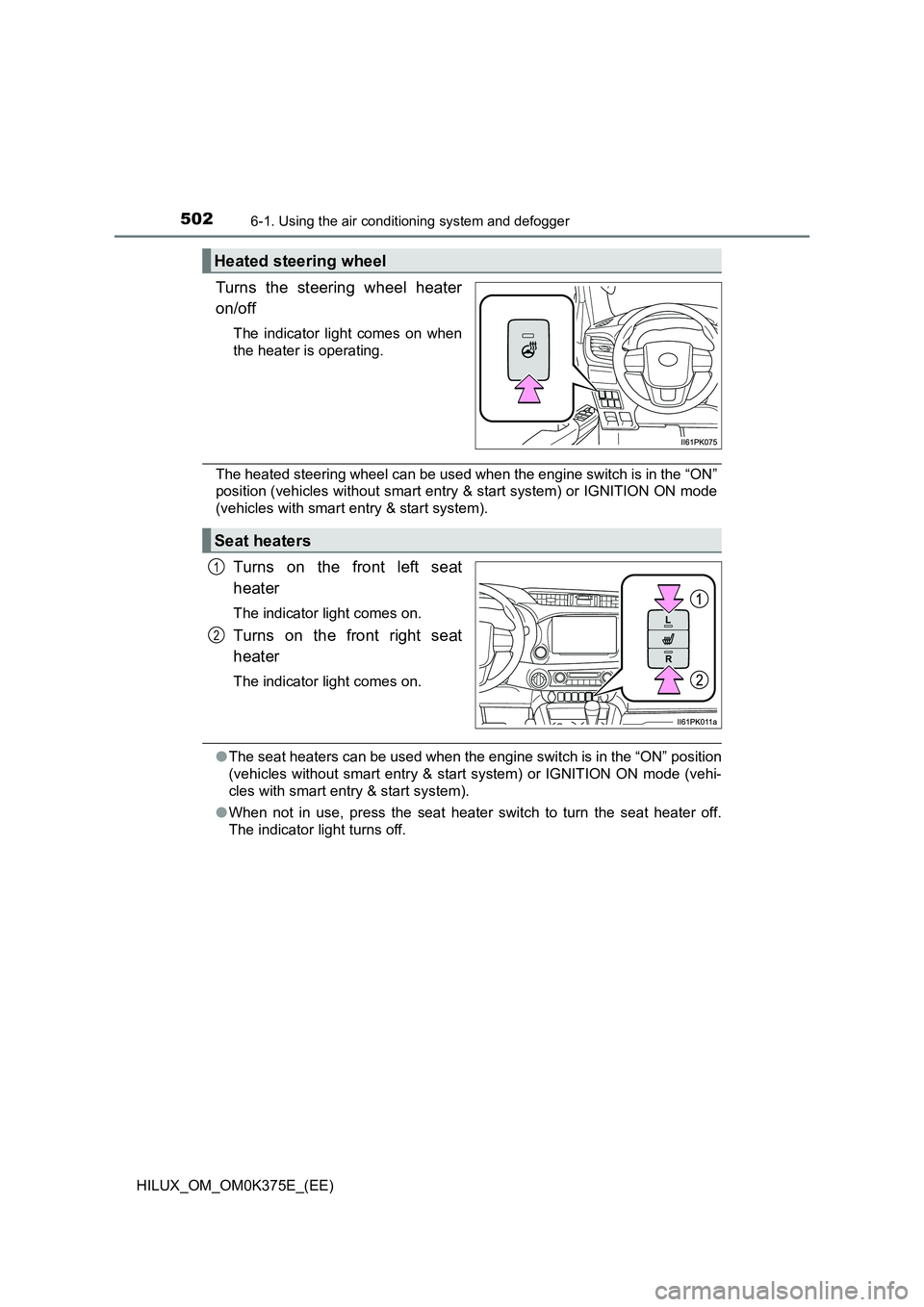

Turns the steering wheel heater
on/off
The indicator light comes on when
the heater is operating.
The heated steering wheel can be used when the engine switch is in the “ON”
position (vehicles without smart entry & start system) or IGNITION ON mode
(vehicles with smart entry & start system).
Turns on the front left seat
heater
The indicator light comes on.
Turns on the front right seat
heater
The indicator light comes on.
● The seat heaters can be used when the engine switch is in the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system).
● When not in use, press the seat heater switch to turn the seat heater off.
The indicator light turns off.
Heated steering wheel
Seat heaters
1
2

5036-2. Using the interior lights
HILUX_OM_OM0K375E_(EE)
6
Interior features

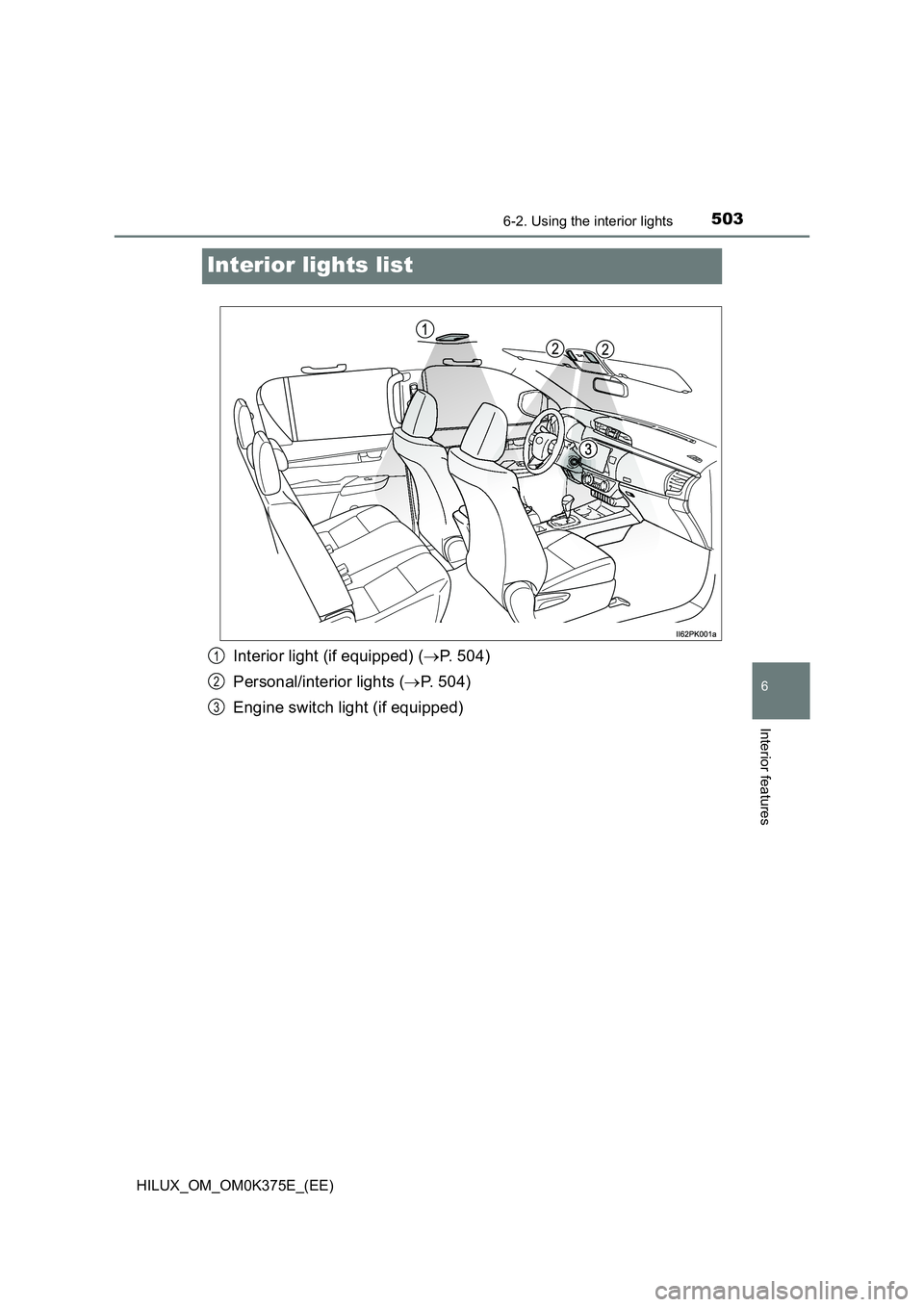

Interior lights list
Interior light (if equipped) (P. 504)
Personal/interior lights ( P. 504)
Engine switch light (if equipped)
1
2
3

5046-2. Using the interior lights
HILUX_OM_OM0K375E_(EE)

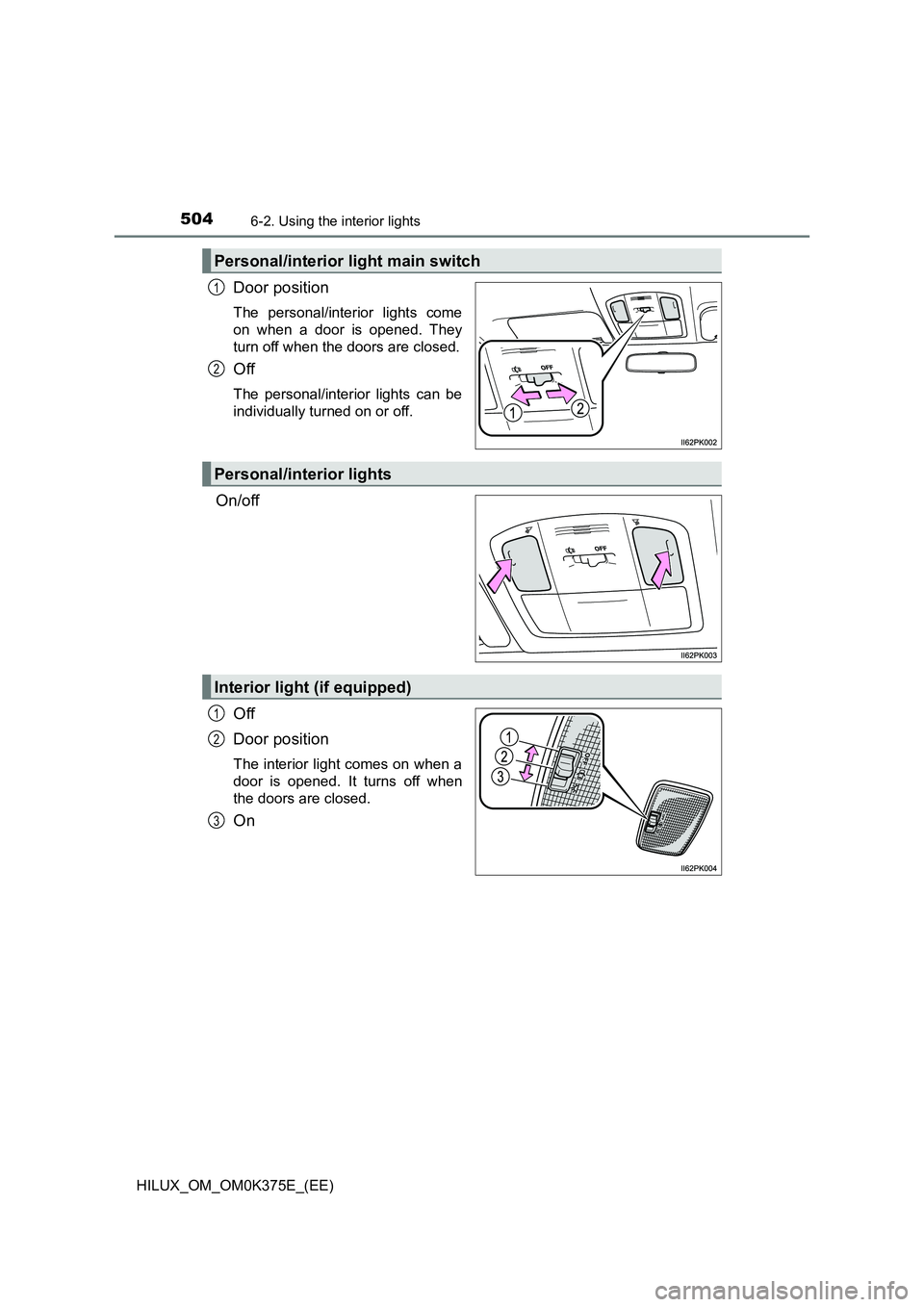

Door position
The personal/interior lights come
on when a door is opened. They
turn off when the doors are closed.
Off
The personal/interior lights can be
individually turned on or off.
On/off
Off
Door position
The interior light comes on when a
door is opened. It turns off when
the doors are closed.
On
Personal/interior light main switch
1
2
Personal/interior lights
Interior light (if equipped)
1
2
3

5056-2. Using the interior lights
HILUX_OM_OM0K375E_(EE)
6
Interior features

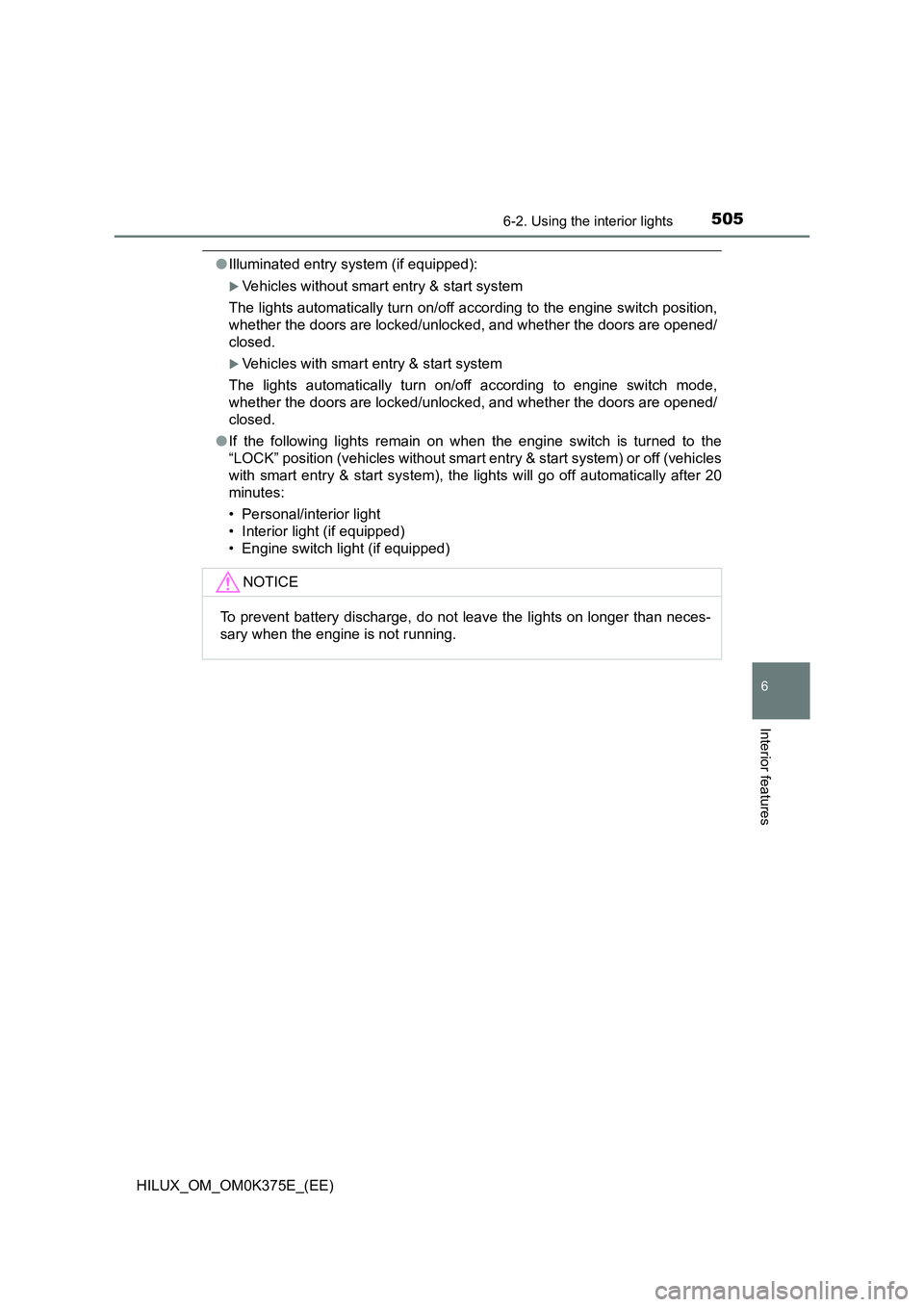

●Illuminated entry system (if equipped):
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with smart entry & start system
The lights automatically turn on/off according to engine switch mode,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
● If the following lights remain on when the engine switch is turned to the
“LOCK” position (vehicles without smart entry & start system) or off (vehicles
with smart entry & start system), the lights will go off automatically after 20
minutes:
• Personal/interior light
• Interior light (if equipped)
• Engine switch light (if equipped)
NOTICE
To prevent battery discharge, do not leave the lights on longer than neces-
sary when the engine is not running.

5066-3. Using the storage features
HILUX_OM_OM0K375E_(EE)

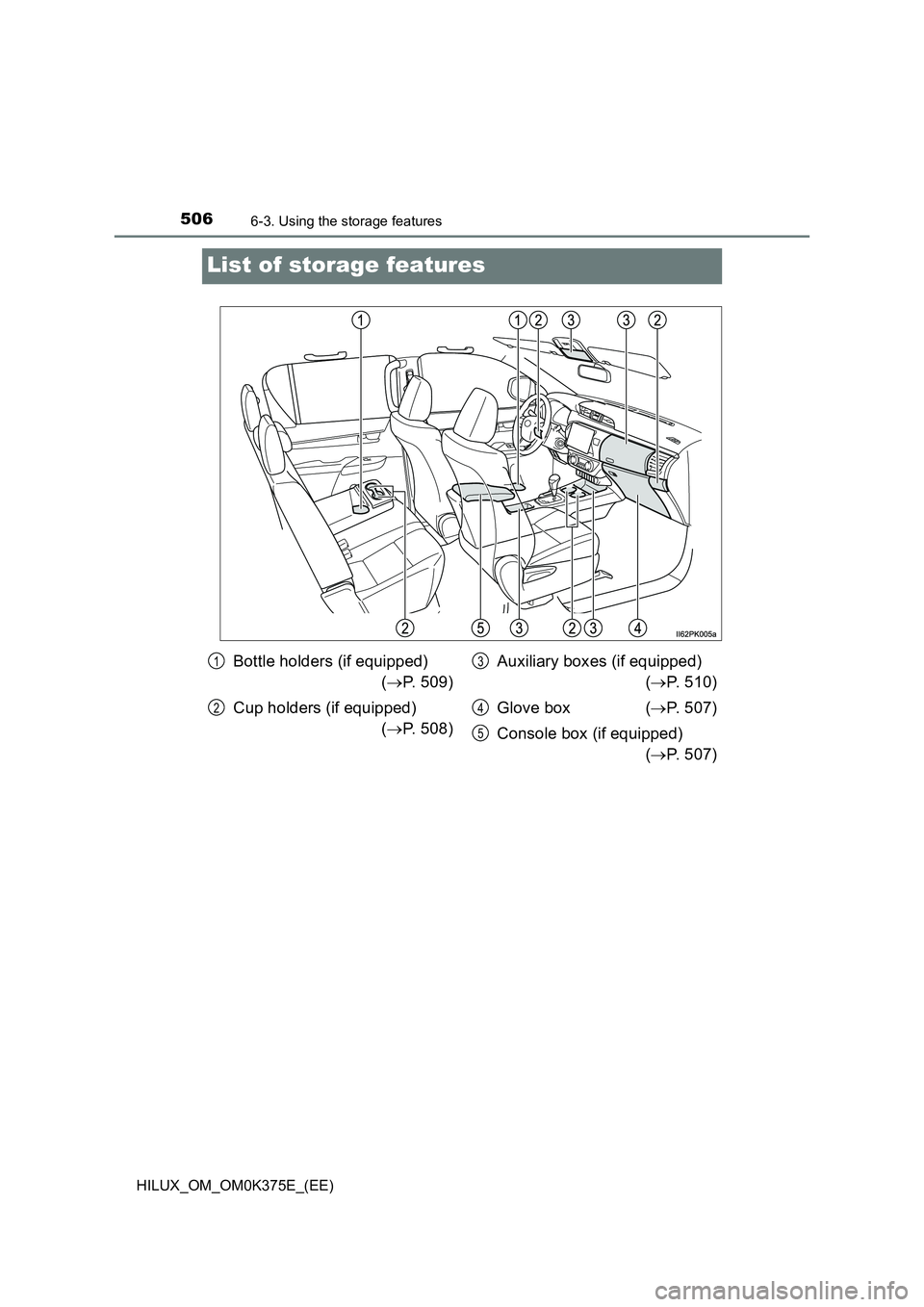

List of storage features
Bottle holders (if equipped)
( P. 509)
Cup holders (if equipped)
( P. 508)
Auxiliary boxes (if equipped)
( P. 510)
Glove box ( P. 507)
Console box (if equipped)
( P. 507)
1
2
3
4
5

5076-3. Using the storage features
HILUX_OM_OM0K375E_(EE)
6
Interior features

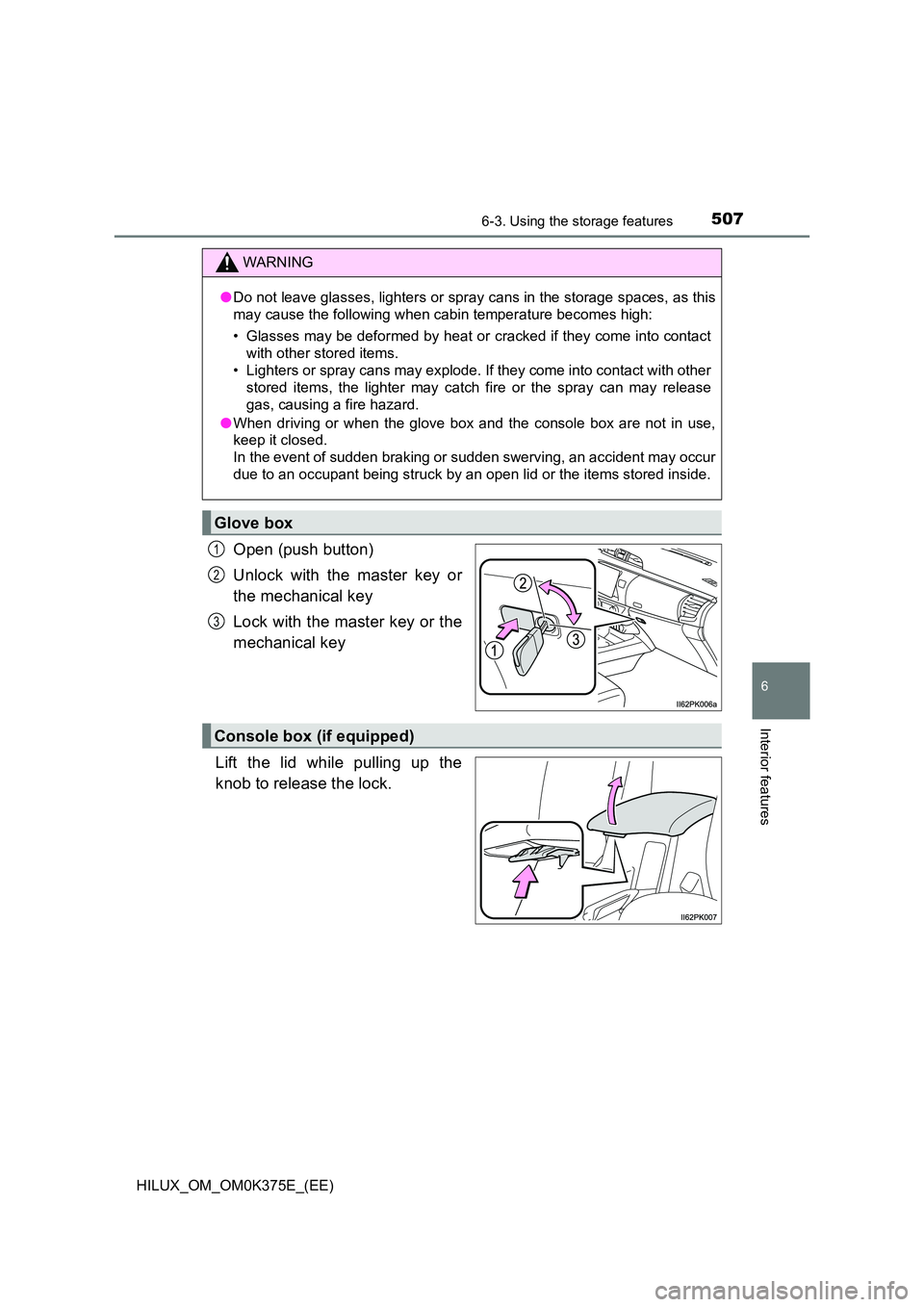

Open (push button)
Unlock with the master key or
the mechanical key
Lock with the master key or the
mechanical key
Lift the lid while pulling up the
knob to release the lock.
WARNING
● Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the glove box and the console box are not in use,
keep it closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
Glove box
1
2
3
Console box (if equipped)

508
HILUX_OM_OM0K375E_(EE)
6-3. Using the storage features

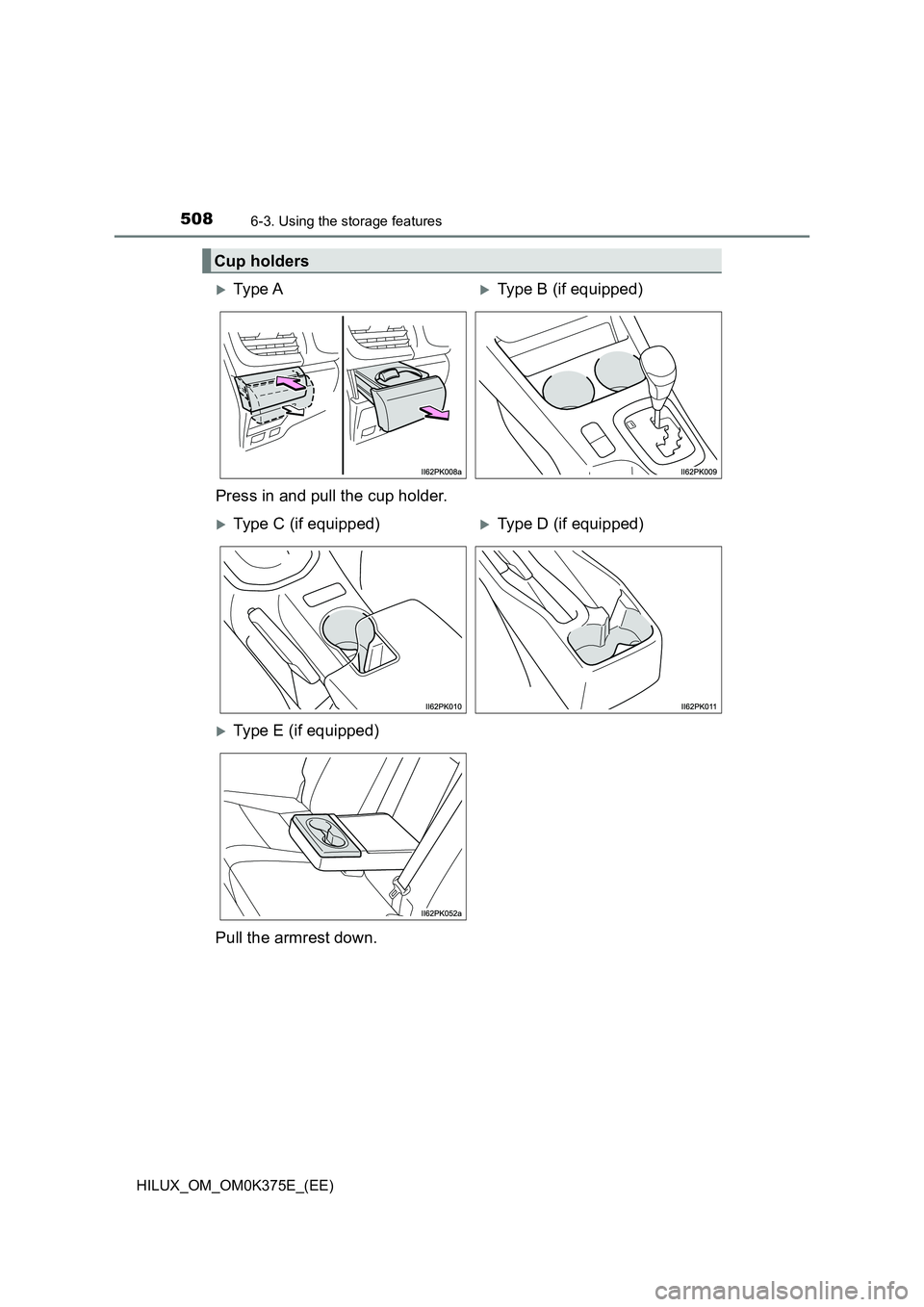

Cup holders
Ty pe AType B (if equipped)
Press in and pull the cup holder.
Type C (if equipped)Type D (if equipped)
Type E (if equipped)
Pull the armrest down.

5096-3. Using the storage features
HILUX_OM_OM0K375E_(EE)
6
Interior features

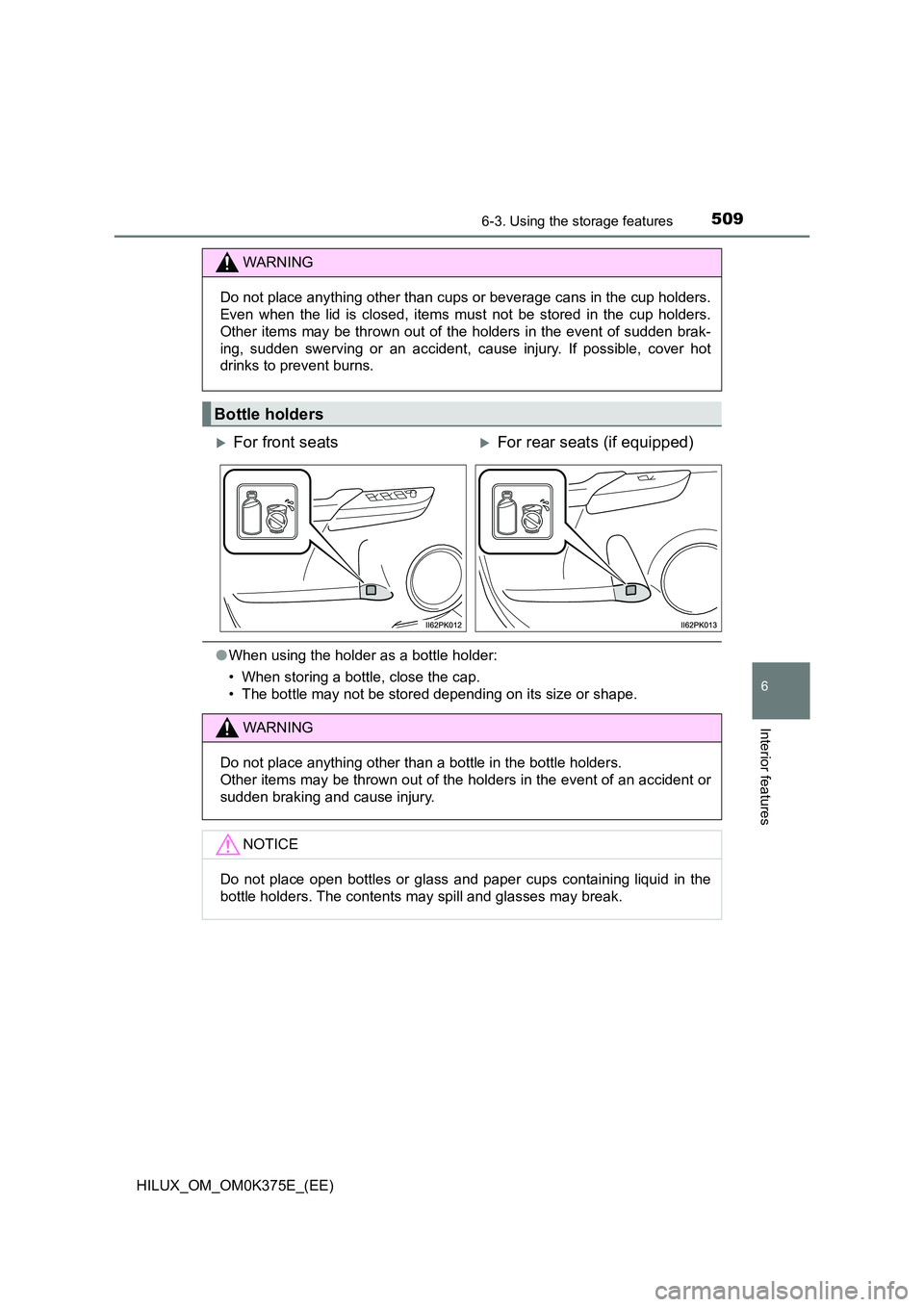

●When using the holder as a bottle holder:
• When storing a bottle, close the cap.
• The bottle may not be stored depending on its size or shape.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Even when the lid is closed, items must not be stored in the cup holders.
Other items may be thrown out of the holders in the event of sudden brak-
ing, sudden swerving or an accident, cause injury. If possible, cover hot
drinks to prevent burns.
Bottle holders
For front seatsFor rear seats (if equipped)
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Do not place open bottles or glass and paper cups containing liquid in the
bottle holders. The contents may spill and glasses may break.

510
HILUX_OM_OM0K375E_(EE)
6-3. Using the storage features

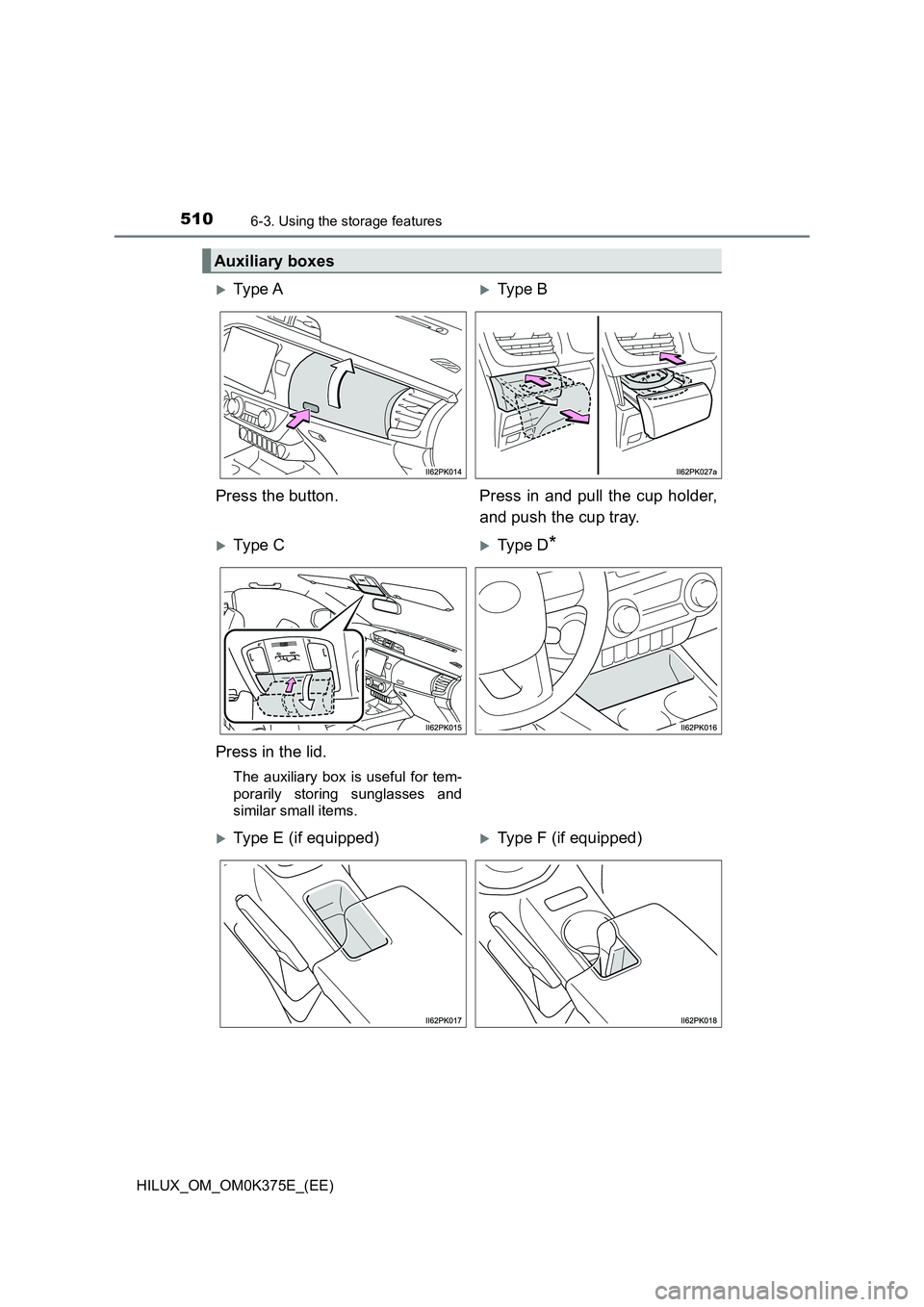

Auxiliary boxes
Ty pe AType B
Press the button. Press in and pull the cup holder,
and push the cup tray.
Ty pe CType D*
Press in the lid.
The auxiliary box is useful for tem-
porarily storing sunglasses and
similar small items.
Type E (if equipped)Type F (if equipped)
