911-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security

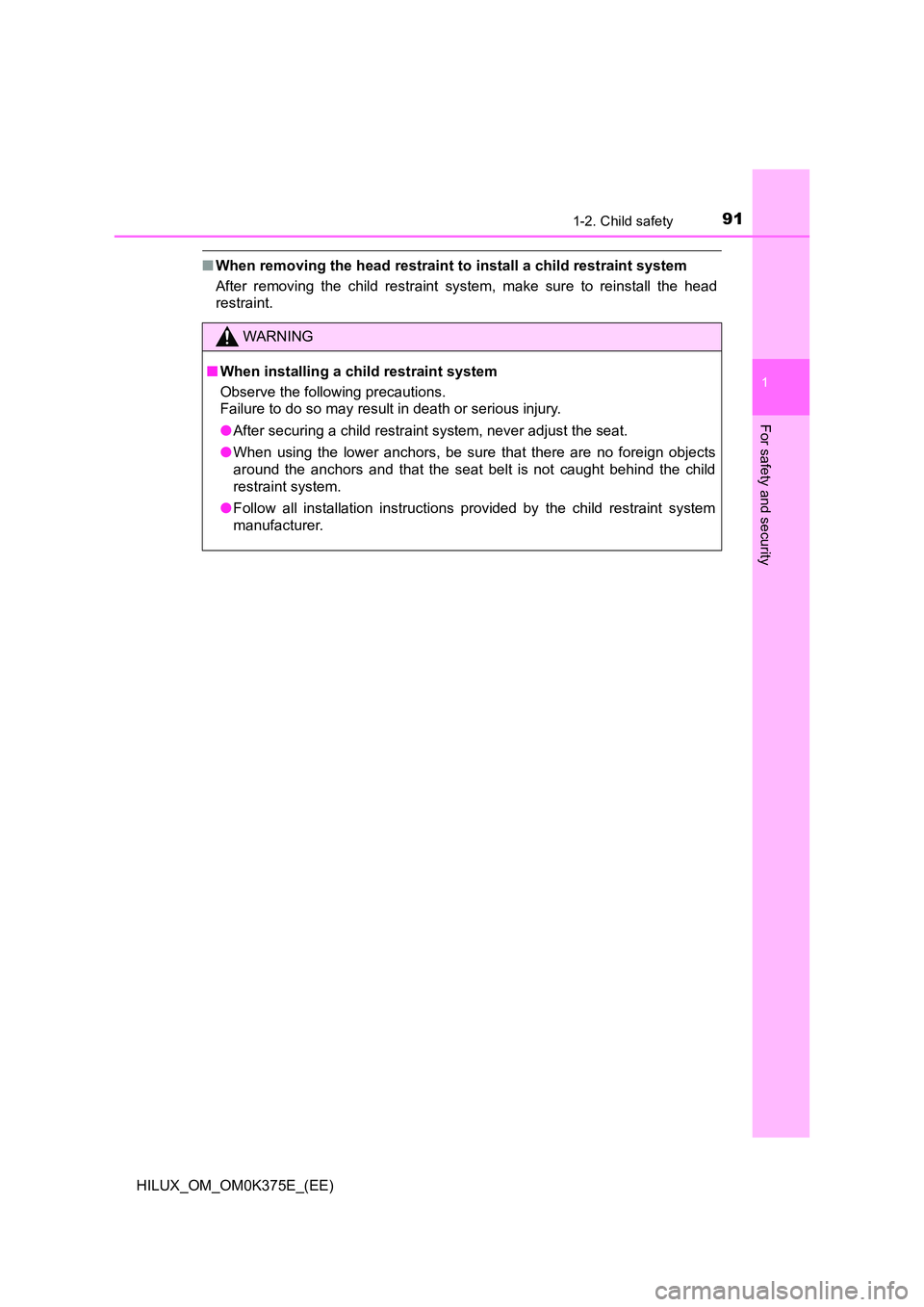

■When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.

921-2. Child safety
HILUX_OM_OM0K375E_(EE)

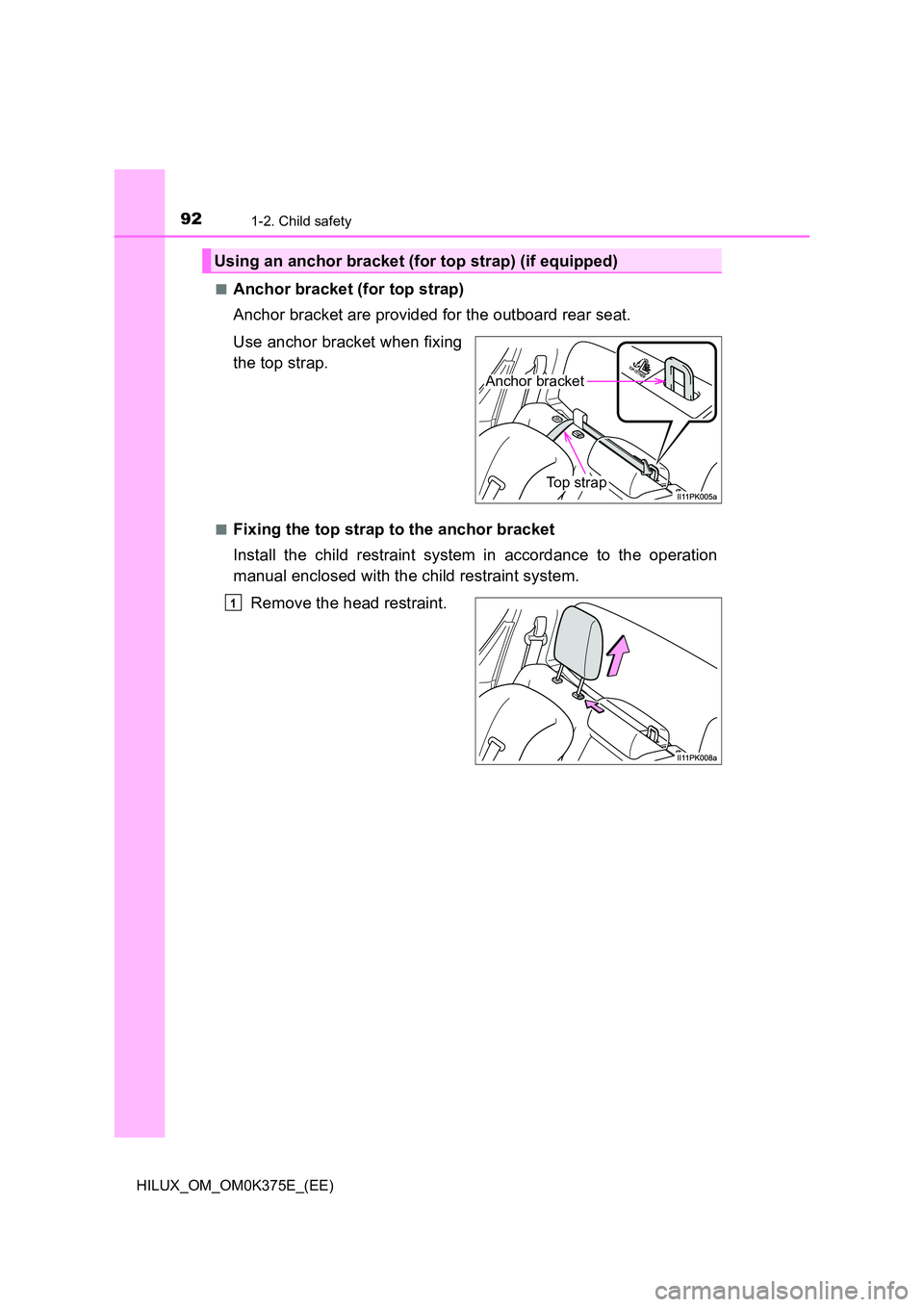

■Anchor bracket (for top strap)
Anchor bracket are provided for the outboard rear seat.
Use anchor bracket when fixing
the top strap.
■Fixing the top strap to the anchor bracket
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Remove the head restraint.
Using an anchor bracket (for top strap) (if equipped)
Anchor bracket
Top strap
1

931-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security

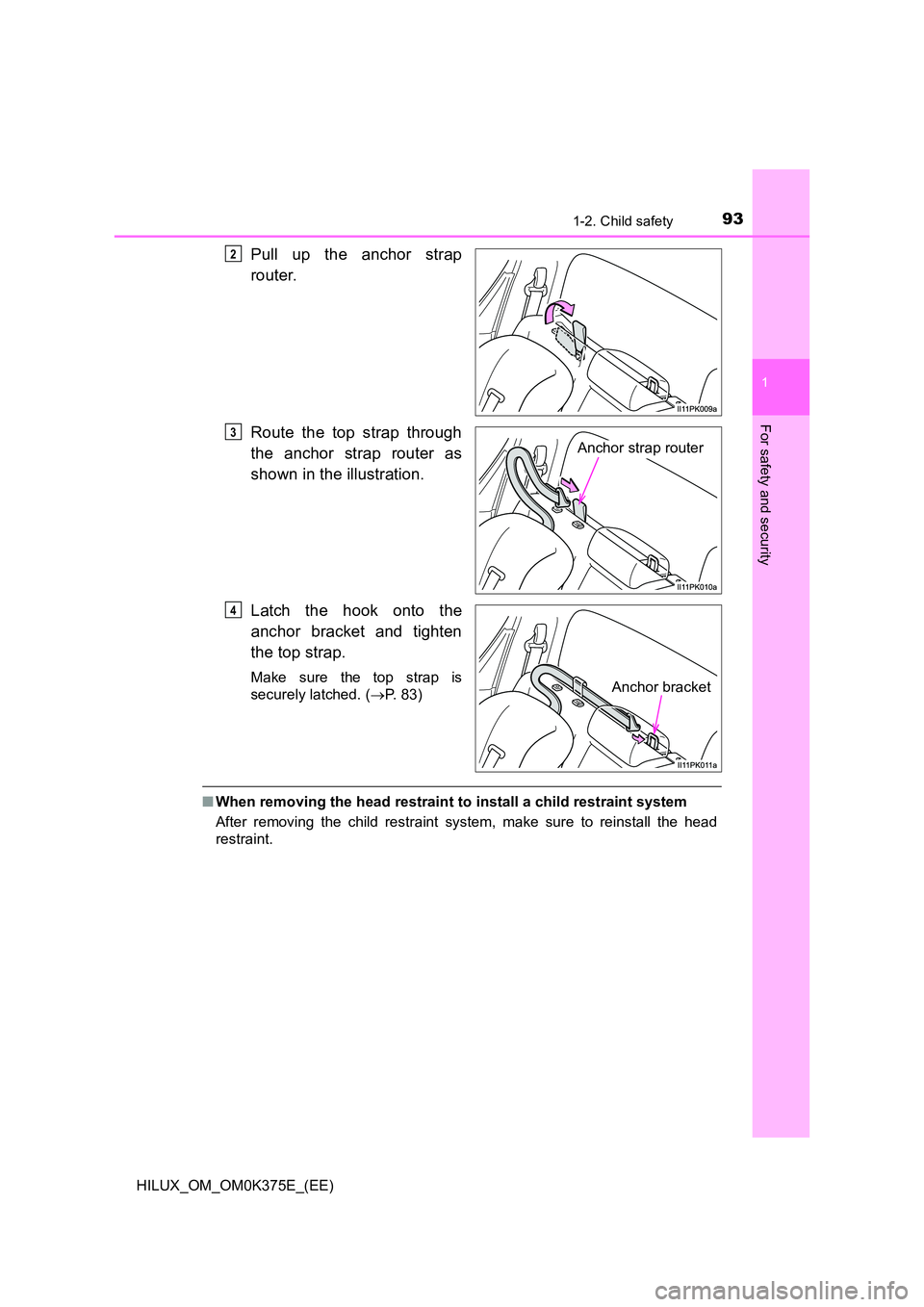

Pull up the anchor strap
router.
Route the top strap through
the anchor strap router as
shown in the illustration.
Latch the hook onto the
anchor bracket and tighten
the top strap.
Make sure the top strap is
securely latched. ( P. 83)
■When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
2
Anchor strap router
3
Anchor bracket
4

941-2. Child safety
HILUX_OM_OM0K375E_(EE)

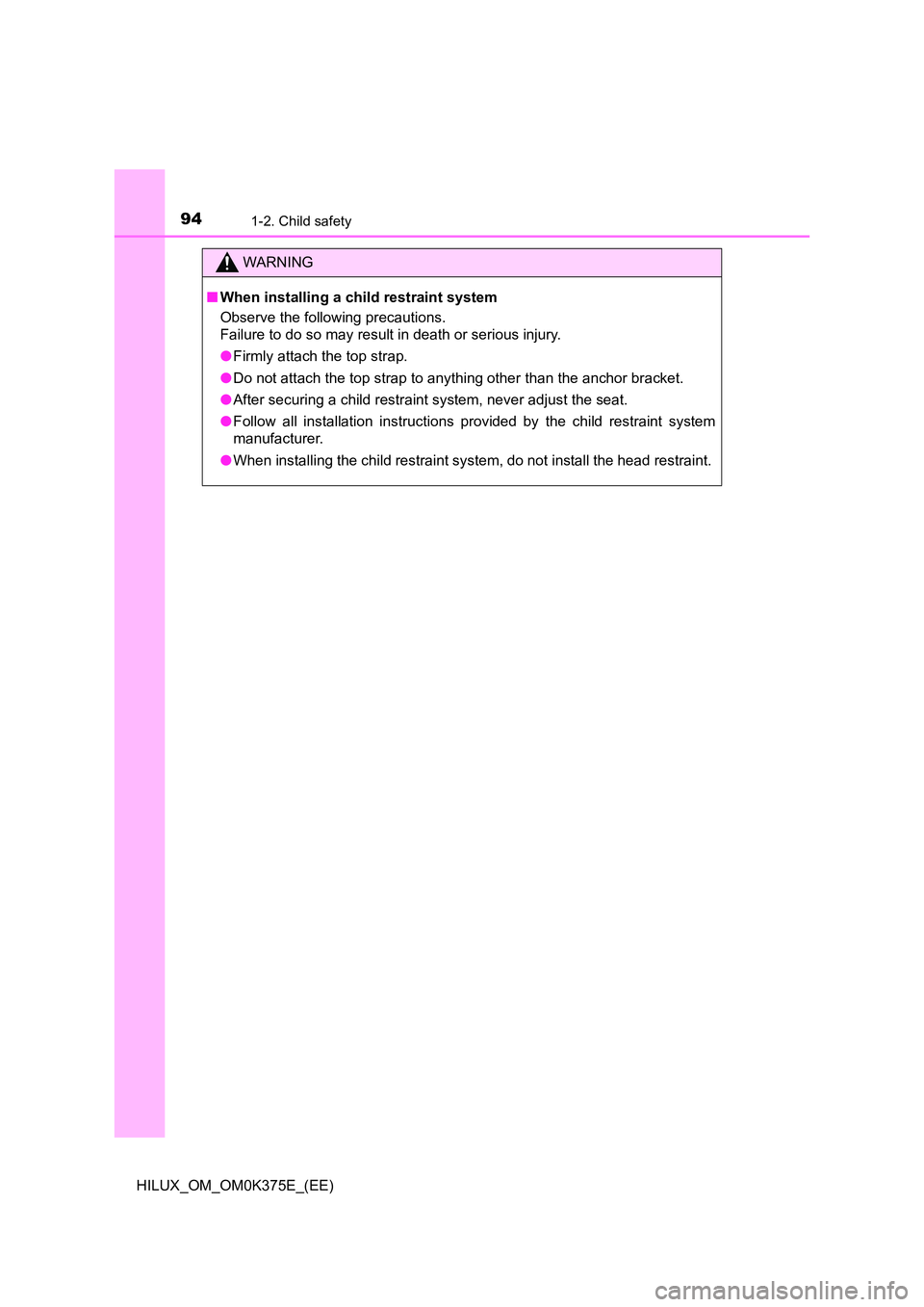

WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top strap.
● Do not attach the top strap to anything other than the anchor bracket.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When installing the child restraint system, do not install the head restraint.

95
1
1-3. Theft deterrent system
HILUX_OM_OM0K375E_(EE)
For safety and security

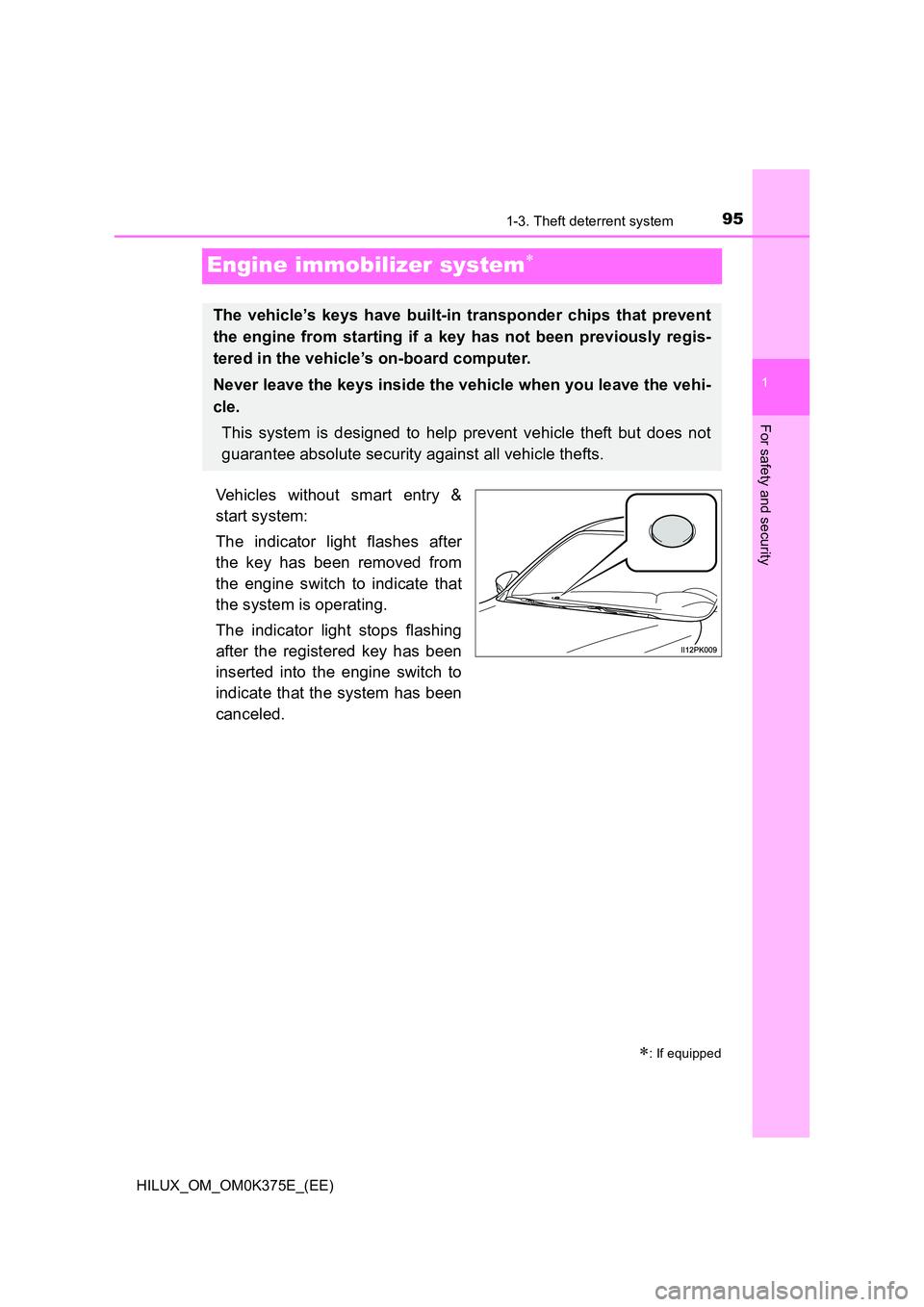

Engine immobilizer system
Vehicles without smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
: If equipped
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

961-3. Theft deterrent system
HILUX_OM_OM0K375E_(EE)

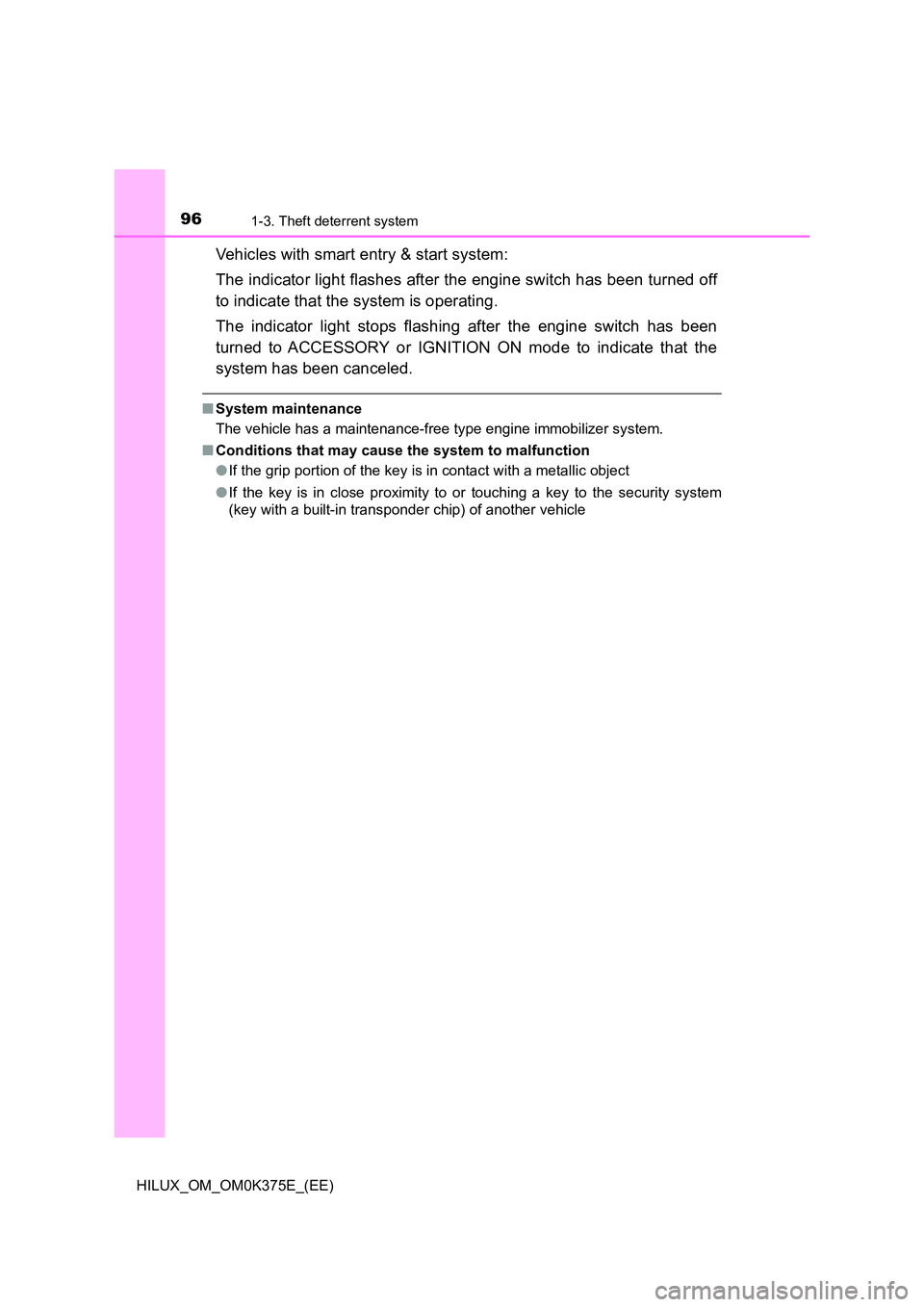

Vehicles with smart entry & start system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

971-3. Theft deterrent system
1
HILUX_OM_OM0K375E_(EE)
For safety and security

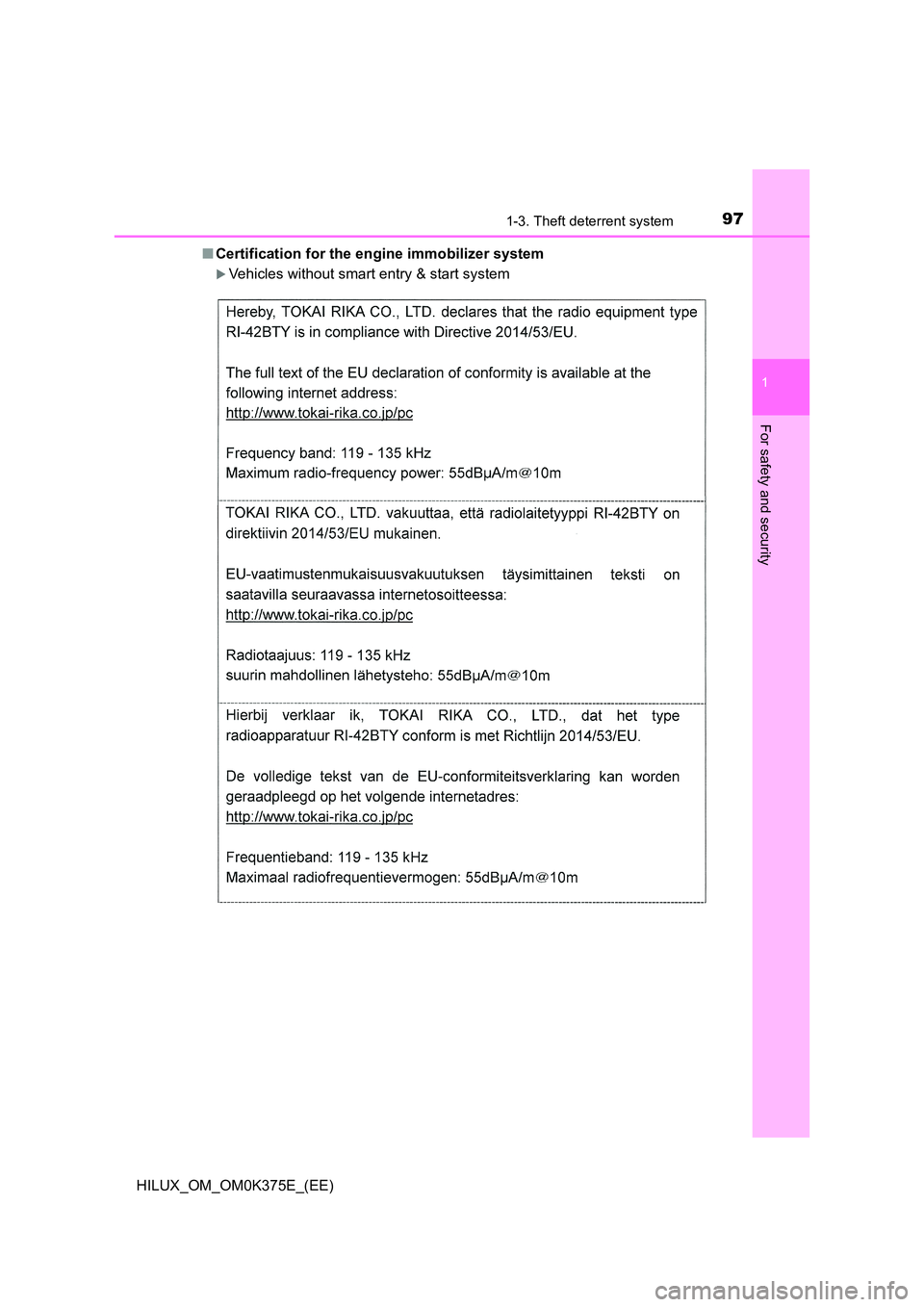

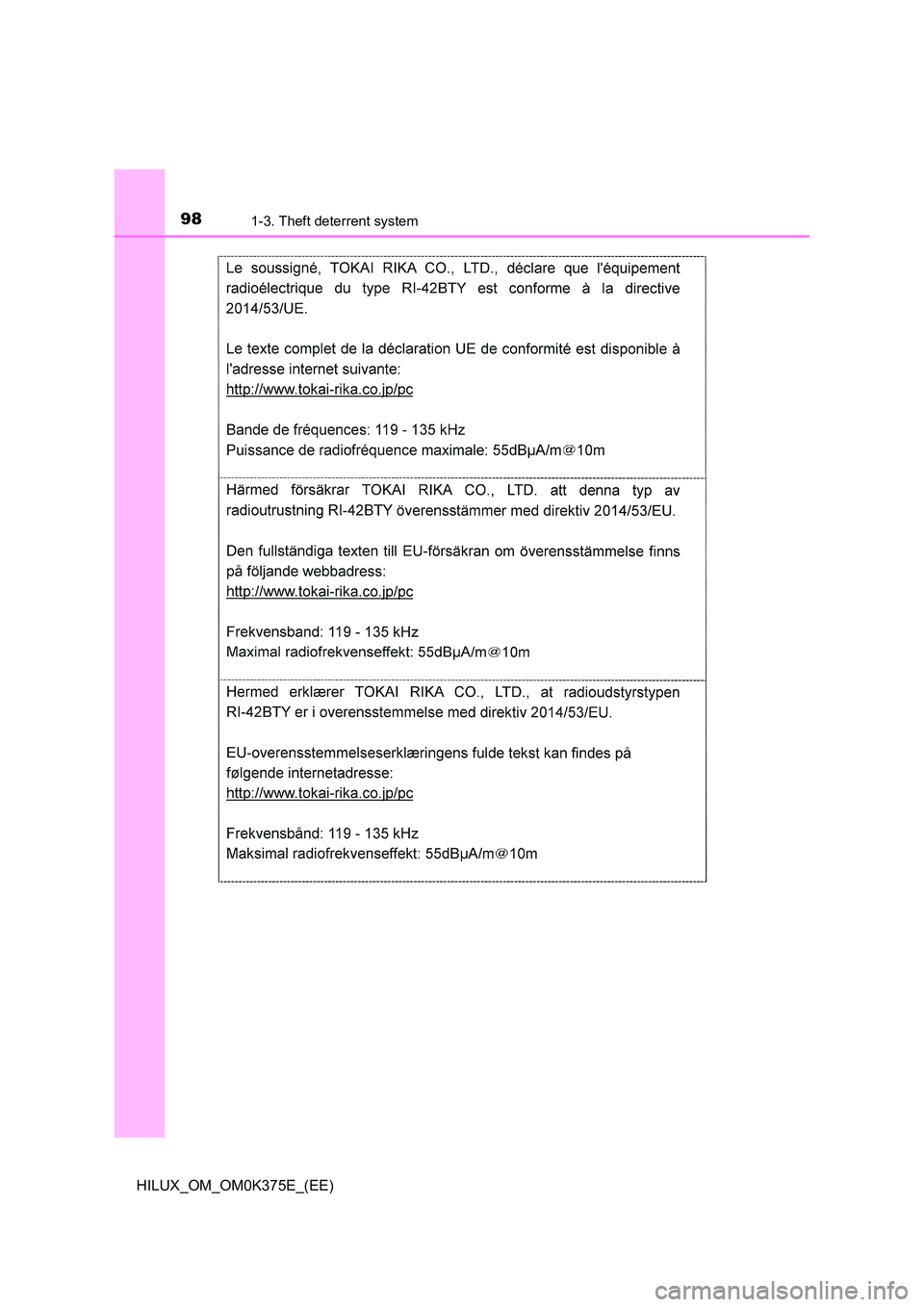

■Certification for the engine immobilizer system
Vehicles without smart entry & start system

981-3. Theft deterrent system
HILUX_OM_OM0K375E_(EE)

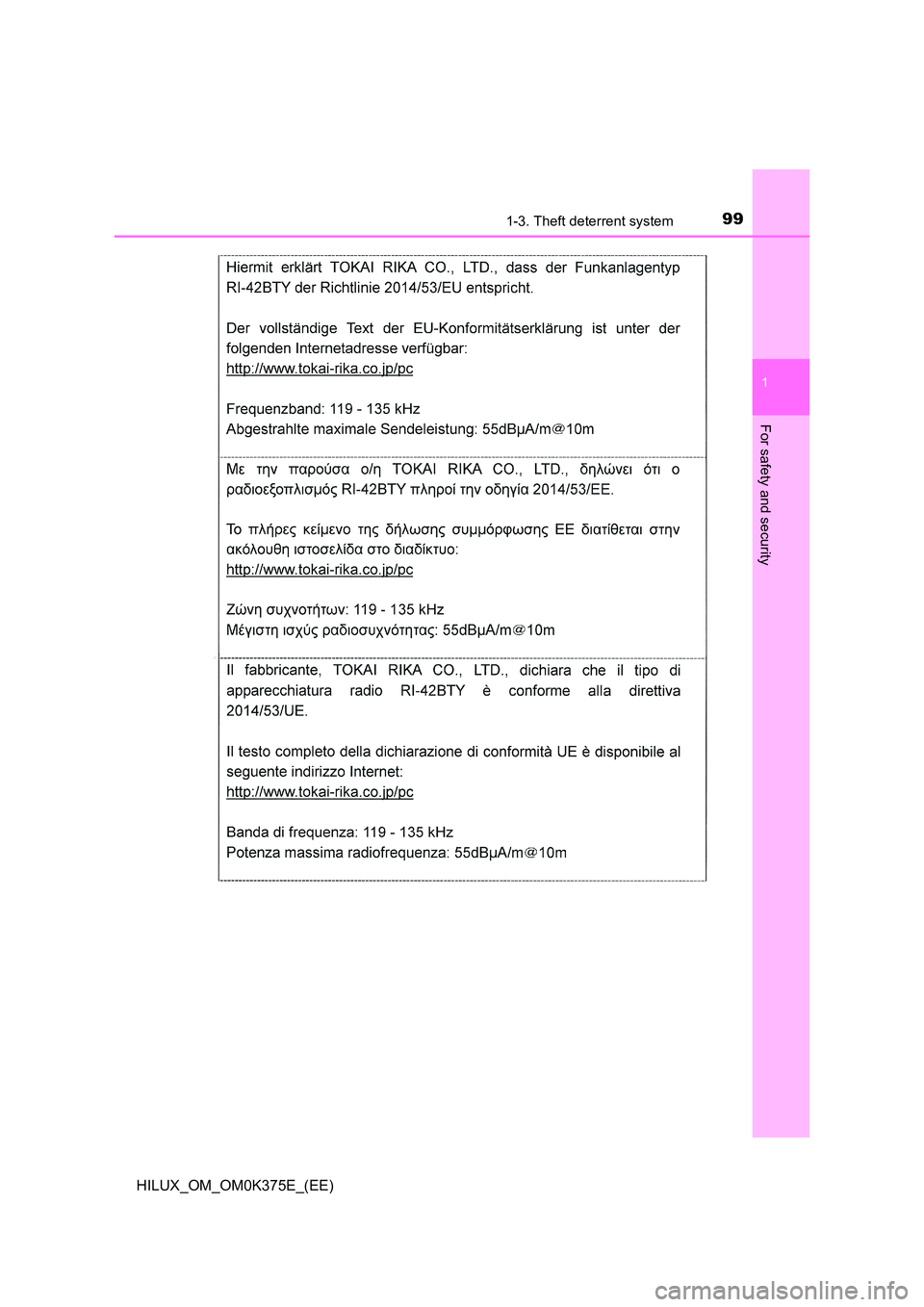

991-3. Theft deterrent system
1
HILUX_OM_OM0K375E_(EE)
For safety and security

1001-3. Theft deterrent system
HILUX_OM_OM0K375E_(EE)
