711-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security

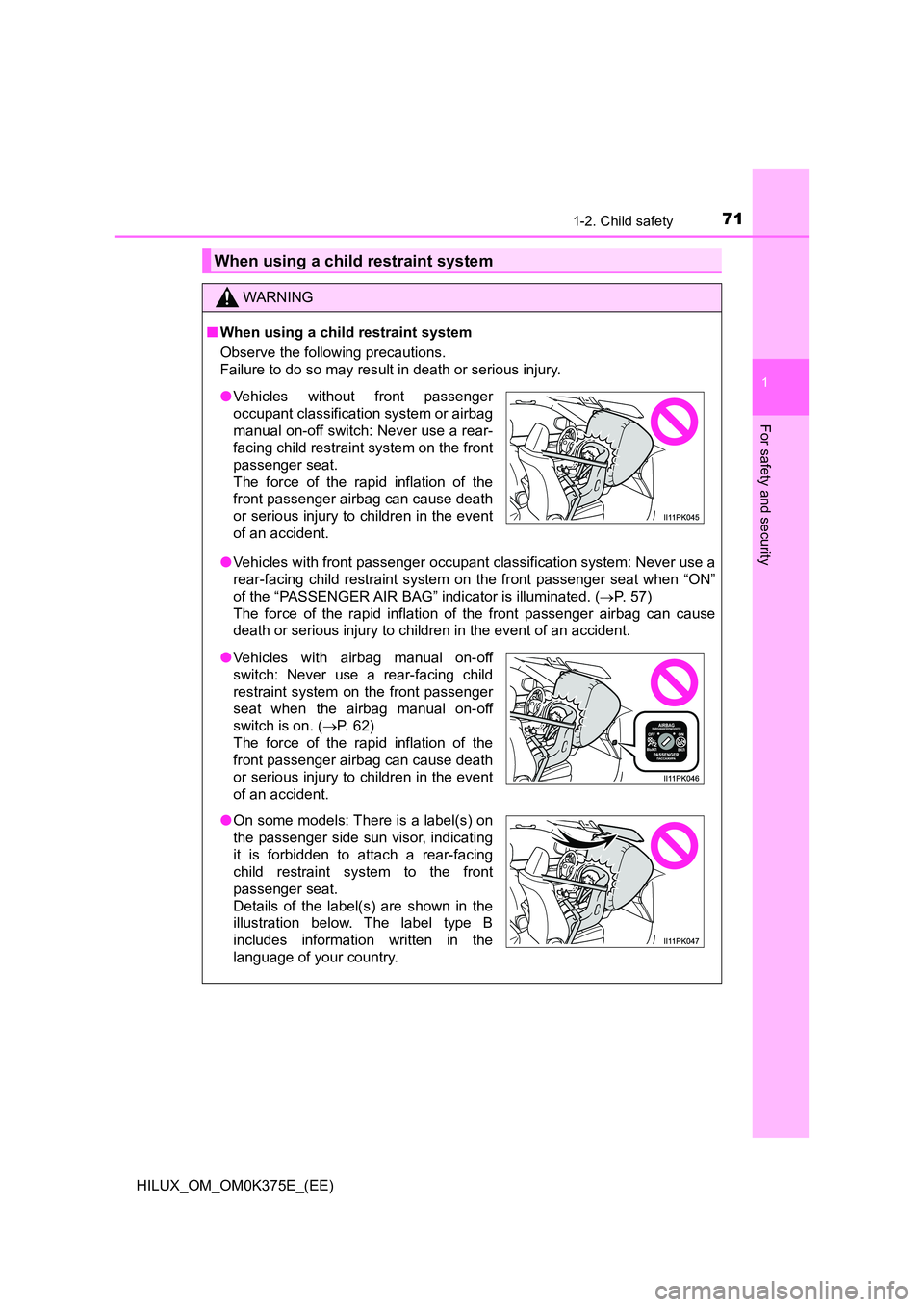

When using a child restraint system
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles with front passenger occupant classification system: Never use a
rear-facing child restraint system on the front passenger seat when “ON”
of the “PASSENGER AIR BAG” indicator is illuminated. ( P. 57)
The force of the rapid inflation of the front passenger airbag can cause
death or serious injury to children in the event of an accident.
● Vehicles without front passenger
occupant classification system or airbag
manual on-off switch: Never use a rear-
facing child restraint system on the front
passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● Vehicles with airbag manual on-off
switch: Never use a rear-facing child
restraint system on the front passenger
seat when the airbag manual on-off
switch is on. ( P. 62)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● On some models: There is a label(s) on
the passenger side sun visor, indicating
it is forbidden to attach a rear-facing
child restraint system to the front
passenger seat.

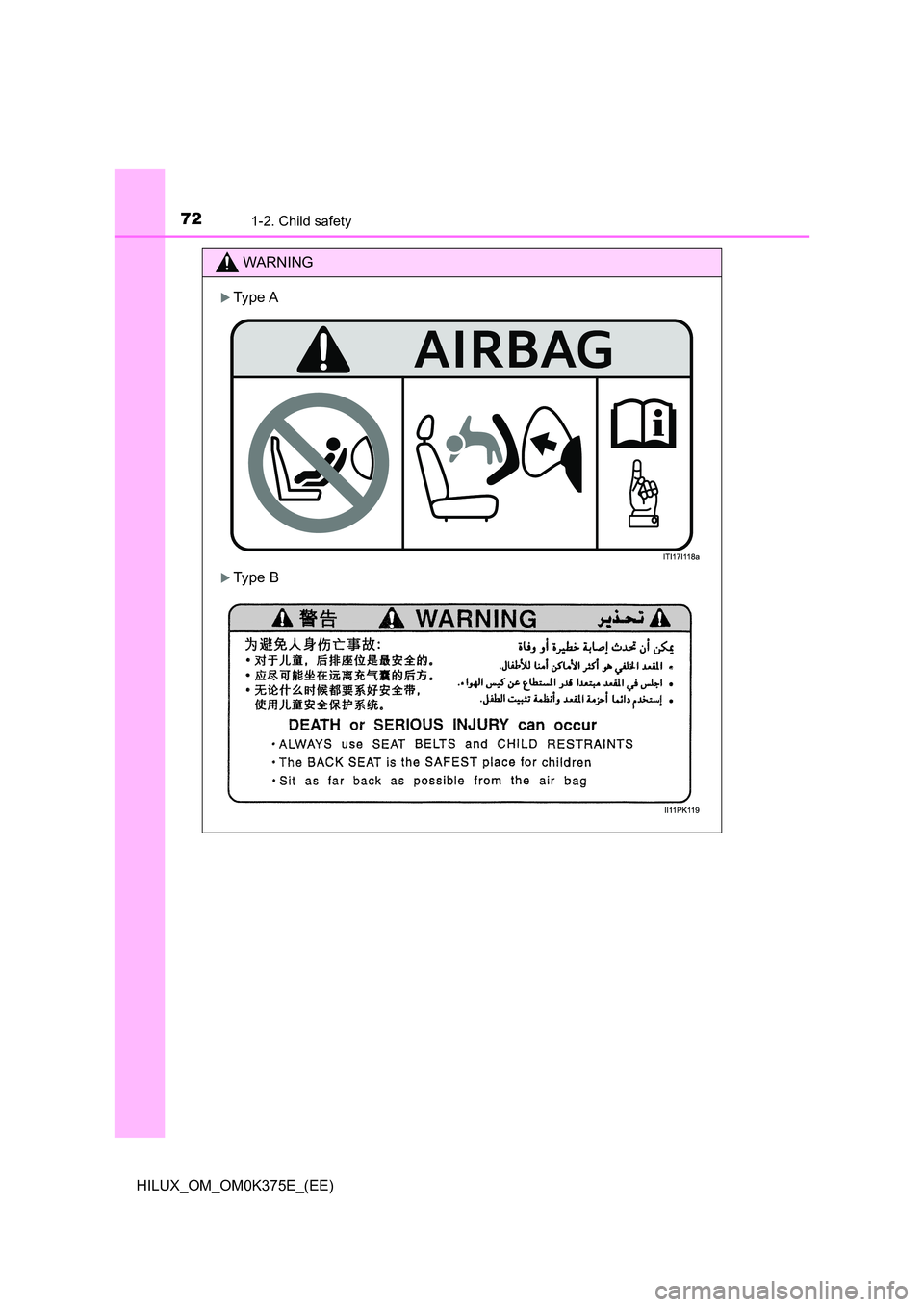

Details of the label(s) are shown in the
illustration below. The label type B
includes information written in the
language of your country.

721-2. Child safety
HILUX_OM_OM0K375E_(EE)
WARNING
Type A
Type B

731-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security
WARNING

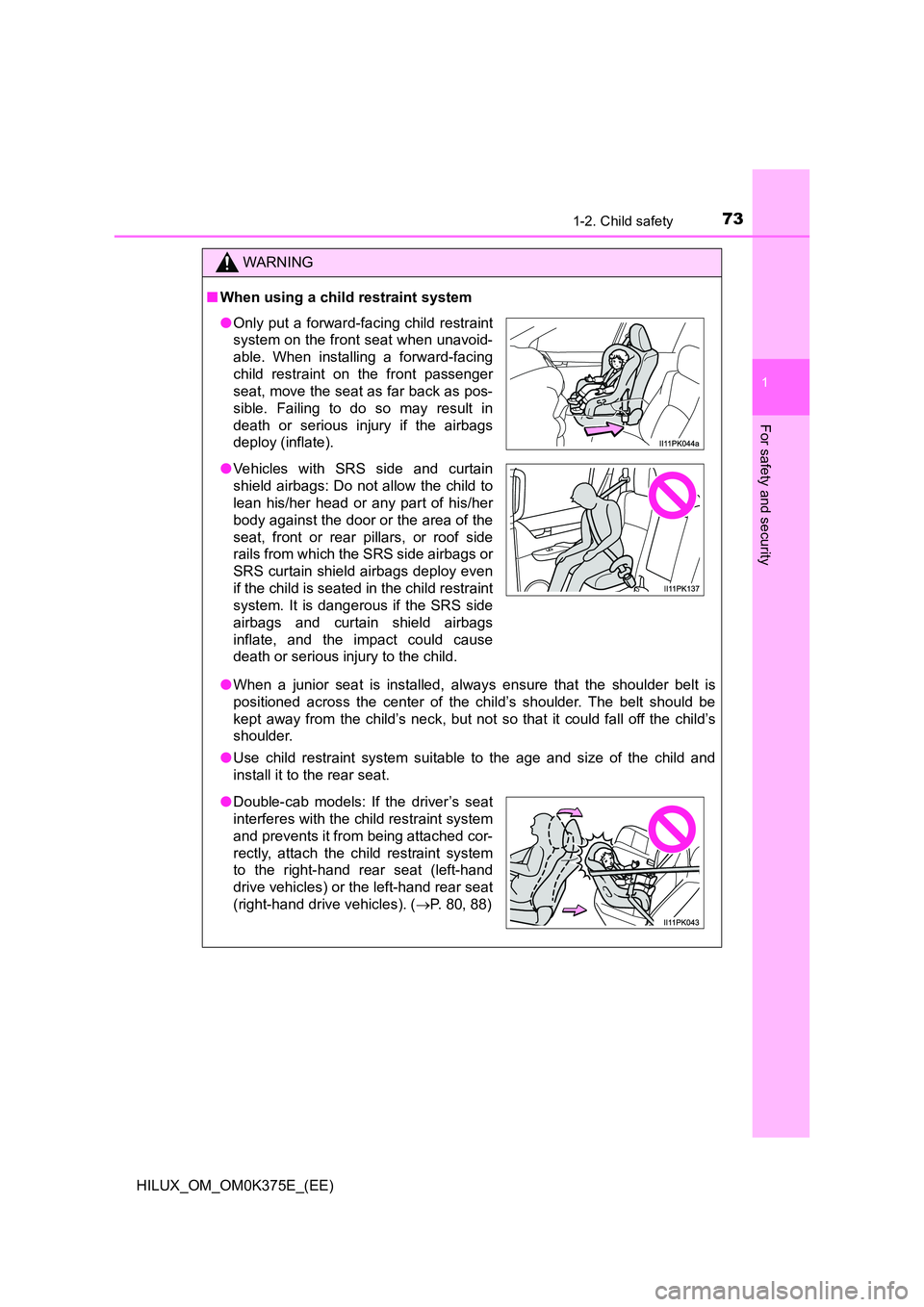

■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Vehicles with SRS side and curtain
shield airbags: Do not allow the child to
lean his/her head or any part of his/her
body against the door or the area of the
seat, front or rear pi llars, or roof side
rails from which the SRS side airbags or
SRS curtain shield airbags deploy even
if the child is seated in the child restraint
system. It is dangerous if the SRS side
airbags and curtain shield airbags
inflate, and the impact could cause
death or serious injury to the child.
● Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles). ( P. 8 0 , 8 8 )

741-2. Child safety
HILUX_OM_OM0K375E_(EE)

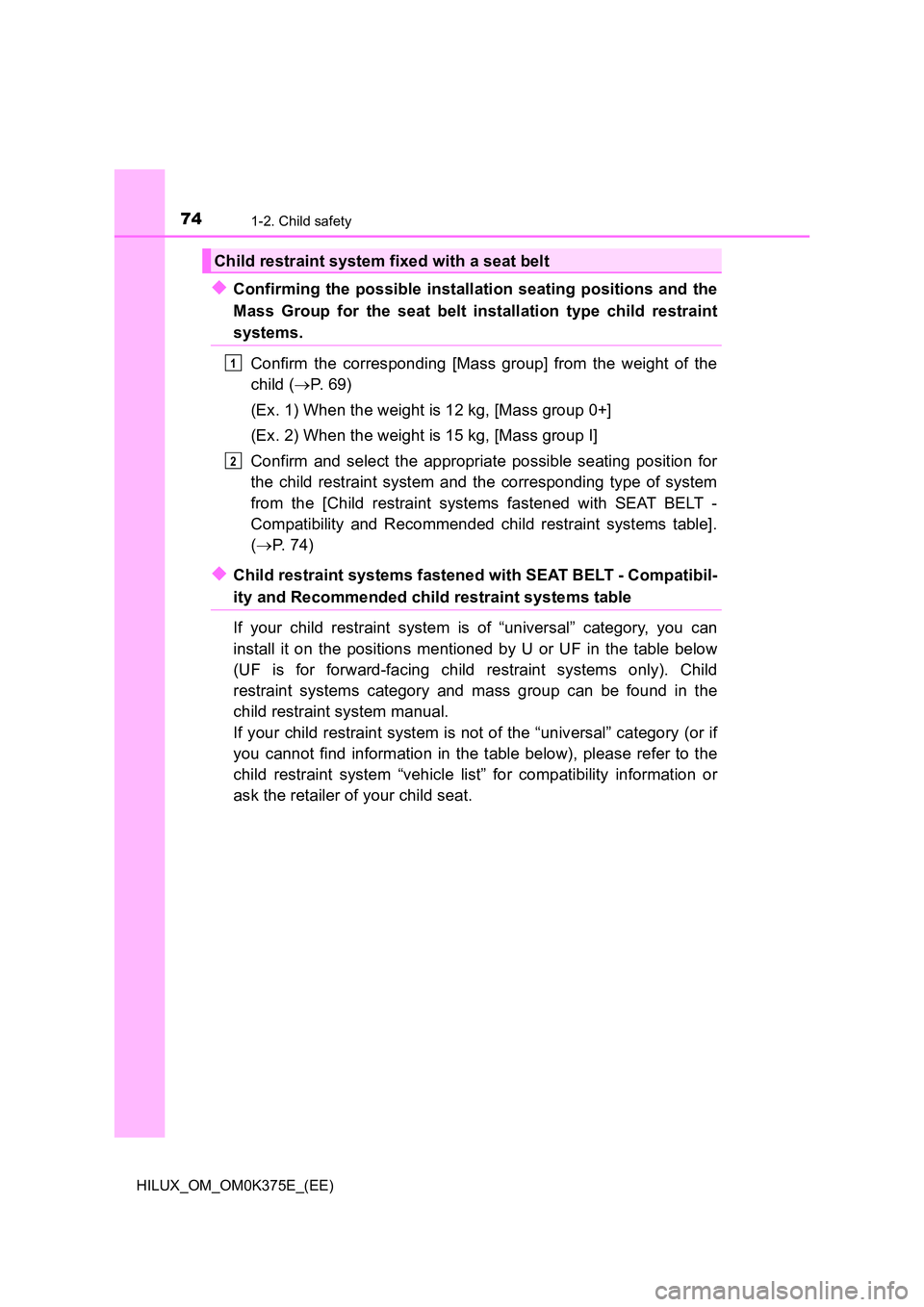

◆Confirming the possible installation seating positions and the
Mass Group for the seat belt installation type child restraint
systems.
Confirm the corresponding [Mass group] from the weight of the
child ( P. 69)
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirm and select the appropriate possible seating position for
the child restraint system and the corresponding type of system
from the [Child restraint systems fastened with SEAT BELT -
Compatibility and Recommended child restraint systems table].
( P. 7 4 )
◆Child restraint systems fastened with SEAT BELT - Compatibil-
ity and Recommended child restraint systems table
If your child restraint system is of “universal” category, you can
install it on the positions mentioned by U or UF in the table below
(UF is for forward-facing child restraint systems only). Child
restraint systems category and mass group can be found in the
child restraint system manual.
If your child restraint system is not of the “universal” category (or if
you cannot find information in the table below), please refer to the
child restraint system “vehicle list” for compatibility information or
ask the retailer of your child seat.
Child restraint system fixed with a seat belt
1
2

751-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security

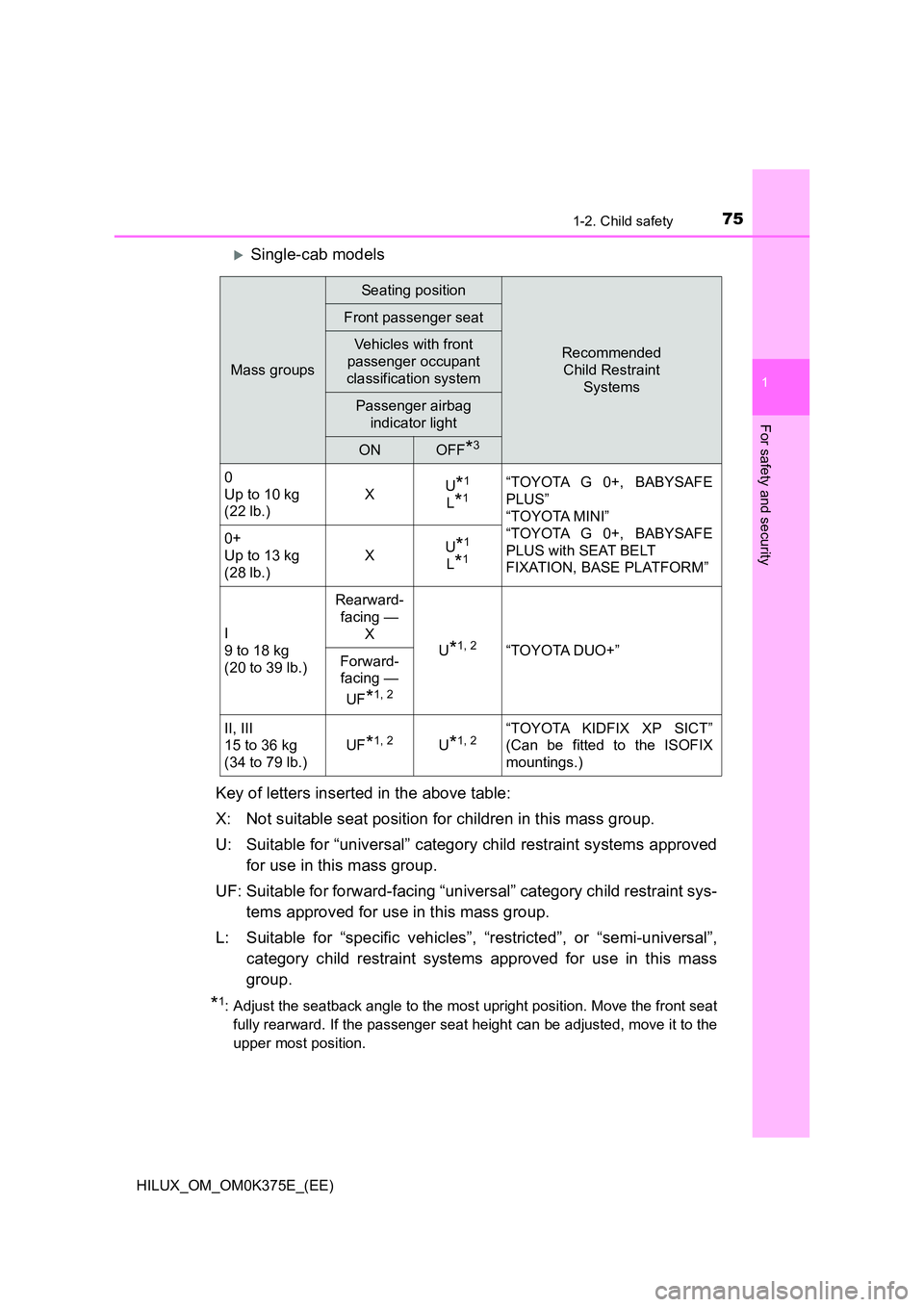

Single-cab models
Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys-
tems approved for use in this mass group.
L: Suitable for “specific vehicles”, “restricted”, or “semi-universal”,
category child restraint systems approved for use in this mass
group.
*1: Adjust the seatback angle to the most upright position. Move the front seat
fully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.
Mass groups
Seating position
Recommended
Child Restraint
Systems
Front passenger seat
Vehicles with front
passenger occupant
classification system
Passenger airbag
indicator light
ONOFF*3
0
Up to 10 kg
(22 lb.)
X U*1
L*1“TOYOTA G 0+, BABYSAFE
PLUS”
“TOYOTA MINI”
“TOYOTA G 0+, BABYSAFE
PLUS with SEAT BELT
FIXATION, BASE PLATFORM”
0+
Up to 13 kg
(28 lb.)
X U*1
L*1
I
9 to 18 kg
(20 to 39 lb.)
Rearward-
facing —
X
U*1, 2“TOYOTA DUO+” Forward-
facing —
UF*1, 2
II, III
15 to 36 kg
(34 to 79 lb.)
UF*1, 2U*1, 2“TOYOTA KIDFIX XP SICT”
(Can be fitted to the ISOFIX
mountings.)

761-2. Child safety
HILUX_OM_OM0K375E_(EE)
*2: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint. Otherwise, put
the head restraint in the upper most position.
*3: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if the PAS-
SENGER AIRBAG OFF indicator lamp is lit.

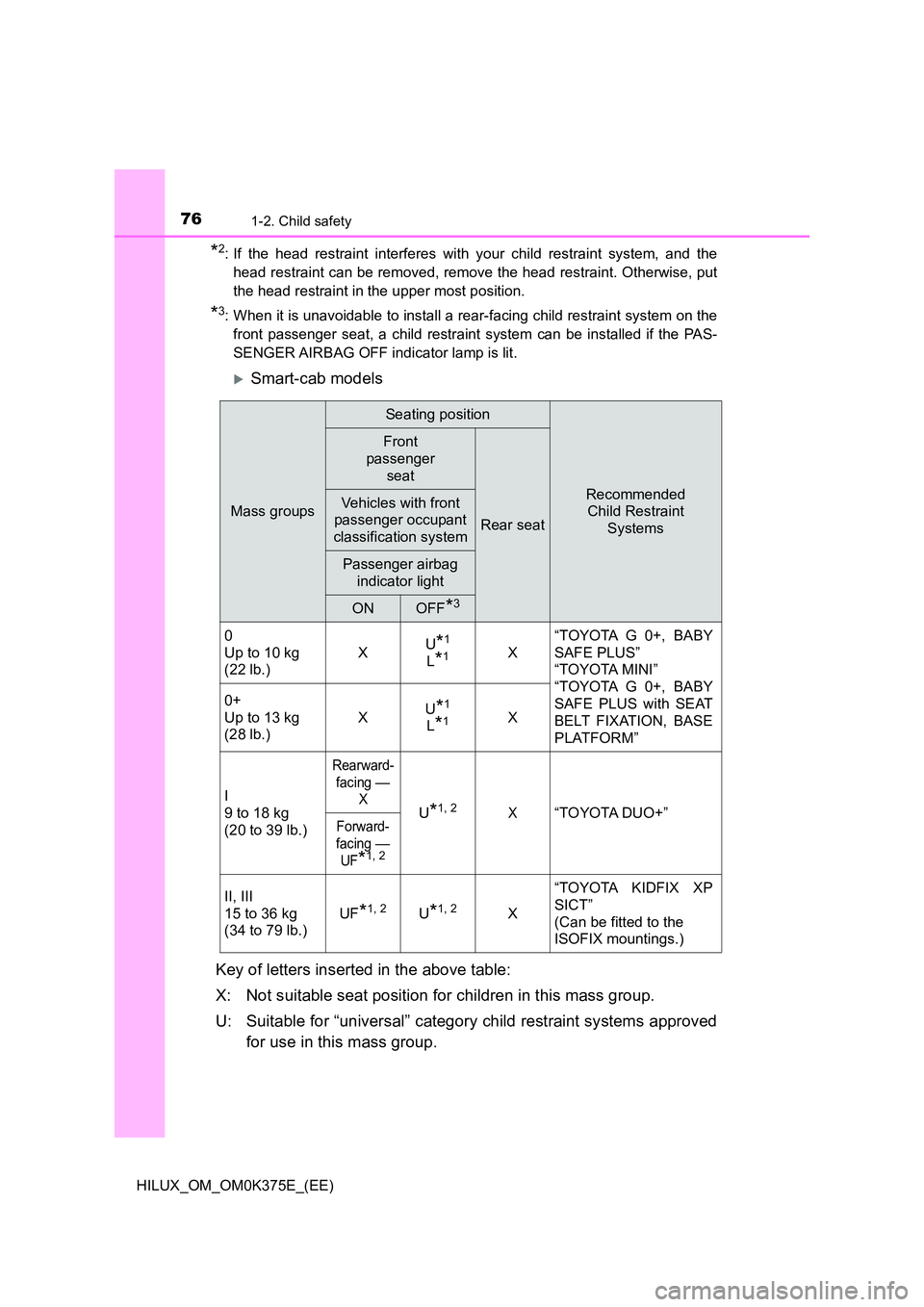

Smart-cab models
Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
Mass groups
Seating position
Recommended
Child Restraint
Systems
Front
passenger
seat
Rear seat
Vehicles with front
passenger occupant
classification system
Passenger airbag
indicator light
ONOFF*3
0
Up to 10 kg
(22 lb.)
X U*1
L*1X
“TOYOTA G 0+, BABY
SAFE PLUS”
“TOYOTA MINI”
“TOYOTA G 0+, BABY
SAFE PLUS with SEAT
BELT FIXATION, BASE
PLATFORM”
0+
Up to 13 kg
(28 lb.)
X U*1
L*1X
I
9 to 18 kg
(20 to 39 lb.)
Rearward-
facing —
XU*1, 2X“TOYOTA DUO+”Forward-
facing —
UF*1, 2
II, III
15 to 36 kg
(34 to 79 lb.)
UF*1, 2U*1, 2X
“TOYOTA KIDFIX XP
SICT”
(Can be fitted to the
ISOFIX mountings.)

771-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security

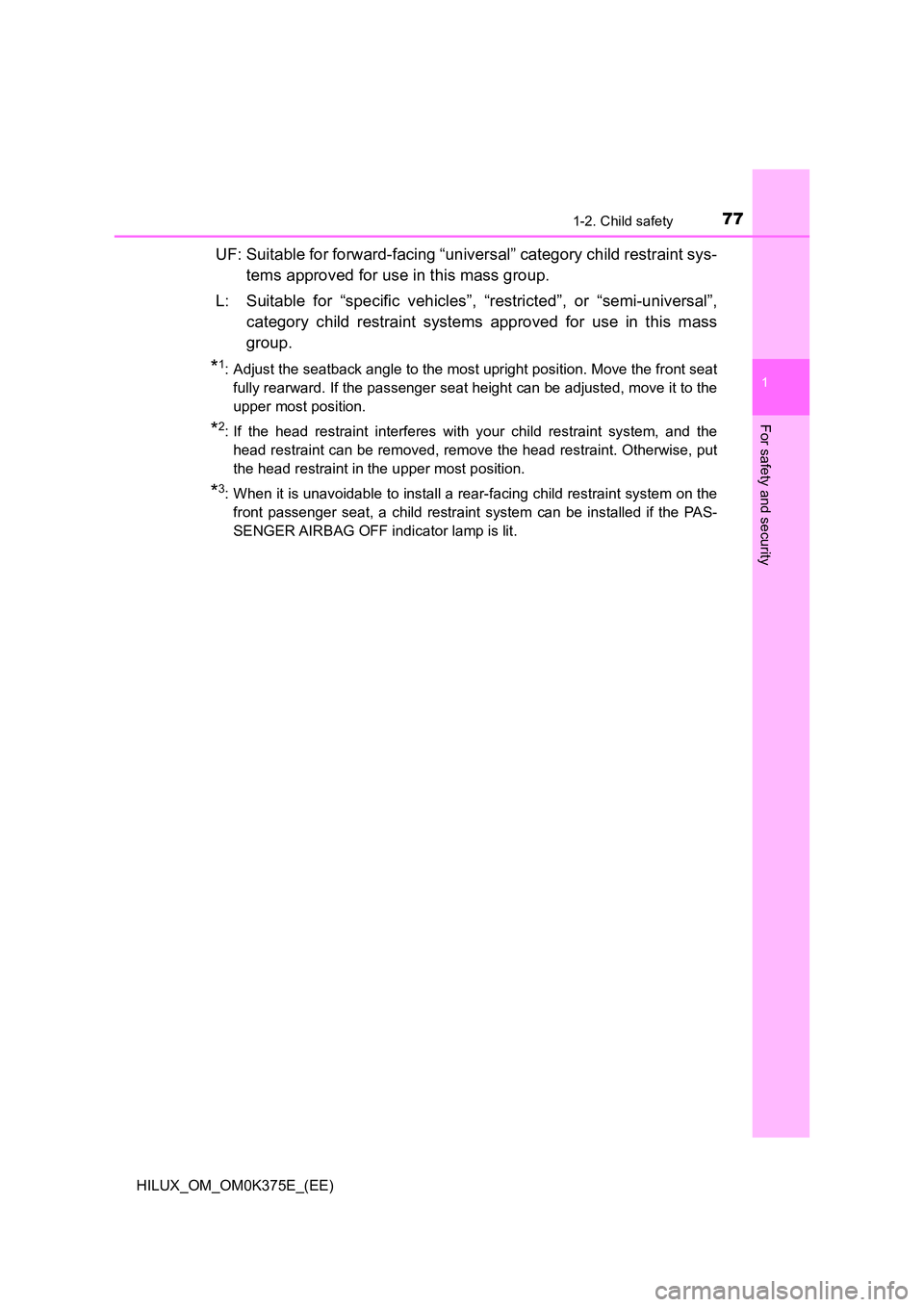

UF: Suitable for forward-facing “universal” category child restraint sys-
tems approved for use in this mass group.
L: Suitable for “specific vehicles”, “restricted”, or “semi-universal”,
category child restraint systems approved for use in this mass
group.
*1: Adjust the seatback angle to the most upright position. Move the front seat
fully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.
*2: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint. Otherwise, put
the head restraint in the upper most position.
*3: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if the PAS-
SENGER AIRBAG OFF indicator lamp is lit.

781-2. Child safety
HILUX_OM_OM0K375E_(EE)

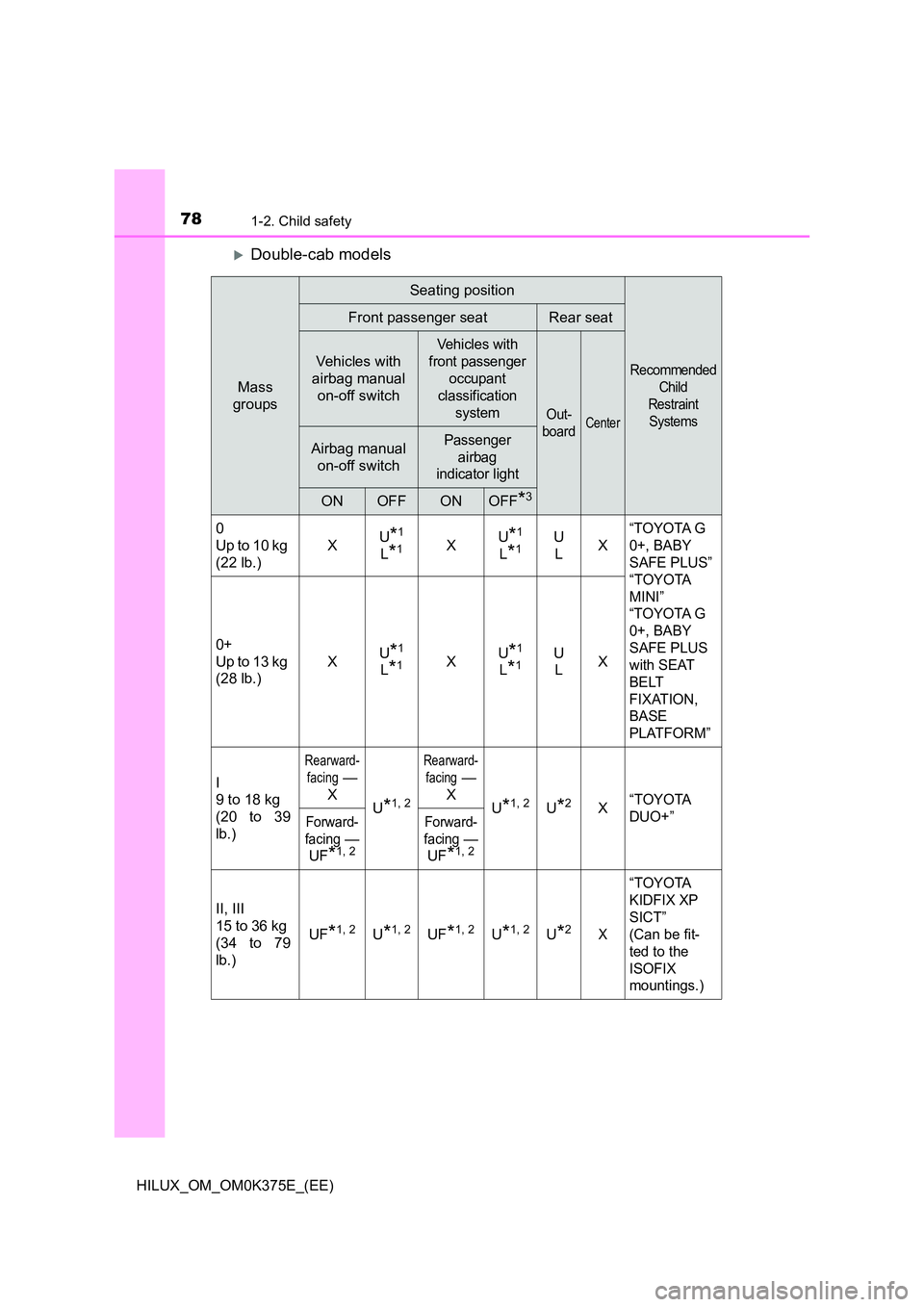

Double-cab models
Mass
groups
Seating position
Recommended
Child
Restraint
Systems
Front passenger seatRear seat
Vehicles with
airbag manual
on-off switch
Vehicles with
front passenger
occupant
classification
systemOut-
boardCenter
Airbag manual
on-off switch
Passenger
airbag
indicator light
ONOFFONOFF*3
0
U p t o 1 0 k g
(22 lb.)
X U*1
L*1XU*1
L*1U
L X
“TOYOTA G
0+, BABY
SAFE PLUS”
“TOYOTA
MINI”
“TOYOTA G
0+, BABY
SAFE PLUS
with SEAT
BELT
FIXATION,
BASE
PLATFORM”
0+
U p t o 1 3 k g
(28 lb.)
X U*1
L*1XU*1
L*1U
L X
I
9 to 18 kg
(20 to 39
lb.)
Rearward-
facing —
X U*1, 2
Rearward-
facing —
X U*1, 2U*2X“TOYOTA
DUO+”Forward-
facing —
UF*1, 2
Forward-
facing —
UF*1, 2
II, III
15 to 36 kg
(34 to 79
lb.)
UF*1, 2U*1, 2UF*1, 2U*1, 2U*2X
“TOYOTA
KIDFIX XP
SICT”
(Can be fit-
ted to the
ISOFIX
mountings.)

791-2. Child safety
1
HILUX_OM_OM0K375E_(EE)
For safety and security
Key of letters inserted in the above table:
X: Not suitable seat position for children in this mass group.
U: Suitable for “universal” category child restraint systems approved
for use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys-
tems approved for use in this mass group.
L: Suitable for “specific vehicles”, “restricted”, or “semi-universal”,
category child restraint systems approved for use in this mass
group.
*1: Adjust the seatback angle to the most upright position. Move the front seat
fully rearward. If the passenger seat height can be adjusted, move it to the
upper most position.
*2: If the head restraint interferes with your child restraint system, and the
head restraint can be removed, remove the head restraint. Otherwise, put
the head restraint in the upper most position.
*3: When it is unavoidable to install a rear-facing child restraint system on the
front passenger seat, a child restraint system can be installed if the PAS-
SENGER AIRBAG OFF indicator lamp is lit.
Double-cab models: When securing some types of child restraint sys-
tems in rear seat, it may not be possible to properly use the seat belts
in positions next to the child restraint without interfering with it or
affecting seat belt effectiveness. Be sure your seat belt fits snugly
across your shoulder and low on your hips. If it does not, or if it inter-
feres with the child restraint, move to a different position. Failure to do
so may result in death or serious injury.

801-2. Child safety
HILUX_OM_OM0K375E_(EE)

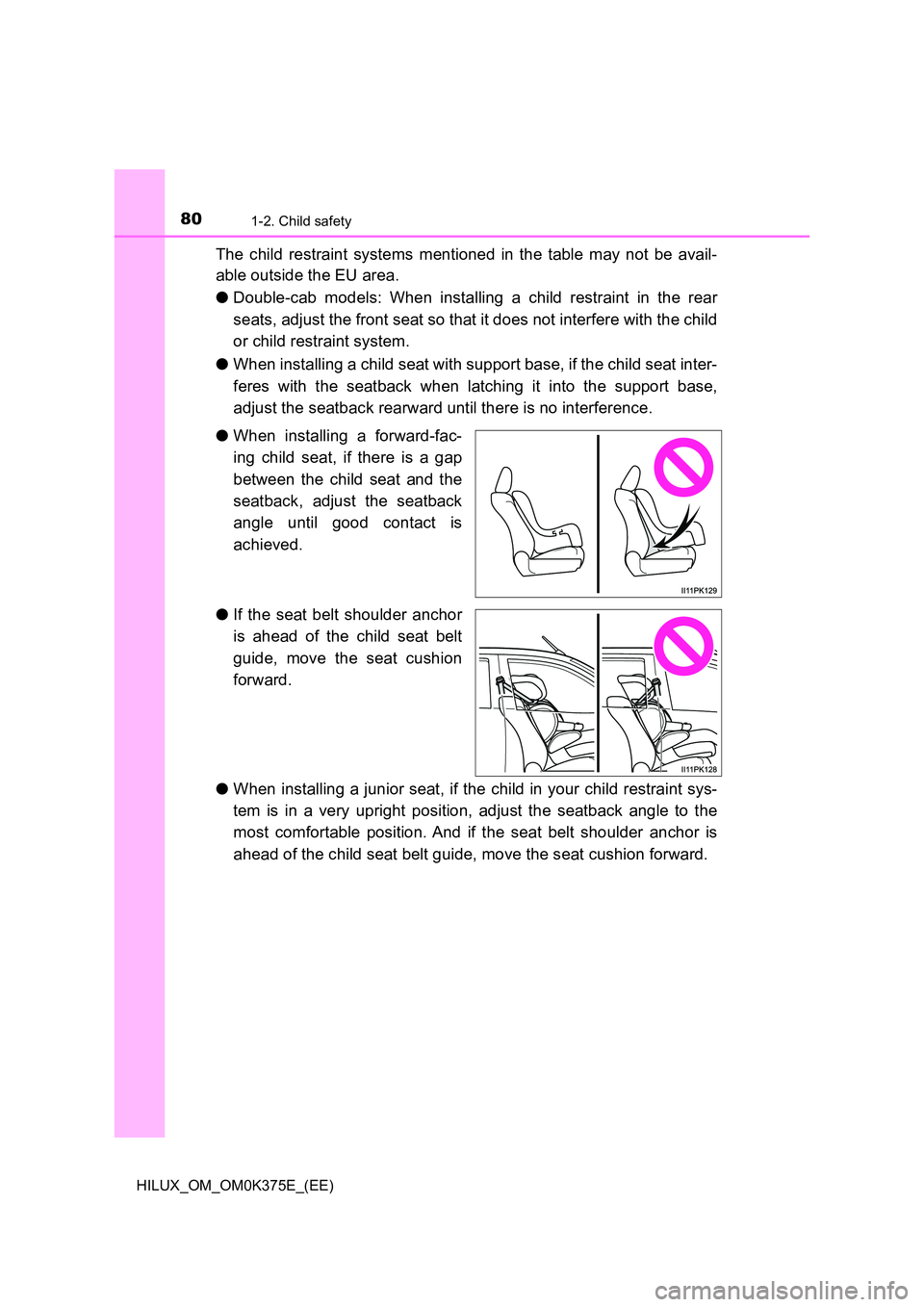

The child restraint systems mentioned in the table may not be avail-
able outside the EU area.
● Double-cab models: When installing a child restraint in the rear
seats, adjust the front seat so that it does not interfere with the child
or child restraint system.
● When installing a child seat with support base, if the child seat inter-
feres with the seatback when latching it into the support base,
adjust the seatback rearward until there is no interference.
● When installing a forward-fac-
ing child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
● If the seat belt shoulder anchor
is ahead of the child seat belt
guide, move the seat cushion
forward.
● When installing a junior seat, if the child in your child restraint sys-
tem is in a very upright position, adjust the seatback angle to the
most comfortable position. And if the seat belt shoulder anchor is
ahead of the child seat belt guide, move the seat cushion forward.
