TOYOTA HILUX 2019 Owners Manual

431
5
5-5. Using an external device
Audio system
HILUX_OM_OM0K375E_(EE)

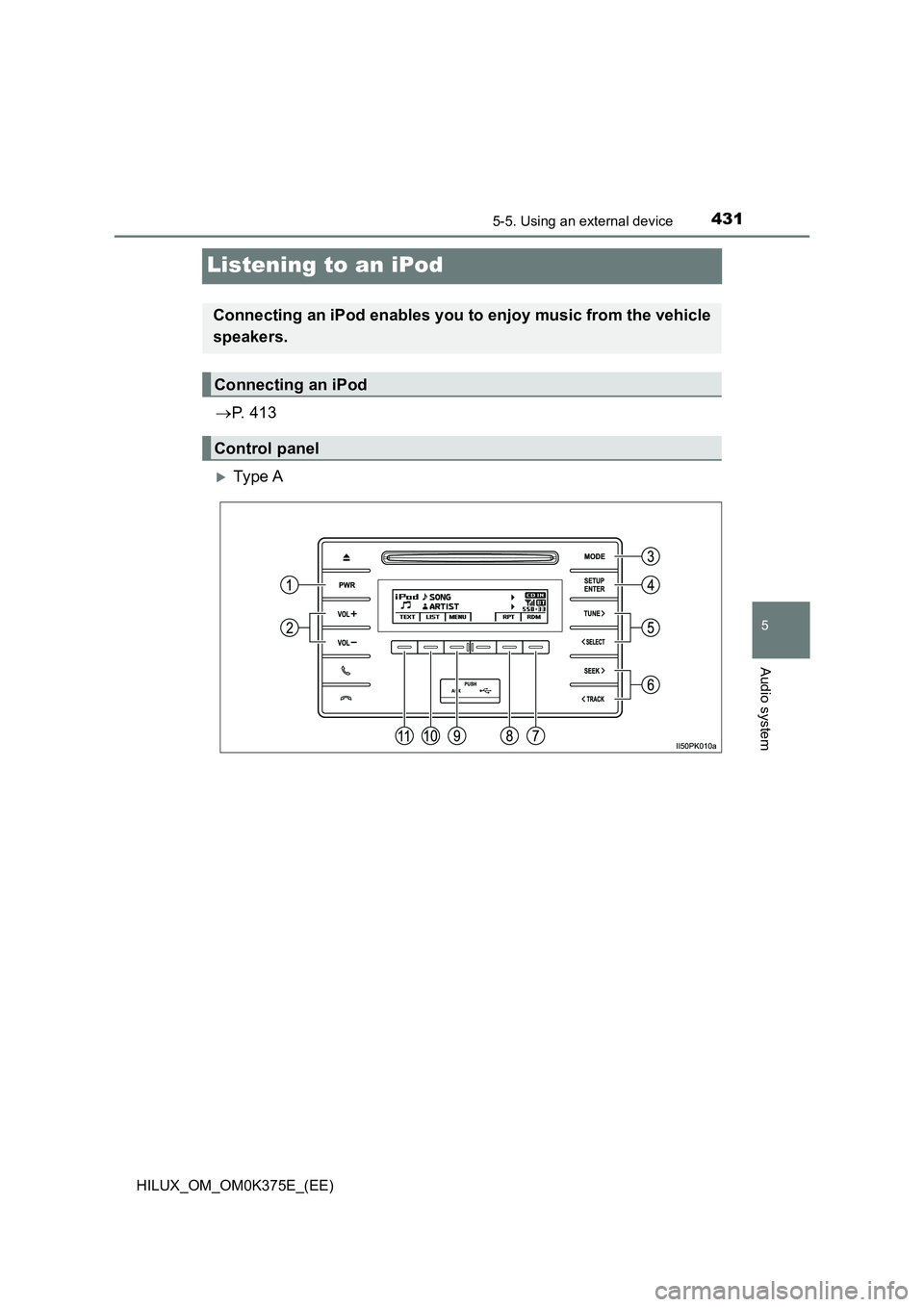

Listening to an iPod
P. 4 1 3
Ty pe A
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Connecting an iPod
Control panel

4325-5. Using an external device
HILUX_OM_OM0K375E_(EE)

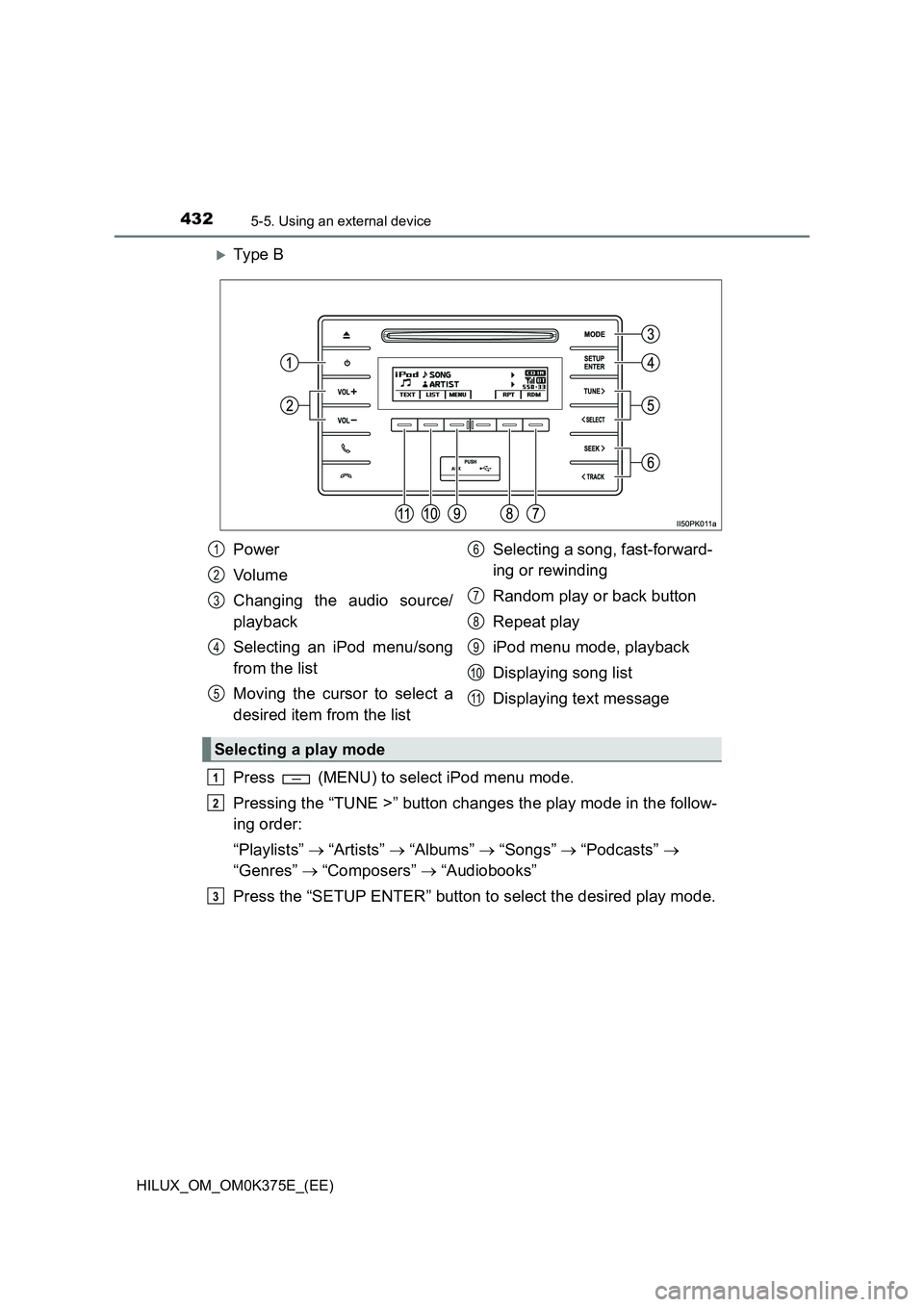

Ty pe B
Press (MENU) to select iPod menu mode.
Pressing the “TUNE >” button changes the play mode in the follow-
ing order:
“Playlists” “Artists” “Albums” “Songs” “Podcasts” 
“Genres” “Composers” “Audiobooks”
Press the “SETUP ENTER” button to select the desired play mode.
Power
Vo lu m e
Changing the audio source/
playback
Selecting an iPod menu/song
from the list
Moving the cursor to select a
desired item from the list
Selecting a song, fast-forward-
ing or rewinding
Random play or back button
Repeat play
iPod menu mode, playback
Displaying song list
Displaying text message
Selecting a play mode
1
2
3
4
5
6
7
8
9
10
11
1
2
3

4335-5. Using an external device
5
Audio system
HILUX_OM_OM0K375E_(EE)

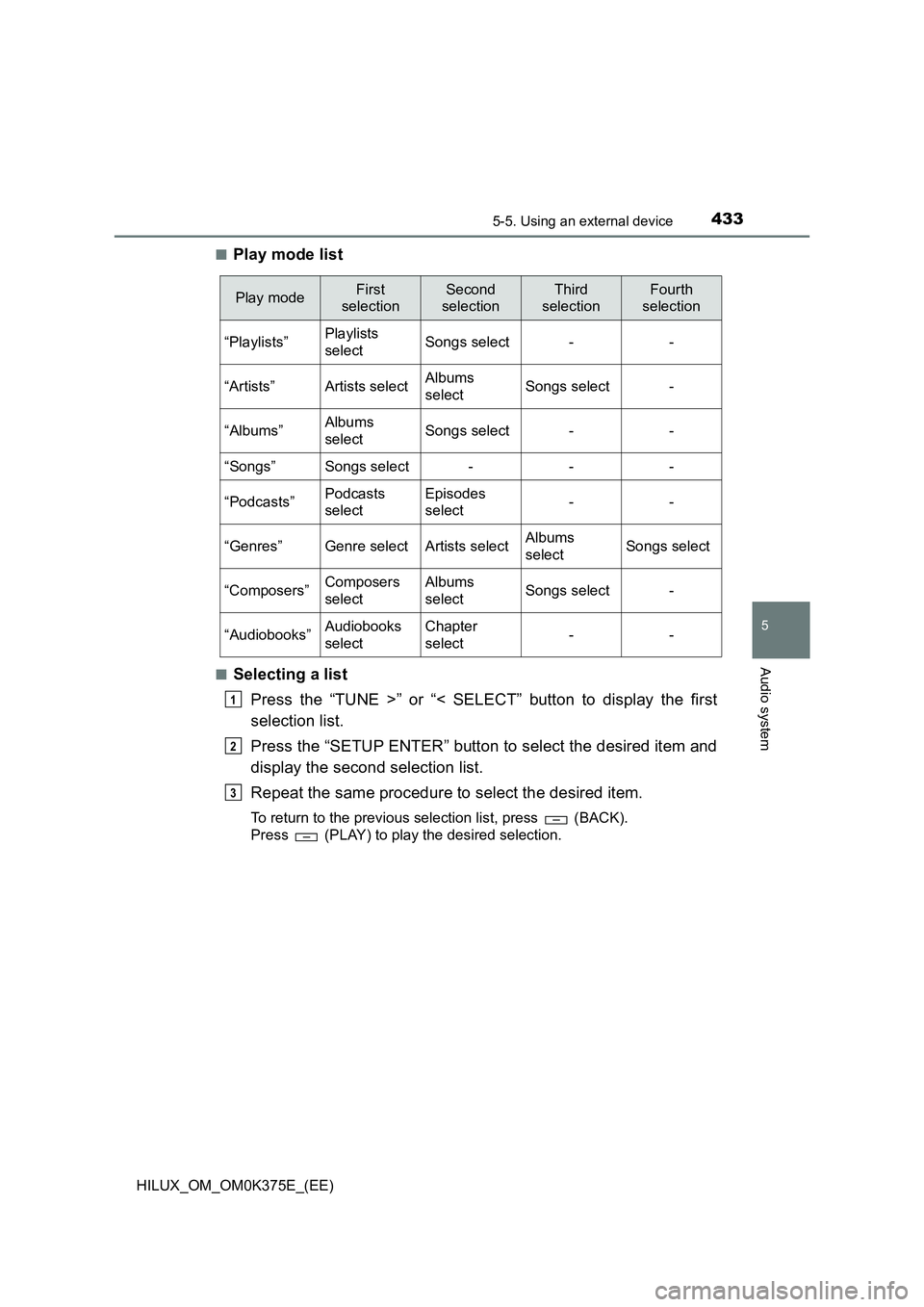

■Play mode list
■Selecting a list
Press the “TUNE >” or “< SELECT” button to display the first
selection list.
Press the “SETUP ENTER” button to select the desired item and
display the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press (BACK).
Press (PLAY) to play the desired selection.
Play modeFirst
selection
Second
selection
Third
selection
Fourth
selection
“Playlists”Playlists
selectSongs select--
“Artists”Artists selectAlbums
selectSongs select-
“Albums”Albums
selectSongs select--
“Songs”Songs select---
“Podcasts”Podcasts
select
Episodes
select--
“Genres”Genre selectArtists selectAlbums
selectSongs select
“Composers”Composers
select
Albums
selectSongs select-
“Audiobooks”Audiobooks
select
Chapter
select--
1
2
3

4345-5. Using an external device
HILUX_OM_OM0K375E_(EE)

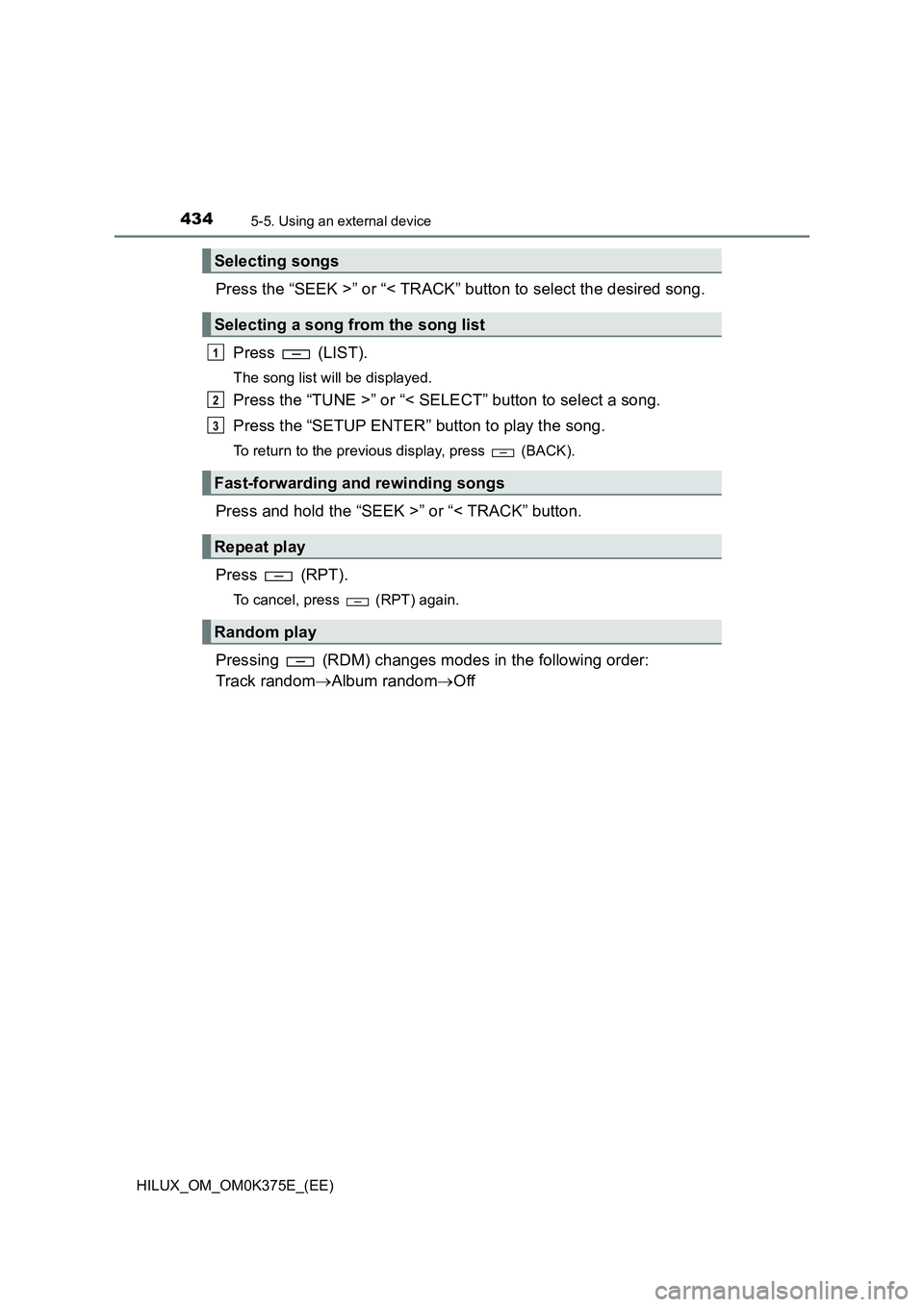

Press the “SEEK >” or “< TRACK” button to select the desired song.
Press (LIST).
The song list will be displayed.
Press the “TUNE >” or “< SELECT” button to select a song.
Press the “SETUP ENTER” button to play the song.
To return to the previous display, press (BACK).
Press and hold the “SEEK >” or “< TRACK” button.
Press (RPT).
To cancel, press (RPT) again.
Pressing (RDM) changes modes in the following order:
Track random Album randomOff
Selecting songs
Selecting a song from the song list
Fast-forwarding and rewinding songs
Repeat play
Random play
1
2
3

4355-5. Using an external device
5
Audio system
HILUX_OM_OM0K375E_(EE)

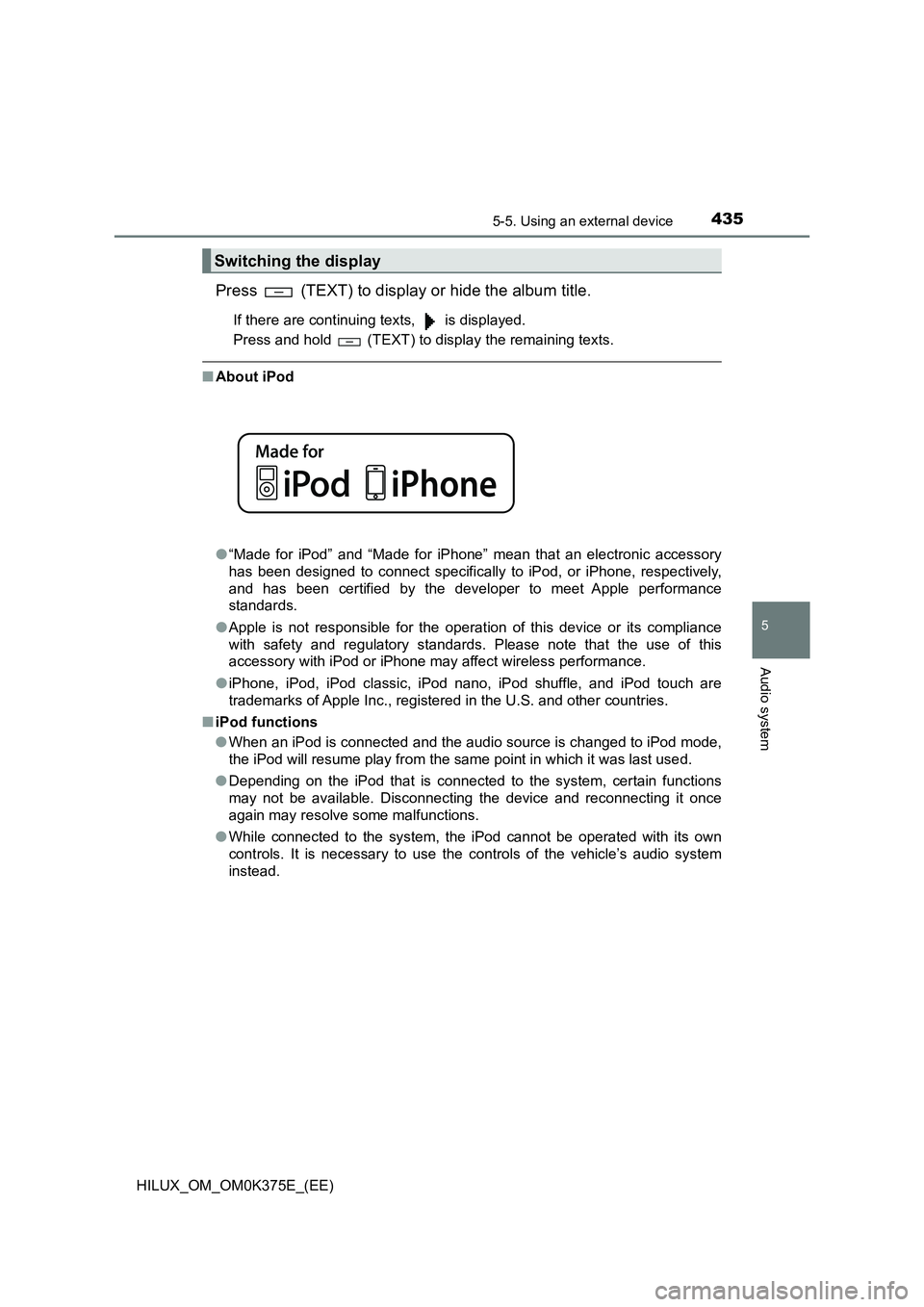

Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold (TEXT) to display the remaining texts.
■ About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance
standards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
Switching the display

4365-5. Using an external device
HILUX_OM_OM0K375E_(EE)

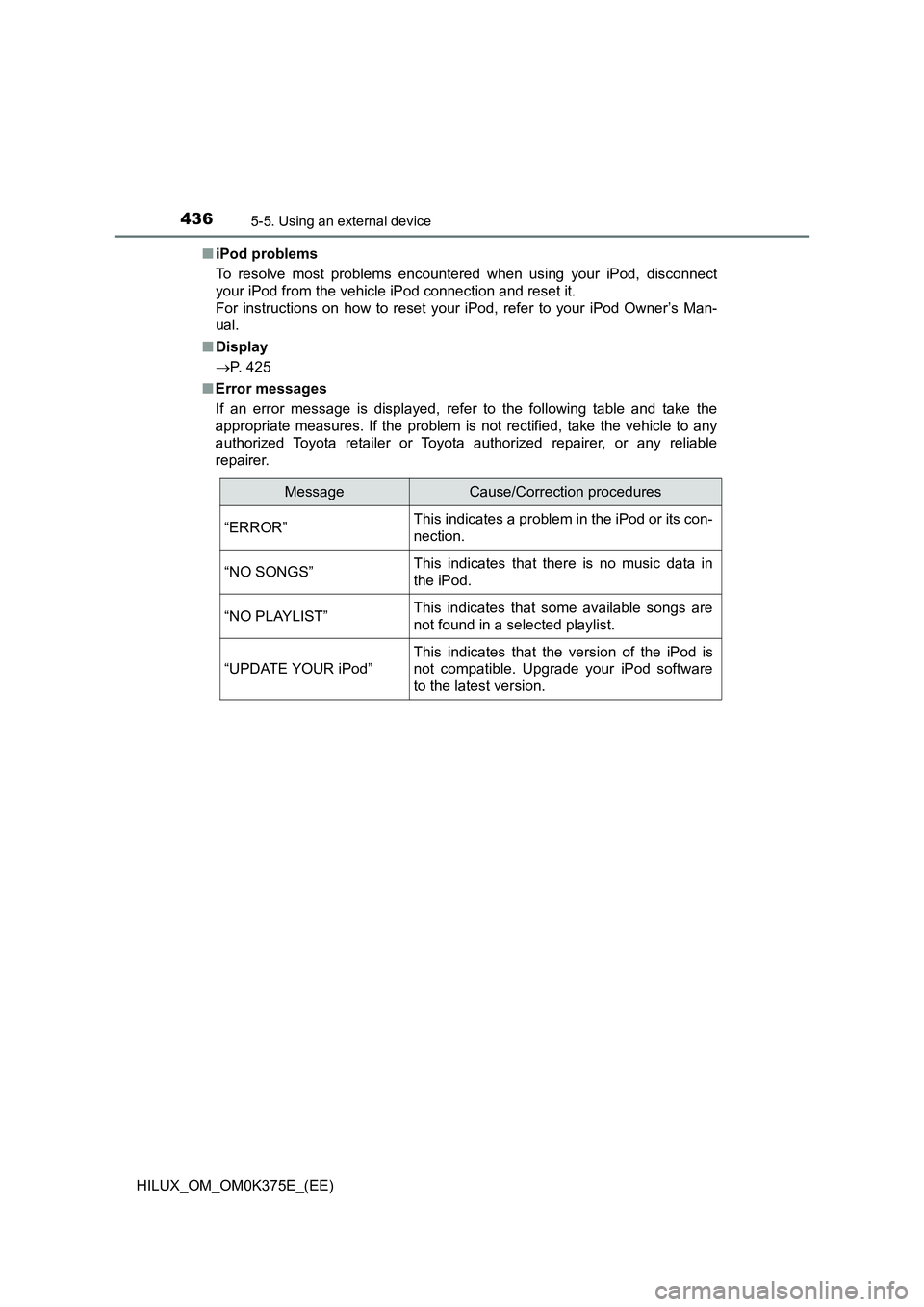

■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
■ Display
 P. 425
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
MessageCause/Correction procedures
“ERROR”This indicates a problem in the iPod or its con-
nection.
“NO SONGS”This indicates that there is no music data in
the iPod.
“NO PLAYLIST”This indicates that some available songs are
not found in a selected playlist.
“UPDATE YOUR iPod”
This indicates that the version of the iPod is
not compatible. Upgrade your iPod software
to the latest version.

4375-5. Using an external device
5
Audio system
HILUX_OM_OM0K375E_(EE)

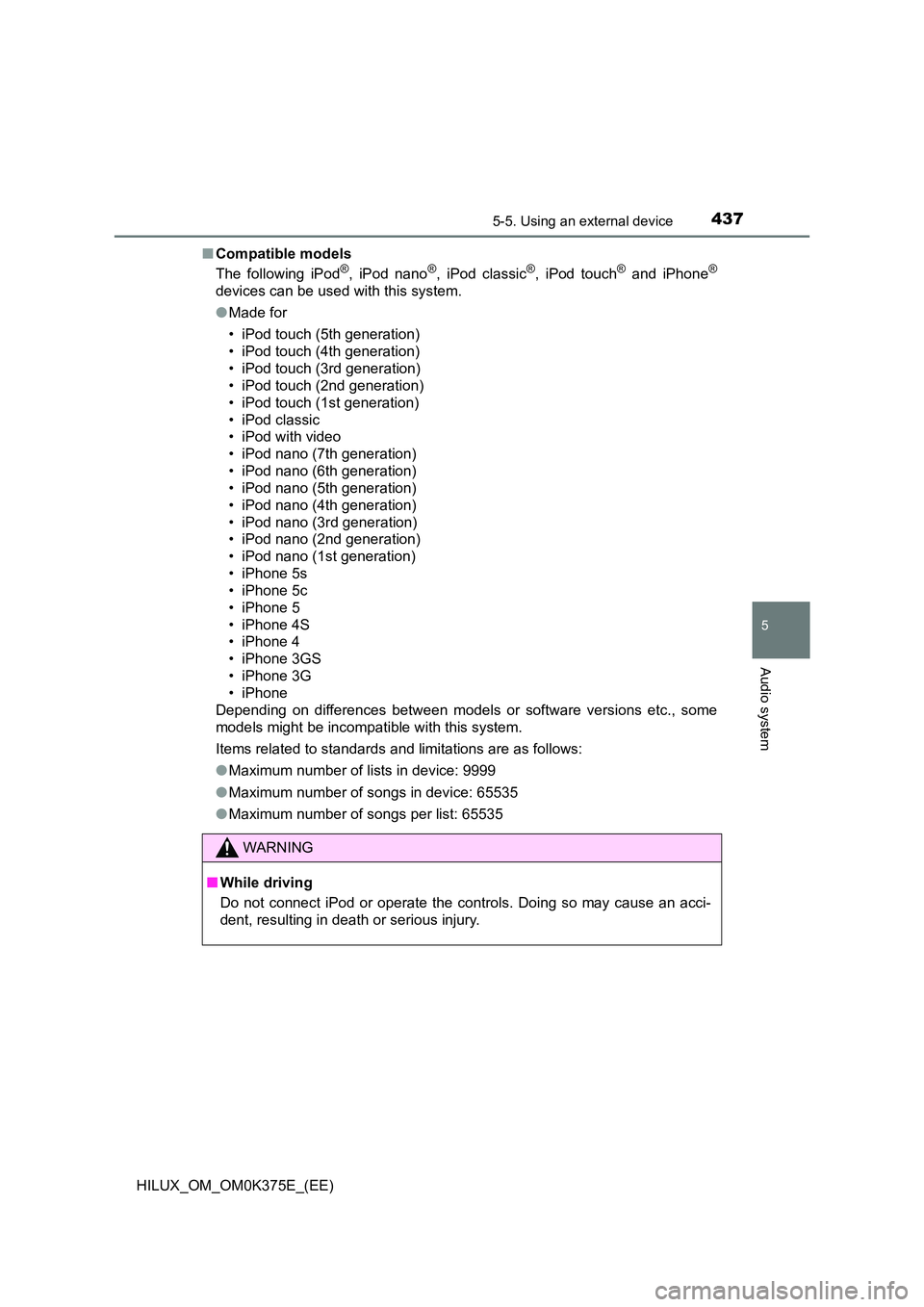

■ Compatible models
The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
● Made for
• iPod touch (5th generation)
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
● Maximum number of lists in device: 9999
● Maximum number of songs in device: 65535
● Maximum number of songs per list: 65535
WARNING
■While driving
Do not connect iPod or operate the controls. Doing so may cause an acci-
dent, resulting in death or serious injury.

4385-5. Using an external device
HILUX_OM_OM0K375E_(EE)

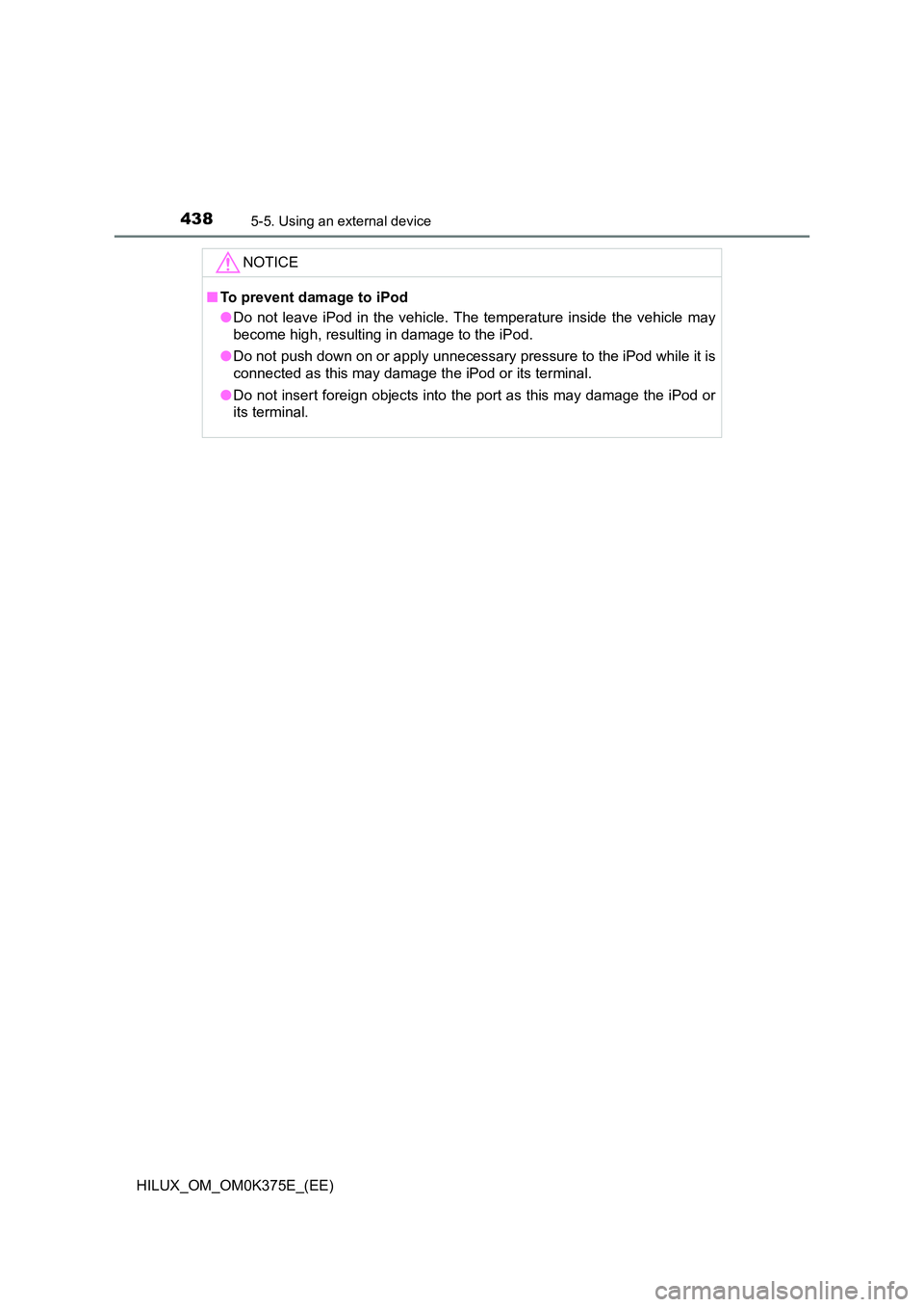

NOTICE
■To prevent damage to iPod
● Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the iPod.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
● Do not insert foreign objects into the port as this may damage the iPod or
its terminal.

439
5
5-5. Using an external device
Audio system
HILUX_OM_OM0K375E_(EE)

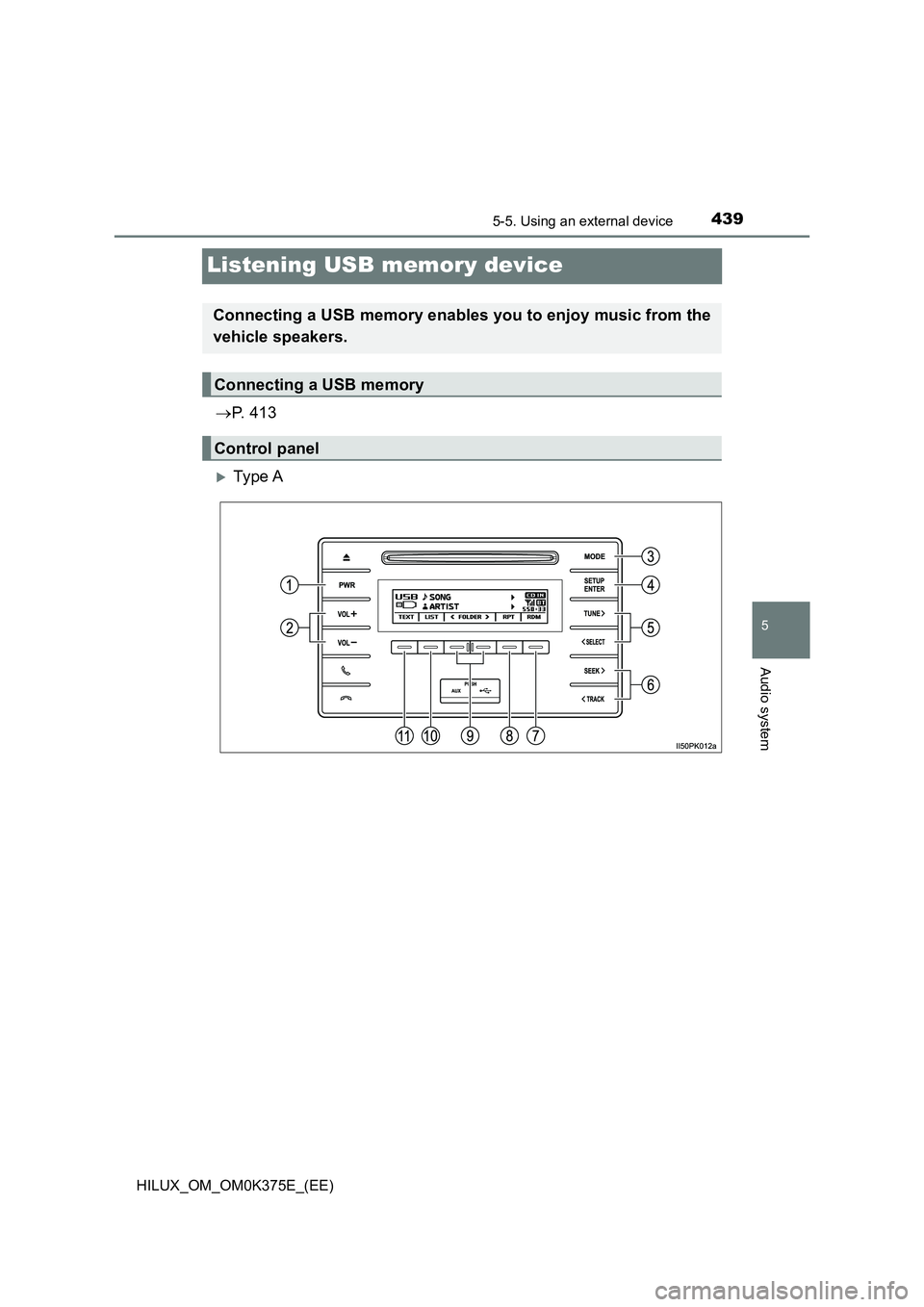

Listening USB memory device
P. 4 1 3
Ty pe A
Connecting a USB memory enables you to enjoy music from the
vehicle speakers.
Connecting a USB memory
Control panel

4405-5. Using an external device
HILUX_OM_OM0K375E_(EE)

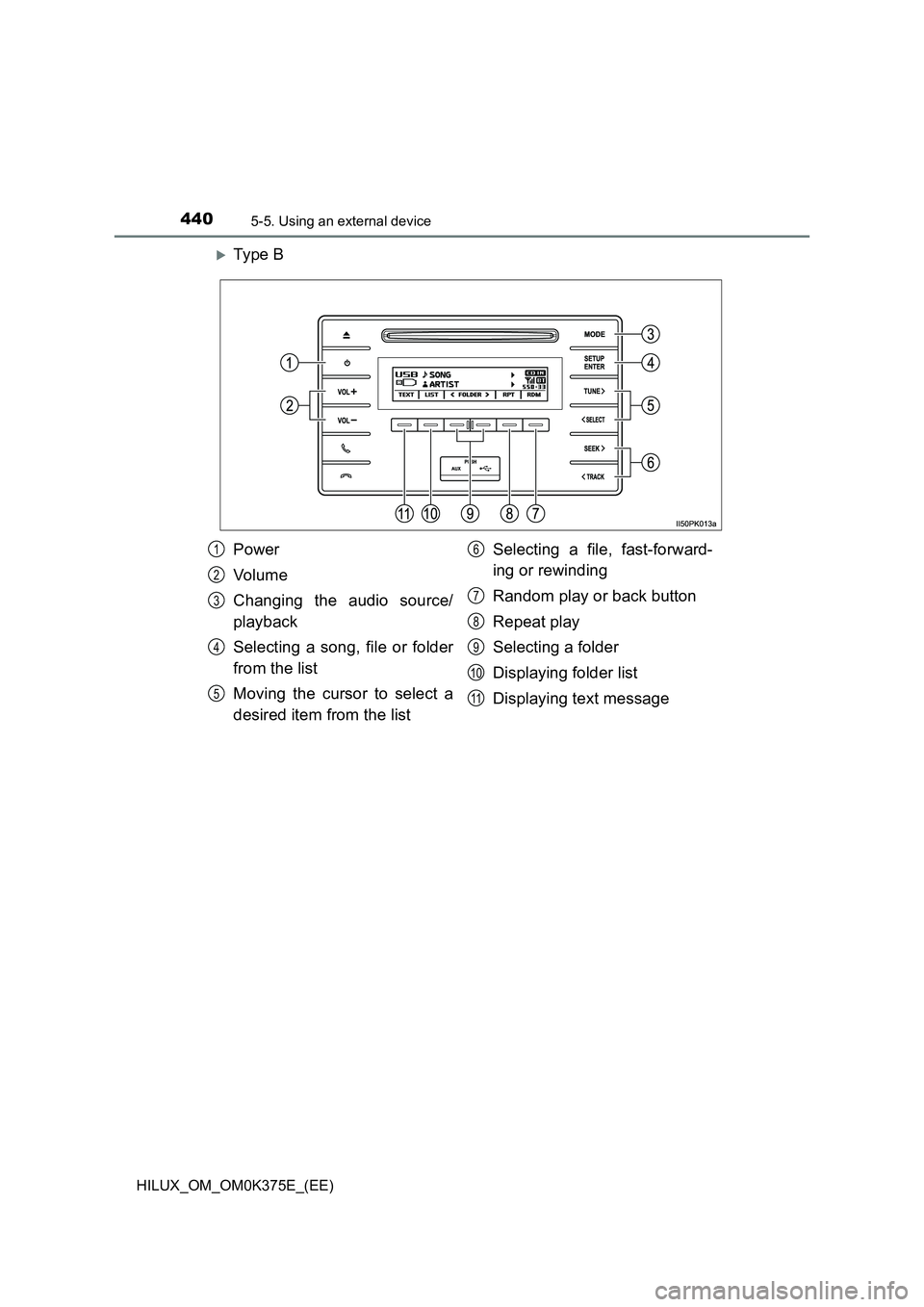

Ty pe B
Power
Vo lu m e
Changing the audio source/
playback
Selecting a song, file or folder
from the list
Moving the cursor to select a
desired item from the list
Selecting a file, fast-forward-
ing or rewinding
Random play or back button
Repeat play
Selecting a folder
Displaying folder list
Displaying text message
1
2
3
4
5
6
7
8
9
10
11
