belt TOYOTA HILUX 2020 Owners Manual (in English)

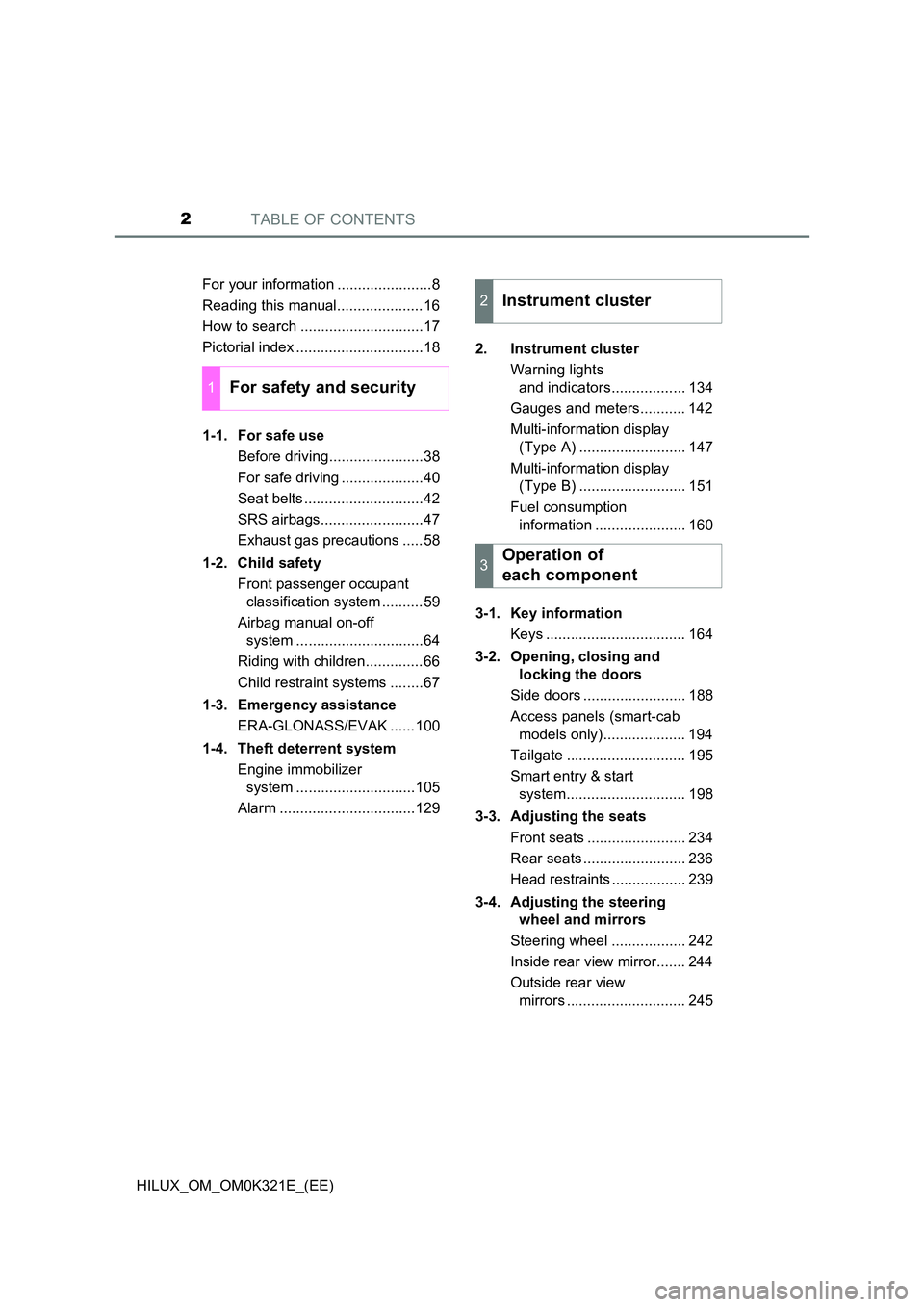

TABLE OF CONTENTS2
HILUX_OM_OM0K321E_(EE)
For your information .......................8
Reading this manual.....................16
How to search ..............................17
Pictorial index ...............................18
1-1. For safe use
Before driving.......................38
For safe driving ....................40
Seat belts .............................42
SRS airbags.........................47
Exhaust gas precautions .....58
1-2. Child safety
Front passenger occupant
classification system ..........59
Airbag manual on-off
system ...............................64
Riding with children..............66
Child restraint systems ........67
1-3. Emergency assistance
ERA-GLONASS/EVAK ......100
1-4. Theft deterrent system
Engine immobilizer
system .............................105
Alarm .................................129
2. Instrument cluster
Warning lights
and indicators.................. 134
Gauges and meters........... 142
Multi-information display
(Type A) .......................... 147
Multi-information display
(Type B) .......................... 151
Fuel consumption
information ...................... 160
3-1. Key information
Keys .................................. 164
3-2. Opening, closing and
locking the doors
Side doors ......................... 188
Access panels (smart-cab
models only).................... 194
Tailgate ............................. 195
Smart entry & start
system............................. 198
3-3. Adjusting the seats
Front seats ........................ 234
Rear seats ......................... 236
Head restraints .................. 239
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 242
Inside rear view mirror....... 244
Outside rear view
mirrors ............................. 245
1For safety and security
2Instrument cluster
3Operation of
each component

9
HILUX_OM_OM0K321E_(EE)

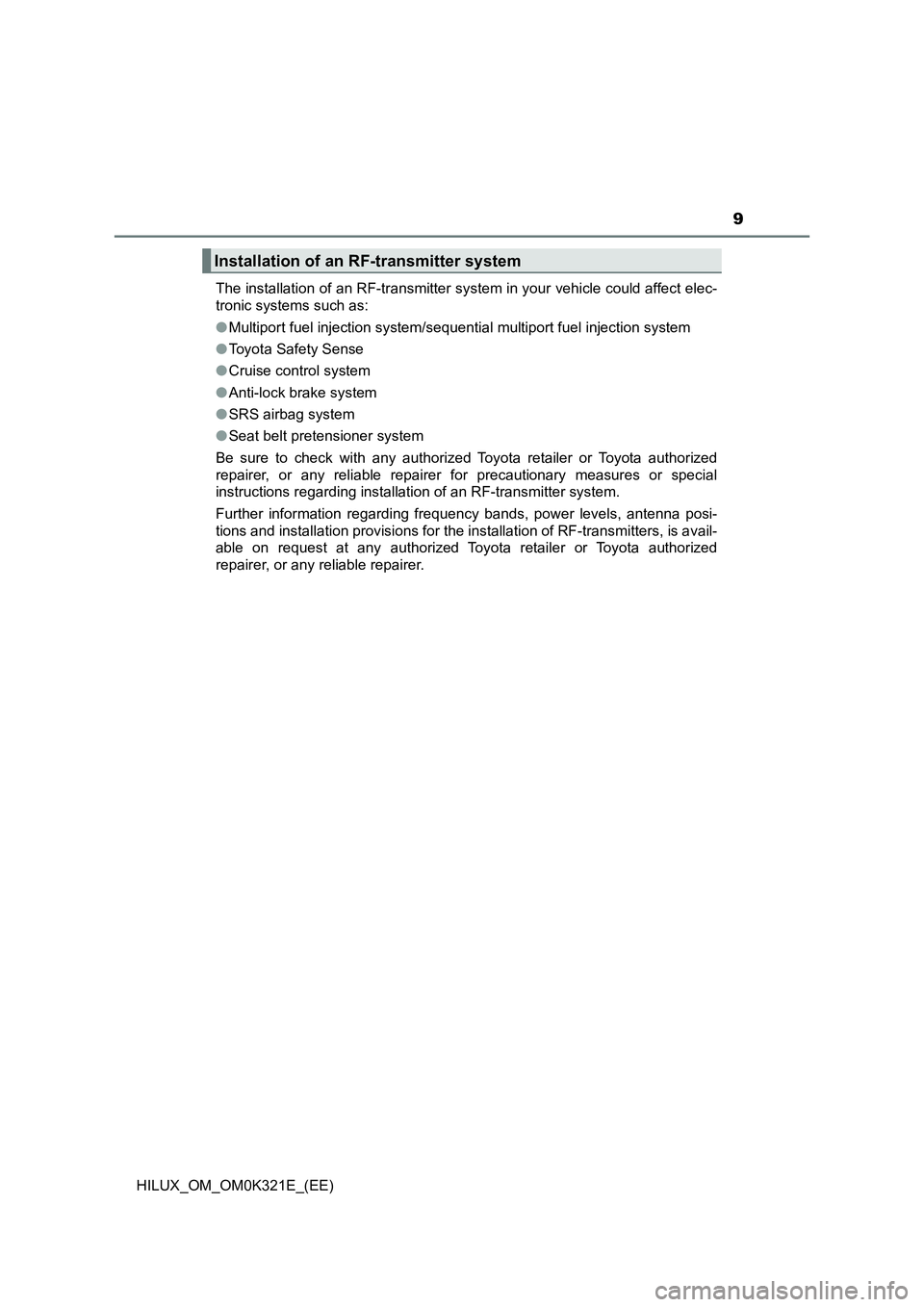

The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Installation of an RF-transmitter system

11
HILUX_OM_OM0K321E_(EE)

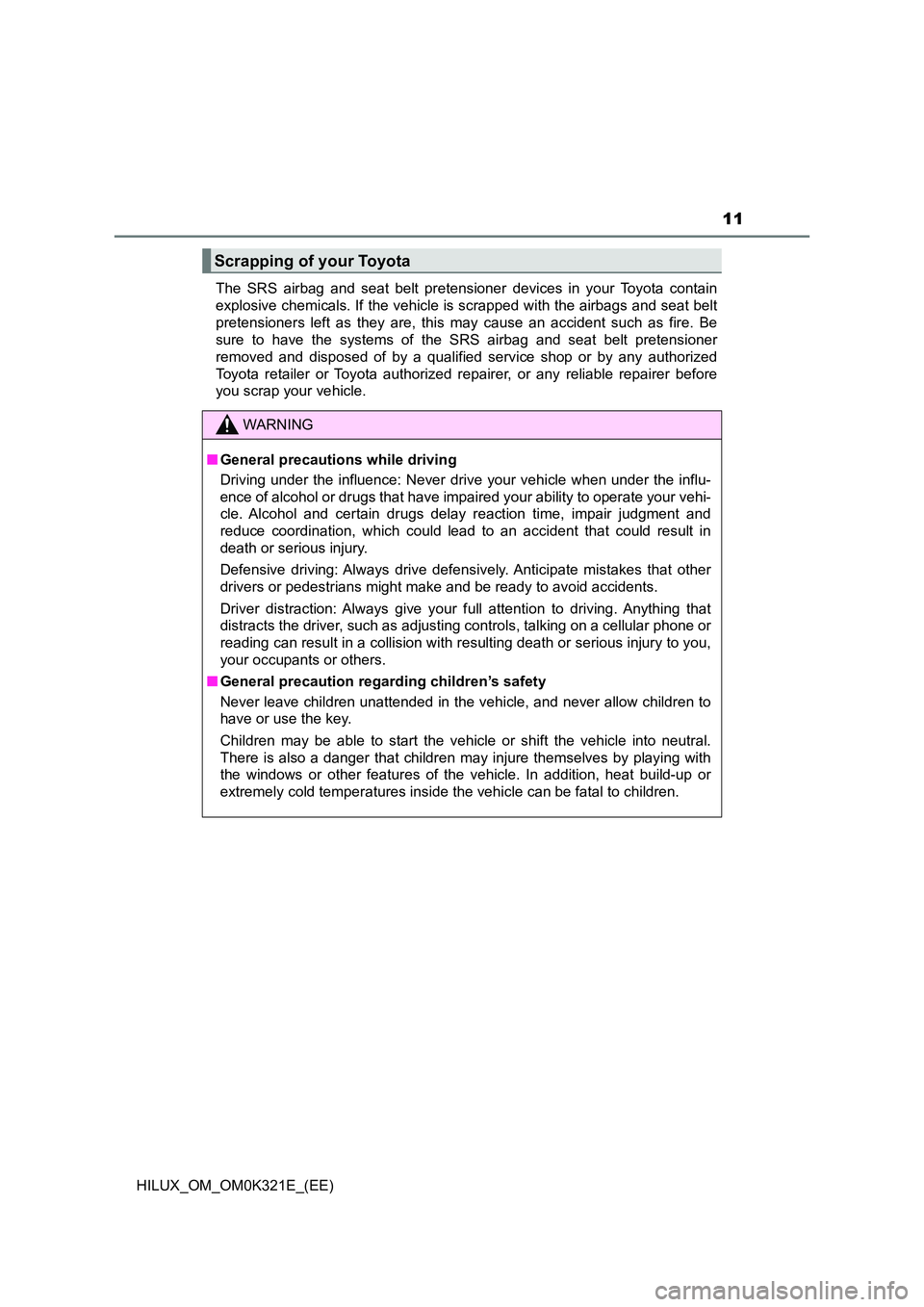

The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer before
you scrap your vehicle.
Scrapping of your Toyota
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

25Pictorial index
HILUX_OM_OM0K321E_(EE)

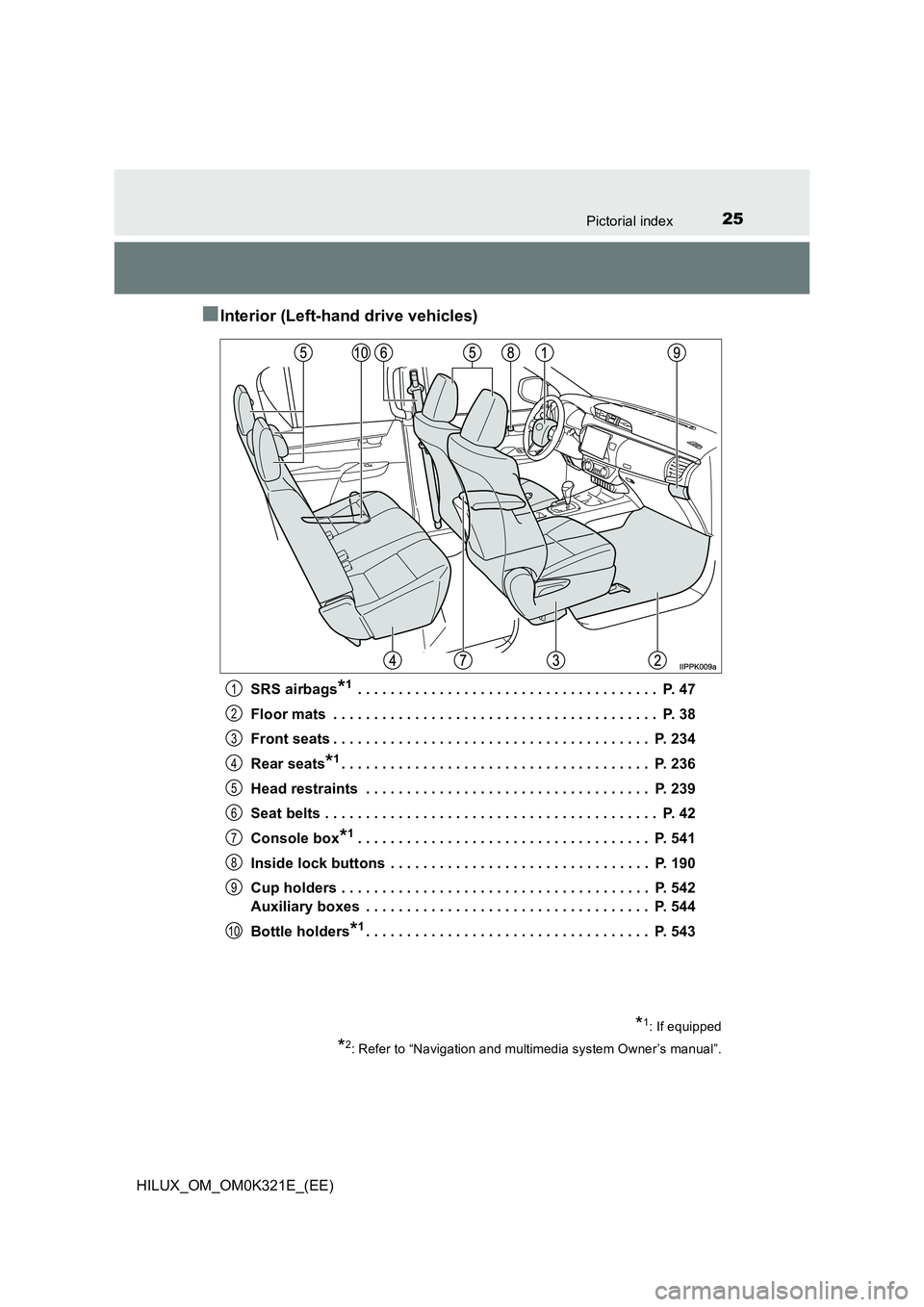

■Interior (Left-hand drive vehicles)
SRS airbags*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 47
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Rear seats*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 542
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Bottle holders*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8
9
10

33Pictorial index
HILUX_OM_OM0K321E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 47
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Rear seats*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 542
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Bottle holders*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3
4
5
6
7
8
9
10

37

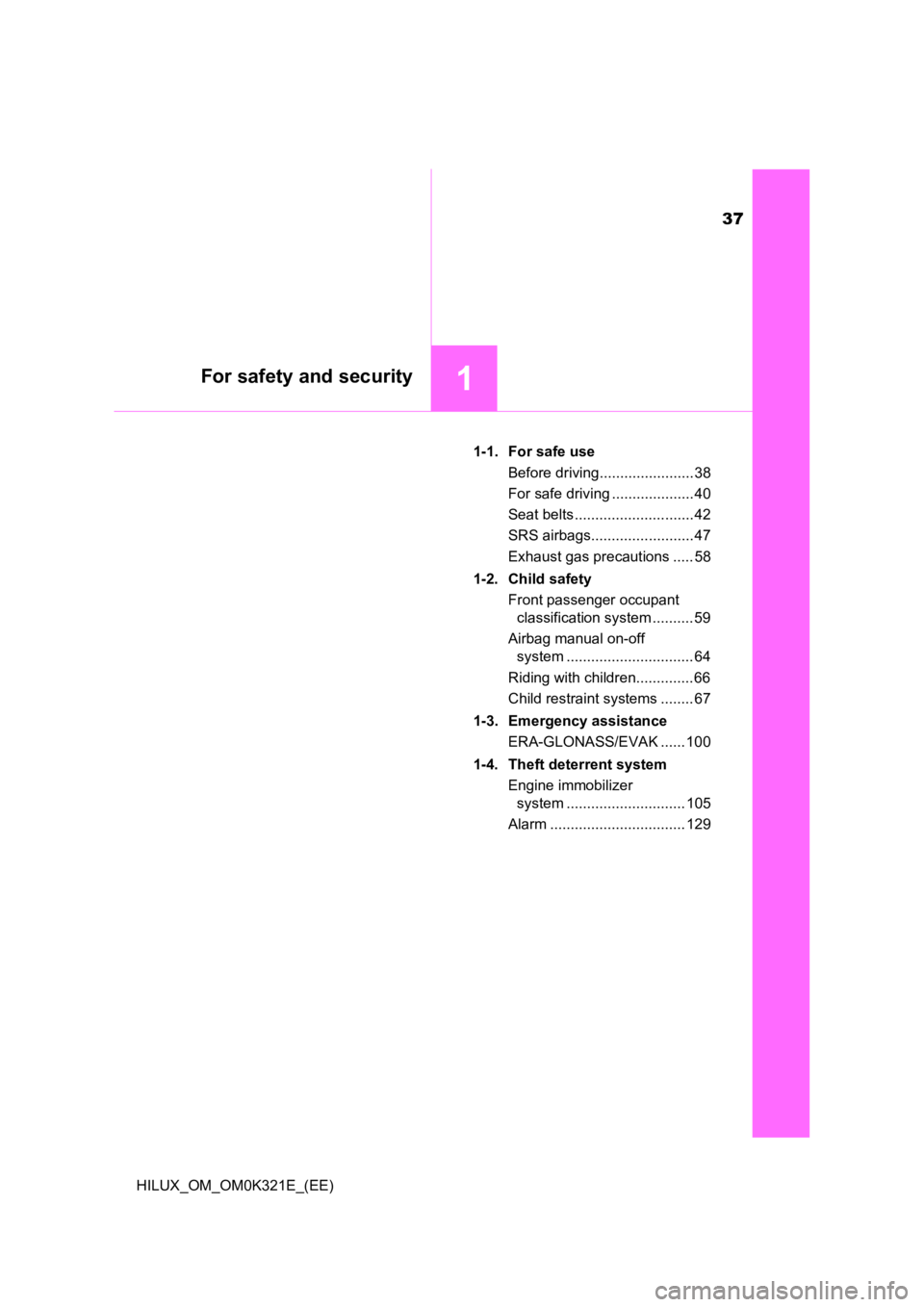

1For safety and security
HILUX_OM_OM0K321E_(EE)
1-1. For safe use
Before driving....................... 38
For safe driving .................... 40
Seat belts ............................. 42
SRS airbags......................... 47
Exhaust gas precautions ..... 58
1-2. Child safety
Front passenger occupant
classification system .......... 59
Airbag manual on-off
system ............................... 64
Riding with children.............. 66
Child restraint systems ........ 67
1-3. Emergency assistance
ERA-GLONASS/EVAK ...... 100
1-4. Theft deterrent system
Engine immobilizer
system ............................. 105
Alarm ................................. 129

401-1. For safe use
HILUX_OM_OM0K321E_(EE)
For safe driving
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. ( P. 234)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 234)
Vehicles with adjustable type head restraint: Lock the head restraint
in place with the center of the head restraint closest to the top of
your ears. ( P. 239)
Wear the seat belt correctly. ( P. 4 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. ( P. 4 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
( P. 6 7 )
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

411-1. For safe use
1
HILUX_OM_OM0K321E_(EE)
For safety and security

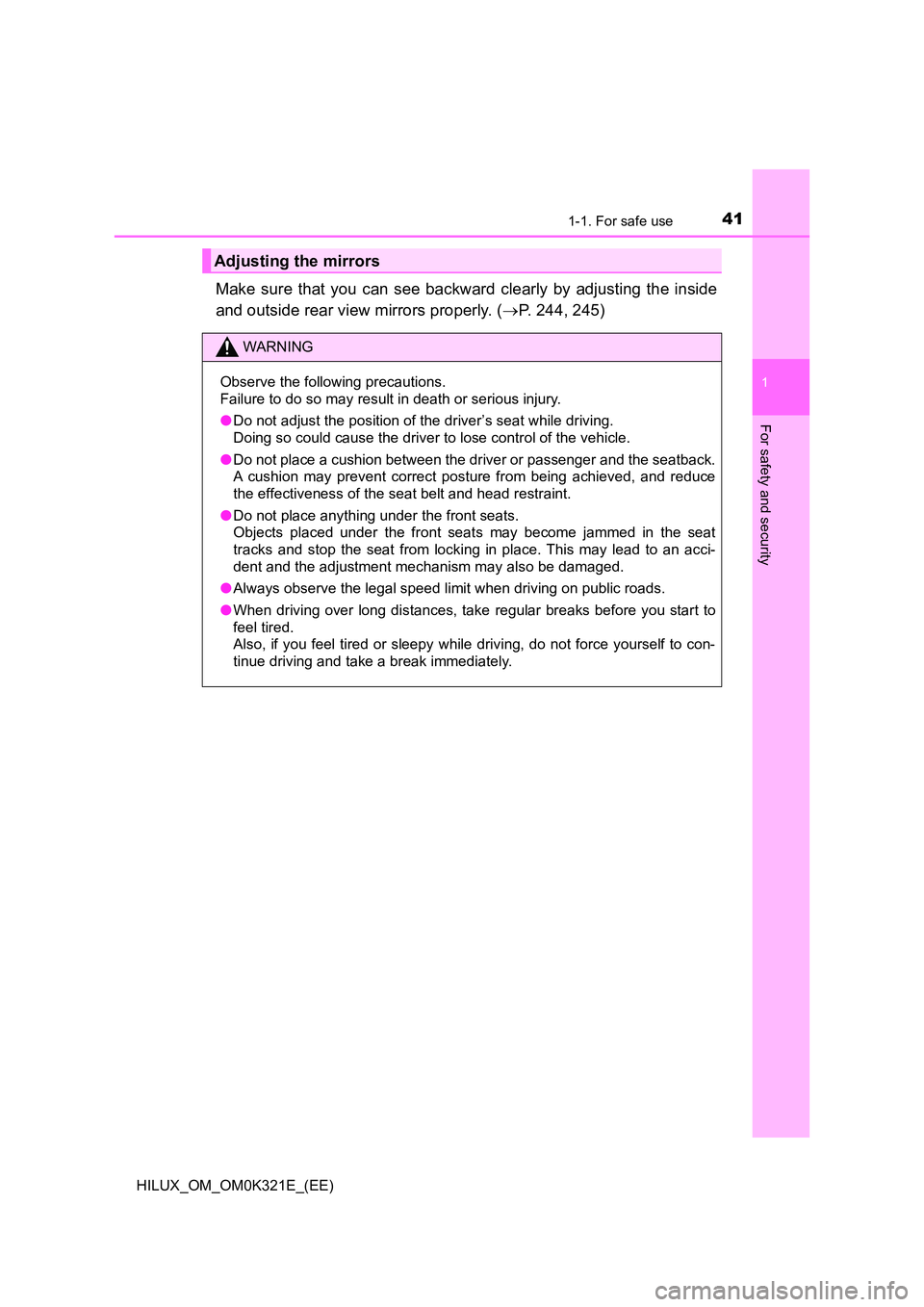

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. ( P. 244, 245)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

421-1. For safe use
HILUX_OM_OM0K321E_(EE)
Seat belts

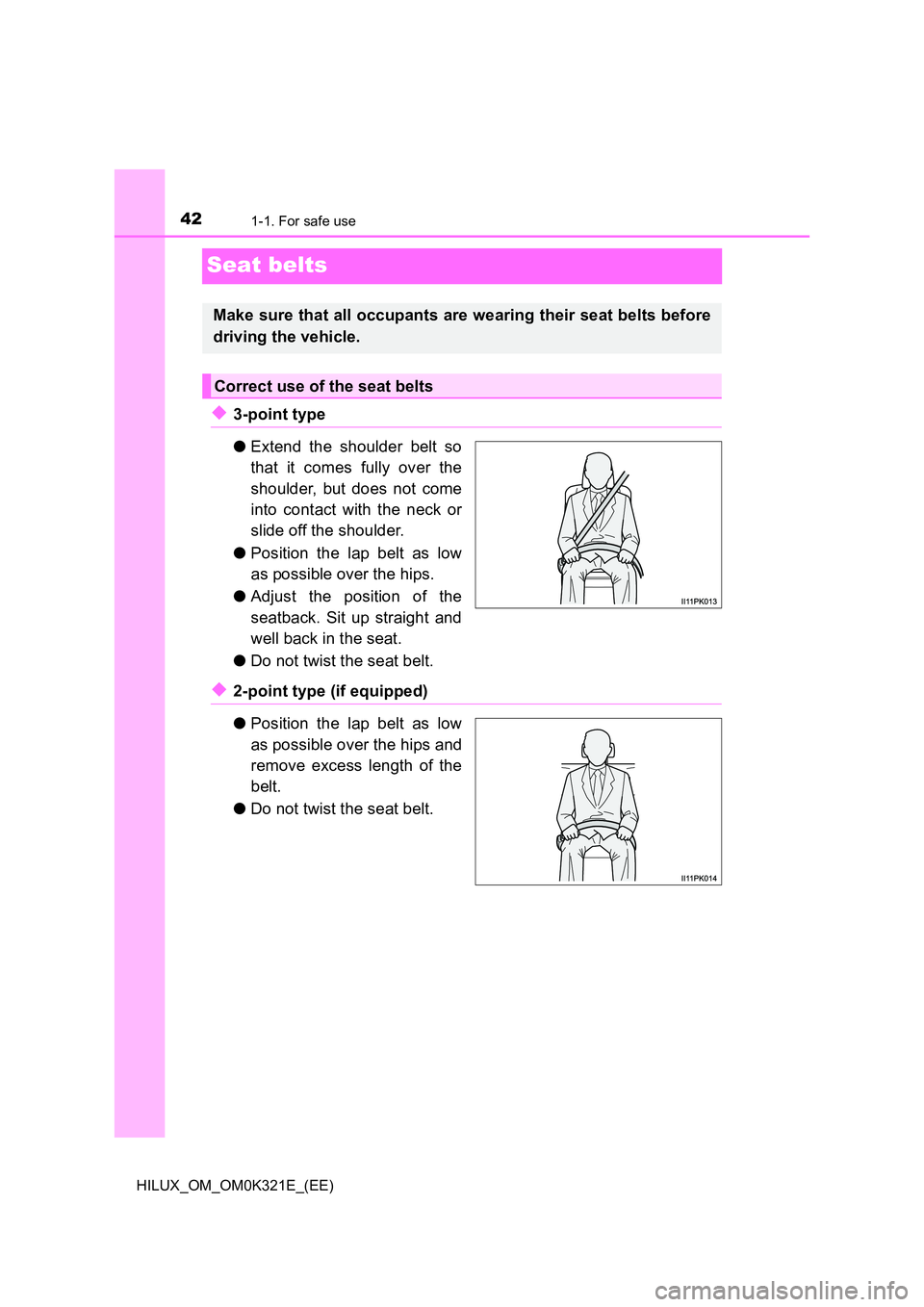

◆3-point type
● Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
◆2-point type (if equipped)
● Position the lap belt as low
as possible over the hips and
remove excess length of the
belt.
● Do not twist the seat belt.
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts

431-1. For safe use
1
HILUX_OM_OM0K321E_(EE)
For safety and security

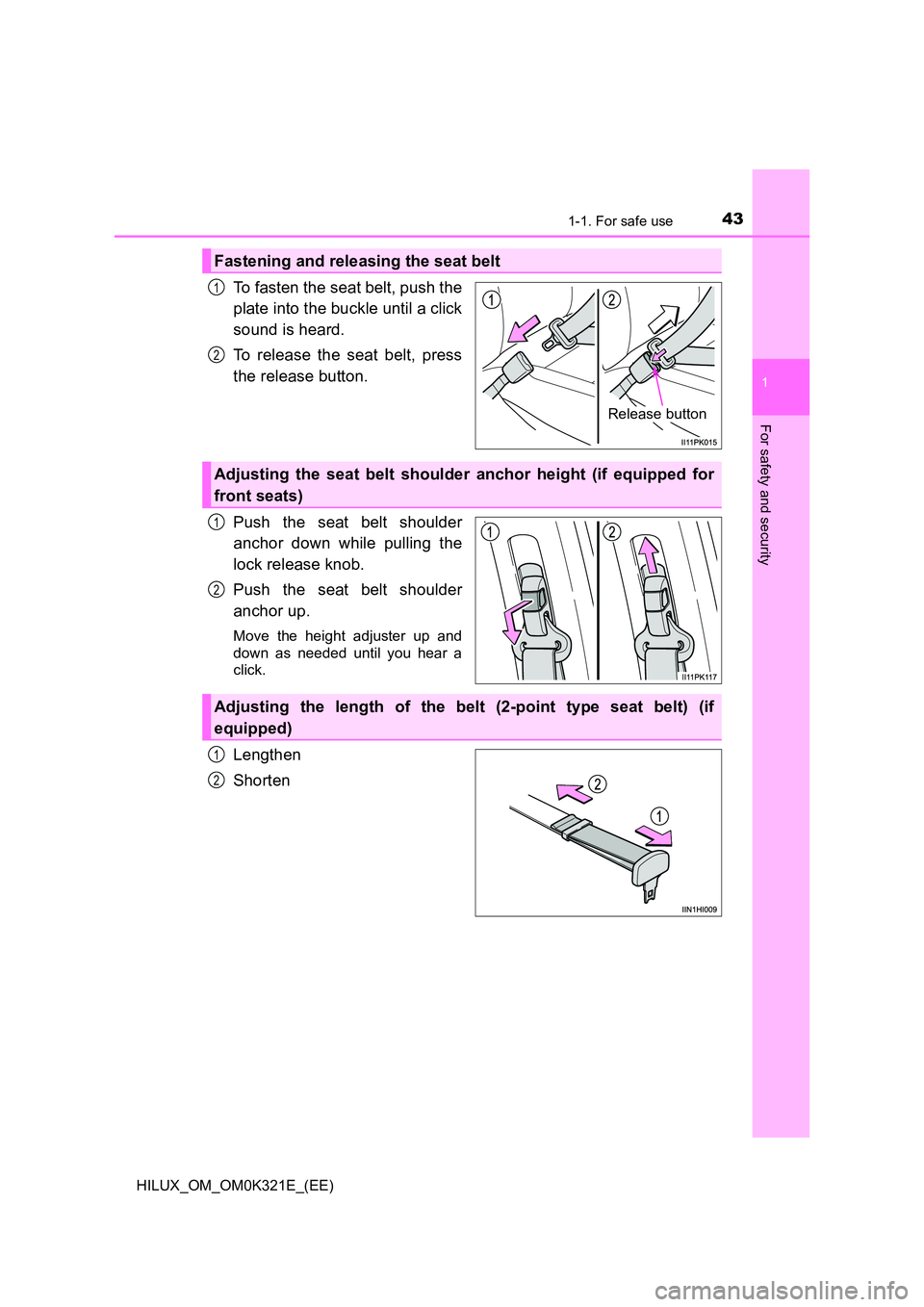

To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Push the seat belt shoulder
anchor down while pulling the
lock release knob.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and
down as needed until you hear a
click.
Lengthen
Shorten
Fastening and releasing the seat belt
Release button
1
2
Adjusting the seat belt shoulder anchor height (if equipped for
front seats)
1
2
Adjusting the length of the belt (2-point type seat belt) (if
equipped)
1
2
