891-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.

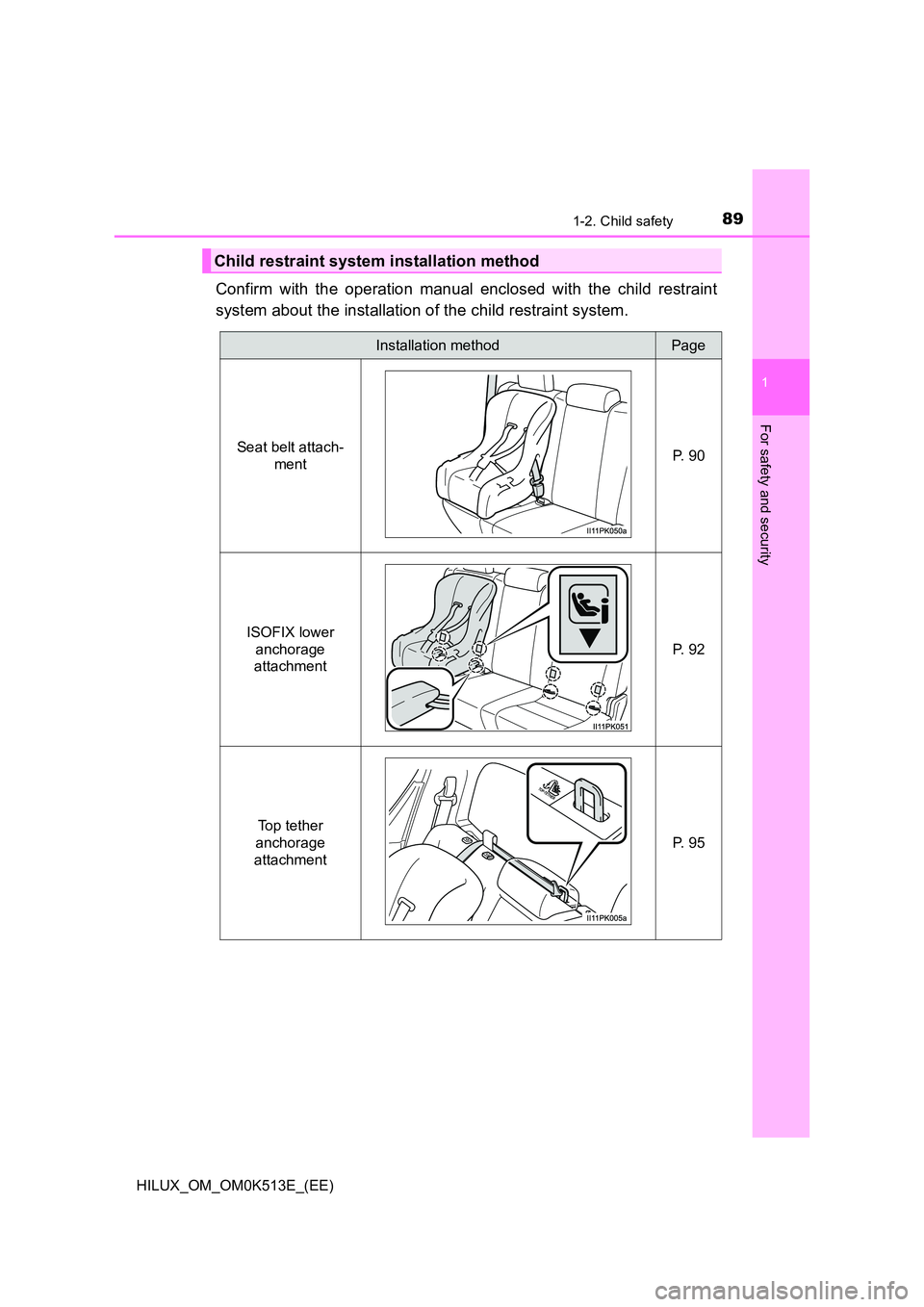

Child restraint system installation method
Installation methodPage
Seat belt attach-
ment P. 9 0
ISOFIX lower
anchorage
attachment
P. 9 2
Top tether
anchorage
attachment
P. 9 5

901-2. Child safety
HILUX_OM_OM0K513E_(EE)

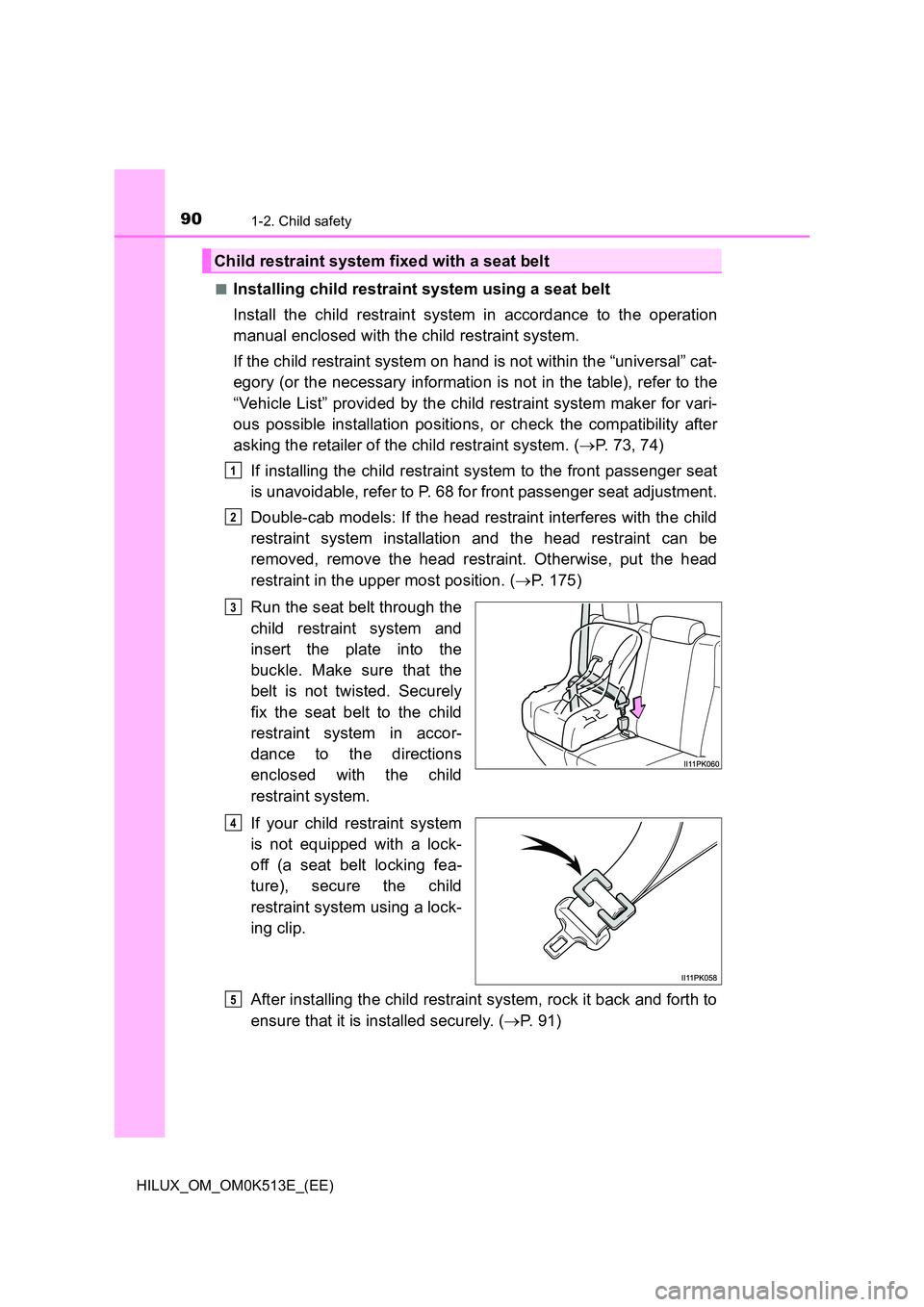

QInstalling child restraint system using a seat belt
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 73, 74)
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 68 for front passenger seat adjustment.
Double-cab models: If the head restraint interferes with the child
restraint system installation and the head restraint can be
removed, remove the head restraint. Otherwise, put the head
restraint in the upper most position. ( P. 175)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 9 1 )
Child restraint system fixed with a seat belt
1
2
3
4
5

911-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security

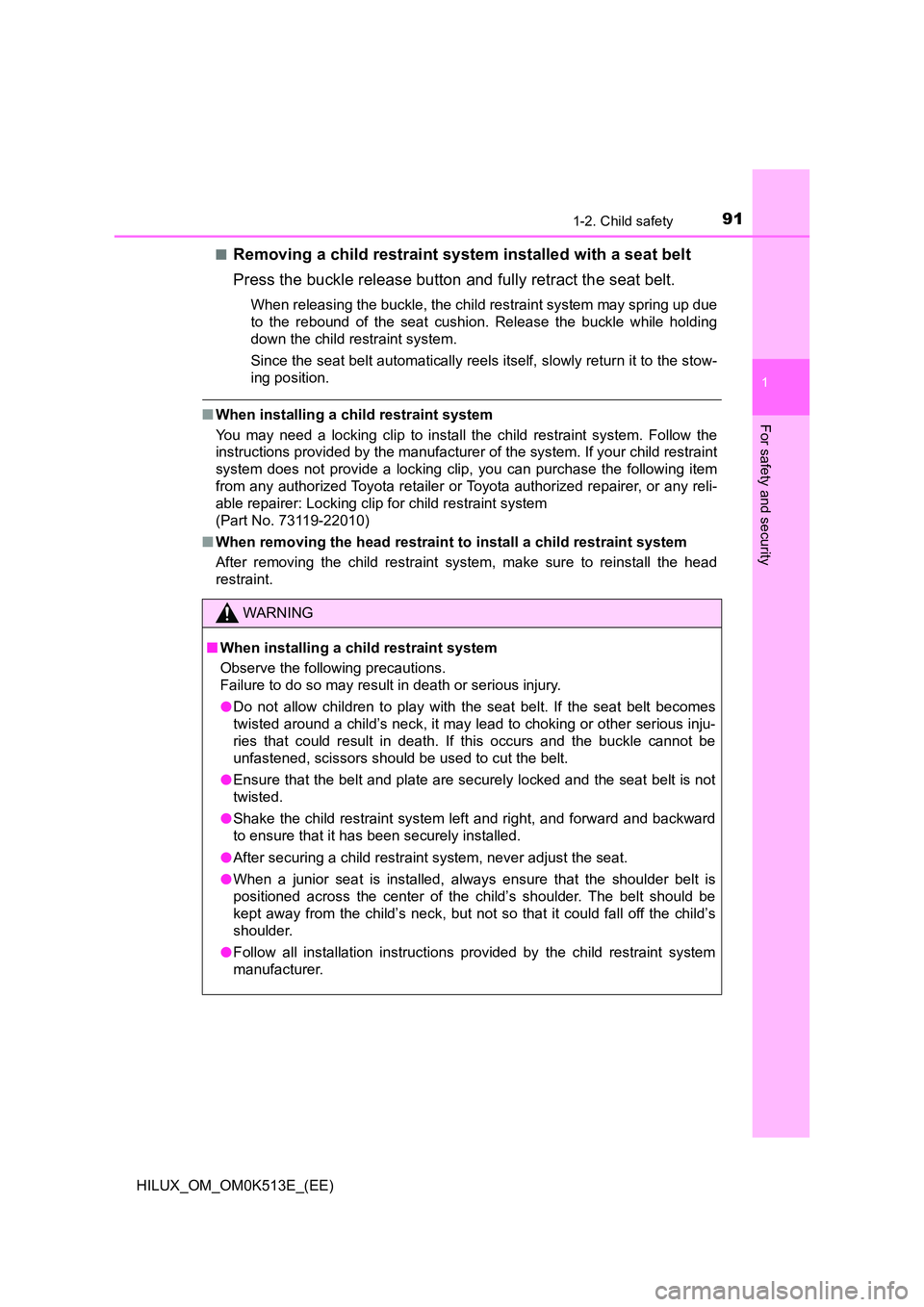

QRemoving a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the chil d restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while holding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return it to the stow-
ing position.
Q When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking clip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)
Q When removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
WARNING
Q When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
O Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
O Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
O After securing a child restraint system, never adjust the seat.
O When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
O Follow all installation instructions provided by the child restraint system
manufacturer.

921-2. Child safety
HILUX_OM_OM0K513E_(EE)
QISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the outboard rear seats.
(Tags displaying the location of
the anchorages are attached to
the seats.)
Child restraint system fixed with an ISOFIX lower anchorage (if
equipped)

931-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security

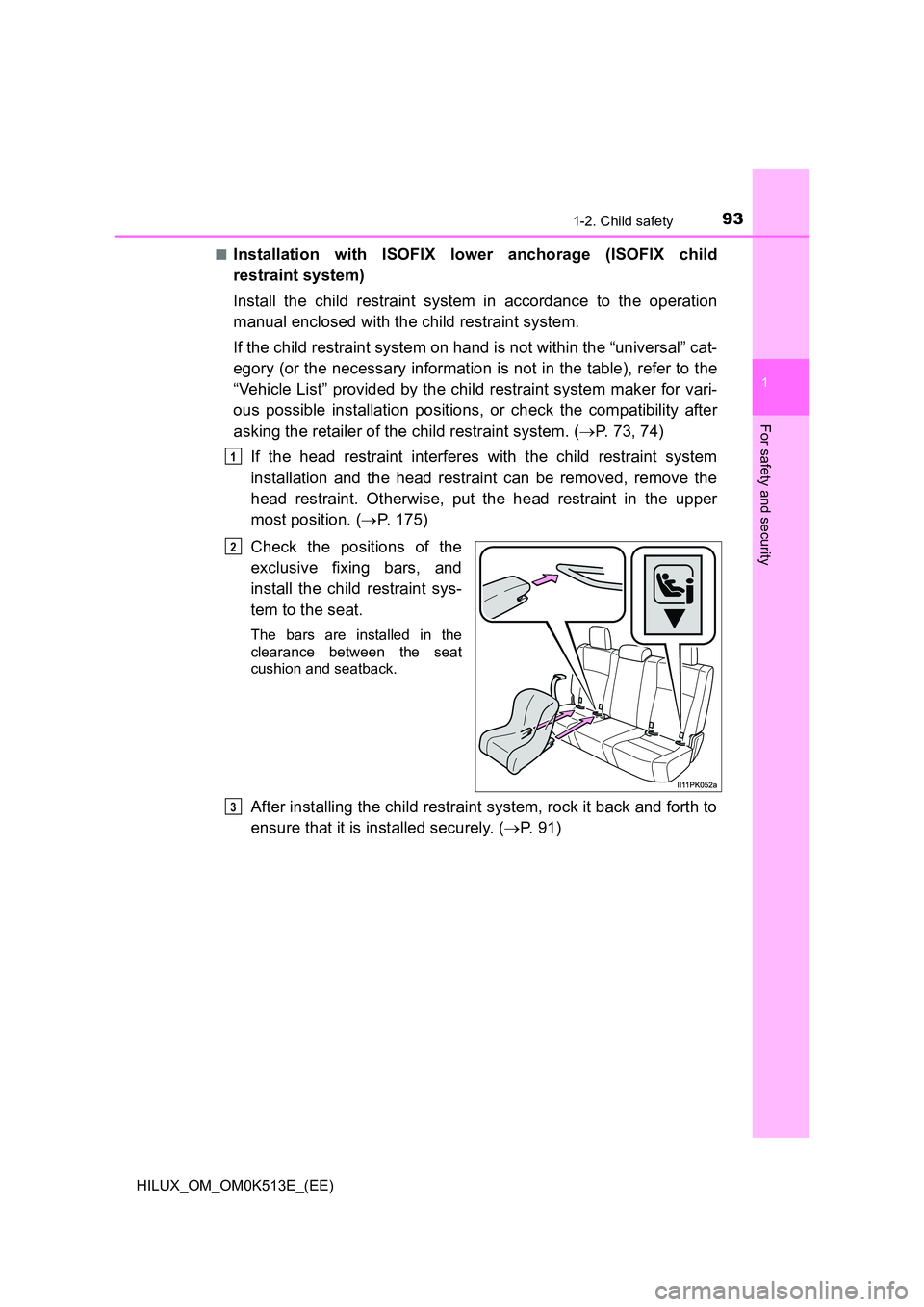

QInstallation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child restraint system. ( P. 73, 74)
If the head restraint interferes with the child restraint system
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 175)
Check the positions of the
exclusive fixing bars, and
install the child restraint sys-
tem to the seat.
The bars are installed in the
clearance between the seat
cushion and seatback.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. ( P. 9 1 )
1
2
3

941-2. Child safety
HILUX_OM_OM0K513E_(EE)

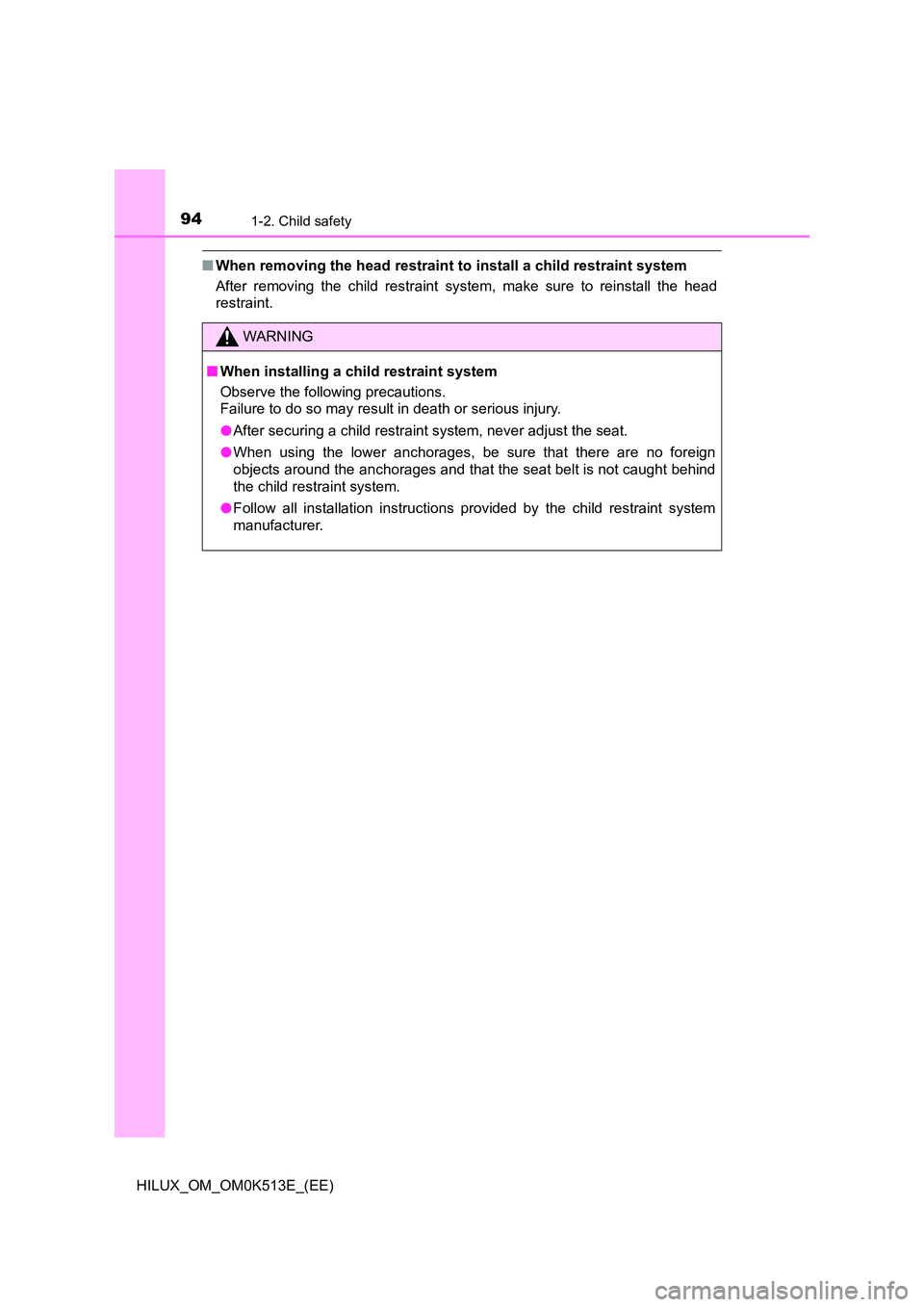

QWhen removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
WARNING
Q When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
O After securing a child restraint system, never adjust the seat.
O When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not caught behind
the child restraint system.
O Follow all installation instructions provided by the child restraint system
manufacturer.

951-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security

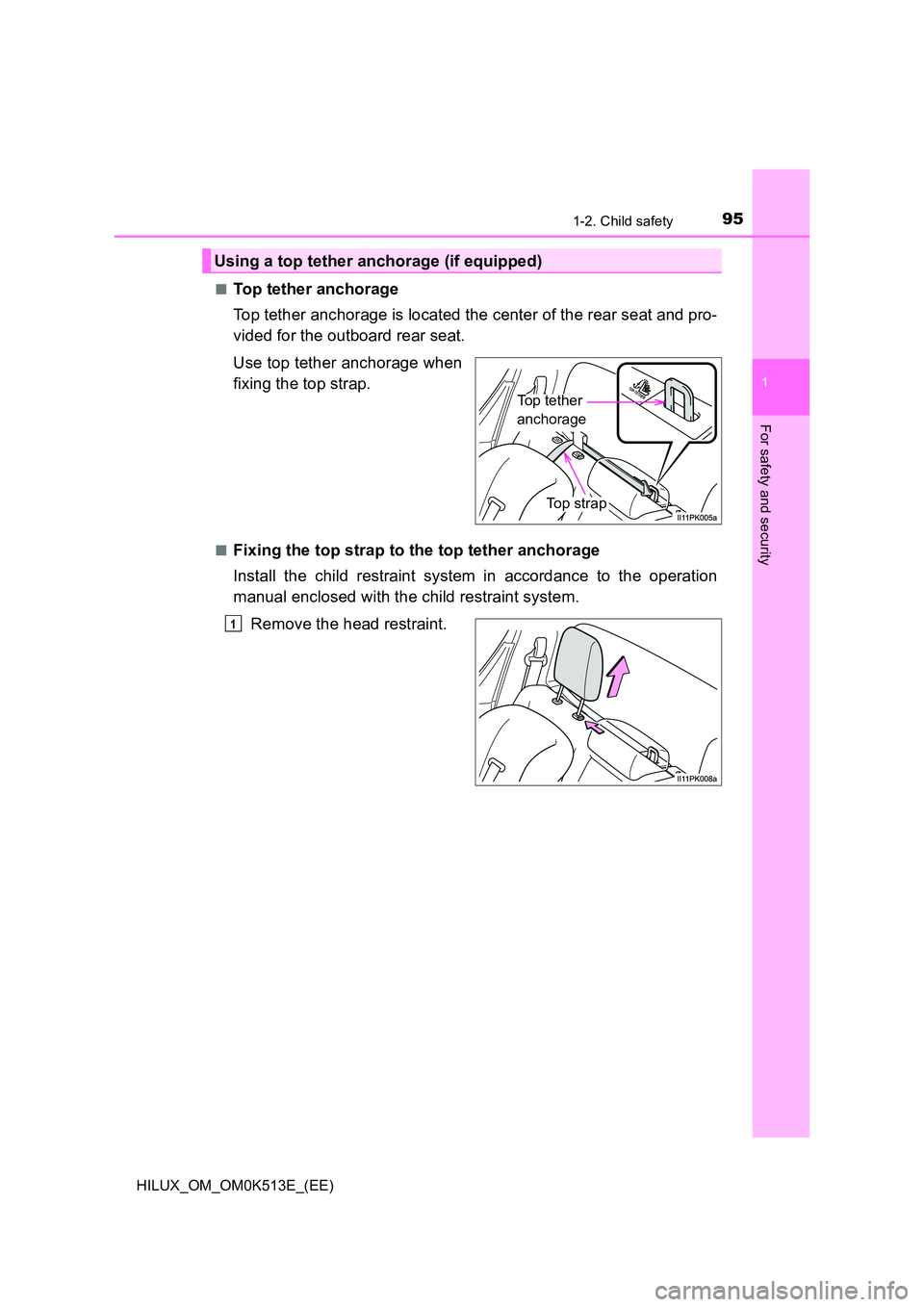

QTop tether anchorage
Top tether anchorage is located the center of the rear seat and pro-
vided for the outboard rear seat.
Use top tether anchorage when
fixing the top strap.
QFixing the top strap to the top tether anchorage
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.
Remove the head restraint.
Using a top tether anchorage (if equipped)
Top tether
anchorage
Top strap
1

961-2. Child safety
HILUX_OM_OM0K513E_(EE)

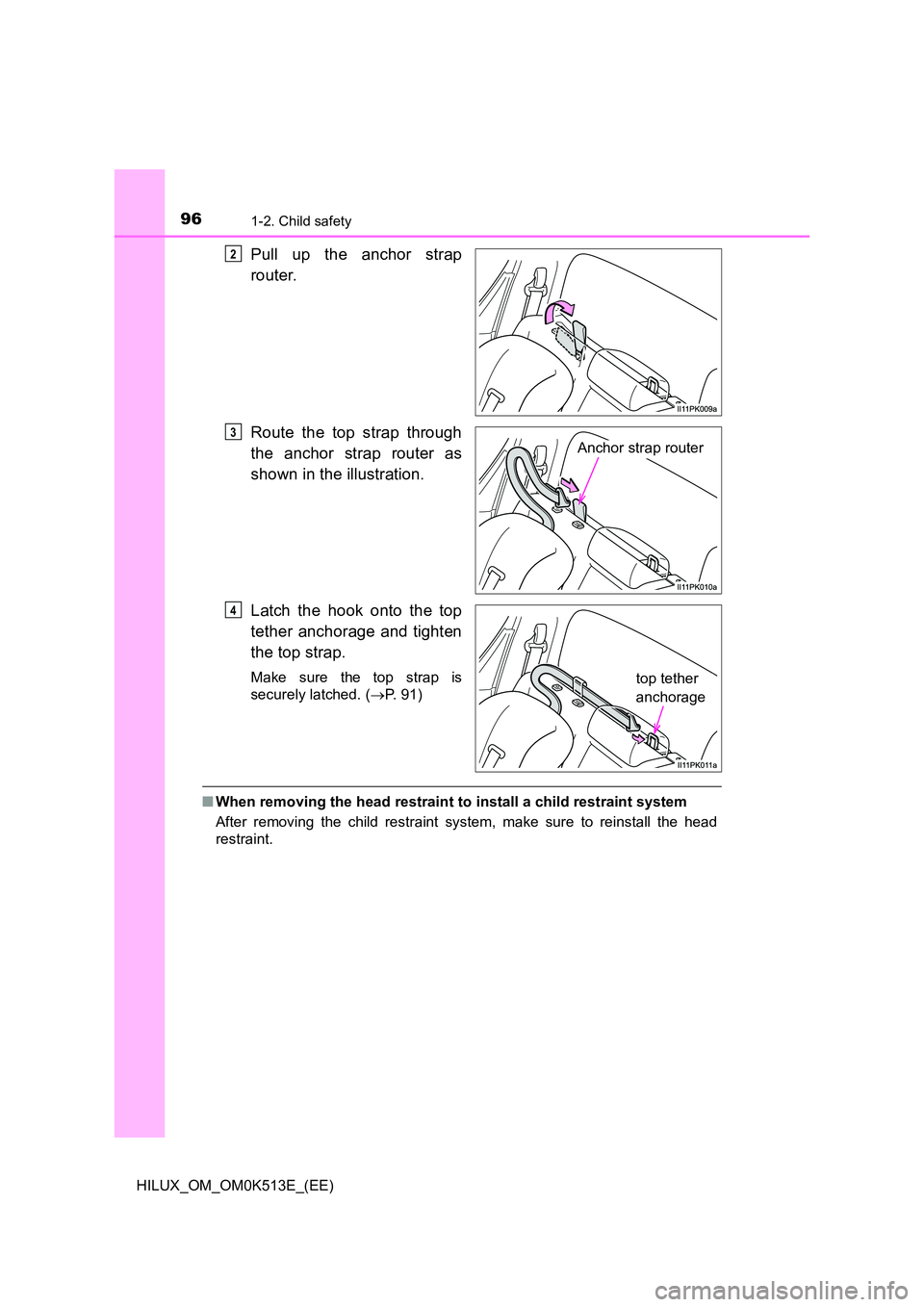

Pull up the anchor strap
router.
Route the top strap through
the anchor strap router as
shown in the illustration.
Latch the hook onto the top
tether anchorage and tighten
the top strap.
Make sure the top strap is
securely latched. ( P. 91)
QWhen removing the head restraint to install a child restraint system
After removing the child restraint system, make sure to reinstall the head
restraint.
2
Anchor strap router
3
top tether
anchorage
4

971-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security

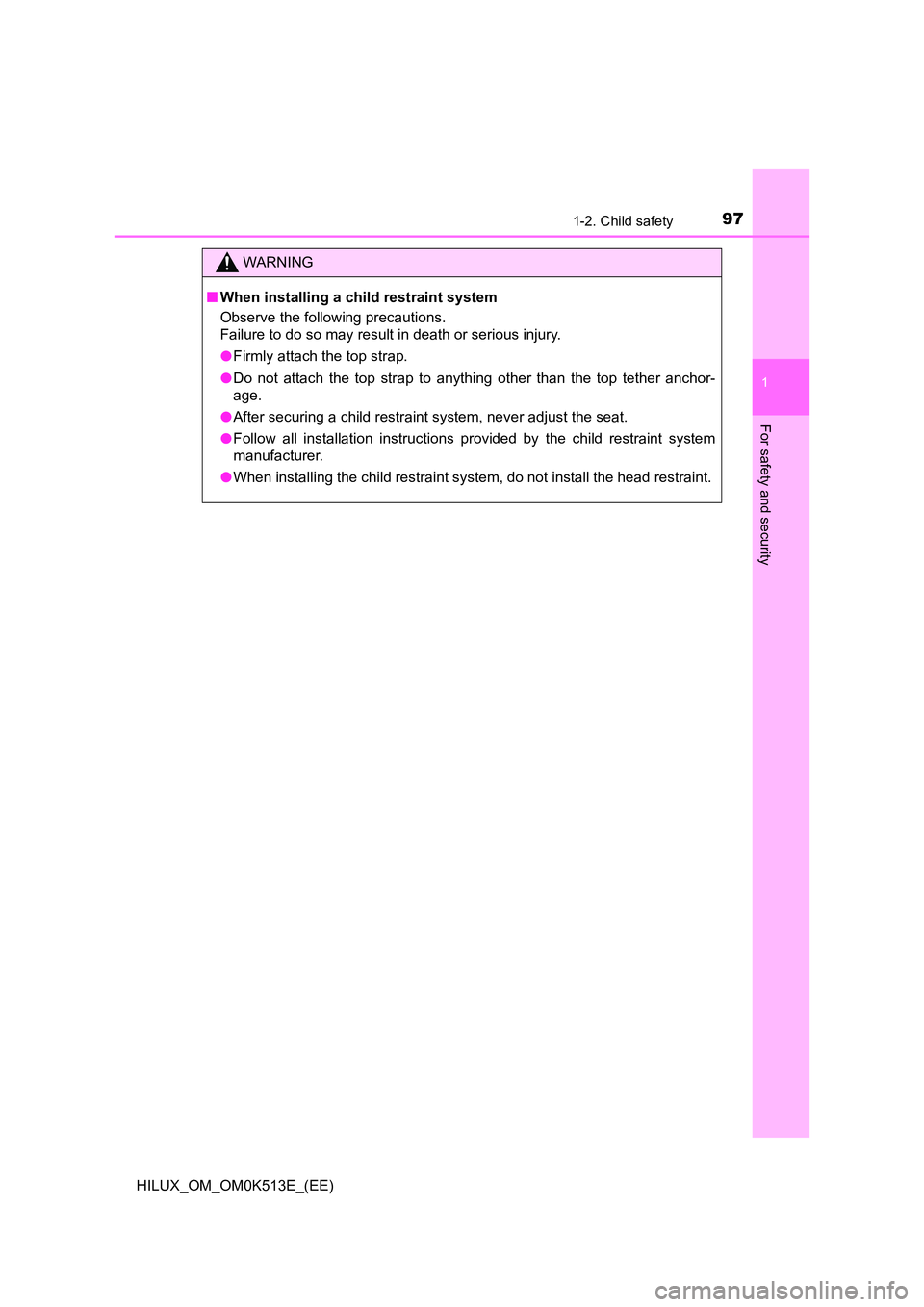

WARNING
QWhen installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Firmly attach the top strap.
O Do not attach the top strap to anything other than the top tether anchor-
age.
O After securing a child restraint system, never adjust the seat.
O Follow all installation instructions provided by the child restraint system
manufacturer.
O When installing the child restraint system, do not install the head restraint.

981-3. Emergency assistance
HILUX_OM_OM0K513E_(EE)
eCall1, 2
Microphone
“SOS” button*
Indicator lights
*: This button is intended for commu-
nication with the eCall system oper-
ator.
Other SOS buttons available in
other systems of a motor vehicle do
not relate to the device and are not
intended for communication with
the eCall system operator.
1: If equipped
2: Operates within the eCall coverage. The system name
differs depending on the country.
eCall is a telematics service that uses Global Navigation Satellite
System (GNSS) data and embedded cellular technology to
enable the following emergency calls to be made: Automatic
emergency calls (Automatic Collision Notification) and manual
emergency calls (by pressing the “SOS” button). This service is
required by European Union Regulations.
System components
1
2
3
