1242. Instrument cluster
HILUX_OM_OM0K513E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system) to indicate that a system check is
being performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not come
on, or if the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
*2: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
(Yellow)
(if equipped)
LDA indicator ( P. 570)
*1
(if equipped)
Low engine oil level
warning light ( P. 570)
*6
(if equipped)
Cruise control indicator
( P. 569)
*1
(Flashes or
illuminates)
(if equipped)
Master warning light
( P. 570)
*2
(if equipped)
Open door warning light
( P. 570)
*1, 5
(Flashes)
(if equipped)
Stop & Start cancel
indicator ( P. 570)
(Flashes or
illuminates)
Driver’s and front
passenger’s seat belt
reminder light ( P. 570)
Parking brake indicator
light ( P. 571)
*7
(Flashes or
illuminates)
(if equipped)
Rear passengers’ seat
belt reminder lights
( P. 570)(if equipped)
Low AdBlue™ level
warning light ( P. 571)
Low fuel level warning
light ( P. 570)
*1
(Flashes)
(if equipped)
“AUTO LSD” indicator
( P. 571)
(if equipped)
Go to service warning
light ( P. 571)

1262. Instrument cluster
HILUX_OM_OM0K513E_(EE)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 246)(if equipped)
Dynamic radar cruise
control indicator
( P. 301)
Headlight high beam
indicator ( P. 250)(if equipped)
Cruise control “SET”
indicator ( P. 301, 317)
Tail light indicator
( P. 248)
*1
(if equipped)
Downhill assist control
system indicator
( P. 364)
(if equipped)
Front fog light indicator
( P. 255)
*1, 3
(if equipped)
Slip indicator (P. 356)
(if equipped)
Rear fog light indicator
( P. 256)
*1, 2
(if equipped)
VSC OFF indicator
( P. 357)
*1Eco Driving Indicator
Light ( P. 128)
*1, 2
(if equipped)
“TRC OFF” indicator
( P. 357)
*1
(if equipped)
Stop & Start indicator
( P. 345)(4WD models)
Four-wheel drive
indicator ( P. 331)
*1, 2
(if equipped)
Stop & Start cancel
indicator ( P. 346)(4WD models)
Low speed four-wheel
drive indicator light
( P. 331)
(diesel engine)
Engine preheating
indicator ( P. 220, 223)(if equipped)
Rear differential lock
indicator ( P. 341)
*6
(if equipped)
Cruise control indicator
( P. 301, 317)(if equipped)
“ECO” indicator
( P. 233, 240)

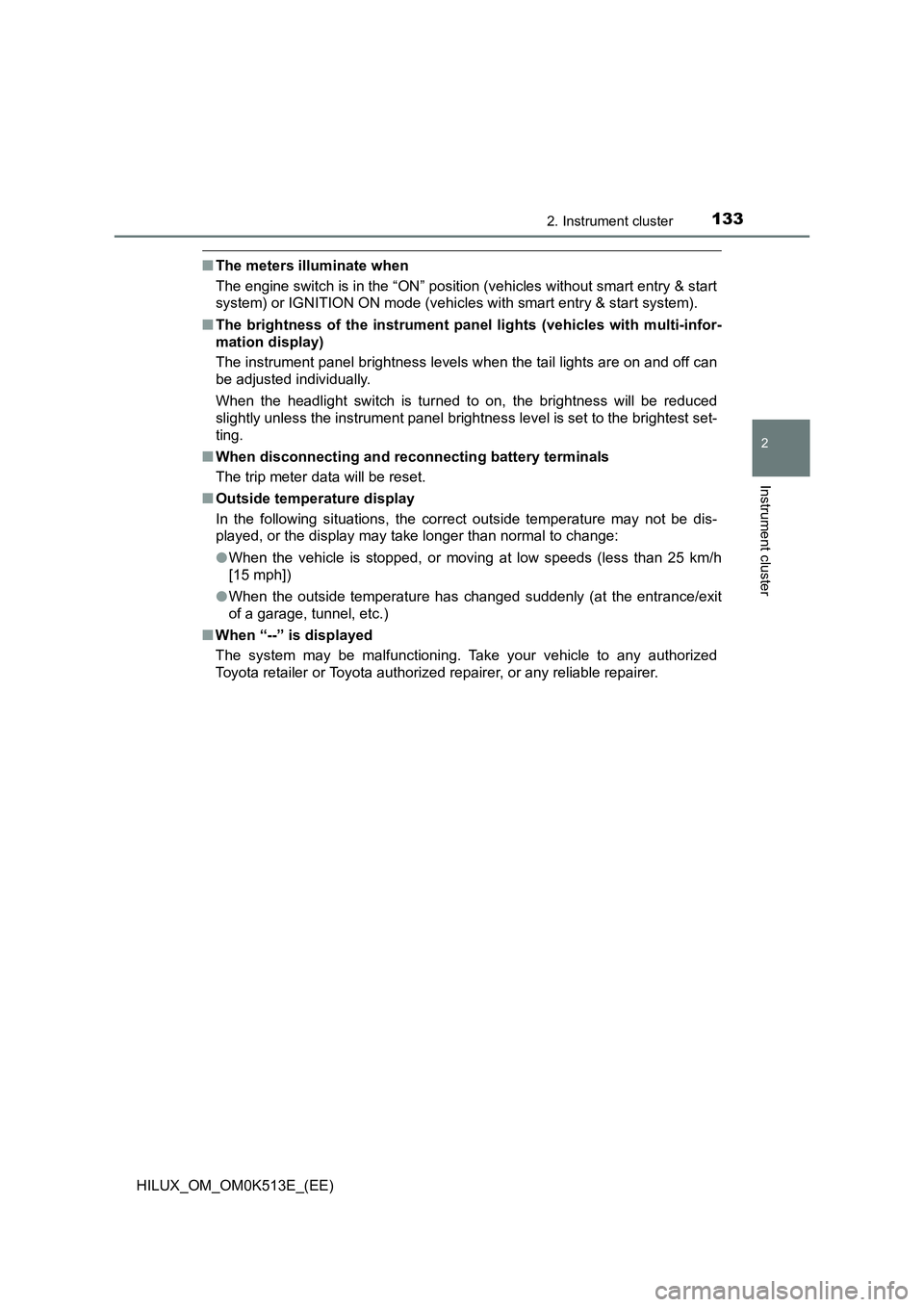

1332. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
QThe meters illuminate when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
Q The brightness of the instrument panel lights (vehicles with multi-infor-
mation display)
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually.
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the instrument panel brightness level is set to the brightest set-
ting.
Q When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
Q Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:
O When the vehicle is stopped, or moving at low speeds (less than 25 km/h
[15 mph])
O When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
Q When “--” is displayed
The system may be malfunctioning. Take your vehicle to any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

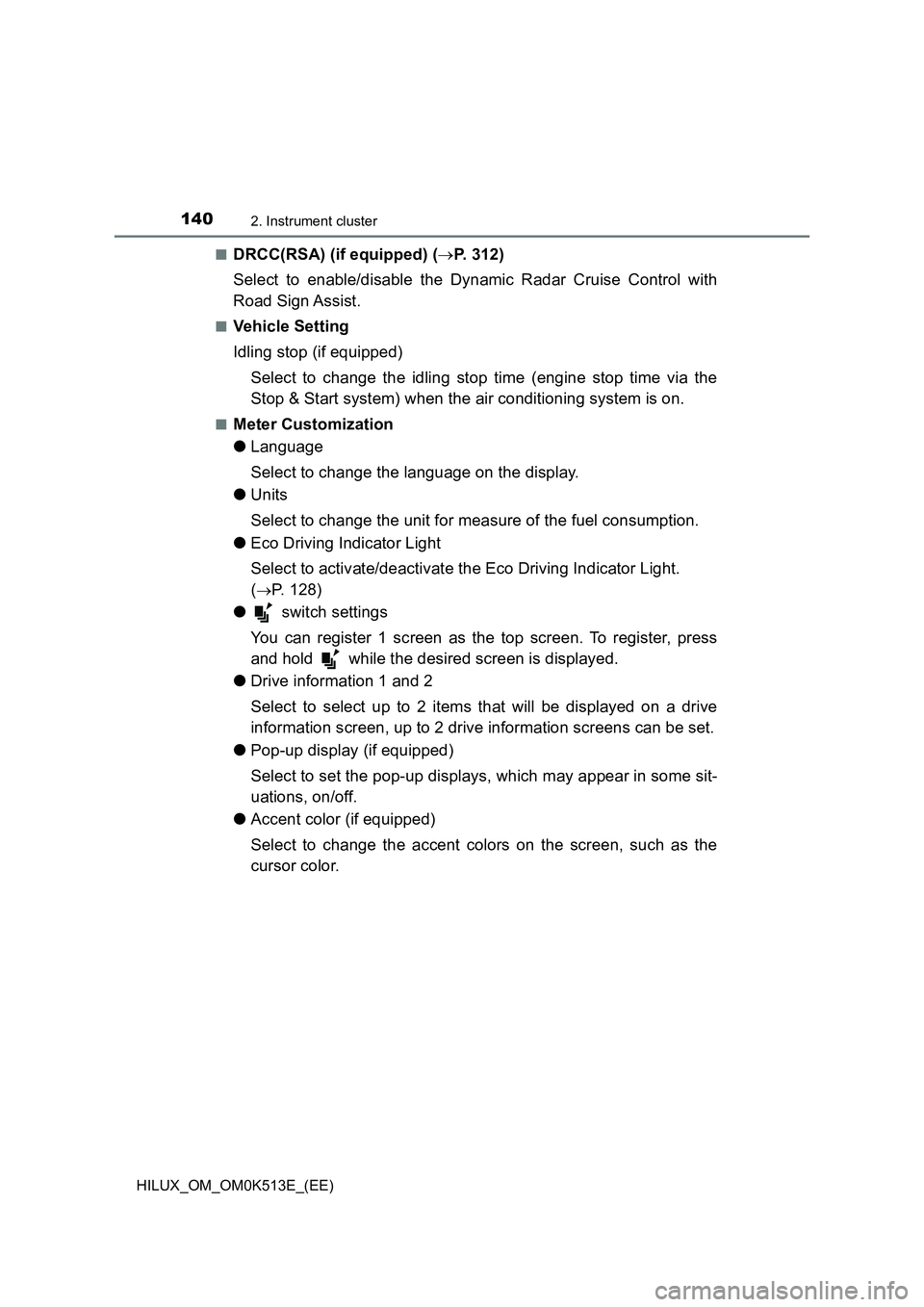

1402. Instrument cluster
HILUX_OM_OM0K513E_(EE)
QDRCC(RSA) (if equipped) ( P. 312)
Select to enable/disable the Dynamic Radar Cruise Control with
Road Sign Assist.
QVehicle Setting
Idling stop (if equipped)
Select to change the idling stop time (engine stop time via the
Stop & Start system) when the air conditioning system is on.
QMeter Customization
O Language
Select to change the language on the display.
O Units
Select to change the unit for measure of the fuel consumption.
O Eco Driving Indicator Light
Select to activate/deactivate the Eco Driving Indicator Light.
(P. 128)
O switch settings
You can register 1 screen as the top screen. To register, press
and hold while the desired screen is displayed.
O Drive information 1 and 2
Select to select up to 2 items that will be displayed on a drive
information screen, up to 2 drive information screens can be set.
O Pop-up display (if equipped)
Select to set the pop-up displays, which may appear in some sit-
uations, on/off.
O Accent color (if equipped)
Select to change the accent colors on the screen, such as the
cursor color.

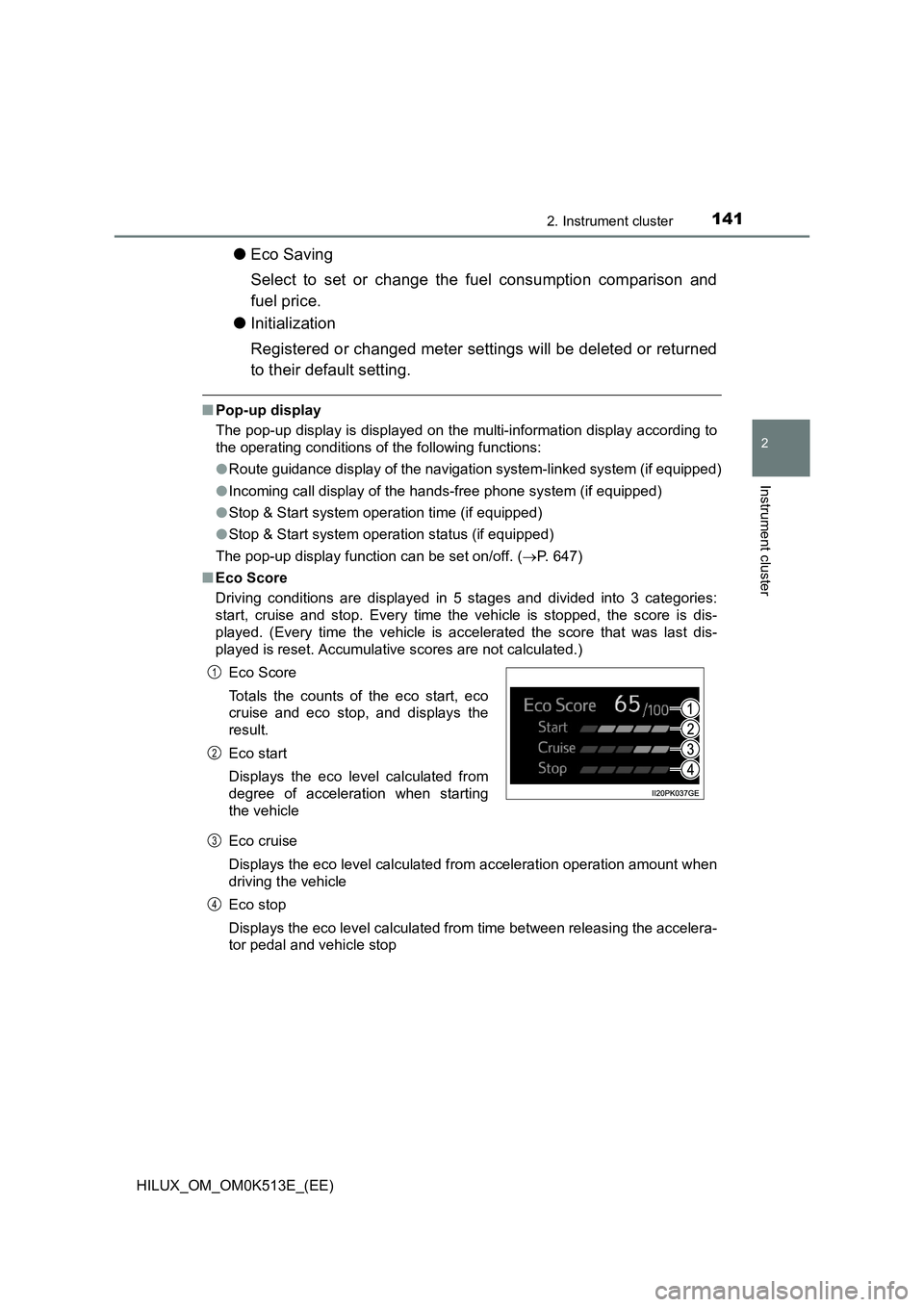

1412. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K513E_(EE)
OEco Saving
Select to set or change the fuel consumption comparison and
fuel price.
O Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
Q Pop-up display
The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:
O Route guidance display of the navigation system-linked system (if equipped)
O Incoming call display of the hands-free phone system (if equipped)
O Stop & Start system operation time (if equipped)
O Stop & Start system operation status (if equipped)
The pop-up display function can be set on/off. ( P. 647)
Q Eco Score
Driving conditions are displayed in 5 stages and divided into 3 categories:
start, cruise and stop. Every time the vehicle is stopped, the score is dis-
played. (Every time the vehicle is accelerated the score that was last dis-
played is reset. Accumulative scores are not calculated.)
Eco cruise
Displays the eco level calculated from acceleration operation amount when
driving the vehicle
Eco stop
Displays the eco level calculated from time between releasing the accelera-
tor pedal and vehicle stop
Eco Score
Totals the counts of the eco start, eco
cruise and eco stop, and displays the
result.
Eco start
Displays the eco level calculated from
degree of acceleration when starting
the vehicle
1
2
3
4

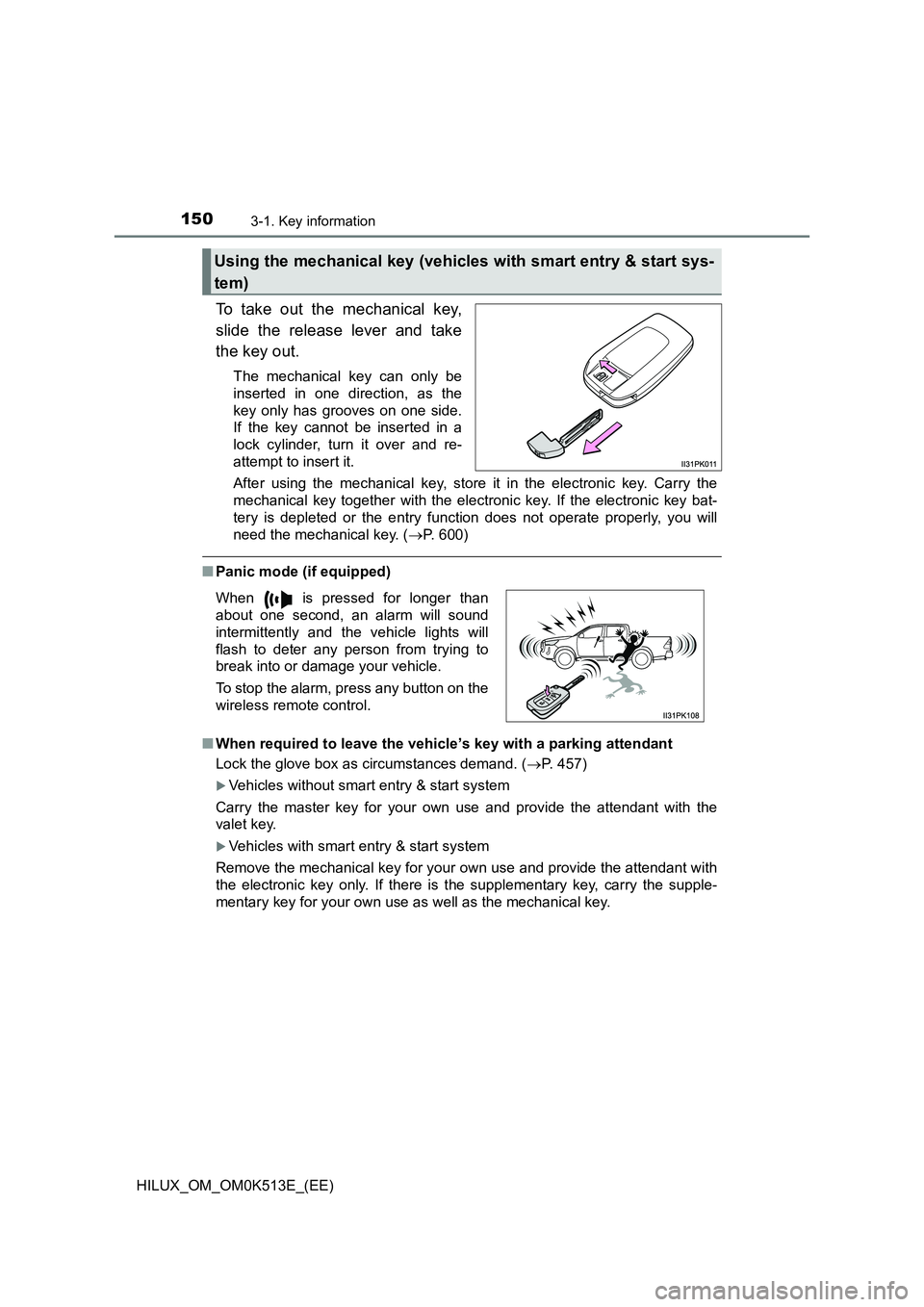

1503-1. Key information
HILUX_OM_OM0K513E_(EE)
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry func tion does not operate properly, you will
need the mechanical key. ( P. 600)
QPanic mode (if equipped)
Q When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. ( P. 457)
Vehicles without smart entry & start system
Carry the master key for your own use and provide the attendant with the
valet key.
Vehicles with smart entry & start system
Remove the mechanical key for your own use and provide the attendant with
the electronic key only. If there is the supplementary key, carry the supple-
mentary key for your own use as well as the mechanical key.
Using the mechanical key (vehicles with smart entry & start sys-
tem)
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

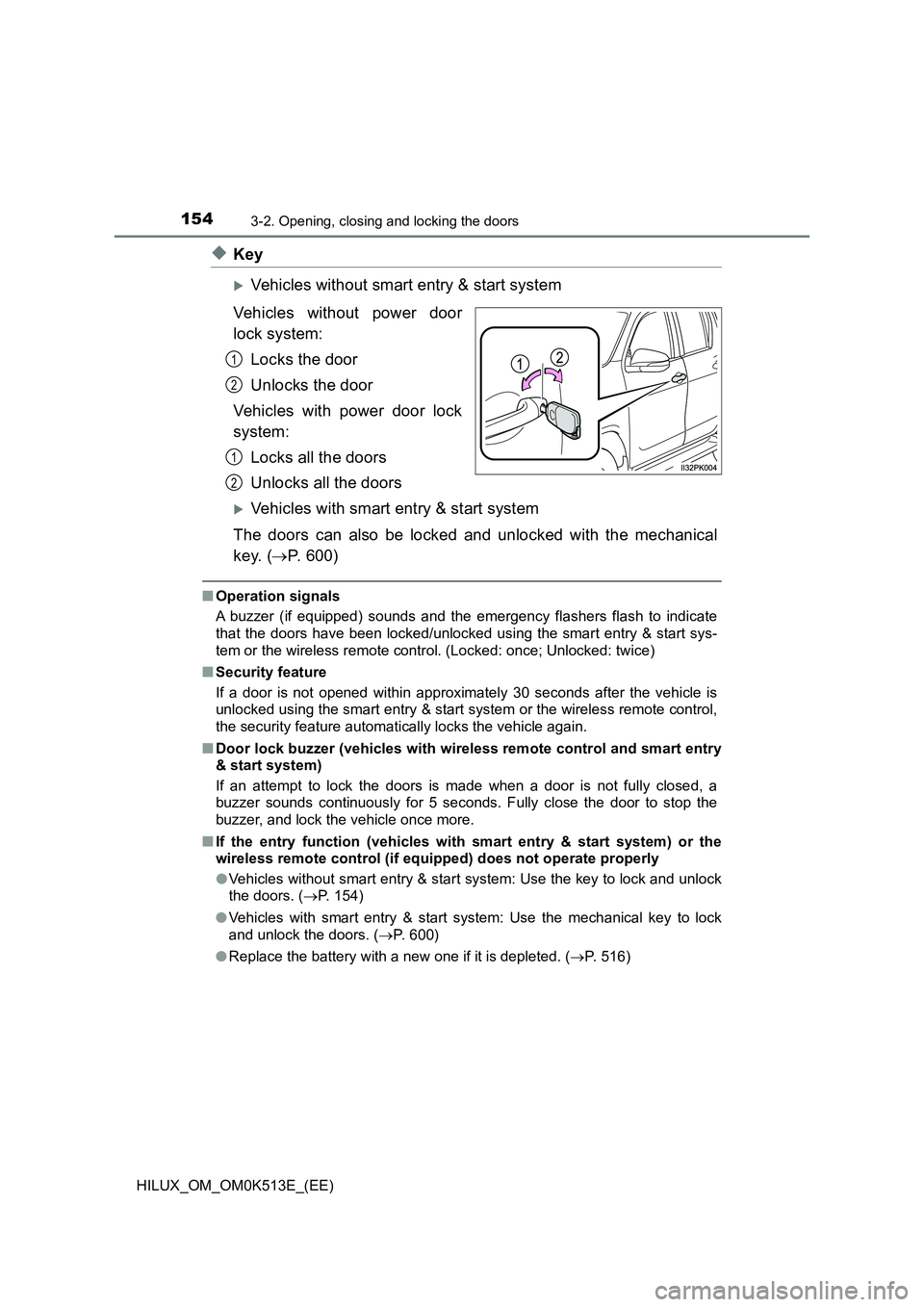

1543-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
XKey
Vehicles without smart entry & start system
Vehicles without power door
lock system:
Locks the door
Unlocks the door
Vehicles with power door lock
system:
Locks all the doors
Unlocks all the doors
Vehicles with smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 600)
QOperation signals
A buzzer (if equipped) sounds and the em ergency flashers flash to indicate
that the doors have been locked/unlocked using the smart entry & start sys-
tem or the wireless remote control. (Locked: once; Unlocked: twice)
Q Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked using the smart entry & start system or the wireless remote control,
the security feature automatically locks the vehicle again.
Q Door lock buzzer (vehicles with wireless remote control and smart entry
& start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
Q If the entry function (vehicles with smart entry & start system) or the
wireless remote control (if equipped) does not operate properly
O Vehicles without smart entry & start system: Use the key to lock and unlock
the doors. ( P. 154)
O Vehicles with smart entry & start system: Use the mechanical key to lock
and unlock the doors. ( P. 600)
O Replace the battery with a new one if it is depleted. (P. 516)
1
2
1
2

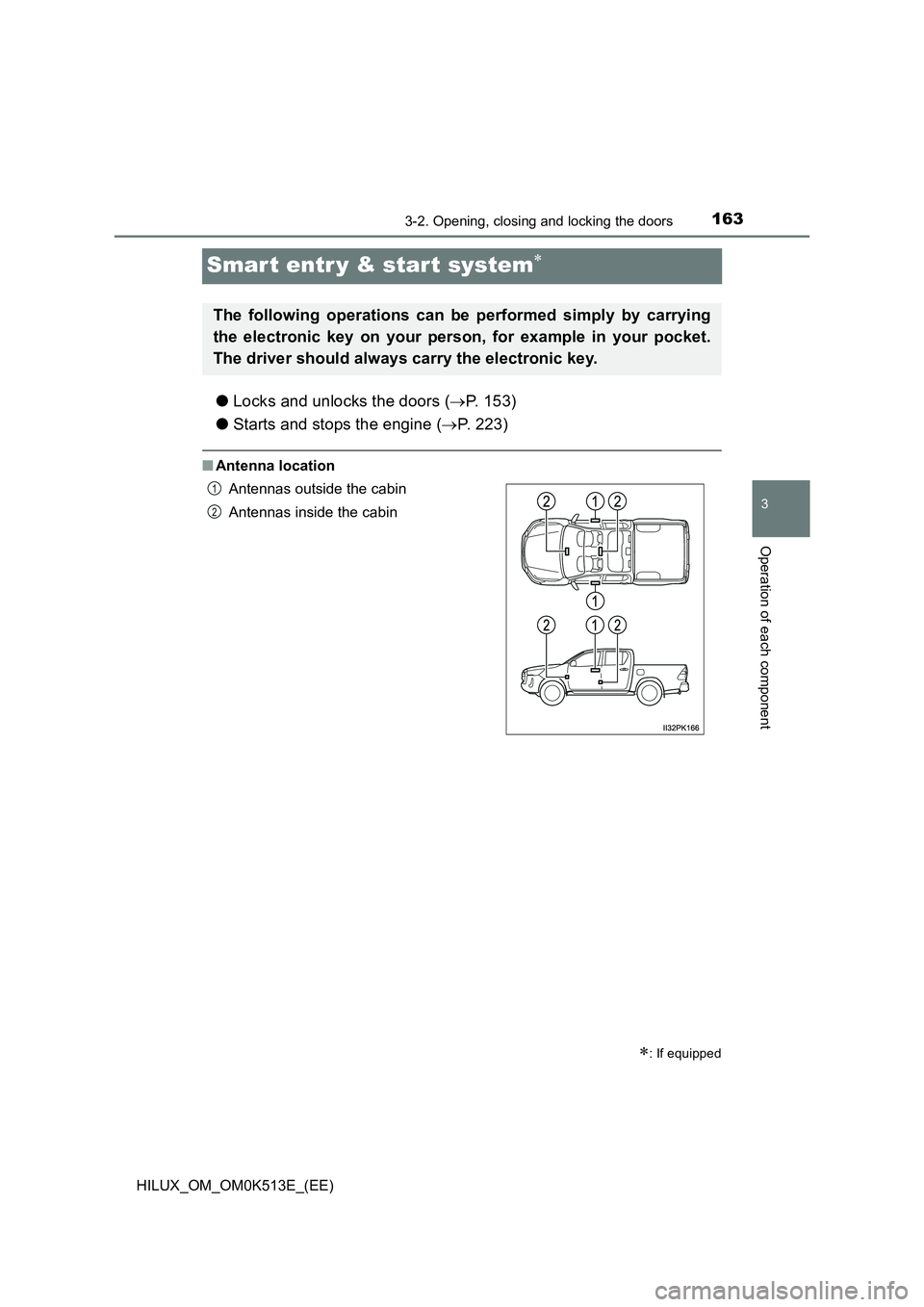

163
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K513E_(EE)
Smar t entr y & start system
OLocks and unlocks the doors (P. 153)
O Starts and stops the engine (P. 223)
QAntenna location
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas outside the cabin
Antennas inside the cabin
1
2

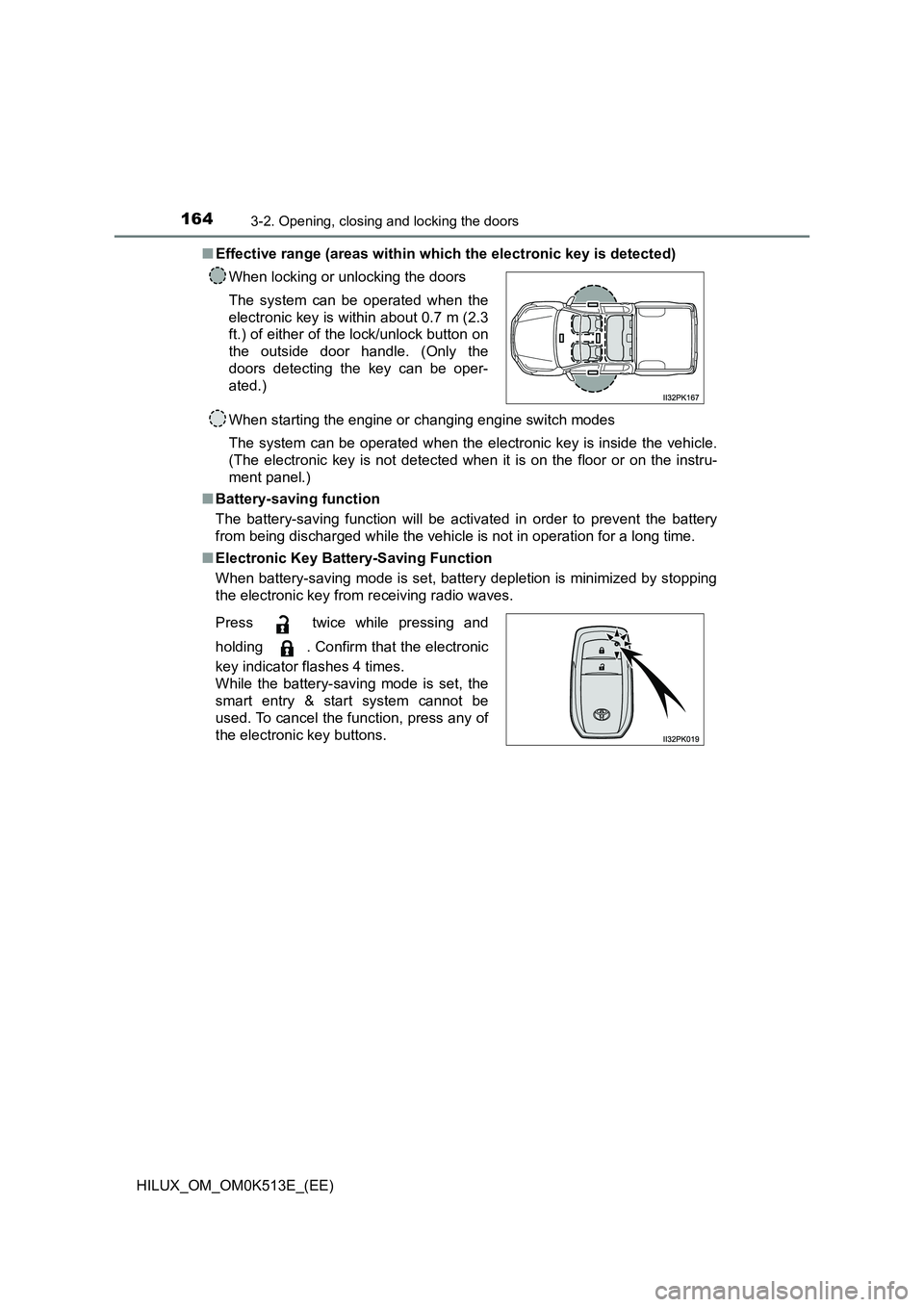

1643-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q Effective range (areas within which the electronic key is detected)
When starting the engine or changing engine switch modes
The system can be operated when the electronic key is inside the vehicle.
(The electronic key is not detected when it is on the floor or on the instru-
ment panel.)
Q Battery-saving function
The battery-saving function will be acti vated in order to prevent the battery
from being discharged while the vehicle is not in operation for a long time.
Q Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3
ft.) of either of the lock/unlock button on
the outside door handle. (Only the
doors detecting the key can be oper-
ated.)
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

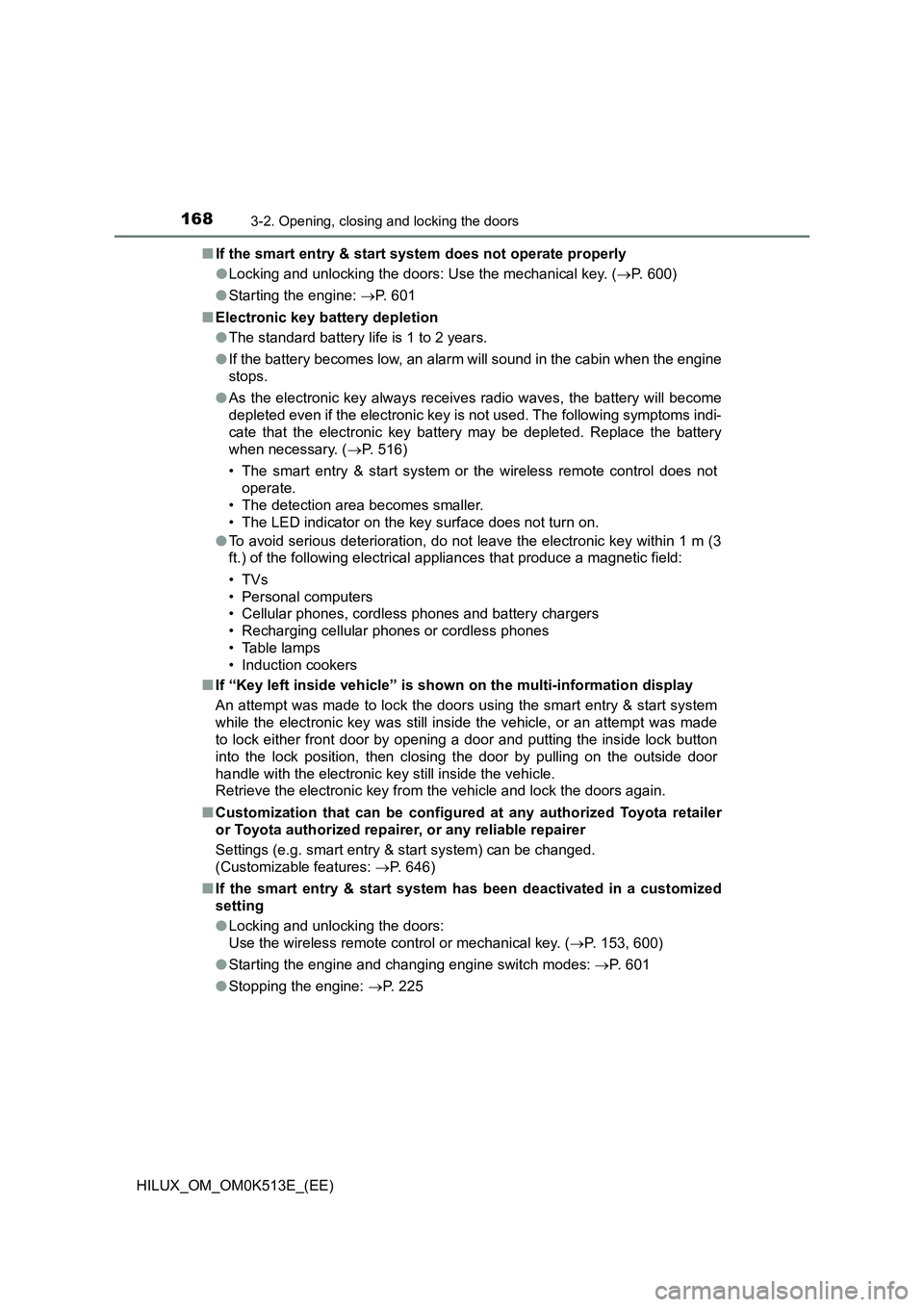

1683-2. Opening, closing and locking the doors
HILUX_OM_OM0K513E_(EE)
Q If the smart entry & start system does not operate properly
O Locking and unlocking the doors: Use the mechanical key. (P. 600)
O Starting the engine: P. 601
Q Electronic key battery depletion
O The standard battery life is 1 to 2 years.
O If the battery becomes low, an alarm will sound in the cabin when the engine
stops.
O As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 516)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
O To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
Q If “Key left inside vehicle” is shown on the multi-information display
An attempt was made to lock the doors using the smart entry & start system
while the electronic key was still inside the vehicle, or an attempt was made
to lock either front door by opening a door and putting the inside lock button
into the lock position, then closing the door by pulling on the outside door
handle with the electronic key still inside the vehicle.
Retrieve the electronic key from the vehicle and lock the doors again.
Q Customization that can be configured at any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: P. 646)
Q If the smart entry & start system has been deactivated in a customized
setting
O Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( P. 153, 600)
O Starting the engine and changing engine switch modes: P. 601
O Stopping the engine: P. 225
