Camera TOYOTA HILUX 2021 Owners Manual (in English)

10
HILUX_OM_OM0K513E_(EE)
The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer for the loca-
tion of recording cameras.
The recorded data varies according to the vehicle grade level, options and
destinations with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain situations.
OData usage
Toyota may use the data recorded in this computer to diagnose malfunctions,
conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
ORecorded image information can be erased by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
The image recording function can be disabled. However, if the function is dis-
abled, data from when the system operates will not be available.
Vehicle data recording

17Pictorial index
HILUX_OM_OM0K513E_(EE)
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 639
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Camera*1, 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Front position lights/daytime running lights*1. . . . . . . . . . P. 248
Front fog lights*1/rear fog light*1, 3. . . . . . . . . . . . . . . . . . . P. 255
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Stop lights
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 364
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Back-up lights*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 231, 239
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 525, Watts: P. 642)
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17
18

20Pictorial index
HILUX_OM_OM0K513E_(EE)
QSwitches (Left-hand drive vehicles)
Power window switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Window lock switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Door lock switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Outside rear view mirror switches*1. . . . . . . . . . . . . . . . . . P. 182
Toyota parking assist-sensor switch*1. . . . . . . . . . . . . . . . P. 321
Power heater switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . P. 436, 444
Manual headlight leveling dial*1 . . . . . . . . . . . . . . . . . . . . . P. 250
DPF system switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Camera switch*1,2
1
2
3
4
5
6
7
8
9

28Pictorial index
HILUX_OM_OM0K513E_(EE)
QSwitches (Right-hand drive vehicles)
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Outside rear view mirror switches*1. . . . . . . . . . . . . . . . . . P. 182
Toyota parking assist-sensor switch*1. . . . . . . . . . . . . . . . P. 321
Power heater switch . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436, 444
Manual headlight leveling dial*1 . . . . . . . . . . . . . . . . . . . . . P. 250
DPF system switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Camera switch*1,2
1
2
3
4
5
6
7
8
9

2674-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

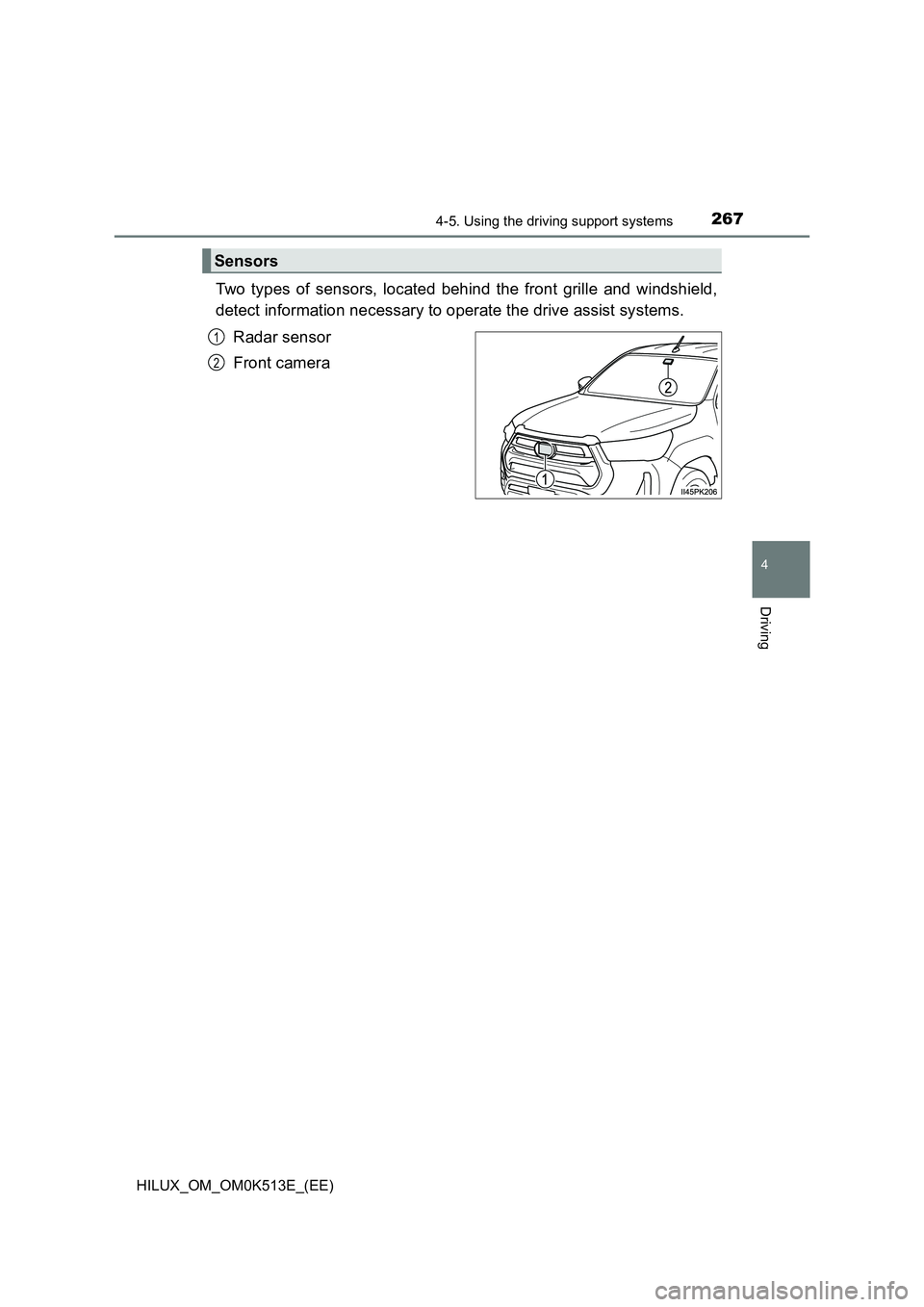

Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.
Radar sensor
Front camera
Sensors
1
2

2694-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

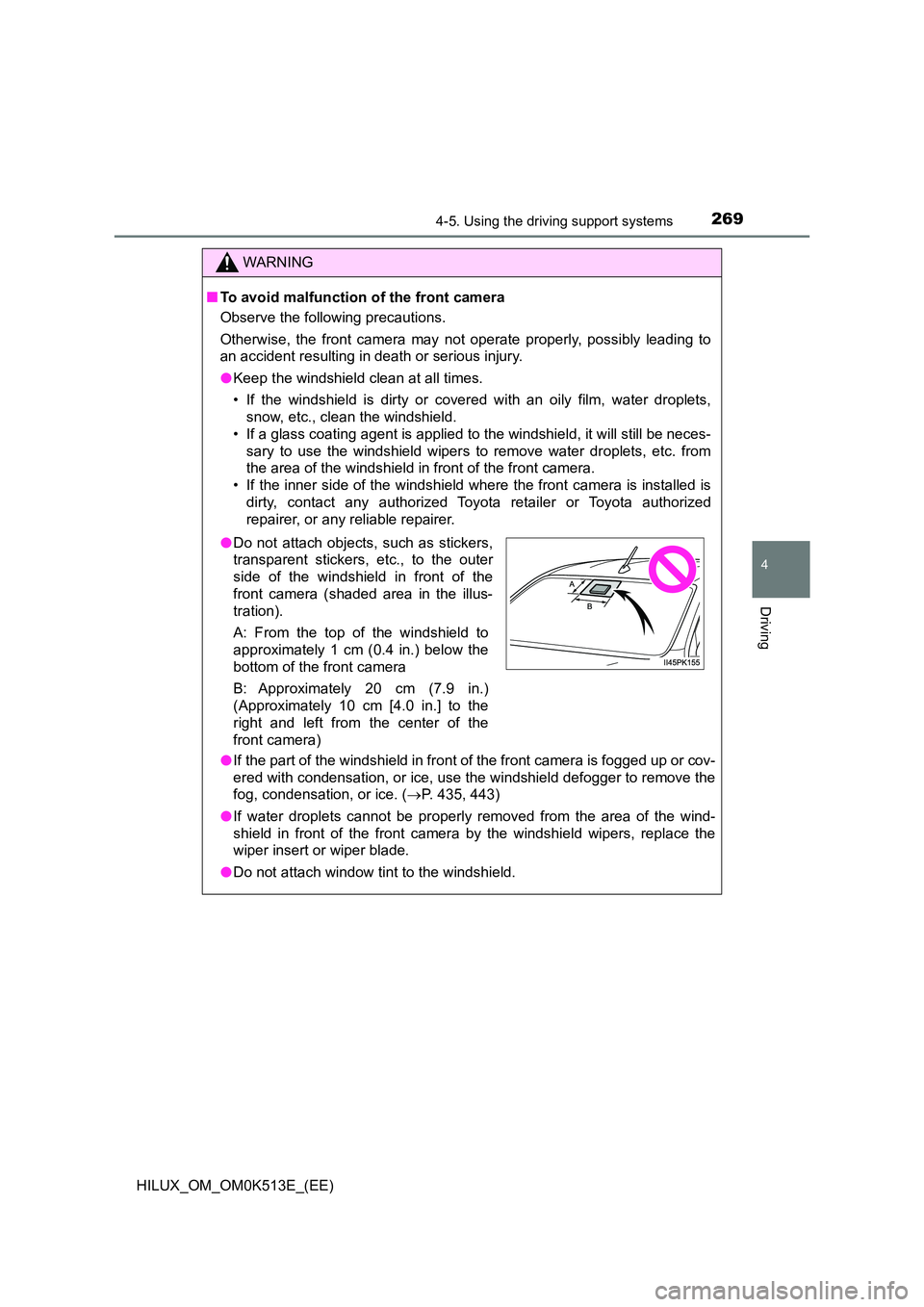

WARNING
QTo avoid malfunction of the front camera
Observe the following precautions.
Otherwise, the front camera may not operate properly, possibly leading to
an accident resulting in death or serious injury.
O Keep the windshield clean at all times.
• If the windshield is dirty or cover ed with an oily film, water droplets,
snow, etc., clean the windshield.
• If a glass coating agent is applied to t he windshield, it will still be neces-
sary to use the windshield wipers to remove water droplets, etc. from
the area of the windshield in front of the front camera.
• If the inner side of the windshield where the front camera is installed is
dirty, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
O If the part of the windshield in front of the front camera is fogged up or cov-
ered with condensation, or ice, use the windshield defogger to remove the
fog, condensation, or ice. ( P. 435, 443)
O If water droplets cannot be properly removed from the area of the wind-
shield in front of the front camera by the windshield wipers, replace the
wiper insert or wiper blade.
O Do not attach window tint to the windshield.
ODo not attach objects, such as stickers,
transparent stickers, etc., to the outer
side of the windshield in front of the
front camera (shaded area in the illus-
tration).
A: From the top of the windshield to
approximately 1 cm (0.4 in.) below the
bottom of the front camera
B: Approximately 20 cm (7.9 in.)
(Approximately 10 cm [4.0 in.] to the
right and left from the center of the
front camera)

2704-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)

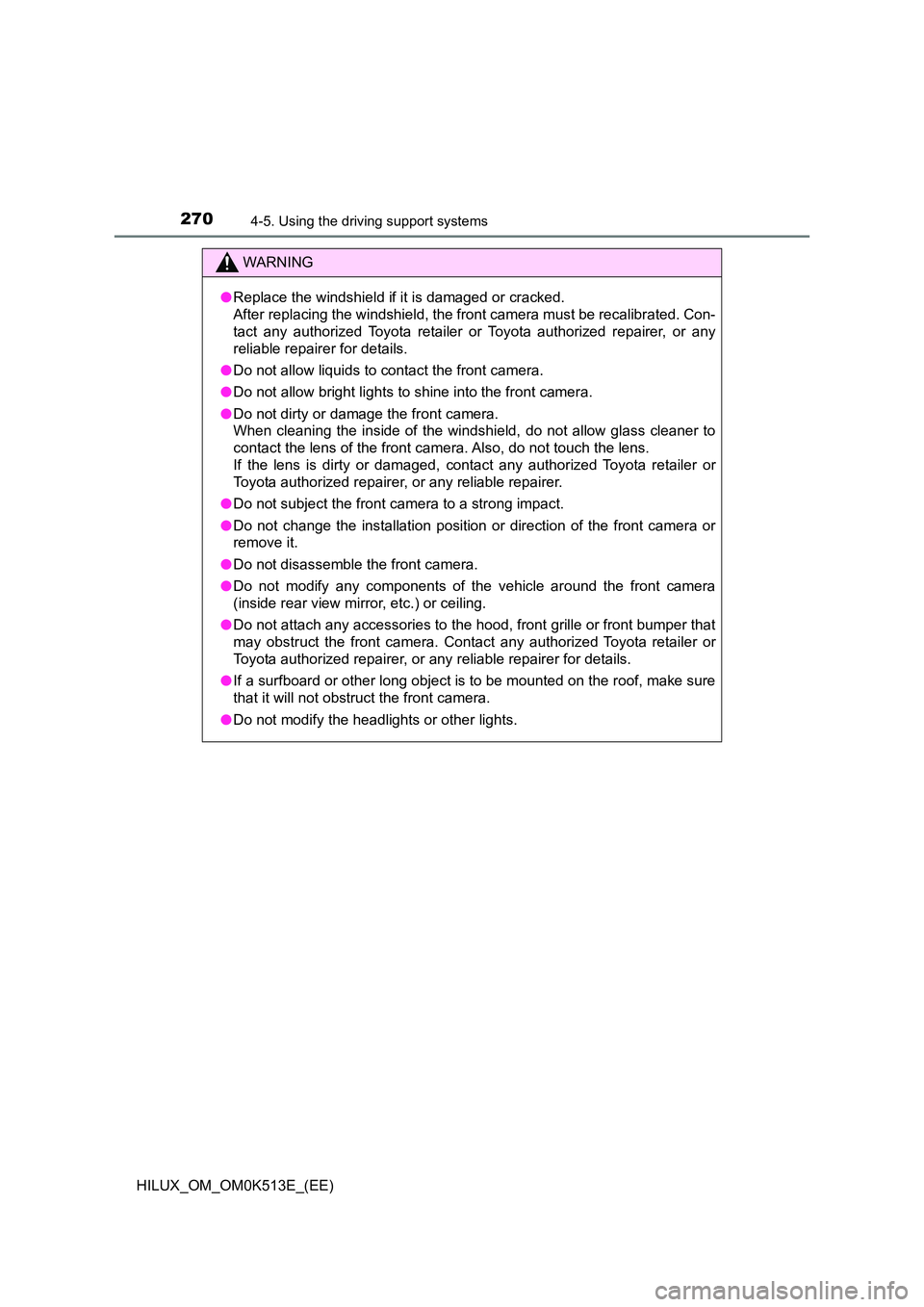

WARNING
OReplace the windshield if it is damaged or cracked.
After replacing the windshield, the front camera must be recalibrated. Con-
tact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer for details.
O Do not allow liquids to contact the front camera.
O Do not allow bright lights to shine into the front camera.
O Do not dirty or damage the front camera.
When cleaning the inside of the windshi eld, do not allow glass cleaner to
contact the lens of the front camera. Also, do not touch the lens.
If the lens is dirty or damaged, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
O Do not subject the front camera to a strong impact.
O Do not change the installation position or direction of the front camera or
remove it.
O Do not disassemble the front camera.
O Do not modify any components of the vehicle around the front camera
(inside rear view mirror, etc.) or ceiling.
O Do not attach any accessories to the hood, front grille or front bumper that
may obstruct the front camera. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details.
O If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front camera.
O Do not modify the headlights or other lights.

2714-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

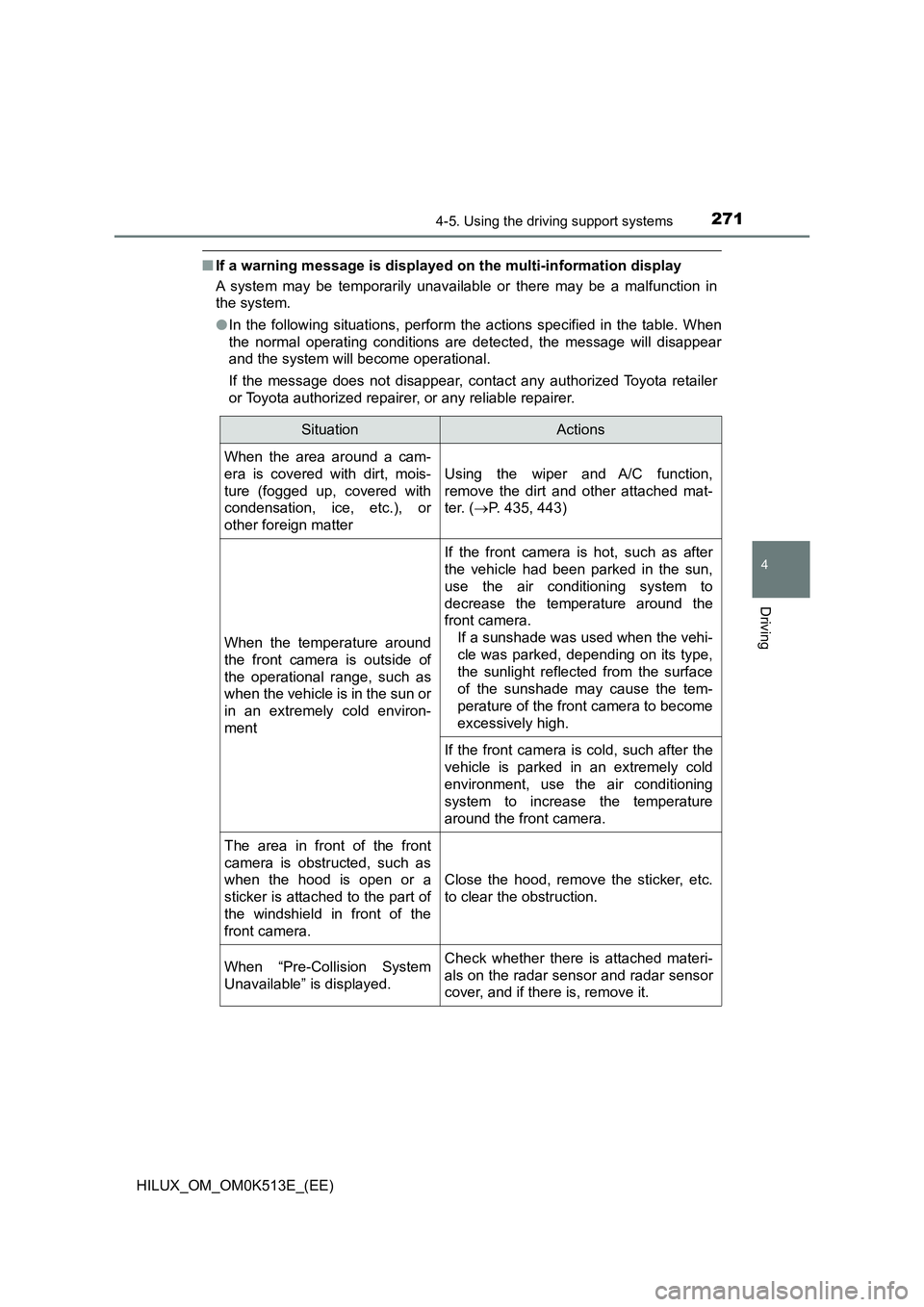

QIf a warning message is displayed on the multi-information display
A system may be temporarily unavailable or there may be a malfunction in
the system.
O In the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
SituationActions
When the area around a cam-
era is covered with dirt, mois-
ture (fogged up, covered with
condensation, ice, etc.), or
other foreign matter
Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. ( P. 435, 443)
When the temperature around
the front camera is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment
If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.
If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.
If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.
The area in front of the front
camera is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front camera.
Close the hood, remove the sticker, etc.
to clear the obstruction.
When “Pre-Collision System
Unavailable” is displayed.
Check whether there is attached materi-
als on the radar sens or and radar sensor
cover, and if there is, remove it.

2724-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)

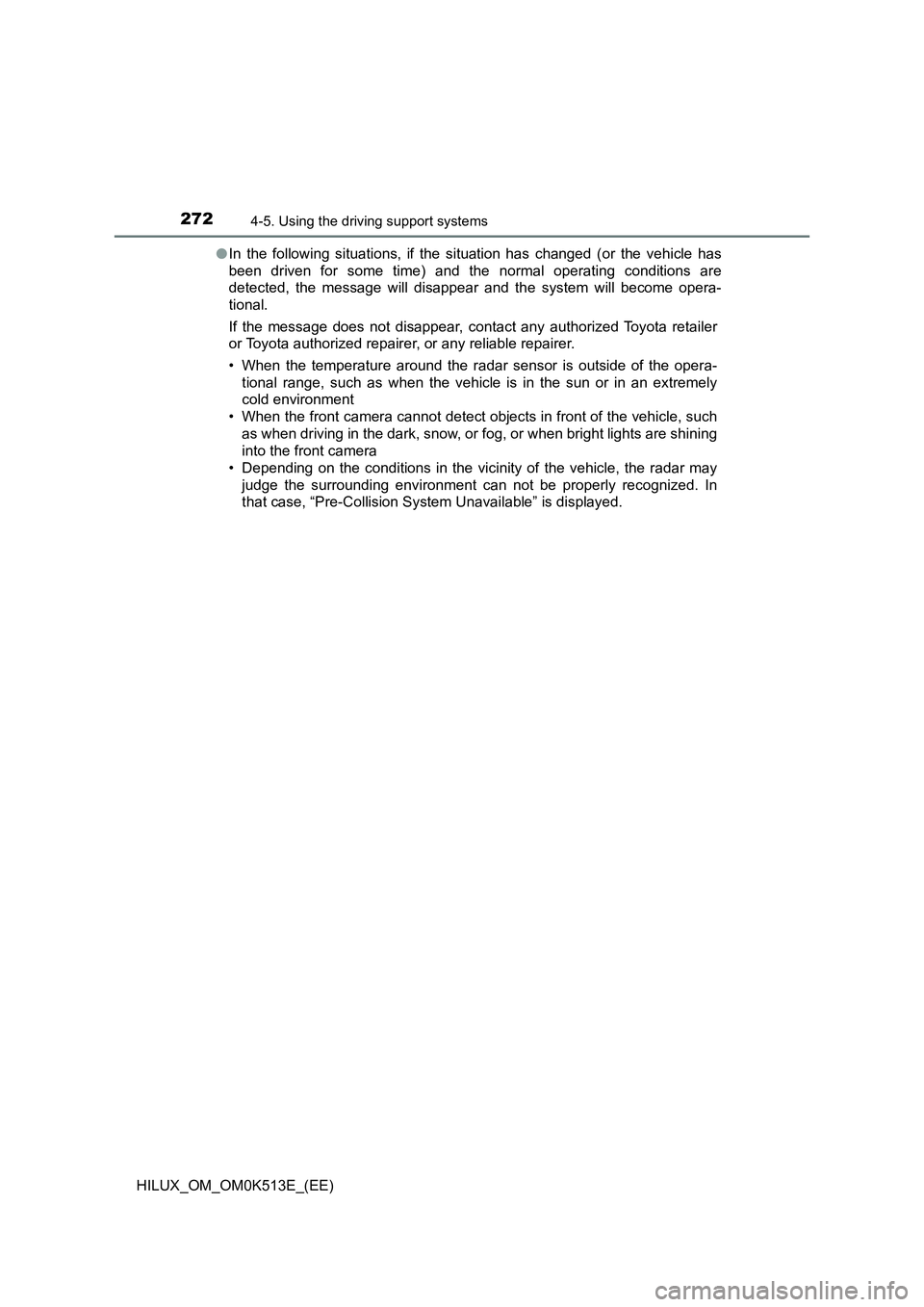

O In the following situations, if the situation has changed (or the vehicle has
been driven for some time) and the normal operating conditions are
detected, the message will disappear and the system will become opera-
tional.
If the message does not disappear, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
• When the temperature around the radar sensor is outside of the opera-
tional range, such as when the vehicle is in the sun or in an extremely
cold environment
• When the front camera cannot detect objects in front of the vehicle, such
as when driving in the dark, snow, or fog, or when bright lights are shining
into the front camera
• Depending on the conditions in the vicinity of the vehicle, the radar may
judge the surrounding environment can not be properly recognized. In
that case, “Pre-Collision System Unavailable” is displayed.

273
4
4-5. Using the driving support systems
Driving
HILUX_OM_OM0K513E_(EE)

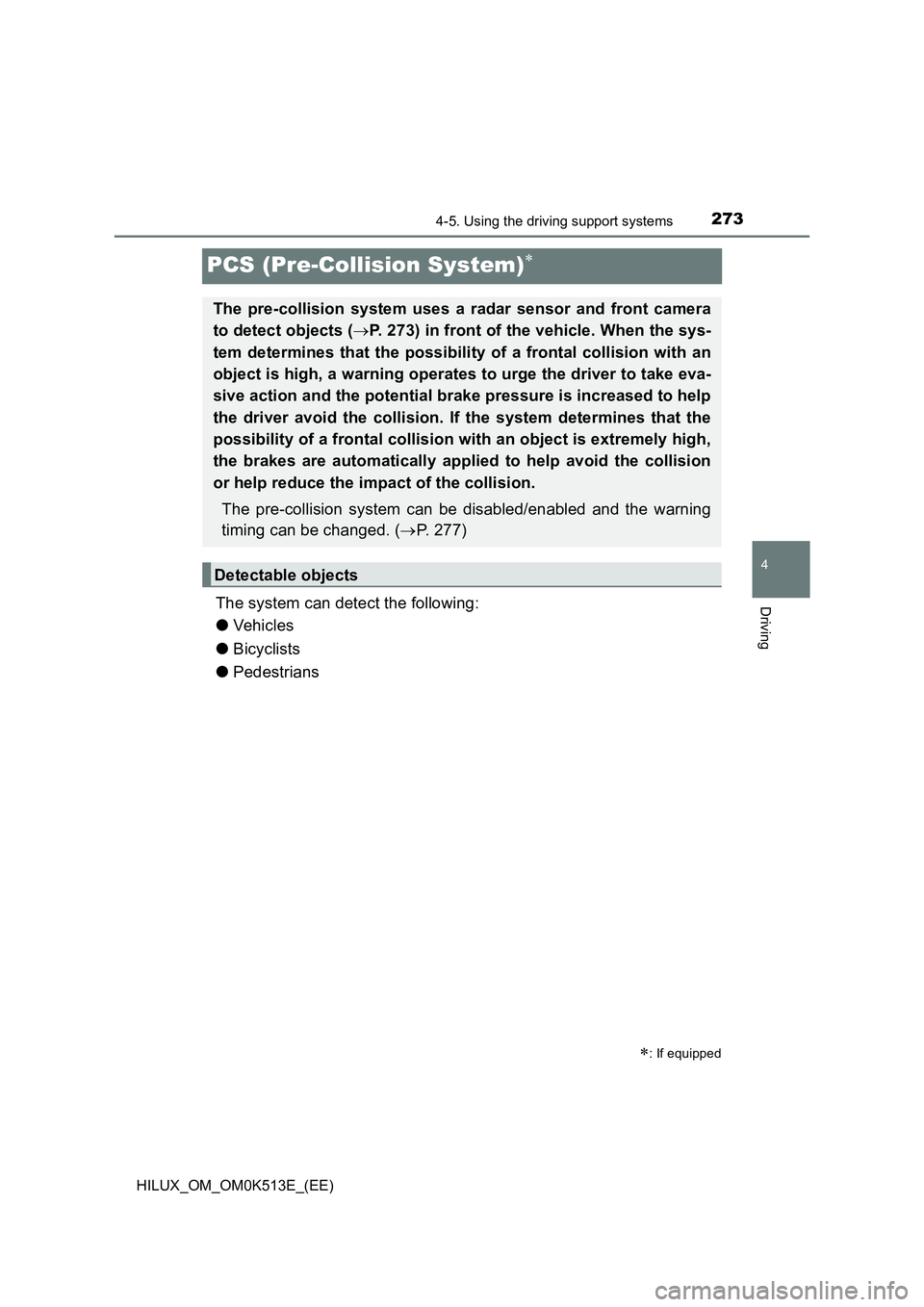

PCS (Pre-Collision System)
The system can detect the following:
O Ve hi cl e s
O Bicyclists
O Pedestrians
: If equipped
The pre-collision system uses a radar sensor and front camera
to detect objects ( P. 273) in front of the vehicle. When the sys-
tem determines that the possibility of a frontal collision with an
object is high, a warning operates to urge the driver to take eva-
sive action and the potential brake pressure is increased to help
the driver avoid the collision. If the system determines that the
possibility of a frontal collision with an object is extremely high,
the brakes are automatically applied to help avoid the collision
or help reduce the impact of the collision.
The pre-collision system can be disabled/enabled and the warning
timing can be changed. ( P. 277)
Detectable objects
