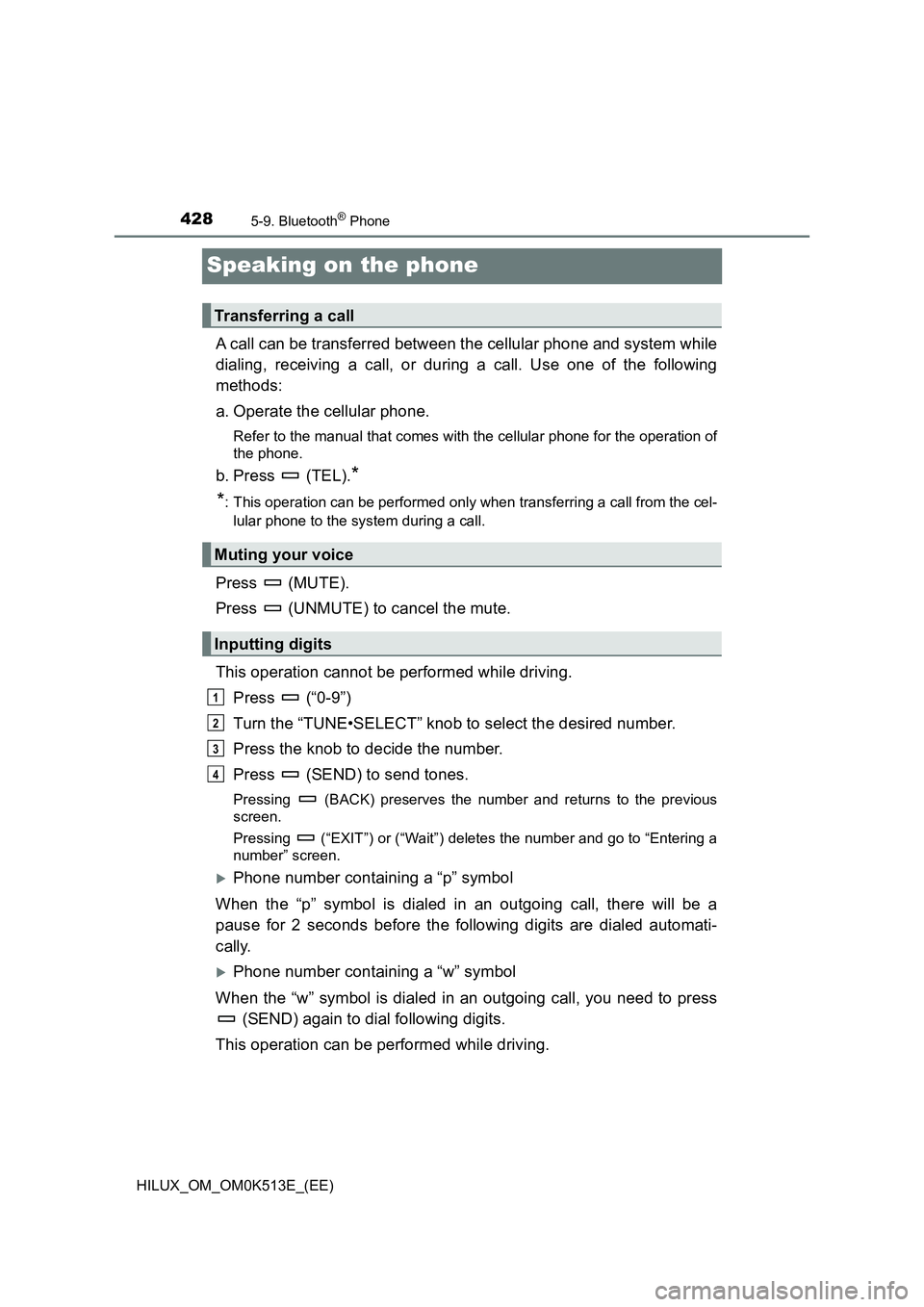

4285-9. Bluetooth® Phone
HILUX_OM_OM0K513E_(EE)
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press (TEL).*
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Press (MUTE).
Press (UNMUTE) to cancel the mute.
This operation cannot be performed while driving.
Press (“0-9”)
Turn the “TUNE•SELECT” knob to select the desired number.
Press the knob to decide the number.
Press (SEND) to send tones.
Pressing (BACK) preserves the number and returns to the previous
screen.
Pressing (“EXIT”) or (“Wait”) deletes the number and go to “Entering a
number” screen.
Phone number containing a “p” symbol
When the “p” symbol is dialed in an outgoing call, there will be a
pause for 2 seconds before the following digits are dialed automati-
cally.
Phone number containing a “w” symbol
When the “w” symbol is dialed in an outgoing call, you need to press
(SEND) again to dial following digits.
This operation can be performed while driving.
Transferring a call
Muting your voice
Inputting digits
1
2
3
4

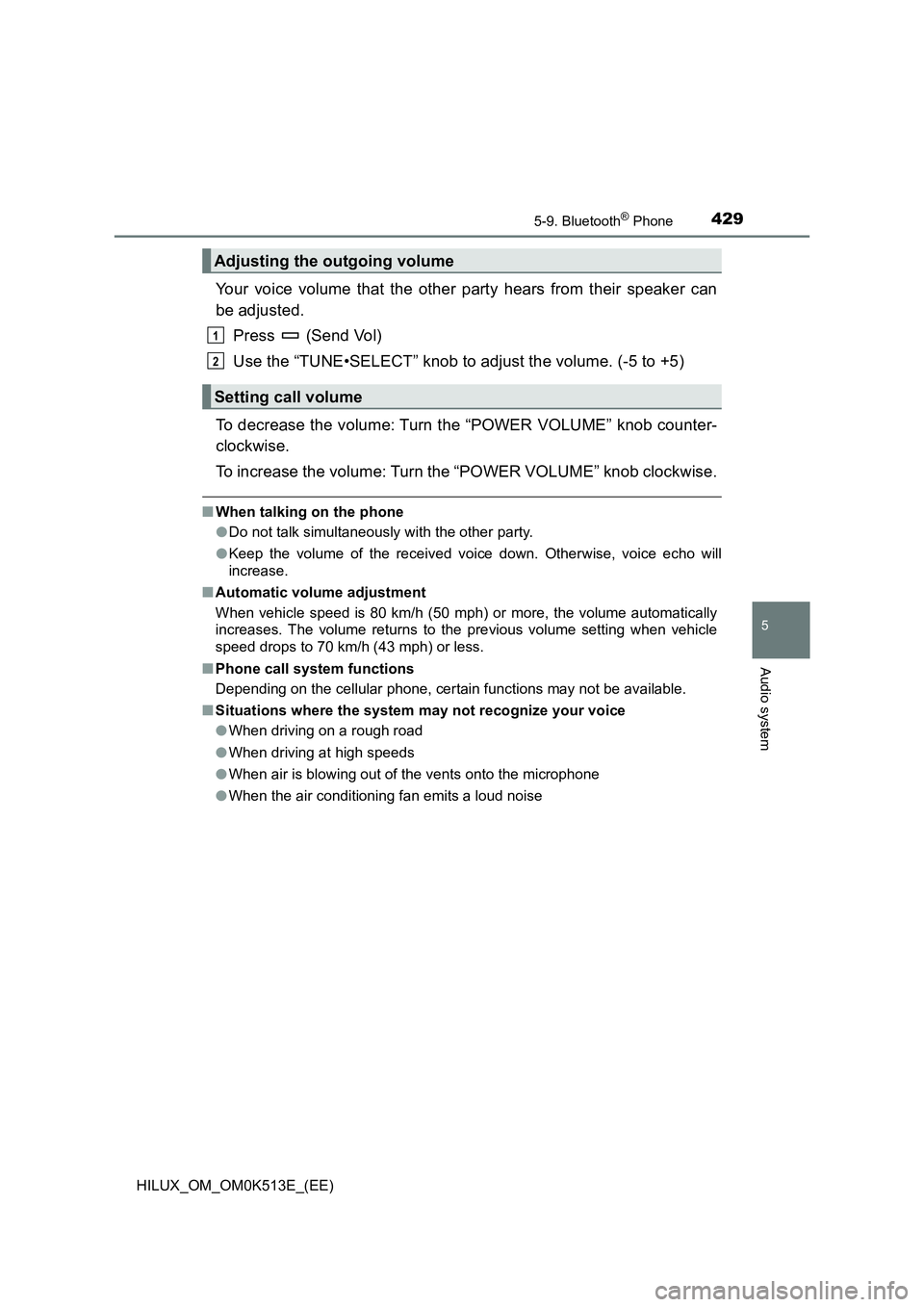

4295-9. Bluetooth® Phone
5
Audio system
HILUX_OM_OM0K513E_(EE)
Your voice volume that the other party hears from their speaker can
be adjusted.
Press (Send Vol)
Use the “TUNE•SELECT” knob to adjust the volume. (-5 to +5)
To decrease the volume: Turn the “POWER VOLUME” knob counter-
clockwise.
To increase the volume: Turn the “POWER VOLUME” knob clockwise.
Q When talking on the phone
O Do not talk simultaneously with the other party.
O Keep the volume of the received voice down. Otherwise, voice echo will
increase.
Q Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
Q Phone call system functions
Depending on the cellular phone, certain functions may not be available.
Q Situations where the system may not recognize your voice
O When driving on a rough road
O When driving at high speeds
O When air is blowing out of the vents onto the microphone
O When the air conditioning fan emits a loud noise
Adjusting the outgoing volume
Setting call volume
1
2

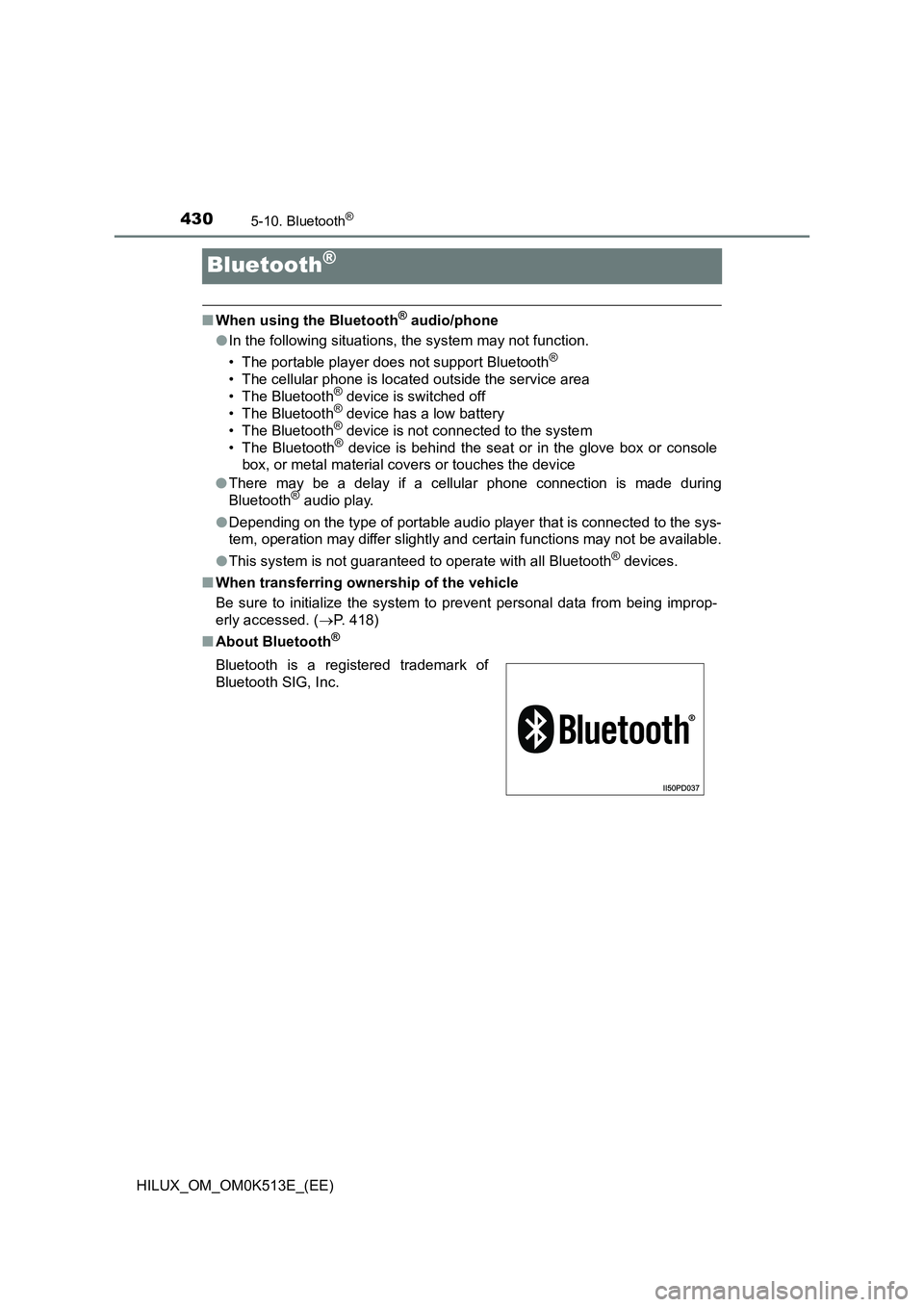

4305-10. Bluetooth®
HILUX_OM_OM0K513E_(EE)
Bluetooth®
QWhen using the Bluetooth® audio/phone
O In the following situations, the system may not function.
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or metal material covers or touches the device
O There may be a delay if a cellular phone connection is made during
Bluetooth® audio play.
O Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
O This system is not guaranteed to operate with all Bluetooth® devices.
Q When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 418)
Q About Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

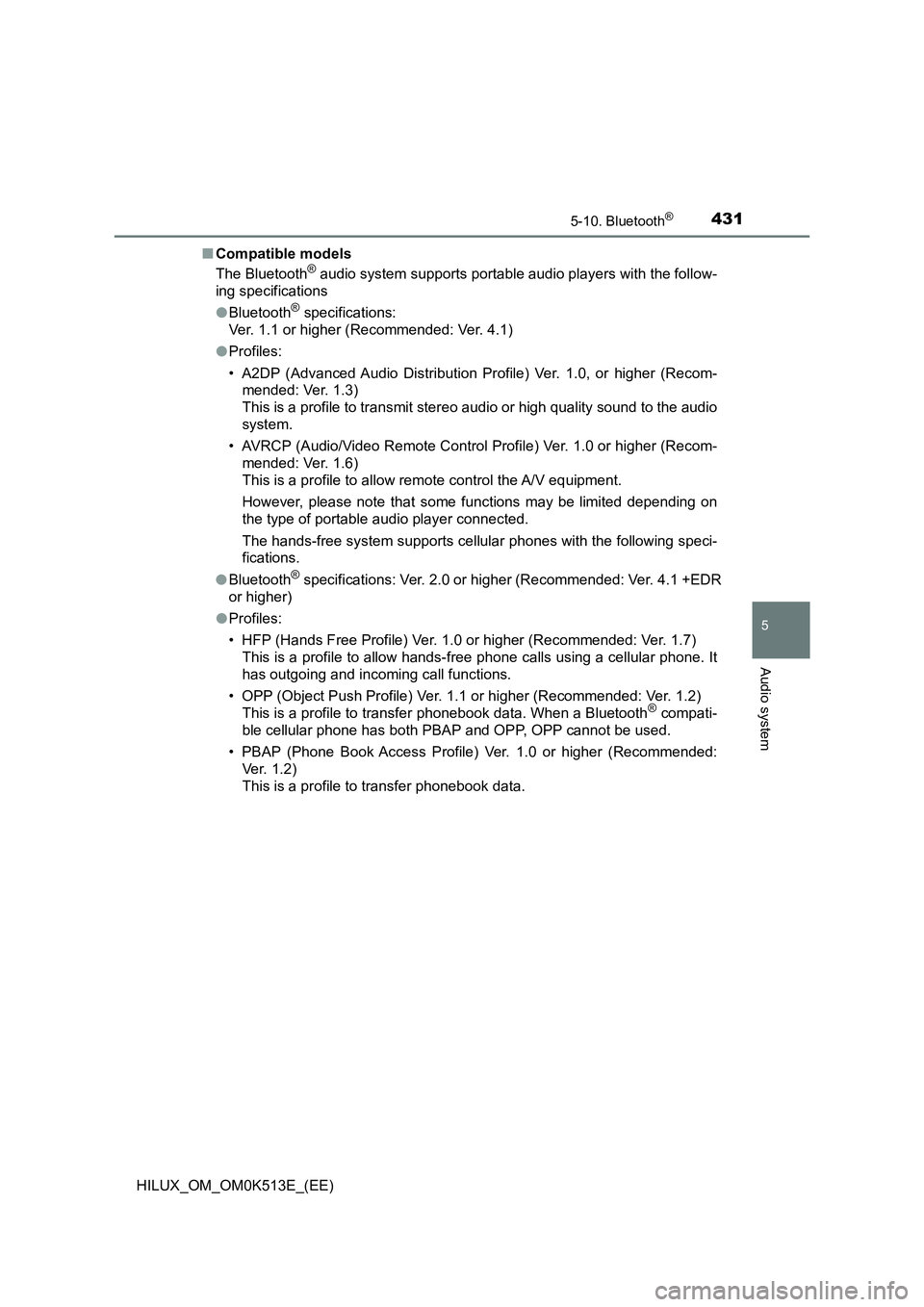

4315-10. Bluetooth®
5
Audio system
HILUX_OM_OM0K513E_(EE)
Q Compatible models
The Bluetooth® audio system supports portable audio players with the follow-
ing specifications
O Bluetooth® specifications:
Ver. 1.1 or higher (Recommended: Ver. 4.1)
O Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Recom-
mended: Ver. 1.3)
This is a profile to transmit stereo audio or high quality sound to the audio
system.
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Recom-
mended: Ver. 1.6)
This is a profile to allow remote control the A/V equipment.
However, please note that some functions may be limited depending on
the type of portable audio player connected.
The hands-free system supports cellular phones with the following speci-
fications.
O Bluetooth® specifications: Ver. 2.0 or higher (Recommended: Ver. 4.1 +EDR
or higher)
O Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.7)
This is a profile to allow hands-free phone calls using a cellular phone. It
has outgoing and incoming call functions.
• OPP (Object Push Profile) Ver. 1.1 or higher (Recommended: Ver. 1.2)
This is a profile to transfer phonebook data. When a Bluetooth® compati-
ble cellular phone has both PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Recommended:
Ver. 1.2)
This is a profile to transfer phonebook data.

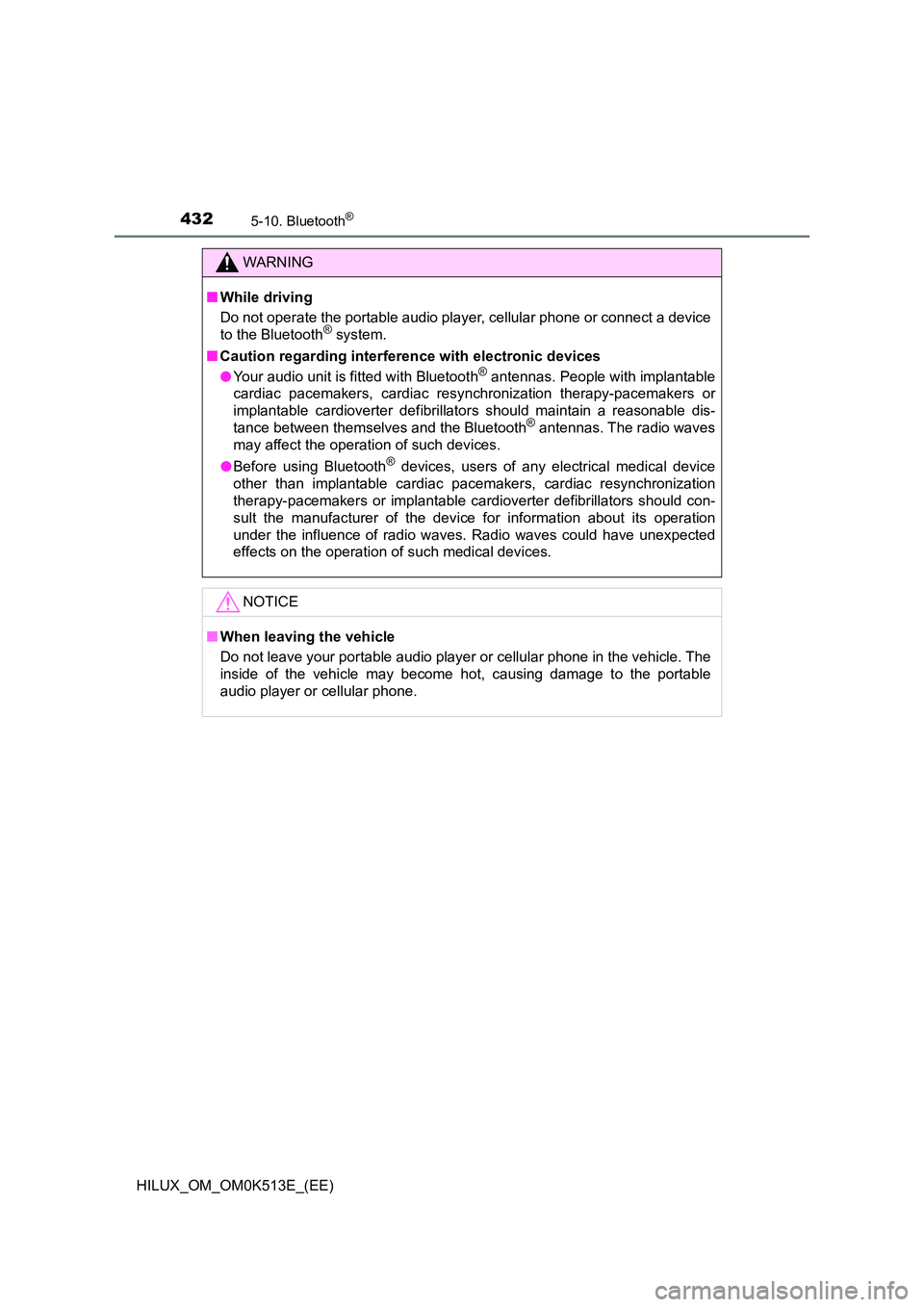

4325-10. Bluetooth®
HILUX_OM_OM0K513E_(EE)
WARNING
QWhile driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth® system.
Q Caution regarding interference with electronic devices
O Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas. The radio waves
may affect the operation of such devices.
O Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
Q When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.

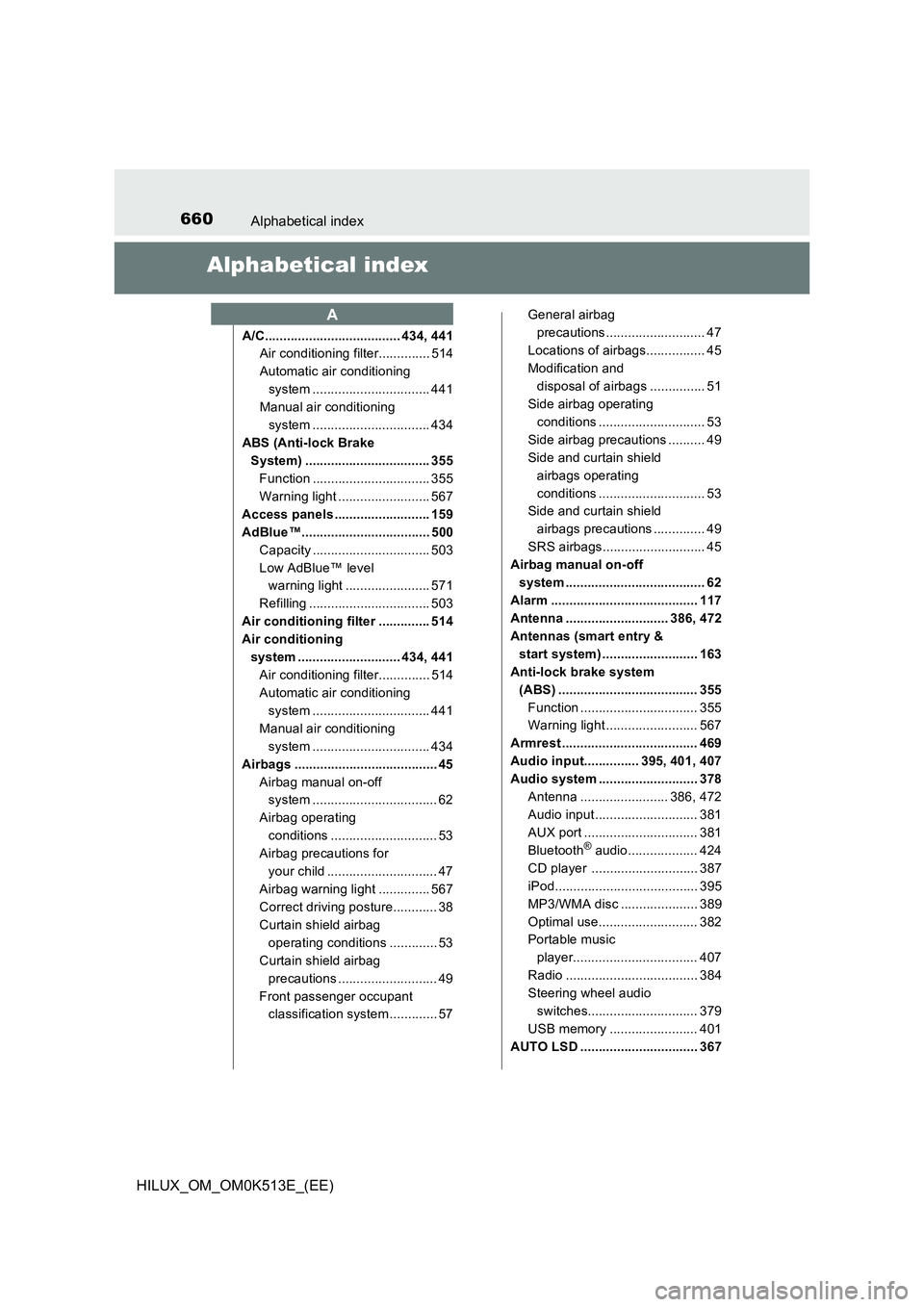

660Alphabetical index
HILUX_OM_OM0K513E_(EE)
Alphabetical index
A/C..................................... 434, 441
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Manual air conditioning
system ................................ 434
ABS (Anti-lock Brake
System) .................................. 355
Function ................................ 355
Warning light ......................... 567
Access panels .......................... 159
AdBlue™................................... 500
Capacity ................................ 503
Low AdBlue™ level
warning light ....................... 571
Refilling ................................. 503
Air conditioning filter .............. 514
Air conditioning
system ............................ 434, 441
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Manual air conditioning
system ................................ 434
Airbags ....................................... 45
Airbag manual on-off
system .................................. 62
Airbag operating
conditions ............................. 53
Airbag precautions for
your child .............................. 47
Airbag warning light .............. 567
Correct driving posture............ 38
Curtain shield airbag
operating conditions ............. 53
Curtain shield airbag
precautions ........................... 49
Front passenger occupant
classification system ............. 57
General airbag
precautions........................... 47
Locations of airbags................ 45
Modification and
disposal of airbags ............... 51
Side airbag operating
conditions ............................. 53
Side airbag precautions .......... 49
Side and curtain shield
airbags operating
conditions ............................. 53
Side and curtain shield
airbags precautions .............. 49
SRS airbags............................ 45
Airbag manual on-off
system ...................................... 62
Alarm ........................................ 117
Antenna ............................ 386, 472
Antennas (smart entry &
start system) .......................... 163
Anti-lock brake system
(ABS) ...................................... 355
Function ................................ 355
Warning light ......................... 567
Armrest ..................................... 469
Audio input............... 395, 401, 407
Audio system ........................... 378
Antenna ........................ 386, 472
Audio input ............................ 381
AUX port ............................... 381
Bluetooth® audio................... 424
CD player ............................. 387
iPod....................................... 395
MP3/WMA disc ..................... 389
Optimal use........................... 382
Portable music
player.................................. 407
Radio .................................... 384
Steering wheel audio
switches.............................. 379
USB memory ........................ 401
AUTO LSD ................................ 367
A

661Alphabetical index
HILUX_OM_OM0K513E_(EE)
Automatic air conditioning
system
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Automatic disconnecting
differential .............................. 331
Automatic light
control system ....................... 252
Automatic transmission .......... 231
If the shift lever cannot be
shifted from P ..................... 237
AUX port ................................... 407
Auxiliary boxes ........................ 460
Back-up lights
Replacing light bulbs ..... 542, 549
Wattage................................. 642
Battery
Battery checking ................... 494
If the vehicle battery is
discharged .......................... 604
Preparing and checking
before winter....................... 374
Warning light ......................... 566
Bluetooth®*.............................. 430
Audio system ........................ 424
Hands-free system
(for cellular phone).............. 408
Registering/removing a
Bluetooth® device ............... 415
Selecting a Bluetooth®
device ................................. 415
Wireless
communication ................... 408
Bluetooth® audio*................... 408
Bluetooth® phone*.................. 408
Deleting the call history......... 420
Making a call ......................... 426
Managing the contacts.......... 419
Phone settings ...................... 419
Receiving a call..................... 427
Speaking on the phone ......... 426
Bottle holders .......................... 459
Brake
Fluid ...................................... 638
Override system warning
light..................................... 569
Parking brake........................ 247
Warning light ......................... 566
Brake assist ............................. 355
Break-in tips ............................. 196
Brightness control
Instrument panel light
control................................. 132
Care
Exterior ................................. 472
Interior................................... 476
Seat belts .............................. 477
Wheels .................................. 473
CD player .................................. 387
Chains....................................... 375
Child restraint system ............... 65
Child restraint system
installation method ............... 89
Fixed with a seat belt .............. 90
Fixed with an ISOFIX lower
anchorage ............................ 92
Points to remember ................ 66
Riding with children................. 64
Using a top tether
anchorage ............................ 95
B
C
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
