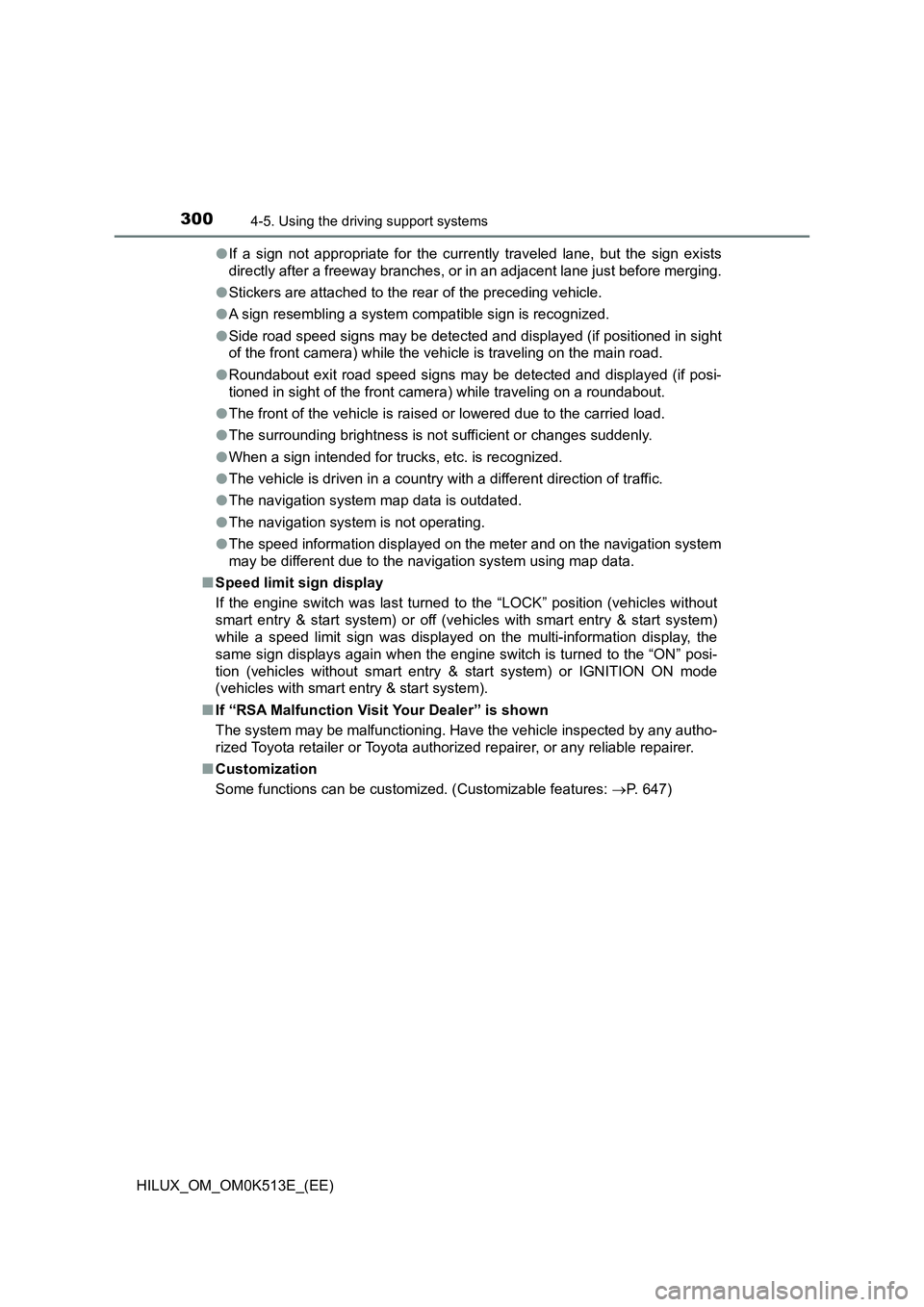

3004-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
O If a sign not appropriate for the currently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
O Stickers are attached to the rear of the preceding vehicle.
O A sign resembling a system compatible sign is recognized.
O Side road speed signs may be detected and displayed (if positioned in sight
of the front camera) while the vehicle is traveling on the main road.
O Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front camera) while traveling on a roundabout.
O The front of the vehicle is raised or lowered due to the carried load.
O The surrounding brightness is not sufficient or changes suddenly.
O When a sign intended for trucks, etc. is recognized.
O The vehicle is driven in a country with a different direction of traffic.
O The navigation system map data is outdated.
O The navigation system is not operating.
O The speed information displayed on the meter and on the navigation system
may be different due to the navigation system using map data.
Q Speed limit sign display
If the engine switch was last turned to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start system)
while a speed limit sign was displayed on the multi-information display, the
same sign displays again when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or IGNITION ON mode
(vehicles with smart entry & start system).
Q If “RSA Malfunction Visit Your Dealer” is shown
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q Customization
Some functions can be customized. (Customizable features: P. 647)

3785-1. Basic Operations
HILUX_OM_OM0K513E_(EE)

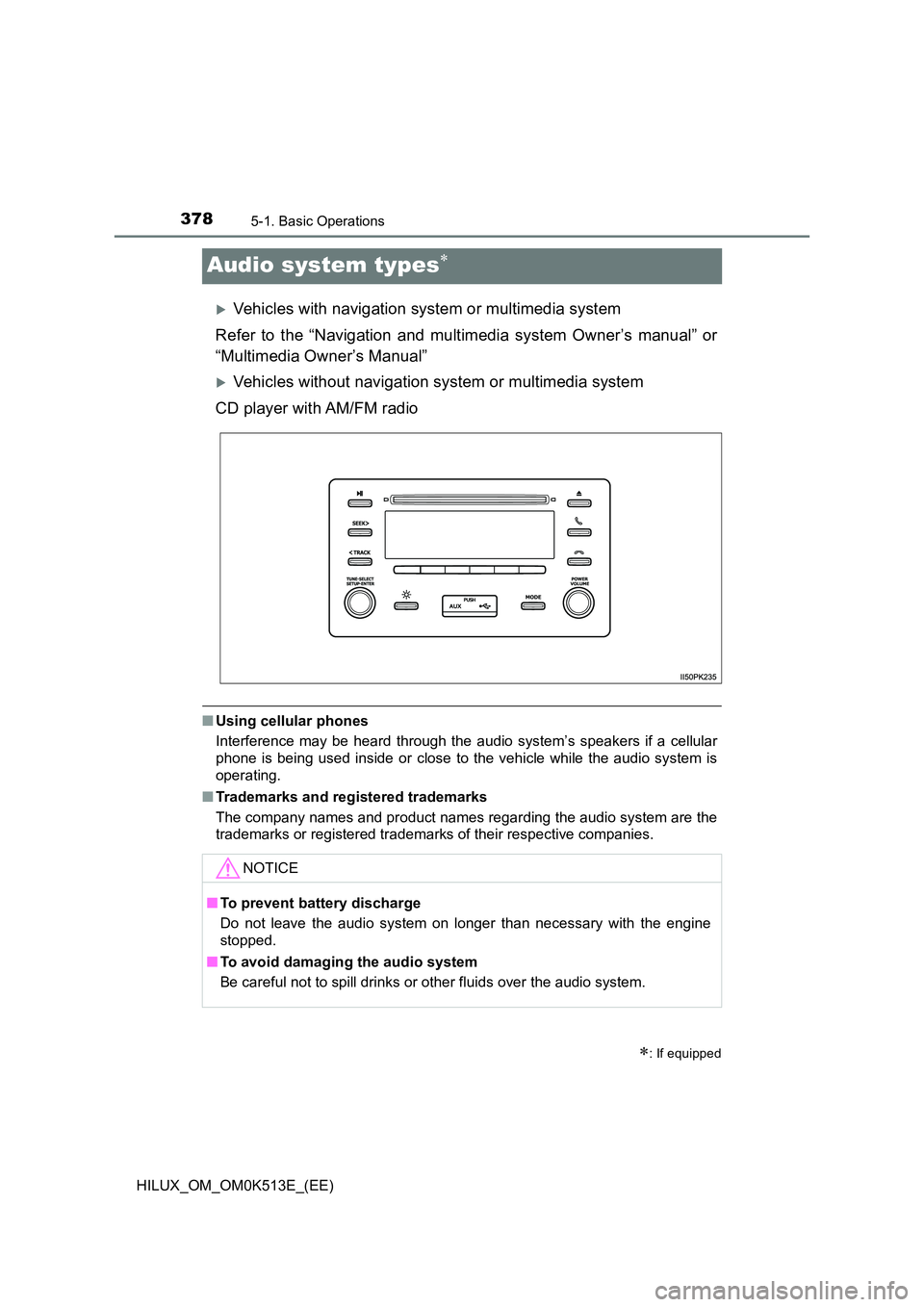

Audio system types
Vehicles with navigation system or multimedia system
Refer to the “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”
Vehicles without navigation system or multimedia system
CD player with AM/FM radio
Q Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
Q Trademarks and registered trademarks
The company names and product names regarding the audio system are the
trademarks or registered trademarks of their respective companies.
: If equipped
NOTICE
Q To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine
stopped.
Q To avoid damaging the audio system
Be careful not to spill drinks or other fluids over the audio system.

379
5
5-1. Basic Operations
Audio system
HILUX_OM_OM0K513E_(EE)

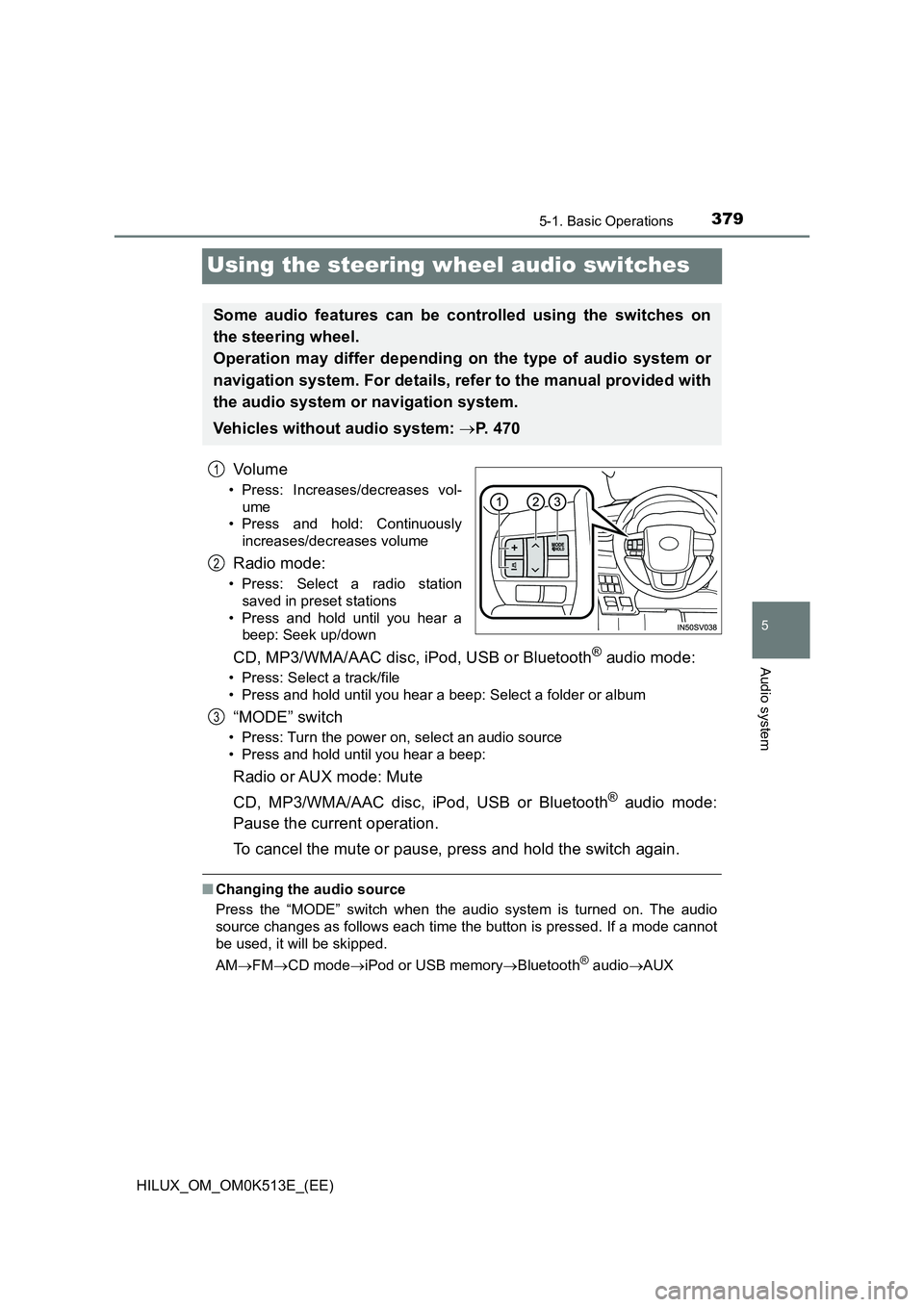

Using the steering wheel audio switches
Vo lu m e
• Press: Increases/decreases vol-
ume
• Press and hold: Continuously
increases/decreases volume
Radio mode:
• Press: Select a radio station
saved in preset stations
• Press and hold until you hear a
beep: Seek up/down
CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth® audio mode:
• Press: Select a track/file
• Press and hold until you hear a beep: Select a folder or album
“MODE” switch
• Press: Turn the power on, select an audio source
• Press and hold until you hear a beep:
Radio or AUX mode: Mute
CD, MP3/WMA/AAC disc, iPod, USB or Bluetooth® audio mode:
Pause the current operation.
To cancel the mute or pause, press and hold the switch again.
Q Changing the audio source
Press the “MODE” switch when the audi o system is turned on. The audio
source changes as follows each time the button is pressed. If a mode cannot
be used, it will be skipped.
AM FMCD modeiPod or USB memoryBluetooth® audioAUX
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Vehicles without audio system: P. 4 7 0
1
2
3

4706-4. Using the other interior features
HILUX_OM_OM0K513E_(EE)

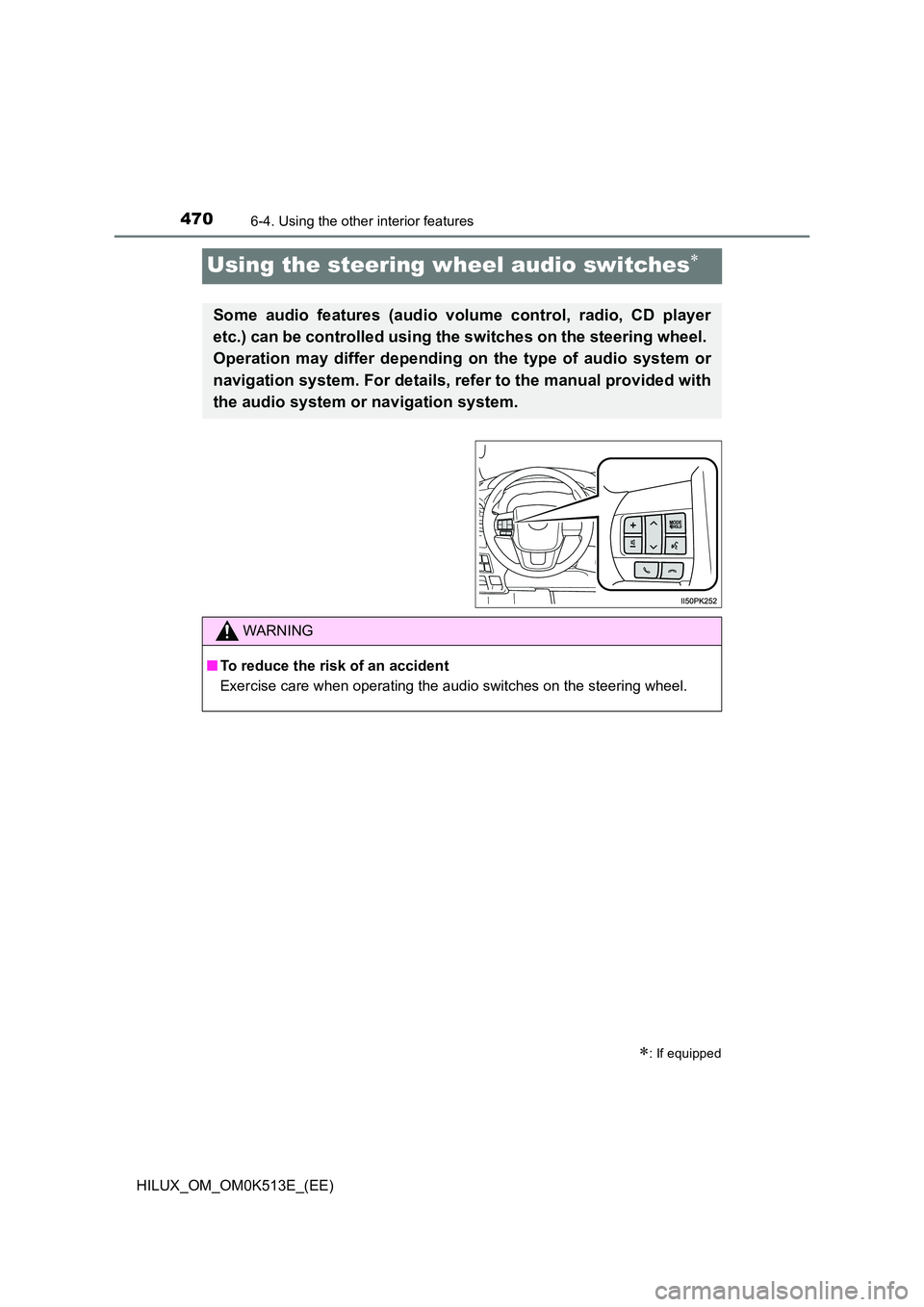

Using the steering wheel audio switches
: If equipped
Some audio features (audio volume control, radio, CD player
etc.) can be controlled using the switches on the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
WARNING
Q To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

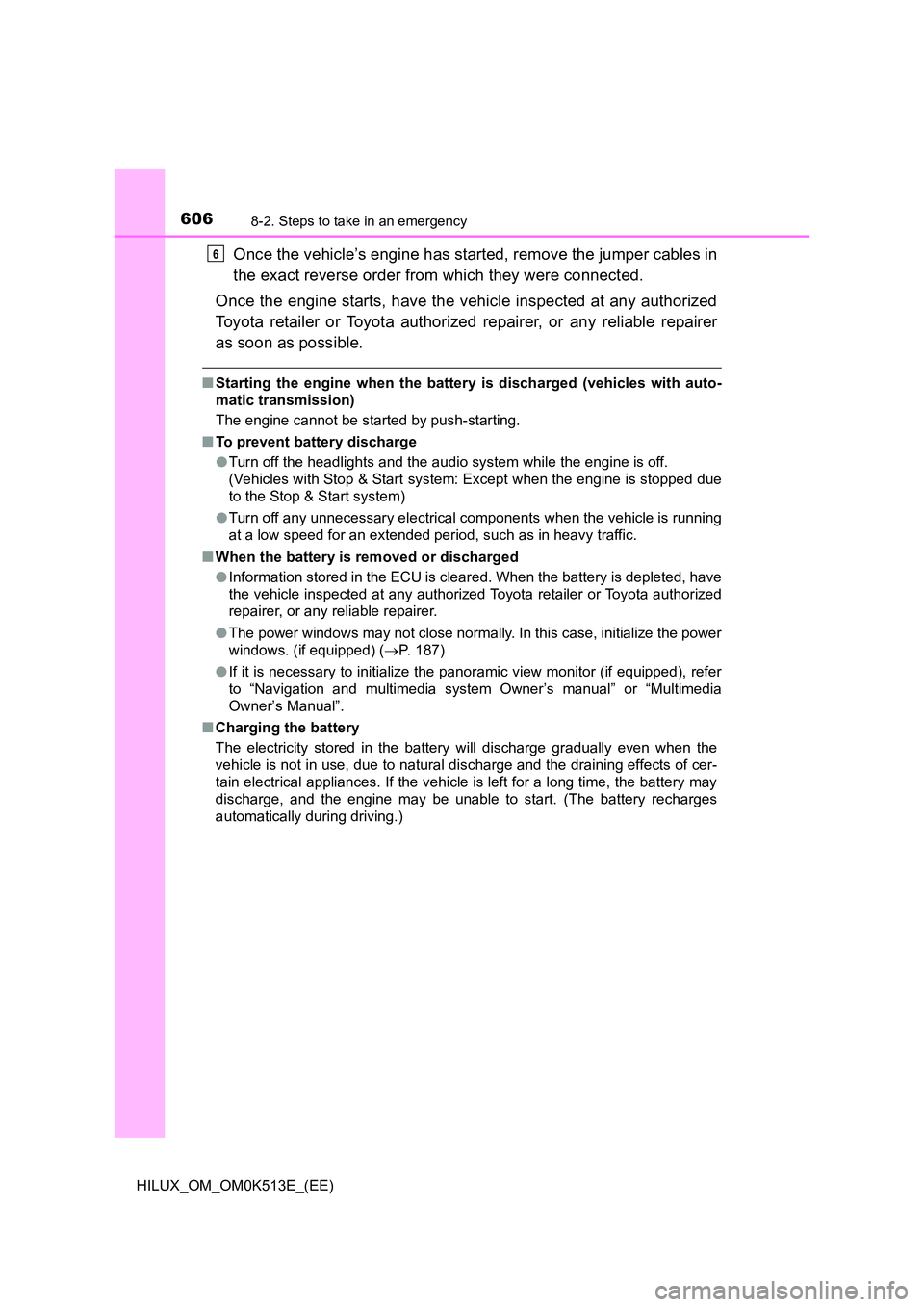

6068-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
as soon as possible.
Q Starting the engine when the battery is discharged (vehicles with auto-
matic transmission)
The engine cannot be started by push-starting.
Q To prevent battery discharge
O Turn off the headlights and the audio system while the engine is off.
(Vehicles with Stop & Start system: Except when the engine is stopped due
to the Stop & Start system)
O Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
Q When the battery is removed or discharged
O Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
O The power windows may not close normally. In this case, initialize the power
windows. (if equipped) ( P. 187)
O If it is necessary to initialize the panoramic view monitor (if equipped), refer
to “Navigation and multimedia system Owner’s manual” or “Multimedia
Owner’s Manual”.
Q Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
6

6469-2. Customization
HILUX_OM_OM0K513E_(EE)

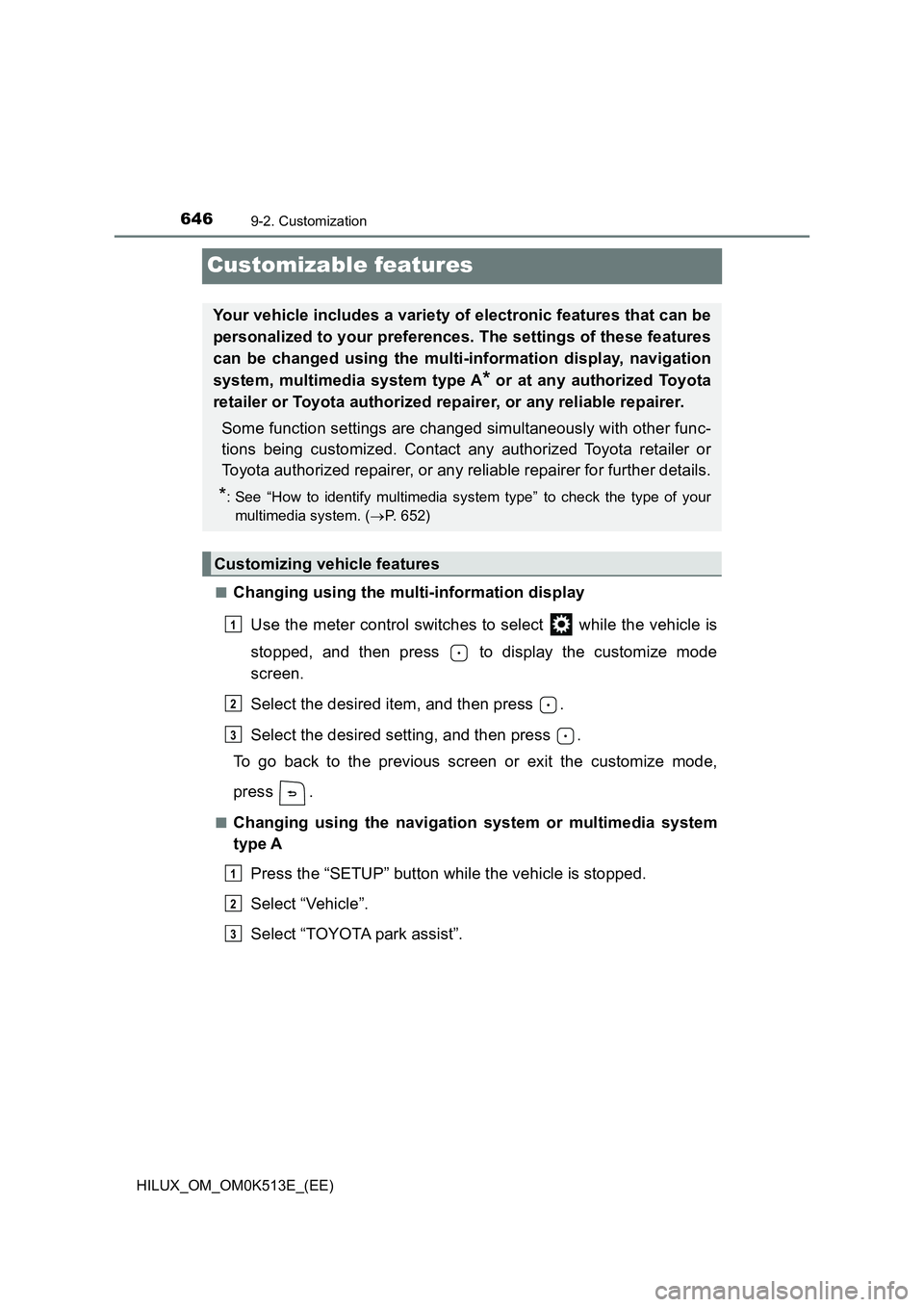

Customizable features
QChanging using the multi-information display
Use the meter control switches to select while the vehicle is
stopped, and then press to display the customize mode
screen.
Select the desired item, and then press .
Select the desired setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
QChanging using the navigation system or multimedia system
type A
Press the “SETUP” button while the vehicle is stopped.
Select “Vehicle”.
Select “TOYOTA park assist”.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, navigation
system, multimedia system type A* or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
*: See “How to identify multimedia system type” to check the type of your
multimedia system. ( P. 652)
Customizing vehicle features
1
2
3
1
2
3

6479-2. Customization
HILUX_OM_OM0K513E_(EE)
9

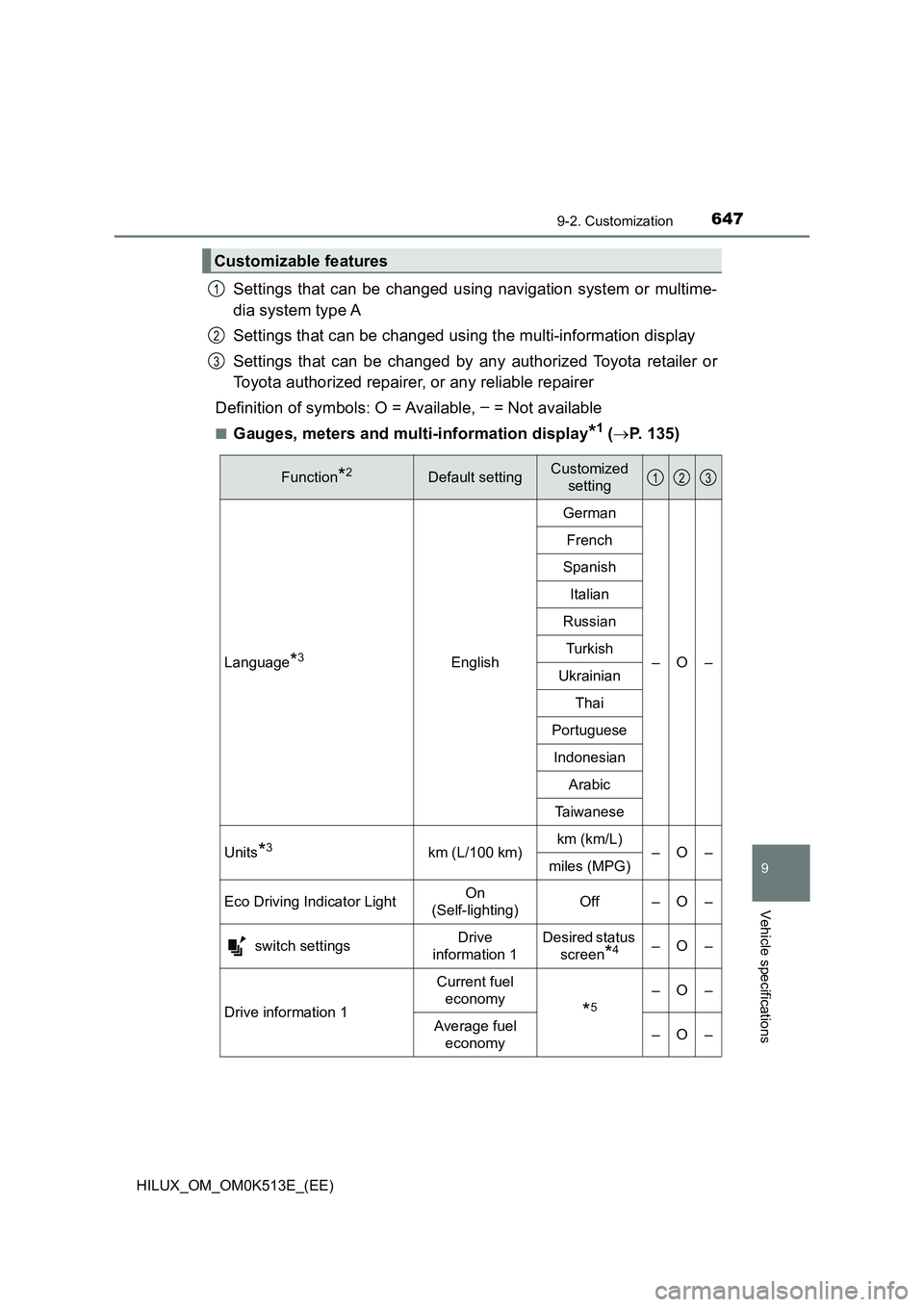

Vehicle specifications
Settings that can be changed using navigation system or multime-
dia system type A
Settings that can be changed using the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – = Not available
QGauges, meters and multi-information display*1 ( P. 135)
Customizable features
1
2
3
Function*2Default settingCustomized
setting
Language*3English
German
–O–
French
Spanish
Italian
Russian
Turkish
Ukrainian
Thai
Portuguese
Indonesian
Arabic
Taiwanese
Units*3km (L/100 km) km (km/L) –O– miles (MPG)
Eco Driving Indicator Light On
(Self-lighting) Off – O –
switch settings Drive
information 1
Desired status
screen*4–O–
Drive information 1
Current fuel
economy*5
–O–
Average fuel
economy –O–
123

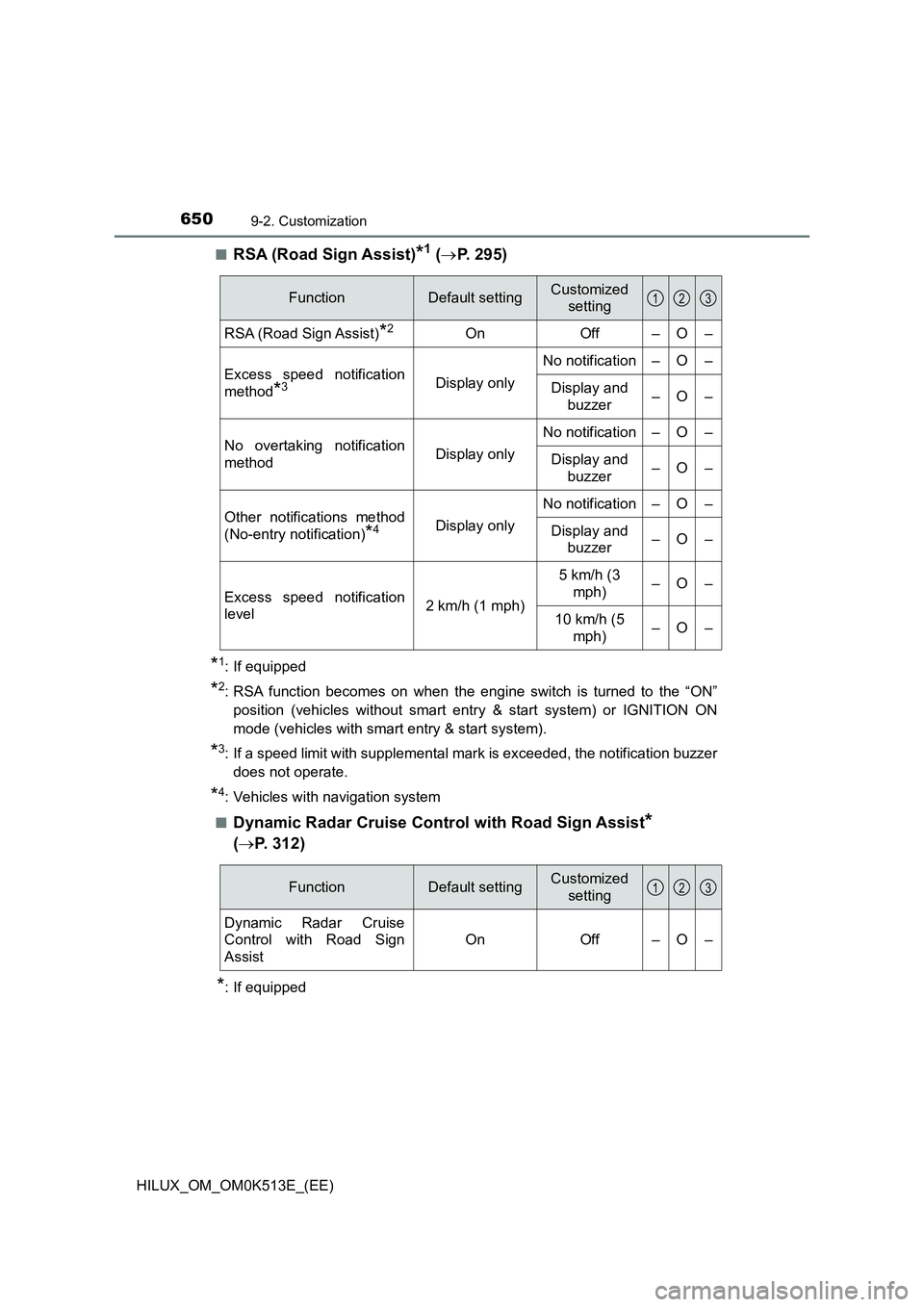

6509-2. Customization
HILUX_OM_OM0K513E_(EE)
QRSA (Road Sign Assist)*1 ( P. 295)
*1: If equipped
*2: RSA function becomes on when the engine switch is turned to the “ON”
position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system).
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
QDynamic Radar Cruise Control with Road Sign Assist*
( P. 312)
*: If equipped
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)*2OnOff–O–
Excess speed notification
method*3Display only
No notification–O–
Display and
buzzer–O–
No overtaking notification
methodDisplay only
No notification–O–
Display and
buzzer–O–
Other notifications method
(No-entry notification)*4Display only
No notification–O–
Display and
buzzer–O–
Excess speed notification
level2 km/h (1 mph)
5 km/h (3
mph)–O–
10 km/h (5
mph)–O–
123
FunctionDefault settingCustomized
setting
Dynamic Radar Cruise
Control with Road Sign
Assist
OnOff–O–
123

655
Index
HILUX_OM_OM0K513E_(EE)
What to do if...
(Troubleshooting) ..................... 656
Alphabetical index ...................... 660
For vehicles with navigation system or multimedia system,
refer to the “Navigation and multimedia system Owner’s
manual” or “Multimedia Owner’s Manual” for information
regarding the equipment listed below.
• Navigation system
• Audio system
• Panoramic view monitor
• Rear view monitor system

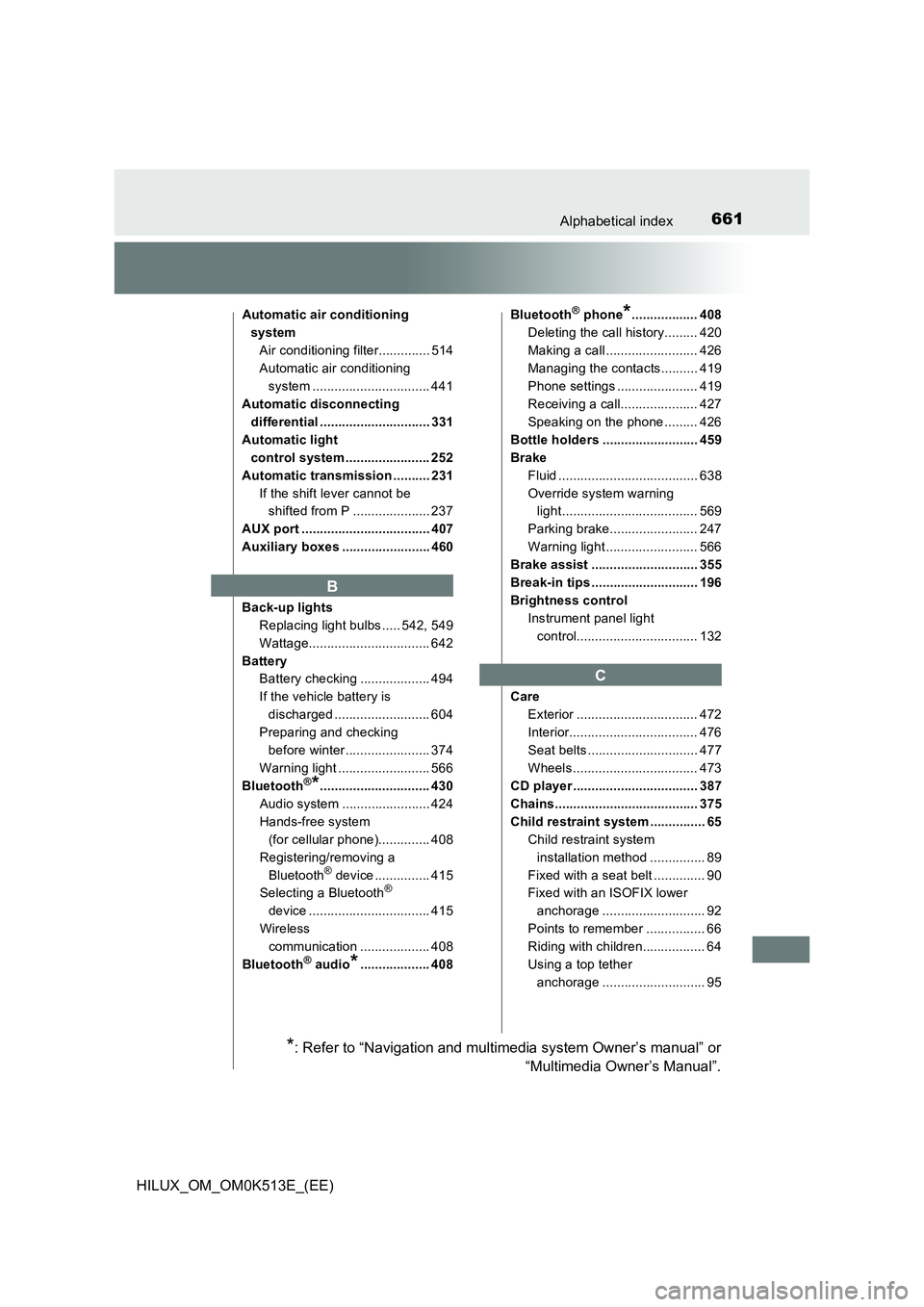

661Alphabetical index
HILUX_OM_OM0K513E_(EE)
Automatic air conditioning
system
Air conditioning filter.............. 514
Automatic air conditioning
system ................................ 441
Automatic disconnecting
differential .............................. 331
Automatic light
control system ....................... 252
Automatic transmission .......... 231
If the shift lever cannot be
shifted from P ..................... 237
AUX port ................................... 407
Auxiliary boxes ........................ 460
Back-up lights
Replacing light bulbs ..... 542, 549
Wattage................................. 642
Battery
Battery checking ................... 494
If the vehicle battery is
discharged .......................... 604
Preparing and checking
before winter....................... 374
Warning light ......................... 566
Bluetooth®*.............................. 430
Audio system ........................ 424
Hands-free system
(for cellular phone).............. 408
Registering/removing a
Bluetooth® device ............... 415
Selecting a Bluetooth®
device ................................. 415
Wireless
communication ................... 408
Bluetooth® audio*................... 408
Bluetooth® phone*.................. 408
Deleting the call history......... 420
Making a call ......................... 426
Managing the contacts.......... 419
Phone settings ...................... 419
Receiving a call..................... 427
Speaking on the phone ......... 426
Bottle holders .......................... 459
Brake
Fluid ...................................... 638
Override system warning
light..................................... 569
Parking brake........................ 247
Warning light ......................... 566
Brake assist ............................. 355
Break-in tips ............................. 196
Brightness control
Instrument panel light
control................................. 132
Care
Exterior ................................. 472
Interior................................... 476
Seat belts .............................. 477
Wheels .................................. 473
CD player .................................. 387
Chains....................................... 375
Child restraint system ............... 65
Child restraint system
installation method ............... 89
Fixed with a seat belt .............. 90
Fixed with an ISOFIX lower
anchorage ............................ 92
Points to remember ................ 66
Riding with children................. 64
Using a top tether
anchorage ............................ 95
B
C
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
