TOYOTA HILUX 2023 Owners Manual

2394-2. Driving procedures
4
Driving
HILUX_OM_OM0K789E_(EE)

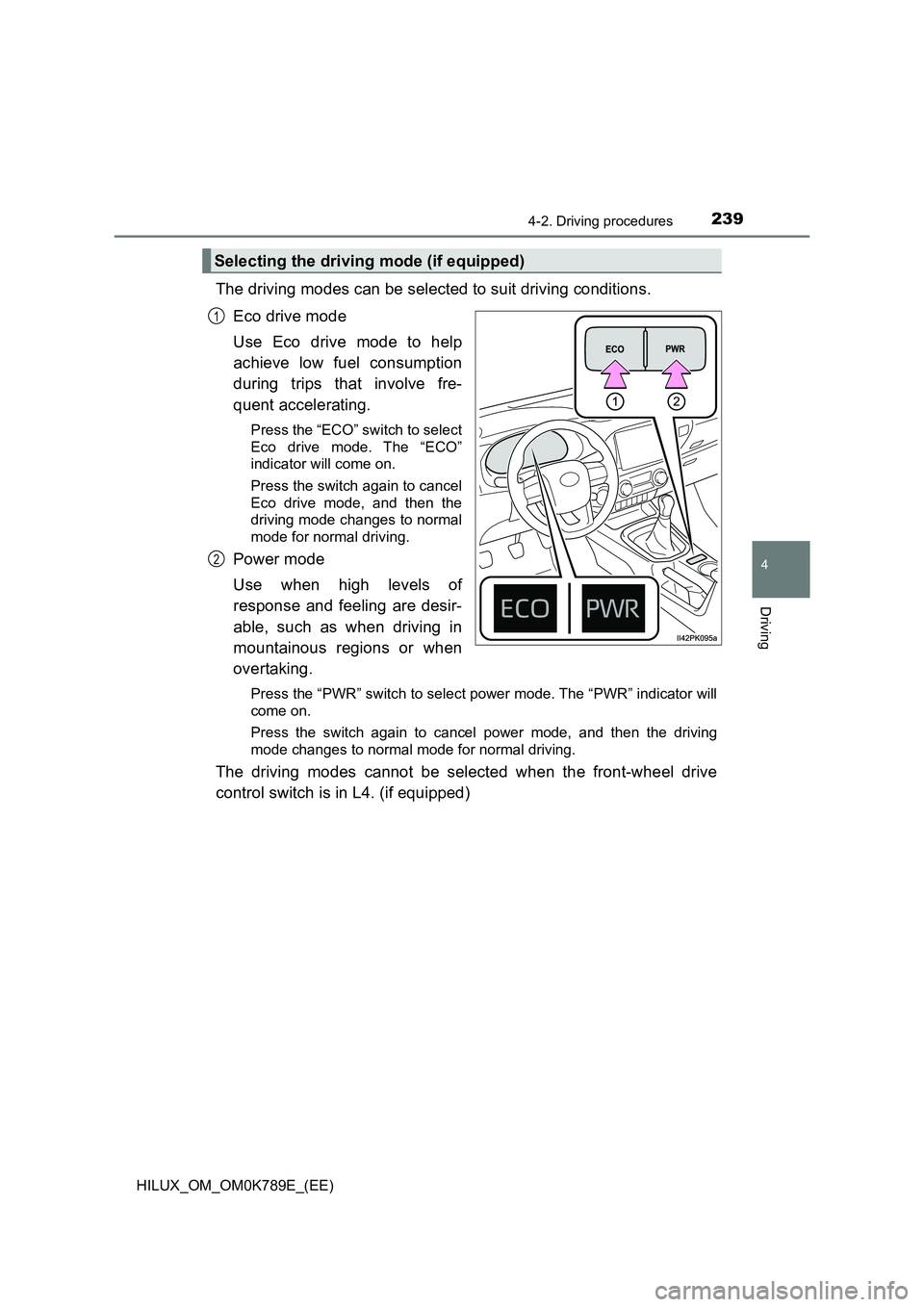

The driving modes can be selected to suit driving conditions.
Eco drive mode
Use Eco drive mode to help
achieve low fuel consumption
during trips that involve fre-
quent accelerating.
Press the “ECO” switch to select
Eco drive mode. The “ECO”
indicator will come on.
Press the switch again to cancel
Eco drive mode, and then the
driving mode changes to normal
mode for normal driving.
Power mode
Use when high levels of
response and feeling are desir-
able, such as when driving in
mountainous regions or when
overtaking.
Press the “PWR” switch to select power mode. The “PWR” indicator will
come on.
Press the switch again to cancel power mode, and then the driving
mode changes to normal mode for normal driving.
The driving modes cannot be selected when the front-wheel drive
control switch is in L4. (if equipped)
Selecting the driving mode (if equipped)
1
2

2404-2. Driving procedures
HILUX_OM_OM0K789E_(EE)

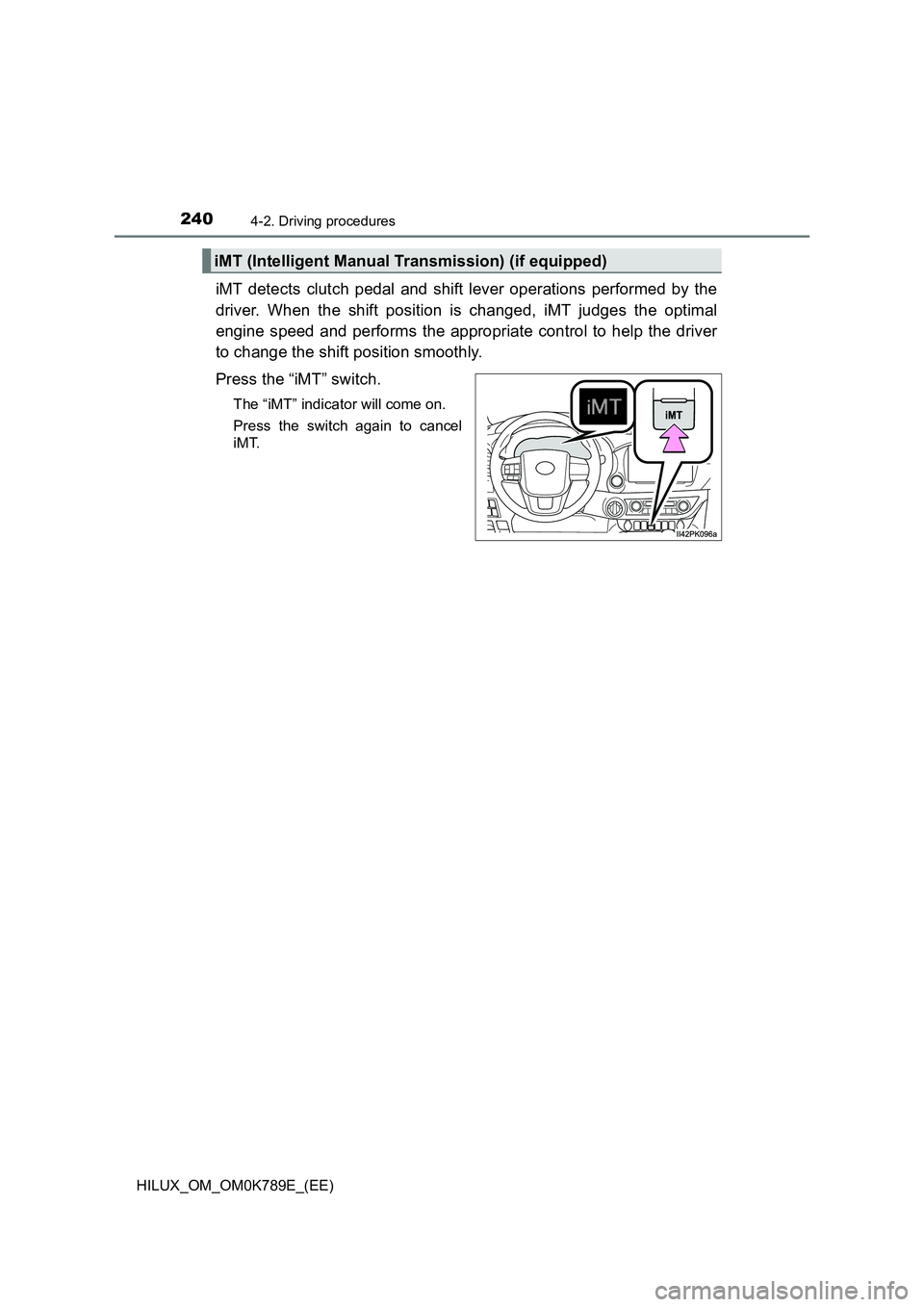

iMT detects clutch pedal and shift lever operations performed by the
driver. When the shift position is changed, iMT judges the optimal
engine speed and performs the appropriate control to help the driver
to change the shift position smoothly.
Press the “iMT” switch.
The “iMT” indicator will come on.
Press the switch again to cancel
iMT.
iMT (Intelligent Manual Transmission) (if equipped)

2414-2. Driving procedures
4
Driving
HILUX_OM_OM0K789E_(EE)

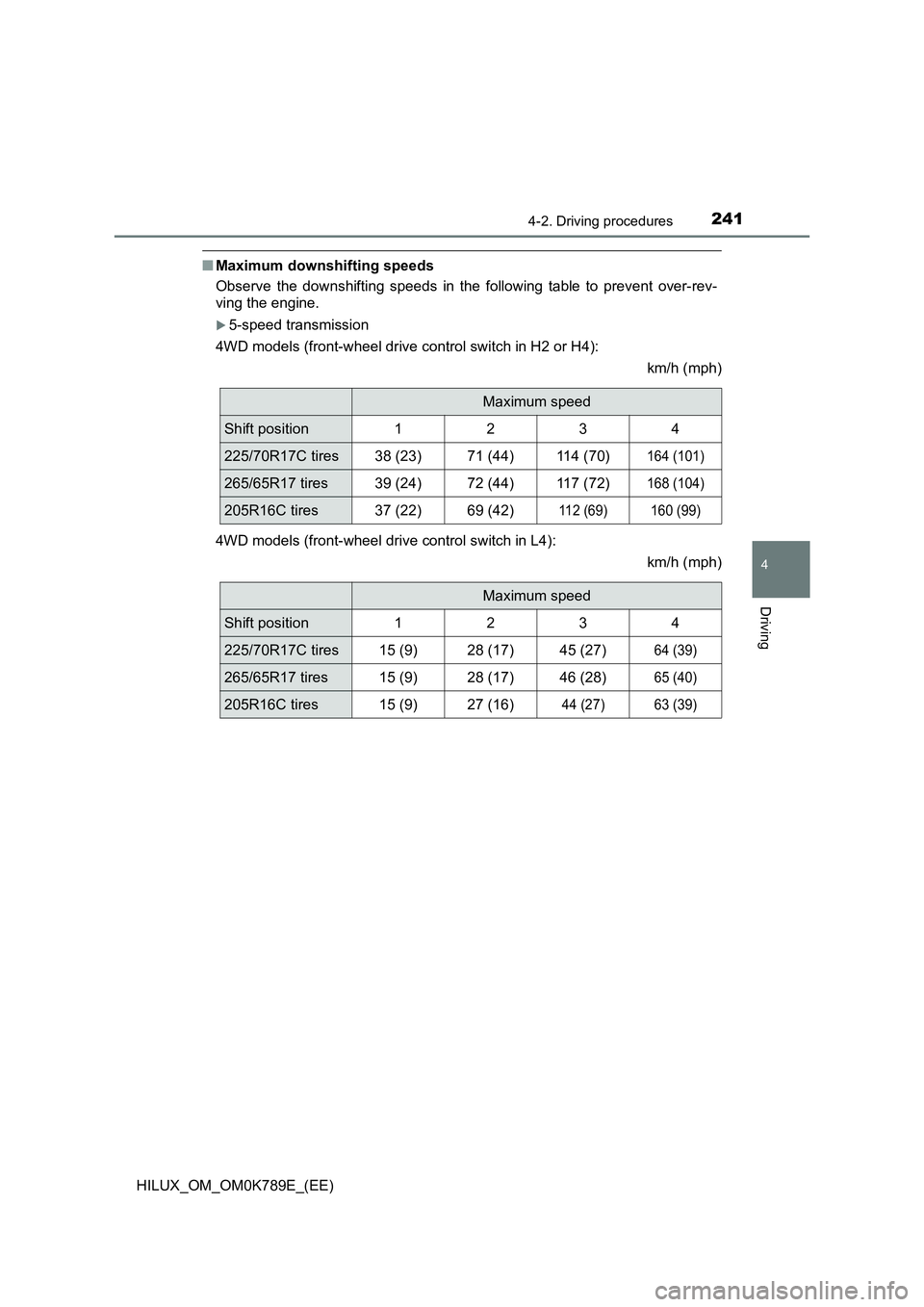

■Maximum downshifting speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
5-speed transmission
4WD models (front-wheel drive control switch in H2 or H4):
km/h (mph)
4WD models (front-wheel drive control switch in L4):
km/h (mph)
Maximum speed
Shift position1234
225/70R17C tires38 (23)71 (44)114 (70)164 (101)
265/65R17 tires39 (24)72 (44)117 (72)168 (104)
205R16C tires37 (22)69 (42)112 (69)160 (99)
Maximum speed
Shift position1234
225/70R17C tires15 (9)28 (17)45 (27)64 (39)
265/65R17 tires15 (9)28 (17)46 (28)65 (40)
205R16C tires15 (9)27 (16)44 (27)63 (39)

2424-2. Driving procedures
HILUX_OM_OM0K789E_(EE)

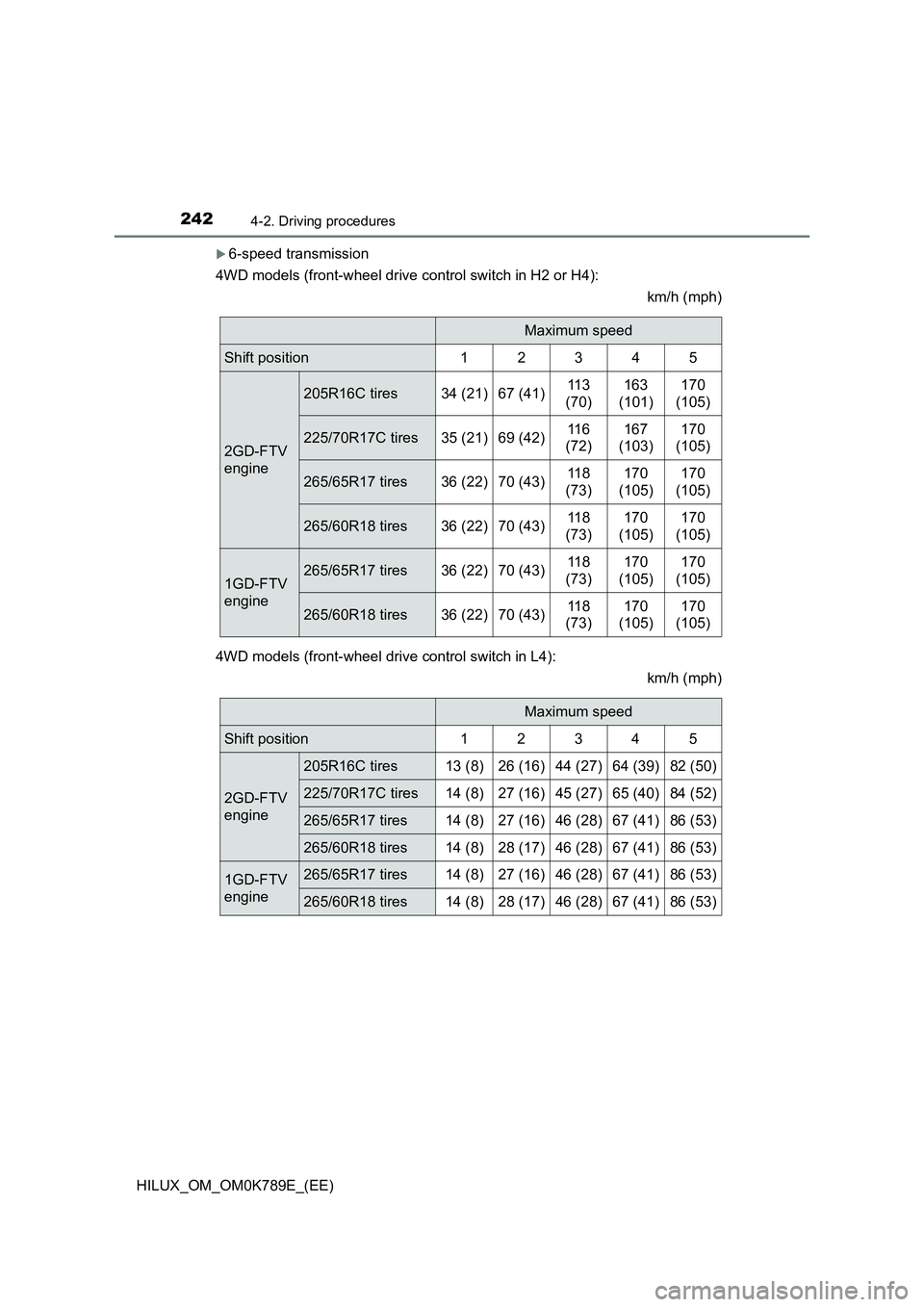

6-speed transmission
4WD models (front-wheel drive control switch in H2 or H4):
km/h (mph)
4WD models (front-wheel drive control switch in L4):
km/h (mph)
Maximum speed
Shift position12345
2GD-FTV
engine
205R16C tires34 (21)67 (41)113
(70)
163
(101)
170
(105)
225/70R17C tires35 (21)69 (42)116
(72)
167
(103)
170
(105)
265/65R17 tires36 (22)70 (43)118
(73)
170
(105)
170
(105)
265/60R18 tires36 (22)70 (43)118
(73)
170
(105)
170
(105)
1GD-FTV
engine
265/65R17 tires36 (22)70 (43)118
(73)
170
(105)
170
(105)
265/60R18 tires36 (22)70 (43)118
(73)
170
(105)
170
(105)
Maximum speed
Shift position 12345
2GD-FTV
engine
205R16C tires13 (8)26 (16)44 (27)64 (39)82 (50)
225/70R17C tires14 (8)27 (16)45 (27)65 (40)84 (52)
265/65R17 tires14 (8)27 (16)46 (28)67 (41)86 (53)
265/60R18 tires14 (8)28 (17)46 (28)67 (41)86 (53)
1GD-FTV
engine
265/65R17 tires14 (8)27 (16)46 (28)67 (41)86 (53)
265/60R18 tires14 (8)28 (17)46 (28)67 (41)86 (53)

2434-2. Driving procedures
4
Driving
HILUX_OM_OM0K789E_(EE)

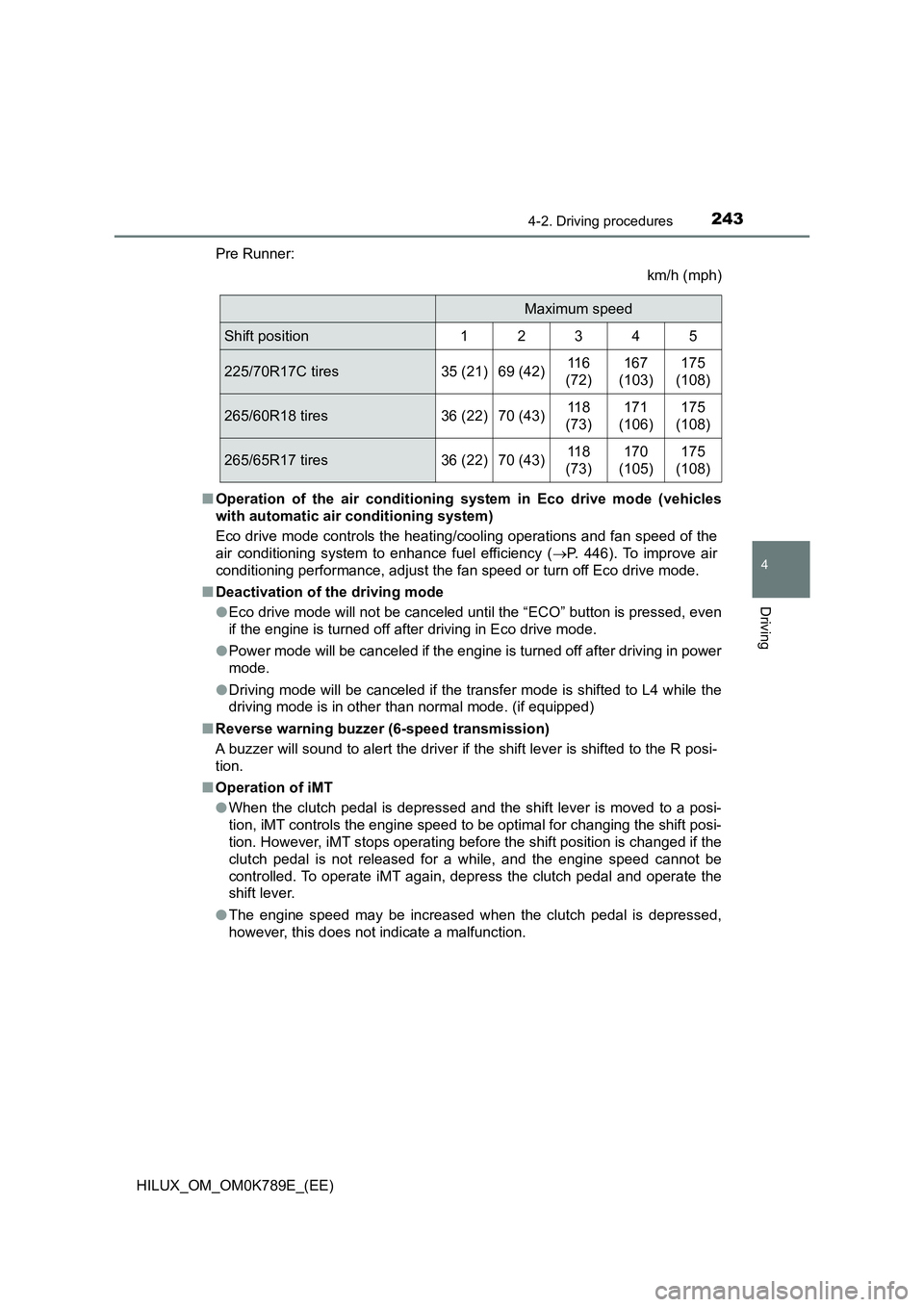

Pre Runner:
km/h (mph)
■ Operation of the air conditioning system in Eco drive mode (vehicles
with automatic air conditioning system)
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency ( P. 446). To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
■ Deactivation of the driving mode
● Eco drive mode will not be canceled until the “ECO” button is pressed, even
if the engine is turned off after driving in Eco drive mode.
● Power mode will be canceled if the engine is turned off after driving in power
mode.
● Driving mode will be canceled if the transfer mode is shifted to L4 while the
driving mode is in other than normal mode. (if equipped)
■ Reverse warning buzzer (6-speed transmission)
A buzzer will sound to alert the driver if the shift lever is shifted to the R posi-
tion.
■ Operation of iMT
● When the clutch pedal is depressed and the shift lever is moved to a posi-
tion, iMT controls the engine speed to be optimal for changing the shift posi-
tion. However, iMT stops operating before the shift position is changed if the
clutch pedal is not released for a while, and the engine speed cannot be
controlled. To operate iMT again, depress the clutch pedal and operate the
shift lever.
● The engine speed may be increased when the clutch pedal is depressed,
however, this does not indicate a malfunction.
Maximum speed
Shift position12345
225/70R17C tires35 (21)69 (42)116
(72)
167
(103)
175
(108)
265/60R18 tires36 (22)70 (43)118
(73)
171
(106)
175
(108)
265/65R17 tires36 (22)70 (43)118
(73)
170
(105)
175
(108)

2444-2. Driving procedures
HILUX_OM_OM0K789E_(EE)

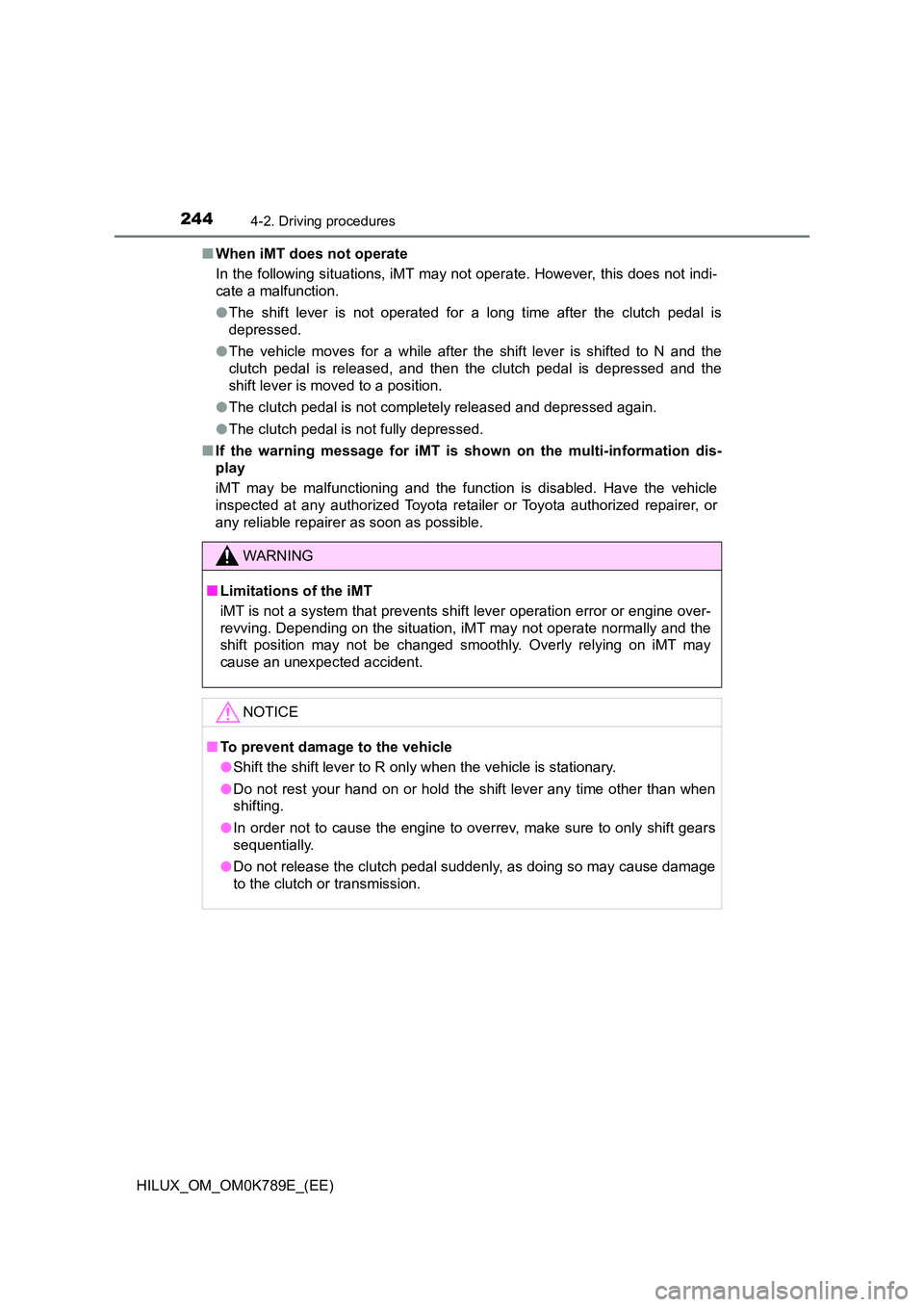

■ When iMT does not operate
In the following situations, iMT may not operate. However, this does not indi-
cate a malfunction.
● The shift lever is not operated for a long time after the clutch pedal is
depressed.
● The vehicle moves for a while after the shift lever is shifted to N and the
clutch pedal is released, and then the clutch pedal is depressed and the
shift lever is moved to a position.
● The clutch pedal is not completely released and depressed again.
● The clutch pedal is not fully depressed.
■ If the warning message for iMT is shown on the multi-information dis-
play
iMT may be malfunctioning and the function is disabled. Have the vehicle
inspected at any authorized Toyota reta iler or Toyota authorized repairer, or
any reliable repairer as soon as possible.
WARNING
■ Limitations of the iMT
iMT is not a system that prevents shift lever operation error or engine over-
revving. Depending on the situation, iMT may not operate normally and the
shift position may not be changed smoothly. Overly relying on iMT may
cause an unexpected accident.
NOTICE
■ To prevent damage to the vehicle
● Shift the shift lever to R only when the vehicle is stationary.
● Do not rest your hand on or hold the shift lever any time other than when
shifting.
● In order not to cause the engine to overrev, make sure to only shift gears
sequentially.
● Do not release the clutch pedal suddenly, as doing so may cause damage
to the clutch or transmission.

245
4
4-2. Driving procedures
Driving
HILUX_OM_OM0K789E_(EE)
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
■ Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
■ Customization
The number of times the turn signals flash during a lane change can be
changed.
(Customizable features: P. 647)
Operating instructions
1
2
3
4

2464-2. Driving procedures
HILUX_OM_OM0K789E_(EE)
Parking brake
Sets the parking brake
Fully pull the parking brake while
depressing the brake pedal.
At this time, the parking brake indi-
cator light will come on.
Releases the parking brake
Slightly raise the lever and lower it
completely while pressing the but-
ton.
At this time, the parking brake indi-
cator light will go off.
■ Parking the vehicle
 P. 191
■ Parking brake engaged warning buzzer
 P. 571
■ Usage in winter time
 P. 373
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

247
4
4-3. Operating the lights and wipers
Driving
HILUX_OM_OM0K789E_(EE)
Headlight switch
Operating the switch turns on the lights as follows:
Ty pe A
The headlights, front posi-
tion, tail, license plate,
instrument panel lights,
and daytime running
lights (if equipped) (P.
251) turn on and off auto-
matically (when the
engine switch is in the
“ON” position [vehicles
without smart entry &
start system] or IGNI-
TION ON mode [vehicles
with smart entry & start
system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3

2484-3. Operating the lights and wipers
HILUX_OM_OM0K789E_(EE)

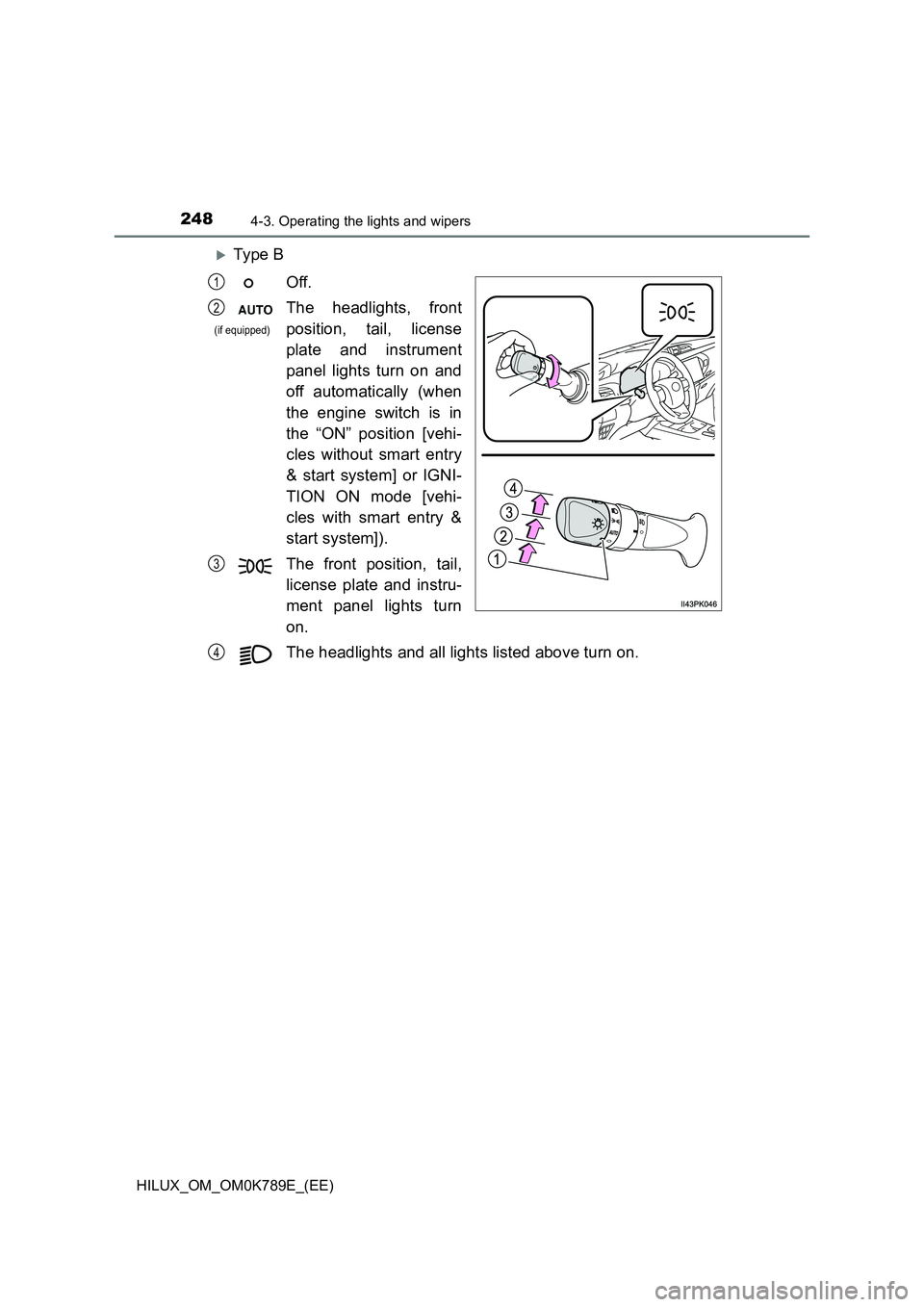

Ty pe B
Off.
The headlights, front
position, tail, license
plate and instrument
panel lights turn on and
off automatically (when
the engine switch is in
the “ON” position [vehi-
cles without smart entry
& start system] or IGNI-
TION ON mode [vehi-
cles with smart entry &
start system]).
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all lights listed above turn on.
1
2
(if equipped)
3
4
