TOYOTA HILUX 2023 Owners Manual

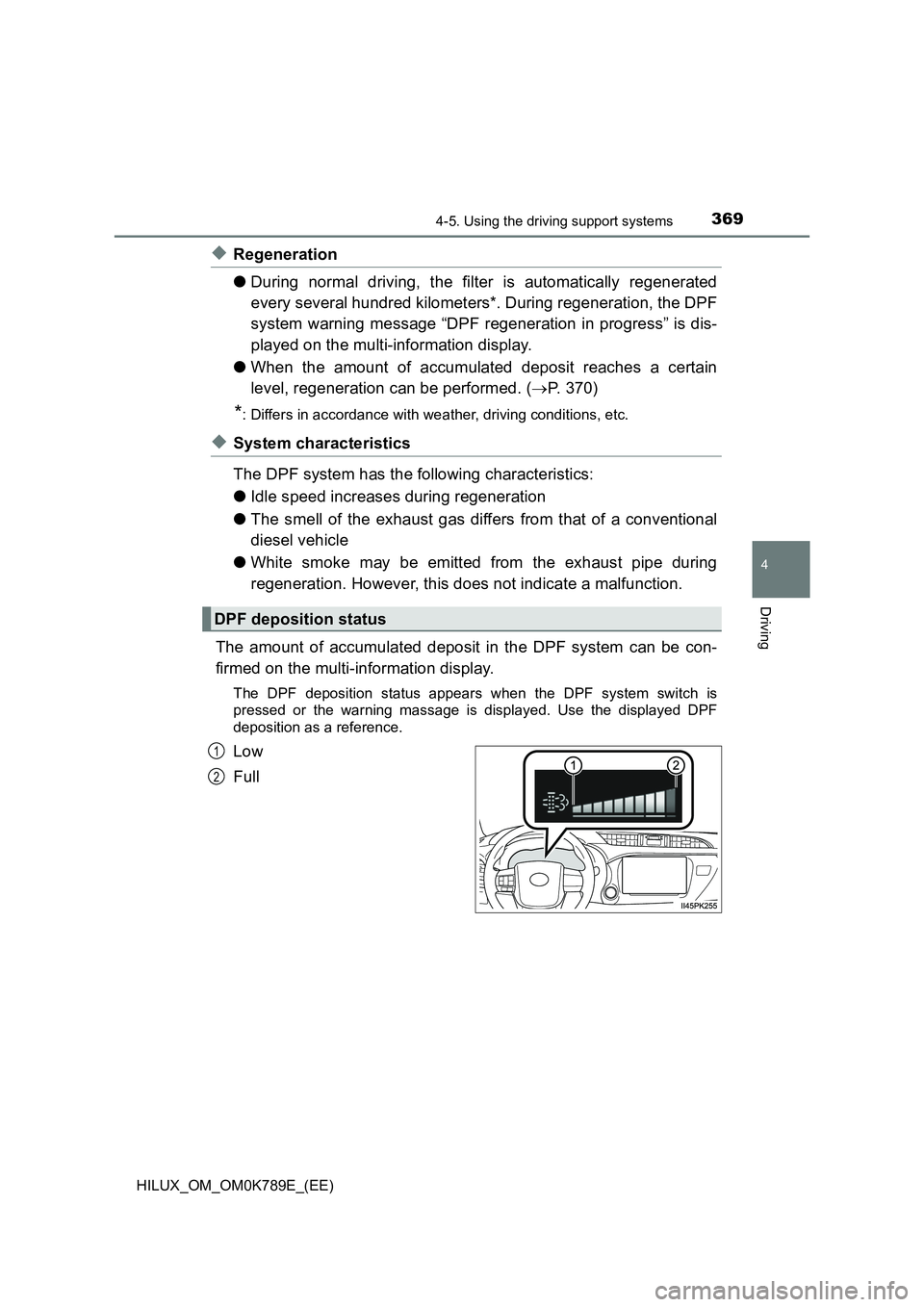

3694-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K789E_(EE)
◆Regeneration
● During normal driving, the filter is automatically regenerated
every several hundred kilometers*. During regeneration, the DPF
system warning message “DPF regeneration in progress” is dis-
played on the multi-information display.
● When the amount of accumulated deposit reaches a certain
level, regeneration can be performed. ( P. 370)
*: Differs in accordance with weather, driving conditions, etc.
◆System characteristics
The DPF system has the following characteristics:
● Idle speed increases during regeneration
● The smell of the exhaust gas differs from that of a conventional
diesel vehicle
● White smoke may be emitted from the exhaust pipe during
regeneration. However, this does not indicate a malfunction.
The amount of accumulated deposit in the DPF system can be con-
firmed on the multi-information display.
The DPF deposition status appears when the DPF system switch is
pressed or the warning massage is displayed. Use the displayed DPF
deposition as a reference.
Low
Full
DPF deposition status
1
2

3704-5. Using the driving support systems
HILUX_OM_OM0K789E_(EE)
●If the DPF system warning message “DPF full See owner’s manual”
appears on the multi-information display, follow the procedure
below to regenerate.
When regenerating the filter during driving the vehicle
To regenerate the filter, the following driving methods are recom-
mended.*1
• By driving continuously (for example, at around 60 km/h [37 mph]
for 20 to 30 minutes).
• By avoiding short trips, or by driving continuously (leaving the
engine running for long periods of time).
Check the engine is warmed up before driving the vehicle to regenerate
the filter. If the engine is cold, warm up the engine by driving the vehicle
downshifting to increase the engine speed.*2
The warning message will disappear on the multi-information display when
regeneration is complete. However, depending on the driving condition
such as heavy traffic, the amount of accumulated deposit increases and
the warning message may not disappear on the multi-information display.
If the warning message does not disappear on the multi-information dis-
play after driving, press the DPF system switch to manually regenerate the
filter.
Regeneration during driving cannot be performed when the vehicle is
higher than 4000 m (13124 ft.) above sea level.
*1: When driving, pay sufficient attention to weather, road conditions, ter-
rain and traffic conditions, and drive according to traffic laws.
*2: Depending on the situation, it may be necessary to downshift until the
engine speed is increased to 3000 rpm. If the engine coolant tempera-
ture or exhaust gas temperature is low, it may take a long time to
regenerate, or regeneration may be impossible.
DPF system failure warning

3714-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K789E_(EE)
When regenerating the filter by pressing the DPF system switch
Stop the vehicle in a safe place.
Shift the shift lever to P (automatic transmission) or N (manual
transmission), and firmly set the parking brake.
Do not stop the engine.
Also, make sure that there are no flammable materials near the exhaust
pipe. ( P. 368)
Check the engine is warmed up. If the engine is cold, warm up the engine
by depressing the accelerator pedal.*1
Press the DPF system switch.
The DPF system warning message
shown in the illustration appears
on the multi-information display,
and the idling engine speed will
increase.
Regeneration will take around 15 -
40 minutes to complete.*2
When the DPF system warning message disappears on the multi-
information display, the idling engine speed will have finished return-
ing to normal.
The DPF system switch may not operate when the vehicle is higher
than 4000 m (13123 ft.) above sea level.
*1: Depending on the situation, it may be necessary to depress the acceler-
ator pedal until the engine speed is increased to 3000 rpm. If the engine
coolant temperature or exhaust gas temperature is low, it may take a
long time to regenerate, or regeneration may be impossible.
*2: Time required for regeneration differs in accordance with the outside
temperature. Also, if the engine speed is still approximately 2000 rpm
10 minutes after pressing the DPF system switch, the exhaust gas tem-
perature may be low. In this case, depress the accelerator pedal to run
the engine at approximately 3000 rpm for a while.
When depressing the accelerator pedal, regeneration will be stopped. In
this case, restart regeneration.
1
2
3

3724-5. Using the driving support systems
HILUX_OM_OM0K789E_(EE)
●If the “DPF full Manual regeneration required See owner’s manual”
appears on the multi-information display, press the DPF system
switch to regenerate the filter. ( P. 370)
● If the DPF system warning message “DPF full Visit your dealer”
appears on the multi-information display and a buzzer sounds (mal-
function indicator lamp comes on), have the vehicle inspected by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
■ Regeneration with the DPF system switch
● After pressing the DPF system switch, depressing the accelerator pedal or
clutch pedal (manual transmission) will stop regeneration. If regeneration
has been stopped, restart regeneration as soon as possible.
● After regeneration is finished, race the engine several time to clean the
exhaust system.
■ DPF system warning
Under the following driving conditions, the DPF system warning message
may be displayed on the multi-information display earlier than normal.*
● When only driving at low speeds (for example 20 km/h [12 mph] or below).
● If the engine is turned on and off frequently (if the engine is not left running
for more than 10 minutes at a time).
*: Differs in accordance with weather, driving conditions, etc.
NOTICE
■ If the malfunction indicator lamp comes on (warning buzzer)
The malfunction indicator lamp comes on if you continue driving while the
DPF system warning message appears on the multi-information display. In
this event, damage may be caused to the vehicle or an accident may occur.
Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.

373
4
4-6. Driving tips
Driving
HILUX_OM_OM0K789E_(EE)
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

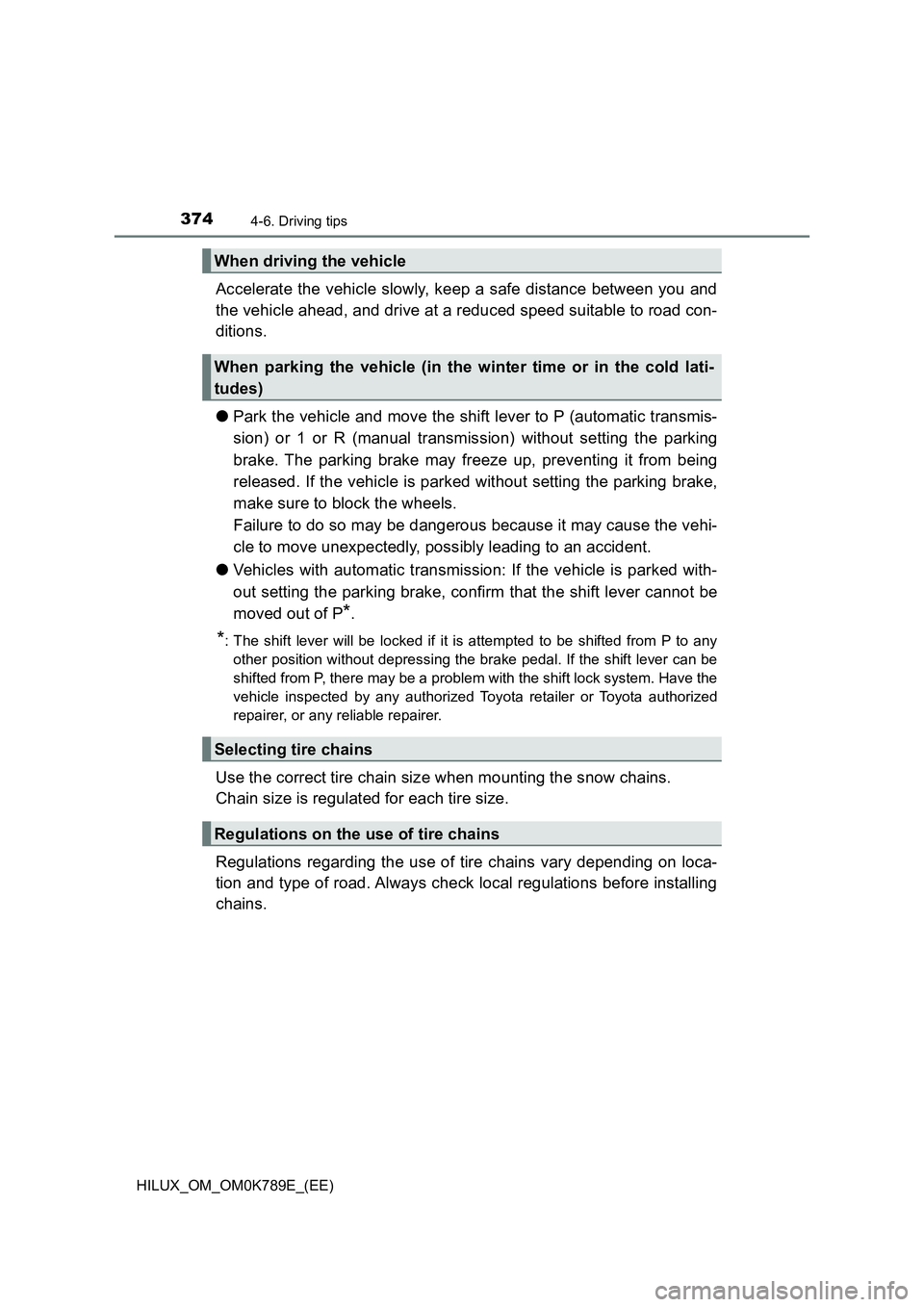

3744-6. Driving tips
HILUX_OM_OM0K789E_(EE)
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
● Park the vehicle and move the shift lever to P (automatic transmis-
sion) or 1 or R (manual transmission) without setting the parking
brake. The parking brake may freeze up, preventing it from being
released. If the vehicle is parked without setting the parking brake,
make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
● Vehicles with automatic transmission: If the vehicle is parked with-
out setting the parking brake, confirm that the shift lever cannot be
moved out of P*.
*: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
When driving the vehicle
When parking the vehicle (in the winter time or in the cold lati-
tudes)
Selecting tire chains
Regulations on the use of tire chains

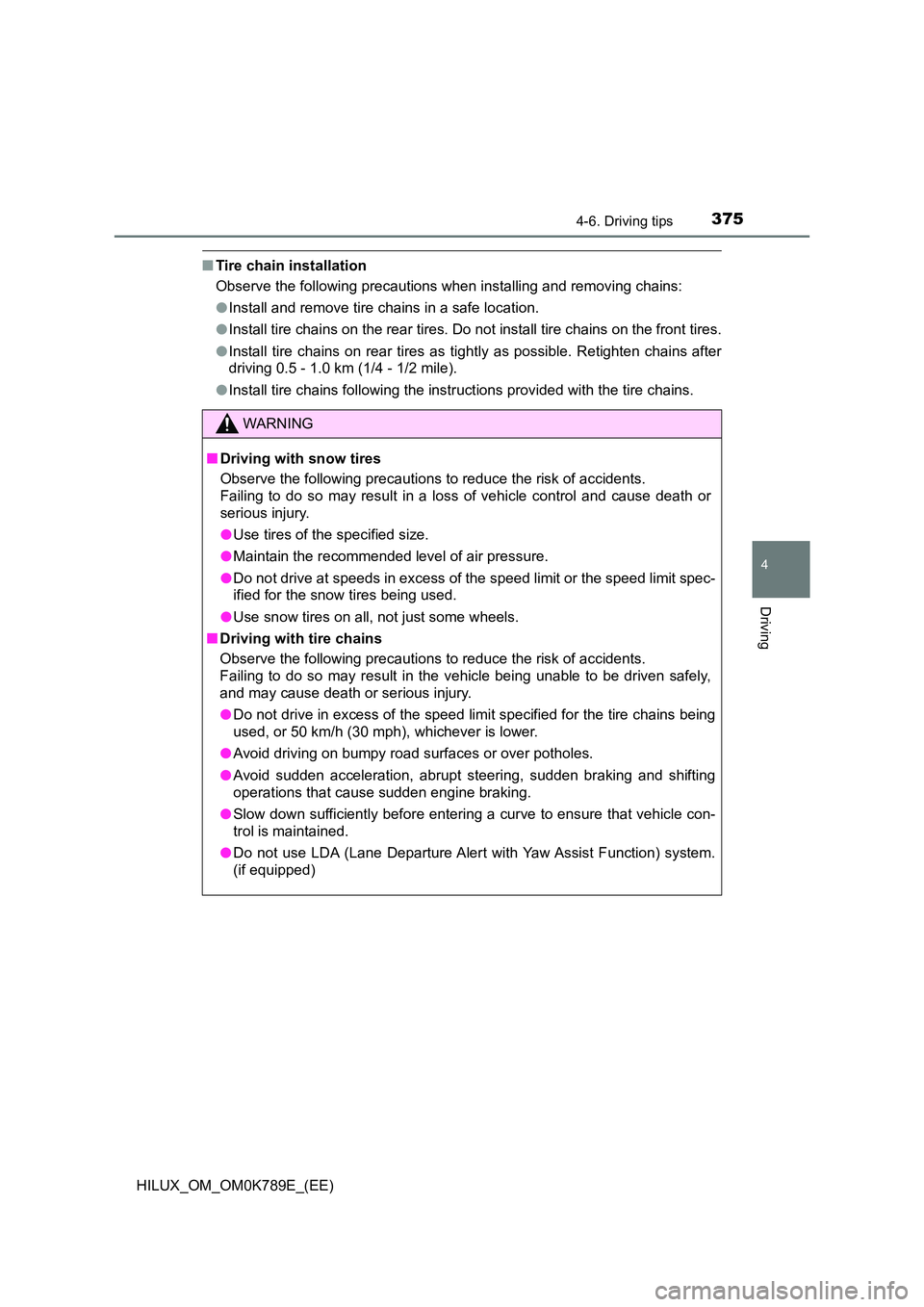

3754-6. Driving tips
4
Driving
HILUX_OM_OM0K789E_(EE)
■Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the rear tires. Do not install tire chains on the front tires.
● Install tire chains on rear tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert with Yaw Assist Function) system.
(if equipped)

3764-6. Driving tips
HILUX_OM_OM0K789E_(EE)

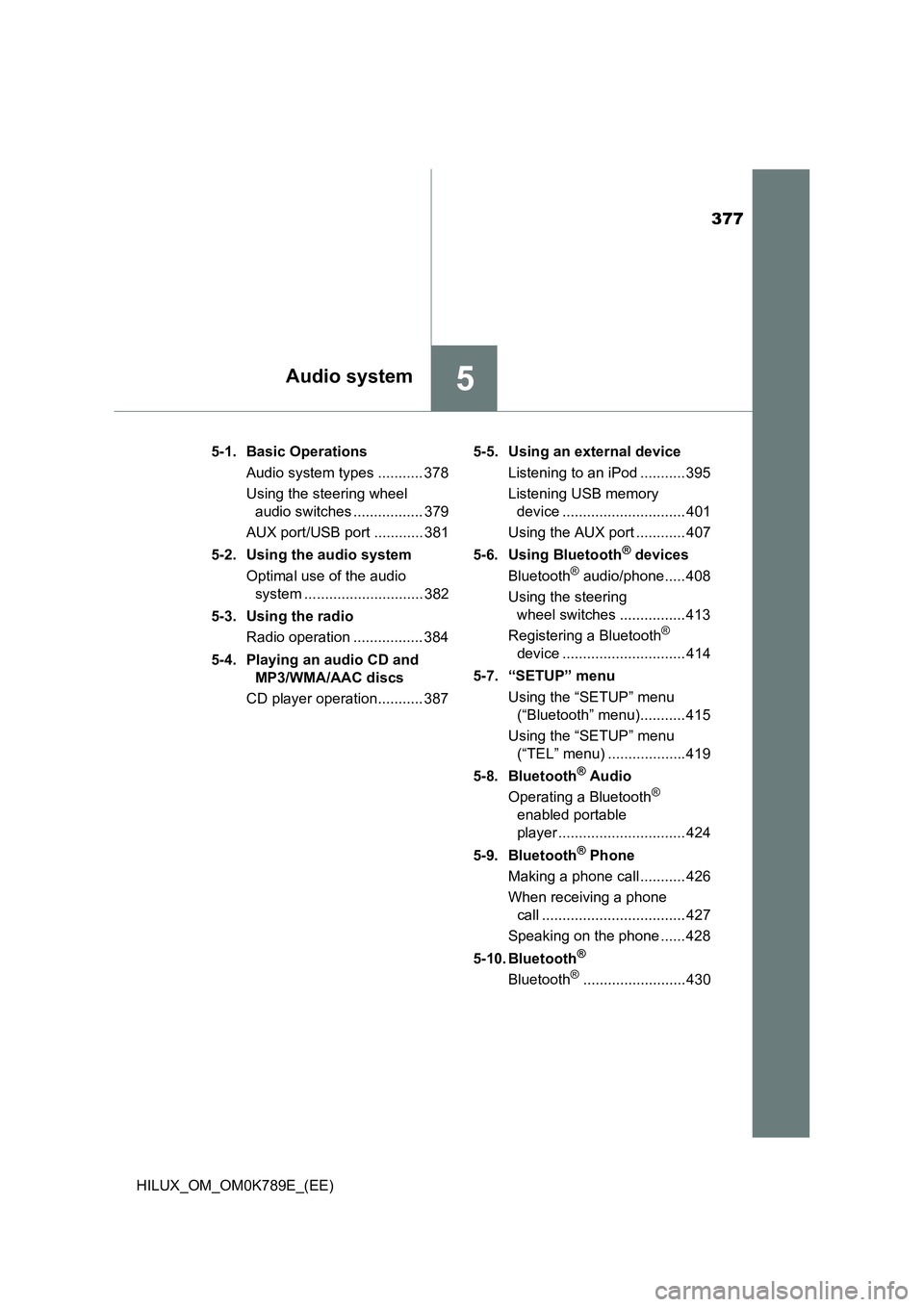

377
5Audio system
HILUX_OM_OM0K789E_(EE)
5-1. Basic Operations
Audio system types ........... 378
Using the steering wheel
audio switches ................. 379
AUX port/USB port ............ 381
5-2. Using the audio system
Optimal use of the audio
system ............................. 382
5-3. Using the radio
Radio operation ................. 384
5-4. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation........... 387
5-5. Using an external device
Listening to an iPod ........... 395
Listening USB memory
device .............................. 401
Using the AUX port ............ 407
5-6. Using Bluetooth® devices
Bluetooth® audio/phone..... 408
Using the steering
wheel switches ................ 413
Registering a Bluetooth®
device .............................. 414
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth” menu)........... 415
Using the “SETUP” menu
(“TEL” menu) ................... 419
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ............................... 424
5-9. Bluetooth® Phone
Making a phone call ........... 426
When receiving a phone
call ................................... 427
Speaking on the phone ...... 428
5-10. Bluetooth®
Bluetooth®......................... 430

3785-1. Basic Operations
HILUX_OM_OM0K789E_(EE)

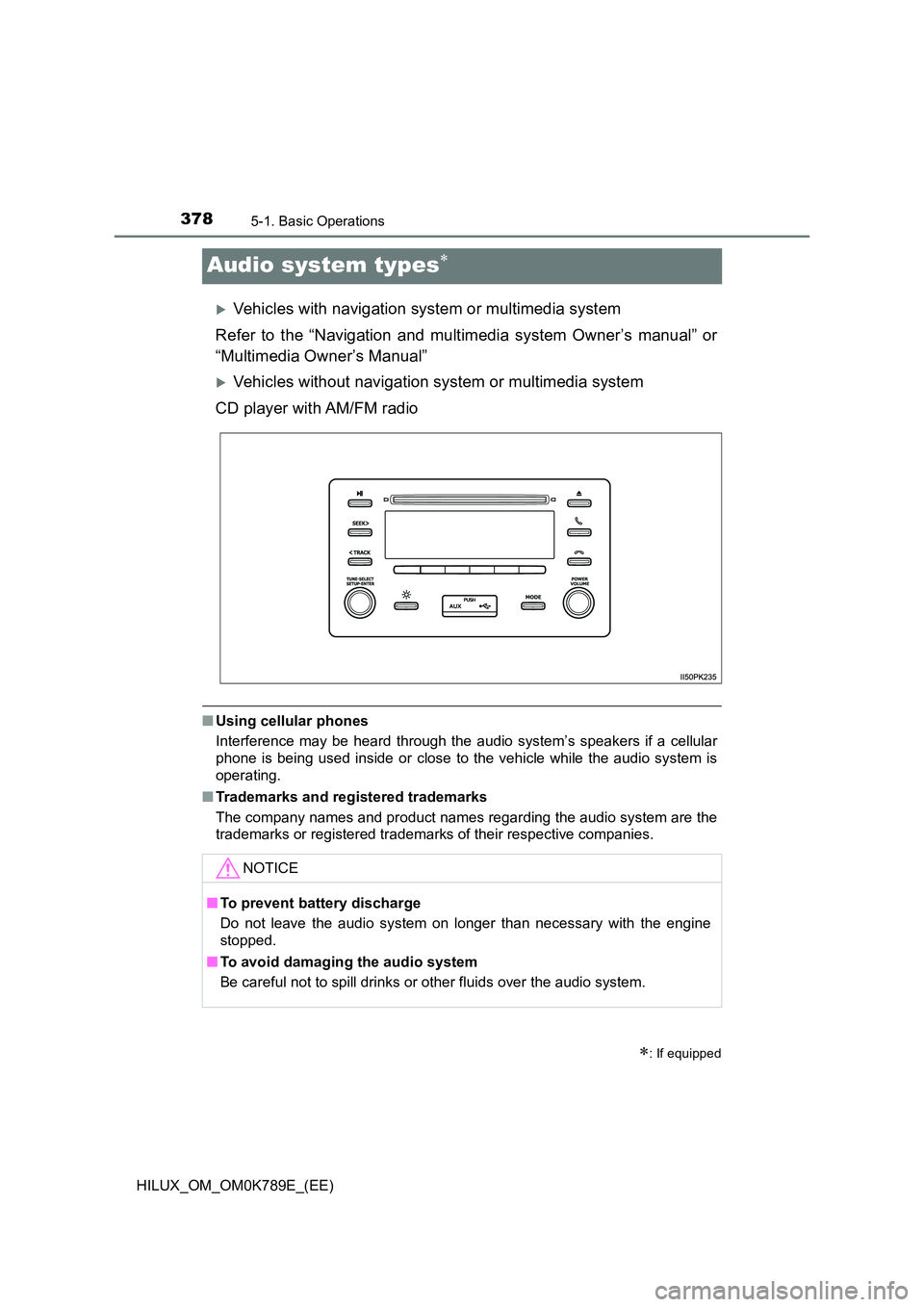

Audio system types
Vehicles with navigation system or multimedia system
Refer to the “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”
Vehicles without navigation system or multimedia system
CD player with AM/FM radio
■ Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
■ Trademarks and registered trademarks
The company names and product names regarding the audio system are the
trademarks or registered trademarks of their respective companies.
: If equipped
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine
stopped.
■ To avoid damaging the audio system
Be careful not to spill drinks or other fluids over the audio system.
