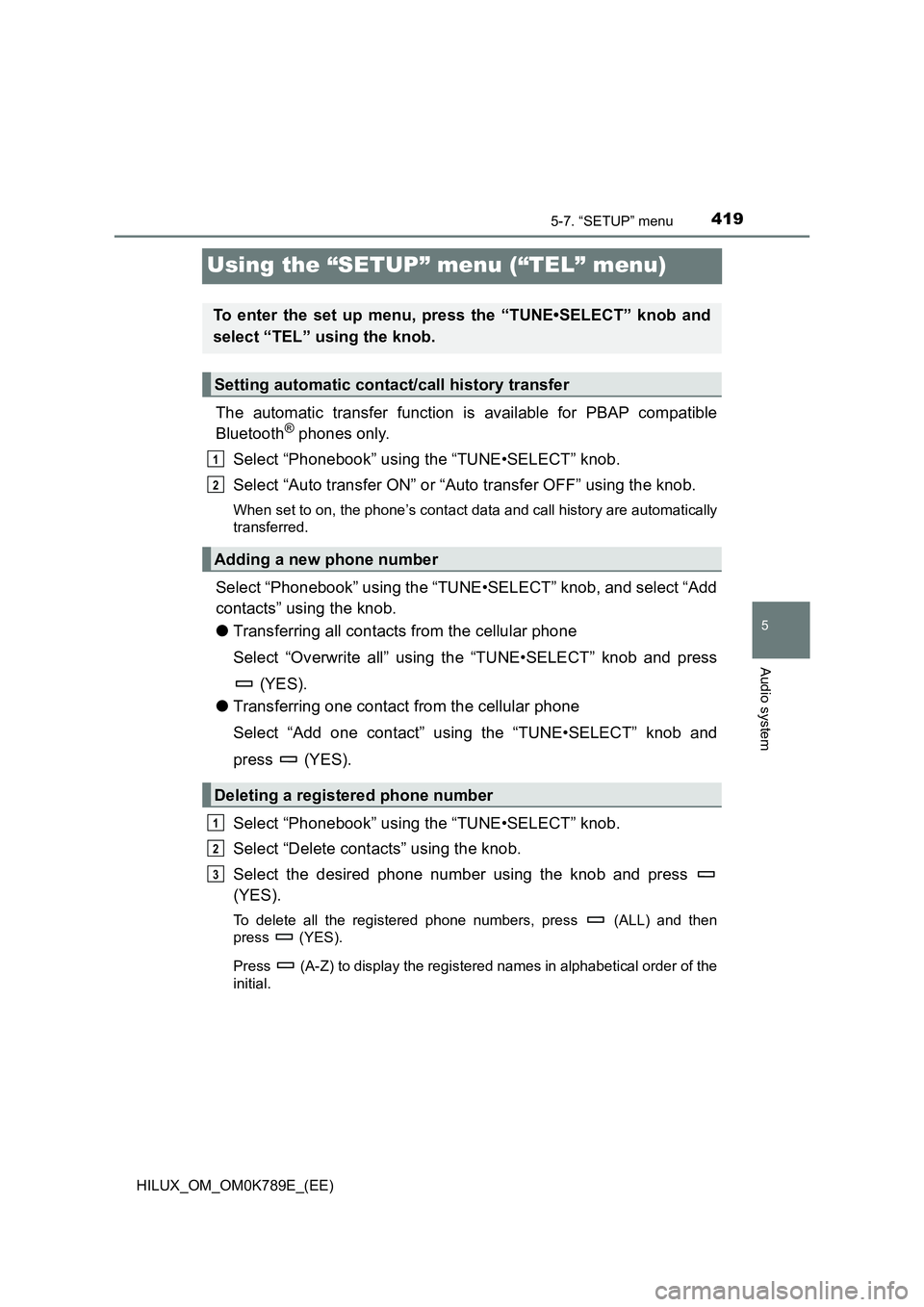

TOYOTA HILUX 2023 Owners Manual

419
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K789E_(EE)
Using the “SETUP” menu (“TEL” menu)
The automatic transfer function is available for PBAP compatible
Bluetooth® phones only.
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Auto transfer ON” or “Auto transfer OFF” using the knob.
When set to on, the phone’s contact data and call history are automatically
transferred.
Select “Phonebook” using the “TUNE•SELECT” knob, and select “Add
contacts” using the knob.
● Transferring all contacts from the cellular phone
Select “Overwrite all” using the “TUNE•SELECT” knob and press
(YES).
● Transferring one contact from the cellular phone
Select “Add one contact” using the “TUNE•SELECT” knob and
press (YES).
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Delete contacts” using the knob.
Select the desired phone number using the knob and press
(YES).
To delete all the registered phone numbers, press (ALL) and then
press (YES).
Press (A-Z) to display the registered names in alphabetical order of the
initial.
To enter the set up menu, press the “TUNE•SELECT” knob and
select “TEL” using the knob.
Setting automatic contact/call history transfer
Adding a new phone number
Deleting a registered phone number
1
2
1
2
3

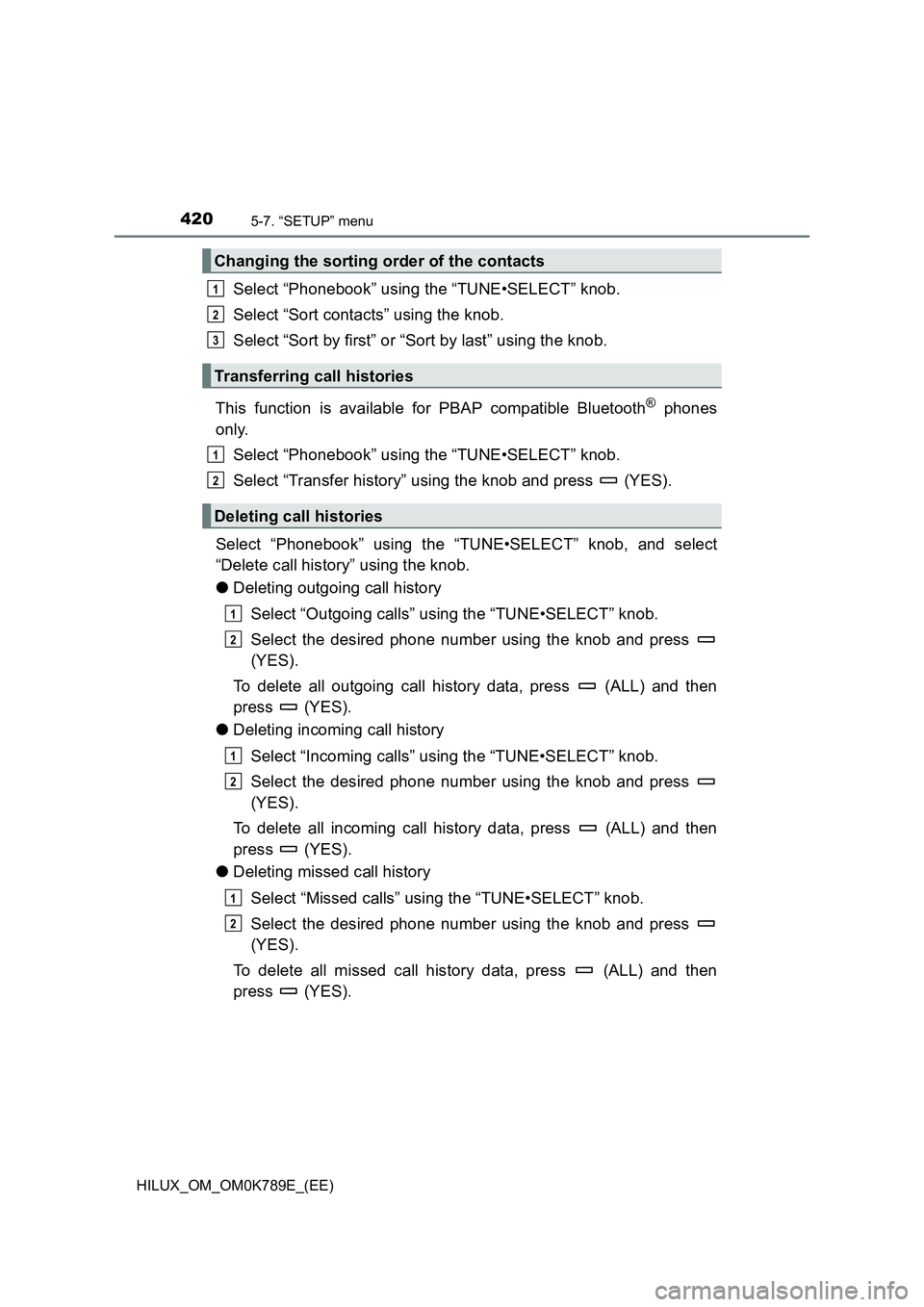

4205-7. “SETUP” menu
HILUX_OM_OM0K789E_(EE)
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Sort contacts” using the knob.
Select “Sort by first” or “Sort by last” using the knob.
This function is available for PBAP compatible Bluetooth® phones
only.
Select “Phonebook” using the “TUNE•SELECT” knob.
Select “Transfer history” using the knob and press (YES).
Select “Phonebook” using the “TUNE•SELECT” knob, and select
“Delete call history” using the knob.
● Deleting outgoing call history
Select “Outgoing calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all outgoing call history data, press (ALL) and then
press (YES).
● Deleting incoming call history
Select “Incoming calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all incoming call history data, press (ALL) and then
press (YES).
● Deleting missed call history
Select “Missed calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all missed call history data, press (ALL) and then
press (YES).
Changing the sorting order of the contacts
Transferring call histories
Deleting call histories
1
2
3
1
2
1
2
1
2
1
2

4215-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K789E_(EE)
●Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All calls” using the “TUNE•SELECT” knob.
Select the desired phone number using the knob and press
(YES).
To delete all of the call histories data, press (ALL) and then
press (YES).
Up to 15 contacts can be registered in the favorites list.
■Registering the contacts from the “SETUP” mode
Press the “TUNE•SELECT” knob.
Select “TEL” using the knob.
Select “Favourites” using knob.
Select “Add favourites” using the knob.
Press (A-Z) to display the registered names in alphabetical
order of the initial.
Select desired contact using the knob.
■Registering the contacts from the “TEL” mode
Press the off-hook button.
Select “Phonebook”, “All calls”, “Missed calls”, “Incoming calls” or
“Outgoing calls” using the “TUNE•SELECT” knob.
Select a desired number using the knob
Press (Add favourite).
● When 15 contacts have already been registered to the favorites
list, a registered contact needs to be replaced.
Select the contact to be replaced using the “TUNE•SELECT”
knob.
Select (YES) when the confirmation screen appears.
Registering favorites
1
2
1
2
3
4
5
1
2
3
4
1
2

4225-7. “SETUP” menu
HILUX_OM_OM0K789E_(EE)
■Deleting the contacts from the “SETUP” mode
Press the “TUNE•SELECT” knob.
Select “TEL” using the knob.
Select “Favourites” using the knob.
Select “Delete favourites” using the knob.
Select desired contact using the knob.
You can select all contacts by selecting (ALL).
Select (YES) when the confirmation screen appears.
■Deleting the contacts from the “TEL” mode
Press the off-hook button.
Select “Favourites” using the “TUNE•SELECT” knob.
Select a desired contact using the knob
Press (Delete favourite).
Select (YES) when the confirmation screen appears.
Select “HF sound setting” using the “TUNE•SELECT” knob.
Select “Call volume” using the knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Select “HF sound setting” using the “TUNE•SELECT” knob.
Select “Ringtone volume” using the knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (BACK).
Deleting favorites
Setting call volume
Setting ring tone volume
1
2
3
4
5
6
1
2
3
4
5
1
2
3
1
2
3

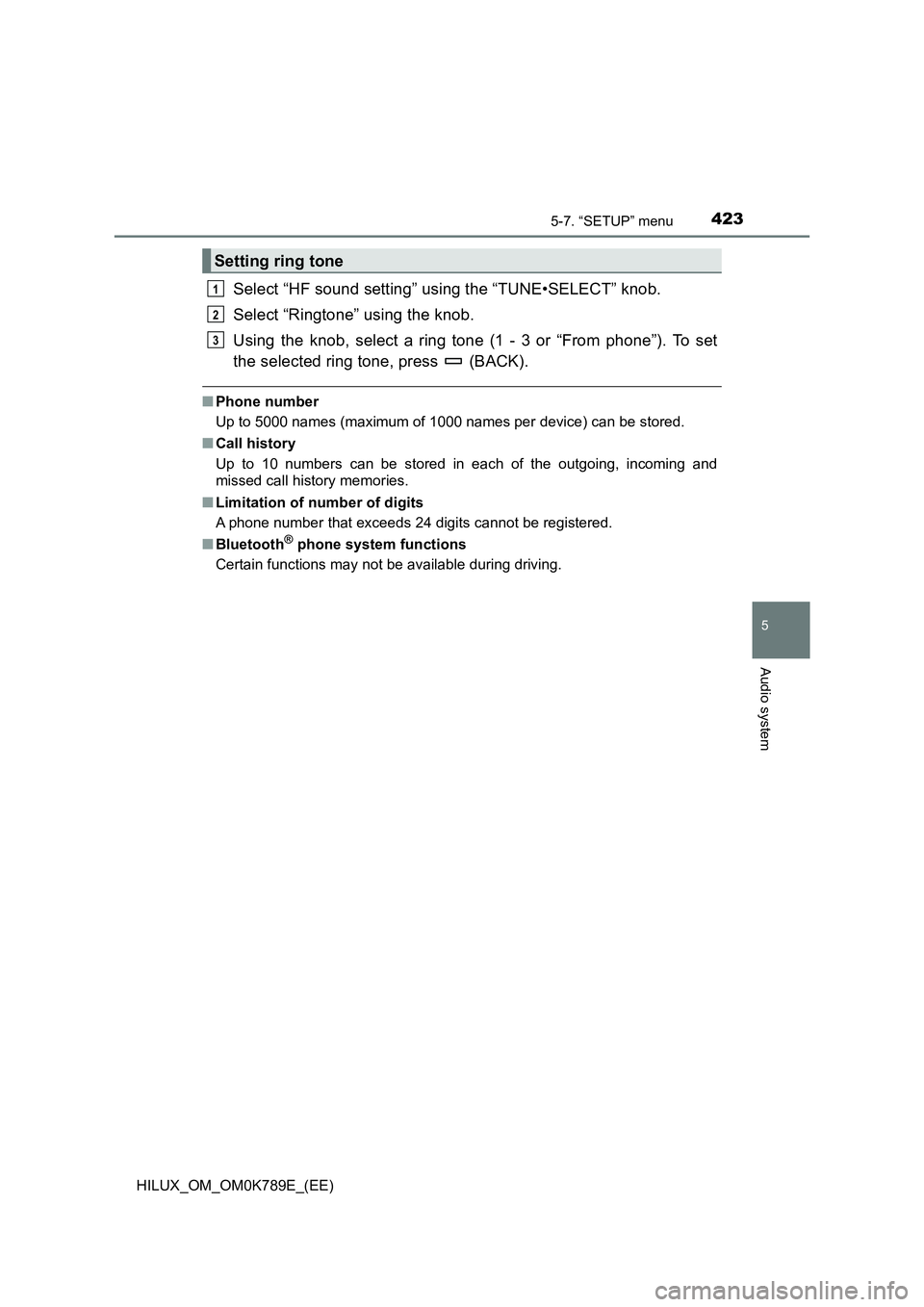

4235-7. “SETUP” menu
5
Audio system
HILUX_OM_OM0K789E_(EE)
Select “HF sound setting” using the “TUNE•SELECT” knob.
Select “Ringtone” using the knob.
Using the knob, select a ring tone (1 - 3 or “From phone”). To set
the selected ring tone, press (BACK).
■ Phone number
Up to 5000 names (maximum of 1000 names per device) can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
■ Bluetooth® phone system functions
Certain functions may not be available during driving.
Setting ring tone
1
2
3

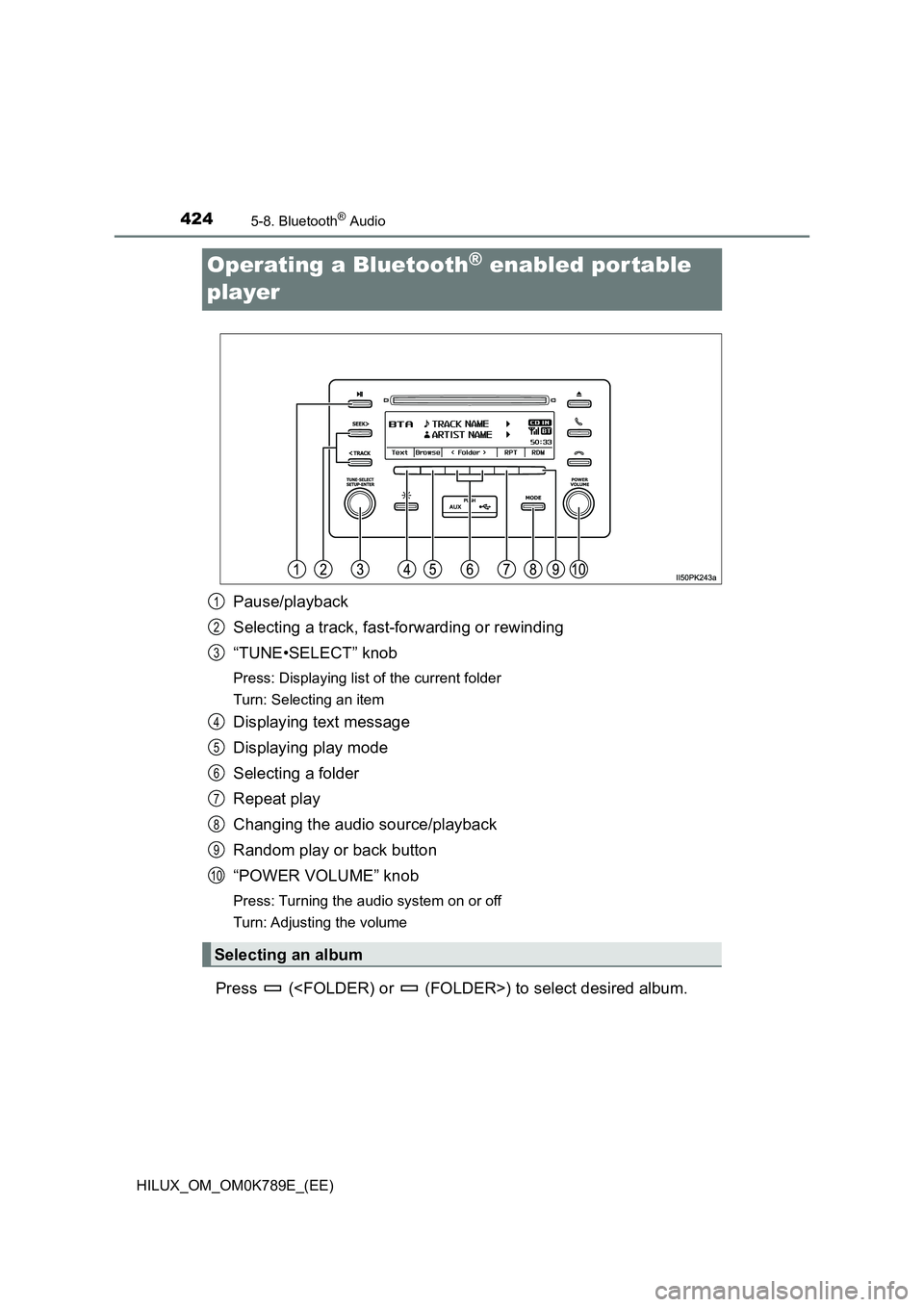

4245-8. Bluetooth® Audio
HILUX_OM_OM0K789E_(EE)
Operating a Bluetooth® enabled por table
player
Pause/playback
Selecting a track, fast-forwarding or rewinding
“TUNE•SELECT” knob
Press: Displaying list of the current folder
Turn: Selecting an item
Displaying text message
Displaying play mode
Selecting a folder
Repeat play
Changing the audio source/playback
Random play or back button
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Press () to select desired album.
Selecting an album
1
2
3
4
5
6
7
8
9
10

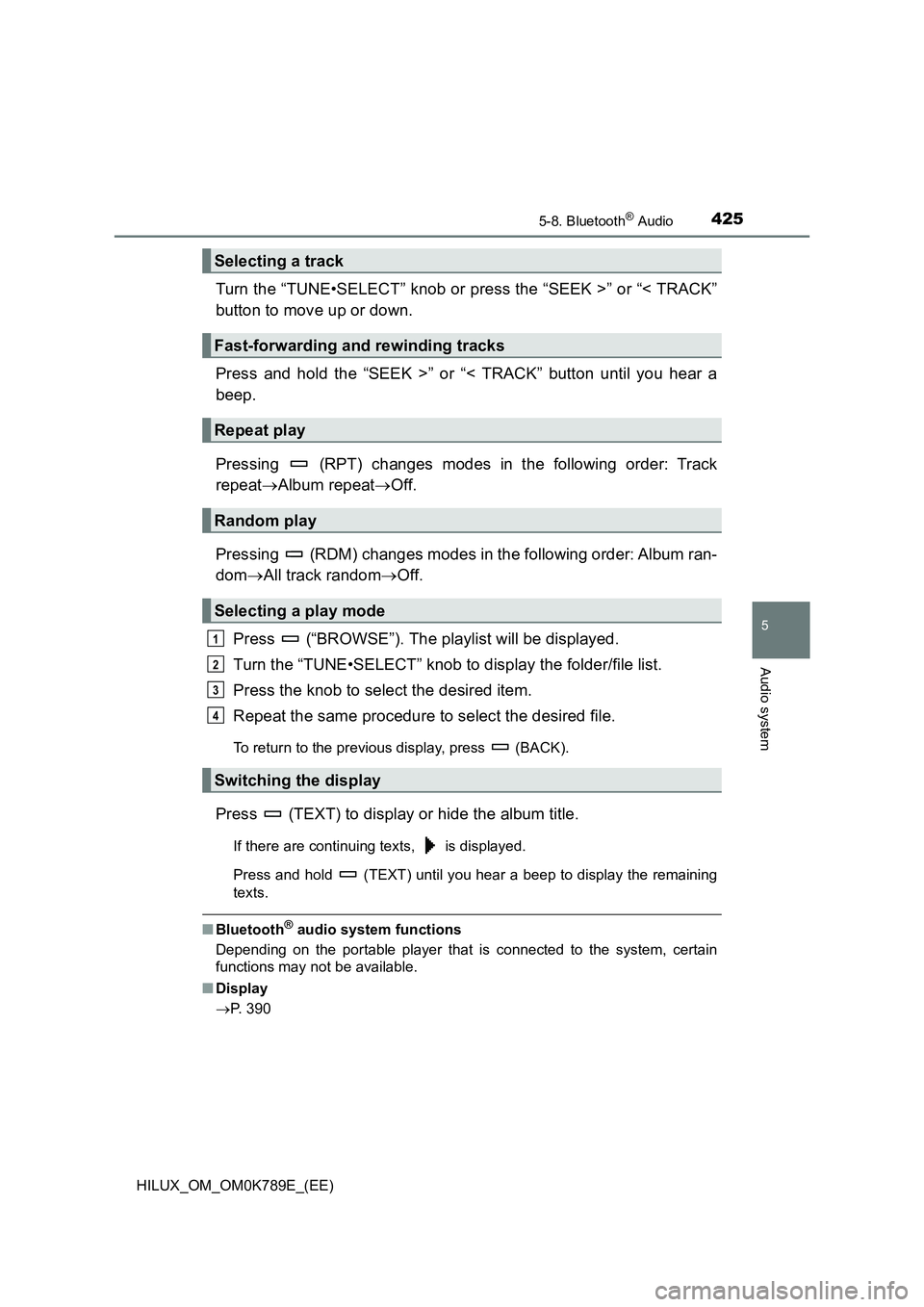

4255-8. Bluetooth® Audio
5
Audio system
HILUX_OM_OM0K789E_(EE)
Turn the “TUNE•SELECT” knob or press the “SEEK >” or “< TRACK”
button to move up or down.
Press and hold the “SEEK >” or “< TRACK” button until you hear a
beep.
Pressing (RPT) changes modes in the following order: Track
repeat Album repeatOff.
Pressing (RDM) changes modes in the following order: Album ran-
dom All track randomOff.
Press (“BROWSE”). The playlist will be displayed.
Turn the “TUNE•SELECT” knob to display the folder/file list.
Press the knob to select the desired item.
Repeat the same procedure to select the desired file.
To return to the previous display, press (BACK).
Press (TEXT) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold (TEXT) until you hear a beep to display the remaining
texts.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
 P. 390
Selecting a track
Fast-forwarding and rewinding tracks
Repeat play
Random play
Selecting a play mode
Switching the display
1
2
3
4

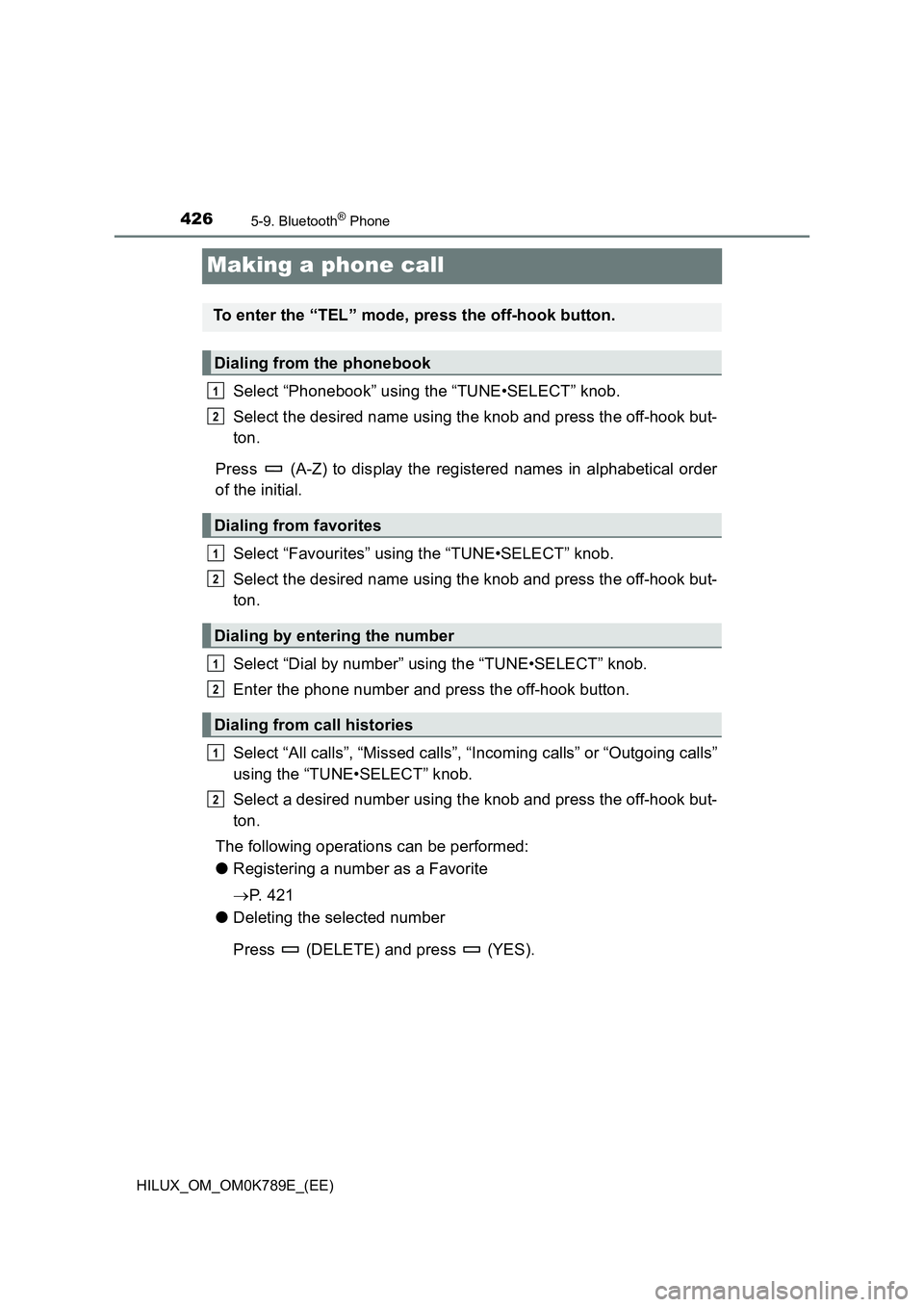

4265-9. Bluetooth® Phone
HILUX_OM_OM0K789E_(EE)
Making a phone call
Select “Phonebook” using the “TUNE•SELECT” knob.
Select the desired name using the knob and press the off-hook but-
ton.
Press (A-Z) to display the registered names in alphabetical order
of the initial.
Select “Favourites” using the “TUNE•SELECT” knob.
Select the desired name using the knob and press the off-hook but-
ton.
Select “Dial by number” using the “TUNE•SELECT” knob.
Enter the phone number and press the off-hook button.
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing calls”
using the “TUNE•SELECT” knob.
Select a desired number using the knob and press the off-hook but-
ton.
The following operations can be performed:
● Registering a number as a Favorite
 P. 4 2 1
● Deleting the selected number
Press (DELETE) and press (YES).
To enter the “TEL” mode, press the off-hook button.
Dialing from the phonebook
Dialing from favorites
Dialing by entering the number
Dialing from call histories
1
2
1
2
1
2
1
2

427
5
5-9. Bluetooth® Phone
Audio system
HILUX_OM_OM0K789E_(EE)
When receiving a phone call
Press the off-hook button.
Press the on-hook button.
Press the off-hook button.
Pressing the off-hook button again returns you to the previous call.
To decrease the volume: Turn the “POWER VOLUME” knob counter-
clockwise.
To increase the volume: Turn the “POWER VOLUME” knob clockwise.
Answering the phone
Refusing the call
Receiving a call when on another call
Adjusting the ring tone volume when receiving a call

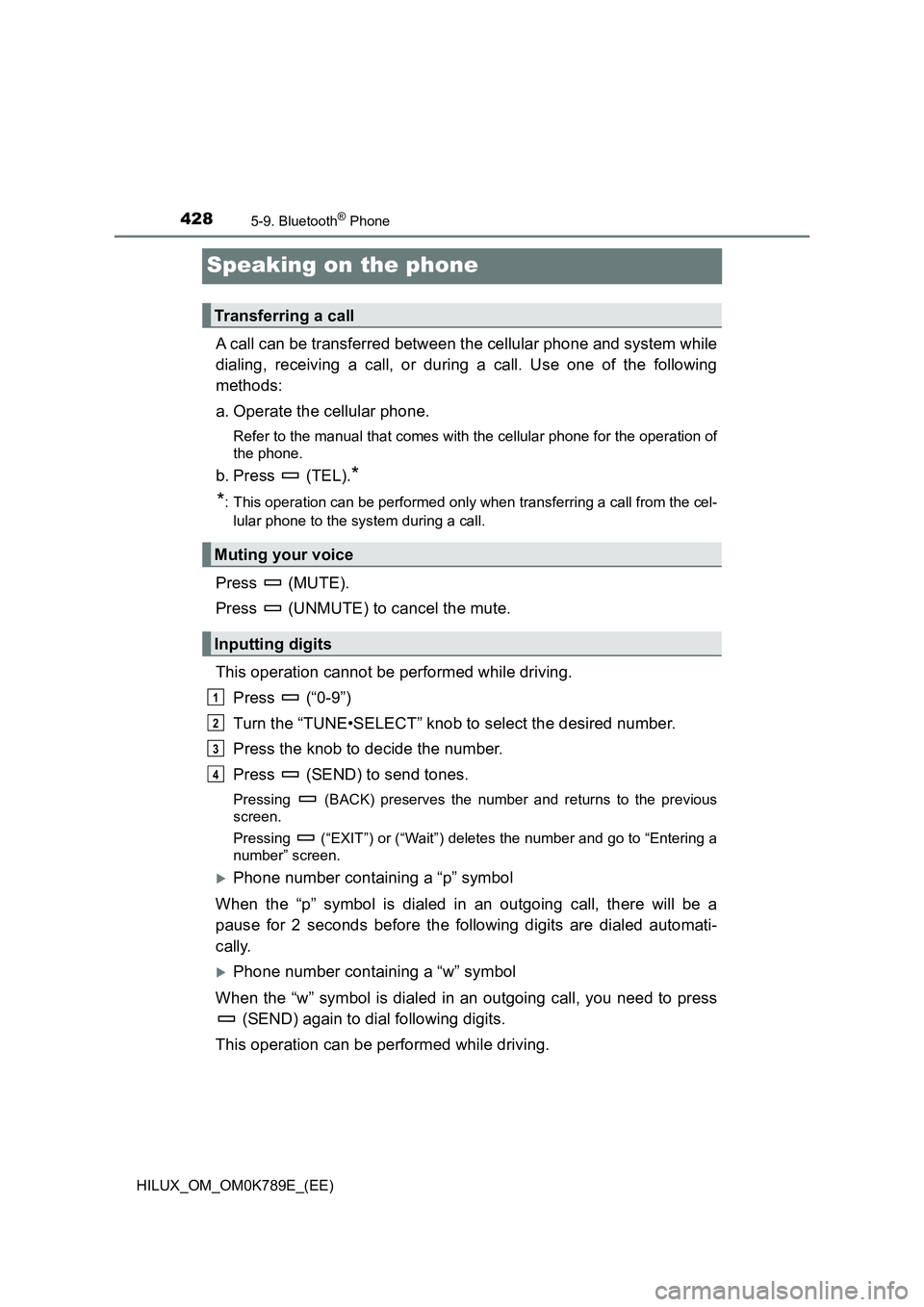

4285-9. Bluetooth® Phone
HILUX_OM_OM0K789E_(EE)
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of
the phone.
b. Press (TEL).*
*: This operation can be performed only when transferring a call from the cel-
lular phone to the system during a call.
Press (MUTE).
Press (UNMUTE) to cancel the mute.
This operation cannot be performed while driving.
Press (“0-9”)
Turn the “TUNE•SELECT” knob to select the desired number.
Press the knob to decide the number.
Press (SEND) to send tones.
Pressing (BACK) preserves the number and returns to the previous
screen.
Pressing (“EXIT”) or (“Wait”) deletes the number and go to “Entering a
number” screen.
Phone number containing a “p” symbol
When the “p” symbol is dialed in an outgoing call, there will be a
pause for 2 seconds before the following digits are dialed automati-
cally.
Phone number containing a “w” symbol
When the “w” symbol is dialed in an outgoing call, you need to press
(SEND) again to dial following digits.
This operation can be performed while driving.
Transferring a call
Muting your voice
Inputting digits
1
2
3
4
