1322. Instrument cluster
HILUX_OM_OM0K789E_(EE)
WARNING
■The information display at low temperatures (vehicles with multi-infor-
mation display)
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For vehicles with automatic transmission: For example, there is a lag
between the driver’s shifting and the new gear number appearing on the
display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or
injury.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 610)

1994-1. Before driving
4
Driving
HILUX_OM_OM0K789E_(EE)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Always apply the parking brake, shift the shift lever to P (vehicles with
automatic transmission only), stop the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
If the vehicle is parked with the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
● Do not touch the exhaust pipes while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
■ When taking a nap in the vehicle
Always turn the engine off. Otherwise, if you accidentally move the shift
lever or depress the accelerator pedal, this could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
■ When braking
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also, the
parking brake may not securely hold the vehicle.
● If the brake booster device does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking. In this case,
braking is still possible, but the brake pedal should be depressed more
firmly than usual. Also, the braking distance will increase. Have your
brakes fixed immediately.
● Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
● The brake system consists of 2 individual hydraulic systems: If one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and the braking distance will
increase.
Have your brakes fixed immediately.
■ If the vehicle becomes stuck (4WD models)
Do not spin the wheels excessively when any of the tires is up in the air, or
the vehicle is stuck in sand, mud, etc. This may damage the driveline com-
ponents or propel the vehicle forward or backward, causing an accident.

2094-1. Before driving
4
Driving
HILUX_OM_OM0K789E_(EE)
■Important points regarding stability
Vehicle movement resulting from uneven road surfaces and strong
crosswinds will affect handling. The vehicle may also be rocked by
passing buses or large trucks. Frequently check behind when mov-
ing alongside such vehicles. As soon as such vehicle movement
occurs, immediately start to decelerate smoothly by slowly applying
the brakes. Always steer the vehicle straight ahead while braking.
■Passing other vehicles
Consider the total combined length of your vehicle and trailer and
ensure that the vehicle-to-vehicle distance is sufficient before exe-
cuting lane changes.
■Transmission information
Vehicles with manual transmission: To maintain engine braking effi-
ciency when using engine braking, do not use 5th gear and 6th
gear.
Vehicles with automatic transmission: To maintain engine braking
efficiency when using engine braking, do not use the transmission
in D. Transmission shift range position must be in 4 or lower, in S
mode.
■If the engine overheats
Towing a loaded trailer up a long, steep incline in temperatures
exceeding 30 C (85F) may result in the engine overheating. If the
engine coolant temperature gauge indicates that the engine is over-
heating, turn the air conditioning off immediately, leave the road and
stop the vehicle in a safe place. ( P. 610)
■When parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to P
for automatic transmissions, and 1 or R for manual transmissions.

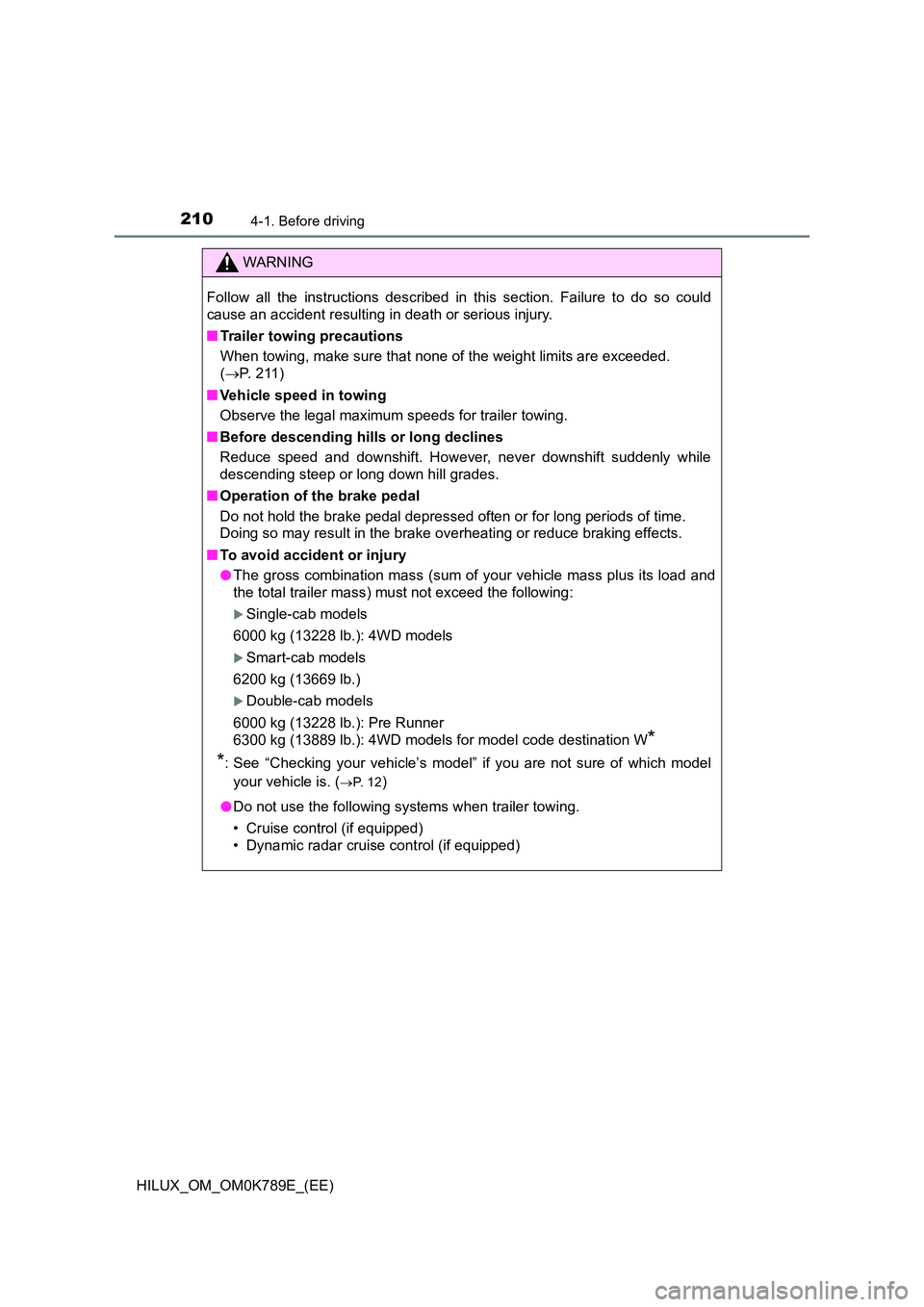

2104-1. Before driving
HILUX_OM_OM0K789E_(EE)
WARNING
Follow all the instructions described in this section. Failure to do so could
cause an accident resulting in death or serious injury.
■ Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded.
( P. 211)
■ Vehicle speed in towing
Observe the legal maximum speeds for trailer towing.
■ Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while
descending steep or long down hill grades.
■ Operation of the brake pedal
Do not hold the brake pedal depressed often or for long periods of time.
Doing so may result in the brake overheating or reduce braking effects.
■ To avoid accident or injury
● The gross combination mass (sum of your vehicle mass plus its load and
the total trailer mass) must not exceed the following:
Single-cab models
6000 kg (13228 lb.): 4WD models
Smart-cab models
6200 kg (13669 lb.)
Double-cab models
6000 kg (13228 lb.): Pre Runner
6300 kg (13889 lb.): 4WD models for model code destination W*
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2)
● Do not use the following systems when trailer towing.
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)

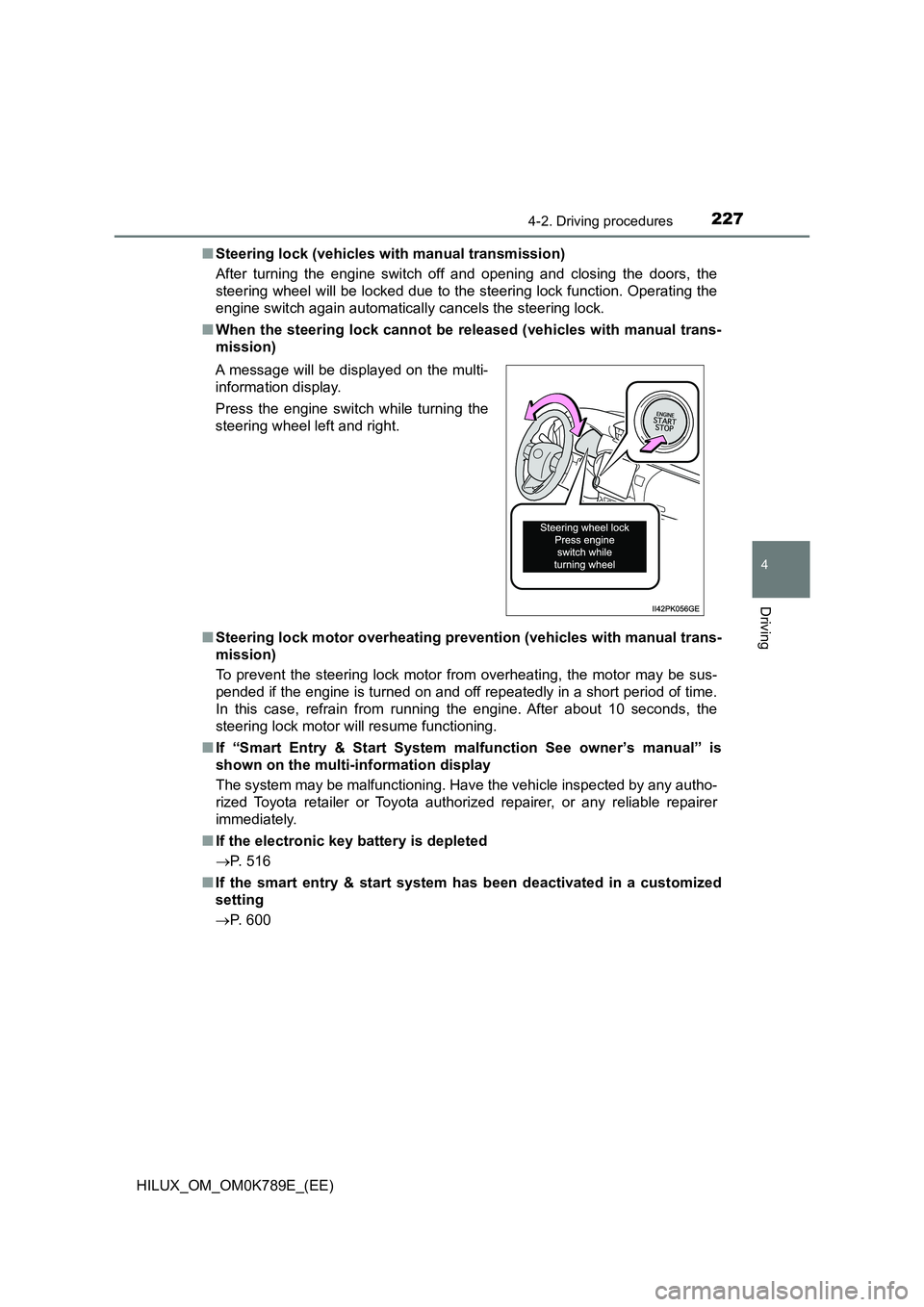

2274-2. Driving procedures
4
Driving
HILUX_OM_OM0K789E_(EE)
■ Steering lock (vehicles with manual transmission)
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.
■ When the steering lock cannot be released (vehicles with manual trans-
mission)
■ Steering lock motor overheating prevention (vehicles with manual trans-
mission)
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from running the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■ If “Smart Entry & Start System malfunction See owner’s manual” is
shown on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
■ If the electronic key battery is depleted
 P. 516
■ If the smart entry & start system has been deactivated in a customized
setting
 P. 600
A message will be displayed on the multi-
information display.
Press the engine switch while turning the
steering wheel left and right.

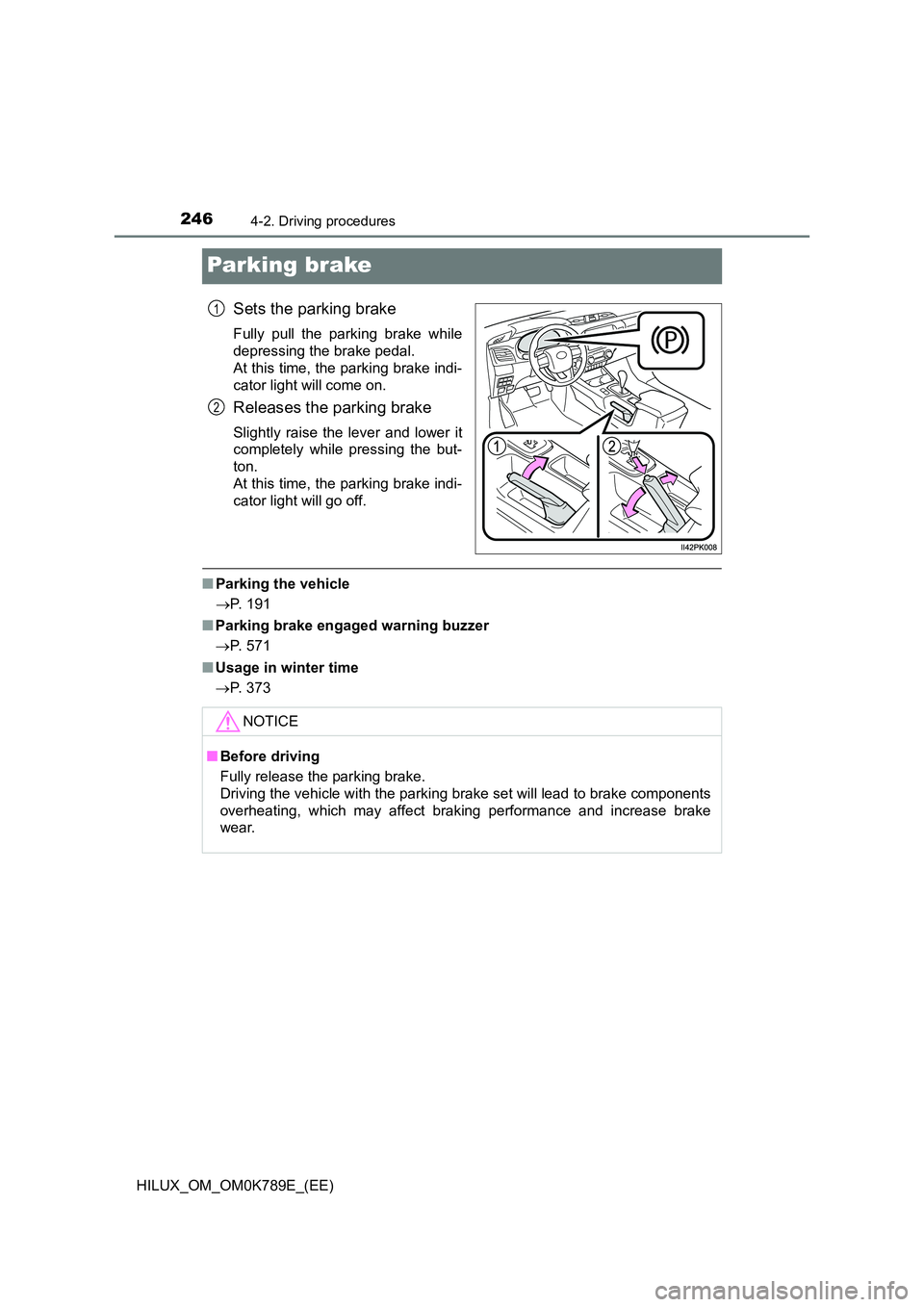

2464-2. Driving procedures
HILUX_OM_OM0K789E_(EE)
Parking brake
Sets the parking brake
Fully pull the parking brake while
depressing the brake pedal.
At this time, the parking brake indi-
cator light will come on.
Releases the parking brake
Slightly raise the lever and lower it
completely while pressing the but-
ton.
At this time, the parking brake indi-
cator light will go off.
■ Parking the vehicle
 P. 191
■ Parking brake engaged warning buzzer
 P. 571
■ Usage in winter time
 P. 373
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

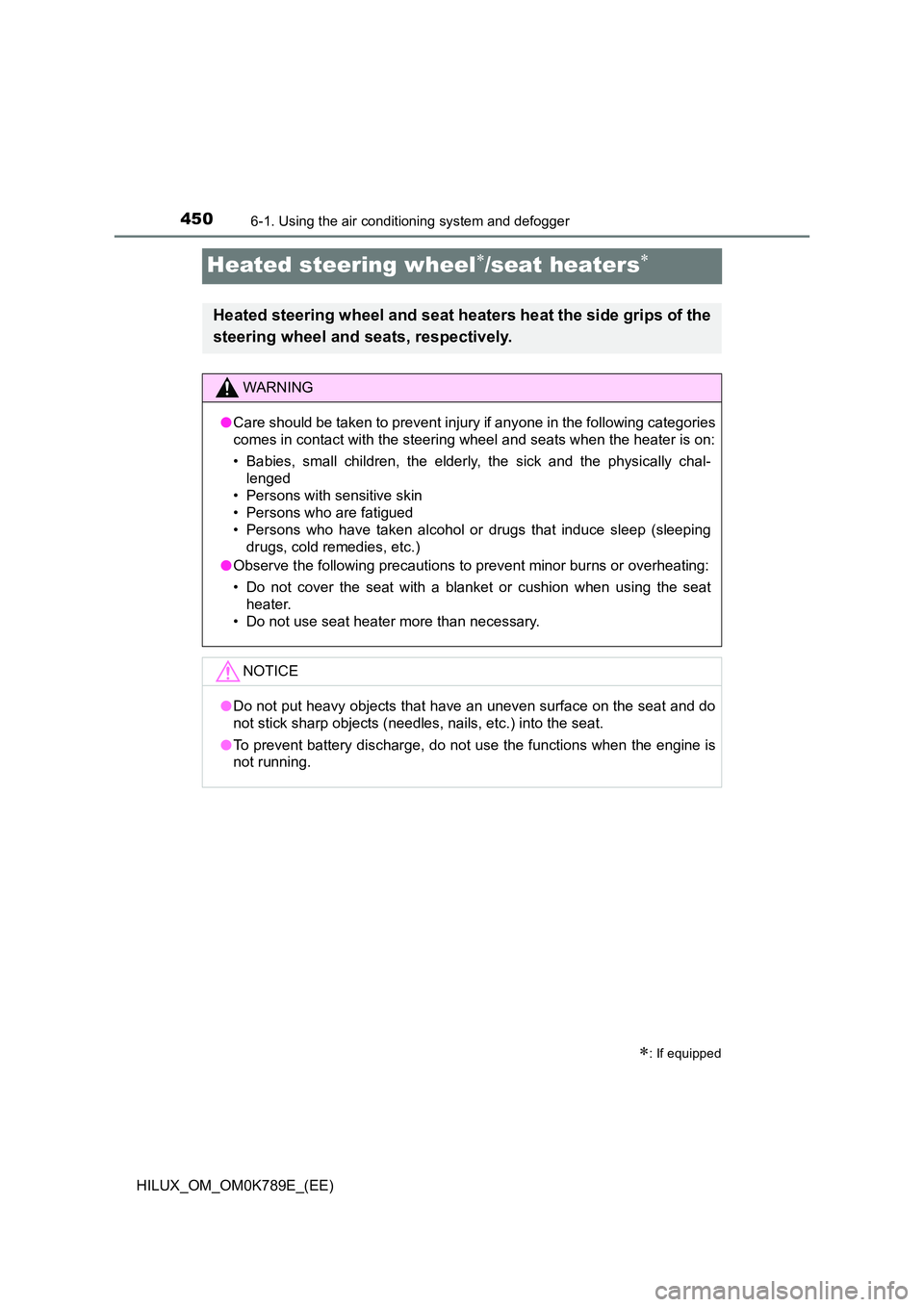

4506-1. Using the air conditioning system and defogger
HILUX_OM_OM0K789E_(EE)
Heated steering wheel/seat heaters
: If equipped
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and seats, respectively.
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.

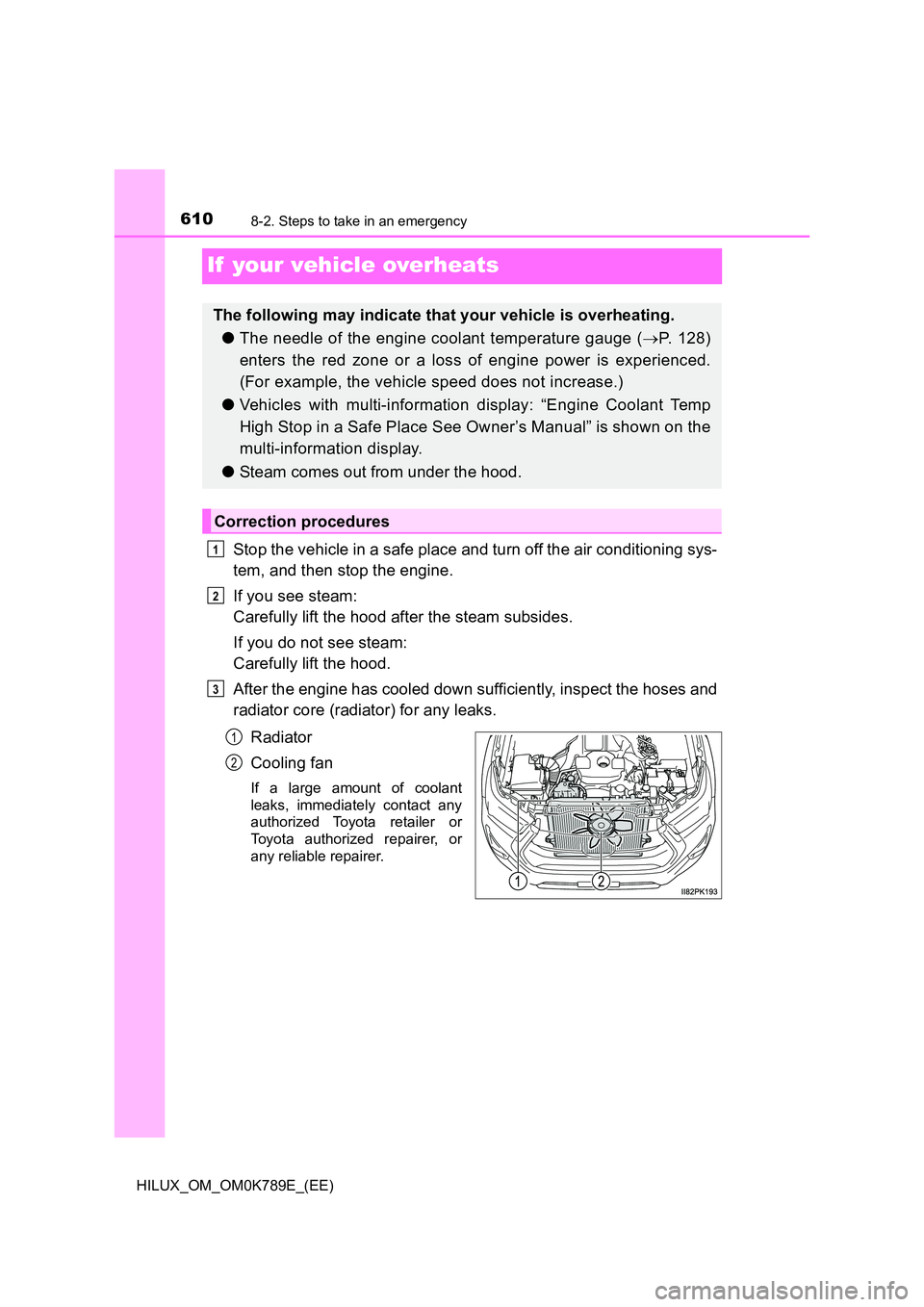

6108-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
The following may indicate that your vehicle is overheating.
● The needle of the engine coolant temperature gauge (P. 128)
enters the red zone or a loss of engine power is experienced.
(For example, the vehicle speed does not increase.)
● Vehicles with multi-information display: “Engine Coolant Temp
High Stop in a Safe Place See Owner’s Manual” is shown on the
multi-information display.
● Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

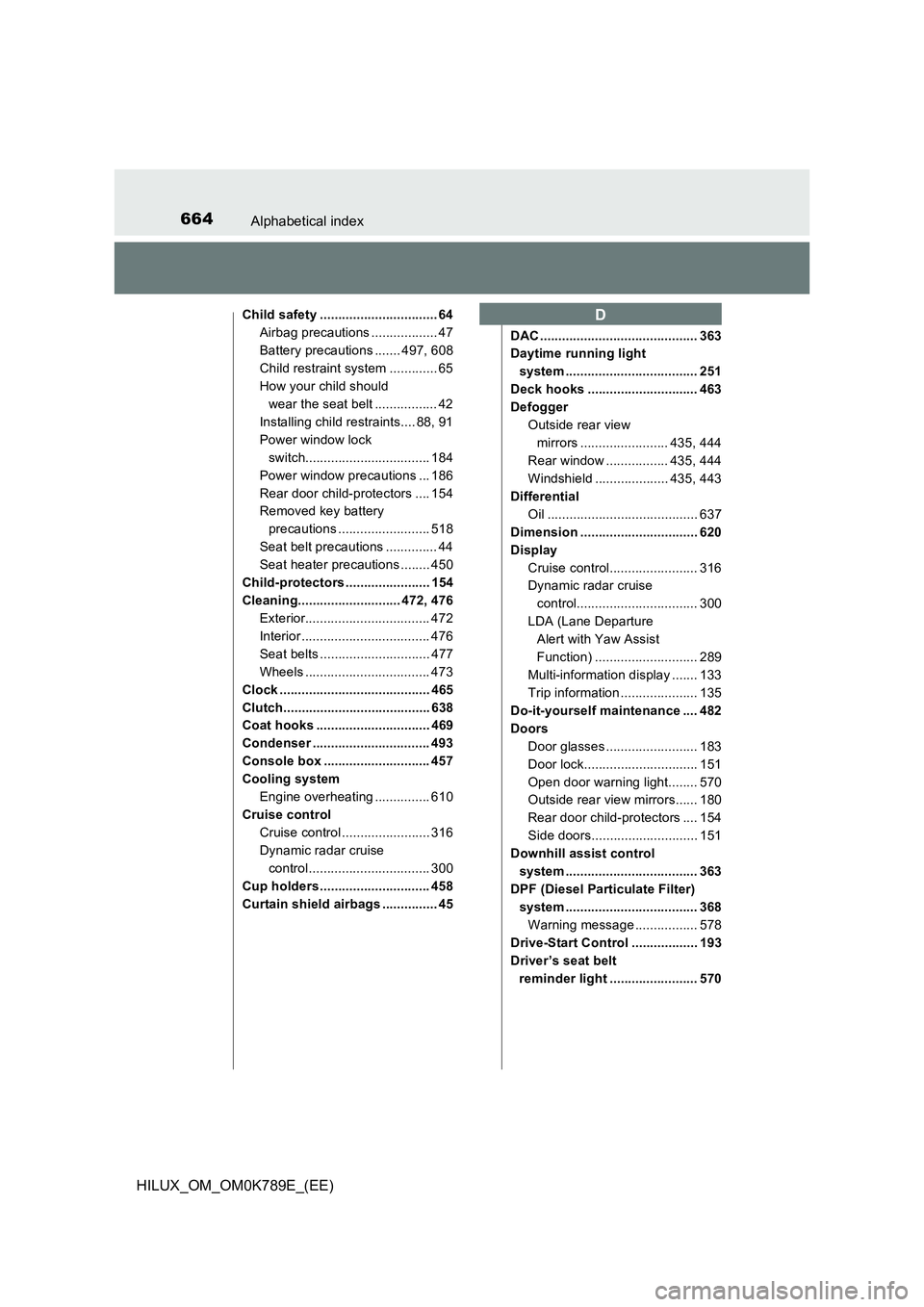

664Alphabetical index
HILUX_OM_OM0K789E_(EE)
Child safety ................................ 64
Airbag precautions .................. 47
Battery precautions ....... 497, 608
Child restraint system ............. 65
How your child should
wear the seat belt ................. 42
Installing child restraints.... 88, 91
Power window lock
switch.................................. 184
Power window precautions ... 186
Rear door child-protectors .... 154
Removed key battery
precautions ......................... 518
Seat belt precautions .............. 44
Seat heater precautions ........ 450
Child-protectors ....................... 154
Cleaning............................ 472, 476
Exterior.................................. 472
Interior ................................... 476
Seat belts .............................. 477
Wheels .................................. 473
Clock ......................................... 465
Clutch........................................ 638
Coat hooks ............................... 469
Condenser ................................ 493
Console box ............................. 457
Cooling system
Engine overheating ............... 610
Cruise control
Cruise control ........................ 316
Dynamic radar cruise
control................................. 300
Cup holders .............................. 458
Curtain shield airbags ............... 45
DAC ........................................... 363
Daytime running light
system .................................... 251
Deck hooks .............................. 463
Defogger
Outside rear view
mirrors ........................ 435, 444
Rear window ................. 435, 444
Windshield .................... 435, 443
Differential
Oil ......................................... 637
Dimension ................................ 620
Display
Cruise control........................ 316
Dynamic radar cruise
control................................. 300
LDA (Lane Departure
Alert with Yaw Assist
Function) ............................ 289
Multi-information display ....... 133
Trip information ..................... 135
Do-it-yourself maintenance .... 482
Doors
Door glasses ......................... 183
Door lock............................... 151
Open door warning light........ 570
Outside rear view mirrors...... 180
Rear door child-protectors .... 154
Side doors............................. 151
Downhill assist control
system .................................... 363
DPF (Diesel Particulate Filter)
system .................................... 368
Warning message ................. 578
Drive-Start Control .................. 193
Driver’s seat belt
reminder light ........................ 570
D

665Alphabetical index
HILUX_OM_OM0K789E_(EE)
Driving
Break-in tips .......................... 194
Correct posture ....................... 38
Procedures............................ 190
Winter drive tips .................... 373
Dynamic radar cruise
control .................................... 300
Function ................................ 300
Warning message ................. 580
Eco Driving Indicator....... 124, 126
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 149
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 220
Compartment ........................ 486
Engine switch................ 219, 222
Hood ..................................... 484
How to start the
engine......................... 219, 222
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 219, 222
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 373
Engine coolant
temperature gauge ................ 129
Engine immobilizer system .... 113
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 373
E
