pairing phone TOYOTA HILUX 2023 Owners Manual

4115-6. Using Bluetooth® devices
5
Audio system
HILUX_OM_OM0K789E_(EE)
To enter a menu, press the “TUNE•SELECT” knob and navigate
menus by using the knob.

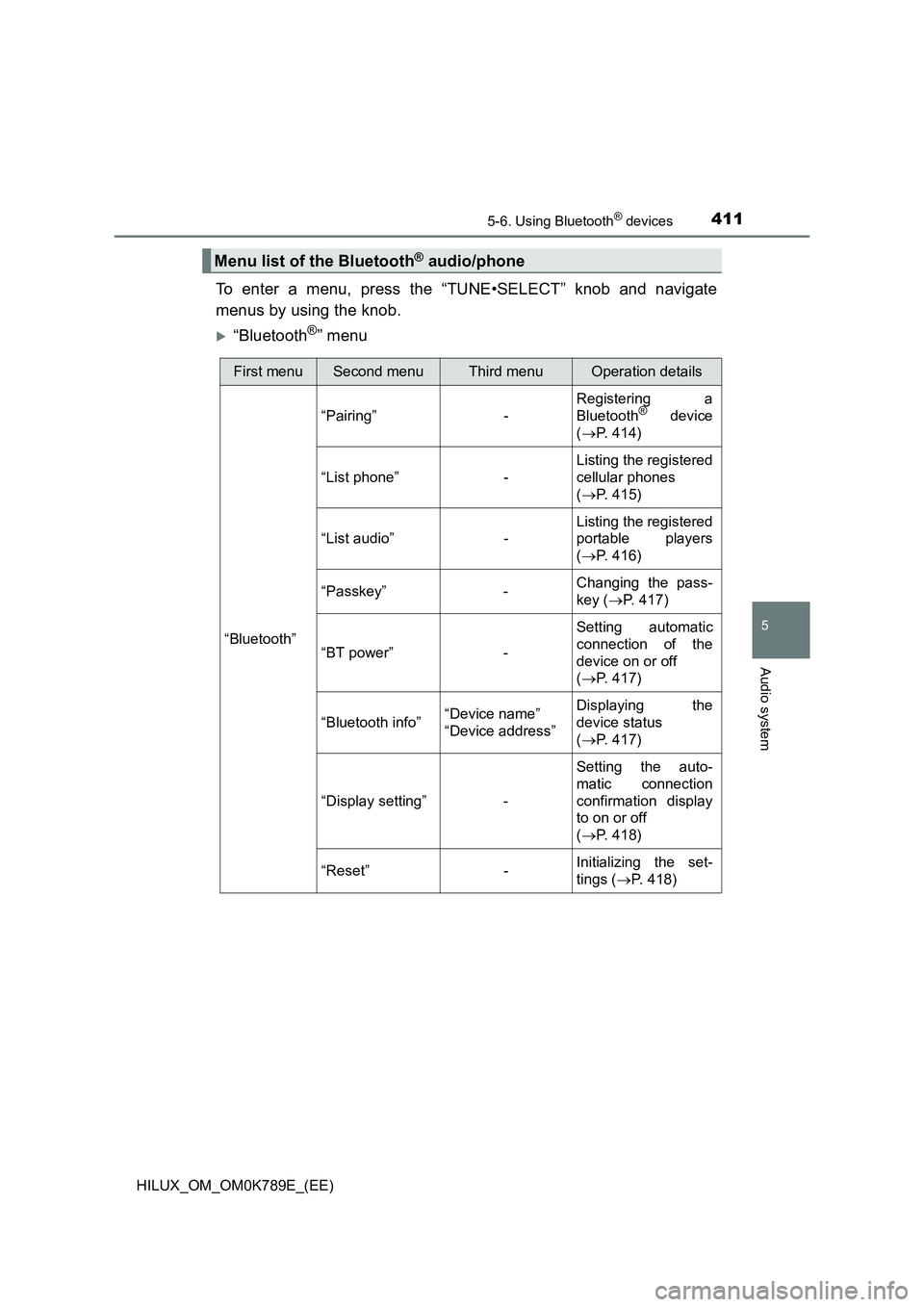

“Bluetooth®” menu
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”
“Pairing”-
Registering a
Bluetooth® device
( P. 414)
“List phone”-
Listing the registered
cellular phones
( P. 415)
“List audio” -
Listing the registered
portable players
( P. 416)
“Passkey” -Changing the pass-
key ( P. 417)
“BT power” -
Setting automatic
connection of the
device on or off
( P. 417)
“Bluetooth info”“Device name”
“Device address”
Displaying the
device status
( P. 417)
“Display setting” -
Setting the auto-
matic connection
confirmation display
to on or off
( P. 418)
“Reset” -Initializing the set-
tings ( P. 418)

4145-6. Using Bluetooth® devices
HILUX_OM_OM0K789E_(EE)

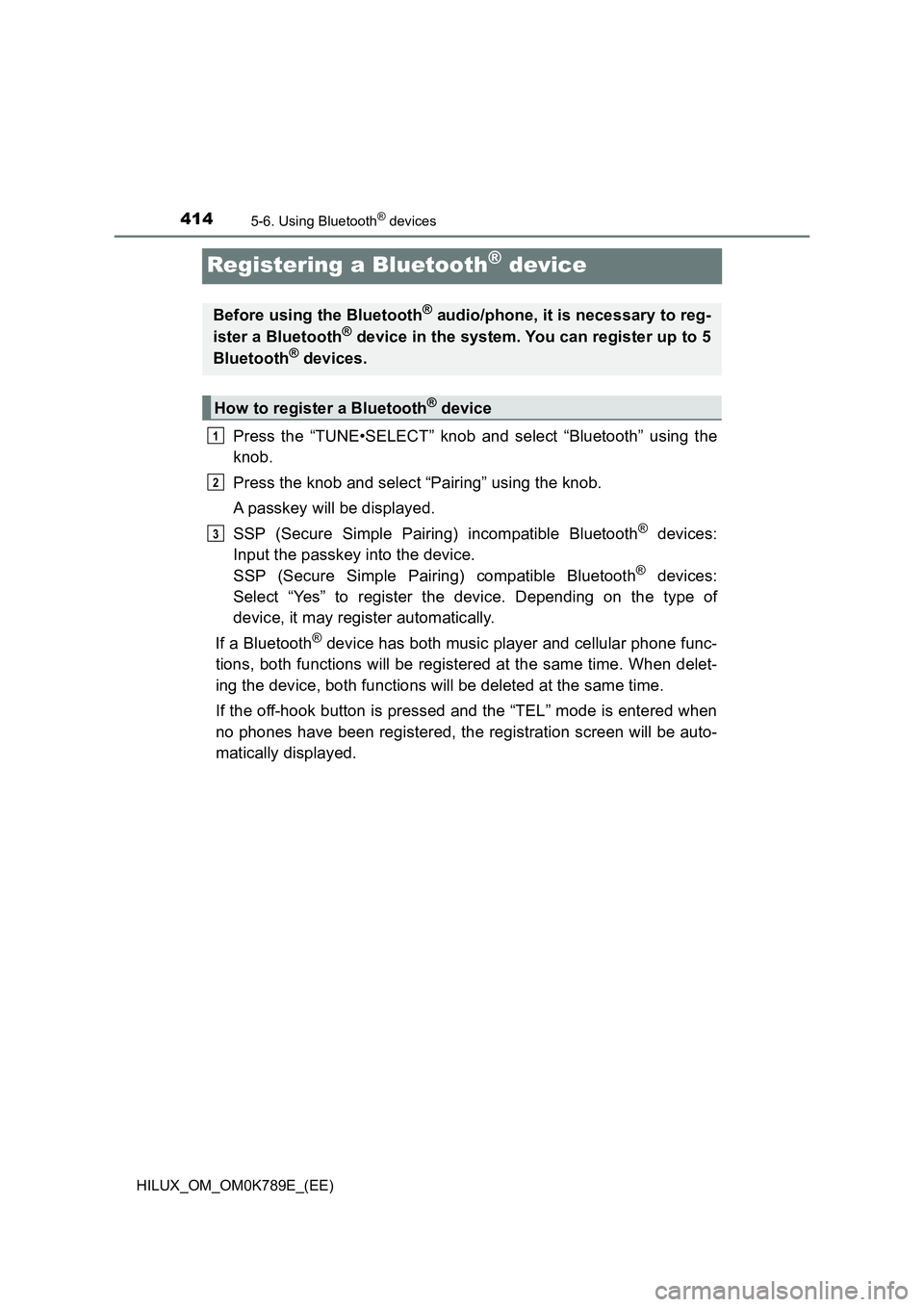

Registering a Bluetooth® device
Press the “TUNE•SELECT” knob and select “Bluetooth” using the
knob.
Press the knob and select “Pairing” using the knob.
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth® devices:
Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook button is pressed and the “TEL” mode is entered when
no phones have been registered, the registration screen will be auto-
matically displayed.
Before using the Bluetooth® audio/phone, it is necessary to reg-
ister a Bluetooth® device in the system. You can register up to 5
Bluetooth® devices.
How to register a Bluetooth® device
1
2
3

415
5
5-7. “SETUP” menu
Audio system
HILUX_OM_OM0K789E_(EE)

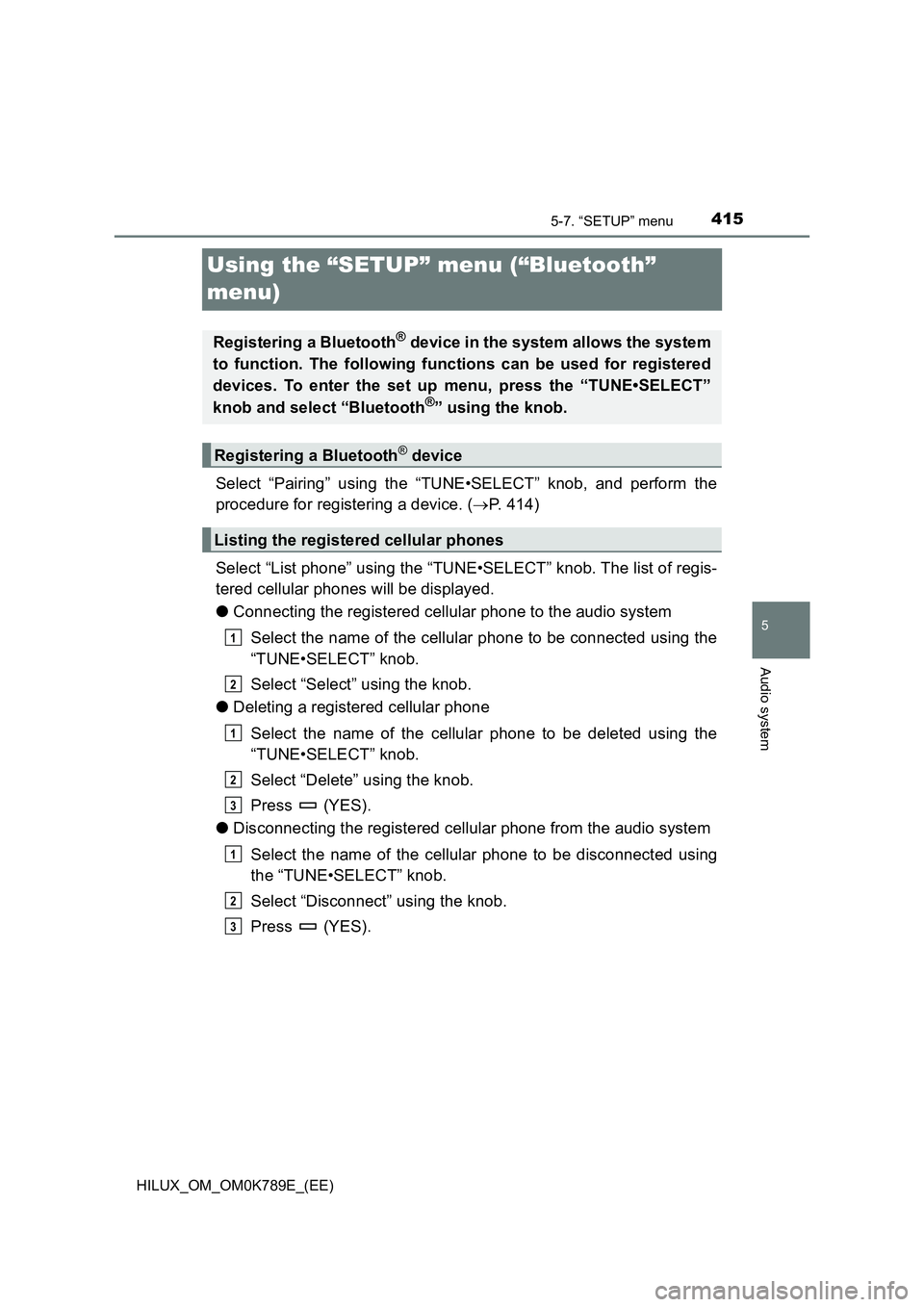

Using the “SETUP” menu (“Bluetooth”
menu)
Select “Pairing” using the “TUNE•SELECT” knob, and perform the
procedure for registering a device. ( P. 414)
Select “List phone” using the “TUNE•SELECT” knob. The list of regis-
tered cellular phones will be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“TUNE•SELECT” knob.
Select “Select” using the knob.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“TUNE•SELECT” knob.
Select “Delete” using the knob.
Press (YES).
● Disconnecting the registered cellular phone from the audio system
Select the name of the cellular phone to be disconnected using
the “TUNE•SELECT” knob.
Select “Disconnect” using the knob.
Press (YES).
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices. To enter the set up menu, press the “TUNE•SELECT”
knob and select “Bluetooth®” using the knob.
Registering a Bluetooth® device
Listing the registered cellular phones
1
2
1
2
3
1
2
3
