2754-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K789E_(EE)

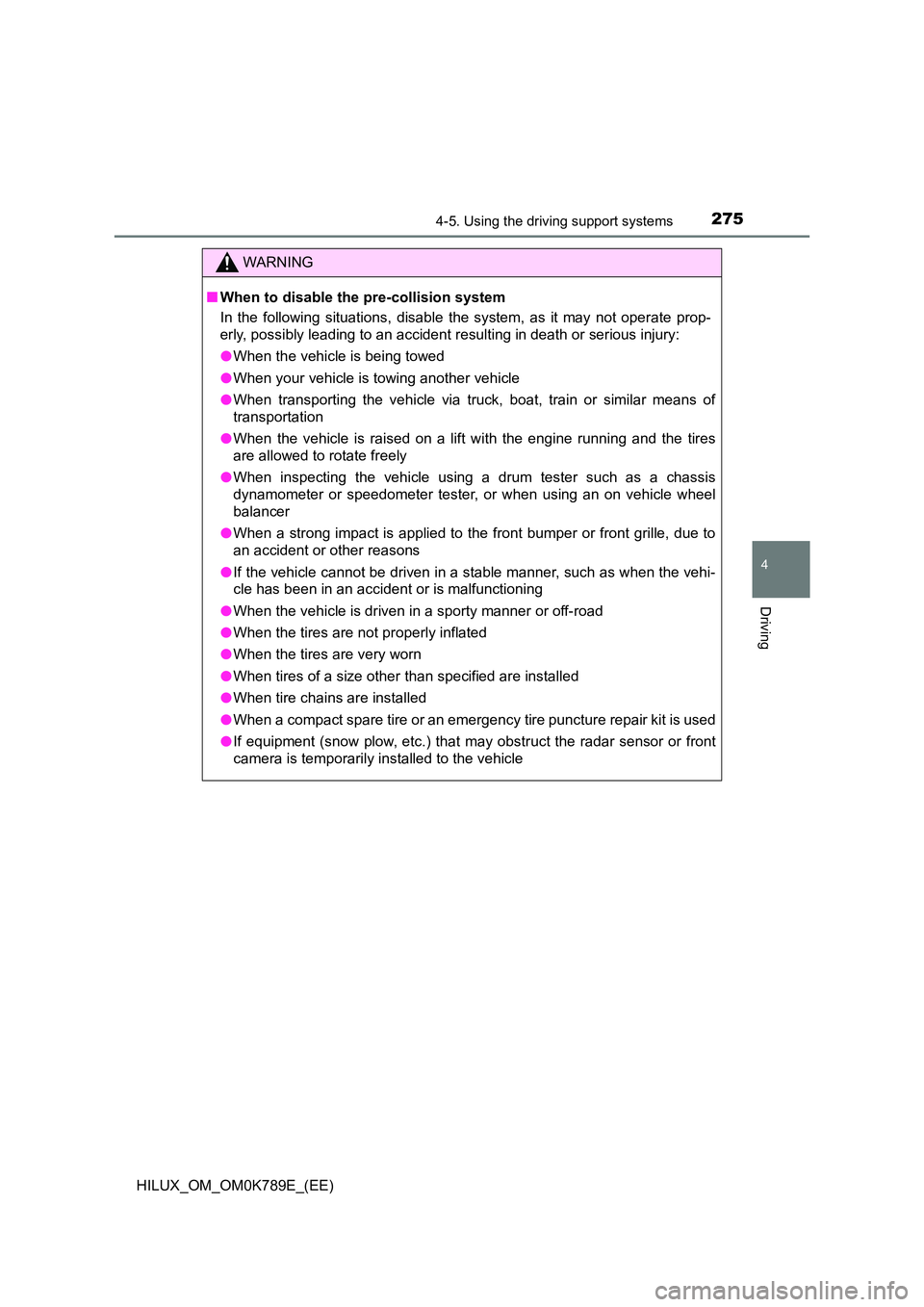

WARNING
■When to disable the pre-collision system
In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or serious injury:
● When the vehicle is being towed
● When your vehicle is towing another vehicle
● When transporting the vehicle via truck, boat, train or similar means of
transportation
● When the vehicle is raised on a lift with the engine running and the tires
are allowed to rotate freely
● When inspecting the vehicle using a drum tester such as a chassis
dynamometer or speedometer tester , or when using an on vehicle wheel
balancer
● When a strong impact is applied to the front bumper or front grille, due to
an accident or other reasons
● If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning
● When the vehicle is driven in a sporty manner or off-road
● When the tires are not properly inflated
● When the tires are very worn
● When tires of a size other than specified are installed
● When tire chains are installed
● When a compact spare tire or an emergency tire puncture repair kit is used
● If equipment (snow plow, etc.) that may obstruct the radar sensor or front
camera is temporarily installed to the vehicle

553
8When trouble arises
HILUX_OM_OM0K789E_(EE)
8-1. Essential information
Emergency flashers ........... 554
If your vehicle has to
be stopped in an
emergency ....................... 555
If the vehicle is
submerged or water on
the road is rising .............. 557
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ...................... 559
If you think something is
wrong ............................... 564
Fuel pump shut off
system (gasoline engine
only) ................................. 565
If a warning light turns on
or a warning buzzer
sounds ............................. 566
If a warning message is
displayed ......................... 575
If you have a flat tire .......... 581
If the engine will not
start.................................. 598
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)........ 600
If the vehicle battery is
discharged ....................... 604
If your vehicle
overheats ......................... 610
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 614
If the vehicle becomes
stuck ................................ 615

5598-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises

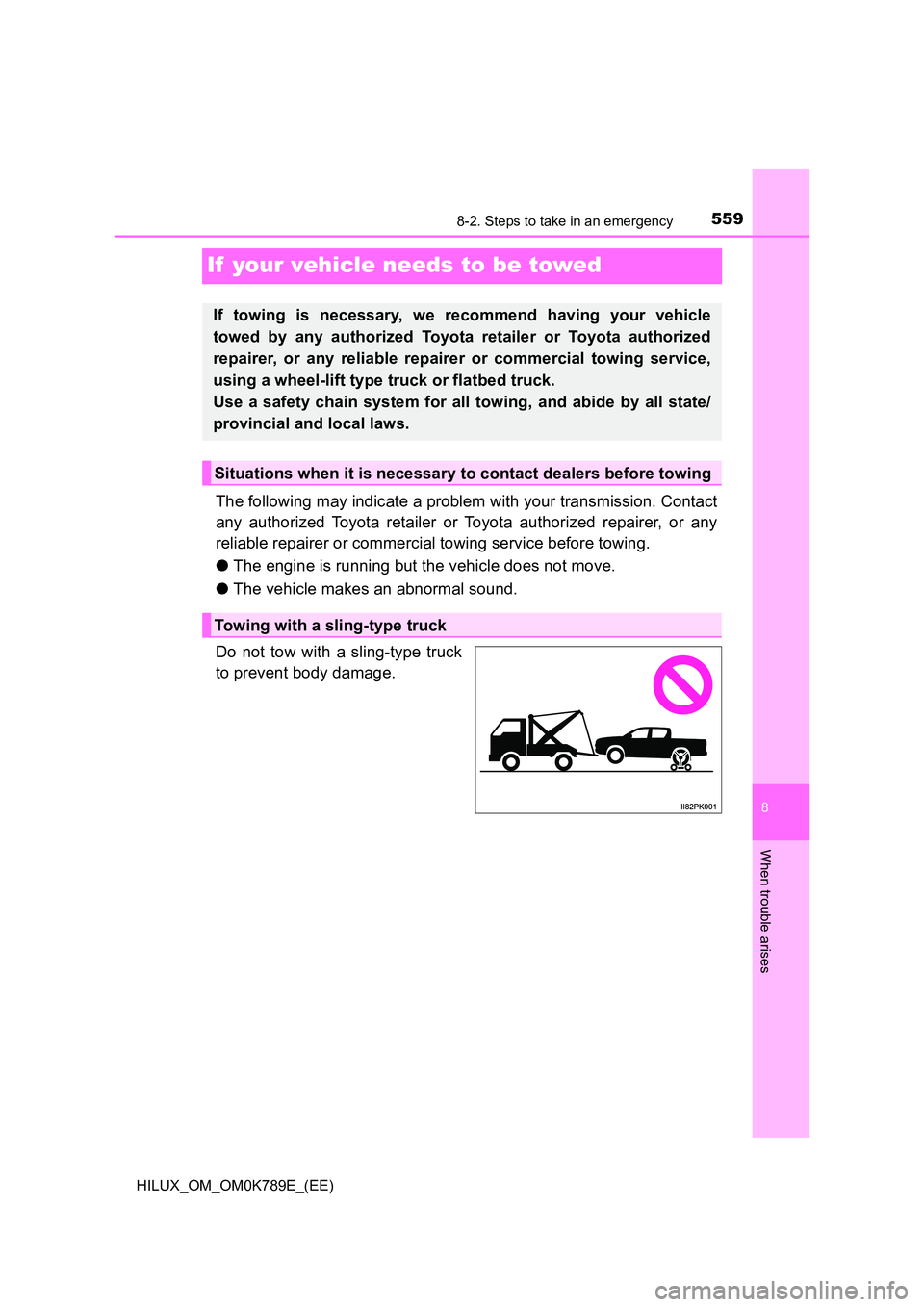

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or commercial towing service before towing.
● The engine is running but the vehicle does not move.
● The vehicle makes an abnormal sound.
Do not tow with a sling-type truck
to prevent body damage.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
Towing with a sling-type truck

5648-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)

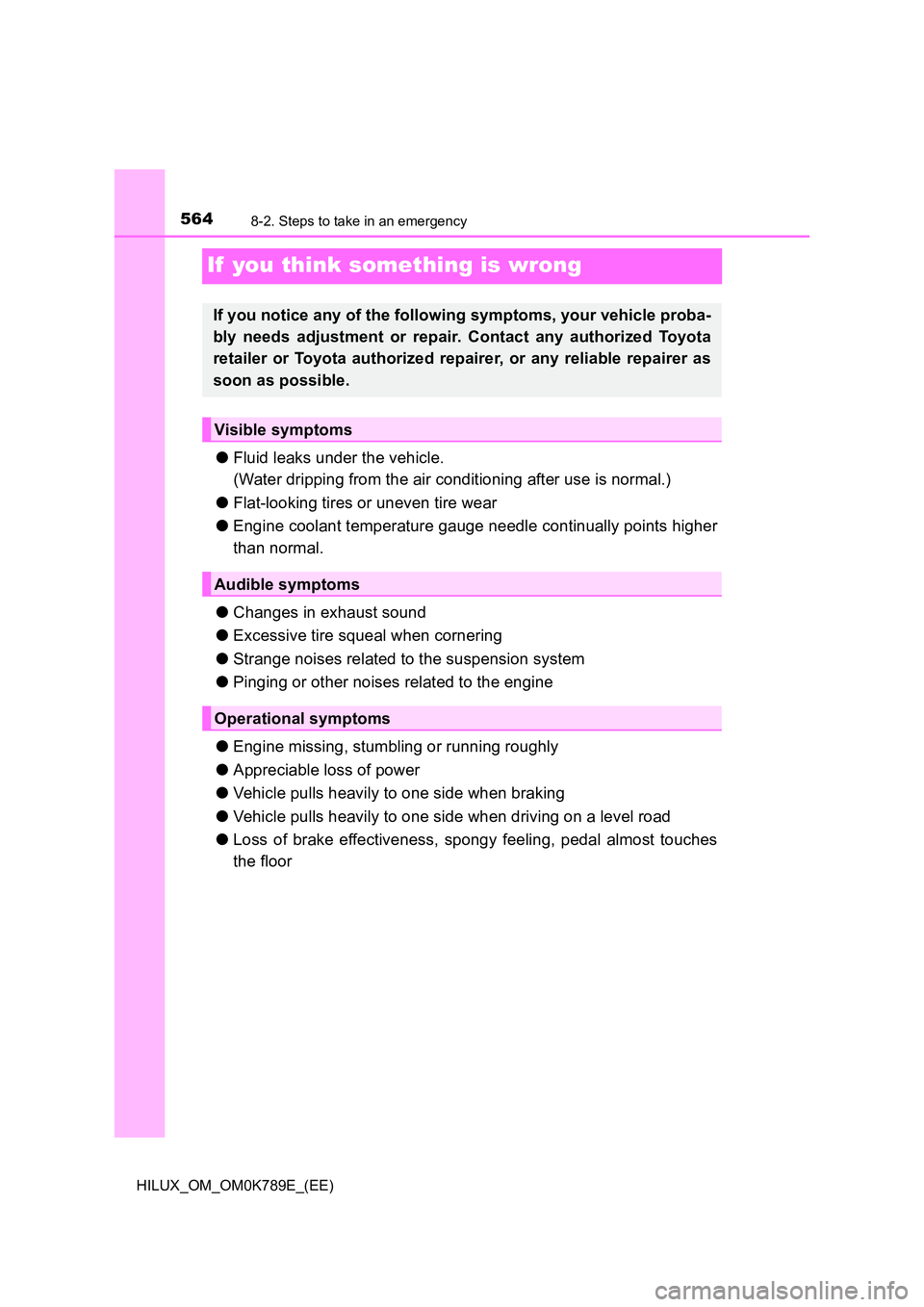

If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points higher
than normal.
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5838-2. Steps to take in an emergency
HILUX_OM_OM0K789E_(EE)
8
When trouble arises
WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Make sure the tire jack can be moved properly.
● Always check that the tire jack is securely set to the correct jack up point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start or run the engine while your vehicle is supported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.
■ Using the jack handle
Insert the square head securely until you hear a click to prevent the exten-
sion parts from coming apart unexpectedly.
● Vehicles with round rear axle housing:
Do not continue jacking up once the yel-
low caution line has appeared.
● Vehicles with square rear axle housing:
Do not continue jacking up once the fol-
lowing caution line has appeared.
Front
Red caution line
Rear
Yellow caution line
Ye l l o w
caution line
Yellow caution
line for rear
Red caution
line for front

665Alphabetical index
HILUX_OM_OM0K789E_(EE)
Driving
Break-in tips .......................... 194
Correct posture ....................... 38
Procedures............................ 190
Winter drive tips .................... 373
Dynamic radar cruise
control .................................... 300
Function ................................ 300
Warning message ................. 580
Eco Driving Indicator....... 124, 126
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 149
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 220
Compartment ........................ 486
Engine switch................ 219, 222
Hood ..................................... 484
How to start the
engine......................... 219, 222
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 219, 222
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 373
Engine coolant
temperature gauge ................ 129
Engine immobilizer system .... 113
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 373
E

666Alphabetical index
HILUX_OM_OM0K789E_(EE)
Engine oil maintenance
data ......................................... 491
Engine switch
(ignition switch) ............. 219, 222
Auto power off function ......... 226
Changing the engine
switch modes...................... 225
Changing the engine
switch position .................... 220
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine ........ 219, 222
Engine switch light
(ignition switch light) ............ 453
ERA-GLONASS ........................ 108
EVAK ......................................... 108
Flat tire ...................................... 581
Floor mat .................................... 36
Fluid
Automatic transmission ......... 636
Brake..................................... 638
Clutch .................................... 638
Steering................................. 639
Transfer................................. 637
Washer.................................. 498
Fog lights
Replacing light
bulbs ................... 539, 542, 549
Switch ................................... 254
Wattage................................. 643
Four-wheel drive system
Front-wheel drive control
switch.................................. 330
Warning light ......................... 568
Front fog lights
Replacing light bulbs..... 539, 549
Switch ................................... 254
Wattage ................................ 643
Front passenger occupant
classification system .............. 57
Front position lights
Light switch ........................... 247
Replacing light
bulbs................... 533, 534, 549
Wattage ................................ 643
Front seats
Adjustment ............................ 168
Cleaning................................ 476
Correct driving posture ........... 38
Head restraints ..................... 173
Seat heaters ......................... 450
Front turn signal lights
Replacing light
bulbs................... 536, 537, 549
Turn signal lever ................... 245
Wattage ................................ 643
Fuel
Capacity ................................ 627
Fuel filter ............................... 499
Fuel gauge ............................ 129
Fuel pump shut off system.... 565
If you run out of fuel
and the engine stalls .......... 614
Information ............................ 644
Refueling............................... 260
Type ...................................... 627
Warning light ......................... 569
Fuel consumption
information ............................ 142
Fuel filler door.......................... 260
Refueling............................... 260
Fuel filter .......................... 499, 569
Fuel pump shut off system ..... 565
Fuses ........................................ 520
F
