2. AUDIO SYSTEM
2
AUDIO SYSTEM

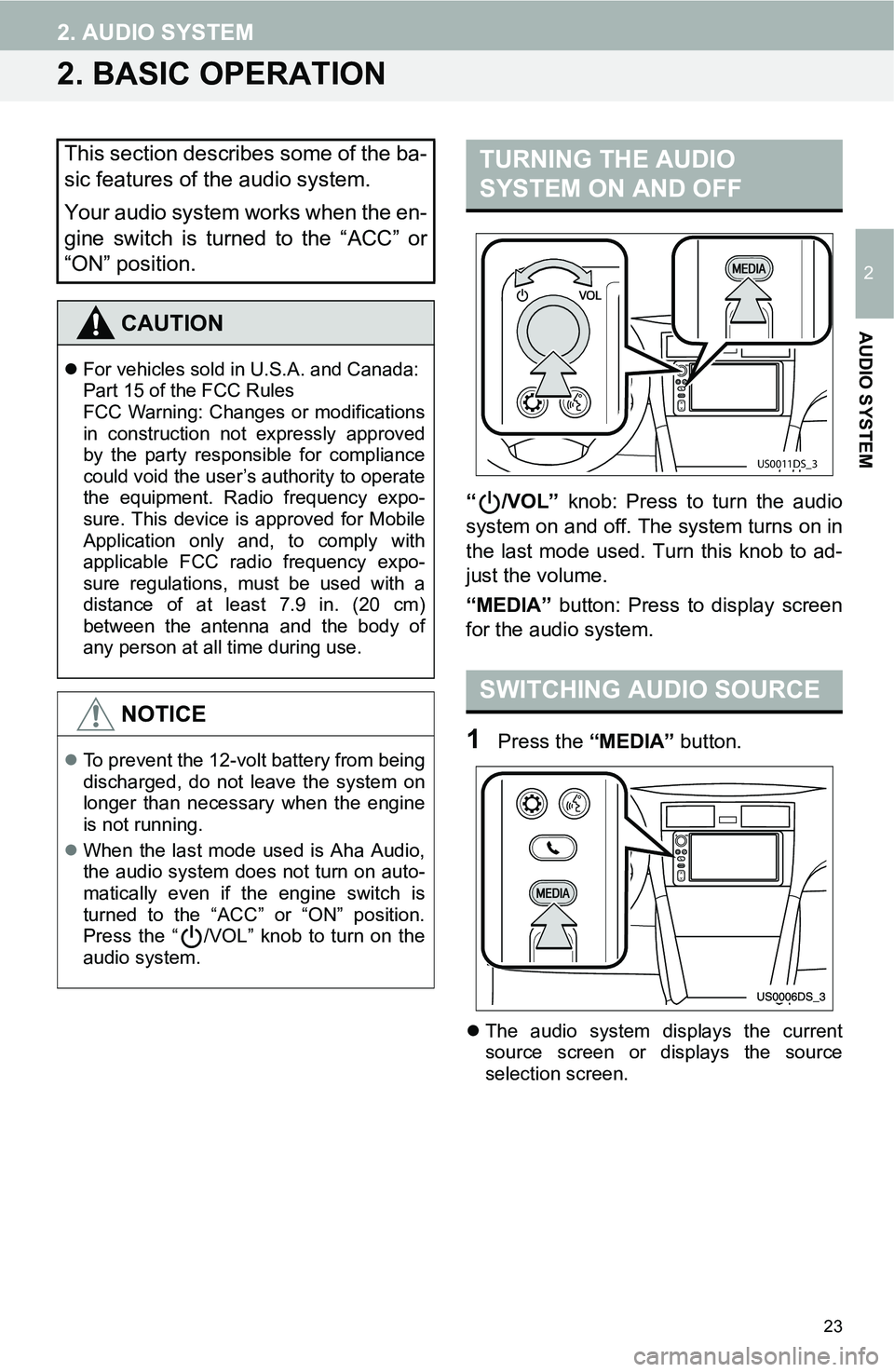

2. BASIC OPERATION
“/VOL” knob: Press to turn the audio
system on and off. The system turns on in
the last mode used. Turn this knob to ad-
just the volume.
“MEDIA” button: Press to display screen
for the audio system.
1Press the “MEDIA” button.
The audio system displays the current
source screen or displays the source
selection screen.
This section describes some of the ba-
sic features of the audio system.
Your audio system works when the en-
gine switch is turned to the “ACC” or
“ON” position.
CAUTION
For vehicles sold in U.S.A. and Canada:
Part 15 of the FCC Rules
FCC Warning: Changes or modifications
in construction not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
the equipment. Radio frequency expo-
sure. This device is approved for Mobile
Application only and, to comply with
applicable FCC radio frequency expo-
sure regulations, must be used with a
distance of at least 7.9 in. (20 cm)
between the antenna and the body of
any person at all time during use.
NOTICE
To prevent the 12-volt battery from being
discharged, do not leave the system on
longer than necessary when the engine
is not running.
When the last mode used is Aha Audio,
the audio system does not turn on auto-
matically even if the engine switch is
turned to the “ACC” or “ON” position.
Press the “ /VOL” knob to turn on the
audio system.
TURNING THE AUDIO
SYSTEM ON AND OFF
SWITCHING AUDIO SOURCE
US0011DS_3

24
2. AUDIO SYSTEM

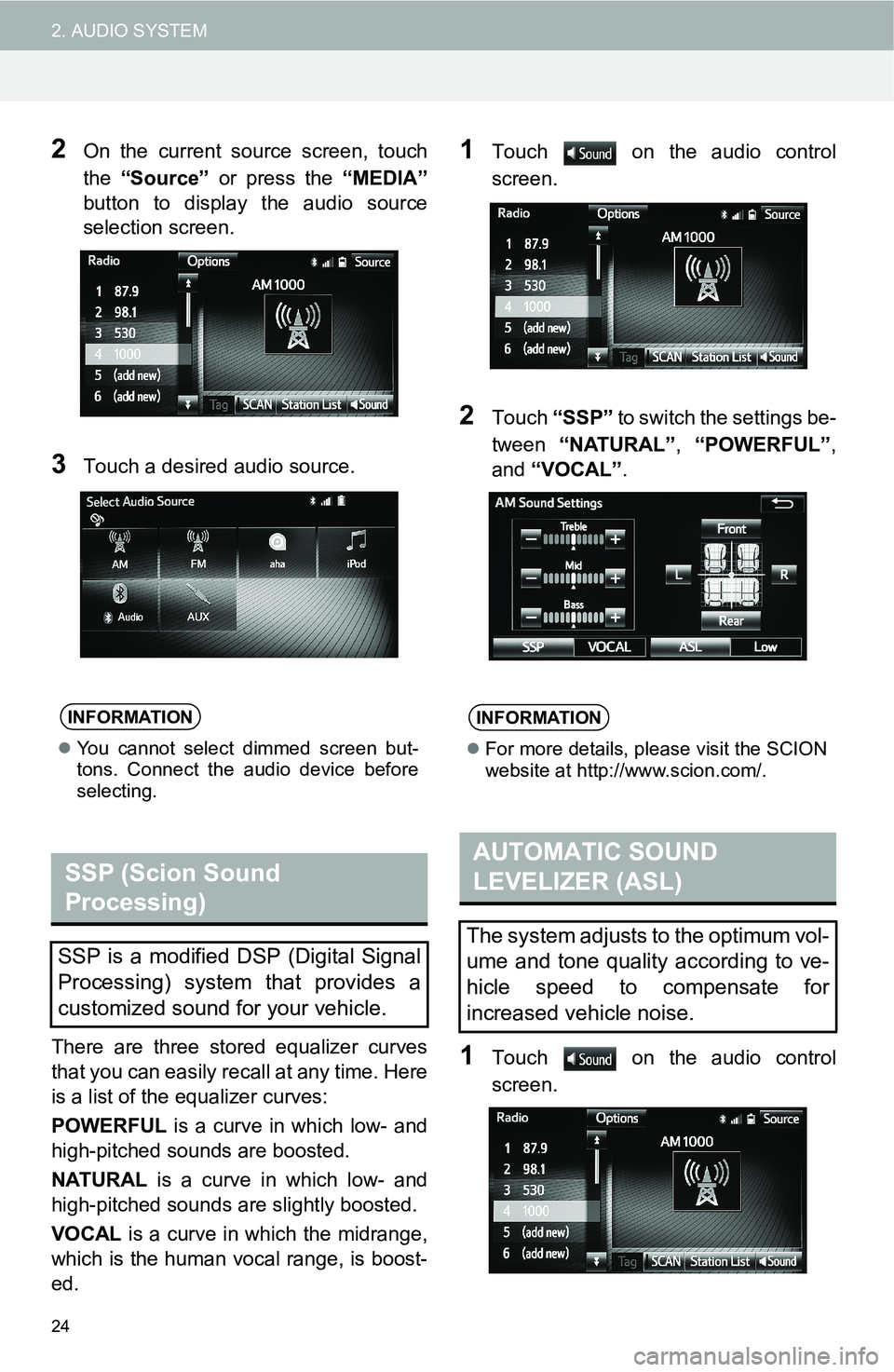

2On the current source screen, touch
the “Source” or press the “MEDIA”
button to display the audio source
selection screen.
3Touch a desired audio source.
There are three stored equalizer curves
that you can easily recall at any time. Here
is a list of the equalizer curves:
POWERFUL is a curve in which low- and
high-pitched sounds are boosted.
NATURAL is a curve in which low- and
high-pitched sounds are slightly boosted.
VOCAL is a curve in which the midrange,
which is the human vocal range, is boost-
ed.
1Touch on the audio control
screen.
2Touch “SSP” to switch the settings be-
tween “NATURAL”, “POWERFUL”,
and “VOCAL”.
1Touch on the audio control
screen.
INFORMATION
You cannot select dimmed screen but-
tons. Connect the audio device before
selecting.
SSP (Scion Sound
Processing)
SSP is a modified DSP (Digital Signal
Processing) system that provides a
customized sound for your vehicle.
INFORMATION
For more details, please visit the SCION
website at http://www.scion.com/.
AUTOMATIC SOUND
LEVELIZER (ASL)
The system adjusts to the optimum vol-
ume and tone quality according to ve-
hicle speed to compensate for
increased vehicle noise.

27
2. AUDIO SYSTEM
2
AUDIO SYSTEM

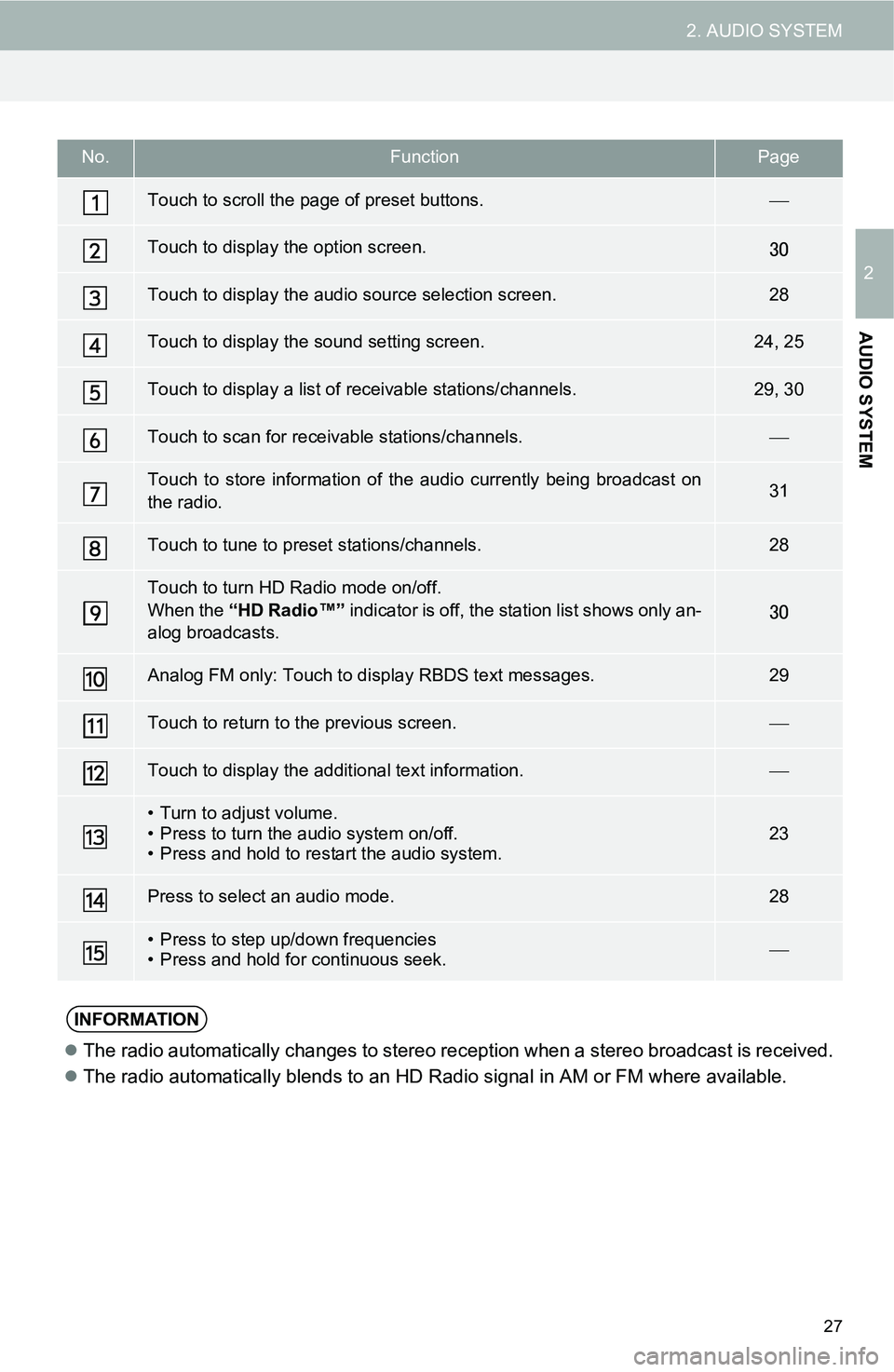

No.FunctionPage
Touch to scroll the page of preset buttons.
Touch to display the option screen.30
Touch to display the audio source selection screen.28
Touch to display the sound setting screen.24, 25
Touch to display a list of receivable stations/channels.29, 30
Touch to scan for receivable stations/channels.
Touch to store information of the audio currently being broadcast on
the radio.31
Touch to tune to preset stations/channels.28
Touch to turn HD Radio mode on/off.
When the “HD Radio™” indicator is off, the station list shows only an-
alog broadcasts.
30
Analog FM only: Touch to display RBDS text messages.29
Touch to return to the previous screen.
Touch to display the additional text information.
• Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.23
Press to select an audio mode.28
• Press to step up/down frequencies
• Press and hold for continuous seek.
INFORMATION
The radio automatically changes to stereo reception when a stereo broadcast is received.
The radio automatically blends to an HD Radio signal in AM or FM where available.

28
2. AUDIO SYSTEM

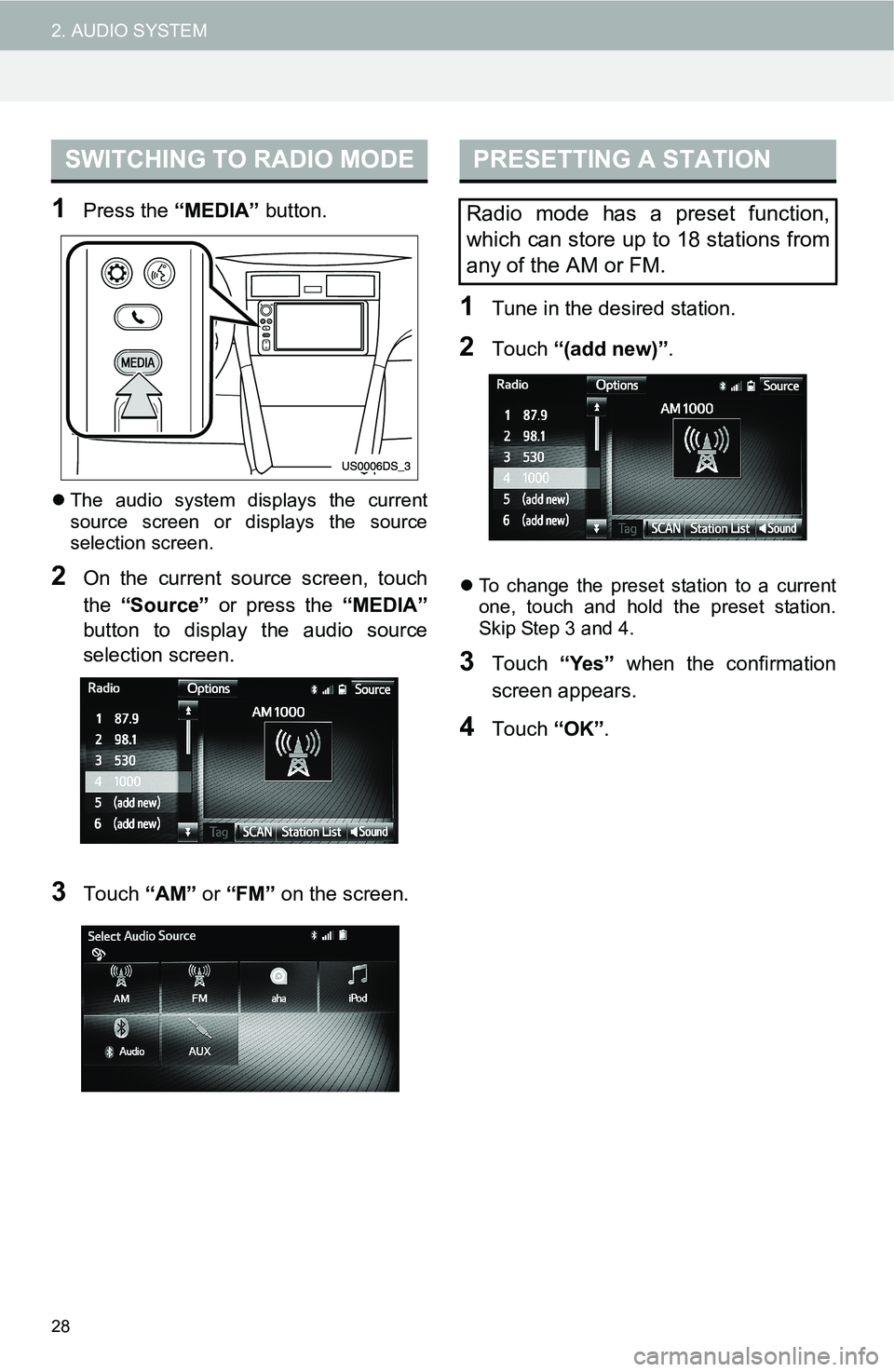

1Press the “MEDIA” button.
The audio system displays the current
source screen or displays the source
selection screen.
2On the current source screen, touch
the “Source” or press the “MEDIA”
button to display the audio source
selection screen.
3Touch “AM” or “FM” on the screen.
1Tune in the desired station.
2Touch “(add new)”.
To change the preset station to a current
one, touch and hold the preset station.
Skip Step 3 and 4.
3Touch “Yes” when the confirmation
screen appears.
4Touch “OK”.
SWITCHING TO RADIO MODEPRESETTING A STATION
Radio mode has a preset function,
which can store up to 18 stations from
any of the AM or FM.

29
2. AUDIO SYSTEM
2
AUDIO SYSTEM

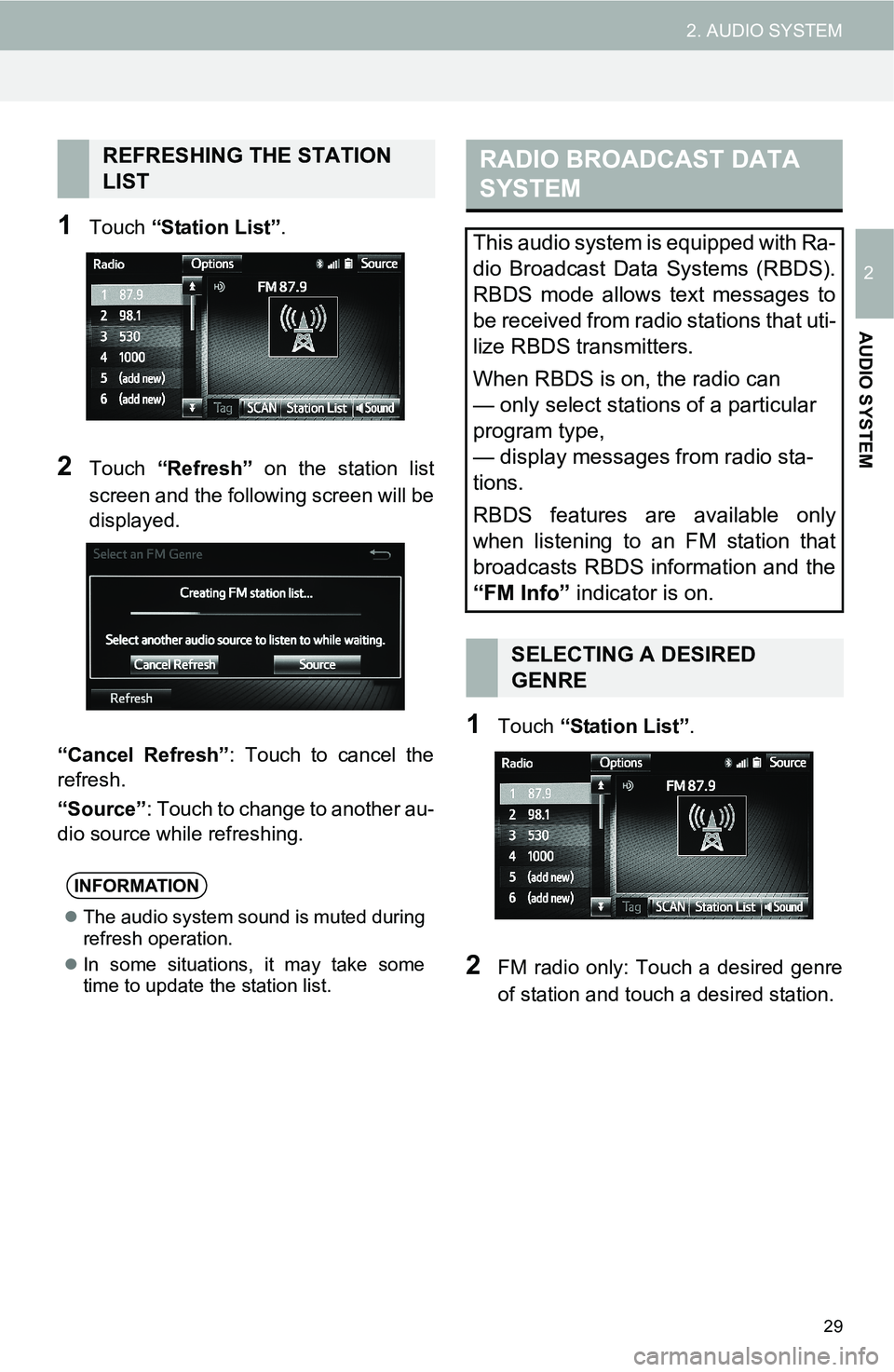

1Touch “Station List”.
2Touch “Refresh” on the station list
screen and the following screen will be
displayed.
“Cancel Refresh”: Touch to cancel the
refresh.
“Source”: Touch to change to another au-
dio source while refreshing.
1Touch “Station List”.
2FM radio only: Touch a desired genre
of station and touch a desired station.
REFRESHING THE STATION
LIST
INFORMATION
The audio system sound is muted during
refresh operation.
In some situations, it may take some
time to update the station list.
RADIO BROADCAST DATA
SYSTEM
This audio system is equipped with Ra-
dio Broadcast Data Systems (RBDS).
RBDS mode allows text messages to
be received from radio stations that uti-
lize RBDS transmitters.
When RBDS is on, the radio can
— only select stations of a particular
program type,
— display messages from radio sta-
tions.
RBDS features are available only
when listening to an FM station that
broadcasts RBDS information and the
“FM Info” indicator is on.
SELECTING A DESIRED
GENRE

30
2. AUDIO SYSTEM
The genre list is in the following order:
• Country
• EasyLis (Easy Listening)
• Inform (Information)
•Jazz
•News
• Oldies
•Other
• Pop Music
•Religion
•Rock
• R&B (Rhythm and Blues)
•Sports
•Talk
• Traffic (Not available when “HD Radio™”
indicator is off.)
• Alert (Emergency Alert)
1Touch “Station List”.
2Touch the desired traffic program sta-
tion.
Program Service Data: Contributes to the
superior user experience of HD Radio
Technology. Presents song name, artist,
station IDs, HD2/HD3 Channel Guide,
and other relevant data streams.
TRAFFIC ANNOUNCEMENT
(FM RADIO)
A station that regularly broadcasts traf-
fic information is automatically located.
INFORMATION
If a traffic program station is found, the
name of the traffic program station will
be displayed for a while.
USING HD Radio™
TECHNOLOGY
HD Radio™ Technology is the digital
evolution of analog AM/FM radio. Your
radio product has a special receiver
which allows it to receive digital broad-
casts (where available) in addition to
the analog broadcasts it already re-
ceives. Digital broadcasts have better
sound quality than analog broadcasts
as digital broadcasts provide free,
crystal clear audio with no static or dis-
tortion. For more information, and a
guide to available radio stations and
programming, refer to www.hdra-
dio.com.
HD Radio Technology manufactured
under license from iBiquity Digital Cor-
poration. U.S. and Foreign Patents.
HD Radio™ and the HD, HD Radio,
and “Arc” logos are proprietary trade-
marks of iBiquity Digital Corp.

31
2. AUDIO SYSTEM
2
AUDIO SYSTEM

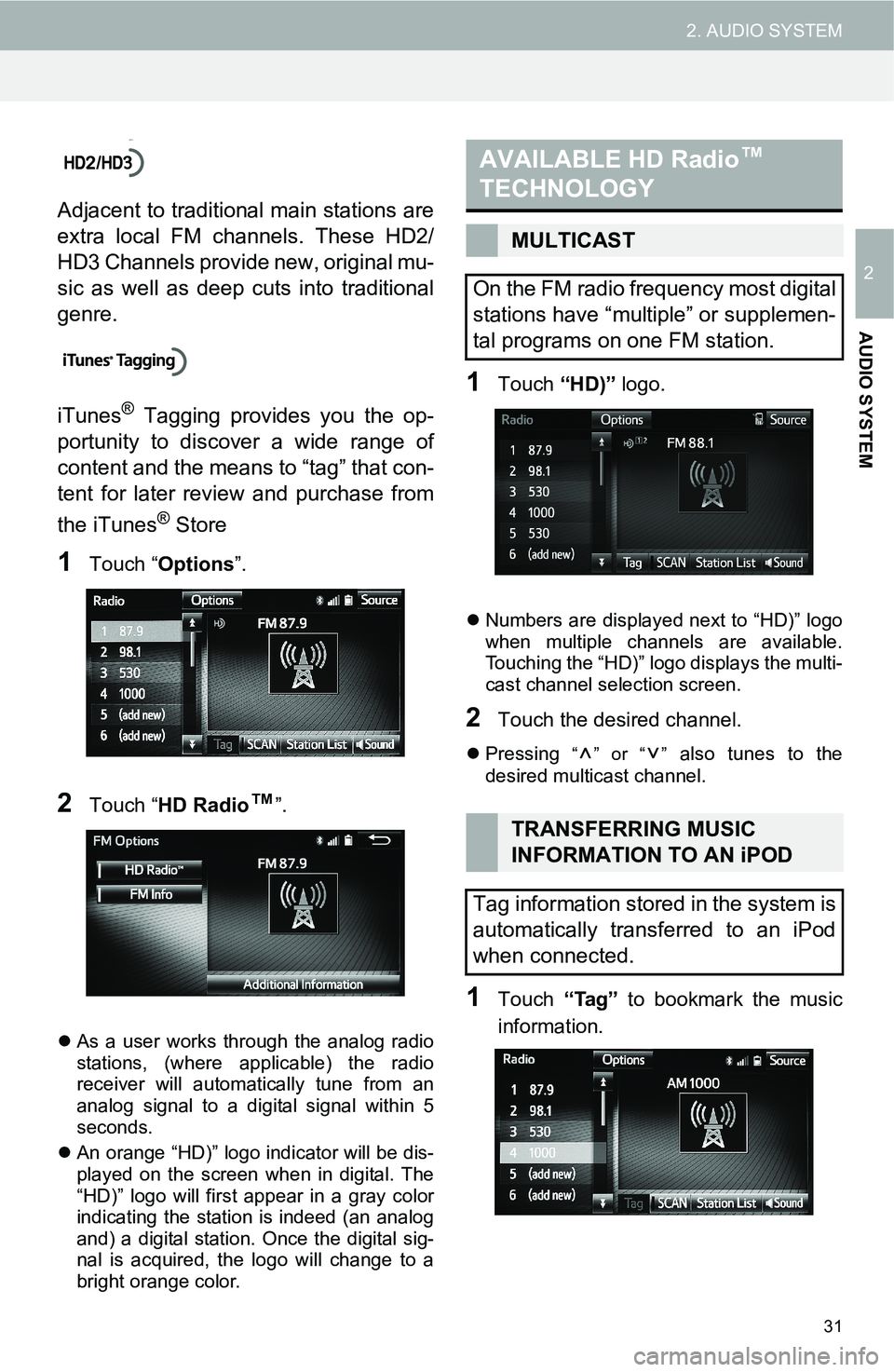

Adjacent to traditional main stations are
extra local FM channels. These HD2/
HD3 Channels provide new, original mu-
sic as well as deep cuts into traditional
genre.
iTunes
® Tagging provides you the op-
portunity to discover a wide range of
content and the means to “tag” that con-
tent for later review and purchase from
the iTunes
® Store
1Touch “Options”.
2Touch “HD Radio™”.
As a user works through the analog radio
stations, (where applicable) the radio
receiver will automatically tune from an
analog signal to a digital signal within 5
seconds.
An orange “HD)” logo indicator will be dis-
played on the screen when in digital. The
“HD)” logo will first appear in a gray color
indicating the station is indeed (an analog
and) a digital station. Once the digital sig-
nal is acquired, the logo will change to a
bright orange color.
1Touch “HD)” logo.
Numbers are displayed next to “HD)” logo
when multiple channels are available.
Touching the “HD)” logo displays the multi-
cast channel selection screen.
2Touch the desired channel.
Pressing “ ” or “ ” also tunes to the
desired multicast channel.
1Touch “Tag” to bookmark the music
information.
AVAILABLE HD Radio™

TECHNOLOGY
MULTICAST
On the FM radio frequency most digital
stations have “multiple” or supplemen-
tal programs on one FM station.
TRANSFERRING MUSIC
INFORMATION TO AN iPOD
Tag information stored in the system is
automatically transferred to an iPod
when connected.

32
2. AUDIO SYSTEM

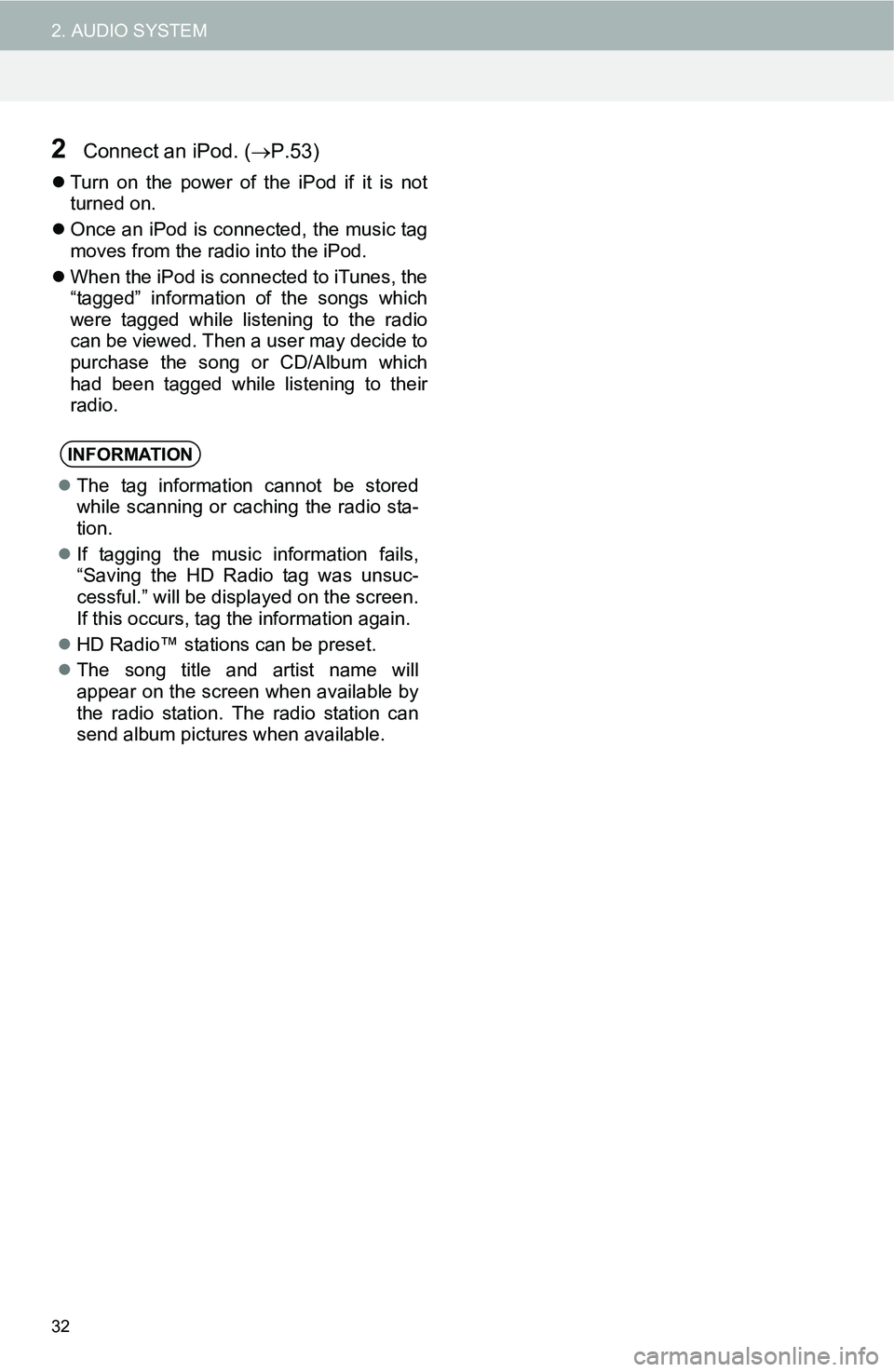

2Connect an iPod. (P.53)
Turn on the power of the iPod if it is not
turned on.
Once an iPod is connected, the music tag
moves from the radio into the iPod.
When the iPod is connected to iTunes, the
“tagged” information of the songs which
were tagged while listening to the radio
can be viewed. Then a user may decide to
purchase the song or CD/Album which
had been tagged while listening to their
radio.
INFORMATION
The tag information cannot be stored
while scanning or caching the radio sta-
tion.
If tagging the music information fails,
“Saving the HD Radio tag was unsuc-
cessful.” will be displayed on the screen.
If this occurs, tag the information again.
HD Radio™ stations can be preset.
The song title and artist name will
appear on the screen when available by
the radio station. The radio station can
send album pictures when available.

35
2. AUDIO SYSTEM
2
AUDIO SYSTEM

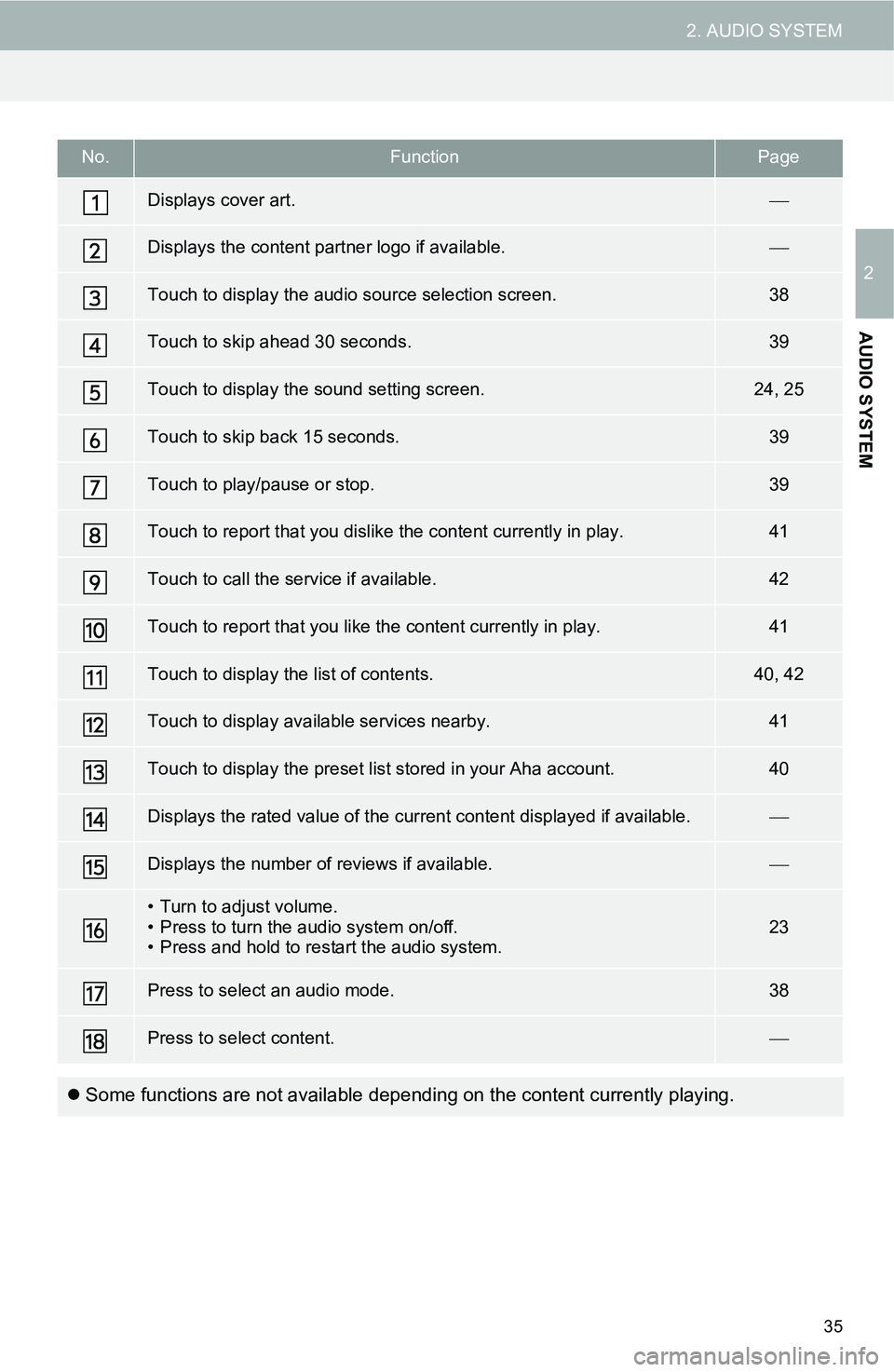

No.FunctionPage
Displays cover art.
Displays the content partner logo if available.
Touch to display the audio source selection screen.38
Touch to skip ahead 30 seconds.39
Touch to display the sound setting screen.24, 25
Touch to skip back 15 seconds.39
Touch to play/pause or stop.39
Touch to report that you dislike the content currently in play.41
Touch to call the service if available.42
Touch to report that you like the content currently in play.41
Touch to display the list of contents.40, 42
Touch to display available services nearby.41
Touch to display the preset list stored in your Aha account.40
Displays the rated value of the current content displayed if available.
Displays the number of reviews if available.
• Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.23
Press to select an audio mode.38
Press to select content.
Some functions are not available depending on the content currently playing.

37
2. AUDIO SYSTEM
2
AUDIO SYSTEM
1Download Aha application onto your
smartphone. For an iPhone, using
iTunes App Store. For an Android
phone, using Google Play.
2Follow the instructions to set up your
Aha account on your smartphone.
3Optional: Link your Associated Ac-
counts in the Settings menu to enable
certain personalized stations.
4Aha provides content suggestions from
a wide range of Featured categories,
but you can also add many presets via
the smartphone app or the Aha web-
site (http://aharadio.com/station).
If the language setting is changed in this
system, the menus and messages of this
system are displayed in the set language
(→P.112). To change the language for the
contents of Aha, configure the language
setting for Aha application on an iPhone or
a smartphone.Aha's location-based services list the
points of interest in the current location.
The list depends on the available service
in the region.
1Open the cover of the USB/AUX port
and connect an iPhone using an
iPhone dock connector to USB cable.
The USB/AUX port is located on the instru-
ment panel, or near the shift knob, etc. The
actual design and port position will differ
depending on the vehicle. For details, refer
to vehicle “Owner’s Manual”.
Turn on the power of the iPhone if it is not
turned on.
INSTALLING THE Aha™
APPLICATION
CHANGING THE DISPLAY
LANGUAGE
AVAILABILITY OF SERVICE
INFORMATION
When using Aha, depending on the
details of your smartphone contract,
data usage fees may apply. Confirm
data usage fees before using this ser-
vice.
iPhone needs to be connected through
USB cable to use Aha.

Android phone needs to have Bluetooth®
audio connection to use Aha.
CONNECTING AN iPhone
