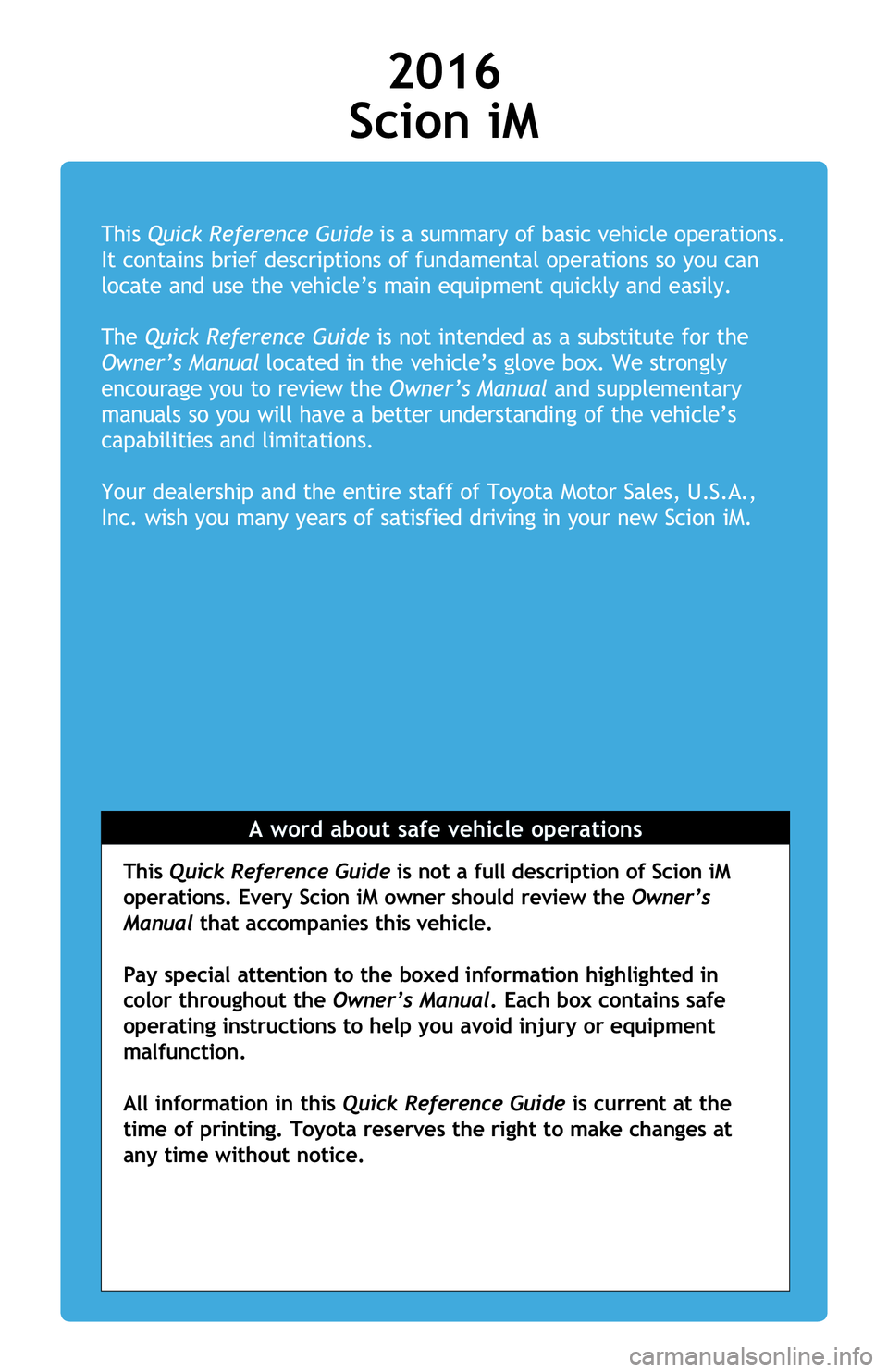

This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Scion iM.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Scion iM
operations. Every Scion iM owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Scion iM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1

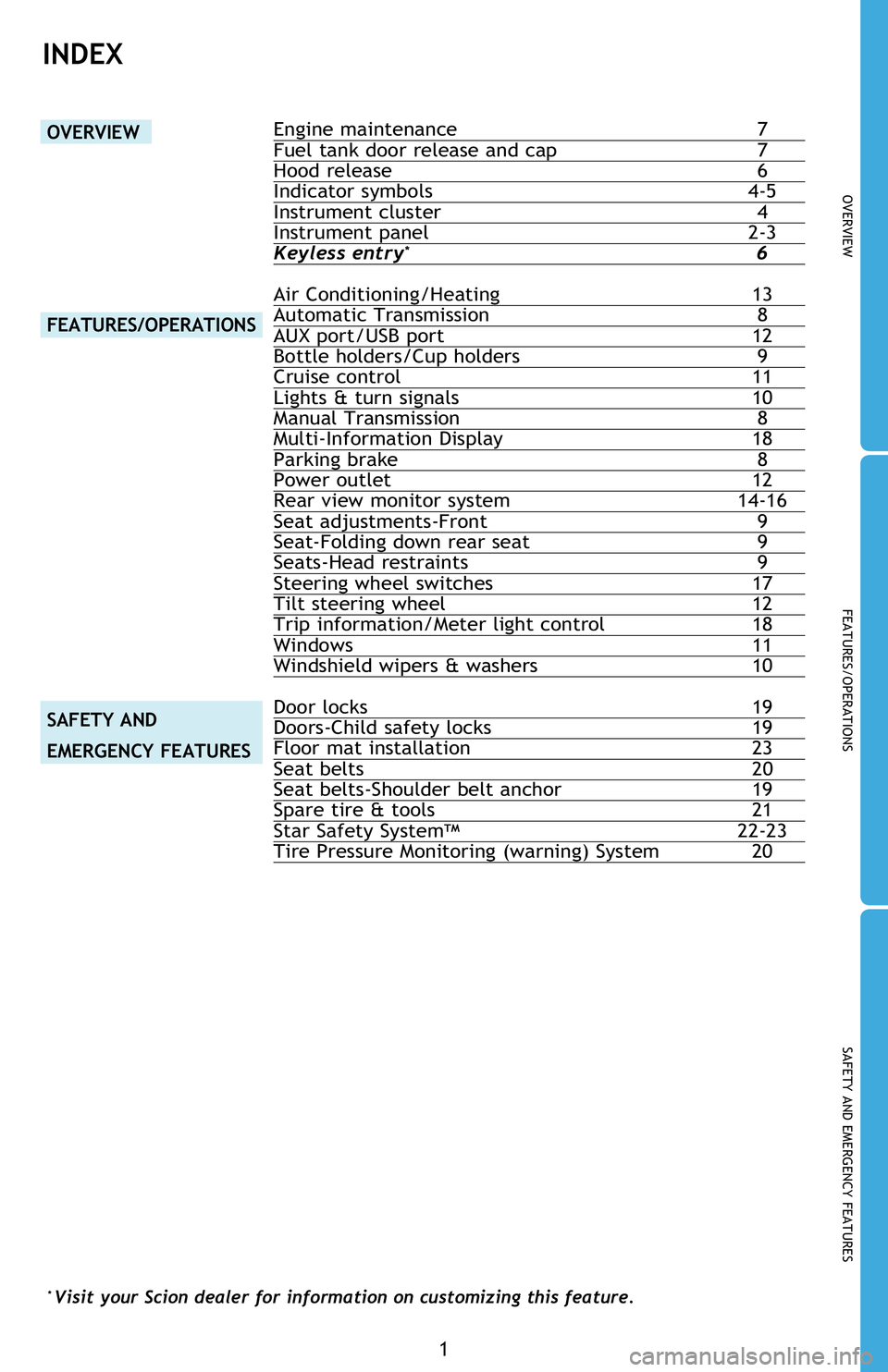

INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 7
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
* 6

Air Conditioning/Heating 13
Automatic Transmission 8
AUX port/USB port 12
Bottle holders/Cup holders 9
Cruise control 11
Lights & turn signals 10
Manual Transmission 8
Multi-Information Display 18
Parking brake 8
Power outlet 12
Rear view monitor system 14-16
Seat adjustments-Front 9
Seat-Folding down rear seat 9
Seats-Head restraints 9
Steering wheel switches 17
Tilt steering wheel 12
Trip information/Meter light control 18
Windows 11
Windshield wipers & washers 10
Door locks 19
Doors-Child safety locks 19
Floor mat installation 23
Seat belts 20
Seat belts-Shoulder belt anchor 19
Spare tire & tools 21
Star Safety System
TM 22-23
Tire Pressure Monitoring (warning) System 20
* Visit your Scion dealer for information on customizing this feature.

2
OVERVIEW

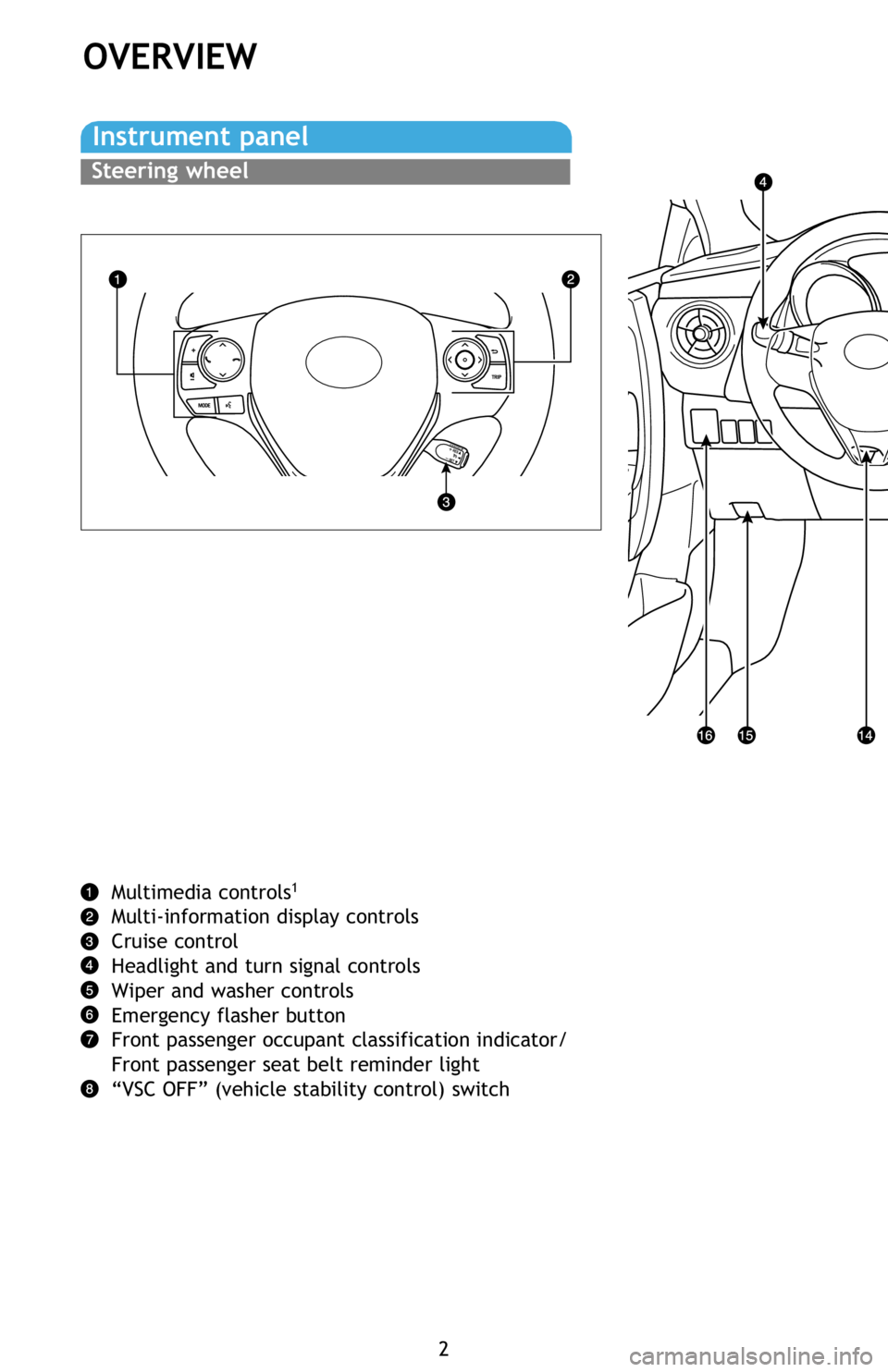

Instrument panel
Multimedia controls1
Multi-information display controls
Cruise control
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Front passenger occupant classification indicator/
Front passenger seat belt reminder light
“VSC OFF” (vehicle stability control) switch
Steering wheel

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
1
For more information, refer to Scion.com to download the SCION Audio System Owner’s
Manual.
2
If equipped.

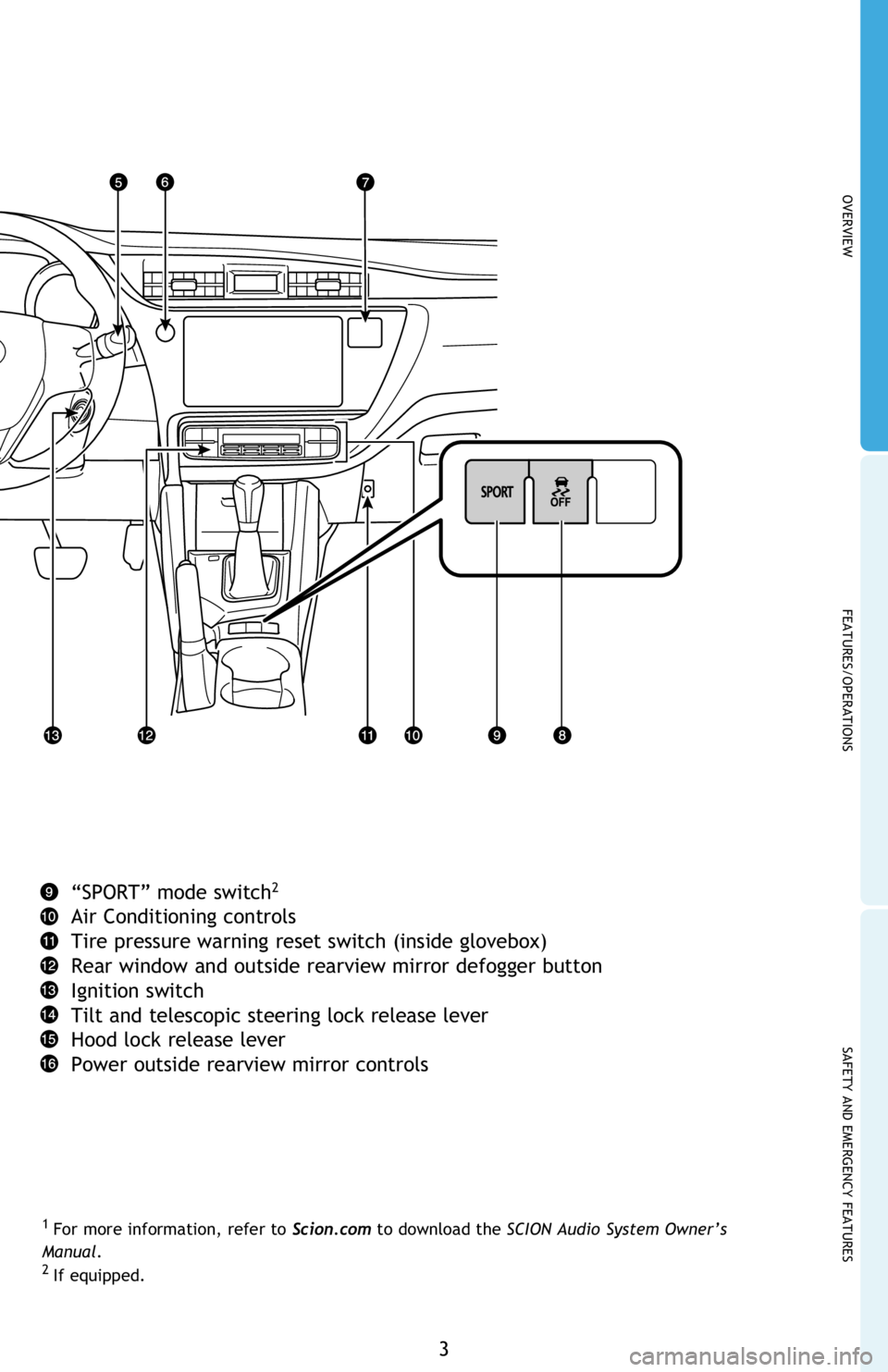

“SPORT” mode switch2
Air Conditioning controls
Tire pressure warning reset switch (inside glovebox)
Rear window and outside rearview mirror defogger button
Ignition switch
Tilt and telescopic steering lock release lever
Hood lock release lever
Power outside rearview mirror controls

4
OVERVIEW

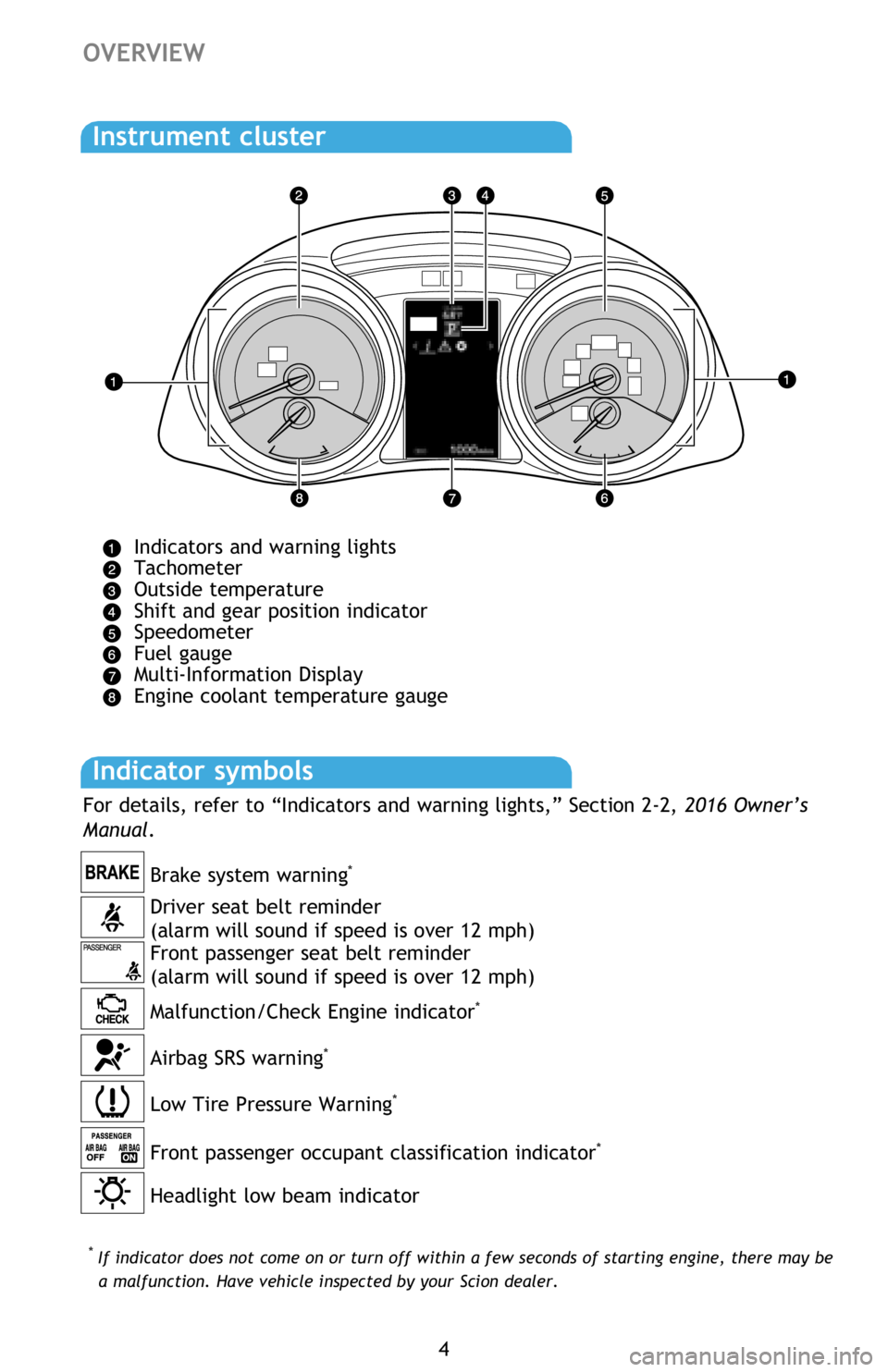

Instrument cluster
Indicators and warning lights
Tachometer
Outside temperature
Shift and gear position indicator
Speedometer
Fuel gauge
Multi-Information Display
Engine coolant temperature gauge
*
If indicator does not come on or turn off within a few seconds of starting engine, there may be
a malfunction. Have vehicle inspected by your Scion dealer.
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2016 Owner’s
Manual.
Headlight low beam indicator Front passenger occupant classification indicator
*
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph) Brake system warning
*
Malfunction/Check Engine indicator*
Low Tire Pressure Warning*
Airbag SRS warning*

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

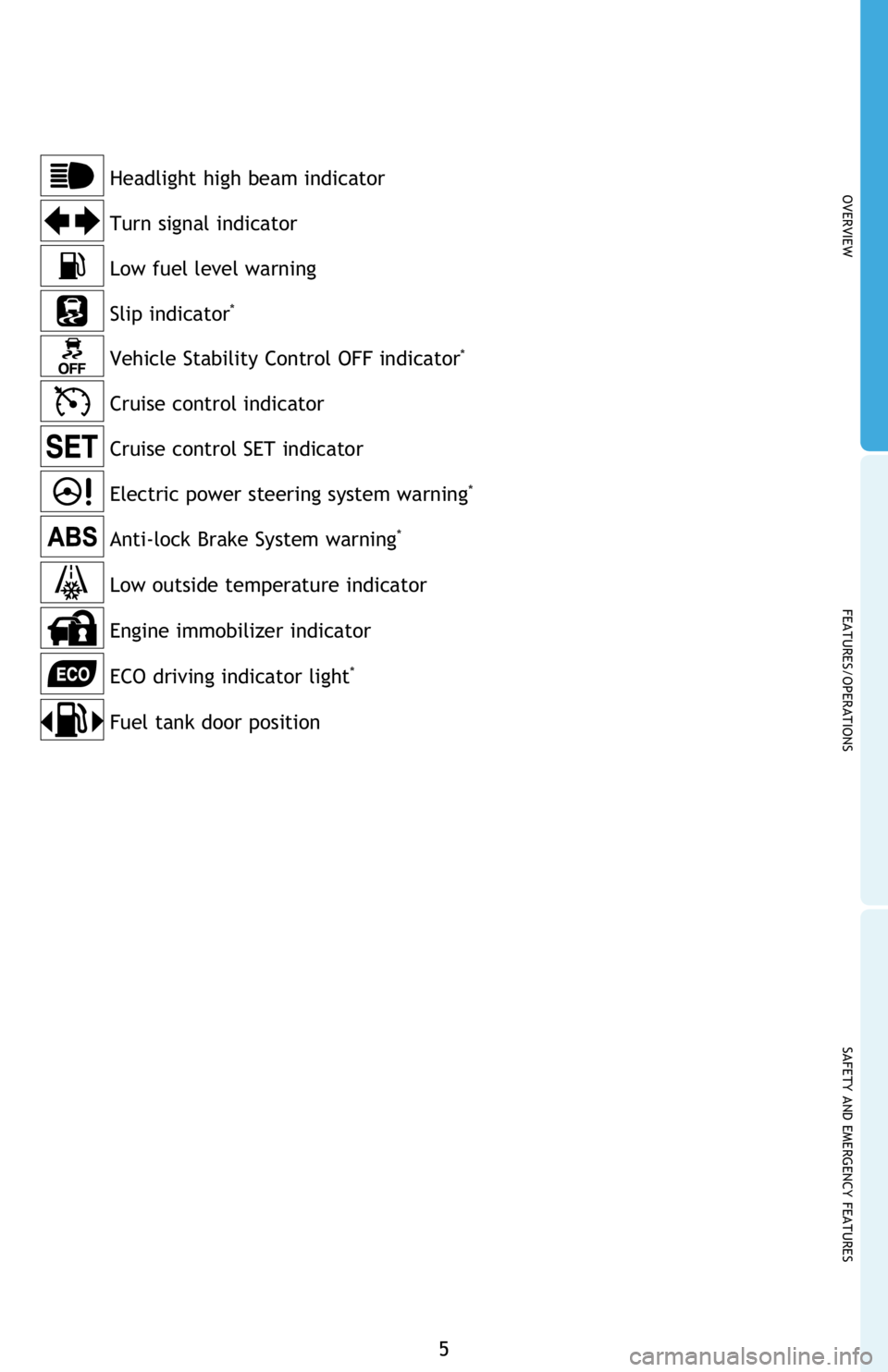

Anti-lock Brake System warning*
Turn signal indicator Headlight high beam indicator
Cruise control indicator
Electric power steering system warning
*
Slip indicator*
Vehicle Stability Control OFF indicator*
Low fuel level warning
Low outside temperature indicator
Engine immobilizer indicator
ECO driving indicator light
*
Cruise control SET indicator
Fuel tank door position

6
OVERVIEW

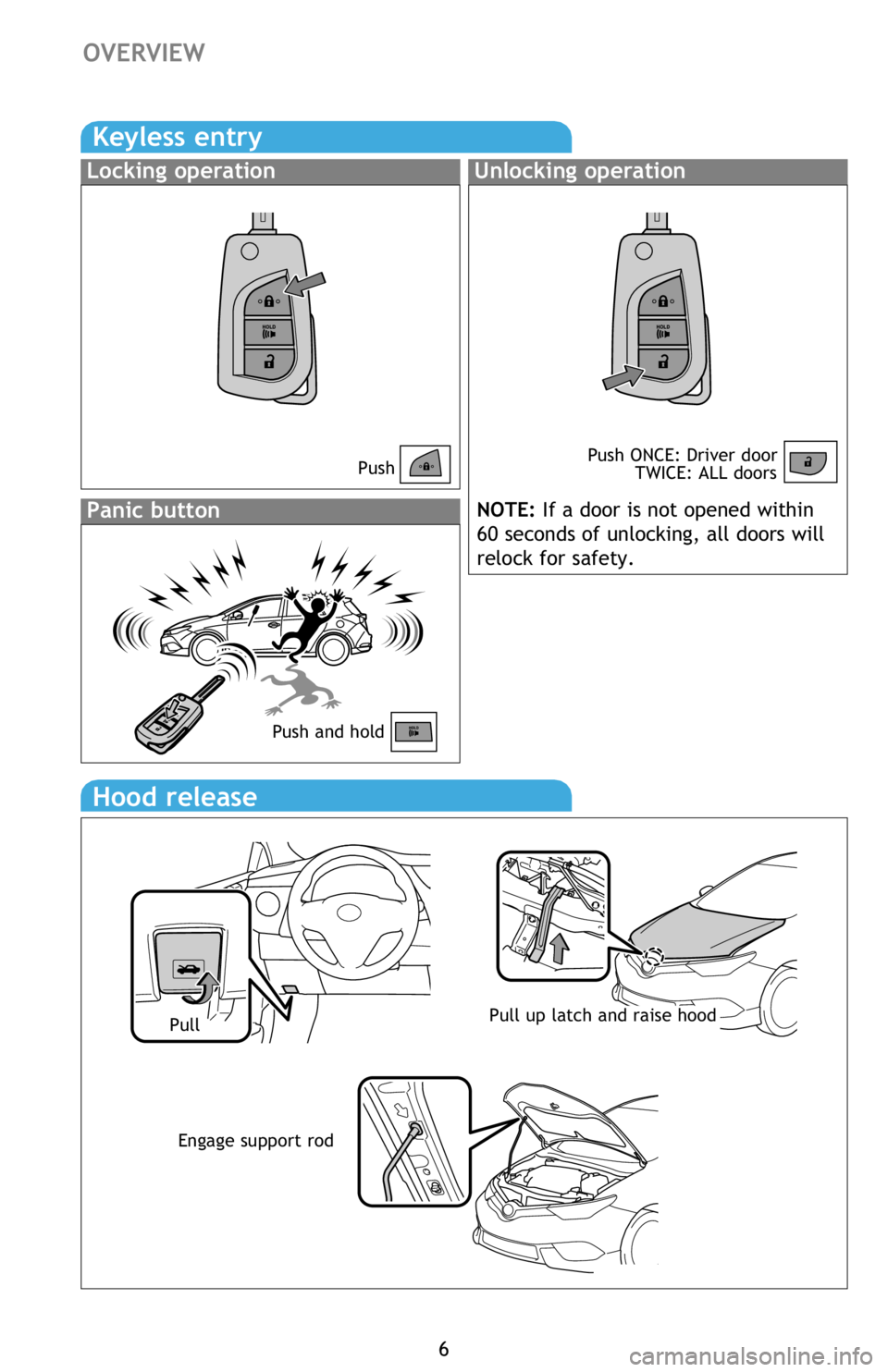

Keyless entry
Locking operationUnlocking operation
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
PushPush ONCE: Driver door
TWICE: ALL doors
Panic button
Push and hold
Hood release
Engage support rod
PullPull up latch and raise hood

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

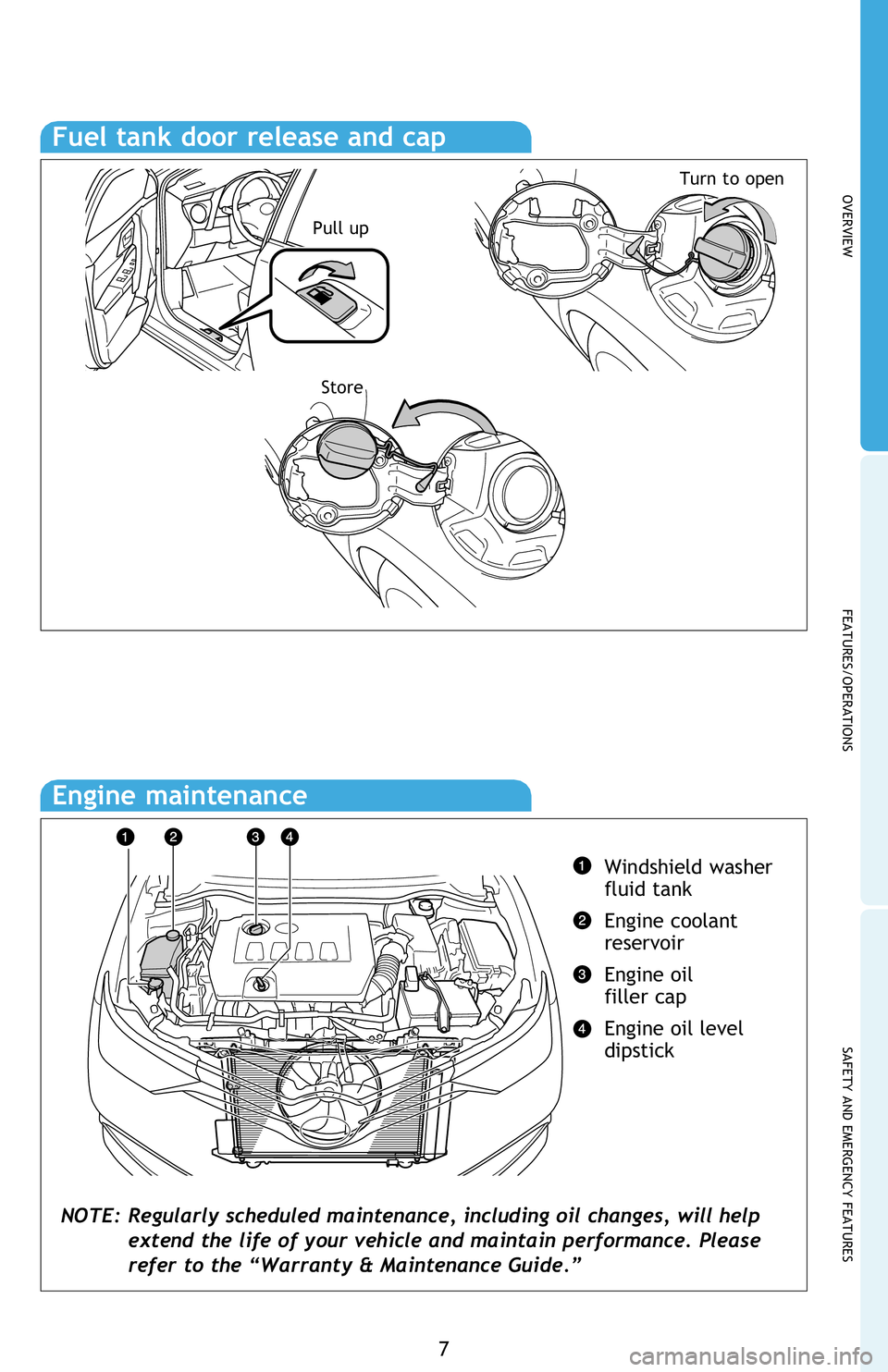

Fuel tank door release and cap
Windshield washer
fluid tank
Engine coolant
reservoir
Engine oil
filler cap
Engine oil level
dipstick


Engine maintenance
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please
refer to the “Warranty & Maintenance Guide.”
Turn to open
Store
Pull up

* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
Push shift lever to the left from “D” position, to “M” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
8
FEATURES/OPERATIONS

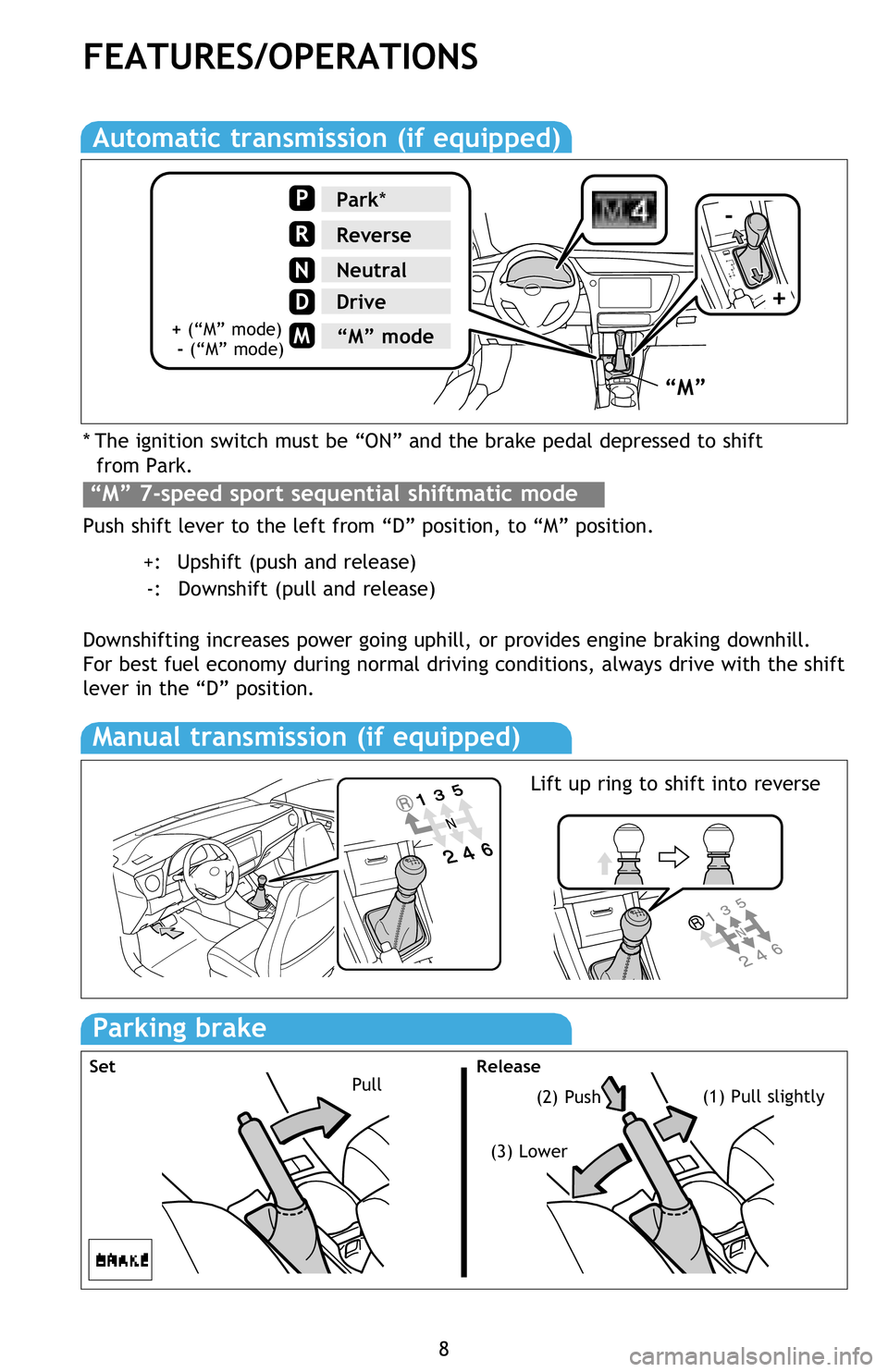

Automatic transmission (if equipped)
“M” 7-speed sport sequential shiftmatic mode
Manual transmission (if equipped)
Parking brake
Pull(2) Push(1) Pull slightly
(3) Lower
Set Release
“M”
-
+
Park*
Reverse
Neutral
Drive
P
R
N
D
M“M” mode+ (“M” mode)
- (“M” mode)
Lift up ring to shift into reverse
