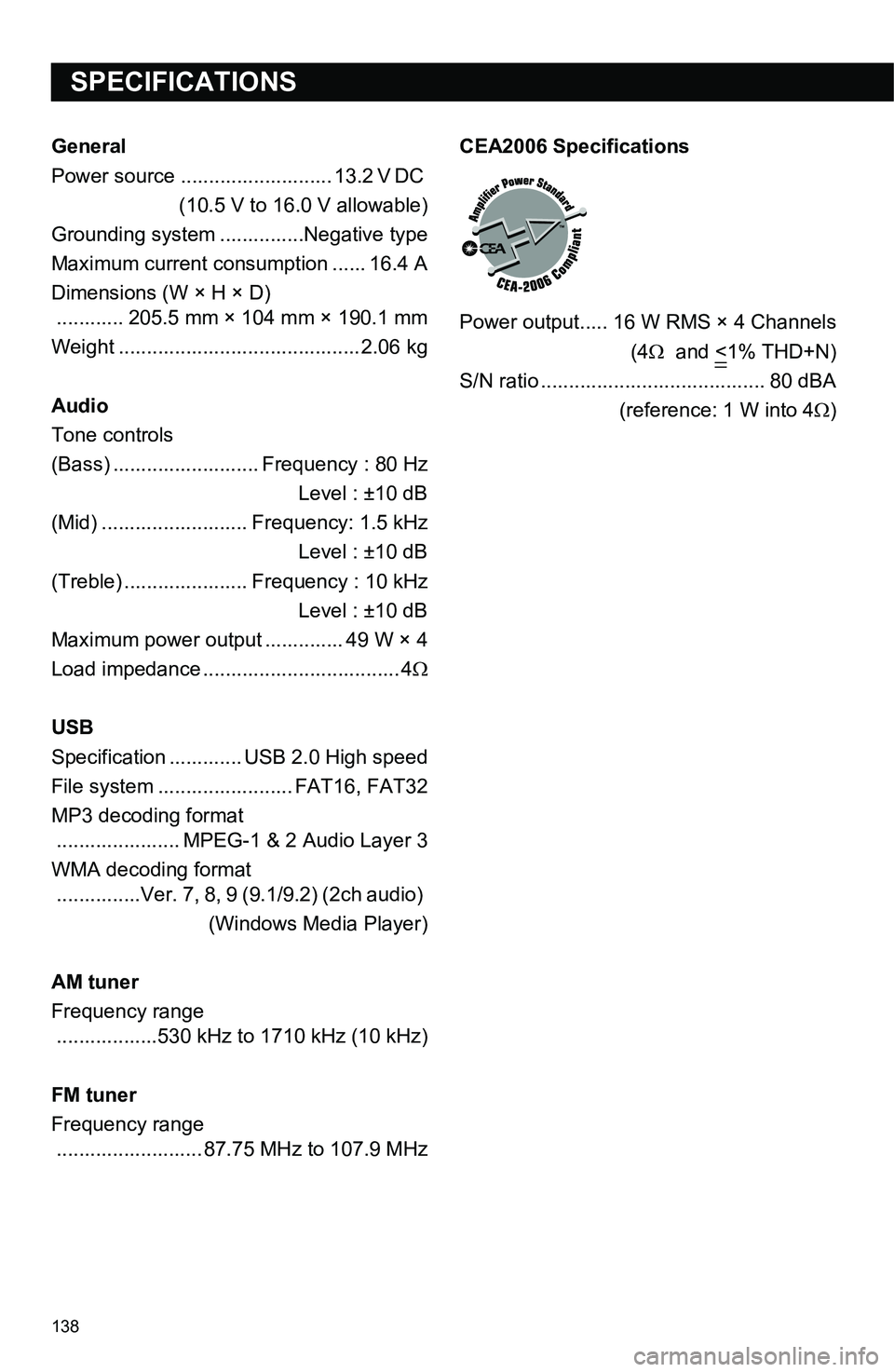

General
Power source ........................... 13.2 V DC
(10.5 V to 16.0 V allowable)
Grounding system ...............Negative type
Maximum current consumption ...... 16.4 A
Dimensions (W × H × D)
............ 205.5 mm × 104 mm × 190.1 mm
Weight ........................................... 2.06 kg
Audio
Tone controls
(Bass) .......................... Frequency : 80 Hz
Level : ±10 dB
(Mid) .......................... Frequency: 1.5 kHz
Level : ±10 dB
(Treble) ...................... Frequency : 10 kHz
Level : ±10 dB
Maximum power output .............. 49 W × 4
Load impedance ................................... 4
USB
Specification ............. USB 2.0 High speed
File system ........................ FAT16, FAT32
MP3 decoding format
...................... MPEG-1 & 2 Audio Layer 3
WMA decoding format
...............Ver. 7, 8, 9 (9.1/9.2) (2ch audio)
(Windows Media Player)
AM tuner
Frequency range
..................530 kHz to 1710 kHz (10 kHz)
FM tuner
Frequency range
.......................... 87.75 MHz to 107.9 MHzCEA2006 Specifications
Power output..... 16 W RMS × 4 Channels
(4 and <
1% THD+N)
S/N ratio ........................................ 80 dBA
(reference: 1 W into 4)
SPECIFICATIONS
