2917-2. Steps to take in an emergency
7
When trouble arises
Scion iM_U (12J49U)
Stop the engine. Shift the shift lever to P (continuously variable
transmission) or N (manual transmission), and set the parking
brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (continuously variable transmission) or
1 or R (manual transmission) and re lease the parking brake. Then,
while exercising caution, depress the accelerator pedal.
n When it is difficult to free the vehicle

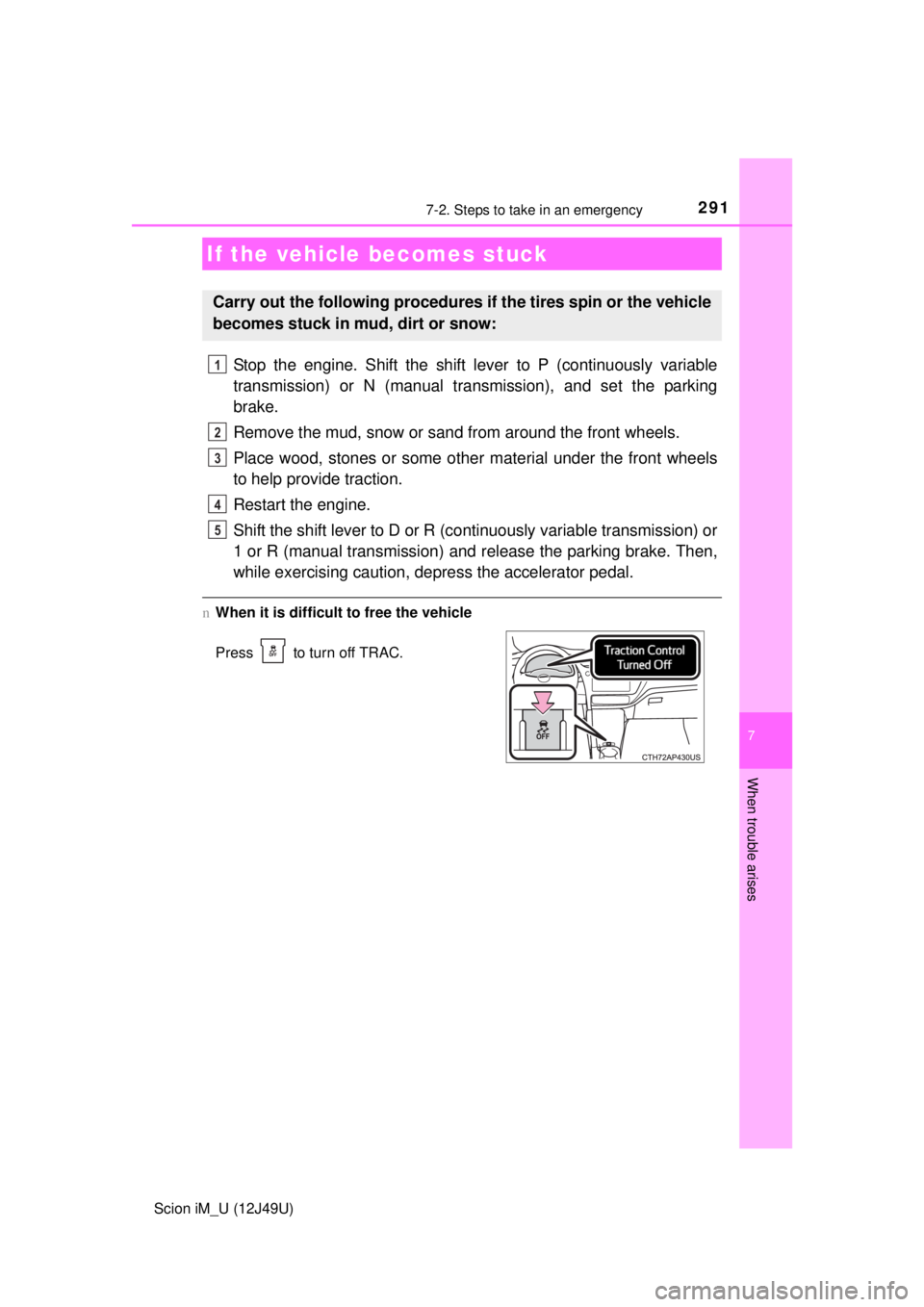

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

2927-2. Steps to take in an emergency
Scion iM_U (12J49U)
WARNING
nWhen attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
n When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
nTo avoid damaging the transm ission and other components
l Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
l If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

293
8Vehicle specifications
Scion iM_U (12J49U)8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 294
Fuel information ................ 303
Tire information ................. 306
8-2. Customization Customizable features ...... 319
8-3. Items to initialize Items to initialize ............... 324

294
Scion iM_U (12J49U)
8-1.Specifications
*: Unladen vehicles
n
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Scion. It is used in registerin g the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 170.5 in. (4330 mm)
Overall width 69.3 in. (1760 mm)
Overall height*58.1 in. (1475 mm)
Wheelbase102.4 in. (2600 mm)
TreadFront59.6 in. (1515 mm)
Rear59.3 in. (1505 mm)
Vehicle capacity weight
(occupants + luggage) 915 lb. (415 kg)
Vehicle identification

2958-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)
This number is also stamped on
the top left of the instrument
panel.
This number is also on the Cer-
tification Label.
nEngine number
The engine number is stamped
on the engine block as shown.

2968-1. Specifications
Scion iM_U (12J49U)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

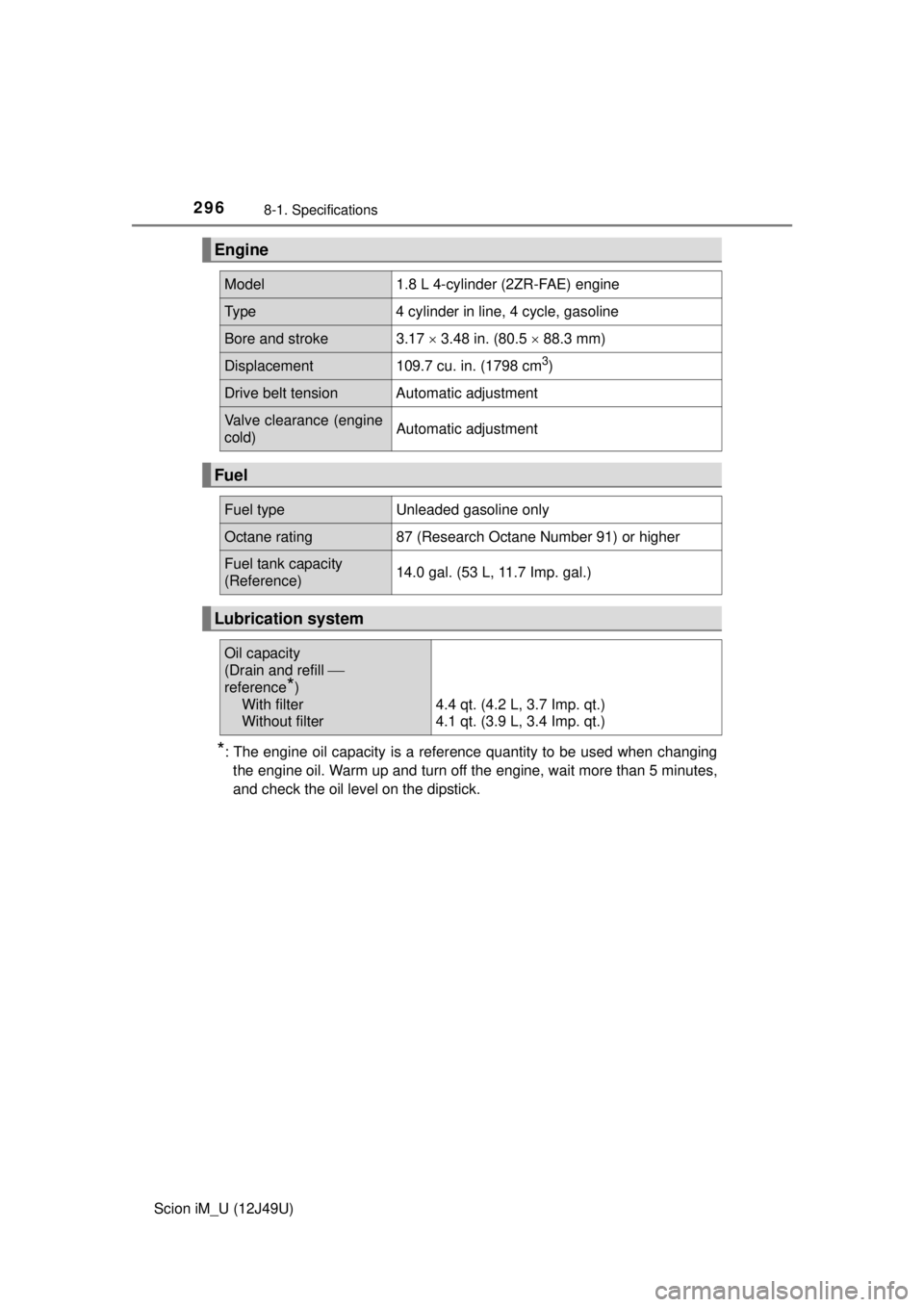

Engine
Model 1.8 L 4-cylinder (2ZR-FAE) engine
Type4 cylinder in line, 4 cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu. in. (1798 cm3)
Drive belt tension Automatic adjustment
Valve clearance (engine
cold)Automatic adjustment
Fuel
Fuel type
Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)14.0 gal. (53 L, 11.7 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill

reference
*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)

2978-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)n
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Scion vehicle. Use Scion
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, \
or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oi l you should use.
Outside temperature

2988-1. Specifications
Scion iM_U (12J49U)
Cooling system
Capacity
Vehicles with a continuously variable transmission
6.1 qt. (5.8 L, 5.1 Imp. qt.)
Vehicles with a manual transmission
5.9 qt. (5.6 L, 4.9 Imp. qt.)
Coolant type
Use either of the following. • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO SC20HR11
Gap0.043 in. (1.1 mm)
NOTICE
n Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

2998-1. Specifications
8
Vehicle specifications
Scion iM_U (12J49U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Scion dealer.
Electrical system
Battery
Open voltage at
68 F (20 C):
12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates5 A max.
Continuously variable transaxle
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
n Continuously variable transaxle fluid type
Using continuously variable transaxle fluid other than “Toyota Genuine CVT
Fluid FE” may cause deterioration in shift quality, locking up of the transmis-
sion accompanied by vibration and, ultimately, damage to the vehicle’s
transmission.

3008-1. Specifications
Scion iM_U (12J49U)

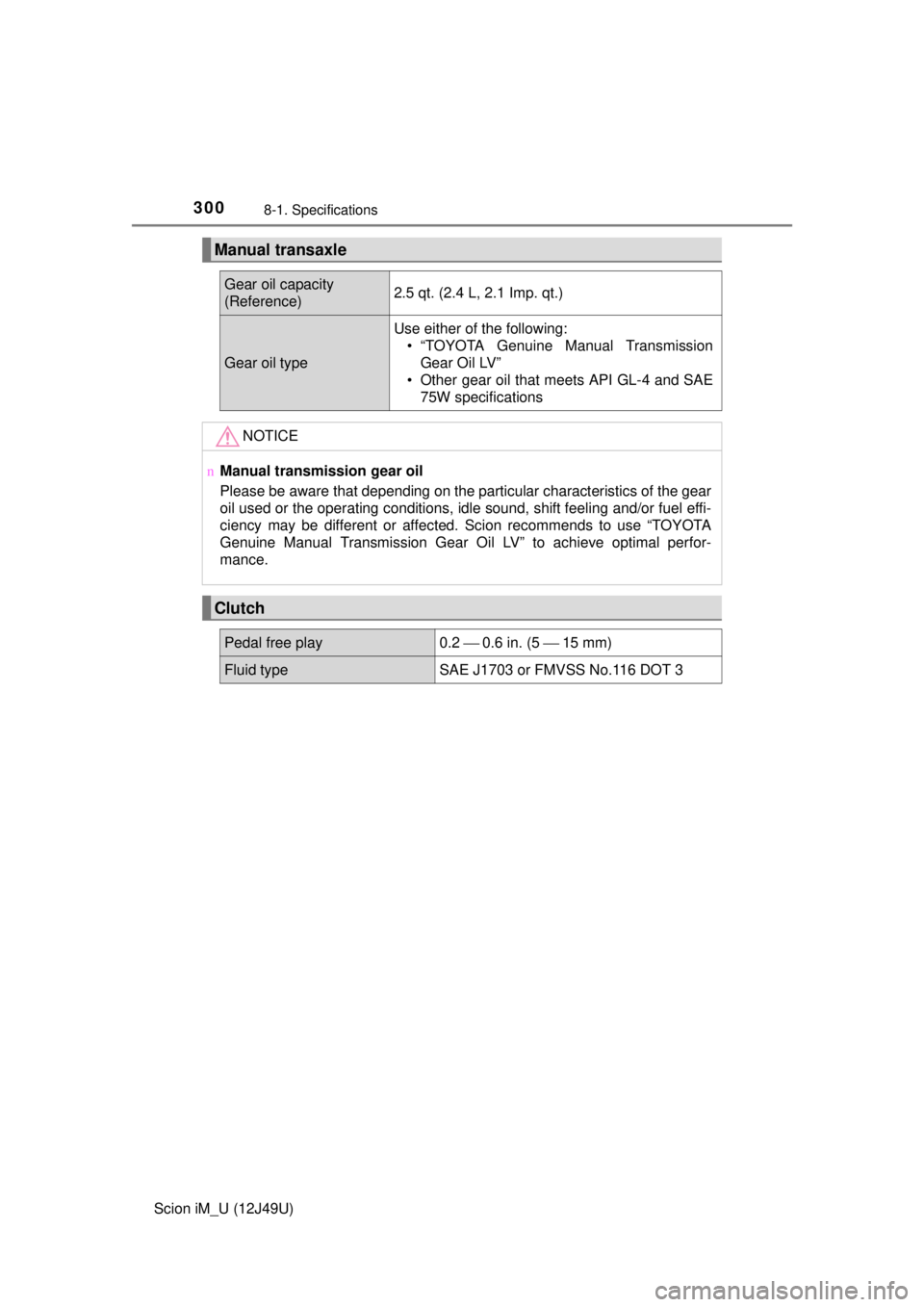

Manual transaxle
Gear oil capacity
(Reference)2.5 qt. (2.4 L, 2.1 Imp. qt.)
Gear oil type
Use either of the following:• “TOYOTA Genuine Manual TransmissionGear Oil LV”
• Other gear oil that meets API GL-4 and SAE
75W specifications
NOTICE
nManual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Scion recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 0.2 0.6 in. (5 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3
