812. Instrument cluster
2
Instrument cluster
Scion iM_U (12J49U)n
Brightness of the meters (day mode and night mode)
lThe brightness of the meters are changed between day mode and night
mode.
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
l When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
n Suspension of the settings display
lWhile driving, the multi-information display cannot be changed to setting
mode. Before changing the settings, stop the vehicle in a safe place.
l In the following situations, operation of some of the settings display may be
temporarily suspended.
• When a warning message appears on the multi-information display
• When the vehicle begins to move
n When disconnecting and reco nnecting battery terminals
The drive information data will be reset.
n Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
nCaution for use while driving
lWhen operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
l Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
n The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
n Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

822. Instrument cluster
Scion iM_U (12J49U)
NOTICE
nWhile setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

83
3
Operation of
each component
Scion iM_U (12J49U) 3-1. Key information
Keys .................................... 84
3-2. Opening, closing and locking the doors
Side doors ........................... 88
Back door ............................ 91
3-3. Adjusting the seats Front seats .......................... 95
Rear seats........................... 96
Head restraints.................... 98
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 101
Inside rear view mirror ...... 103
Outside rear view mirrors ............................. 104
3-5. Opening and closing the windows
Power windows ................. 106

84
Scion iM_U (12J49U)

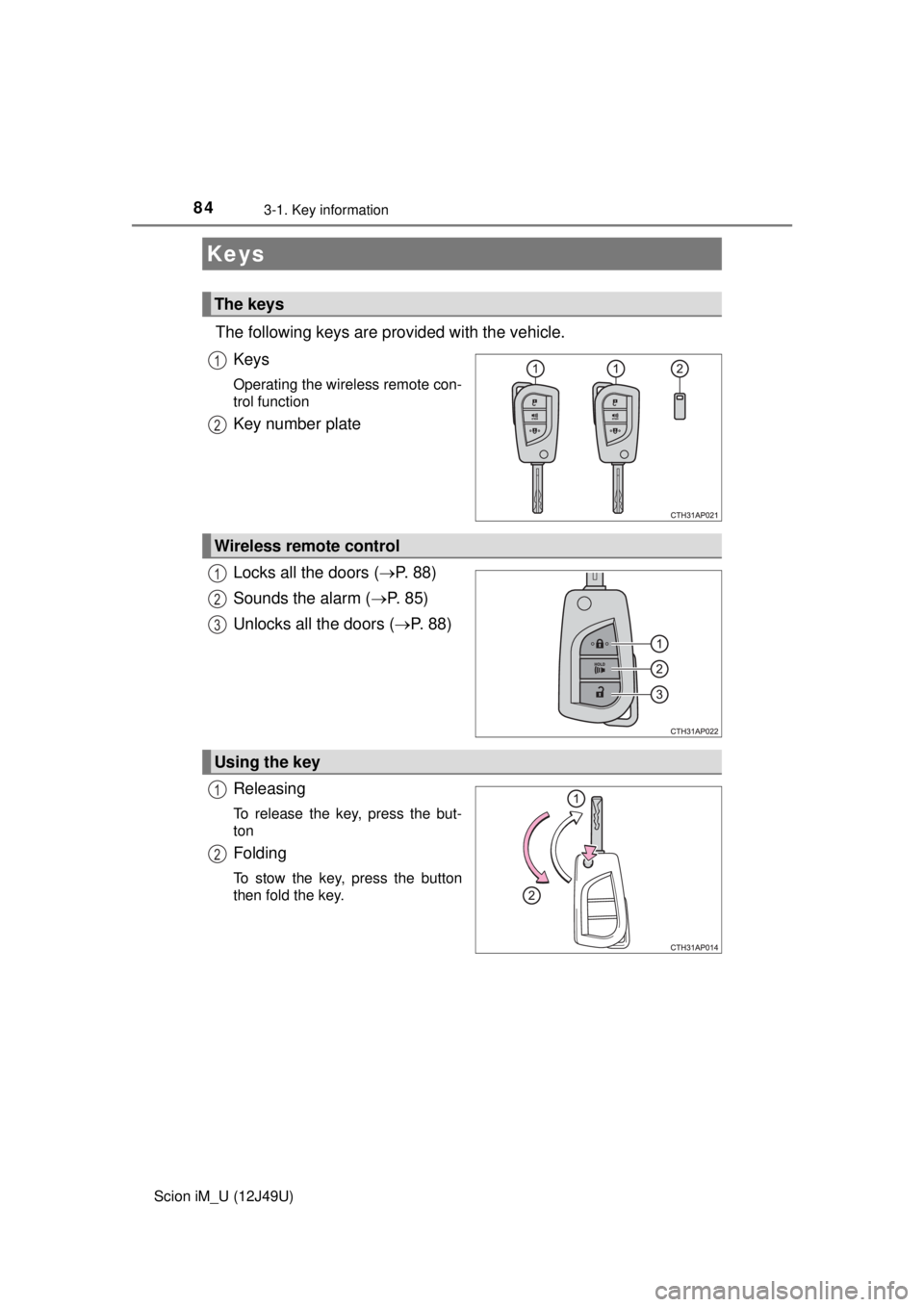

3-1. Key information
The following keys are provided with the vehicle.Keys
Operating the wireless remote con-
trol function
Key number plate
Locks all the doors ( P. 8 8 )
Sounds the alarm ( P. 8 5 )
Unlocks all the doors ( P. 8 8 )
Releasing
To release the key, press the but-
ton
Folding
To stow the key, press the button
then fold the key.
Keys
The keys
1
2
Wireless remote control
1
2
3
Using the key
1
2

853-1. Key information
3
Operation of each component
Scion iM_U (12J49U)
nPanic mode
n If you lose your keys
New genuine keys can be made by your Scion dealer using the other key and
the key number stamped on your key number plate. Keep the plate in a safe
place such as your wallet, not in the vehicle.
n When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
n Conditions affecting the operatio n of the wireless remote control
The wireless remote control function may not operate normally in the follow-
ing situations:
l When the wireless key battery is depleted
l Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
l When carrying a portable radio, cellular phone or other wireless communi-
cation devices
l When multiple wireless keys are in the vicinity
l When the wireless key is in contact with, or is covered by a metallic object
l When a wireless key (that emits radio waves) is being used nearby
l When the wireless key has been left near an electrical appliance such as a
personal computer
l If window tint with a metallic content or metallic objects are attached to the
rear window
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

863-1. Key information
Scion iM_U (12J49U)n
Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 237)
n When the key battery is fully depleted
P. 237
n If a wrong key is used
The key cylinder rotates freely, isolated from the internal mechanism.
n Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 319)
n Certification for the wi reless remote control
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAH
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

873-1. Key information
3
Operation of each component
Scion iM_U (12J49U)
For vehicles sold in the U.S.A.
FCC ID: HYQ12BFA
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
NOTICE
n To prevent key damage
lDo not drop the keys, subject them to strong shocks or bend them.
l Do not expose the keys to high temperatures for long periods of time.
l Do not get the keys wet or wash them in an ultrasonic washer etc.
l Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
l Do not disassemble the keys.
l Do not attach a sticker or anything else to the surface of the key.

88
Scion iM_U (12J49U)
3-2. Opening, closing and locking the doors
uWireless remote controlLocks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
uKey
Turning the key operates the doors as follows: Locks all the doors
Unlocks all the doors
Turning the key unlocks the
driver's door. Turning the key
again unlocks the other doors.
nOperation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked using the wireless remote control. (Locked: once;
Unlocked: twice)
n Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked using the wireless remote control, the security feature automatically
locks the vehicle again.
n Door lock buzzer
If an attempt to lock the doors using the wireless remote control is made
when a door is not fully closed, a buzzer will sound continuously for 5 sec-
onds. Fully close the door to stop the buzzer, and lock the doors again.
n If the wireless remote cont rol does not operate properly
Replace the battery with a new one if it is depleted. ( P. 237)
Side doors
Unlocking and locking the doors from the outside
1
2
1
2

893-2. Opening, closing and locking the doors
3
Operation of each component
Scion iM_U (12J49U)
uDoor lock switchesLocks all the doors
Unlocks all the doors
uInside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if either of the front doors is open and the
key is in the engine switch.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the doors from the outside without a key
1
2

903-2. Opening, closing and locking the doors
Scion iM_U (12J49U)
The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
nOpen door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 3 mph (5 km/h).
The open door(s) or back door is indicated on the multi-information display.
n Conditions affecting the operatio n of the wireless remote control
P. 8 5
n Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 319)
Rear door child-protector lock
1
2
WARNING
nTo prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
lEnsure that all doors are properly closed and locked.
l Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.
l Set the rear door child-protector locks when children are seated in the rear
seats.
