Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perf orm, contact your Scion dealer.
For more information about replacing other light bulbs, contact your
Scion dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 324)

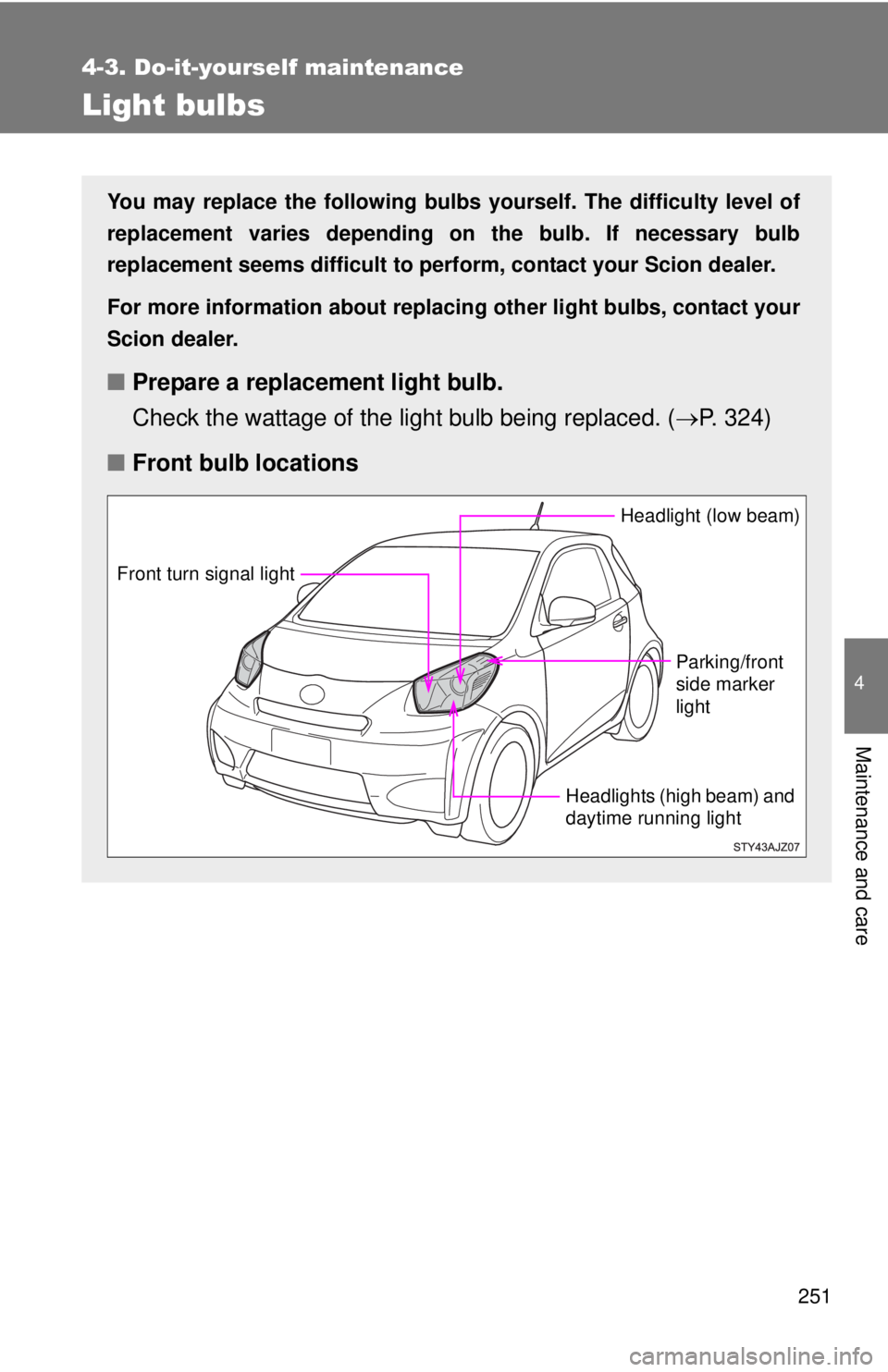

■ Front bulb locations
Headlight (low beam)
Parking/front
side marker
light
Headlights (high beam) and
daytime running light
Front turn signal light

252 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams
Left side
Push the tab in and lift the lid off.

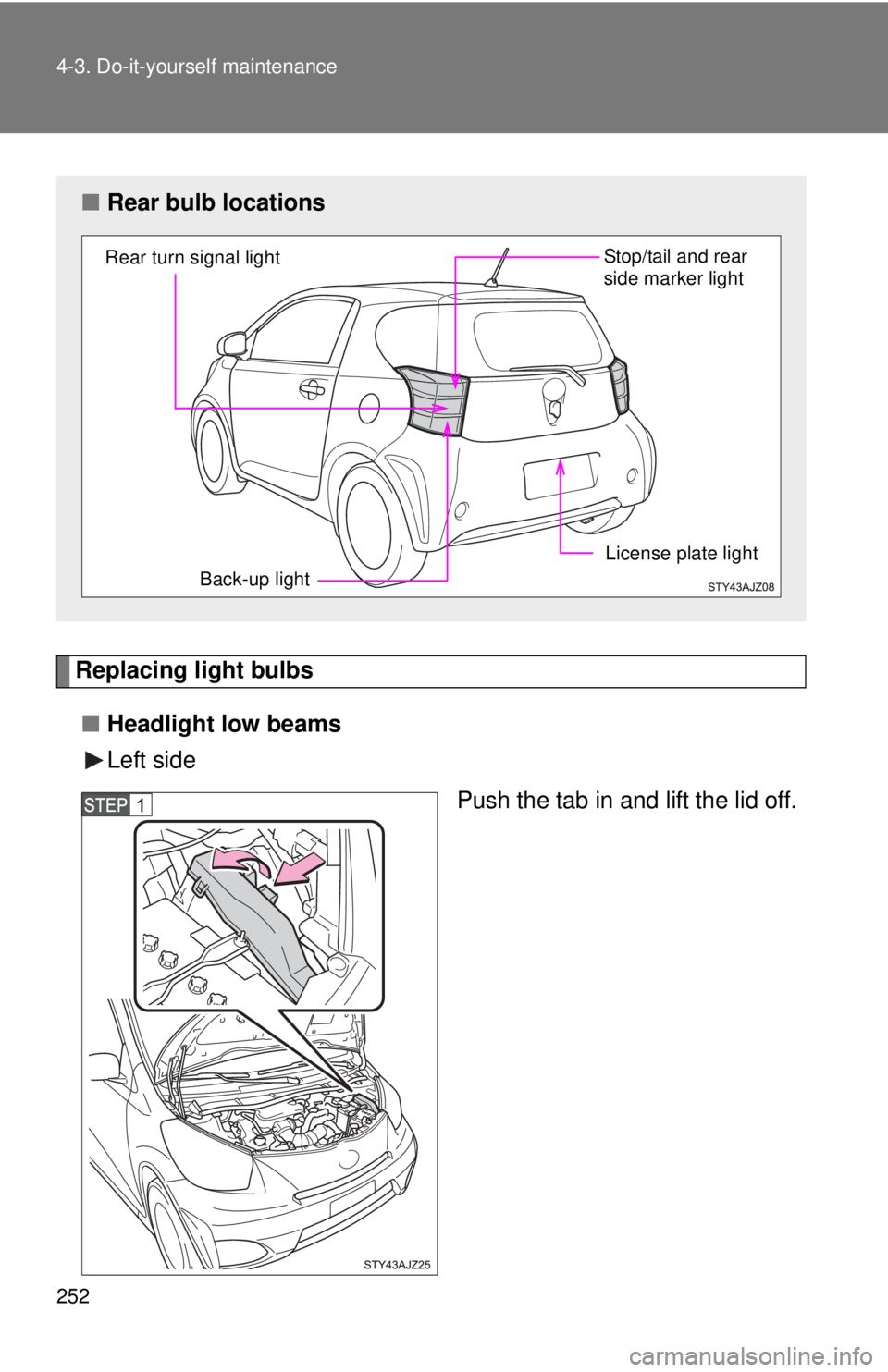

■Rear bulb locations
Back-up light
Rear turn signal light
Stop/tail and rear
side marker light
License plate light

253
4-3. Do-it-yourself maintenance
4
Maintenance and care

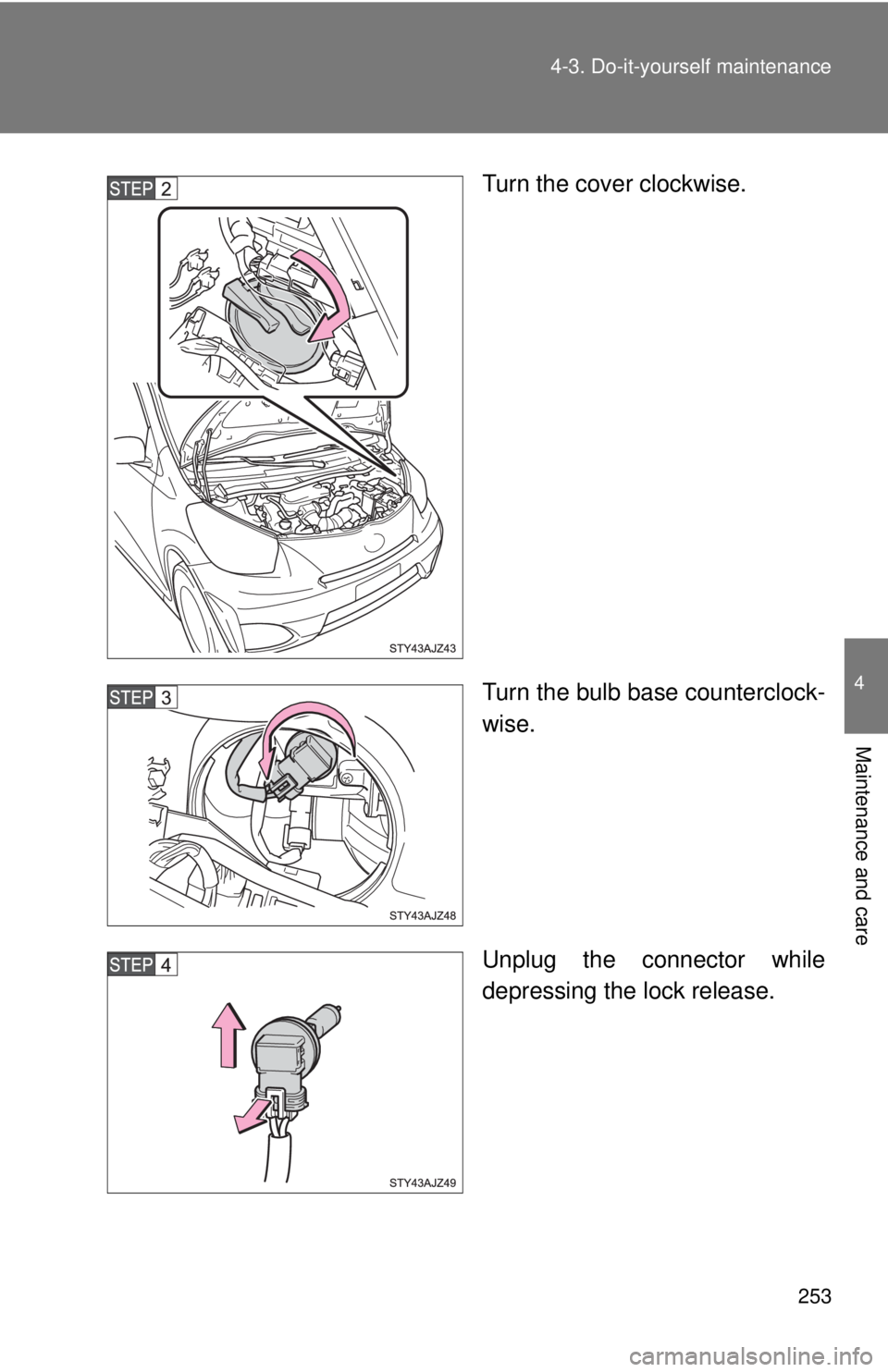

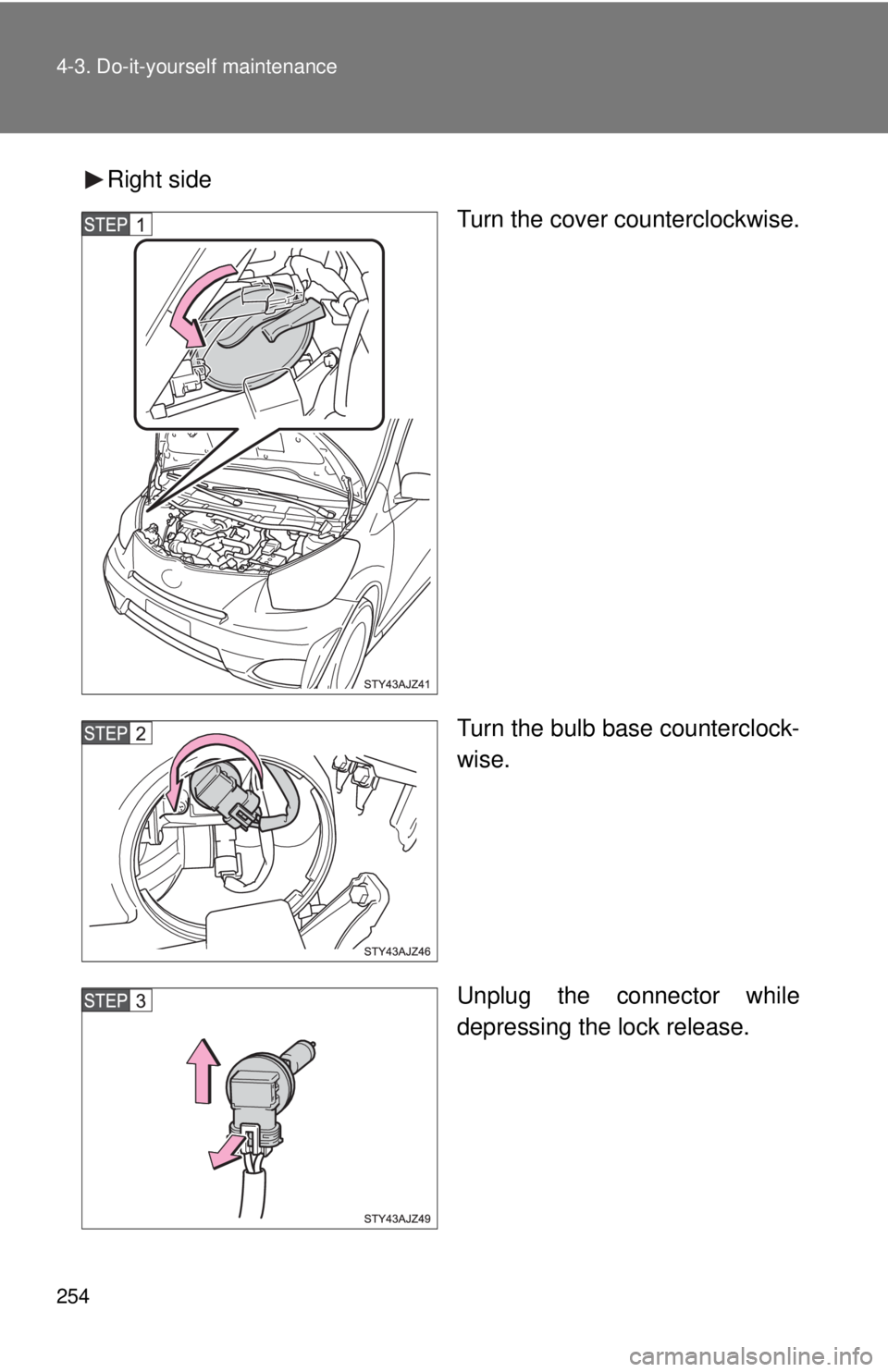

Turn the cover clockwise.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

254 4-3. Do-it-yourself maintenance

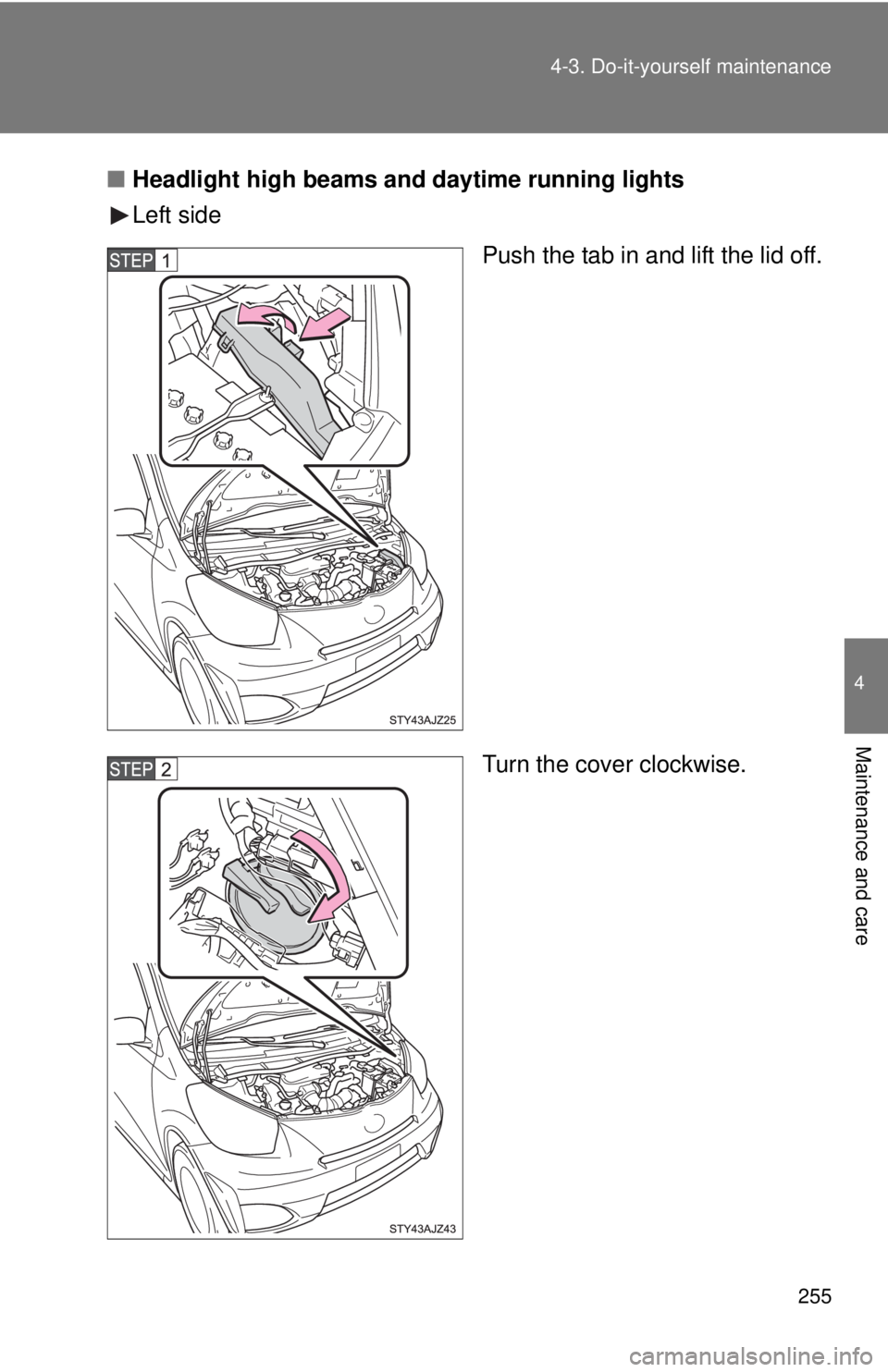

Right sideTurn the cover counterclockwise.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

255
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

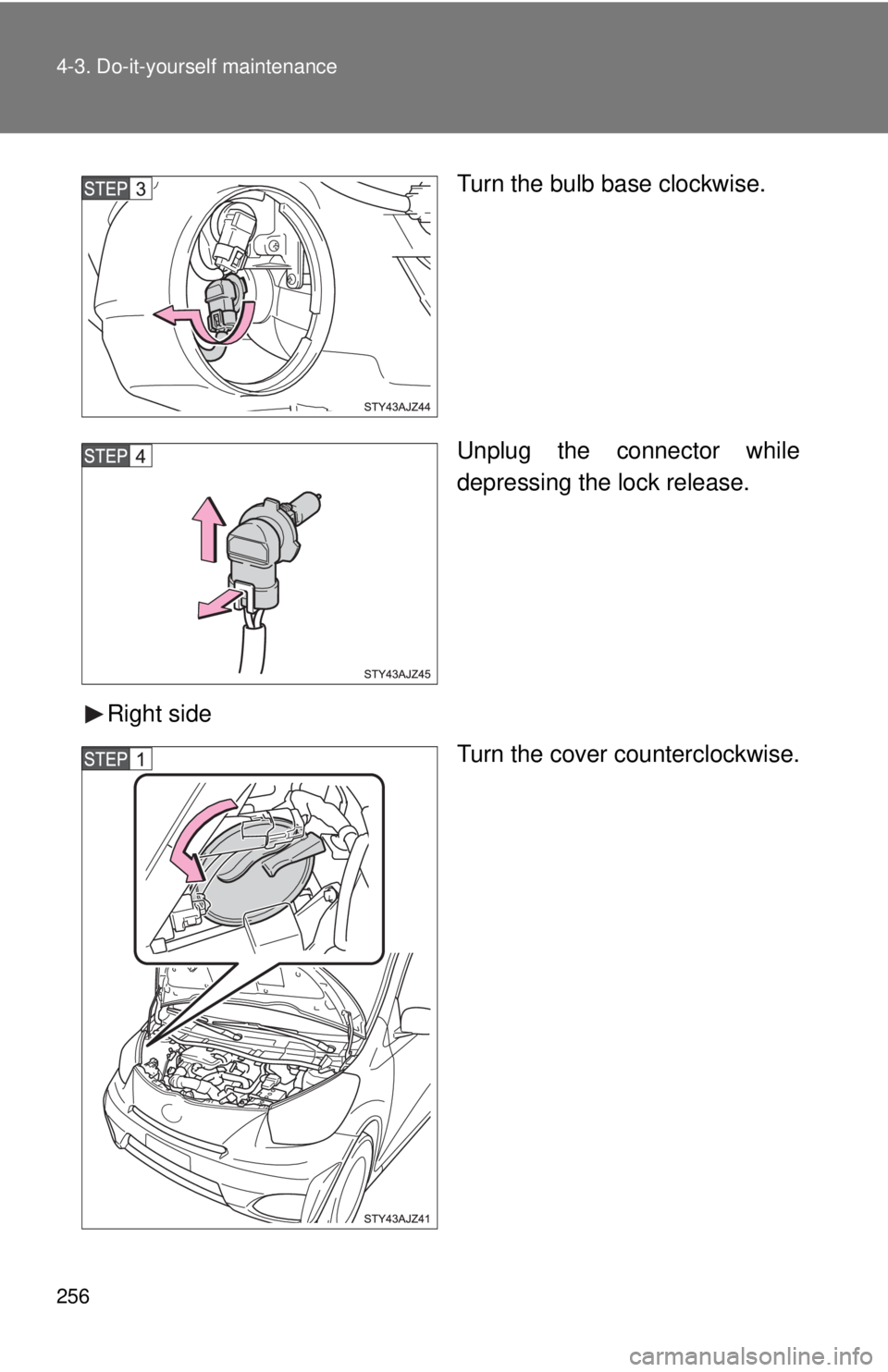

Headlight high beams and daytime running lights
Left side
Push the tab in and lift the lid off.
Turn the cover clockwise.

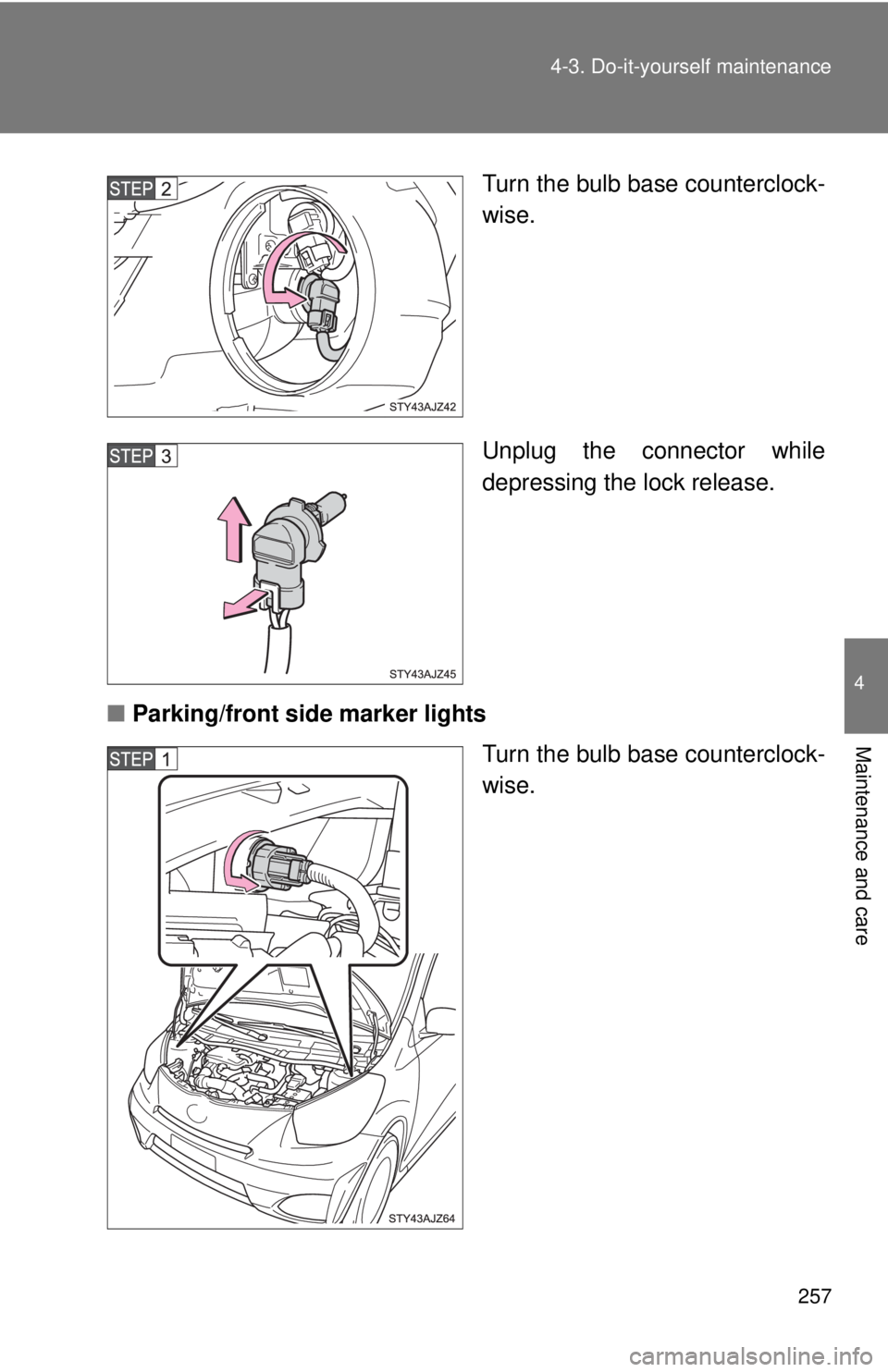

256 4-3. Do-it-yourself maintenance
Turn the bulb base clockwise.
Unplug the connector while
depressing the lock release.
Right side Turn the cover counterclockwise.

257
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Parking/front side marker lights
Turn the bulb base counterclock-
wise.

258 4-3. Do-it-yourself maintenance

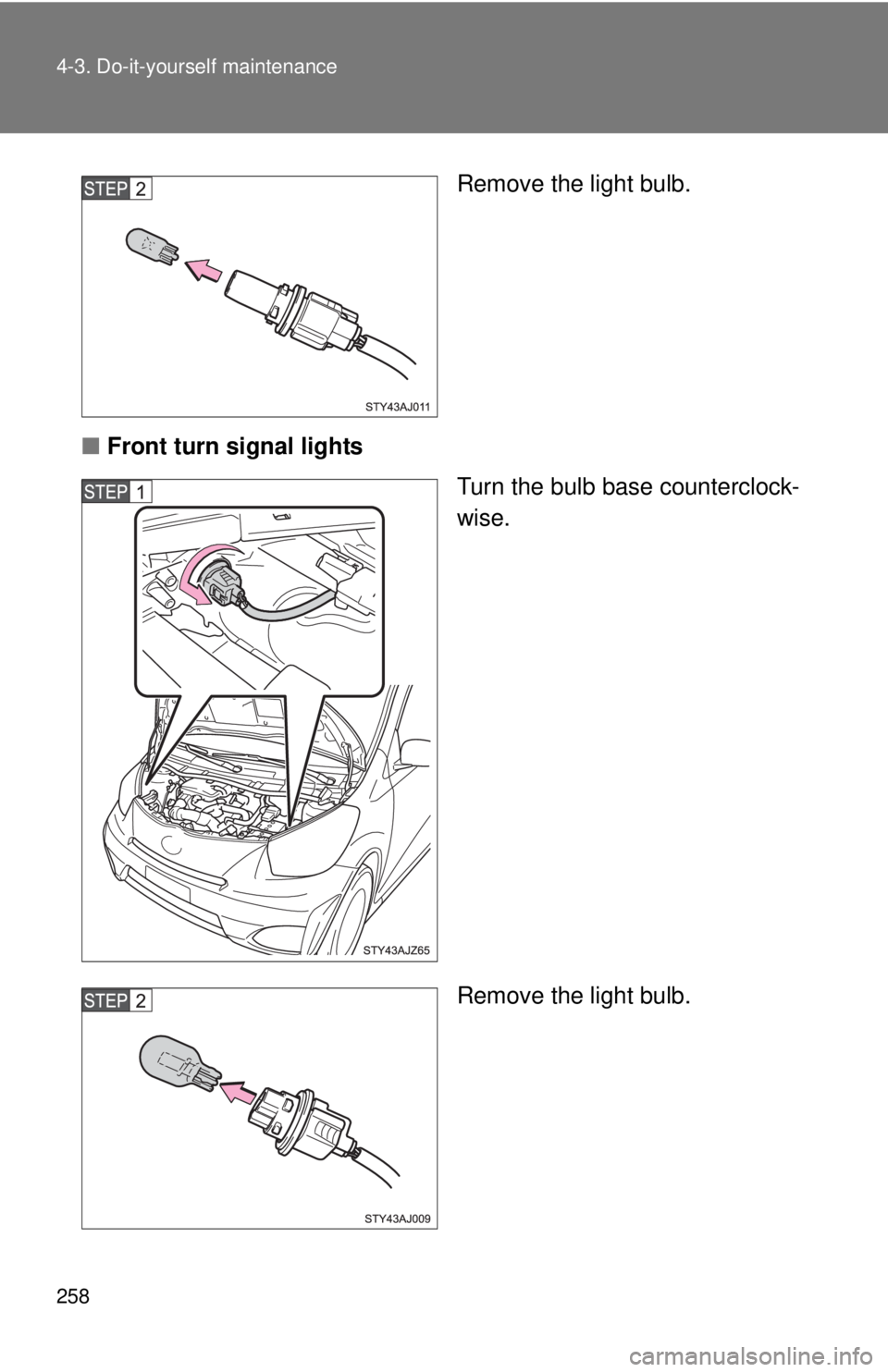

Remove the light bulb.
■ Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.

259
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

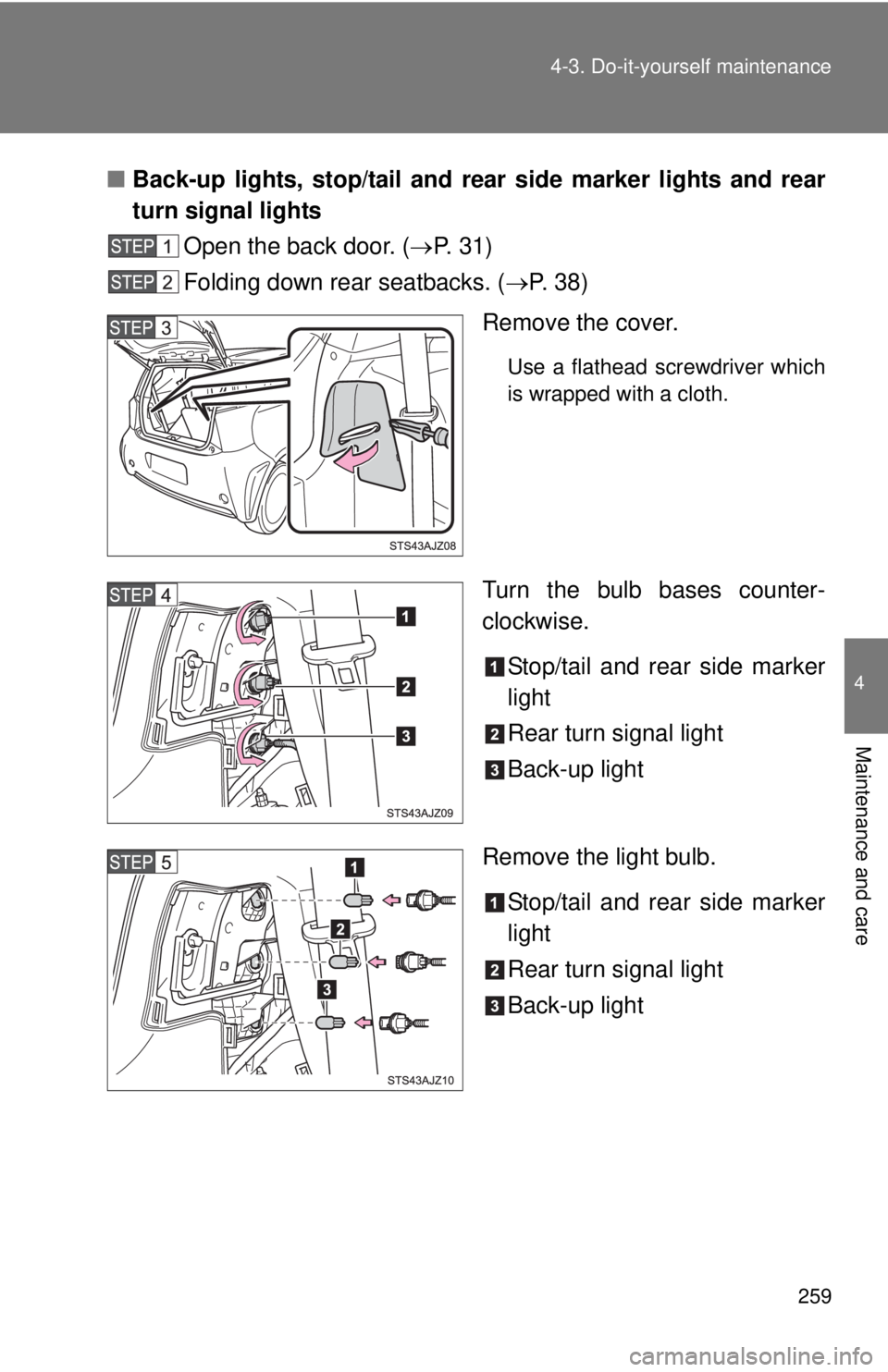

Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights
Open the back door. ( P. 31)
Folding down rear seatbacks. ( P. 3 8 )
Remove the cover.
Use a flathead screwdriver which
is wrapped with a cloth.
Turn the bulb bases counter-
clockwise.
Stop/tail and rear side marker
light
Rear turn signal light
Back-up light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
Back-up light

260 4-3. Do-it-yourself maintenance

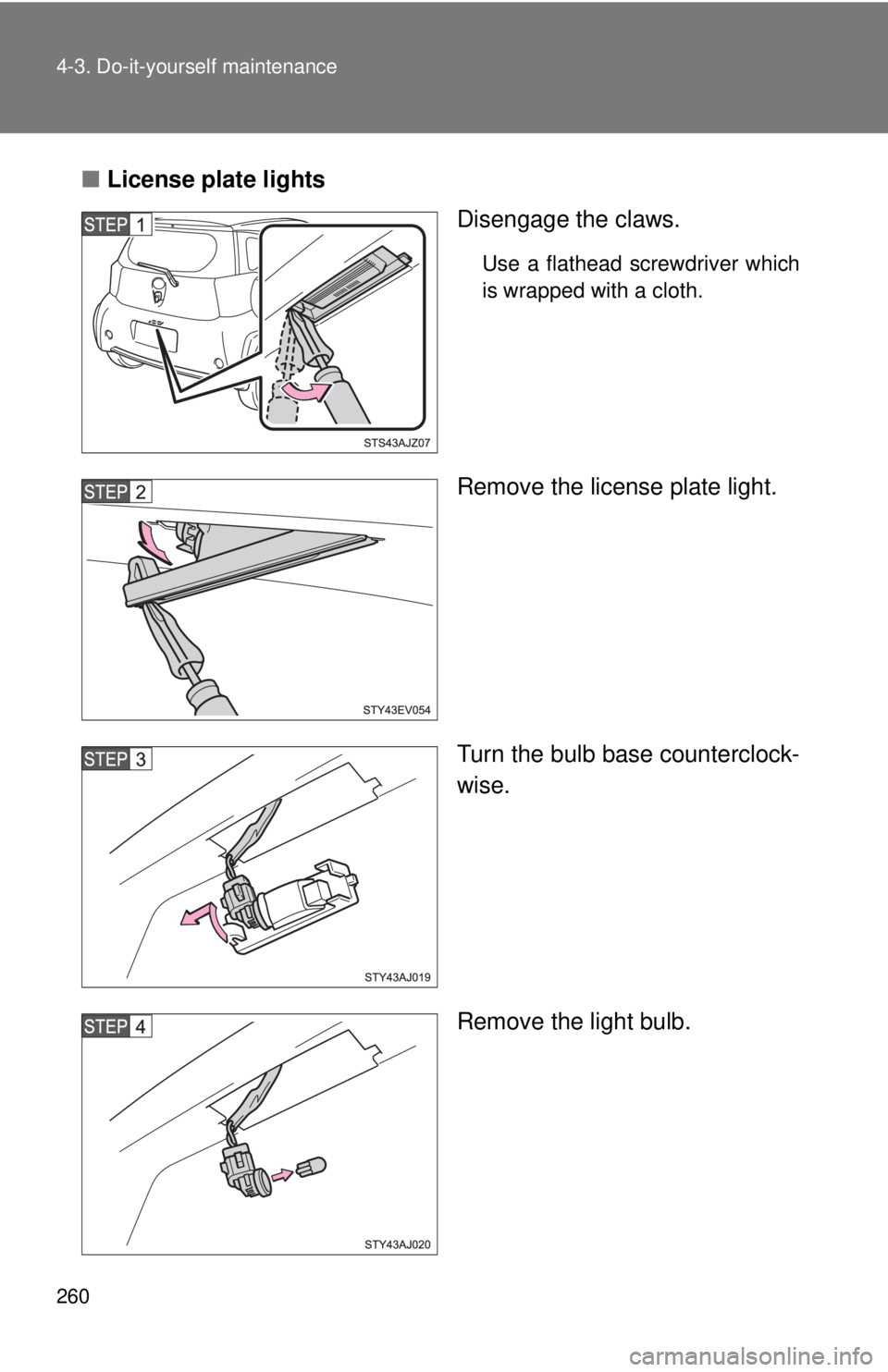

■License plate lights
Disengage the claws.
Use a flathead screwdriver which
is wrapped with a cloth.
Remove the license plate light.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
