241
4-3. Do-it-yourself maintenance
4
Maintenance and care

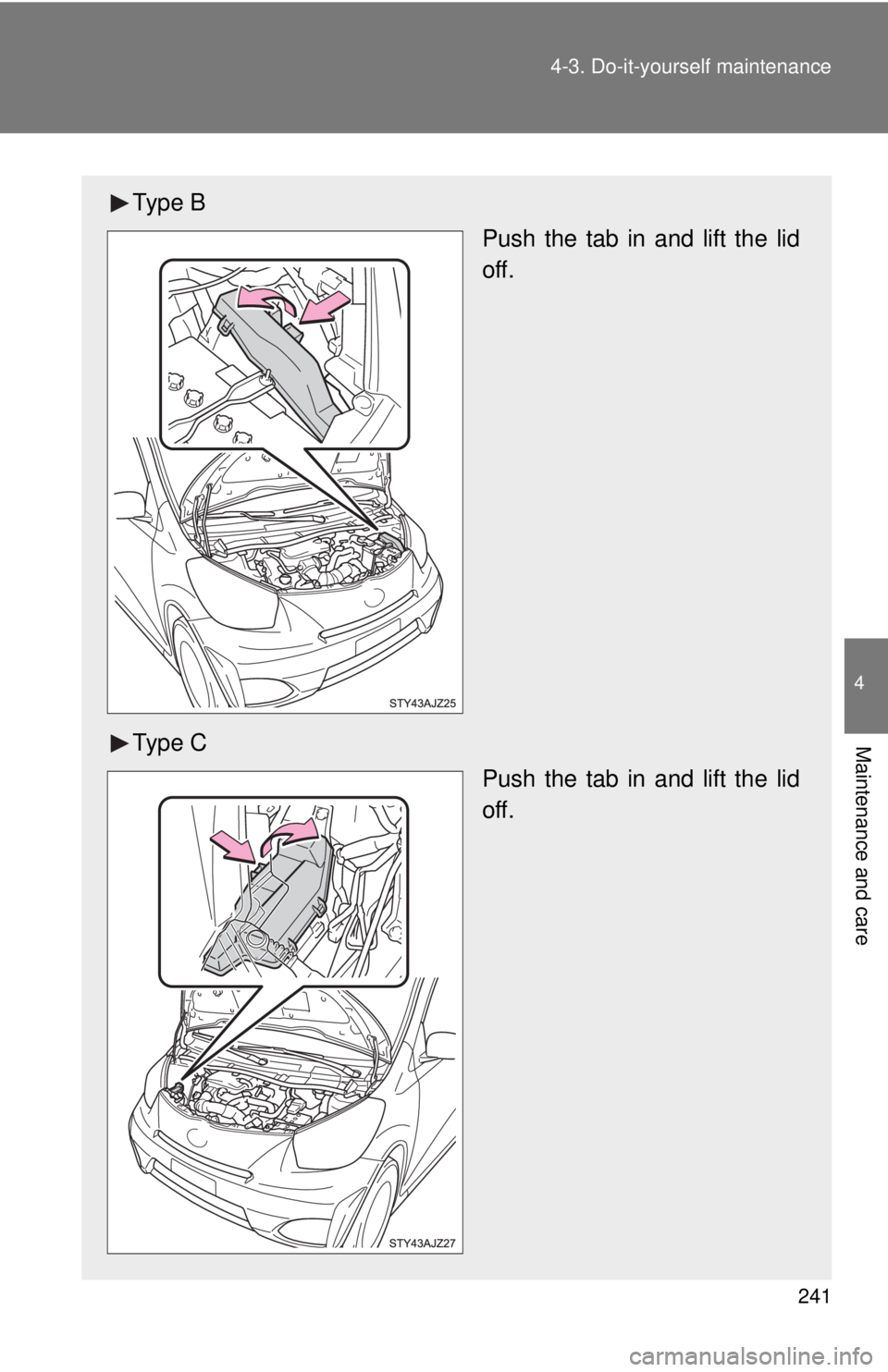

Ty p e B
Push the tab in and lift the lid
off.
Ty p e C Push the tab in and lift the lid
off.

242 4-3. Do-it-yourself maintenance

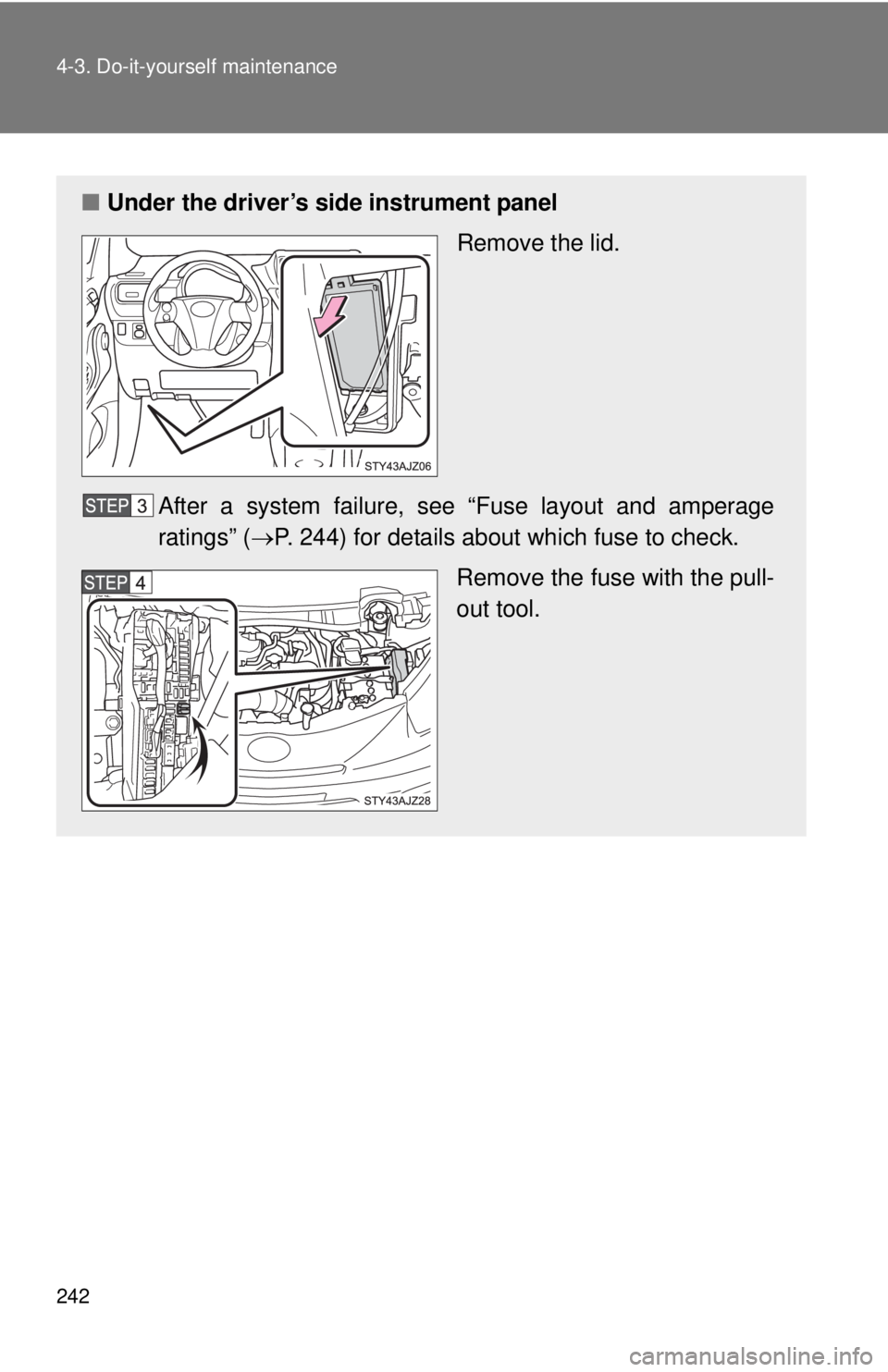

■Under the driver’s side instrument panel
Remove the lid.
After a system failure, s ee “Fuse layout and amperage
ratings” ( P. 244) for details about which fuse to check.
Remove the fuse with the pull-
out tool.

243
4-3. Do-it-yourself maintenance
4
Maintenance and care

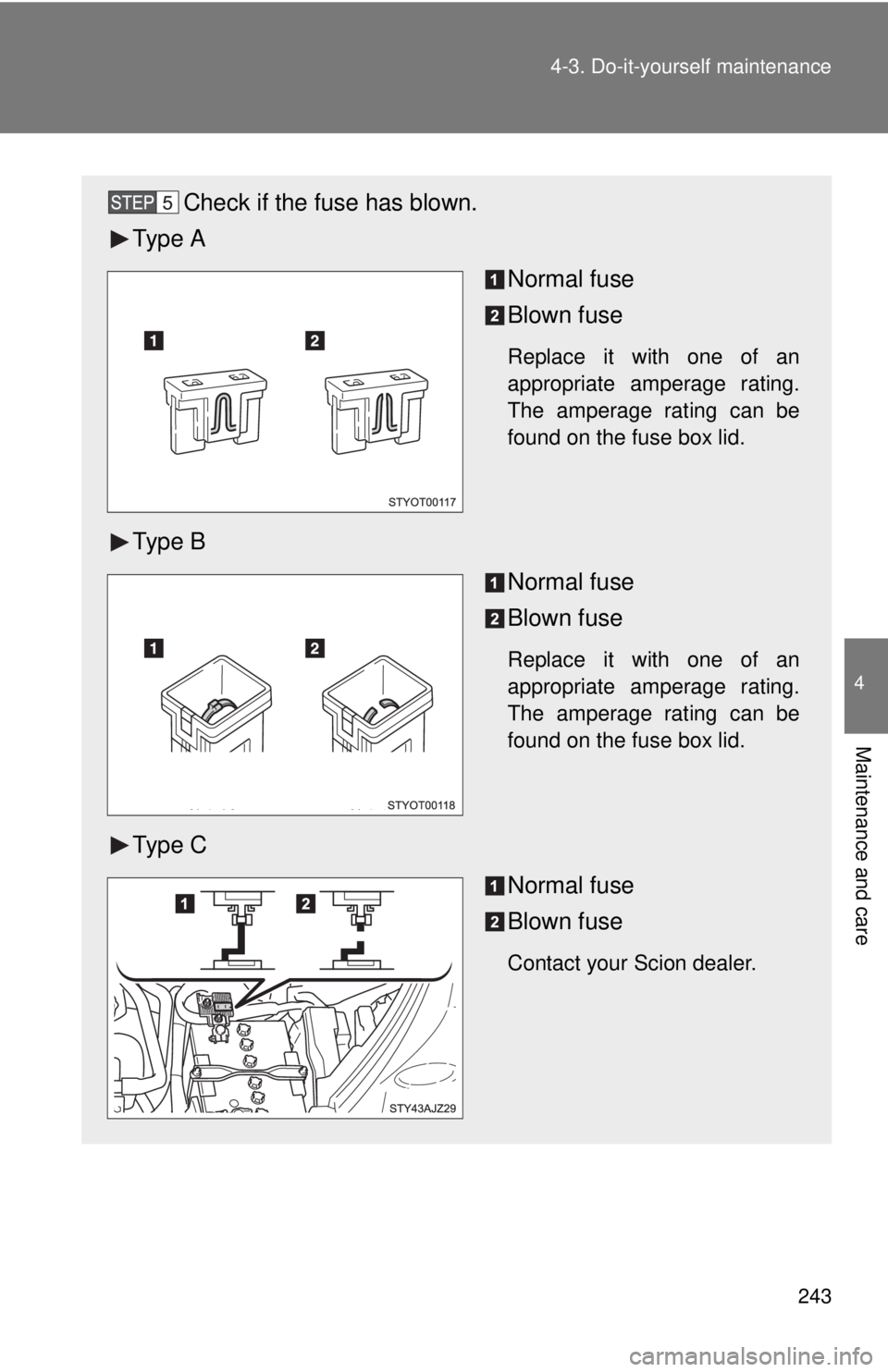

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Scion dealer.

244 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings■ Engine compartment (type A)
FuseAmpereCircuit
1 ALT 120 A Charging system, RDI, ABS NO.1,
ABS NO.2, HTR-B, ACC, CIG,
GAUGE, ECU-IG NO.1, HTR-IG,
WIPER WASHER, AM1, DOOR
NO.1, STOP, DOOR NO.2, OBD,
FR FOG, DEF, TAIL, EPS, PTC
NO.1, PTC NO.2, PTC NO.3, D/L
NO.1, PANEL NO.1
2 MAIN 80 A EFI MAIN, EFI NO.1, HORN, AM2
NO.1, DOME, ECU-B NO.2,
TURN&HAZ, H-LP MAIN, H-LP
MAIN HI, ECU-B NO.1, D/C CUT,
ETCS, IG2, IGN, ALT-S

245
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Engine compartment (type B)
FuseAmpereCircuit
1 D/C CUT 30 A ECU-B NO.1, DOME
2 IMMOBI 7.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
3 TURN & HAZ 10 A Turn signal lights, emergency
flashers
4 ETCS 10 A Electronic throttle control system
5 ECU-B NO.2 5 A Meter, power windows, air condi-
tioning system
6H-LP MAIN
*120 A H-LP RH LO, H-LP LH LO
7 SPARE 30 A Spare fuse
8 SPARE 20 A Spare fuse
9 SPARE 5 A Spare fuse
10 AM2 NO.1 30 A Starting system 11 H-LP MAIN HI
*225 A H-LP RH HI, H-LP LH HI
12 DOME 15 A Interior light, audio system
13 ECU-B NO.1 7.5 A Main body ECU, power door lock
system

246 4-3. Do-it-yourself maintenance
*1: Vehicles with daytime running light system
*2: Vehicles without daytime running light system14 MIR HTR 7.5 A Outside rear view mirror defoggers
15 DEFOGGER 30 A Rear window defogger
16 EPS 50 A Electric power steering
17 RDI 30 A RDI FAN
18 ABS NO.1 50 A Anti-lock brake system
19 HTR-B 40 A HTR, BLR
20 ABS NO.2 30 A Anti-lock brake system
21 HORN 10 A Horn
22 EFI-MAIN 20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, Fuel pump
23 ALT-S 7.5 A Charging system
24 IGN 15 A Injection, igniter
25 IG2 10 A SRS airbag system, meter
26 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit

247
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Engine compartment (type C)
*: Vehicles with daytime running light system or automatic light off system
FuseAmpereCircuit
1 PTC NO.1 50 A PTC heater
2 PTC NO.3 30 A PTC heater
3 PTC NO.2 30 A PTC heater
4 H-LP RH HI 10 A Headlight (high beam)
5 H-LP LH HI 10 A Headlight (high beam)
6 H-LP RH LO
*10 A Right-hand headlight (low beam)
7 H-LP LH LO
*10 A Left-hand headlight (low beam)

248 4-3. Do-it-yourself maintenance
■Under the driver’s side instrument panel
FuseAmpereCircuit
1 ECU-IG NO.1 7.5 A Vehicle stability control system,
shift lock control system, electric
power steering, automatic head-
light system, main body ECU, tire
pressure warning system
2 GAUGE 10 A Electric cooling fan, charging sys-
tem, emergency flashers, front
passenger’s seat belt reminder
light, back-up lights, multiport fuel
injection system/sequential multi-
port fuel injection system, wind-
shield wiper ECU
3 HTR-IG 10 A Air conditioning system, rear win-
dow defogger
4 WASHER RR 10 A Windshield washer
5 WIPER RR 10 A Rear window wiper
6 WIPER FR 25 A Windshield wipers
7 WASHER FR 10 A Windshield washer
8 OBD 7.5 A On-board diagnosis system
9 DOOR NO.2 20 A Power windows

249
4-3. Do-it-yourself maintenance
4
Maintenance and care
*: Vehicles with daytime running light system
10 D/L NO.1
15 APower door lock system, main
body ECU
11 DOOR NO.1 30 A Power windows
12 CIG 15 A Power outlet
13 ACC 5 AOutside rear view mirrors, audio
system, shift lock control system,
main body ECU
14
PANEL NO.1*5 A Meter
15 TAIL
*10 A Parking lights, tail lights, license
plate lights, multiport fuel injection
system/sequential multiport fuel
injection system, instrument clus-
ter, windshield wiper ECU
16 (FOG FR) 15 A No circuit
17 AM1 7.5 A ACC, starting system
18 STOP 10 A Vehicle stability control system,
power management ECU, shift
lock control system, stop lights,
multiport fuel injection system/
sequential multiport fuel injection
system
19 (SEAT-HTR) 15 A No circuit
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 251)
● If the replaced fuse blows again, have the vehicle inspected by your
Scion dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

250 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Scion fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Scion
dealer as soon as possible.
