261
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Lights other than the above
If any of the lights listed below has burned out, have it replaced by
your Scion dealer.
● Side turn signal lights
● High mounted stoplight
■When replacing the left side headlight
Be sure to install the fuse cover properly.
■ Condensation build-up on th e inside of the lens
Contact your Scion dealer for more information in the following situations.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Scion dealer to have the light replaced.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

262 4-3. Do-it-yourself maintenance

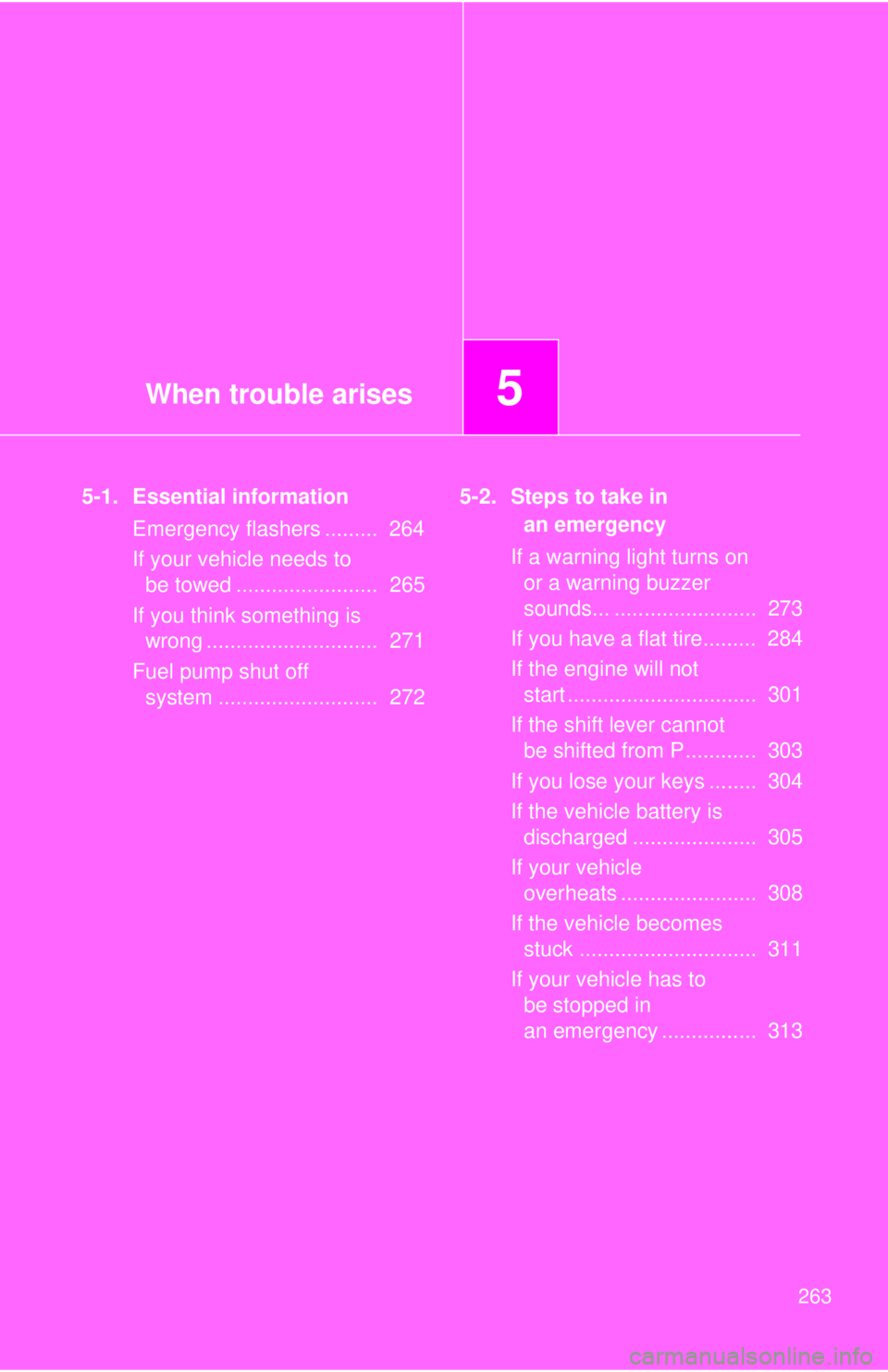

When trouble arises5
263
5-1. Essential informationEmergency flashers ......... 264
If your vehicle needs to be towed ........................ 265
If you think something is wrong ............................. 271
Fuel pump shut off system ........................... 272 5-2. Steps to take in
an emergency
If a warning light turns on or a warning buzzer
sounds... ........................ 273
If you have a flat tire......... 284
If the engine will not start ................................ 301
If the shift lever cannot be shifted from P............ 303
If you lose your keys ........ 304
If the vehicle battery is discharged ..................... 305
If your vehicle overheats ....................... 308
If the vehicle becomes stuck .............................. 311
If your vehicle has to be stopped in
an emergency ................ 313

264
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5
When trouble arises
265
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Scion dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard, surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
If towing is necessary, we recommend having your vehicle towed by
your Scion dealer or a commercial towing service, using a lift-type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
If towing from the front, the vehic le's rear wheels and axles must be
in good condition. (P. 268)
If they are damaged, use a towing dolly or flat bed truck.

266 5-1. Essential information
■Emergency towin g procedure
Start the engine.
If the engine cannot be started, turn the engine switch to the ACC
or ON position.
Put the shift lever in N.
Release the parking brake.
CAUTION
■ Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
● If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
NOTICE
■To prevent serious damage to the transmission
Never tow this vehicle from the rear with the front wheels on the ground.
This may cause serious damage to the transmission.

5
When trouble arises
267
5-1. Essential information
Installing towing eyelet
Remove the eyelet cover by
pushing outside of it.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
■Location of the emer gency towing eyelet
P. 284

268 5-1. Essential information
Towing with a sling-type truck
Towing with a wheel lift-type truck from the frontRelease the parking brake.
CAUTION
■Installing towing eyelet to the vehicle
Make sure that the towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This
may lead to accidents that cause serious injury or even death.
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

5
When trouble arises
269
5-1. Essential information
Towing with a wheel lift-type truck from the rear
Use a towing dolly under the
front wheels.
NOTICE
■To prevent damage to the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
NOTICE
■To prevent serious damage to the transmission
Never tow this vehicle from the rear with the front wheels on the ground.

270 5-1. Essential information
Using a flat bed truckIf your Scion is transported by a
flat bed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Apply the parking brake firmly.
Front
