TOYOTA IQ 2013 Owners Manual

5
When trouble arises
301
5-2. Steps to take in an emergency

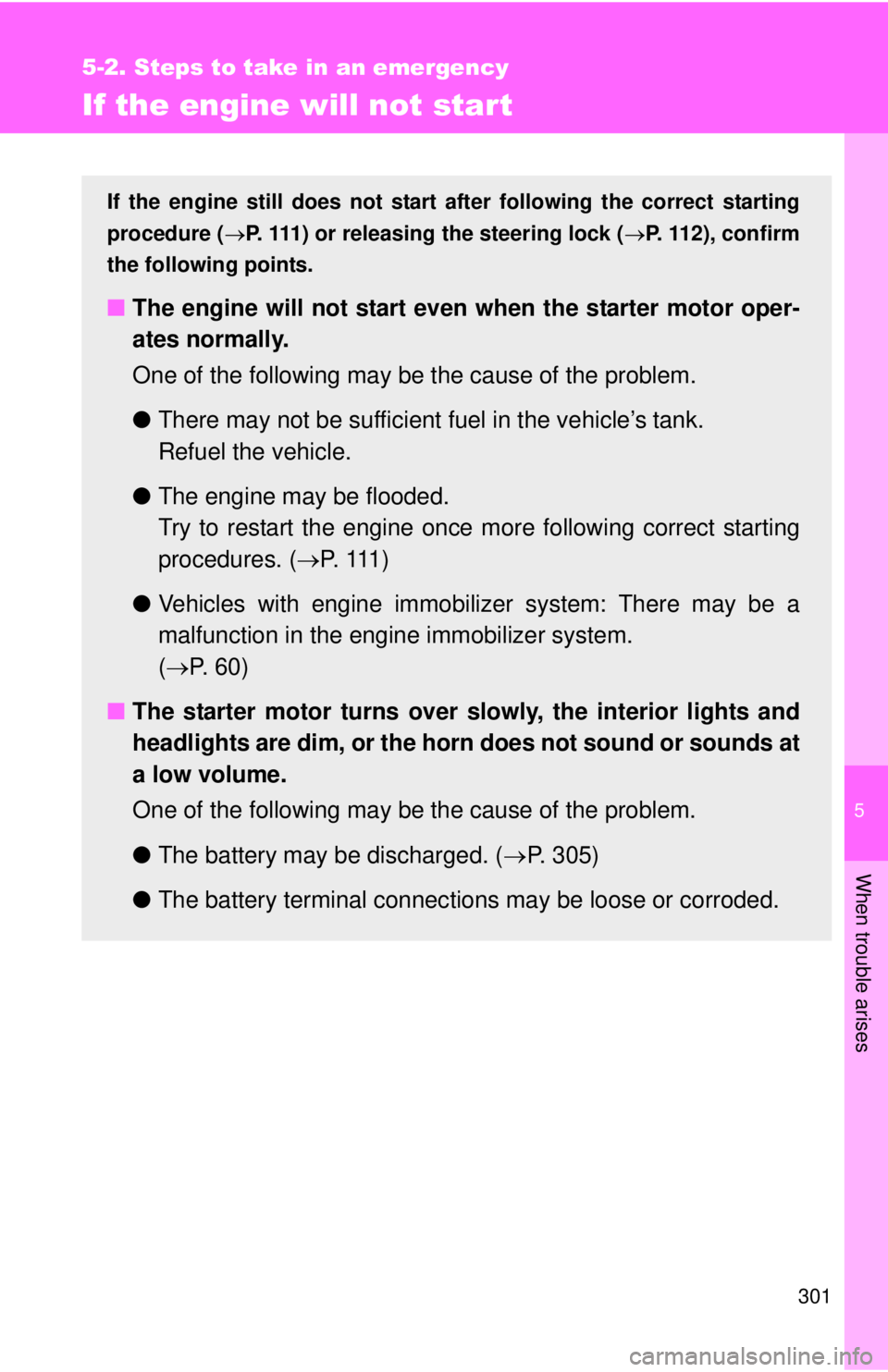

If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 111) or releasing the steering lock ( P. 112), confirm
the following points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( P. 111 )
● Vehicles with engine immobilizer system: There may be a
malfunction in the engine immobilizer system.
(  P. 6 0 )
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 305)
● The battery terminal connec tions may be loose or corroded.

302 5-2. Steps to take in an emergency

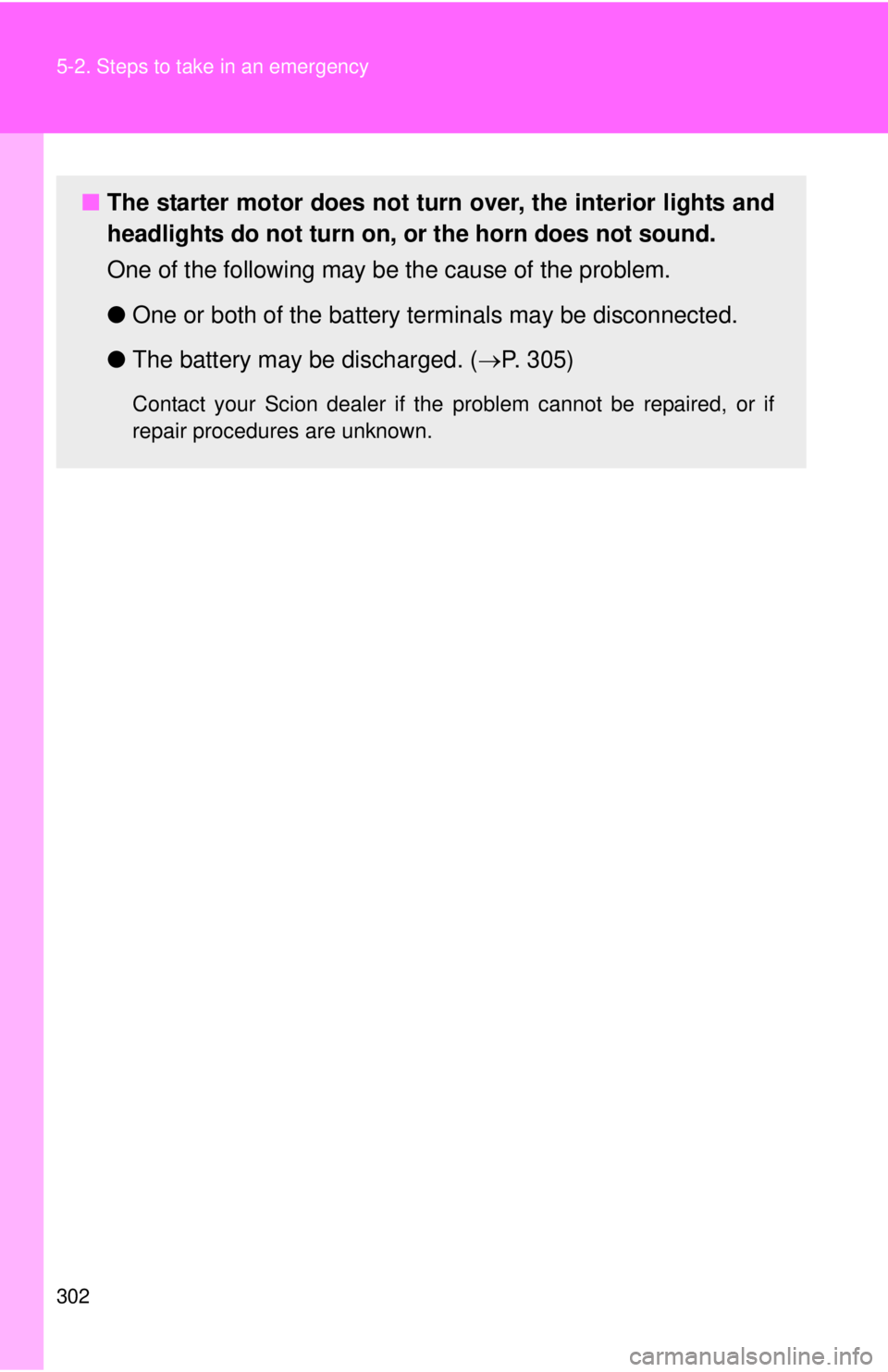

■The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 305)
Contact your Scion dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
303
5-2. Steps to take in an emergency

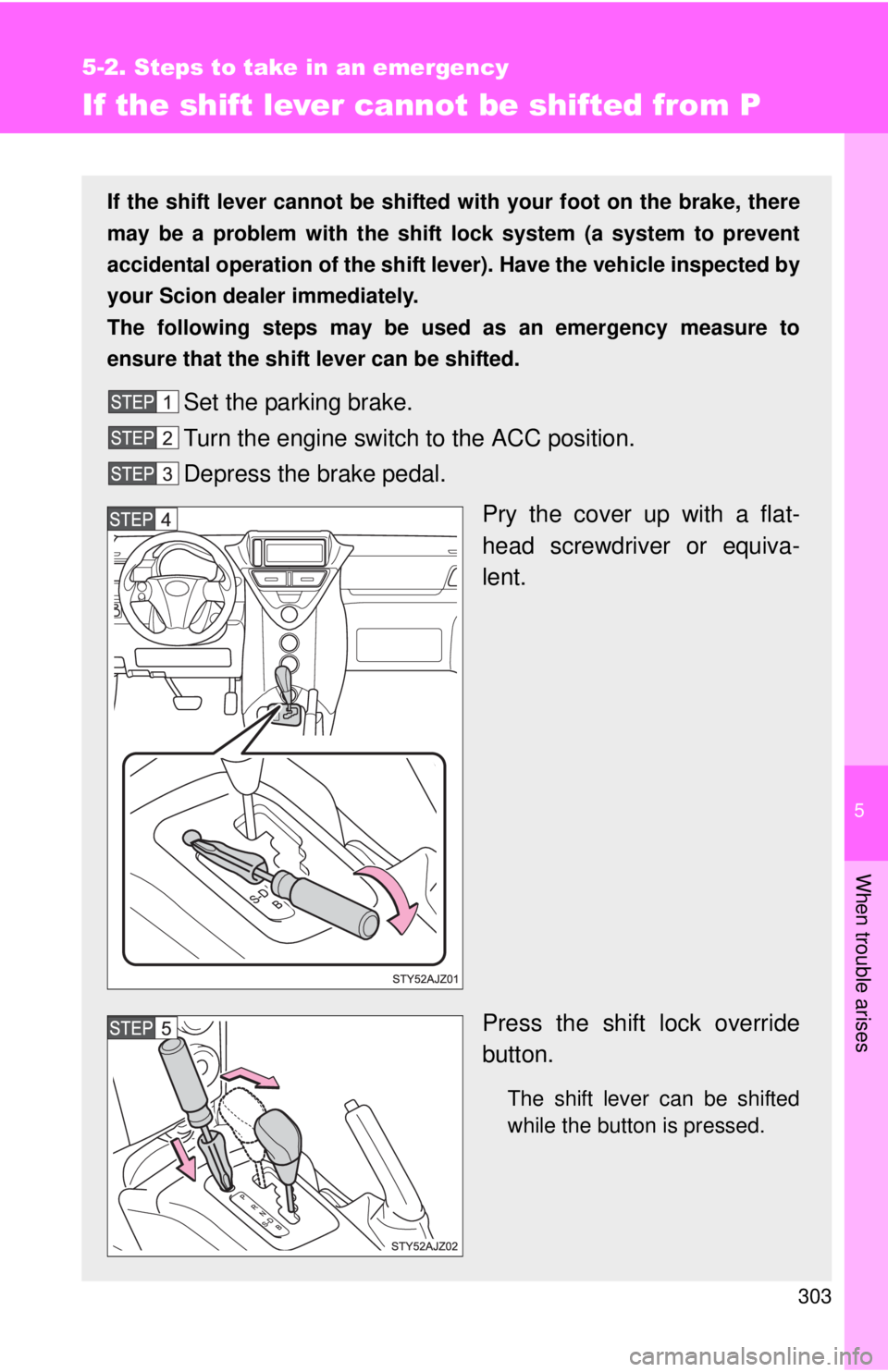

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Scion dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Turn the engine switch to the ACC position.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.

304
5-2. Steps to take in an emergency

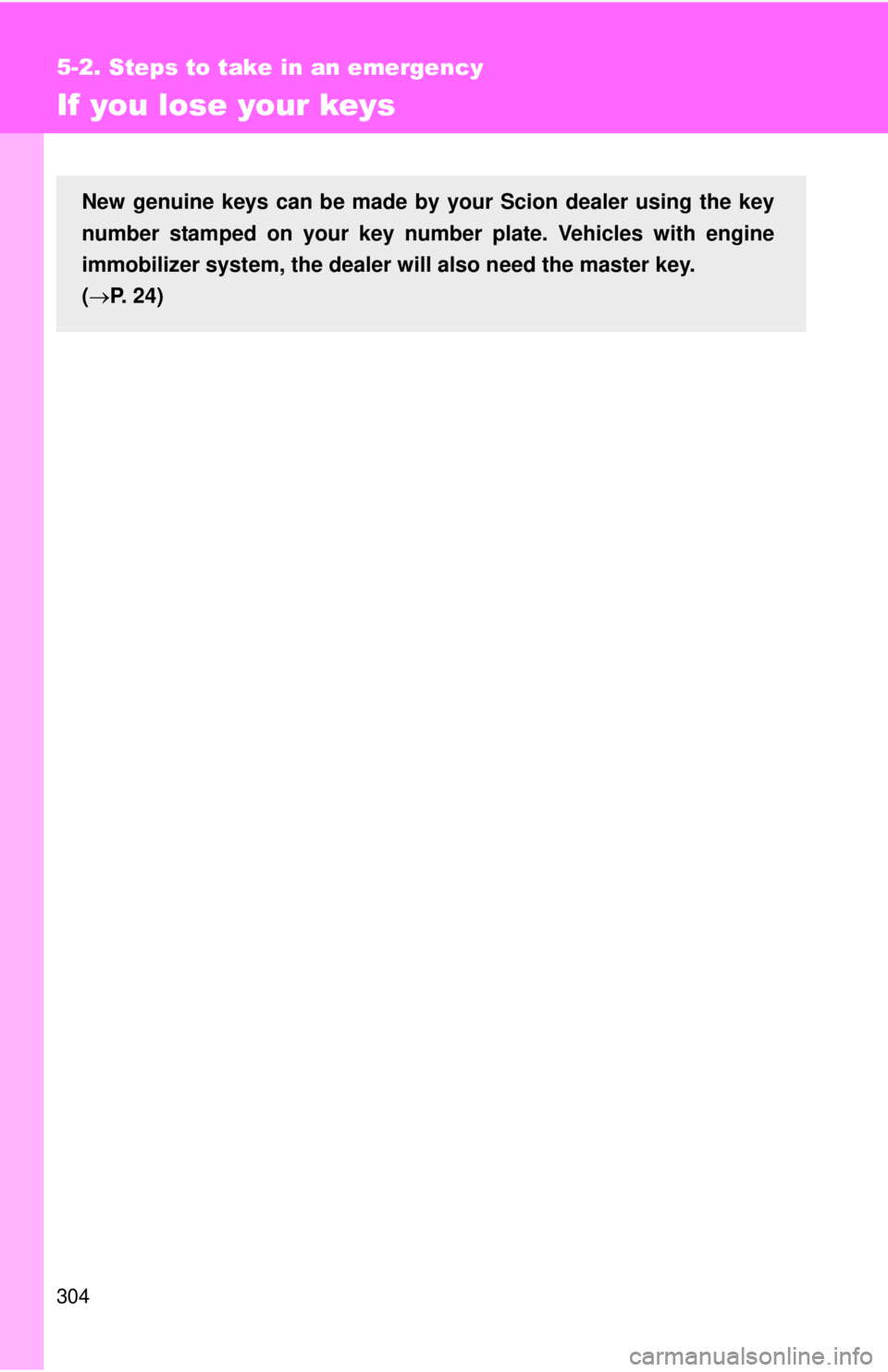

If you lose your keys
New genuine keys can be made by your Scion dealer using the key
number stamped on your key number plate. Vehicles with engine
immobilizer system, the dealer wi ll also need the master key.
( P. 24)

5
When trouble arises
305
5-2. Steps to take in an emergency

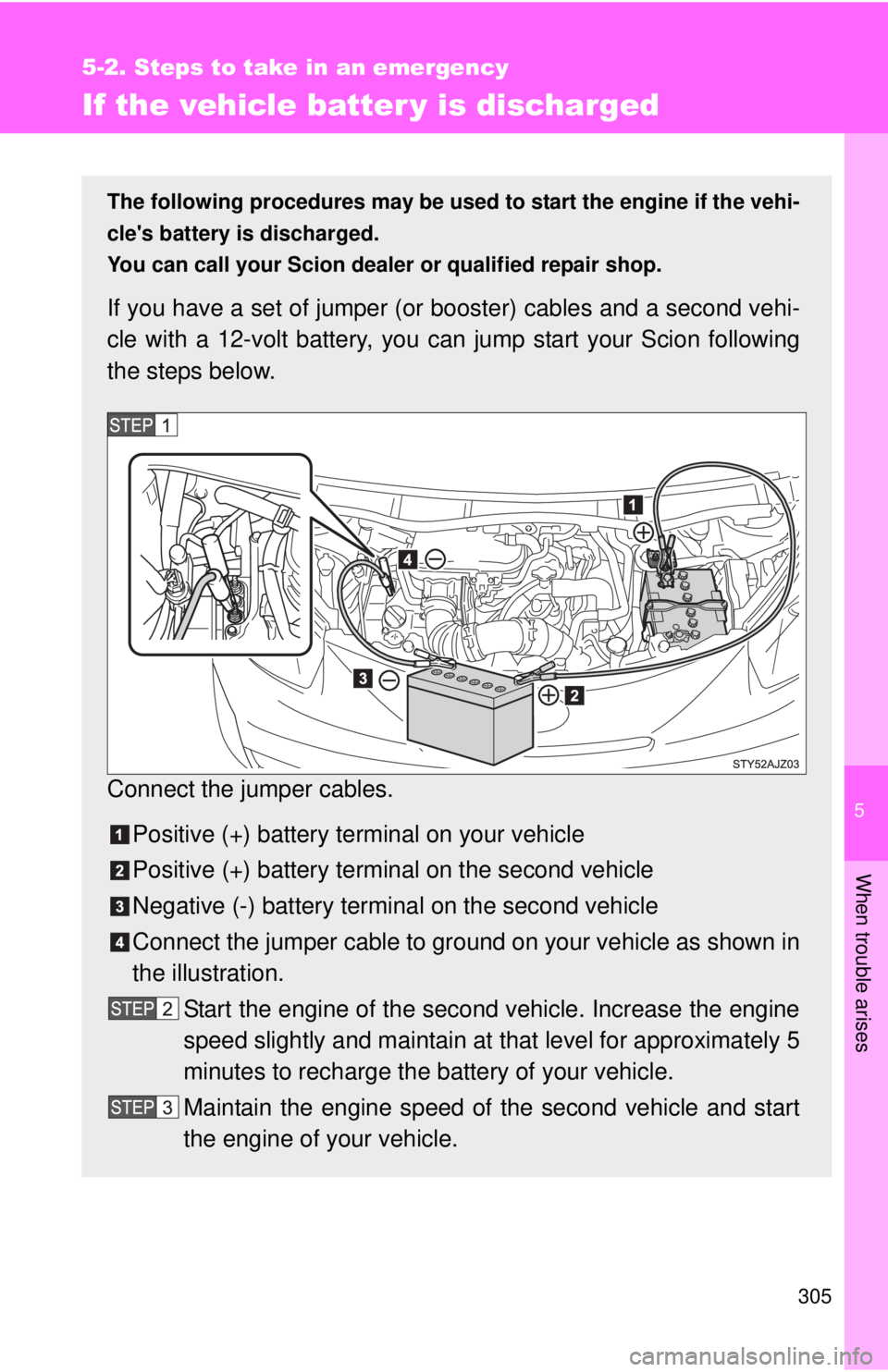

If the vehicle batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle's battery is discharged.
You can call your Scion dealer or qualified repair shop.
If you have a set of jumper (or boo ster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your Scion following
the steps below.
Connect the jumper cables.
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration. Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the engine of your vehicle.

306 5-2. Steps to take in an emergency
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is turned
off.
● Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi-
nal.
● Do not allow the jumper cables to come into contact with the “+” and “-” ter-
minals.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Scion
dealer as soon as possible.

5
When trouble arises
307
5-2. Steps to take in an emergency
CAUTION
■
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery.
●When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
NOTICE
■When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.

308
5-2. Steps to take in an emergency

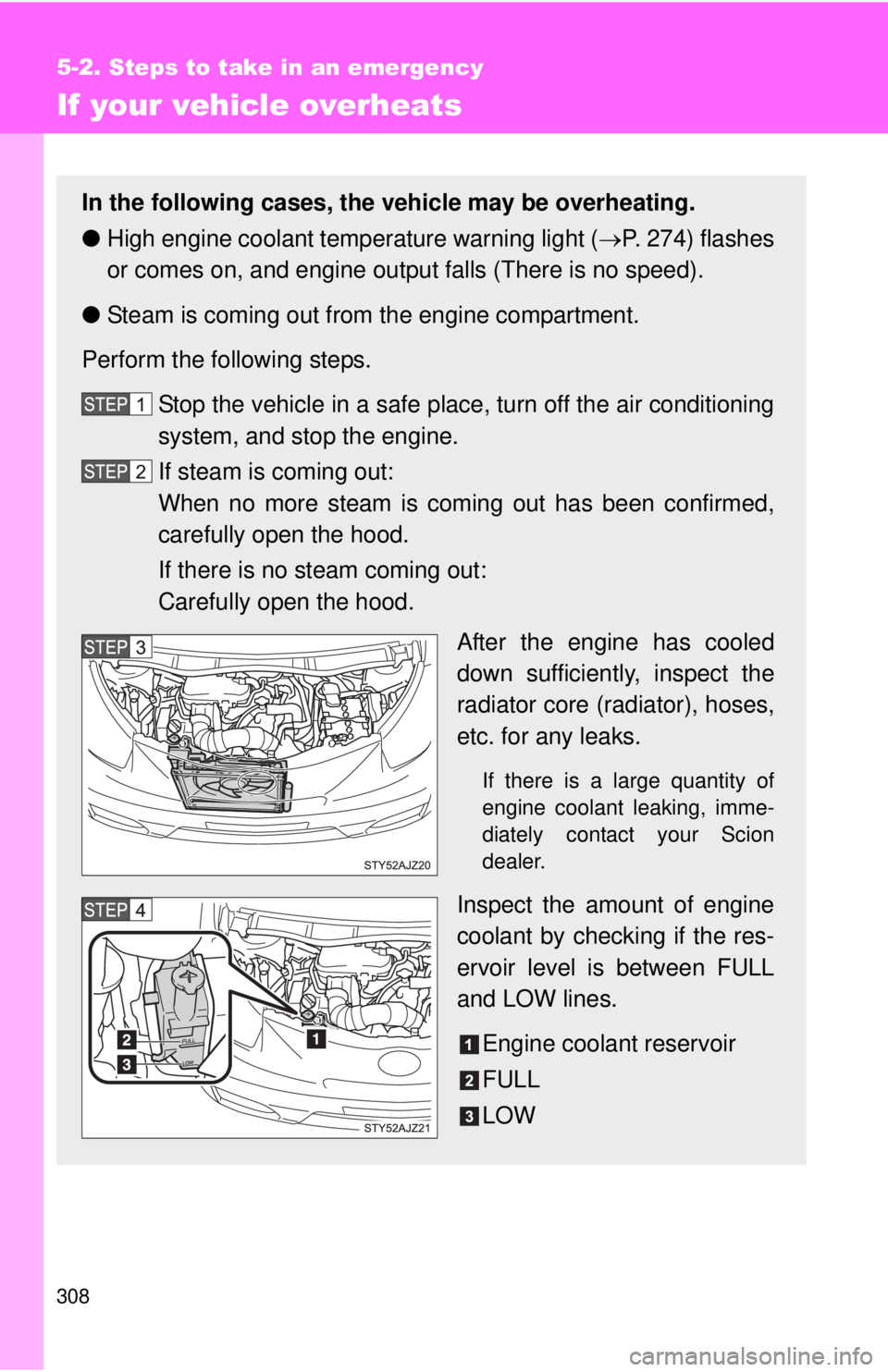

If your vehicle overheats
In the following cases, the vehicle may be overheating.
●High engine coolant temperature warning light ( P. 274) flashes
or comes on, and engine output falls (There is no speed).
● Steam is coming out from the engine compartment.
Perform the following steps.
Stop the vehicle in a safe place, turn off the air conditioning
system, and stop the engine.
If steam is coming out:
When no more steam is coming out has been confirmed,
carefully open the hood.
If there is no steam coming out:
Carefully open the hood. After the engine has cooled
down sufficiently, inspect the
radiator core (radiator), hoses,
etc. for any leaks.
If there is a large quantity of
engine coolant leaking, imme-
diately contact your Scion
dealer.
Inspect the amount of engine
coolant by checking if the res-
ervoir level is between FULL
and LOW lines.
Engine coolant reservoir
FULL
LOW

5
When trouble arises
309
5-2. Steps to take in an emergency

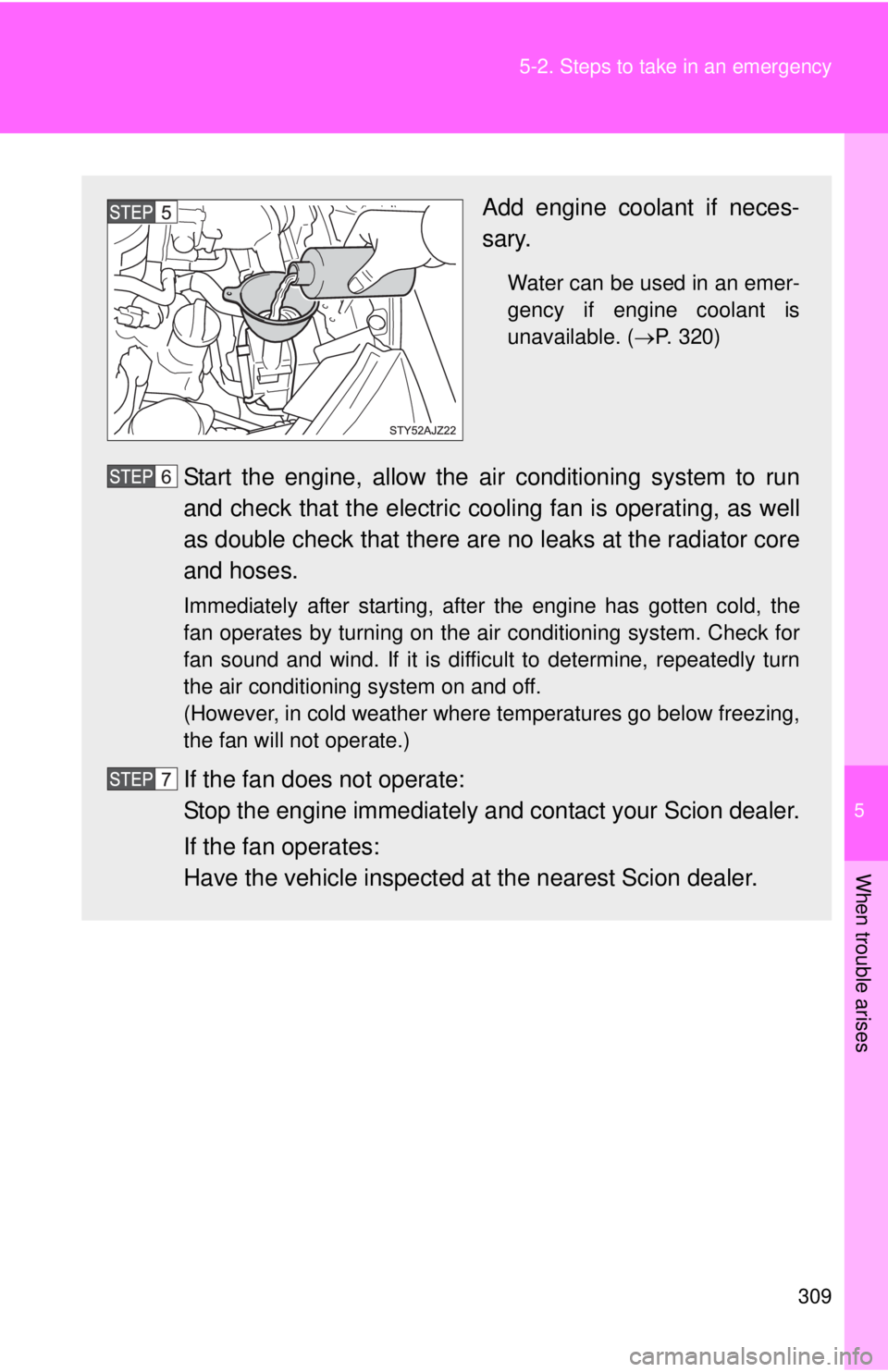

Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable. (
P. 320)
Start the engine, allow the ai r conditioning system to run
and check that the electric coo ling fan is operating, as well
as double check that there are no leaks at the radiator core
and hoses.
Immediately after starting, after the engine has gotten cold, the
fan operates by turning on the air conditioning system. Check for
fan sound and wind. If it is difficult to determine, repeatedly turn
the air conditioning system on and off.
(However, in cold weather where temperatures go below freezing,
the fan will not operate.)
If the fan does not operate:
Stop the engine immediately and contact your Scion dealer.
If the fan operates:
Have the vehicle inspected at the nearest Scion dealer.

310 5-2. Steps to take in an emergency
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
