TOYOTA LAND CRUISER 2002 J100 Navigation Manual

i
Foreword
Thank you for your purchase of the Navigation System. Please read this \
manual carefully to ensure proper use. Keep this manual
stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehi\
cle accessories ever developed. The system receiv es satellite
signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other vehicle \
sen-
sors, the system can show you where you are and assist you in locating a desi\
red destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. \
The syst em is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The routes are generated from a large database that includes
all roads contained in AAA state maps along with detailed street coverage f\
or many major metropolitan areas. The calculated rou tes are neither
the shortest routes nor routes without traffic congestion. Your own personal local knowledge or ºshort cutº may at times be fas ter than the
calculated routes.
The navigation system's database includes 53 point of interest categories to allow you to easi\
ly select destinations such as re staurants and
banks. If a destination is not in the database, you can enter the stree\
t address or a major intersection close to it and the system will route
you there. The system will provide both a visual map and audio instruction\
s. The audio instructions will announce the distance and direction
to go when you are approaching a fork or intersection. These voice inst\
ructions will help you keep your eyes on the road and a re timed to
provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitatio\
ns that may affect their ability to perform properly.
The accuracy of the vehicle's position depends on the satellite condition, road configuration, vehic\
le condition or other circum-
stances. For more information on the limitations of the system, refer to pages \
35 through 37.

2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.

ii
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against something
that may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to avoid or reduce the risk to
yourself and other people.
NOTICE
This is a warning against somethingwhich may cause damage to the ve-hicle or its equipment if the warning isignored. You are informed about whatyou must or must not do in order toavoid or reduce the risk of damage toyour vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the engine or turn the ignition
key to ºACCº, the initial ºTOYOTAº screen
appears and the system begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the ºCAUTIONº screen
appears.
UN002
Please read it and follow the instructions.
If a screen other than for the navigation sys-
tem is displayed (i.e., for the trip information
screen), the current screen would change to
the ºCAUTIONº screen by pushing the
ºMAP/VOICEº, ºDESTº or ºMENUº
button on the bezel or by touching the
ºMaintenanceº switch on the informa-
tion menu screen.
When you touch the
ºI agreeº switch on
the screen, the ºmapº screen appears.

iii
Safety Instruction
UN003
To use your system as safely as possible, fol-
low all the safety tips shown below.
This system is intended to assist you in
reaching your destination and, if used prop-
erly, can do so. Y ou, as the driver, are solely
responsible for the safe operation of your ve-
hicle and the safety of your passengers.
Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while you are driving should al-
ways be the safe operation of your vehicle.
While you are driving, be sure to observe all
traffic regulations. Before attempting to use this system while
you are driving, learn how to use it and be-
come thoroughly familiar with it. Read the
entire Navigation System Manual to make
sure you understand the system. Do not al-
low others to use this system until they have
read and understood these and other in-
structions in this manual.
For your safety, some functions may become
inoperable when you start driving. Unavail-
able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.
CAUTION


For safety, the driver should not
operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.

While you are driving, be sure to
follow the traffic regulations and
keep the road condition in mind. If a
traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.

iv
While you are driving, listen to the voice in-
structions as
much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for your information. If the
system cannot determine your current posi-
tion correctly, there is a possibility of incor-
rect, late or non-voice guidance.
The data in the system may occasionally be
incomplete. Road conditions, including driv-
ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow an instruction from the system,
look to see whether you can comply with the
instruction safely and legally.
This system cannot warn you about such
things as the quality of a neighborhood, con-
dition of streets, and availability of emergen-
cy services. If you are unsure about the safe-
ty of an area, don't drive into it. Under no
circumstances is this system a substitute
for the driver's personal judgement. We recommend that you obtain updated
map data, when it becomes available, in or-
der to help use the system as ef
fectively and
safely as possible.
Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting video screens within
sight of the driver.

SECTION I
1
BASIC FUNCTIONS
Descriptions of basic operations in frequent use
Inputting letters and numbers2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
How to move the cursor 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Destination input Explains 10 ways to input your destination 4
. . . . . . . . . . . . .
Explains 10 ways to input your destination
Entering destination 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Route guidance screen 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Current position display 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice guidance 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Typical voice guidance prompts 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Registration of your home 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Detour setting 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Displaying points of interest 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Turn list 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Guidance screen 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Map scale 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Screen scrolling 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Orientation of the map 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Limitations of the navigation system 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2The navigation system operates by
switches on the screen and on the bezel.
When
you touch a switch, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
UN005
To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the
switch.
Touching the
switch erases one letter. Touching the
ºListº switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays º
º on the
screen.
To input numerals, touch the
º0±9º switch
and the display will change the screen to
number input display.
UN006
Touching the ºA±Zº switch changes the
screen back to the previous name input dis-
play.
UN007
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at
a time.
This expresses a displayed
screen position.
Inputting Letters and Numbers

3
If a or a appears to the right
or left of the item name, the
complete name is too long for
the display. Touch the name,
and the name will scroll to the
end or beginning of the name.
UN008

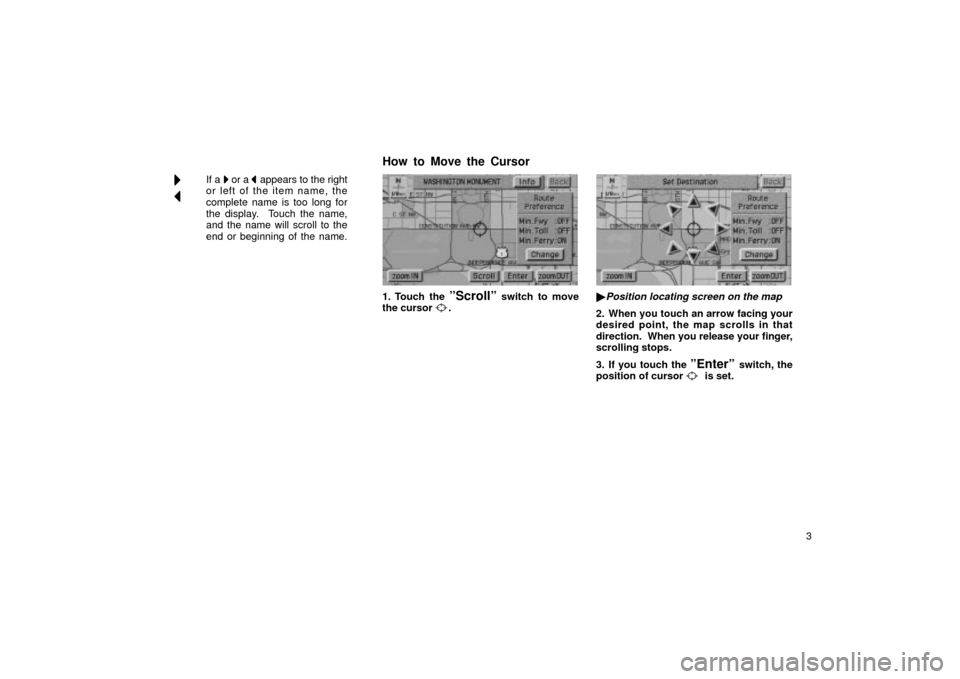

1. Touch the ºScrollº switch to move
the cursor .
UN009

Position locating screen on the map
2. When you touch an arrow facing your
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
3. If you touch the
ºEnterº switch, the
position of cursor is set.
How to Move the Cursor

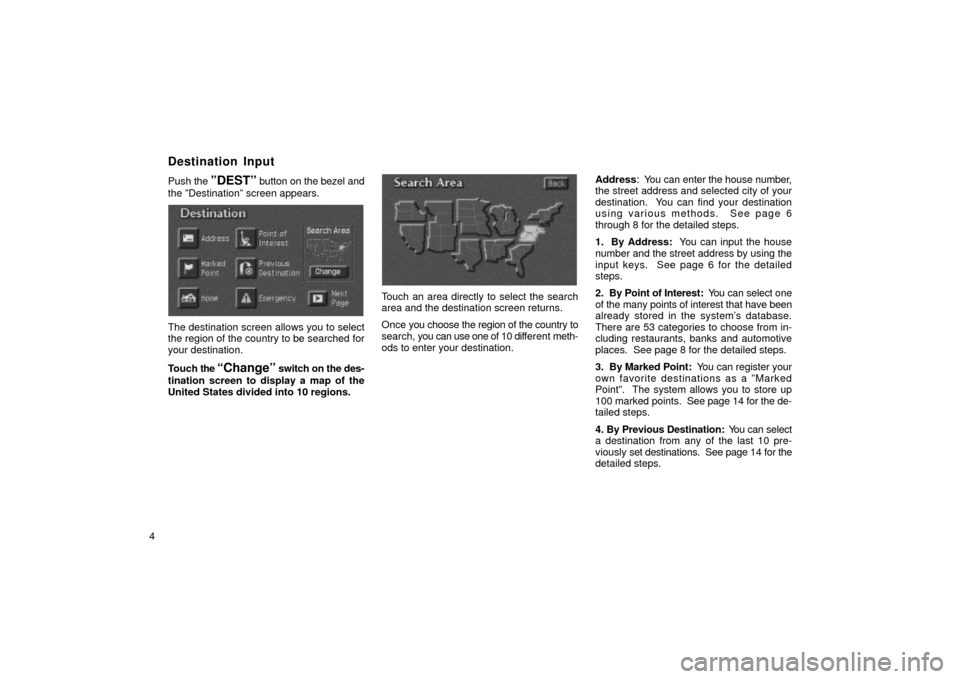

4Push
the
ºDESTº button on the bezel and
the ºDestinationº screen appears.
UN010
The destination screen allows you to select
the region of the country to be searched for
your destination.
Touch the
Changeº switch on the des-
tination screen to display a map of the
United States divided into 10 regions.
UN011
Touch an area directly to select the search
area and the destination screen returns.
Once you choose the region of the country to
search, you can use one of 10 dif ferent meth-
ods to enter your destination. Address

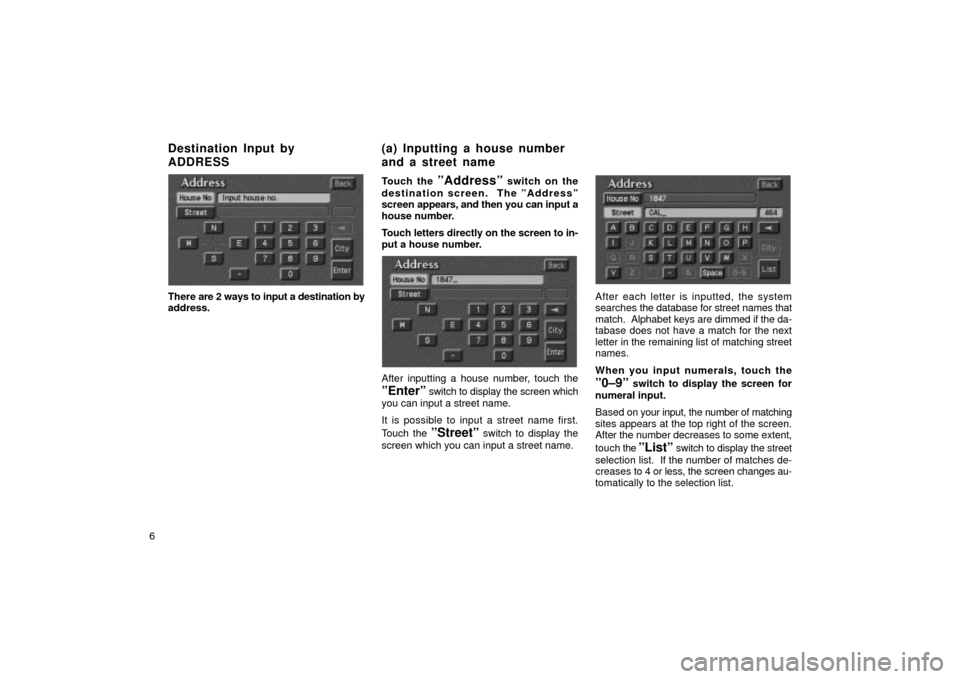

: You can enter the house number,
the street address and selected city of your
destination. You can find your destination
using various methods. See page 6
through 8 for the detailed steps.
1. By Address: You can input the house
number and the street address by using the
input keys. See page 6 for the detailed
steps.
2. By Point of Interest: You can select one
of the many points of interest that have been
already stored in the system's database.
There are 53 categories to choose from in-
cluding restaurants, banks and automotive
places. See page 8 for the detailed steps.
3. By Marked Point: You can register your
own favorite destinations as a ºMarked
Pointº. The system allows you to store up
100 marked points. See page 14 for the de-
tailed steps.
4. By Previous Destination: You can select
a destination from any of the last 10 pre-
viously set destinations. See page 14 for the
detailed steps.
Destination Input

5
5. By Home: You can select your own home
without entering the address each time. In
this case, it is necessary to register your
home beforehand. See page 15 for the de-
tailed steps.
6. By Emergency: You can select one of
the three points of emergency service points
that have been already stored in the sys-
tem's
database. See page 15 for the detailed
steps.
7. By Intersection: You can enter the
names of two intersecting streets. This is
helpful if you do not know the specific street
address of your destination but know the
general vicinity. See page 16 for the detailed
steps.
8. By Freeway Entrance/Exit: You can en-
ter the name of the freeway (interstate) en-
trance or exit. See page 17 for the detailed
steps.
9. By Previous Starting Point: You can en-
ter a point where the system has started to
guide last time. See page 19 for the detailed
steps.
10. By Map Selection: You can select a
destination simply by touching the location
on the displayed map. See page 19 for the
detailed steps.
INFORMATION
When inputting the destination, the response to the switch may be slow.
ºPoint of Interestº are mainly regis-tered in ºDetailed map coverageareasº. The registration is madebased on the NavTech ºStandardPOI Inclusion Listº.
If there is no point registered,switches such as ºMarked Pointº,ºHomeº, ºPrevious Destinationº orºPrevious Starting Pointº are
dimmed and not available.
The route for returning may not bethe same as that for going.
The route guidance to the destina-tion may not be the shortest route or
a route without traffic congestion.
Route gui dance may not be available
if there is no road data for the speci- fied location.
When setting the destination, youshould use the map on a scale of one
half mile or smaller.
To select an ºAddressº, ºPoint of In- terestº, ºFreeway Entrance/Exitº orºIntersectionº in a different region, asearch area's change is necessary.
CAUTION
While you are driving, be sure to follow
traffic regulations and keep the road
condition in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.

6
UN012
There are 2 ways to input a destination by
address.Touch the
ºAddressº switch on the
destination screen. The ºAddressº
screen appears, and then you can input a
house number.
Touch letters directly on the screen to in-
put a house number.
UN013
After inputting a house number, touch the
ºEnterº switch to display the screen which
you can input a street name.
It is possible to input a street name first.
Touch the
ºStreetº switch to display the
screen which you can input a street name.
UN302
After each letter is inputted, the system
searches the database for street names that
match. Alphabet keys are dimmed if the da-
tabase does not have a match for the next
letter in the remaining list of matching street
names.
When you input numerals, touch the
º0±9º switch to display the screen for
numeral input.
Based on your input, the number of matching
sites appears at the top right of the screen.
After the number decreases to some extent,
touch the
ºListº switch to display the street
selection list. If the number of matches de-
creases to 4 or less, the screen changes au-
tomatically to the selection list.
Destination Input by
ADDRESS (a) Inputting a house number
and a street name
