display TOYOTA LAND CRUISER 2002 J100 Navigation Manual

6
NOTICE
To prevent damage to the antenna,make sure it is retracted beforedriving your vehicle through an
automatic car wash.
Antenna must have to be extendedhigher than 100 mm (3.94 in) length
when the audio is on. Extend the an-
tenna mast when the radio signal is
weak.
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the cassetteplayer, and do not insert anythingexcept a cassette tape into the slot.unc601
If your vehicle is equipped with an automatic
changer, it can play selected discs or contin-
uously play all the discs set in the magazine.
When you set discs into the magazine, make
sure they face the correct way. If not, the
player will display ºDISC CHECKº and the
disc number.
NOTICE
Never try to disassemble or oil any part
of the automatic changer. Do not insert
anything except a compact disc or DVD
video disc into the magazine.
(d) Your cassette player (e) Your automatic changer

7
The player is intended for use with 12 cm (4.7
in.) discs only.
(a) Listening to the radio
UNG610
Push these buttons to choose either an
AM or FM station.
ºAMº, ºFM1º, ºFM2º or ºFM TYPEº appears
on the display.
UNC610a
Turn this knob to step up the station band
or to step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. ºSTº appears on the display. If the
signal
becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio
switches from stereo to mono reception. In
this case, ºSTº disappears from the display.
Radio operation

8
UNG604
1. Tune in the desired station.
2. Touch one of the station selector
switches (1-6) and hold it until a beep is
heard. This sets the station to the switch
and the frequency appears on the switch
Each switch can store FM1, FM2 and AM. To
change the preset station to a different one,
follow the same procedure.
The preset station memory is cancelled
when the power source is interrupted by bat-
tery disconnection or a blown fuse. Your vehicle has an electronic tuning radio
(ETR). T
une in the desired station using one
of the following methods.
Preset tuning: Touch the switch (1-6) or
push the º

º or ºº bu tto n of th e ºCHº button
for the station you want. The switch (1-6) is
highlighted in green and station frequency
appears on the display.
Manual tuning: Turn the ºTUNEº knob brief-
ly. Each time you turn the knob, the radio will
step up or down to another frequency.
Seek tuning: Push the º

º or ºº button of
the ºSEEKº button and hold it until you hear
a beep. The radio will begin seeking up or
down for a station of the nearest frequency
and will stop on reception. Each time you
push the button, the stations will be searched
out one after another.
UNG612
Scan tuning: Touch the ºSCANº switch
briefly. ºSCANº appears on the display. The
radio will find the next station up or down the
band, stay there for a few seconds, and then
scan again. To select a station, touch the
ºSCANº switch a second time.
(b) Presetting a station (c) Selecting a station

9
Preset scan tuning: Touch the
ºSCANº
switch and hold it until you hear a beep. ºP.
SCANº appears on the display. The radio will
tune in the next preset station up or down the
band, stay there for a few seconds, and then
move to the next preset station. To select a
station, touch the ºSCANº switch a second
time.
UNG613
AF (Alternative Frequency) function: A
station providing good reception is auto-
matically selected if current reception
worsens.
This functions switches over to the broad-
casting station providing good reception
within the same RDS network and is conve-
nient for following the appropriate stations.
UNG614
TRAF (T raffic) function: A station that reg-
ularly broadcasts traffic information is
automatically sought and broadcasts
when the program starts.
When you push the ºTRAFº button, ºTRAF
SEEKº appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
ºNOTHINGº appears and the previous mode
returns.
(d) RDS (Radio Data System)

10If the traffic program station is found, the
name for
traffic program station is displayed
and ºTRAFº is lit for a while until traffic an-
nouncement is received. When traffic an-
nouncement program starts broadcasting,
ºTrafficº will appear on the screen.
After the traffic announcement program is
over, the previous mode returns.
UNG615
When you touch the ºRDS SRCHº switch
during FM reception, ºRDS SEARCHº ap-
pears and the radio starts to search RDS sta-
tion.
If any RDS station cannot be found, ºNO
RDS Stations Foundº appears and the pre-
vious mode returns.
If RDS stations are found, the stations are
read and preset by program type. The FM
TYPE mode screen displays the º** RDS
Stations Foundº (** indicates the number of
stations which are found) and then RDS sta-
tions appear in the order of frequency. If in one program type, more than 6 stations
are found, the 6 stations are preset in the or-
der of the lower frequency.
Each time you push the º
º or ºº, the
program type changes as in the following:
 ROCK
 EASY LIS (Easy listening)
 CLS/JAZZ (Classical music and Jazz)
 R&B (Rhythm and Blues)
 INFORM (Information)
 RELIGION
 MISC.
 ALERT (Emergency message)
(e) TYPE (Program type)

11
UNG616
If an emergency broadcast is received dur-
ing reception of other than AM broadcasting,
ºAlertº appears and an emergency broad-
cast will start.
UNG617
If ºMSGº appears during FM reception,
touching the ºMSGº switch displays the mes-
sage display screen which indicates the text
message from the RDS station.
UNG618
If a new message is received with the first
text m essage on the display, ºMSGº appears
on the corner of the screen again. When you
touch the ºLATEST MESSAGEº switch, the
new message appears.
The RDS audio system has memory to store
three messages consisting of 64 characters.
To store a message in memory, touch the
ºSTOREº switch until you hear a beep.
If 3 messages are already stored in memory,
the oldest message will be overwritten by the
new message.
(f) Emergency broadcast (g) Radio text message

12To recall a radio text message, touch the
ºRECALLº
switch. Each time you touch the
switch, the message will be displayed from
the new one.
When you touch the ºOKº switch, the pre-
vious screen returns.
(a) Playing a cassette tape
unc614
When you insert a cassette tape, the ex-
posed tape should face to the right.
The player will automatically start when you
insert a cassette tape. At this time, ºTapeº
appears on the display.
If a metal or chrome equivalent cassette tape
is put in the cassette player, the player will
automatically recognize it and ºMTLº ap-
pears on the display.
To stop or eject the cassette tape, push the
º
º button.
UNG605
If a cassette is already in the slot, push the
ºTAPEº button.
Dolby  Noise Reduction* feature: If you
are listening to a tape that was recorded with
Dolby  B Noise Reduction, touch the switch
marked with the double
-D symbol. The
º switch will be highlighted in green.
Touch the switch again to turn off Dolby  B
NR.
The Dolby NR mode reduces tape noise by
about 10 dB. For best sound reproduction,
play your tapes with this switch on or off ac-
cording to the mode used for recording the
tape.
Cassette tape player operation

13
* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing
Corporation. ºDOLBYº and the double-D
symbol
are trademarks of Dolby Labora-
tories Licensing Corporation.
UNC615

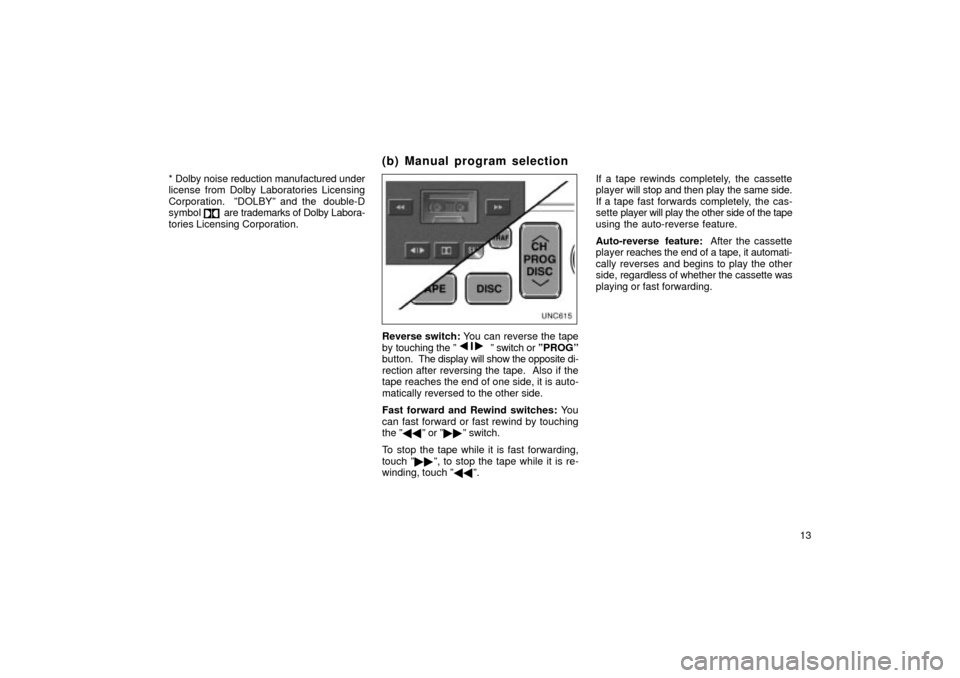

Reverse switch: You can reverse the tape
by touching the ºº switch or ºPROGº
button. The display will show the opposite di-
rection after reversing the tape. Also if the
tape reaches the end of one side, it is auto-
matically reversed to the other side.
Fast forward and Rewind switches: Yo u
can fast forward or fast rewind by touching
the º º or º º switch.
To stop the tape while it is fast forwarding,
touch º º, to stop the tape while it is re-
winding, touch º º. If a tape rewinds completely, the cassette
player
will stop and then play the same side.
If a tape fast forwards completely, the cas-
sette player will play the other side of the tape
using the auto-reverse feature.
Auto-reverse feature: After the cassette
player reaches the end of a tape, it automati-
cally reverses and begins to play the other
side, regardless of whether the cassette was
playing or fast forwarding.
(b) Manual program selection

14
UNG622
ºRPTº switch: The repeat feature automati-
cally replays the current program.
Touch the ºRPTº switch while the program is
playing. When the program ends, it will auto-
matically be rewound and replayed. Touch
the switch again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between programs for the repeat fea-
ture to work correctly.
ºSKIPº switch: The skip feature allows you
to fast forward past long stretches of blank
tape. This is especially useful at the end of
cassettes. Touch
the ºSKIPº switch. The player will au-
tomatically skip any blank portions of 15 se-
conds or more and play the next program. To
cancel it, touch the switch once again.
UNC616a
ºAutomatic program selectionº button:
The automatic program selection feature al-
lows you to program your cassette player to
skip forward or backward to locate the song
you want to hear. You can skip up to 9 pro-
grams at a time.
Push this button on the upper side to skip for-
ward. ºFFº and the number will appear on the
display. Push the button until the number
you want to skip appears on the display. Af-
ter that, the player will automatically skip for-
ward. When the end of the tape is reached, the
player automatically reverses sides and re-
sumes normal play.
Push this button on the lower side to skip
backward. Push the button until ºREWº and
the number you want to skip appear on the
display.

If you set ºREW 1º, the player will rewind
to the beginning of the current program.
 When counting the number of programs
you want to rewind, remember to count
the current program as well. For example,
if you want to rewind to a song that is two
before the song you are listening to, push
this button until ºREW 3º appears on the
display.
When the beginning of the tape is reached,
the player automatically resumes normal
play.
There must be at least 5 seconds of blank
space between programs for this feature to
work correctly.
ºRPTº, ºSKIPº or ºAutomatic program
selectionº features: These features may
not work well with some spoken word, live or
classical recordings.
(c) Automatic program
selection

16
unx606

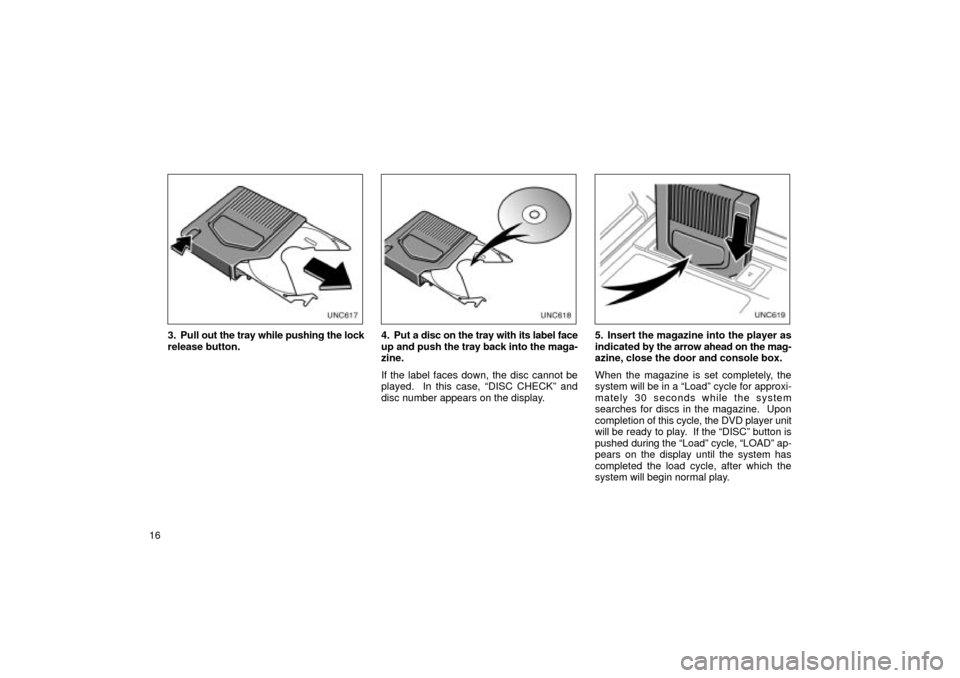

3. Pull out the tray while pushing the lock
release button.
unx607
4. Put a disc on the tray with its label face
up and push the tray back into the maga-
zine.
If the label faces down, the disc cannot be
played. In this case, DISC CHECKº and
disc number appears on the display.
unx608
5. Insert the magazine into the player as
indicated by the arrow ahead on the mag-
azine, close the door and console box.
When the magazine is set completely, the
system will be in a Loadº cycle for approxi-
mately 30 seconds while the system
searches for discs in the magazine. Upon
completion of this cycle, the DVD player unit
will be ready to play. If the DISCº button is
pushed during the Loadº cycle, LOADº ap-
pears on the display until the system has
completed the load cycle, after which the
system will begin normal play.
