key TOYOTA LAND CRUISER 2002 J100 Navigation Manual

ii
Important information about this manual
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against something
that may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to avoid or reduce the risk to
yourself and other people.
NOTICE
This is a warning against somethingwhich may cause damage to the ve-hicle or its equipment if the warning isignored. You are informed about whatyou must or must not do in order toavoid or reduce the risk of damage toyour vehicle and its equipment.
INFORMATION
This provides additional information.
Initial screen
UN001
When you start the engine or turn the ignition
key to ºACCº, the initial ºTOYOTAº screen
appears and the system begins operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the park-
ing brake for safety.
After a few seconds, the ºCAUTIONº screen
appears.
UN002
Please read it and follow the instructions.
If a screen other than for the navigation sys-
tem is displayed (i.e., for the trip information
screen), the current screen would change to
the ºCAUTIONº screen by pushing the
ºMAP/VOICEº, ºDESTº or ºMENUº
button on the bezel or by touching the
ºMaintenanceº switch on the informa-
tion menu screen.
When you touch the
ºI agreeº switch on
the screen, the ºmapº screen appears.

2The navigation system operates by
switches on the screen and on the bezel.
When
you touch a switch, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
UN005
To type in an address etc., directly touch al-
phabet keys on the screen. If you touch a
wrong letter, delete it using the
switch.
Touching the
switch erases one letter. Touching the
ºListº switch will change the
screen to a display of the database items that
match the name or address that you have
entered on the screen. The number of
matching items is shown to the right side of
the screen. If the matching item is more than
9,999, the system displays º
º on the
screen.
To input numerals, touch the
º0±9º switch
and the display will change the screen to
number input display.
UN006
Touching the ºA±Zº switch changes the
screen back to the previous name input dis-
play.
UN007
When a list is displayed, you can scroll or
page through the list by using the appropri-
ate switch.
To shift to the next or previous
page.
To scroll up or down one item at
a time.
This expresses a displayed
screen position.
Inputting Letters and Numbers

4Push
the
ºDESTº button on the bezel and
the ºDestinationº screen appears.
UN010
The destination screen allows you to select
the region of the country to be searched for
your destination.
Touch the
Changeº switch on the des-
tination screen to display a map of the
United States divided into 10 regions.
UN011
Touch an area directly to select the search
area and the destination screen returns.
Once you choose the region of the country to
search, you can use one of 10 dif ferent meth-
ods to enter your destination. Address
: You can enter the house number,
the street address and selected city of your
destination. You can find your destination
using various methods. See page 6
through 8 for the detailed steps.
1. By Address: You can input the house
number and the street address by using the
input keys. See page 6 for the detailed
steps.
2. By Point of Interest: You can select one
of the many points of interest that have been
already stored in the system's database.
There are 53 categories to choose from in-
cluding restaurants, banks and automotive
places. See page 8 for the detailed steps.
3. By Marked Point: You can register your
own favorite destinations as a ºMarked
Pointº. The system allows you to store up
100 marked points. See page 14 for the de-
tailed steps.
4. By Previous Destination: You can select
a destination from any of the last 10 pre-
viously set destinations. See page 14 for the
detailed steps.
Destination Input

6
UN012
There are 2 ways to input a destination by
address.Touch the
ºAddressº switch on the
destination screen. The ºAddressº
screen appears, and then you can input a
house number.
Touch letters directly on the screen to in-
put a house number.
UN013
After inputting a house number, touch the
ºEnterº switch to display the screen which
you can input a street name.
It is possible to input a street name first.
Touch the
ºStreetº switch to display the
screen which you can input a street name.
UN302
After each letter is inputted, the system
searches the database for street names that
match. Alphabet keys are dimmed if the da-
tabase does not have a match for the next
letter in the remaining list of matching street
names.
When you input numerals, touch the
º0±9º switch to display the screen for
numeral input.
Based on your input, the number of matching
sites appears at the top right of the screen.
After the number decreases to some extent,
touch the
ºListº switch to display the street
selection list. If the number of matches de-
creases to 4 or less, the screen changes au-
tomatically to the selection list.
Destination Input by
ADDRESS (a) Inputting a house number
and a street name

7
UN014
When you find your desired street name,
touch of the item. The screen
changes and displays the map location of
the selected destination and the route
preference. (See ºEntering Destinationº
on page 19.)
If the same address exists in more than one
city, the current screen changes to the ºCity
Selectº screen. Select or enter your desired
city.
UN303-1
If you input a street name first, the screen
changes. You can then input the house num-
ber.
UN303
If the above screen appears, you can select
an address range on that screen. The screen for inputting a city name appears
if you touch the
ºCityº switch on the ºAd-
dressº screen on page 6.
UN015
Input a city name using alphabet keys.
After the number decreases to some extent,
touch the
ºListº switch to display the city
selection list. If the number of matches de-
creases to 4 or less, the screen changes au-
tomatically to the selection list.
(b) Inputting a city name

9
UN018
Touch the of your desired destina-
tion. The screen changes and displays
the map location of the selected destina-
tion and the route preference. (See ºEn-
tering Destinationº on page 19.)
If the same name exists in more than one
city, you can search it more easily with the
ºCityº and ºCategoryº switch. (See (b)
Inputting a city name and (c) Selection from
the Points of Interest categories.) Touch the
ºCityº switch on the point of
interest screen.
UN019
Touch alphabet keys directly on the
screen to input a city name. When you in-
put numerals, touch the
º0±9º switch to
display the screen for numeral input.
If the number of sites becomes 4 or less, or
if you touch the
ºListº switch at the bottom
right of the screen, the screen changes and
displays the selection list. Touch the
of
the desired city name.
After entering the city name, input the
name of the point of interest. Touch the
ºCategoryº switch on the
point of interest screen.
UN020
The categories are shown on the screen.
When you touch the of your desired
category, more detailed categories are
shown.
UN020-1
When you touch the of your desired
category, the screen changes and dis-
plays the menu to input a name.
(b) Inputting a city name (c) Selection from the Points of
Interest categories

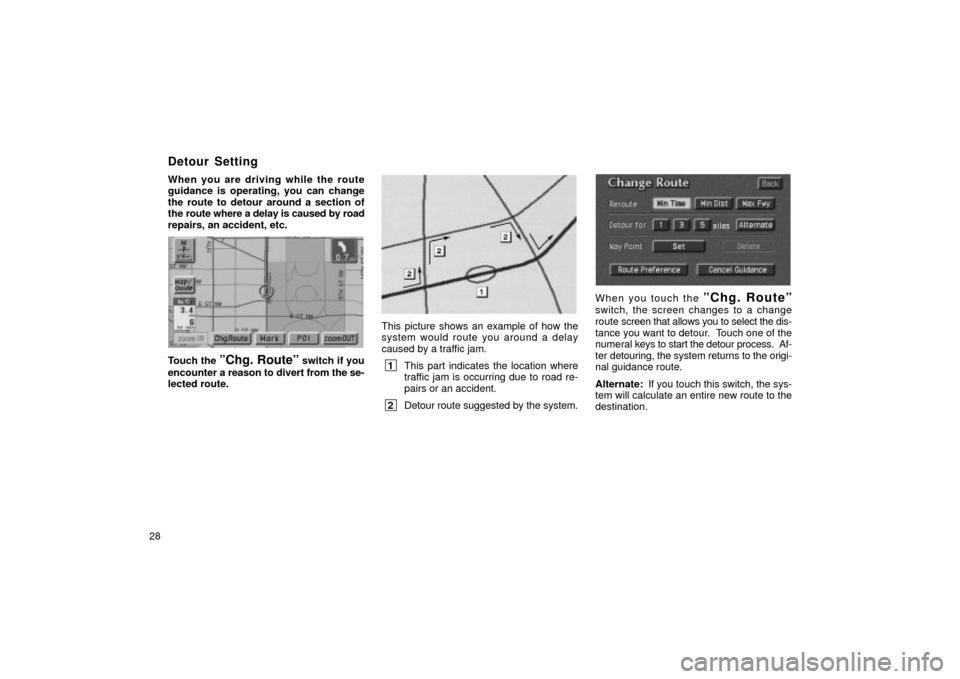

28When you are driving while the route
guidance is operating, you can change
the route to detour around a section of
the route where a delay is caused by road
repairs, an accident, etc.
UN049
Touch the ºChg. Routeº switch if you
encounter a reason to divert from the se-
lected route.
EMV3065U
This picture shows an example of how the
system would route you around a delay
caused by a traffic jam.
1 This part indicates the location where
traffic jam is occurring due to road re-
pairs or an accident.
2Detour route suggested by the system.
chg-r oute
When you touch the ºChg. Routeº
switch, the screen changes to a change
route screen that allows you to select the dis-
tance you want to detour. Touch one of the
numeral keys to start the detour process. Af-
ter detouring, the system returns to the origi-
nal guidance route.
Alternate: If you touch this switch, the sys-
tem will calculate an entire new route to the
destination.
Detour Setting

51
UN084
Touch the item to edit (on the left side of
the screen).

Editing an ºIconº
UN085
Touch your desired icon.
Special Purpose Icon: During driving, only
special purpose icons can be selected in the
marked point list. You can register up to 5. Sound Icon:
When you set on these icons,
the buzzer sounds as your vehicle ap-
proaches them.
When you touch the desired symbol or
ºBackº, the previous screen is displayed.

Editing a ºNameº
UN086
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
ºEn-
terº
switch at the bottom right of the screen.
The previous screen will be displayed.

Editing a ºPhoneº (telephone number)
UN087
Touch numeral keys directly.
After you finish your entry, touch the
ºEn-
terº
switch at the bottom of the screen.
The previous screen will be displayed.

7
UN130
1. Touch the ºEdit Dealerº switch.
2. Touch the item to edit.

Editing a ºDealerº or a ºStaffº
UN132
Touch alphabet or numeral keys directly
to input the name.
After you finish your entry, touch the
ºEn-
terº
switch at the bottom right of the screen.
The previous screen will be displayed.

Editing a ºPositionº
UN133UN133t
Touch the arrows to scroll to your desired
point on the map screen.
Touch the
ºEnterº switch when the cursor
moves to your desired point.
The previous screen will be displayed.
(b) Editing dealer

8

Editing a ºPhoneº (telephone number)
UN134
Touch numeral keys directly.
After you finish your entry, touch the
ºEn-
terº
switch at the bottom of the screen.
The previous screen will be displayed.
After you finish any editing, touch the
ºOKº switch.
UN135
1. Touch the ºDelete Dealerº switch.
UN136
UN136t
2. A selected point will appear. Also, a
message will appear at the bottom of the
screen. To delete, touch the
ºYESºswitch. To cancel the deletion, touch theºNOº switch. The registered dealer can be set as a des-
tination.
Touch the ºGo to Dealerº switch. The
screen changes and displays the map
location of the registered dealer and the
route preference. (See ºEntering Des-
tinationº on page 19.)
(c) Deleting dealer (d) Going to dealer
