TOYOTA LAND CRUISER 2003 J100 Navigation Manual

123
2003 Land Cruiser 100 Navigation (OM60A00U)
Your vehicle has an electronic tuning radio
(ETR). Tune in the desired station using one
of the following methods.
Preset tuning: Touch the switch (1−6) or
push the ”
” or ”” bu tto n of th e ”CH” button
for the station you want. The switch (1 −6) is
highlighted in green and station frequency
appears on the display.
Manual tuning: Turn the ”TUNE” knob brief-
ly. Each time you turn the knob, the radio will
step up or down to another frequency.
Seek t uning: Push the ”” or ”” button of
the ”SEEK” button and hold it until you hear
a beep. The radio will begin seeking up or
down for a station of the nearest frequency
and will stop on reception. Each time you
push the button, the stations will be searched
out one after another.
UNG612
Scan tuning: Touch the ”SCAN” switch
briefly. ”SCAN” appears on the display. The
radio will find the next station up or down the
band, stay there for a few seconds, and then
scan again. To select a station, touch the
”SCAN” switch a second time.
Preset scan tuning: Touch the ”SCAN”
switch and hold it until you hear a beep. ”P.
SCAN” appears on the display. The radio will
tune in the next preset station up or down the
band, stay there for a few seconds, and then
move to the next preset station. To select a
station, touch the ”SCAN” switch a second
time.
TRAF (T raffic) function: A station that reg-
ularly broadcasts traffic information is
automatically sought.
When you push the ”TRAF” button, ”TRAF
SEEK” appears on the display and the radio
will start seeking any traffic program station.
If any traffic program station is not found,
”NOTHING” appears and the previous mode
returns.
If the traffic program station is found, the
name for traffic program station is displayed
and ”TRAF” is lit for a while until traffic an-
nouncement is received.
(c) Selecting a station(d) RDS (Radio Data System)

124
2003 Land Cruiser 100 Navigation (OM60A00U)
UNG615
When you touch the ”RDS SRCH” switch
during FM reception, ”RDS SEARCH” ap-
pears and the radio starts to search RDS sta-
tion.
If any RDS station cannot be found, ”NO
RDS Stations Found” appears and the pre-
vious mode returns.
If RDS stations are found, the stations are
read and preset by program type. The FM
TYPE mode screen displays the ”** RDS
Stations Found” (** indicates the number of
stations which are found) and then RDS sta-
tions appear in the order of frequency. If in one program type, more than 6 stations
are found, the 6 stations are preset in the or-
der of the lower frequency.
Each time you push the ”
” or ””, the
program type changes as in the following:
 ROCK
 EASY LIS (Easy listening)
 CLS/JAZZ (Classical music and Jazz)
 R&B (Rhythm and Blues)
 INFORM (Information)
 RELIGION
 MISC.
 ALERT (Emergency message)
UNG617
If ”MSG” appears during FM reception,
touching the ”MSG” switch displays the mes-
sage display screen which indicates the text
message from the RDS station.
(e) TYPE (Program type)(f) Radio text message

125
2003 Land Cruiser 100 Navigation (OM60A00U)
UNG618
If a new message is received with the first
text message on the display, ”MSG” appears
on the corner of the screen again. When you
touch the ”LATEST MESSAGE” switch, the
new message appears.
The RDS audio system can store three mes-
sages consisting of 64 characters in
memory. To store a message in memory,
touch the ”STORE” switch until you hear a
beep.
If 3 messages are already stored in memory,
the oldest message will be overwritten by the
new message. To recall a radio text message, touch the
”RECALL”
switch. Each time you touch the
switch, the available messages will be dis-
played beginning with the newest one.
When you touch the ”OK” switch, the pre-
vious screen returns.
unc614
When you insert a cassette tape, the ex-
posed tape should face to the right.
The player will automatically start when you
insert a cassette tape. At this time, ”Tape”
appears on the display.
If a metal or chrome equivalent cassette tape
is put in the cassette player, the player will
automatically recognize it and ”MTL” ap-
pears on the display.
To stop or eject the cassette tape, push the
”
” button.
Cassette tape player
o
peration
(a) Playing a cassette tape

126
2003 Land Cruiser 100 Navigation (OM60A00U)
UNG605
If a cassette is already in the slot, push the
”TAPE” button.
Dolby Noise Reduction* feature: If you
are listening to a tape that was recorded with
Dolby  B Noise Reduction, touch the switch
marked with the double
−D symbol. The
“” switch will be highlighted in green.
Touch the switch again to turn off Dolby  B
NR.
The Dolby NR mode reduces tape noise by
about 10 dB. For best sound reproduction,
play your tapes with this switch on or off ac-
cording to the mode used for recording the
tape. * Dolby noise
reduction manufactured under
license from Dolby Laboratories Licensing
Corporation. ”DOLBY” and the double −D
symbol
are tradem arks of Dolby Labora-
tories Licensing Corporation.
UNC615
Reverse switch: You can reverse the tape
by touching the ”\b” switch or ”PROG”
button. The display will show the opposite di-
rection after reversing the tape. Also if the
tape reaches the end of one side, it is auto-
matically reversed to the other side.
Fast forward and Rewind switches: Yo u
can fast forward or fast rewind by touching
the ” \b\b” or ” ” switch.
To stop the tape while it is fast forwarding,
touch ” ”, to stop the tape while it is re-
winding, touch ”\b\b ”.
(b) Manual program selection

127
2003 Land Cruiser 100 Navigation (OM60A00U)
If a tape rewinds completely, the cassette
player will stop and then play the same side.
If a tape fast forwards completely, the cas-
sette player will play the other side of the tape
using the auto −reverse feature.
Autoreverse feature: After the cassette
player reaches the end of a tape, it automati-
cally reverses and begins to play the other
side, regardless of whether the cassette was
playing or fast forwarding.
UNG622
”RPT” switch: The repeat feature automati-
cally replays the current program.
Touch the ”RPT” switch while the program is
playing. When the program ends, it will auto-
matically be rewound and replayed. Touch
the switch again to turn off the repeat feature.
There must be at least 3 seconds of blank
space between programs for the repeat fea-
ture to work correctly.
”SKIP” switch: The skip feature allows you
to fast forward past long stretches of blank
tape. This is especially useful at the end of
cassettes. Touch
the ”SKIP” switch. The player will au-
tomatically skip any blank portions of 15 se-
conds or more and play the next program. To
cancel it, touch the switch once again.
UNC616a
”Automatic program selection” button:
The automatic program selection feature al-
lows you to program your cassette player to
skip forward or backward to locate the song
you want to hear. You can skip up to 9 pro-
grams at a time.
Push this button on the upper side to skip for-
ward. ”FF” and the number will appear on the
display. Push the button until the number
you want to skip appears on the display. Af-
ter that, the player will automatically skip for-
ward.
(c) Automatic program selec-
tion

128
2003 Land Cruiser 100 Navigation (OM60A00U)
When the end of the tape is reached, the
player automatically reverses sides and re-
sumes normal play.
Push this button on the lower side to skip
backward. Push the button until ”REW” and
the number you want to skip appear on the
display.
 If you set ”REW 1”, the player will rewind
to the beginning of the current program.
 When counting the number of programs
you want to rewind, remember to count
the current program as well. For example,
if you want to rewind to a song that is two
before the song you are listening to, push
this button until ”REW 3” appears on the
display.
When the beginning of the tape is reached,
the player automatically resumes normal
play.
There must be at least 5 seconds of blank
space between programs for this feature to
work correctly.
”RPT”, ”SKIP” or ”Automatic program
selection” features: These features may
not work well with some spoken word, live or
classical recordings.
DVD player operation
The DVD player can play audio CDs, DVD
video discs and video CDs.
For appropriate discs for this player, see ”Car
audio/video system operating hints” on page
146.
For safety reasons, you can enjoy DVD vid-
eo discs and video CDs only when the ve-
hicle is completely stopped with the ignition
switch in the “ACC” or “ON” position and the
parking brake applied. While you are driving,
you can hear audio alone even in the DVD
video or video CD mode.
The DVD player can play the discs labeled
as shown below.
unc602

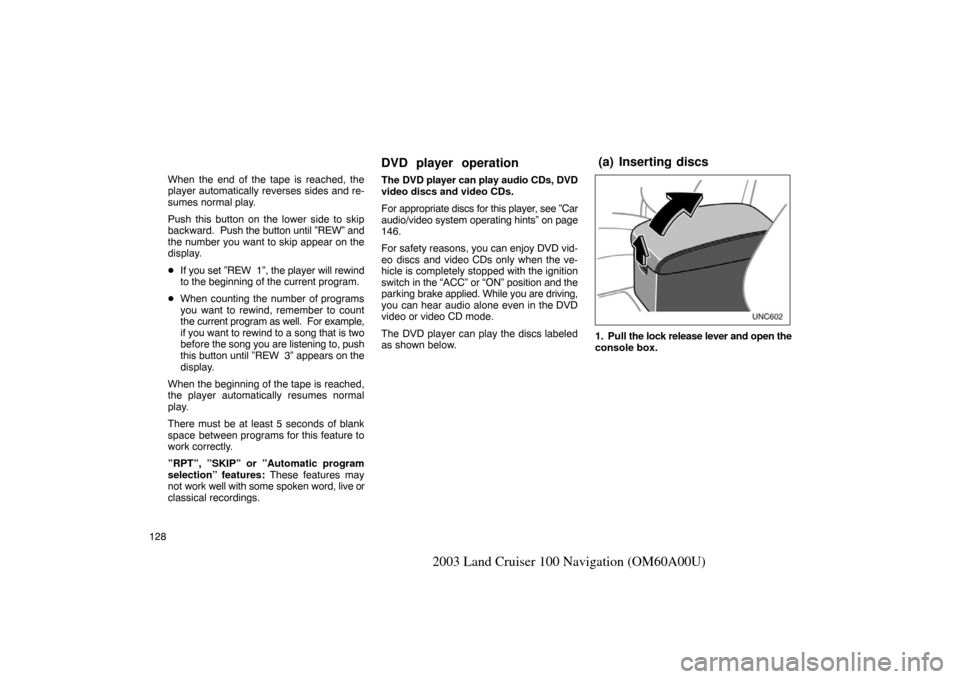

1. Pull the lock release lever and open the
console box.
(a) Inserting discs

129
2003 Land Cruiser 100 Navigation (OM60A00U)
unc603

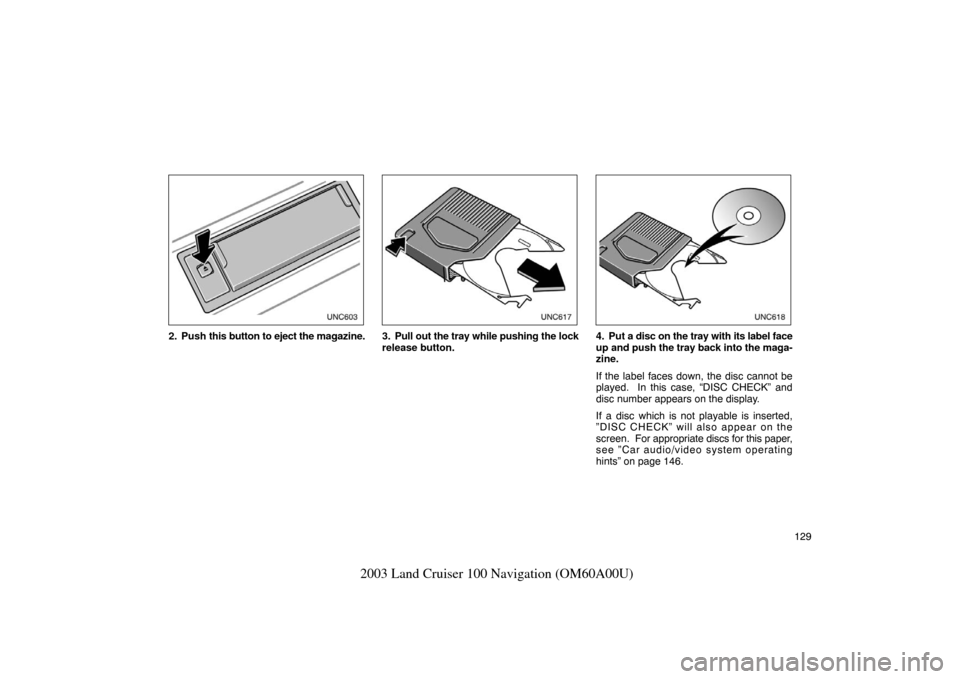

2. Push this button to eject the magazine.
unx606
3. Pull out the tray while pushing the lock
release button.
unx607
4. Put a disc on the tray with its label face
up and push the tray back into the maga-
zine.
If the label faces down, the disc cannot be
played. In this case, “DISC CHECK” and
disc number appears on the display.
If a disc which is not playable is inserted,
”DISC CHECK” will also appear on the
screen. For appropriate discs for this paper,
see ”Car audio/video system operating
hints” on page 146.

130
2003 Land Cruiser 100 Navigation (OM60A00U)
unx608

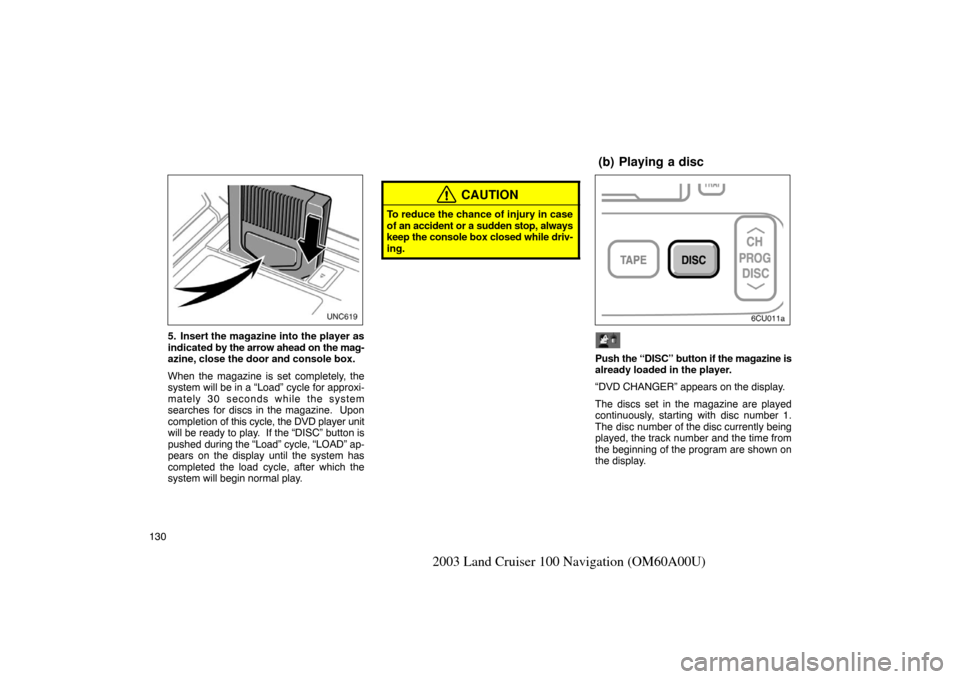

5. Insert the magazine into the player as
indicated by the arrow ahead on the mag-
azine, close the door and console box.
When the magazine is set completely, the
system will be in a “Load” cycle for approxi-
mately 30 seconds while the system
searches for discs in the magazine. Upon
completion of this cycle, the DVD player unit
will be ready to play. If the “DISC” button is
pushed during the “Load” cycle, “LOAD” ap-
pears on the display until the system has
completed the load cycle, after which the
system will begin normal play.
CAUTION
To reduce the chance of injury in case
of an accident or a sudden stop, always
keep the console box closed while driv-
ing.
Push the “DISC” button if the magazine is
already loaded in the player.
“DVD CHANGER” appears on the display.
The discs set in the magazine are played
continuously, starting with disc number 1.
The disc number of the disc currently being
played, the track number and the time from
the beginning of the program are shown on
the display.
(b) Playing a disc

131
2003 Land Cruiser 100 Navigation (OM60A00U)

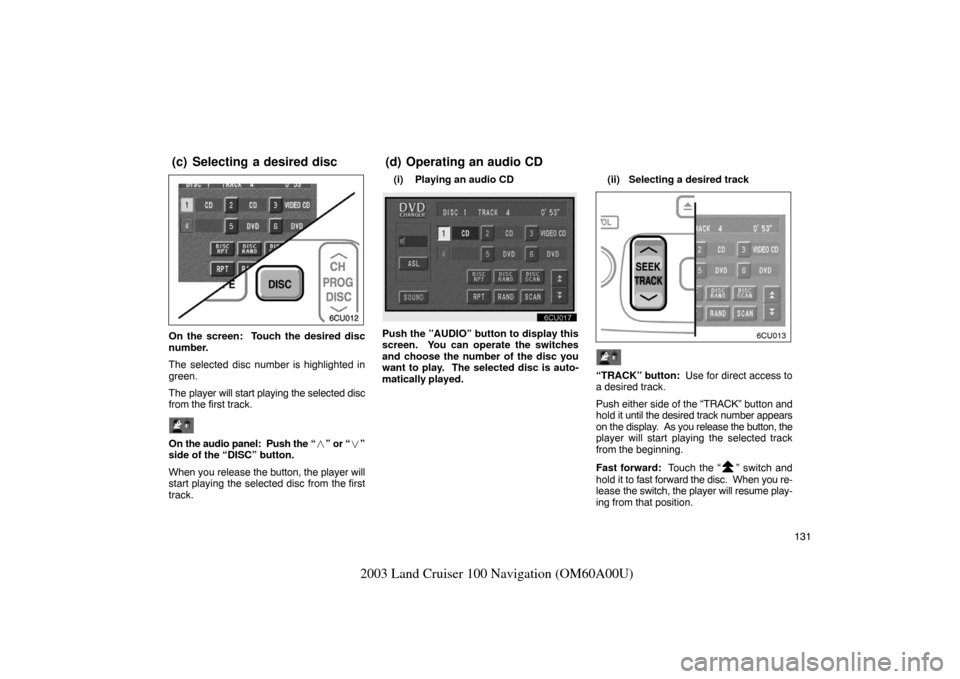

On the screen: Touch the desired disc
number.
The selected disc number is highlighted in
green.
The player will start playing the selected disc
from the first track.
On the audio panel: Push the “” or “”
side of the “DISC” button.
When you release the button, the player will
start playing the selected disc from the first
track. (i) Playing an audio CD
unx610
Push the ”AUDIO” button to display this
screen. You can operate the switches
and choose the number of the disc you
want to play. The selected disc is auto-
matically played.
(ii) Selecting a desired track
“TRACK” button: Use for direct access to
a desired track.
Push either side of the “TRACK”
button and
hold it until the desired track number appears
on the display. As you release the button, the
player will start playing the selected track
from the beginning.
Fast forward: Touch the “
” switch and
hold it to fast forward the disc. When you re-
lease the switch, the player will resume play-
ing from that position.
(c) Selecting a desired disc(d) Operating an audio CD

132
2003 Land Cruiser 100 Navigation (OM60A00U)
Reverse: Touch the “” switch and hold it
to reverse the disc. When you release the
switch, the player will resume playing. (iii) Searching for a desired track or a
disc
Touch the “SCAN” switch.
“SCAN” will be highlighted in green. The
player will play the next track for 10 seconds,
then scan again. To select a track, touch the
“SCAN” switch a second time. If the player
reaches the end of the disc, it will continue
scanning at track 1. Touch the “DISK SCAN” switch.
“DISC SCAN” will be highlighted in green.
The program at the beginning of each disc
will be
played for 10 seconds. To continue lis-
tening to the program of your choice, touch
the “DISC SCAN” switch a second time.
After all the audio disc are scanned in one
pass, normal play resumes.
