TOYOTA LAND CRUISER 2003 J100 Navigation Manual

93
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE021T
2. A selected point will appear. Also, a
message will appear at the bottom of the
screen. To delete, touch the
“Yes”switch. To cancel the deletion, touch the“No” switch.
3UE022
This system has a function which informs
you of the memo you entered. When the
system begins operating after reaching
the memo’s date, the Information screen
will be displayed.
The Information screen will not be displayed
again by touching the
“Do not display
this message again”
switch.
3UE023

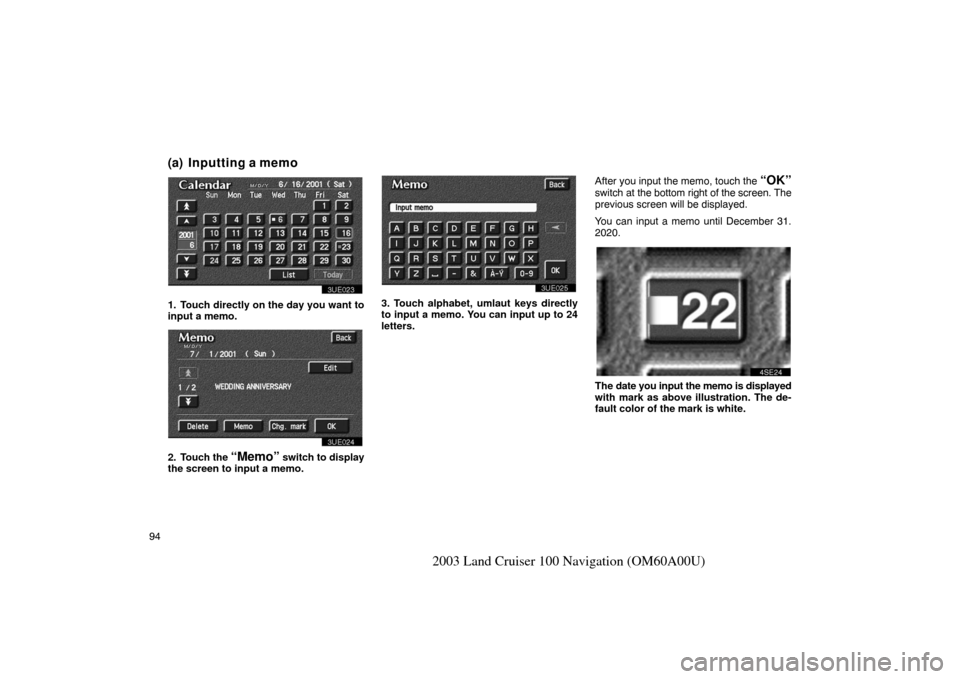

1. Push the “INFO” button on the bezel
to display the Information Menu screen.
2. Touch the
“Calendar” switch to dis-
play the Calendar screen.
Today’s date is circled in green. If today’s
date is not displayed on the screen, touch
“Today” switch to display a calendar of
this month.
Calendar with memo

94
2003 Land Cruiser 100 Navigation (OM60A00U)
(a) Inputting a memo
3UE023
1. Touch directly on the day you want to
input a memo.
3UE024
2. Touch the “Memo” switch to display
the screen to input a memo.
3UE025
3. Touch alphabet, umlaut keys directly
to input a memo. You can input up to 24
letters. After you input the memo, touch the
“OK”
switch at
the bottom right of the screen. The
previous screen will be displayed.
You can input a memo until December 31.
2020.
The date you input the memo is displayed
with mark as above illustration. The de-
fault color of the mark is white.

95
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE024

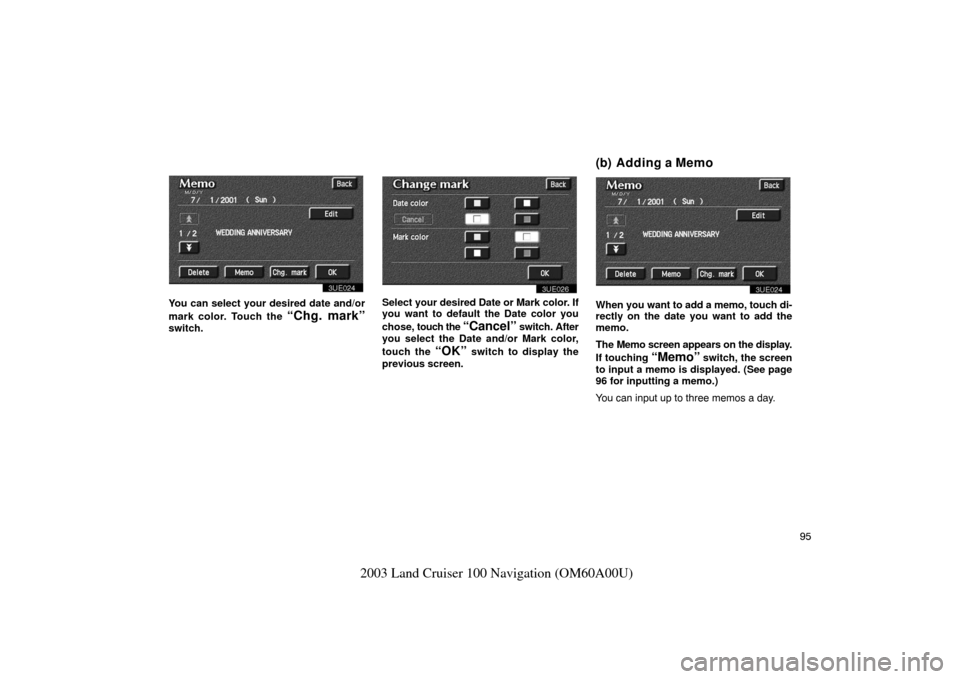

You can select your desired date and/or
mark color. Touch the
“Chg. mark”
switch.
3UE026
Select your desired Date or Mark color. If
you want to default the Date color you
chose, touch the
“Cancel” switch. After
you select the Date and/or Mark color,
touch the
“OK” switch to display the
previous screen.
(b) Adding a Memo
3UE024
When you want to add a memo, touch di-
rectly on the date you want to add the
memo.
The Memo screen appears on the display.
If touching
“Memo” switch, the screen
to input a memo is displayed. (See page
96 for inputting a memo.)
You can input up to three memos a day.

96
2003 Land Cruiser 100 Navigation (OM60A00U)
(c) Deleting a memo
3UE024
Touch the date you already input the me-
mo. Display the memo you want to delete
and then touch the
“Delete” switch. A
message appears on the display. To de-
lete, touch the
“Yes” switch. To cancel
the deletion, touch the
“No” switch.
(d) Editing a memo
3UE024
If you want to edit the memo, touch the
date. Touching the
“Edit” switch will
display the Memo edit screen. (See page
97 for the details.)
(e) Memo list
3UE023
If you want to have a look at the memo
you input, touch the
“List” switch to dis-
play the memo list.
3UE027
Touch your desired search condition to
list the memo. The memo list is displayed
on the screen.

97
2003 Land Cruiser 100 Navigation (OM60A00U)
3UE028

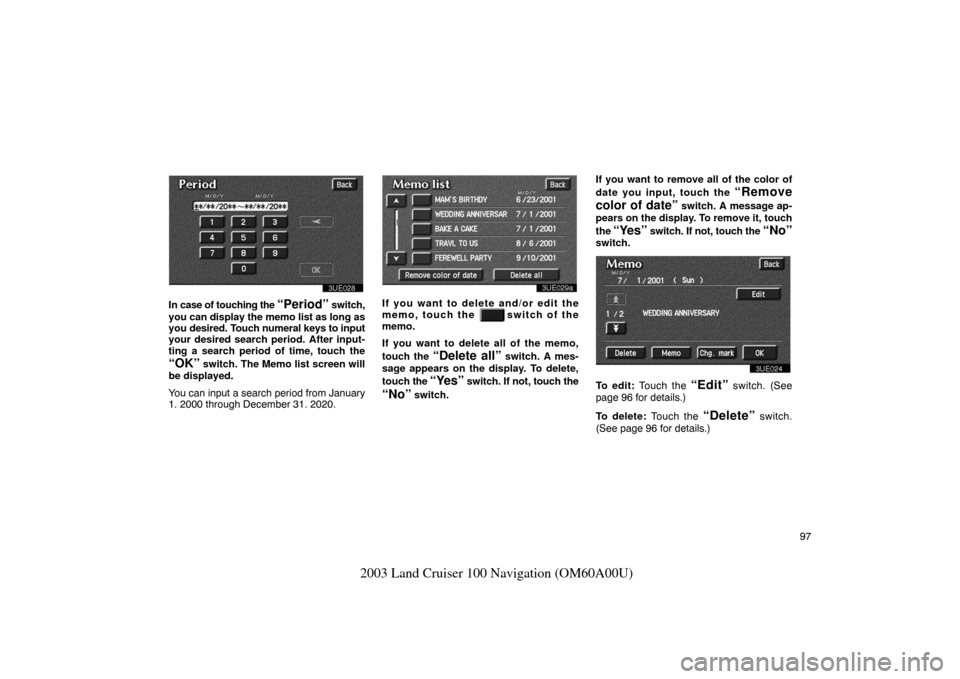

In case of touching the “Period” switch,
you can display the memo list as long as
you desired. Touch numeral keys to input
your desired search period. After input-
ting a search period of time, touch the
“OK” switch. The Memo list screen will
be displayed.
You can input a search period from January
1. 2000 through December 31. 2020.
3UE029a
If you want to delete and/or edit the
memo, touch the
switch of the
memo.
If you want to delete all of the memo,
touch the
“Delete all” switch. A mes-
sage appears on the display. To delete,
touch the
“Yes” switch. If not, touch the
“No” switch. If you want to remove all of the color of
date you input, touch the
“Remove
color of date”
switch. A message ap-
pears on the display. To remove it, touch
the
“Yes” switch. If not, touch the “No”
switch.
3UE024
To edit: Touch the “Edit” switch. (See
page 96 for details.)
To d e l e t e : Touch the
“Delete” switch.
(See page 96 for details.)

98
2003 Land Cruiser 100 Navigation (OM60A00U)
The speech command system allows you
to operate the navigation system without
using your hands.

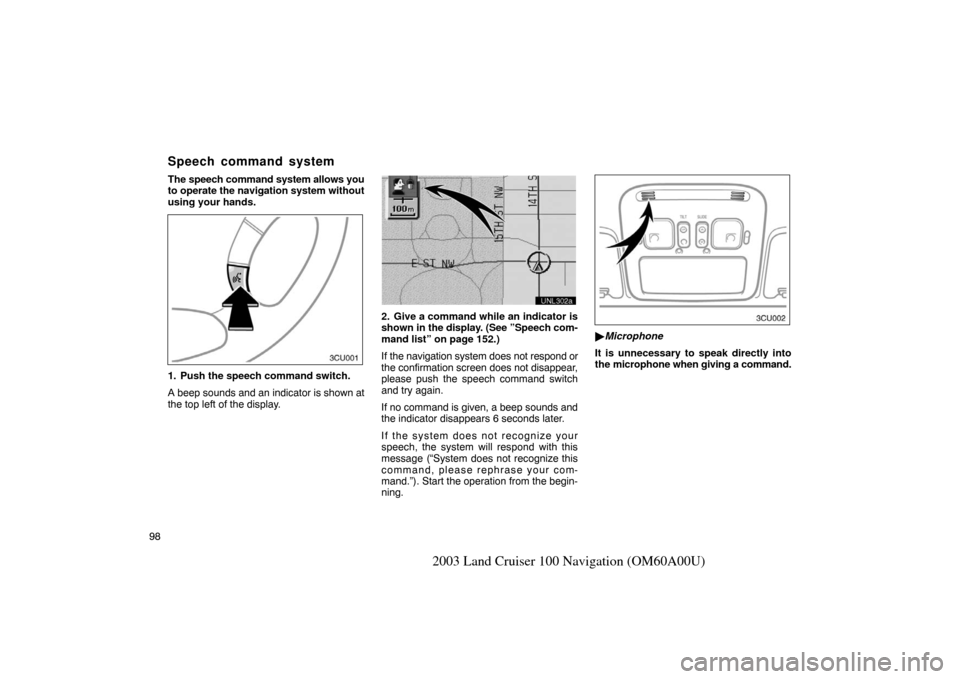

1. Push the speech command switch.
A beep sounds and an indicator is shown at
the top left of the display.
UNL302a
2. Give a command while an indicator is
shown in the display. (See ”Speech com-
mand list” on page 152.)
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.
 Microphone
It is unnecessary to speak directly into
the microphone when giving a command.
Speech command system

99
2003 Land Cruiser 100 Navigation (OM60A00U)
Speech command example: Searching
for a route to your home.
1. Push the speech command switch.
2. Say ”Go home”.
If your home is not registered, you will hear
”Home is not registered”.
3UE030

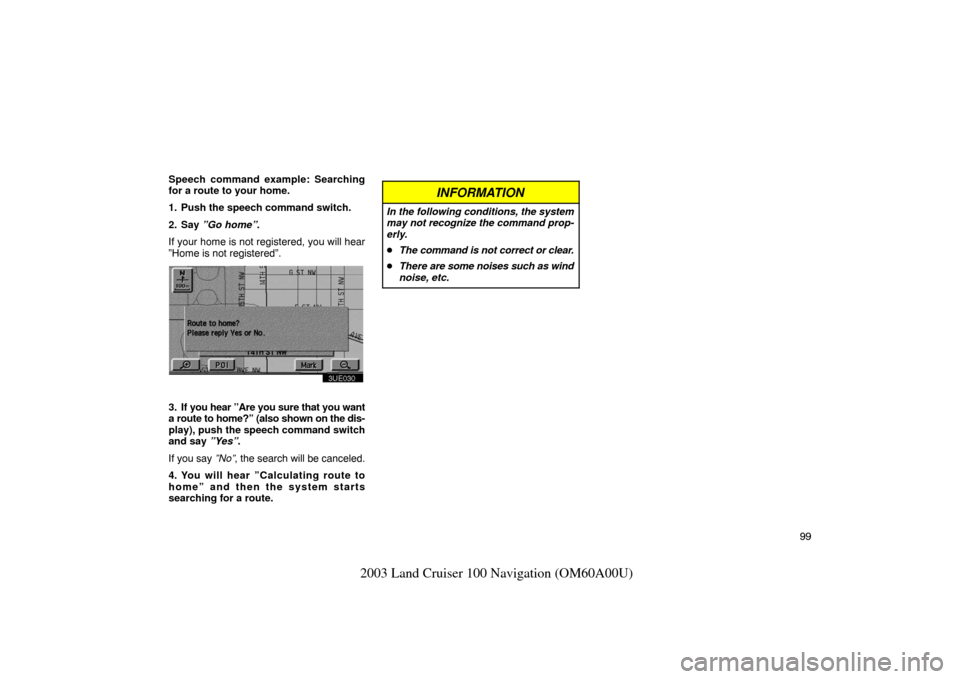

3. If you hear ”Are you sure that you want
a route to home?” (also shown on the dis-
play), push the speech command switch
and say ”Yes” .
If you say ”No”, the search will be canceled.
4. You will hear ”Calculating route to
home” and then the system starts
searching for a route.
INFORMATION
In the following conditions, the system
may not recognize the command prop-
erly.
 The command is not correct or clear.
 There are some noises such as wind
noise, etc.

100
2003 Land Cruiser 100 Navigation (OM60A00U)

SECTION IV
101
2003 Land Cruiser 100 Navigation (OM60A00U)
OTHER FUNCTIONS
Trip information 102
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Screen transition 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Screen adjustment 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .

102
2003 Land Cruiser 100 Navigation (OM60A00U)
Trip information such as driving time,
driving distance, average vehicle speed,
fuel consumption, etc. can be displayed
on the screen.

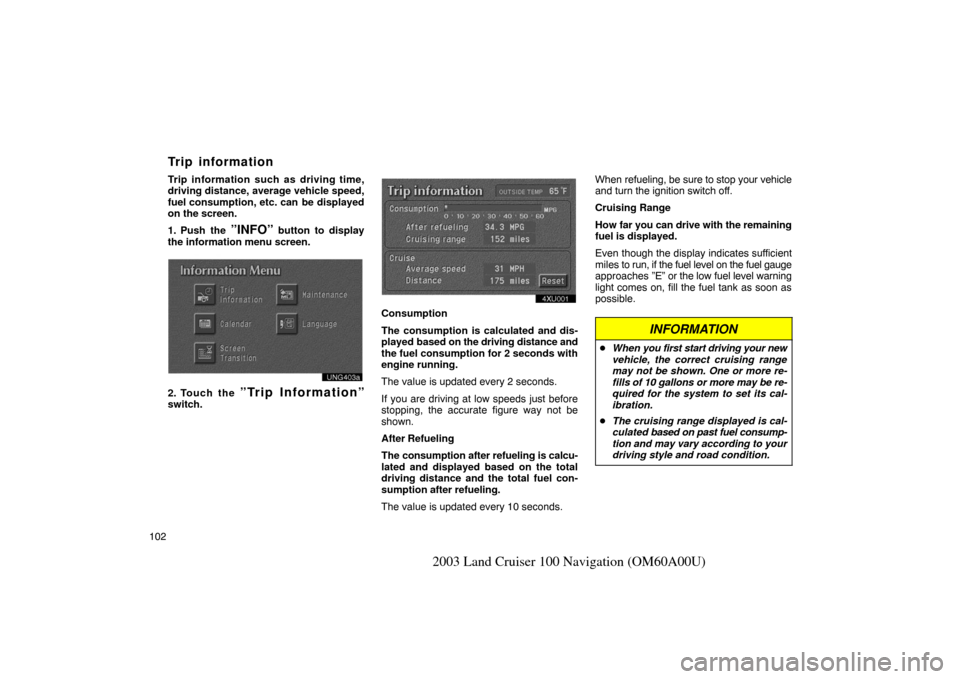

1. Push the
”INFO” button to display
the information menu screen.
UNG403a
2. To u c h t h e ”Trip Information”switch.
UNG401
Consumption
The consumption is calculated and dis-
played based on the driving distance and
the fuel consumption for 2 seconds with
engine running.
The value is updated every 2 seconds.
If you are driving at low speeds just before
stopping, the accurate figure way not be
shown.
After Refueling
The consumption after refueling is calcu-
lated and displayed based on the total
driving distance and the total fuel con-
sumption after refueling.
The value is updated every 10 seconds. When refueling, be
sure to stop your vehicle
and turn the ignition switch off.
Cruising Range
How far you can drive with the remaining
fuel is displayed.
Even though the display indicates sufficient
miles to run, if the fuel level on the fuel gauge
approaches ”E” or the low fuel level warning
light comes on, fill the fuel tank as soon as
possible.
INFORMATION
 When you first start driving your new
vehicle, the correct cruising range
may not be shown. One or more re-
fills of 10 gallons or more may be re-
quired for the system to set its cal-
ibration.
 The cruising range displayed is cal-
culated based on past fuel consump-
tion and may vary according to your
driving style and road condition.
Trip information
