TOYOTA LAND CRUISER 2004 J100 Navigation Manual

111
3Indicates the level of receiving signal.

Too bad Excellent
The level of receiving signal does not always
correspond with the one of your cellular
phone.
4“A” is displayed when calling in ana-
logue.
“D” is displayed when calling in digital.
Not displayed when the system can get no in-
formation from your cellular phone.
INFORMATION
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not be functioned when
you use the Bluetooth phone in the follow-
ing condition and place.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
BLUETOOTH is a trademark owned by Blue-
tooth SIG. Inc., U.S.A. and licensed to DEN-
SO (Fujitsu TEN)
(a) Enter the Bluetooth phone
To use a handsfree system, you need to
enter your phone in the system. Once you
registered it, you can make a handsfree
call.
1. Push the
“INFO” button to display the
“Information Menu” screen.
5u004
2. Touch the “Telephone” switch to
display “Telephone” screen.
You can also push
of the telephone button
to display this screen when the vehicle is
stopping.

11 2
3. Touch the “Settings” switch to dis-
play “Settings” screen and scroll with
“”.
4. Touch the “Entry” switch to connect
your cellular phone to the system. Oper-
ate the phone and input the PASSKEY
displayed on the screen.For the operation of the phone, see the manu-
al that comes with your cellular phone pro-
vided separately.
5. When the connection is completed, de-
vice name and Bluetooth Device Address
is displayed.
You do not need to enter it in case of using the
same phone.
(b) Select the Bluetooth phone
In case of registering a number of Blue-
tooth phones, you need to select the usual
phone.
1. Touch the “Settings” switch to dis-
play “Settings” screen and scroll with
“”.

11 3 2. Touch the
“Select” switch to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from maximum 4
numbers. Empty is displayed when you
did not still register a Bluetooth phone.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 4 Bluetooth
phones in the system, one Bluetooth phone is
functioned.
Connect the Bluetooth phone
When you turn the ignition key to “ACC” or
“ON”, the selected Bluetooth phone will
be automatically connected and the con-
nection result is displayed.
Leave the Bluetooth phone enable to con-
nect.
This screen appears when the Bluetooth
phone is first connected after you turn the igni-
tion key to “ACC” or “ON”.
Reconnect the Bluetooth phone
If the Bluetooth phone is disconnected
with the radio condition of Bluetooth net-
work and the like when the ignition key is
turned to “ACC” or “ON”, the system auto-
matically reconnect the Bluetooth phone.
In this case, the connect result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this function is not operated. Reconnect the
following methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.

11 4
Confirm the Bluetooth information
You can confirm or change the detail set-
ting of the handsfree system.
Touch the
“Settings” switch to display
“Settings” screen.
Touch the “Settings” of Bluetooth to
display “Bluetooth Information” screen.
You can change the Device Name and
PASSKEY.
BD_ADDR is Bluetooth device address. Do
not change the Device Name to the same
name as the one of the other Bluetooth
phones. They cannot be identified.
BD_ADDR is different by the system. You
can confirm the address when it cannot be
identified.(i) Change the Device Name
You can change the Device Name to the
desired one from the name already regis-
tered in the system.
Touch the “Change” of Device Name to
display the “Device Name List” screen.
Select the desired name and touch “OK”.

11 5 (ii) Change the PASSKEY
The PASSKEY in the system is fixed tem-
porarily. You can change the PASSKEY
within 48 figures.
Touch the “Change” of PASSKEY to
display “Enter PASSKEY” screen.
Touch the desired key to input the PASS
KEY.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“Enter”.
(c) Delete the Bluetooth phone
1. Touch the “Settings” switch to dis-
play “Settings” screen and scroll with
“”.

11 6 2. Touch the
“Delete” switch to display
“Delete Telephone” screen. You can de-
lete the Bluetooth phone which you regis-
tered.
Select the desired phone from the list and
touch
“OK”.
(d) Call the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. This
system has 6 methods below by which
you call.
(i) By dial
You can call by inputting the telephone
number. You can not operate it while driv-
ing.
Touch the desired key to input the tele-
phone number.
Each time you touch
“”, an inputted num-
ber is deleted.
Touch
“” or push of the telephone but-
ton.(ii) By phonebook
You can call by phonebook data which has
been transferred from your cellular phone.
The system has two phonebooks. You can
register up to 500 numbers in phonebook.
This cannot be operated while you are driv-
ing.
Touch the desired key to input the tele-
phone number.
1. Touch the
“Phone Book” switch to
display “Phone Book” screen.

11 7
2. Select the desired number from the list.
Touch “” or push of the telephone but-
ton.(iii) By dialed numbers
You can call by dialed number. The sys-
tem memorize up to 5 dialed numbers. If it
is over than 5, the oldest number is de-
leted.
This cannot be operated while you are driv-
ing.
1. Touch the “Log” switch to display
“Dialed no.” screen.
When you call by phonebook, the name (if
registered) is displayed.
When you call the same number continu-
ously, the newest number is only regis-
tered.
2. Select the desired number from the list.
Touch “” or push of the telephone
button.

11 8 (iv) By received calls
You can call by received calls. When a call
is received, the system memorize up to 5
numbers. If it is over than 5, the oldest
number is deleted.
This cannot be operated while you are driv-
ing.
1. Touch the “Log” switch to display.
2. Touch the “Received Calls” switch
to display “Rec. Calls” screen.
When a telephone number registered in
phonebook is received, the name and the
number is displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Un notified telephone number such as a
public telephone is not memorized in the
system.3. Select the desired number from the list.
Touch “” or push of the telephone
button.
A international phone call may not be made
depending on the cellular phone which you
have.

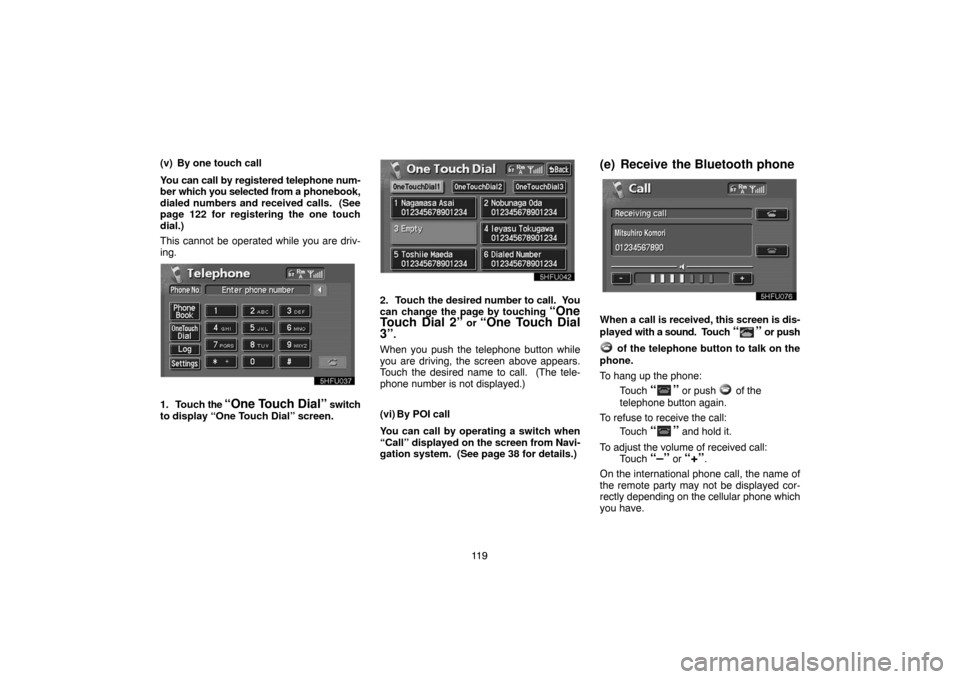

11 9 (v) By one touch call
You can call by registered telephone num-
ber which you selected from a phonebook,
dialed numbers and received calls. (See
page 122 for registering the one touch
dial.)
This cannot be operated while you are driv-
ing.
1. Touch the “One Touch Dial” switch
to display “One Touch Dial” screen.
2. Touch the desired number to call. You
can change the page by touching
“One
Touch Dial 2” or “One Touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)
(vi) By POI call
You can call by operating a switch when
“Call” displayed on the screen from Navi-
gation system. (See page 38 for details.)
(e) Receive the Bluetooth phone
When a call is received, this screen is dis-
played with a sound. Touch
“” or push
of the telephone button to talk on the
phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call:
Touch
“” and hold it.
To adjust the volume of received call:
Touch
“–” or “+”.
On the international phone call, the name of
the remote party may not be displayed cor-
rectly depending on the cellular phone which
you have.

120

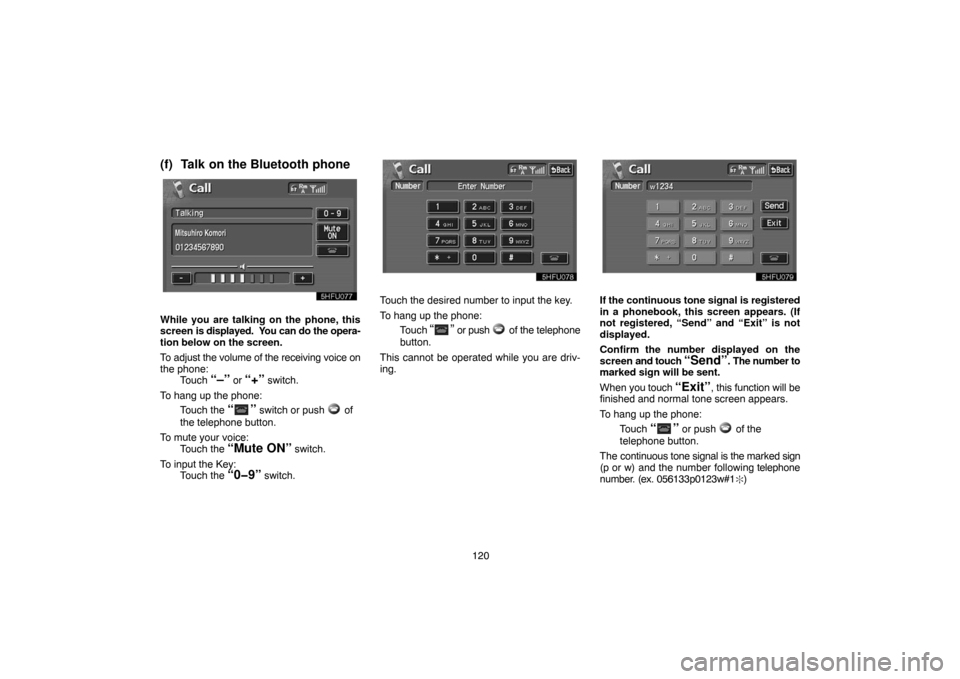

(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the receiving voice on
the phone:
Touch
“–” or “+” switch.
To hang up the phone:
Touch the
“” switch or push of
the telephone button.
To mute your voice:
Touch the
“Mute ON” switch.
To input the Key:
Touch the
“09” switch.
Touch the desired number to input the key.
To hang up the phone:
Touch
“” or push of the telephone
button.
This cannot be operated while you are driv-
ing.
If the continuous tone signal is registered
in a phonebook, this screen appears. (If
not registered, “Send” and “Exit” is not
displayed.
Confirm the number displayed on the
screen and touch
“Send”. The number to
marked sign will be sent.
When you touch
“Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
“” or push of the
telephone button.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)
