TOYOTA LAND CRUISER 2007 J200 Navigation Manual

cxxxi (iv) By received calls
You can call by received calls. When a
call is received, the system memorize up
to 5 numbers. If it is over than 5, the old-
est number is deleted.
This cannot be operated while you are driv-
ing.
1. Touch the “Log” switch to display.
2. Touch the “Incoming Calls”
switch to display “Incoming Calls”
screen.
When a telephone number registered in
phone book is received, the name and the
number is displayed.
Received calls which you did not answer
are also memorized in the system and
“Abs.” is displayed on the left side of the
number.
Unnotified telephone number such as a
public telephone is not memorized in the
system.
3. Select the desired number from the
list.
Touch “” or push of the telephone
button.
A international phone call may not be
made depending on the cellular phone
which you have.

cxxxii (v) By one touch call
You can call by registered telephone
number which you selected from a phone
book, dialed numbers and received calls.
(See page cxxxvi for registering the one
touch dial.)
1. Touch the “1touch Dial” switch to
display “1touch Dial” screen.
2. Touch the desired number to call. You
can change the page by touching
“1touch Dial 2” or “1touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)
(vi) By POI call
You can call by operating a switch when
“Call” is displayed on the screen from
Navigation system. (See page xlviii for
details.)
(e) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. Touch
“” or
push
of the telephone button to talk
on the phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call:
Touch
“” and hold it.
To adjust the volume of received call:
Touch
“–” or “+”.
On the international phone call, the party’s
name may not be displayed correctly de-
pending on the cellular phone which you
have.

cxxxiii
(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the op-
eration below on the screen.
To adjust the volume of the party’s voice:
Touch
“–” or “+” switch.
To hang up the phone:
Touch the
“” switch or push of
the telephone button.
To mute your voice:
Touch the
“Mute ON” switch.
To input the Key:
Touch the
“09” switch.
Touch the desired number to input the key.
To hang up the phone:
Touch
“” or push of the tele-
phone button.
This cannot be operated while you are driv-
ing.
If the continuous tone signal is registered
in a phone book, this screen appears. (If
not registered, “Send” and “Exit” is not
displayed.)
Confirm the number displayed on the
screen and touch
“Send”. The number
to marked sign will be sent.
When you touch
“Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
“” or push of the
telephone button.
The continuous tone signal is the marked
sign (p or w) and the number following tele-
phone number. (ex. 056133p0123w#1
)

cxxxiv When you call the number registered in
phone book and input a code number and
the like to operate an answering machine or
use a telephone service in bank, you can do
this operation.
(g) Change the settings of the
Bluetooth phone
Touch the “Settings” switch to display
“Settings” screen.
You can change the settings of the
phone.(i) Change the phone book
The system has two phone books. You
can select either of a phone book.
Touch the “Phone Book 1” or
“Phone Book 2” switch.

cxxxv (ii) Transfer the telephone number
You can transfer the telephone numbers
in your Bluetooth phone to the system.
Up to 500 numbers can be registered in
one phone book.Transfer it while the engine is running.
1. Touch the “Start Transfer” switch
to display “Data Transfer” screen.
2. Touch the “Overwrite” or “Add”
switch.
3. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch the
“Cancel” switch. If the
transferring is interrupted on the way, the
phone book data transferred until then can
be memorized in the system.

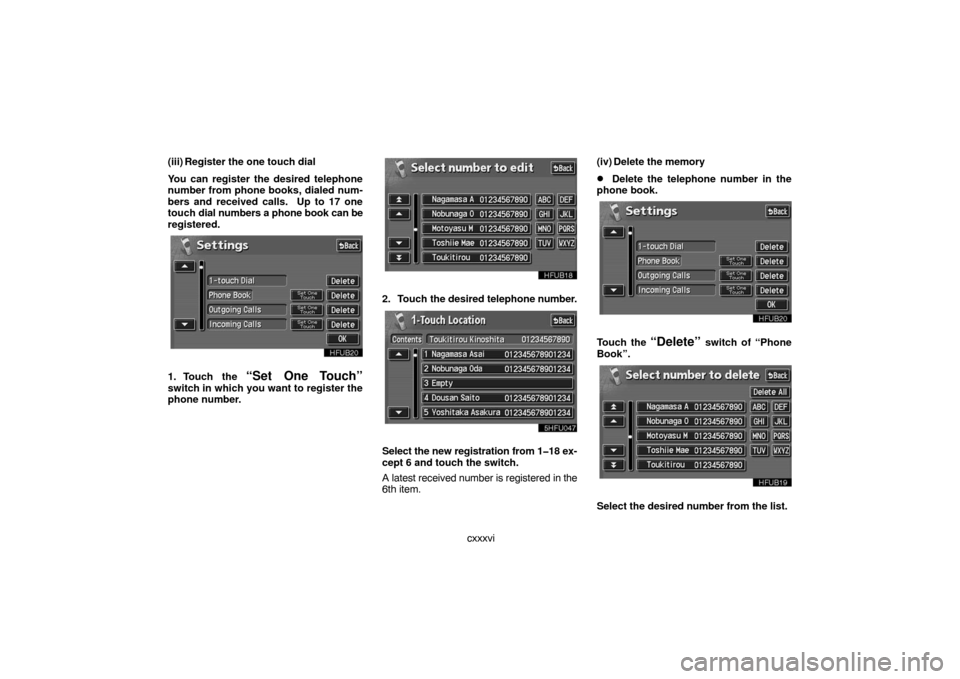

cxxxvi (iii) Register the one touch dial
You can register the desired telephone
number from phone books, dialed num-
bers and received calls. Up to 17 one
touch dial numbers a phone book can be
registered.
1. Touch the “Set One Touch”
switch in which you want to register the
phone number.
2. Touch the desired telephone number.
Select the new registration from 118 ex-
cept 6 and touch the switch.
A latest received number is registered in the

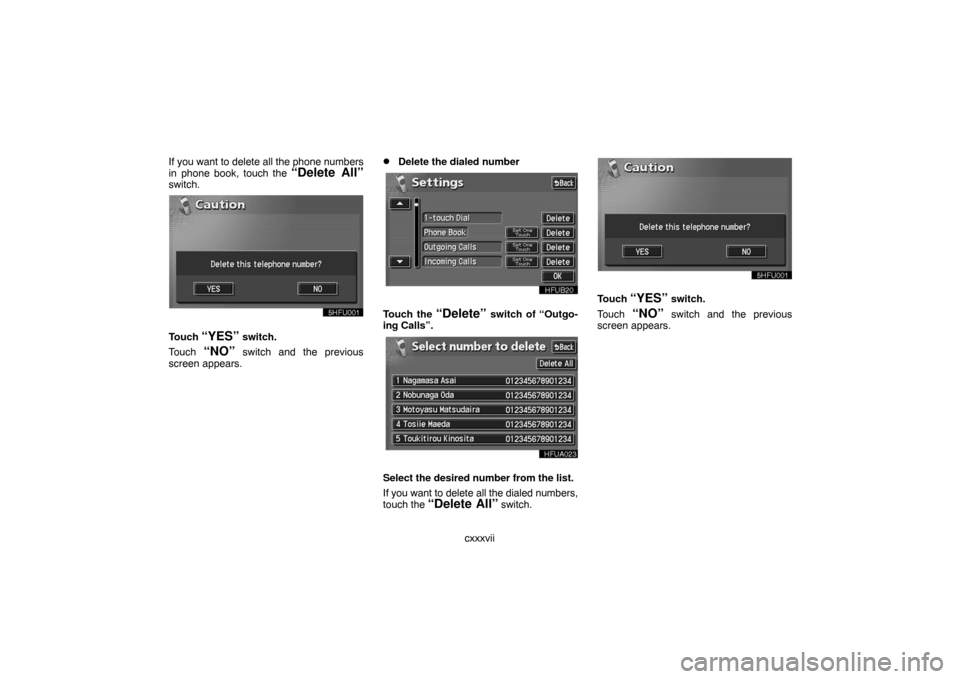

6th item.(iv) Delete the memory
Delete the telephone number in the
phone book.
Touch the “Delete” switch of “Phone
Book”.
Select the desired number from the list.

cxxxvii If you want to delete all the phone numbers
in phone book, touch the
“Delete All”switch.
Touch “YES” switch.
Touch
“NO” switch and the previous
screen appears.

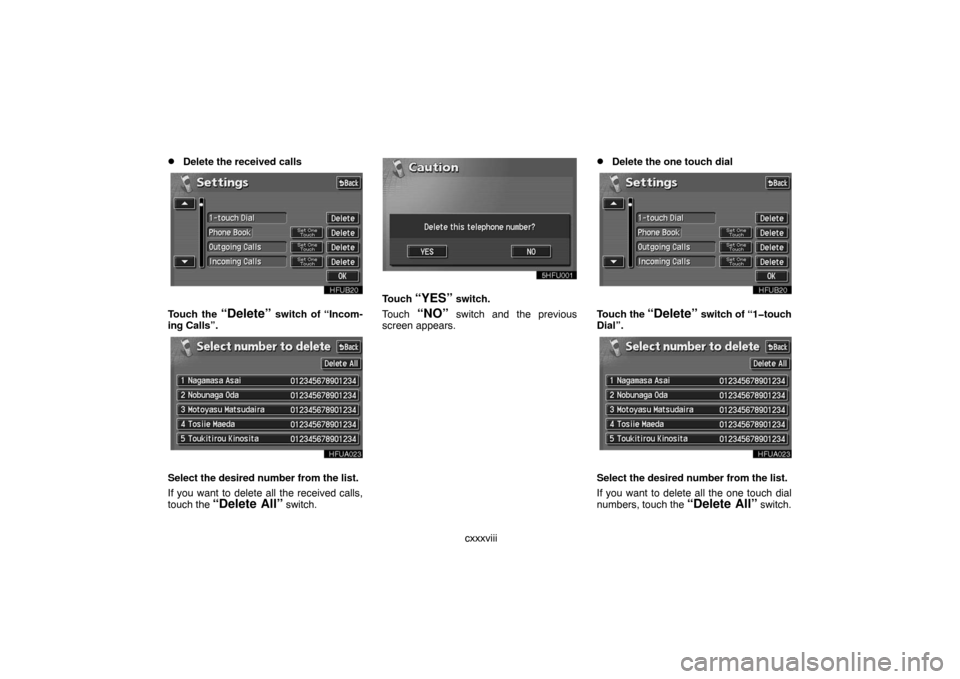

Delete the dialed number
Touch the “Delete” switch of “Outgo-
ing Calls”.
Select the desired number from the list.
If you want to delete all the dialed numbers,
touch the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous
screen appears.

cxxxviii
Delete the received calls
Touch the “Delete” switch of “Incom-
ing Calls”.
Select the desired number from the list.
If you want to delete all the received calls,
touch the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous
screen appears.
Delete the one touch dial
Touch the “Delete” switch of “1touch
Dial”.
Select the desired number from the list.
If you want to delete all the one touch dial
numbers, touch the
“Delete All” switch.

cxxxix
Touch “YES” switch.
Touch
“NO” switch and the previous
screen appears.
Speech command system
The speech command system allows you
to operate the navigation system by giv-
ing a command.
UNL301
1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
2. Give a command while an indicator is
shown in the display. If you want to check
the command list, touch the
“Help”
switch to display the Help screen. (See
“Help screen” on page cxli.) When you
touch the
“Cancel”, the previous
screen returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.

cxl
UNL303
Microphone
It is unnecessary to speak directly into
the microphone when giving a command.Speech command example: Searching
for a route to your home.
1. Push the speech command switch.
2. Say “Home”.
If your home is not registered, you will hear
“Home is not registered”.
3. If the system recognized the com-
mand, the recognition result “Home” is
displayed on the top of the screen with
the screen message. (Displayed mes-
sage and the switches on the screen de-
pend on the situation.)
Touch or say “Cancel”, and the system will
be canceled. Touch or say “Help”, and dis-
plays the “Help” screen.
4. Touch “Enter” or say “Enter des-
tination”, and the system starts search-
ing for a route to your home. (If the des-
tination is already registered, “Add” or
“Replace” is displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
INFORMATION
In the following conditions, the sys-
tem may not recognize the command
properly.
The command is not correct or clear.
There are some noises such as wind
noise, etc.
