TOYOTA LAND CRUISER 2007 J200 Owners Manual

127
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge 128
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil pressure gauge 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vo ltme te r 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Tachometer 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Odometer and two trip meters 131
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 132
. . . . . . . . . . . . . .
Trip information display 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
SECTION 1 6

128

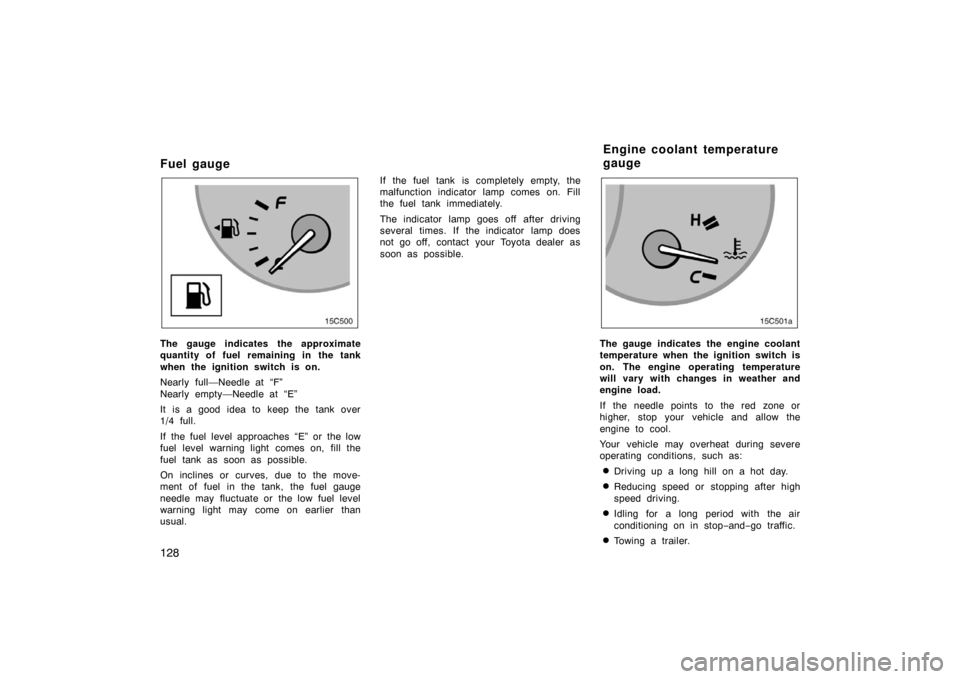

Fuel gauge
15C004
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle points to the red zone or
higher, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop
−and− go traffic.
Towing a trailer.
Engine coolant temperature
gauge

129
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 284.

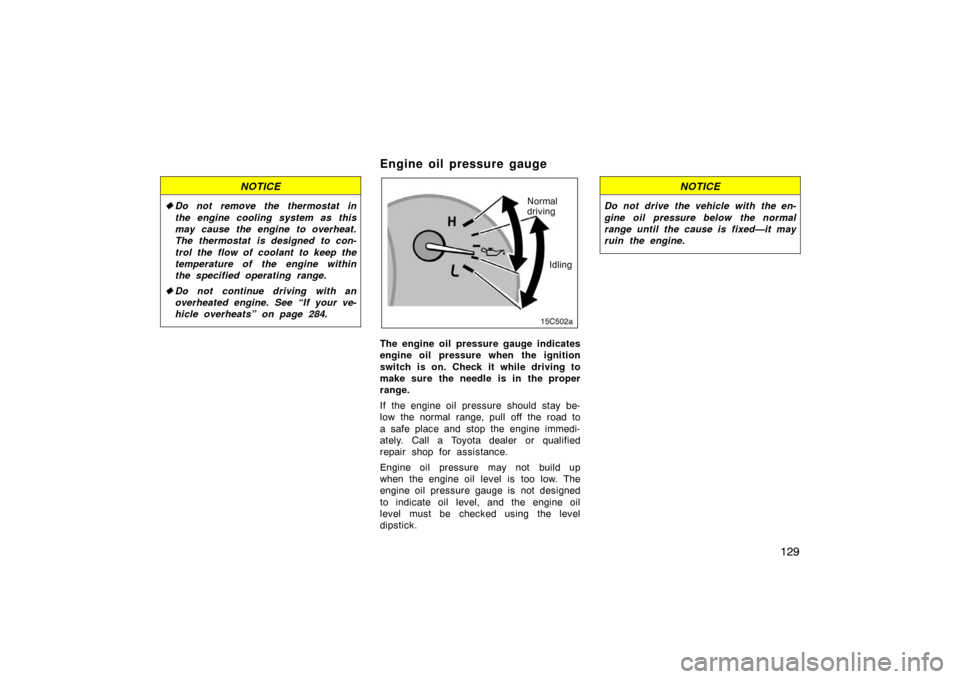

Engine oil pressure gauge
Idling
Normal
driving
The engine oil pressure gauge indicates
engine oil pressure when the ignition
switch is on. Check it while driving to
make sure the needle is in the proper
range.
If the engine oil pressure should stay be-
low the normal range, pull off the road to
a safe place and stop the engine immedi-
ately. Call a Toyota dealer or qualified
repair shop for assistance.
Engine oil pressure may not build up
when the engine oil level is too low. The
engine oil pressure gauge is not designed
to indicate oil level, and the engine oil
level must be checked using the level
dipstick.
NOTICE
Do not drive the vehicle with the en-
gine oil pressure below the normal
range until the cause is fixed—it may
ruin the engine.

130

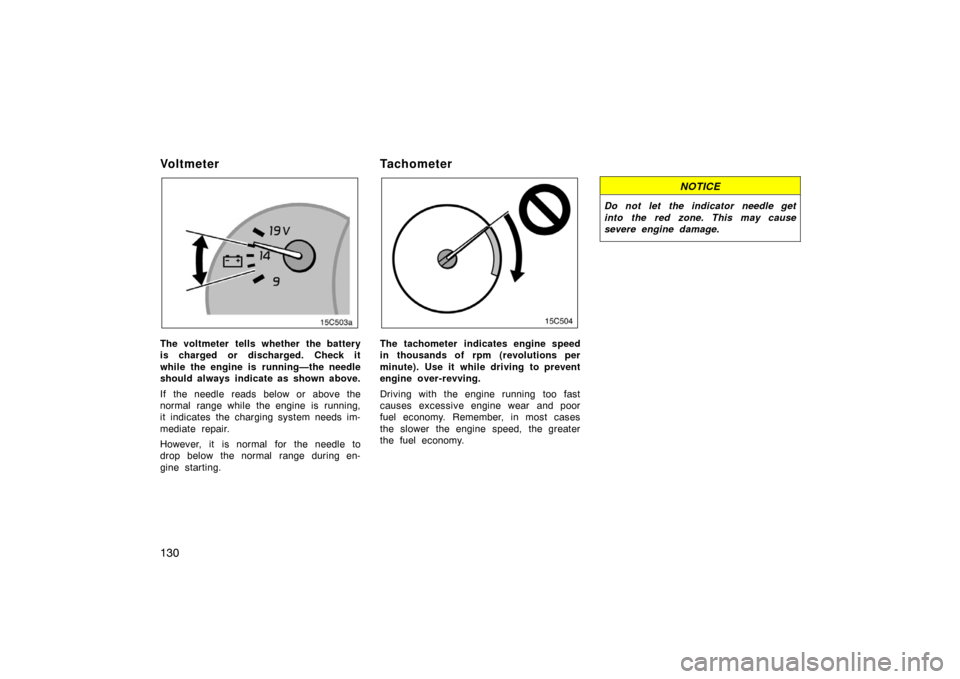

Vo l t m e t e r
The voltmeter tells whether the battery
is charged or discharged. Check it
while the engine is running—the needle
should always indicate as shown above.
If the needle reads below or above the
normal range while the engine is running,
it indicates the charging system needs im-
mediate repair.
However, it is normal for the needle to
drop below the normal range during en-
gine starting.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to prevent
engine over-revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.

131
Odometer and two trip meters
This meter displays the odometer and
two trip meters.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.

132
Service reminder indicators and warning buzzers
If the indicator or buzzer comes on...Do this.
(a)(indicators and buzzer)If parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicators and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Replace engine oil.
(f)Take vehicle to Toyota dealer.
(g)Fill up tank.

133
If the indicator or buzzer comes on...Do this.
(h)Take vehicle to Toyota dealer immediately.
(i)Take vehicle to Toyota dealer. If brake system warning light is also on, stop immedi-
ately and contact Toyota dealer.
(j)Close all side doors and back door.
(k)Adjust tire inflation pressure (including spare tire). If light remains on,
contact Toyota dealer.
(l)Shift four−wheel drive control out of “N”.
(m)Stop and check.
(n)Take vehicle to Toyota dealer.
(o)Key reminder buzzerRemove key.

134
(a) Brake System Warning Light andBuzzer
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is in the “ON” posi-
tion even after the parking brake is re-
leased.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
When the hydraulic brake booster
fails...
If the hydraulic booster causes an problem
resulting in poor braking performance, the
warning light comes on and buzzer sounds
continuously. Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If any of the following conditions oc-
cur, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
The warning buzzer comes on to-
gether with the warning light.
In either case, this can indicate that
the brakes may not work properly and
your stopping distance will become
longer. Depress the brake pedal firmly
and bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Any of the following conditions may oc-
cur, but do not indicate a malfunction:
The light may stay on for about 60
seconds after the ignition key is turned
to “ON” position. It is normal if it goes
out after a while.
Depressing the brake pedal repeatedly
may turn on the warning light and
buzzer. It is normal if the light goes
out and the buzzer stops sounding af-
ter a few seconds.
You may hear a small sound in the
engine compartment after the engine is
started or the brake pedal is depressed
repeatedly. This is a pump pulsating
sound of the brake system, and it is
not a malfunction.

135
(b) Driver’s Seat Belt Reminder Lightand Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes and
the buzzer sounds if the driver ’s seat belt
is not fastened. Unless the driver fastens
the belt, the light continues flashing and
the buzzer sounds 4 to 8 seconds.
(c) Front Passenger ’s Seat Belt Re- minder Light
The light acts as a reminder to have the
front passenger buckle up the seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Unless
the front passenger fastens the belt, the
light continues flashing.
If luggage or other load is placed on the
front passenger seat, depending on its
weight and how it is placed on the seat,
built −in sensors in the seat cushion may
detect the pressure, causing the reminder
light to flash. (d) Charging System Warning Light
This warning light comes on when the
ignition key is turned to the “ON” position,
and goes off when the engine is started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Toyota
dealer.
(e) Engine Oil Replacement Reminder Light
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
switch is turned to “ON”, and will go off
after about a few seconds. When you drive for about 7200 km (4500
miles) after engine oil replacement, this
light illuminates for about 3 seconds and
then flashes for about 12 seconds with
the ignition key is turned to “ON” position.
If you continue driving without engine oil
replacement, and if the driving range ex-
ceeds 8000 km (5000 miles), the light will
come on after the ignition key is turned
to “ON” position. The light will remain on
thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road condition. If the light comes on, re-
place it as soon as possible.
You need to reset the light after the en-
gine oil replacement. Reset the light by
following the procedure below:
1. Turn the ignition key to the “LOCK” position
with the odometer reading
shown. (For details, see “Odometer and
trip meter” on page 131).
2. Turn the ignition key to the “ON” posi- tion while holding down the “ODO/
TRIP” knob.
Hold down the knob until the light goes
off. Before the light goes off, it illuminates
for 3 seconds, flashes for 2 seconds, illu-
minates for 1 second.

136
If the system fails to reset, the light will
remain flashing.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp will not go off even after sev-
eral trips, contact your Toyota dealer as
soon as possible. If the lamp will not go off even after
the several trips...
or
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.
Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On −Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 316.
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
