TOYOTA LAND CRUISER 2008 J200 Navigation Manual

SECTION 3
ROUTE GUIDANCE
61

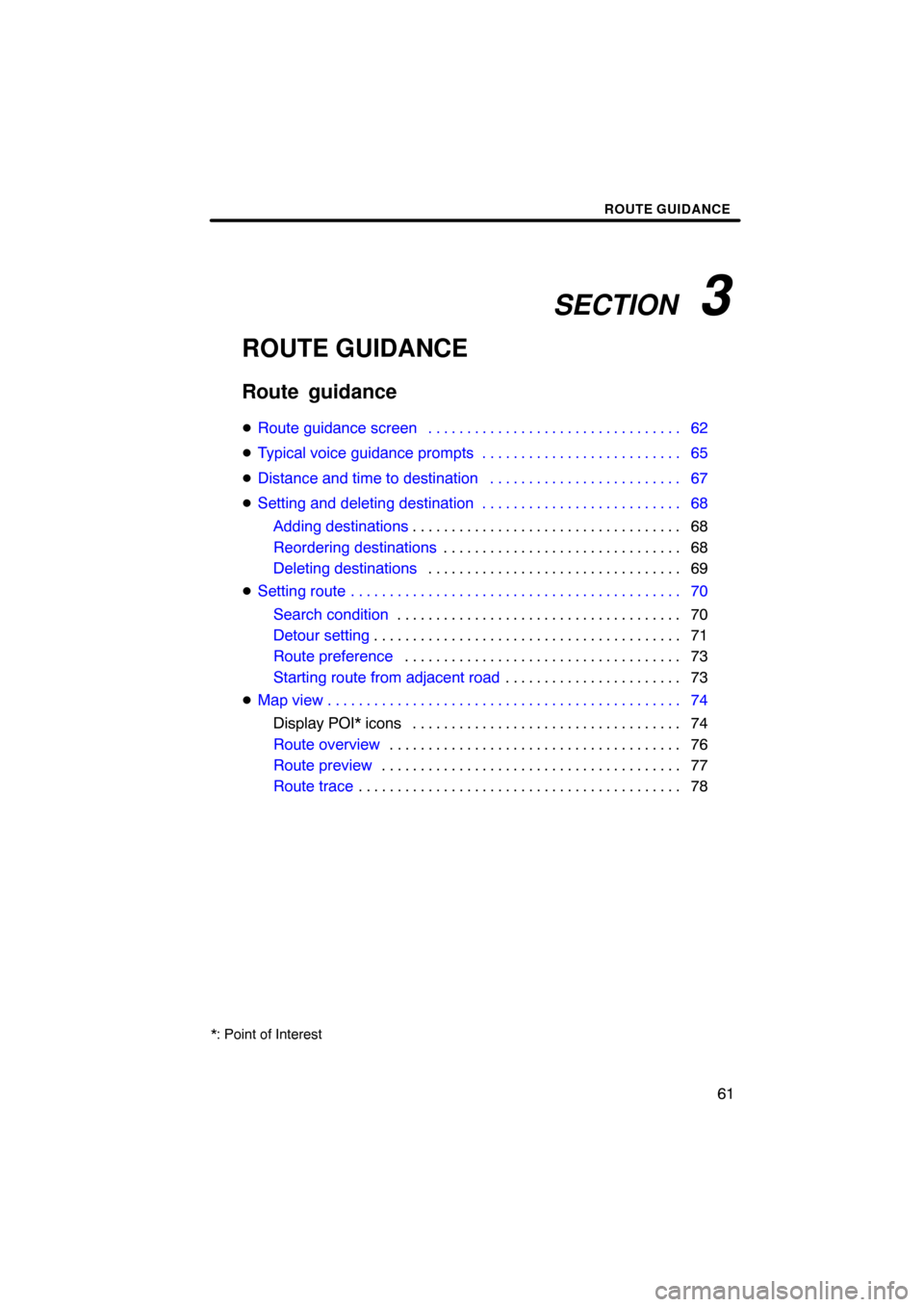

ROUTE GUIDANCE
Route guidance
Route guidance screen 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts 65. . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination 67. . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination 68. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reordering destinations68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations69 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting route 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Search condition70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detour setting71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preference73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route from adjacent road73 . . . . . . . . . . . . . . . . . . . . . . .
Map view 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display POI* icons 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview77 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route trace78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*: Point of Interest

ROUTE GUIDANCE
62
During route guidance, various types of
guidance screens can be displayed de-
pending on conditions.
Screen layout
1Distance to the next turn and the
arrow indicating turning direction
2Current street name
3Distance and travel/arrival time to
the destination
4Current position
5Guidance route
INFORMATION
If the vehicle goes off the guidance
route, the route is searched again.
For some areas, the roads have not
been completely digitized in our
database. For this reason, the
route guidance may select road
that should not be traveled on.
When you arrive at your destina-
tion, the destination name will be
displayed on the top of the screen.
Touching “OFF” clears the display.
During freeway driving
During freeway driving, the freeway exit in-
formation screen will be displayed.
This screen displays the distance to the
next junction and exit, or POIs in the vicin-
ity of the freeway exit.
1Current position
2Points of Interest that are close to
a freeway exit
3Exit number and junction name
4Distance from the current position
to the exit or junction
5Current street name
:To display the selected map of the
exit vicinity.
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junc-
tions or exits.
Route guidance screen

ROUTE GUIDANCE
63
When approaching a freeway exit or
junction
When the vehicle approaches an exit or
junction, the guidance screen for the free-
way will be displayed.
1Road/area name
2Distance from the current position
to the exit or junction
3Current position
“OFF”: The guidance screen on freeway
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the guidance
screen on freeway reappears.
When approaching an intersection
When the vehicle approaches an intersec-
tion, the intersection guidance screen will
be displayed.
1Next street name
2Distance to the intersection
3Current position
“OFF”: The intersection guidance screen
disappears and the map screen appears.
When touching
or pushing the
“MAP/VOICE” button, the intersection
guidance screen reappears.

ROUTE GUIDANCE
64
Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guidance displays
the turn list.
1Next street name or destination
name
2Turn direction
3Distance between turns
4Current street nameARROW SCREEN
On this screen, information about next
turns on the guidance route can be viewed.
Touching
during guidance displays
the arrow screen.
1Exit number, street name contain-
ing number or next street name
2Turn direction
3Distance to the next turn
4Current street name

ROUTE GUIDANCE
65
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver
the vehicle.
4.7 miles
0.25 miles
+α
1“Proceed about 5 miles.”
2“In a quarter of a mile, right
turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates or other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
4.2 miles
0.25 miles
1“Proceed about 4 miles to the
traffic circle.”
2In a quarter of a mile, traffic
circle ahead, and then 3rd exit
ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
Typical voice guidance
prompts

ROUTE GUIDANCE
66
One−way road
One−way road
∗: The system indicates a U−turn if the dis-
tance between two one−way roads (of op-
posite directions) is less than 50 feet (15
m) in residential areas or 164 feet (50 m)
in non−residential areas.
1“In half of a mile, make a legal
U−turn.”
2“Make a legal U−turn ahead.”
3(Beep sound only)
The system announces the approach to
the final destination.
1“Your destination is ahead.”
2“You have arrived at your des-
tination. The route guidance is
now finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly
(in cases of poor GPS signal recep-
tion), the voice guidance may be
made early or delayed.
If you did not hear the voice guid-
ance command, push the “MAP/
VOICE” button to hear it again.
To adjust the voice guidance vol-
ume, see “Volume” on page 85.

ROUTE GUIDANCE
67
When the vehicle is on the guidance route,
the distance and the estimated travel/arriv-
al time to the destination are displayed.
When the vehicle is not on the guidance
route, the distance and the direction of the
destination are displayed.
When driving on the guidance route and
more than one destination is set, the dis-
tance and the estimated travel/arrival time
from the current position to each destina-
tion are displayed.
1. Touch this button to display the fol-
lowing screen.
2. Touch the number button to display
the desired destination.
The distance, the estimated travel time
and the estimated arrival time from the cur-
rent position to the selected destination
are displayed.Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel
time.
Displayed while driving off the
guidance route. The destina-
tion direction is indicated by
an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along
the route is displayed. Travel time
and arrival time is calculated based
on the set vehicle speed information.
(See page 103.) However, when the
vehicle is not on the guidance route,
the distance is the linear distance be-
tween the current position and the
destination.
Distance and time to
destination

ROUTE GUIDANCE
68
Adding destinations and searching again
for the routes can be done.
1. Touch “Route”.
2. Touch “Add”.
3. Input an additional destination in
the same way as the destination
search. (See “Destination search” on
page 39.)
4. Touch the desired “Add” to deter-
mine the arrival order of the additional
destination.When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch “Route”.
2. Touch “Reorder”.
Setting and deleting
destination —
— Adding destinations
— Reordering destinations

ROUTE GUIDANCE
69
3U5068aT
3. Select the destination in the order of
arrival by touching the destination but-
ton.
Reordered number of arrival is displayed
on the right side of the screen.
Touching “Undo” will cancel each se-
lected order number from the previously
input number.
4. After selecting the destinations,
touch “OK”.
The system searches for the guidance
route again, and displays the entire route.
Even if “OK” is not touched, the entire
route is displayed automatically within a
few seconds when the order is fixed.
— Deleting destinations
A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete”.
When more than one destination is set, a
list will be displayed on the screen.

ROUTE GUIDANCE
70
3. Touch the destination for deletion.
“Delete All”: To delete all destinations on
the list.
A message appears to confirm the request
to delete.
4. To delete the destination(s), touch
“Yes”.
If “Yes” is touched, the data cannot be re-
covered.
If “No” is touched, the previous screen will
return.
5. If more than one destination is set,
touch “OK” after deleting the destina-
tions.
The system searches for the guidance
route again, and displays the entire route.You can designate the route conditions of
the route to the destination.
1. Touch “Route”.
2. Touch “Search Condition”.
3. Touch “Quick”, “Quick1”, “Quick2”
or “Short” and touch “OK”.
Setting route —
— Search condition
