TOYOTA LAND CRUISER 2008 J200 Owners Manual

223
2−5. Driving information
2
When driving

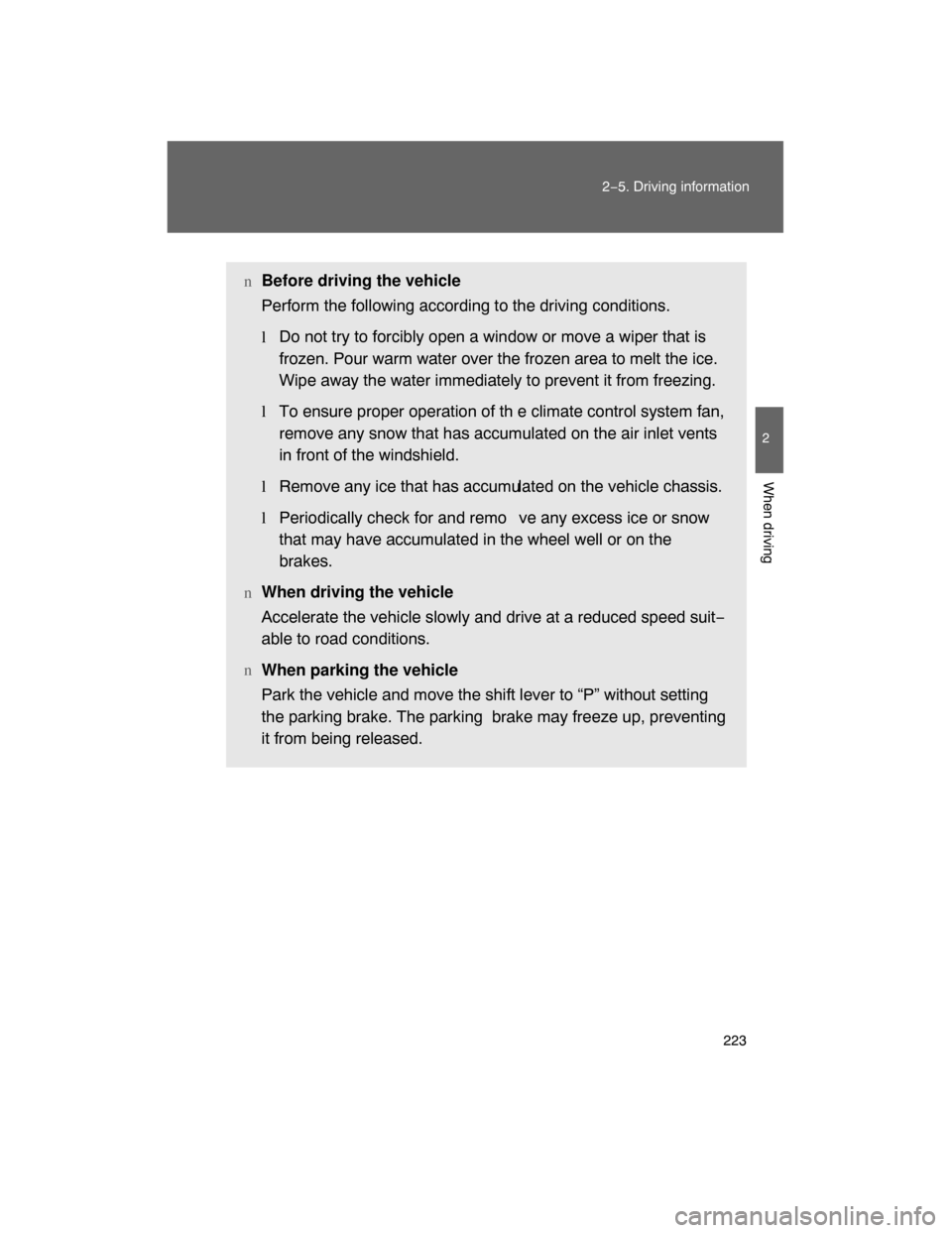

nBefore driving the vehicle
Perform the following according to the driving conditions.
lDo not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
l
To ensure proper operation of th e climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
l
Remove any ice that has accumulated on the vehicle chassis.
lPeriodically check for and remo ve any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.
nWhen driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed suit−
able to road conditions.
n
When parking the vehicle
Park the vehicle and move the shift lever to “P” without setting
the parking brake. The parking brake may freeze up, preventing
it from being released.

224 2−5. Driving information
Selection tire chains
Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.
Side chain
(0.20 in. [5 mm] in diameter)
Cross chain
(0.25 in. [6.3 mm] in diameter)
Regulations on the use of tire chains
lRegulations regarding the use of tire chains vary according to loca−
tion and type of road. Always check local regulations before install−
ing chains.
l
Retighten the chains after driving 1/4 − 1/2 mile (0.5 − 1.0 km).
1
2
ITY25C045
nTire chains
Observe the following precautions when installing and removing chains.
lInstall and remove tire chains in a safe location.
lInstall tire chains on the rear tires.
lInstall tire chains following the instructions provided in the accompanying
manual.

225
2−5. Driving information
2
When driving
CAUTION
nDriving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
lUse tires of the size specified for your vehicle.
lMaintain the recommended level of tire inflation pressure.
lDo not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
lSnow tires should be installed on all wheels.
nDriving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
lDo not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
lAvoid driving on bumpy road surfaces or over potholes.
lAvoid sudden turns and braking, as use of chains may adversely affect
vehicle handling.
l
Slow down sufficiently before entering a curve to ensure that vehicle con−
trol is maintained.

226 2−5. Driving information
NOTICE
n Repairing or replacing snow tires
Request repairs of and obtain replac ement snow tires from Toyota deal−
ers or legitimate tire retailers.
This is because the removal and atta
chment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
n Fitting tire chains
The tire pressure warning valves and transmitters may not function cor−
rectly when tire chains are fitted.

227
2−5. Driving information
2
When driving

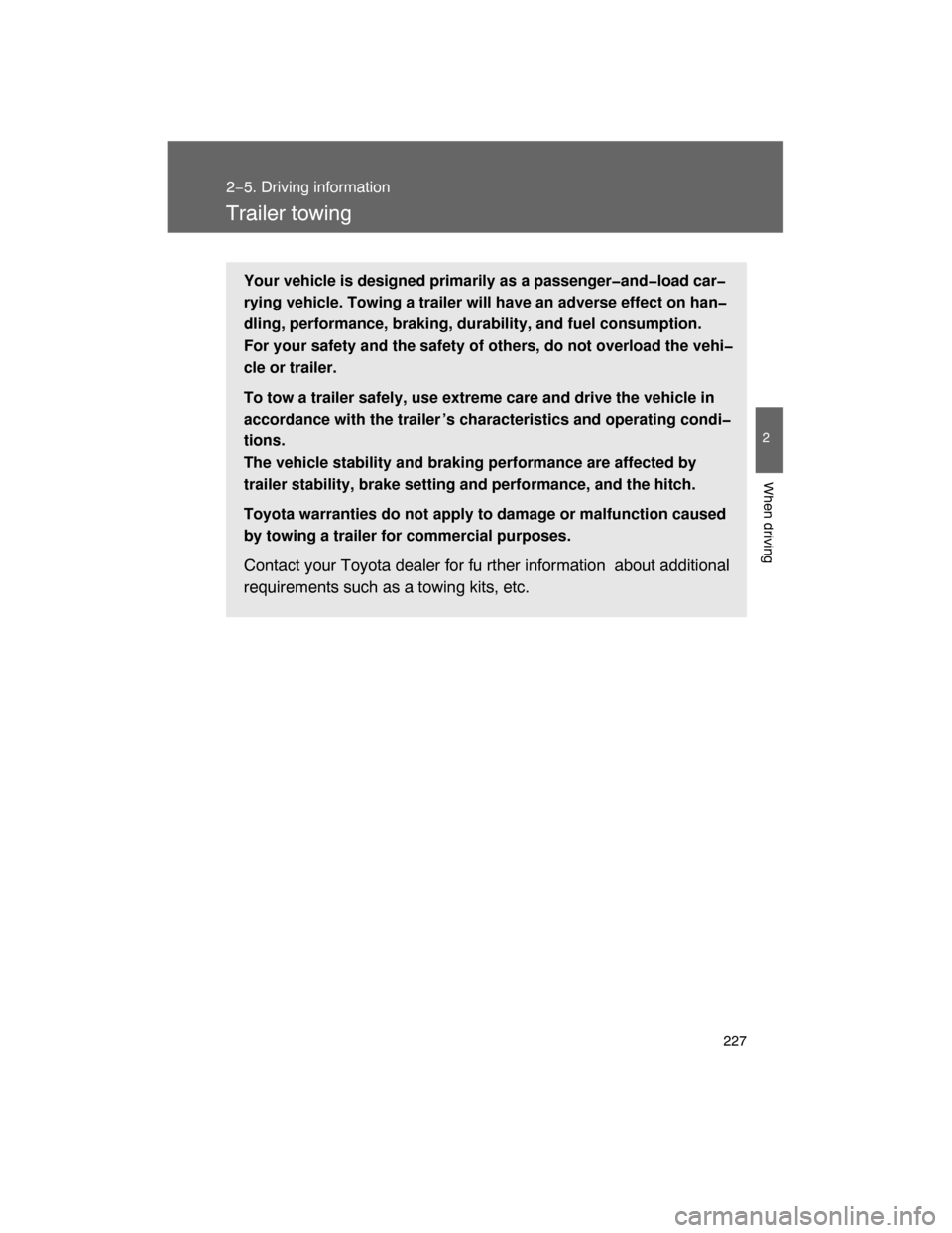

Trailer towing
Your vehicle is designed primarily as a passengerandload car
rying vehicle. Towing a trailer will have an adverse effect on han
dling, performance, braking, durability, and fuel consumption.
For your safety and the safety of others, do not overload the vehi
cle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer ’s characteristics and operating condi
tions.
The vehicle stability and braking performance are affected by
trailer stability, brake setting and performance, and the hitch.
Toyota warranties do not apply to damage or malfunction caused
by towing a trailer for commercial purposes.
Contact your Toyota dealer for fu rther information about additional
requirements such as a towing kits, etc.

228 2−5. Driving information
Weight limits
Confirm that the gross trailer weight, gross combined weight, gross
vehicle weight, gross axle weight and trailer tongue load are all within
the limits.
lThe gross trailer weight must never exceed 8500 lb. (3856 kg).
l
The gross combined weight must never exceed 14550 lb. (6600
kg).
lThe gross vehicle weight must
never exceed the GVWR indi−
cated the Certification Label.
l
The gross axle weight on each
axle must never exceed the
GAWR indicated the Certifica−
tion Label.
ITY25C002

229
2−5. Driving information
2
When driving
Towing related term
Towing related term Meaning
GVWR (Gross Vehicle Weight
Rating)The maximum allowable gross vehicle
weight. The gross vehicle weight is the
total weight of the vehicle. When towing
a trailer, it is the sum of the vehicle
weight (including the occupants, cargo
and any optional equipment installed on
the vehicle) and the tongue load.
GAWR (Gross Axle Weight
Rating)The maximum allowable gross axle
weight.
The gross axle weight is the load placed
on each axle (front and rear).
GCWR (Gross Combination
Weight Rating)The maximum allowable gross combi−
nation weight. The gross combination
weight is the sum of the total vehicle
weight (including the occupants, cargo
and any optional equipment installed on
the vehicle) and the weight of the trailer
being towed (including the cargo in the
trailer).
Gross trailer weightThe sum of the trailer weight and the
weight of the cargo in the trailer.
Towing capacityThe maximum allowable gross trailer
weight. Towing capacity is calculated
considering base vehicle with neces−
sary vehicle equipment and occupants.
Additional optional equipment, passen−
gers and cargo in the vehicle will reduce
the towing capacity, gross trailer weight
includes the trailer, cargo and neces−
sary equipment for towing.
Tongue load The load placed on the trailer hitch ball.

230 2−5. Driving information
Trailer tongue load
lA recommended tongue load varies in accordance with the types
of trailers or towing as described below.
lIn order to ensure the recommended values shown below, the
trailer must be loaded by referring to the following instructions.
The trailer cargo load should be distributed so that the tongue load
is 9 to 11 %.
(Tongue load / Gross trailer weight 100 = 9 to 11 %)
If the gross trailer weight is over 5000 lb. (2268 kg), it is necessary
to use a sway control device with sufficient capacity.
The gross trailer weight and tongue l oad can be measured with plat−
form scales found at a highway we
ighing station, building supply
company, trucking company, junk yard, etc.
Gross trailer weight
Tongue load

231
2−5. Driving information
2
When driving
Removing hitch cover
Remove the clip.
Grasp the lower edge of the hitch
cover and raise the cover.
When reattaching the cover,
reverse the steps listed.
STEP1
ITY25C047
STEP2

232 2−5. Driving information
Selecting trailer ball
Use the correct trailer ball for your application.
Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer
coupler. Most couplers are
stamped with the required trailer
ball size.
Shank length
Protrudes beyond the bottom of
the lock washer and nut at least 2
threads.
Shank diameter
Matches the ball mount hole
diameter size.
Connecting trailer lights
Use the wire harness stored in
the rear end under body.
ITY25C009
