TOYOTA LAND CRUISER 2008 J200 Owners Manual

255
3−1. Using the air conditioning system and defogger
3
Interior features
Adjusting the position and opening and closing the air outlets
Rear center outlets
Direct air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Roof side outlets
Direct air flow to the left or
right, up or down.
Turn the knob fully to the back
of the vehicle to close the
vent.
ITY31C035
NOTICE
nTo prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

256
3−1. Using the air conditioning system and defogger
Rear window and outside rear view mir ror defoggers
nThe rear window and outside rear vi ew mirror defoggers can be oper
ated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
nWhen the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
These features are used to defog the rear window, and to remove
raindrops, dew and frost from the outside rear view mirrors.
With navigation system
On/off
The defoggers will automati−
cally turn off after 15 to 225
minutes. The operation time
changes according to the
ambient temperature and vehi−
cle speed. Pressing the switch
again also turns the defoggers
off.
Without navigation system

257
3−1. Using the air conditioning system and defogger
3
Interior features
W indshield wiper de−icer
nThe windshield wiper deicer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
nWhen the windshield wiper deicer is on
Do not touch the glass at the lower part of the windshield or to the side of the
front pillars as the surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the wind
shield and wiper blades.
With navigation system
On/off
The windshield wiper de−icer
will automatically turn off after
approximately 15 minutes.
Pressing the switch again also
turns the de−icer off.
Without navigation system

258
3−2. Using the audio system

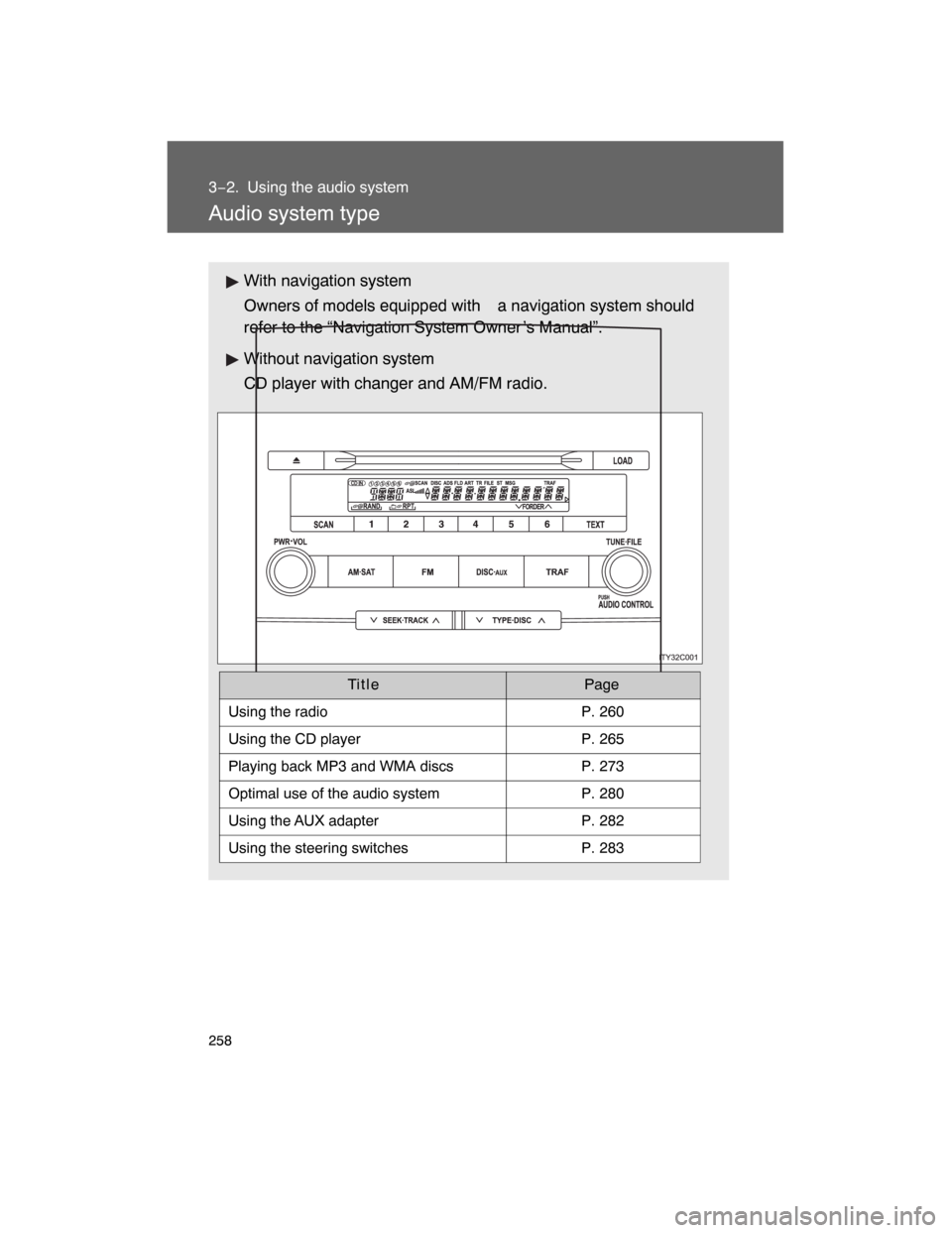

Audio system type
With navigation system
Owners of models equipped with
a navigation system should
refer to the “Navigation System Owner ’s Manual”.
Without navig
ation system
CD player with changer and AM/FM radio.
Ti t l ePage
Using the radioP. 260
Using the CD playerP. 265
Playing back MP3 and WMA discsP. 273
Optimal use of the audio systemP. 280
Using the AUX adapterP. 282
Using the steering switchesP. 283

259
3−2. Using the audio system
3
Interior features
nUsing cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
CAUTION
nFor vehicles sold in the U.S.A.
lPart 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user ’s authority to operate this device.
lLaser products
Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas−
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
This product utilizes a laser.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo−
sure.
NOTICE
nTo prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
n
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

260
3−2. Using the audio system
Using the radio
Press or to choose either an AM or FM band.
LOAD
TYPEDISCSEEKTRACK
AMSATFMDISCAUXTRAF
12 3 4 56
TUNEFILE
PUSHAUDIO CONTROL
PWRVOL
TEXTSCAN
RAND RPT
1234 56DISCASLSCAN ADS FLD FILETR TRAFST MSGART
FORDER
PWRVOLSCANPWRVOLSCAN
ITY32C005
Scanning for receivable stations
Seeking the frequencyStation selector
AM/FM mode buttons
Changing the program typeAdjusting the frequency
Power Volume

261
3−2. Using the audio system
3
Interior features
Setting station presets
Search for desired stations by turning or pressing “ ” or
“ ” on .
Press and hold the button (from to ) the sta−
tion is to be set to, and you hear a beep.
Scanning radio stations
nScanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press once
again.
nScanning all radio stations within range
Press .
“SCAN” appears on the display and all stations with reception
will be played for a few seconds each.
When the desired station
is reached, press once
again.
STEP1
STEP 2
STEP 1
STEP 2
STEP 1
STEP 2

262 3−2. Using the audio system
RDS (Radio Data System)
This feature allows your radio to receive station identification informa−
tion and program information (classic
al, jazz, etc.) from radio stations
which broadcast this information.
n
Receiving RDS broadcasts
Press “ ” or “” on the during FM reception.
The type of program changes each time the button is pressed.
lROCK
l
EASYLIS (Easy listening)
lCLS/JAZZ (Classical music and Jazz)
l
R & B (Rhythm and Blues)
l
INFORM (Information)
lRELIGION
l
MISC (Miscellaneous)
l
ALERT (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
Press , or “ ” or “ ” on .
The radio seeks scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
display.
nDisplaying radio station names
Press .
STEP1
STEP 2

263
3−2. Using the audio system
3
Interior features
nDisplaying radio text messages
Press .
If MSG is shown on the display, a text message will be displayed.
If the text continues past the end of the display, is displayed. Press
and hold until you hear a beep.
nTraffic announcement
Press .
“TRAF SEEK” appears on the display, and the radio will start seeking
any station broadcasting traffic program information.
If no traffic program station is found, “NO TRAF INFO” appears on the
display.
nWhen the battery is disconnected
All preset stations are erased.
nReception sensitivity
lMaintaining perfect radio reception at all times is difficult due to the con−
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
l
The radio antenna is mounted inside the rear quarter window. To main−
tain clear radio reception, do not attach metallic window tinting or other
metallic objects to the antenna wire mounted inside the rear quarter win−
dow.

264 3−2. Using the audio system
nCertifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
lReorienting or relocating the receiving antenna.
lIncreasing the separation between the equipment and receiver.
lConnecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
lConsulting the dealer or an experienced radio/TV technician for help.
