345 3−6. Other interior features
3
Interior features
nThe power outlets can be used when
12V: The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
115V: The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
nTo avoid damaging the power outlets
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir−
cuit.
nTo prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
115V: Do not use a 115V AC appliance that requires more than 100W.
If a 115V AC appliance that consumes more than 100W is used, the pro−
tection circuit will cut the power supply.
nTo prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not
running.
nAppliances that may not operate properly (115V AC)
The following 115V AC appliances may not operate even if their power con−
sumption is under 100W.
lAppliances with high initial peak wattage
lMeasuring devices that process precise data
l
Other appliances that require an extremely stable power supply

346
3−6. Other interior features

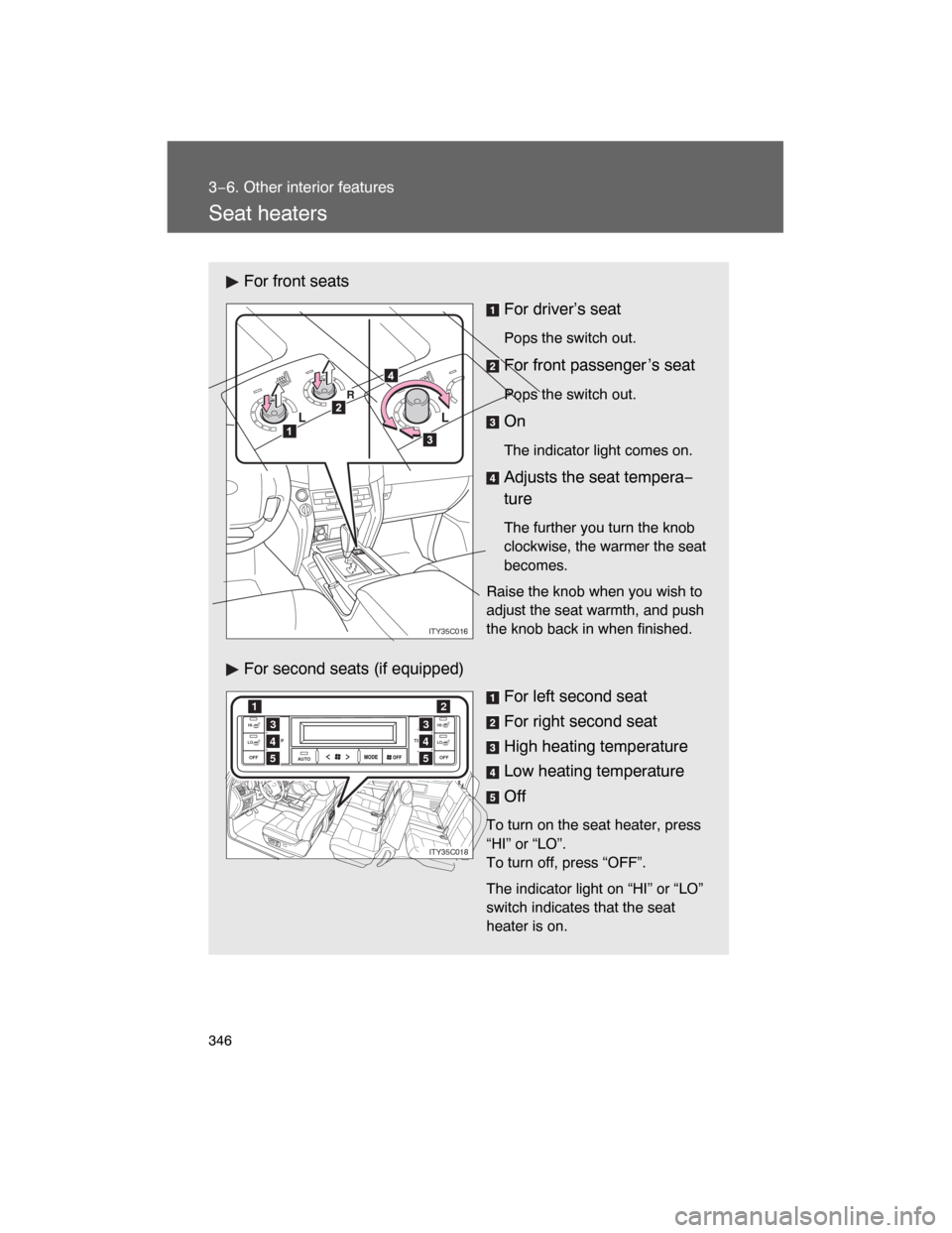

Seat heaters
For front seats
For driver’s seat
Pops the switch out.
For front passenger ’s seat
Pops the switch out.
On
The indicator light comes on.
Adjusts the seat tempera−
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.
Raise the knob when you wish to
adjust the seat warmth, and push
the knob back in when finished.
For second seats (if equipped)
For left second seat
For right second seat
High heating temperature
Low heating temperature
Off
To turn on the seat heater, press
“HI” or “LO”.
To turn off, press “OFF”.
The indicator light on “HI” or “LO”
switch indicates that the seat
heater is on.
L
R
L
ITY35C016
AUTO TEMP
OFF
TEMP
HI
LOOFF
HI
LO4
12
3
5
4
3
5
ITY35C018

347 3−6. Other interior features
3
Interior features
nThe seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
nBurns
lUse caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
Babies, small children, the elderly, the sick and the disabled
Persons with sensitive skin
Persons who are fatigued
Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
lDo not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
nTo prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
n
To prevent battery discharge
Turn the switches off when the engine is not running.

348
3−6. Other interior features
Ar mrest
NOTICE
nTo prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.
ITY35C052

349
3−6. Other interior features
3
Interior features
Floor mats
CAUTION
nWhen inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering with the
movement of the pedals during driving, resulting in an accident.
lMake sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
l
Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car
pet.
Secure the floor mat using the
hooks provided.
ITY35C020

350
3−6. Other interior features

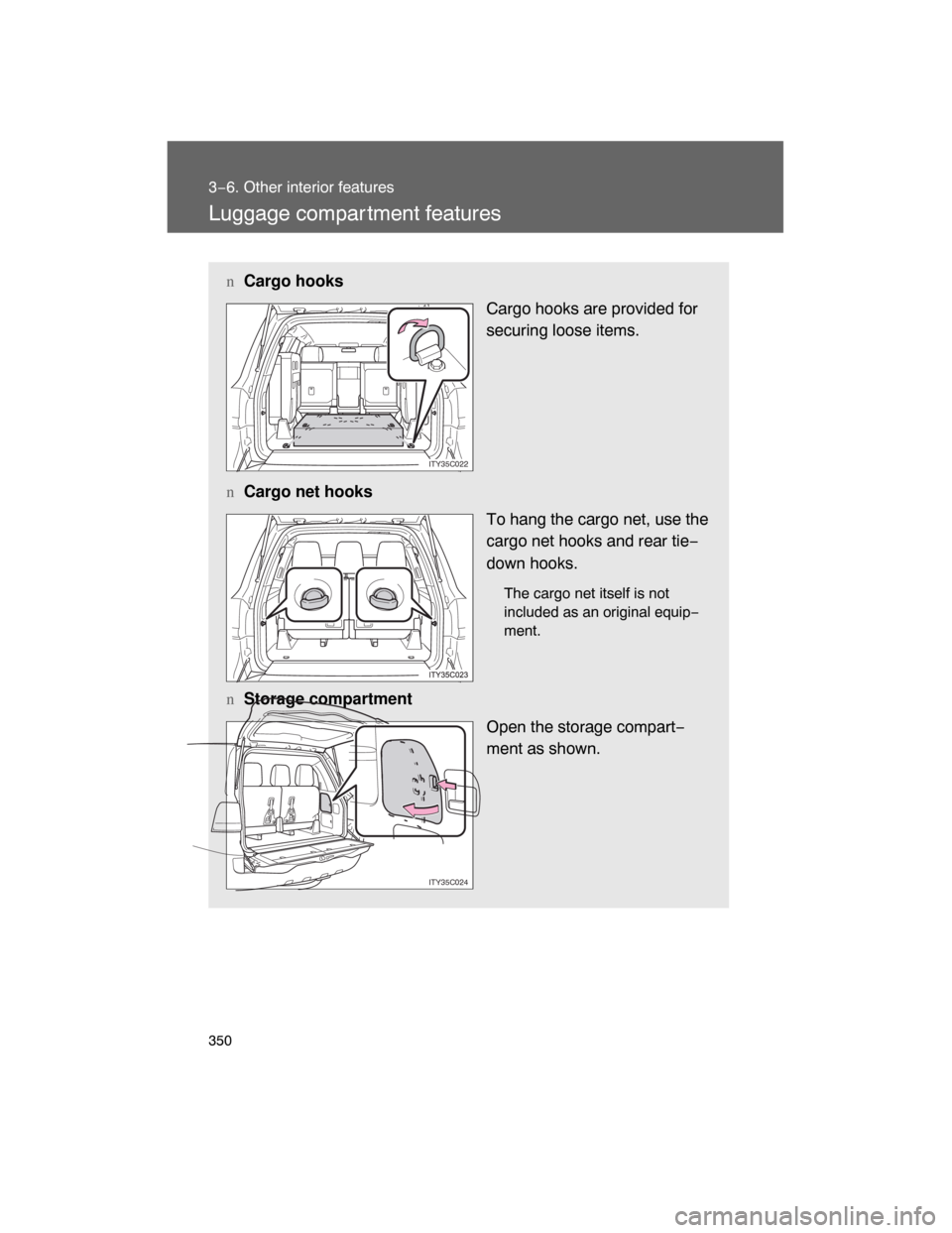

Luggage compar tment features
nCargo hooks
Cargo hooks are provided for
securing loose items.
nCargo net hooks
To hang the cargo net, use the
cargo net hooks and rear tie−
down hooks.
The cargo net itself is not
included as an original equip−
ment.
nStorage compartment
Open the storage compart−
ment as shown.
ITY35C022
ITY35C024

351 3−6. Other interior features
3
Interior features
CAUTION
nWhen the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
nTo prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on it.
nWarning reflector holder
Hold the warning reflector with
a band.
The warning reflector itself is
not included as an original
equipment.
nFirstaid kit holder
Hold the first−aid kit with a
band.
The first−aid kit itself is not
included as an original equip−
ment.
ITY35C025
ITY35C026

352
3−6. Other interior features
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac−
tured under license from HomeLink
.
Programming HomeLink (for U.S.A. owners)
The HomeLink compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator
The garage door opener can be programmed to operate garage
doors, gates, entry do ors, door locks, home lighting systems, secu
rity systems, and other devices.
ITY35C029

353 3−6. Other interior features
3
Interior features
nProgramming HomeLink
Point the remote control trans−
mitter for the device 1 to 3 in. (25
to 75 mm) from the HomeLink
buttons.
Keep the HomeLink indicator
light in view while programming.
Press and hold one of the
HomeLink buttons and the
transmitter button. When the
HomeLink indicator light
changes from a slow to a rapid
flash, you can release both but−
tons.
If the HomeLink indicator light
comes on but does not flash,
flashes rapidly for 2 seconds and
remains lit, the HomeLink button
is already programmed. Use the
other buttons or follow the
“Reprogramming a HomeLink
button” instructions. (
P. 357)
ITY35C030
STEP1
ITY35C031
STEP2

354 3−6. Other interior features
Test the HomeLink operation
by pressing the newly pro−
grammed button.
If a HomeLink button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
remote control transmitter is of
the rolling code type. Press and
hold the programmed HomeLink
button. The remote control trans−
mitter is of the rolling code type if
the HomeLink indicator light
flashes rapidly for 2 seconds and
then remains lit. If your transmit−
ter is of the rolling code type, pro−
ceed to the heading
“Programming a rolling code sys−
tem”.
Repeat the steps above to program another device for each of
the remaining HomeLink
buttons.
ITY35C032
STEP3
STEP 4
