TOYOTA LAND CRUISER 2008 J200 Owners Manual

5
When trouble arises
457 5−2. Steps to take in an emergency
CAUTION
n If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
lStop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
lIf the tire pressure warning light comes on even after tire inflation pres−
sure adjustment, it is probable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
lAvoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
n If a blowout or sudden air loss should occur
The tire pressure warning system may not activate immediately.

458 5−2. Steps to take in an emergency
CAUTION
n Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ−
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr
essure for those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS−ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under−inflated. Accordingly,
when the low tire pressu
re telltale (tire pressure warning light) illumi−
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under−
inflated tire causes the tire to overheat and can lead to tire failure.
Under−inflation also reduces fuel effi
ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub−
stitute for proper tire main tenance, and it is the driver ’s responsibility to
maintain correct tire pressure, even if under−inflation has not reached the
level to trigger illu
mination of the TPMS low ti re pressure telltale (tire
pressure warning light).

5
When trouble arises
459 5−2. Steps to take in an emergency
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi
cate when the system is not operat−
ing properly. The TPMS (tire pressure warning system) malfunction indi−
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det
ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi−
nated. This sequence will
continue upon subsequent vehicle start−ups as
long as the malfunction exists. When the malfunction indi cator is illumi−
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari−
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres−
sure warning system) malfunction te
lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter−
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
n Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres−
sure warning system may
not operate properly.

460
5−2. Steps to take in an emergency

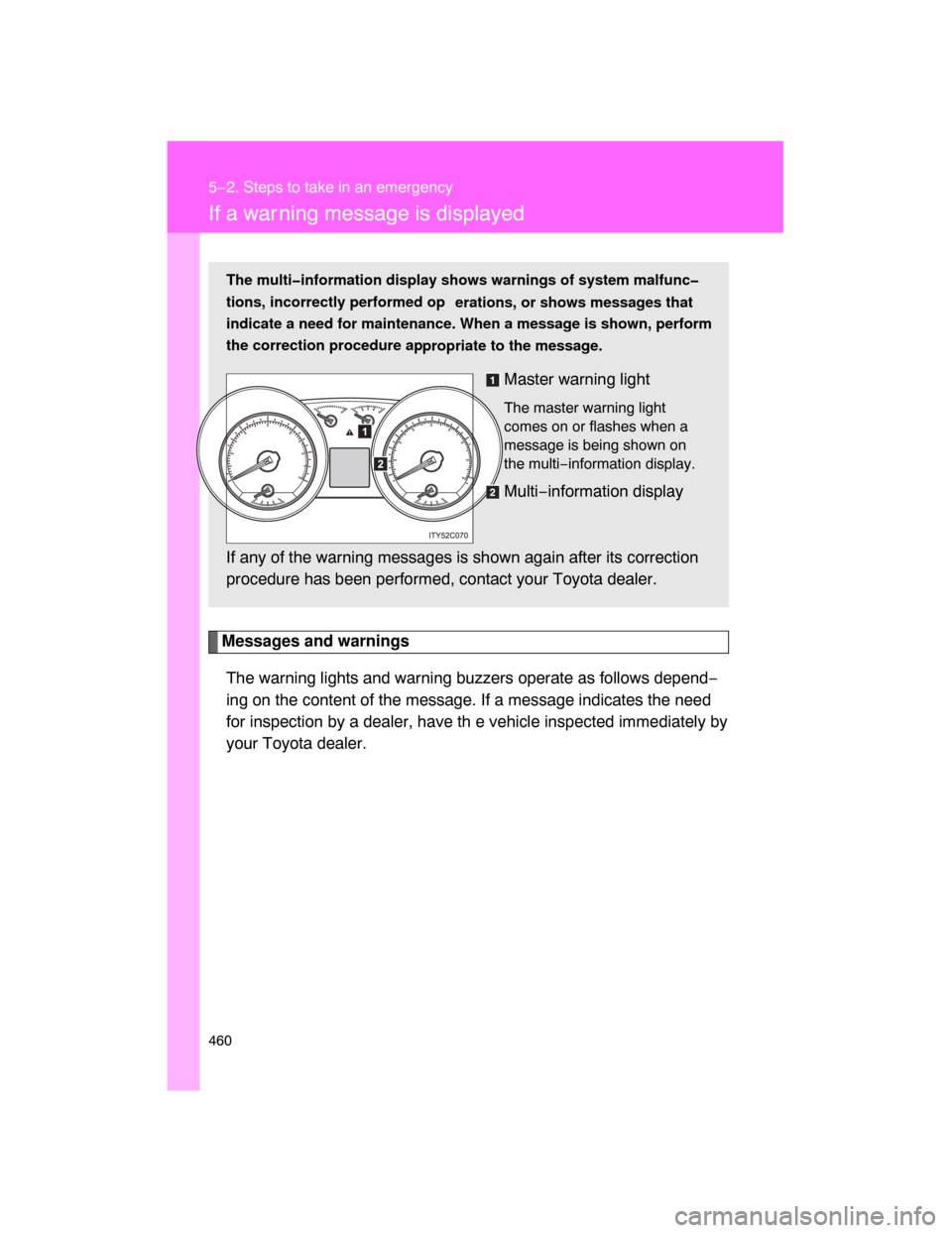

If a war ning message is displayed
Messages and warnings
The warning lights and warning buzzers operate as follows depend−
ing on the content of the message. If a message indicates the need
for inspection by a dealer, have th e vehicle inspected immediately by
your Toyota dealer.
The multiinformation display shows warnings of system malfunc
tions, incorrectly performed op
erations, or shows messages that
indicate a need for maintenance. When a message is shown, perform
the correction procedure ap
propriate to the message.
Master warning light
The master warning light
comes on or flashes when a
message is being shown on
the multi−information display.
Multi−information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.

5
When trouble arises
461 5−2. Steps to take in an emergency
*: A buzzer sounds first time a message is shown on the multi−information dis−
play.System
warning
lightWarningbuzzer*Wa r n i n g
Comes on SoundsIndicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed.
Comes
on or
flashesSoundsIndicates an important situation,
such as when the system shown
on the multi−information display
may be malfunctioning.
Comes onDoes not
soundIndicates a condition, such as
malfunction of electrical compo−
nents, their condition, or indicates
the need for maintenance.
FlashesDoes not
sound
Indicates a situation, such as
when an operation has been per−
formed incorrectly, or indicates
how to perform an operation cor−
rectly.

462 5−2. Steps to take in an emergency
nResetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 393)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.
nWarning messages in the cruise control mode
In the following instances, there is a possibility that the approach warning will
not illuminate even when vehicle−to−vehicle distance is closing.
lWhen the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
lWhen the vehicle ahead is traveling at an extremely slow speed.
lImmediately after the cruise control speed has been set.
l
At the instant the accelerator is applied.
NOTICE
nEngine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

5
When trouble arises
463
5−2. Steps to take in an emergency

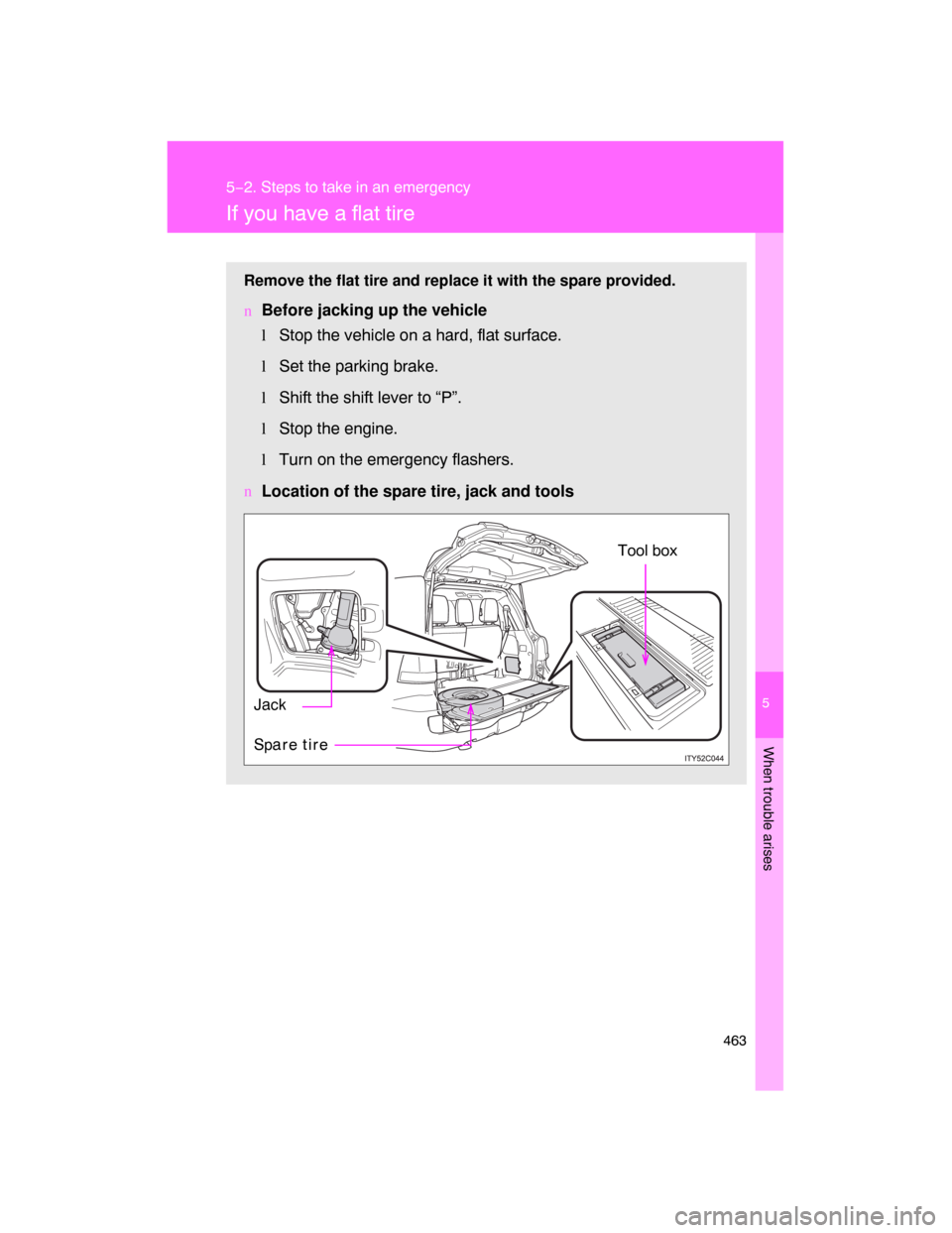

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
nBefore jacking up the vehicle
l
Stop the vehicle on a hard, flat surface.
lSet the parking brake.
l
Shift the shift lever to “P”.
l
Stop the engine.
lTurn on the emergency flashers.
n
Location of the spare tire, jack and tools
Tool box
Spare tire
Jack

464 5−2. Steps to take in an emergency
Taking out the jack
Remove the cover.
Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP 2

5
When trouble arises
465 5−2. Steps to take in an emergency
Taking out the tool box
Remove the cover.
Take out the tool box.
Assemble the jack handle (in the tool box)
Assemble the jack handle exten−
sion as shown. Be sure to tighten
each bolt securely.
STEP1
STEP 2

466 5−2. Steps to take in an emergency
Taking out the spare tire
Remove the cover.
Insert the jack handle extension
into the lowering screw.
Lower
Raise
Lower the spare tire completely
to the ground.
STEP1
ITY51C030
STEP2
ITY51C031
STEP3
