TOYOTA LAND CRUISER 2008 J200 Owners Manual

416 4−3. Do−it−yourself maintenance

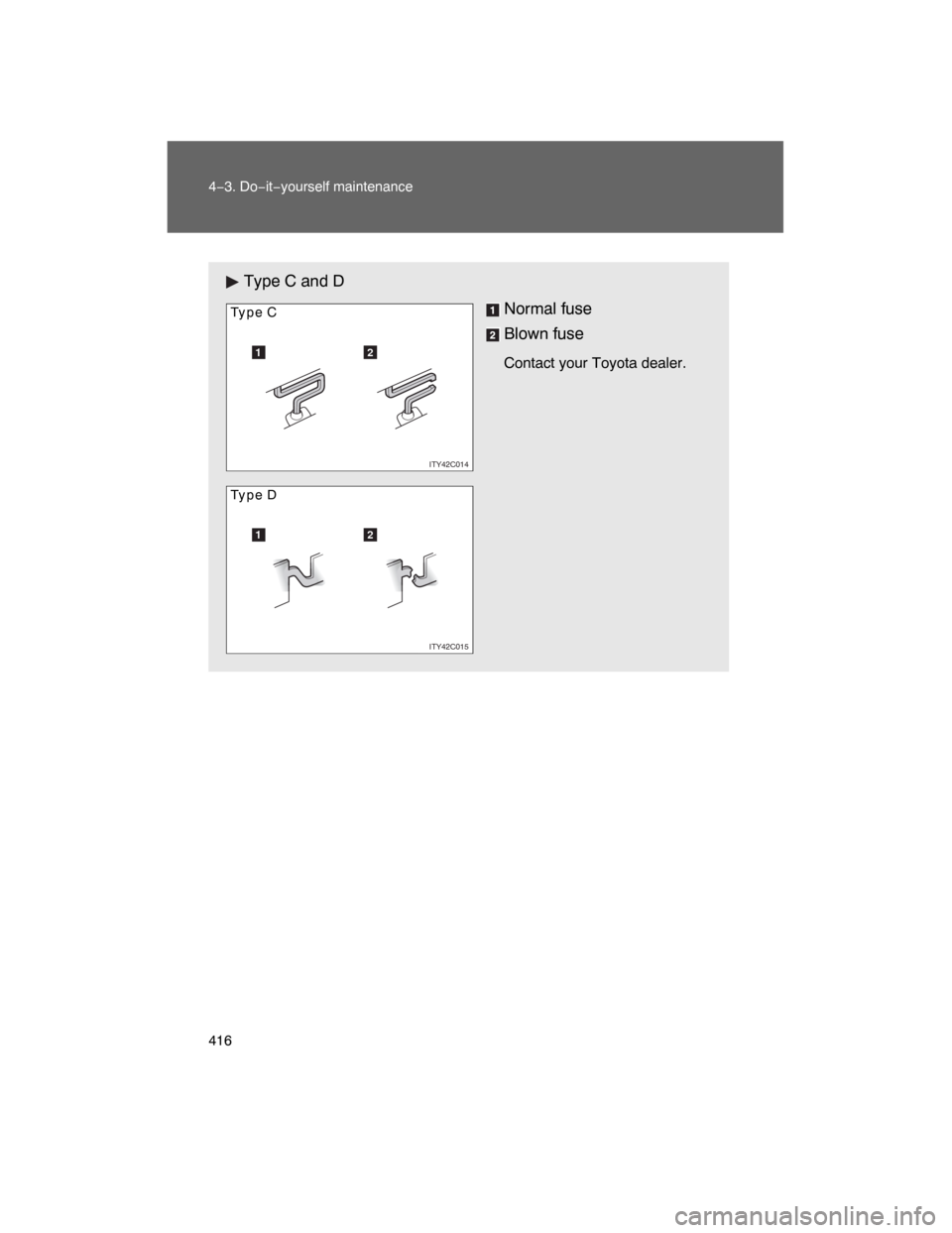

Type C and D
Normal fuse
Blown fuse
Contact your Toyota dealer.12
ITY42C014
Type C
12
ITY42C015
Type D

417
4−3. Do−it−yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings
n

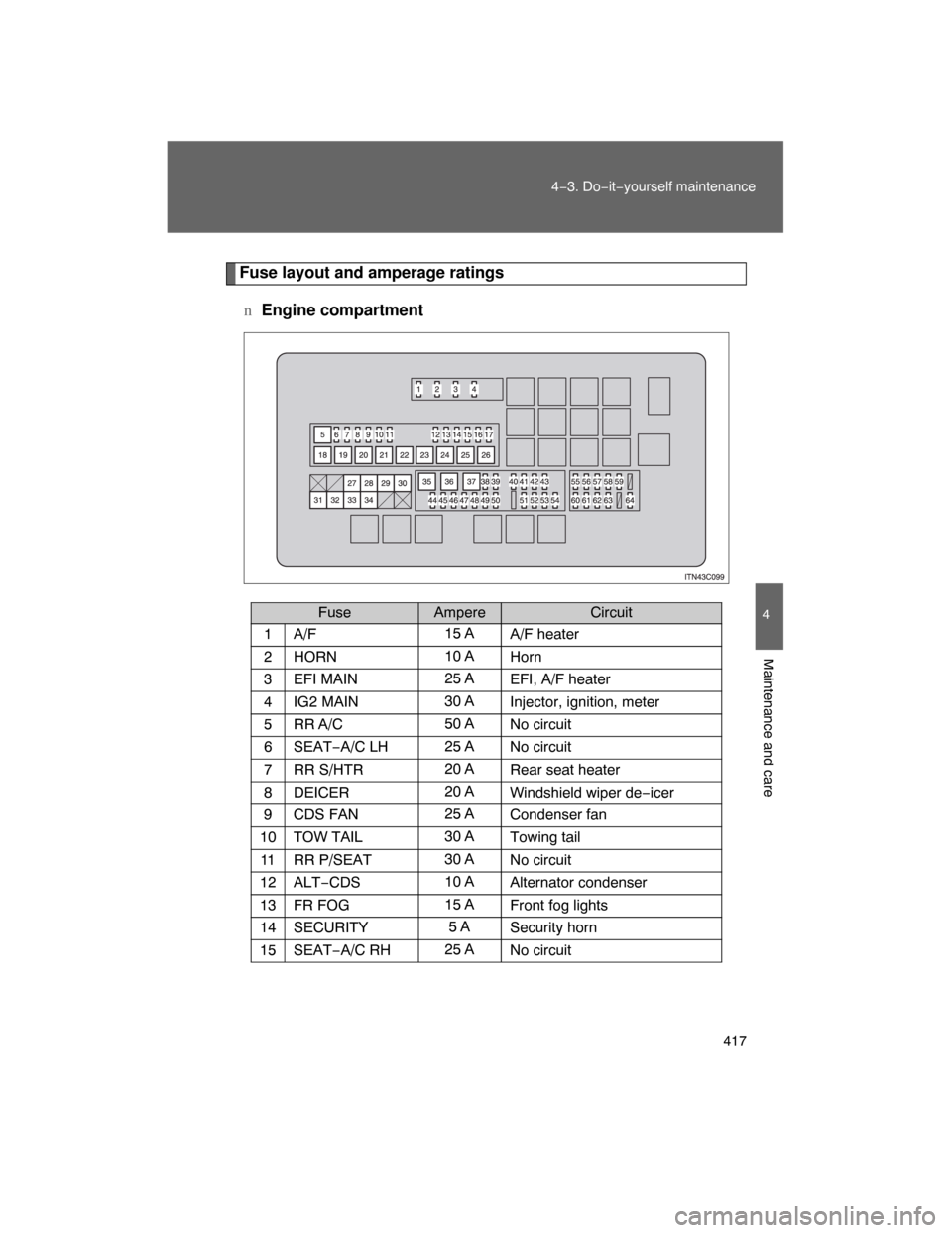

Engine compartment
FuseAmpere Circuit
1 A/F15 A
A/F heater
2 HORN10 A
Horn
3 EFI MAIN25 A
EFI, A/F heater
4 IG2 MAIN30 A
Injector, ignition, meter
5 RR A/C50 A
No circuit
6 SEAT−A/C LH25 A
No circuit
7 RR S/HTR20 A
Rear seat heater
8 DEICER20 A
Windshield wiper de−icer
9 CDS FAN25 A
Condenser fan
10 TOW TAIL30 A
Towing tail
11 RR P/SEAT30 A
No circuit
12 ALT−CDS10 A
Alternator condenser
13 FR FOG15 A
Front fog lights
14 SECURITY5 A
Security horn
15 SEAT−A/C RH25 A
No circuit

418 4−3. Do−it−yourself maintenance
16 STOP15 AStoplights, high mounted stop−
light, brake controller, towing
converter, ABS, VSC, main
body ECU, EFI
17 TOW BRK30 A
Brake controler
18 RR AUTO A/C50 A
Rear blower control
19 PTC−150 A
PTC heater
20 PTC−250 A
PTC heater
21 PTC−350 A
PTC heater
22 RH−J/B40 A
No circuit
23 SUB BATT40 A
To w i n g
24 VGRS40 A
No circuit
25 H−LP CLN30 A
Headlight cleaner
26 DEFOG30 A
Rear window defogger
27 AHC60 A
No circuit
28 HTR50 A
Blower controller
29 PBD30 A
No circuit
30 LH−J/B150 A
Main body ECU
31 ALT180 A
No circuit
32 A/PUMP NO.150 A
AI DRIVER
33 A/PUMP NO.250 A
AI DRIVER2
34 MAIN40 AHeadlight, daytime running
light system
35 ABS150 A
ABS
36 ABS230 A
ABS
37 ST30 A
Starter system
38 IMB7.5 AID code box, smart key sys−
tem, GBS
39 AM25 A
Main body ECU
40 DOME27.5 A
Vanity lights, overhead module
FuseAmpereCircuit

419
4−3. Do−it−yourself maintenance
4
Maintenance and care
41 ECU−B25 ADriving position memory sys−
tem
42 TEL5 A
No circuit
43 RSE7.5 A
Rear seat entertainment
44 TOWING30 A
To w i n g
45 DOOR NO.225 A
Main body ECU
46 STR LOCK20 A
Steering lock system
47 TURN−HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
48 EFI MAIN220 A
Fuel pump
49 ETCS10 A
EFI
50 ALT−S5 A
IC−ALT
51 AMP30 A
Audio system
52 RAD NO.110 ANavigation system, radio
receiver assembly
53 ECU−B15 Asmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate−
way ECU, steering sensor
54 DOME15 A
Door courtesy lights, clock
55 HEAD LH15 A
Headlight high beam (left)
56 HEAD LL15 A
Headlight low beam (left)
57 INJ10 A
Injector, ignition
58 MET5 A
Meter
59 IGN10 ACircuit open, SRS airbag sys−
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
60 HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

420 4−3. Do−it−yourself maintenance
61 HEAD RL15 A
Headlight low beam (right)
62 EFI NO.27.5 AAFM, EVP VSV, 02 SSR, KEY
OFF PMP, AI DRIVER, AI EX
VSV, ACIS VSV
63 RR A/C NO.27.5 A
No circuit
64 DEF NO.25 A
Outside rear view mirror heater
FuseAmpereCircuit

421
4−3. Do−it−yourself maintenance
4
Maintenance and care

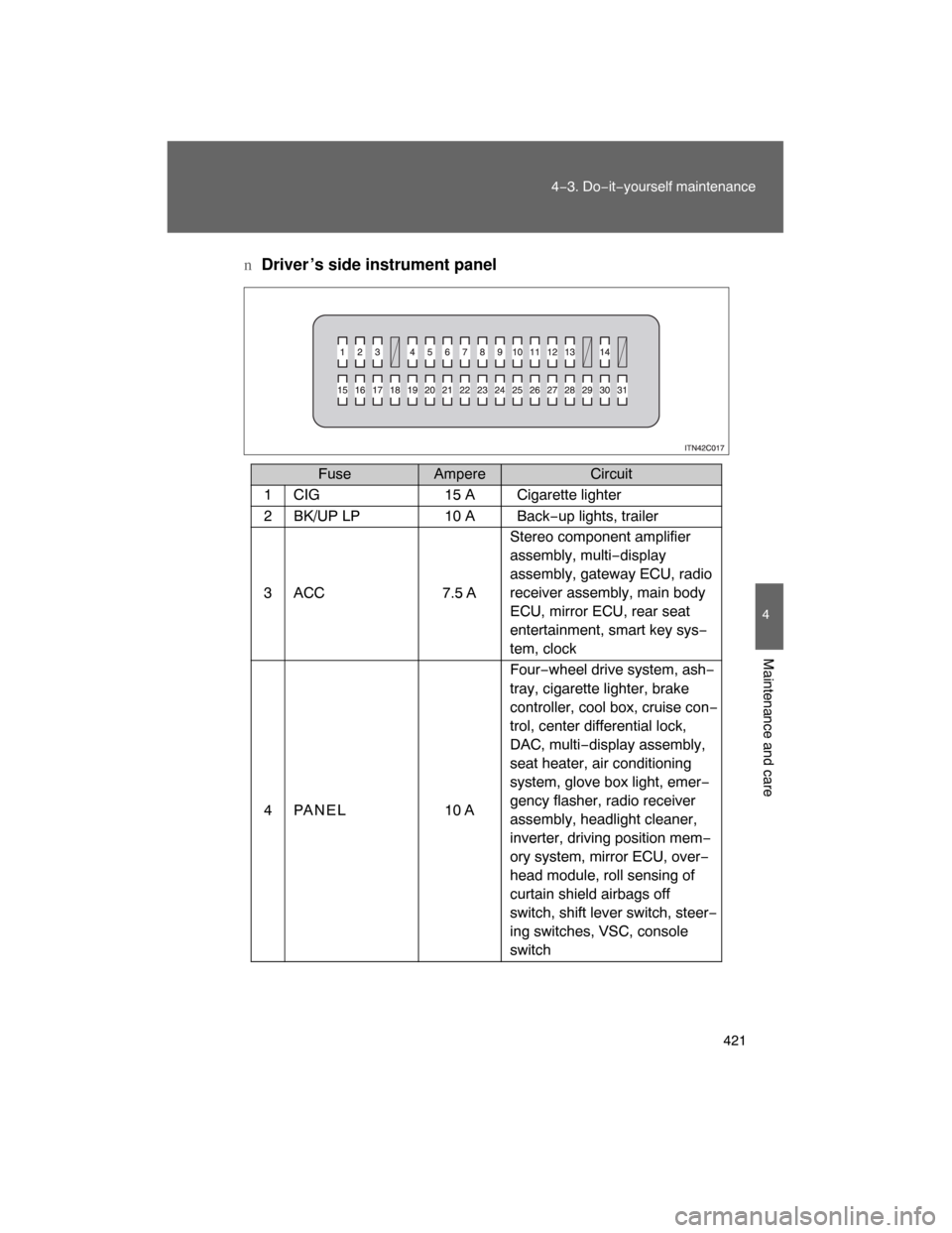

nDriver ’s side instrument panel
FuseAmpere Circuit
1 CIG 15 A Cigarette lighter
2 BK/UP LP 10 A Back−up lights, trailer
3 ACC 7.5 AStereo component amplifier
assembly, multi−display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys−
tem, clock
4 PANEL 10 A
Four−wheel drive system, ash−
tray, cigarette lighter, brake
controller, cool box, cruise con−
trol, center differential lock,
DAC, multi−display assembly,
seat heater, air conditioning
system, glove box light, emer−
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem−
ory system, mirror ECU, over−
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer−
ing switches, VSC, console
switch

422 4−3. Do−it−yourself maintenance
5 ECU−IG NO.2 10 AAir conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6 WINCH 5 A No circuit
7 A/C IG 10 ACool box, condenser fan,
cooler compressor, MG CL,
rear window defogger, RR
MGC VLV
8 TA I L 15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9 WIPER 30 A Windshield wiper
10 WSH 20 A Windshield washer
11 RR WIPER 15 A Rear wiper
12 4WD 20 A 4WD
13 LH−IG 5 AAlternator, sub battery, seat
heater, windshield wiper de−
icer, seat belt pretensioners,
emergency flasher, inverter,
shift lever switch
14 ECU−IG NO.1 5 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys−
tem, pre−collision seat belt,
headlight cleaner, multi−dis−
play assembly, driving position
memory system, power door
lock system
15 S/ROOF
25 A Moon roof
FuseAmpereCircuit

423
4−3. Do−it−yourself maintenance
4
Maintenance and care
16 RR DOOR RH 20 A Power windows
17 MIR 15 AMirror ECU, outside rear view
mirror heater
18 RR DOOR LH 20 A Power windows
19 FR DOOR LH 20 A Power windows
20 FR DOOR RH 20 A Power windows
21 RR FOG 7.5 A No circuit
22 A/C 7.5 A Air conditioning system
23 AM1 5 A No circuit
24 TI & TE 15 A Tilt and telescopic steering
25 FR P/SEAT RH 30 A Front seat adjustment
26 PWR OUTLET 15 A Power outlet
27 OBD 7.5 A DLC3
28 PSB 30 A Pre−collision seat belt
29 DOOR NO.1 25 A Main body ECU
30 FR P/SEAT LH 30 A Front seat adjustment
31 INVERTER
15 A Inverter
FuseAmpereCircuit

424 4−3. Do−it−yourself maintenance

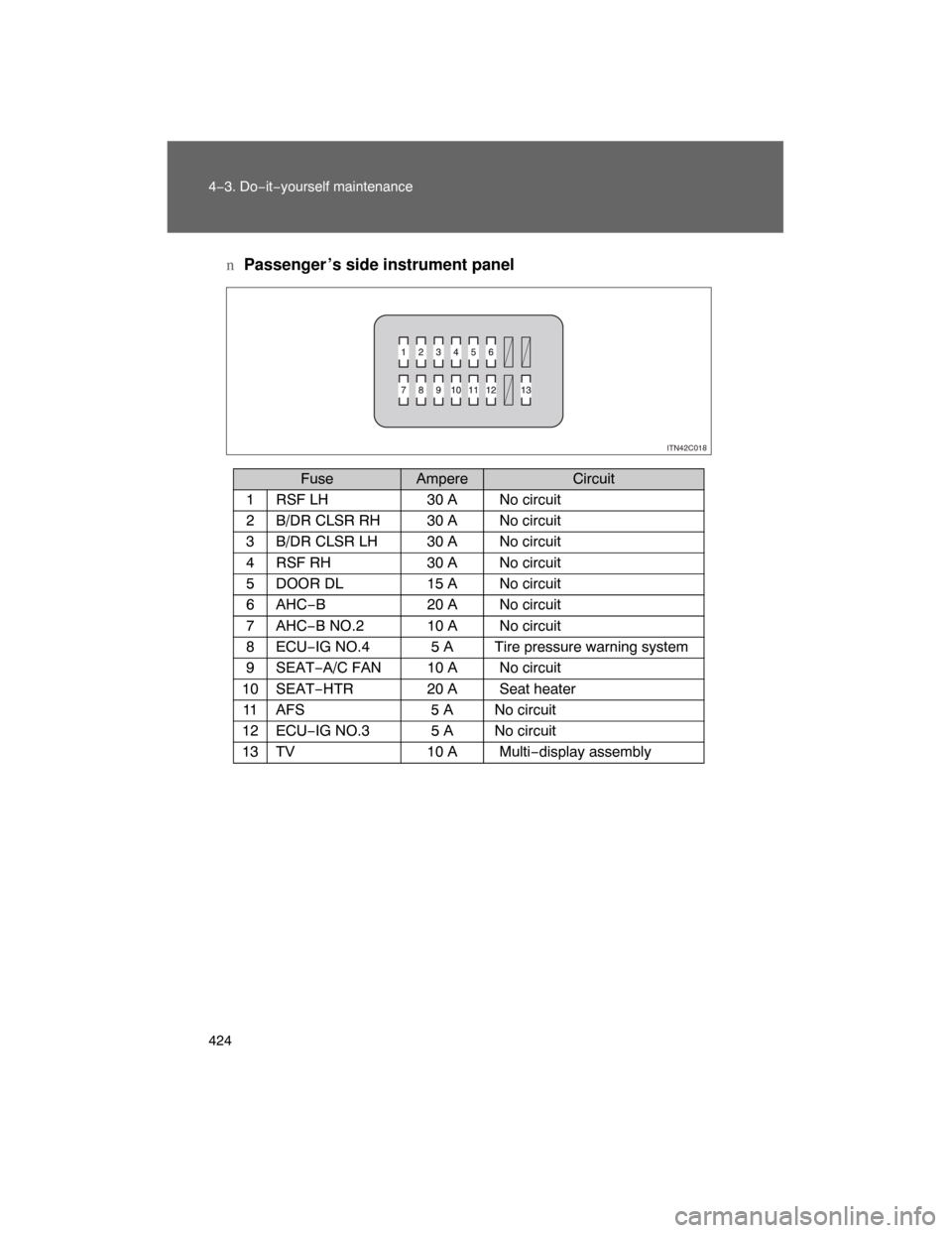

nPassenger ’s side instrument panel
FuseAmpere Circuit
1 RSF LH 30 A No circuit
2 B/DR CLSR RH 30 A No circuit
3 B/DR CLSR LH 30 A No circuit
4 RSF RH 30 A No circuit
5 DOOR DL 15 A No circuit
6 AHC−B 20 A No circuit
7 AHC−B NO.2 10 A No circuit
8 ECU−IG NO.4 5 A Tire pressure warning system
9 SEAT−A/C FAN 10 A No circuit
10 SEAT−HTR 20 A Seat heater
11 AFS 5 A No circuit
12 ECU−IG NO.3 5 A No circuit
13 TV
10 A Multi−display assembly
ITN42C018

425
4−3. Do−it−yourself maintenance
4
Maintenance and care
nAfter a fuse is replaced
lIf the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (
P. 426)
lIf the replaced fuse blows again, have the vehicle inspected by your Toy−
ota dealer.
nIf there is an overload in the circuits
l
The fuses are designed to blow the entire wiring harness is damaged.
CAUTION
nTo prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
lNever use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
lAlways use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
lDo not modify fuses or the fuse box.
NOTICE
nBefore replacing fuses
Have the cause of electrical overload determined and repaired by your Toy−
ota dealer.
